Pulmonary and Critical Care Lecture Highlights: Bronchiectasis and Sarcoidosis Overview

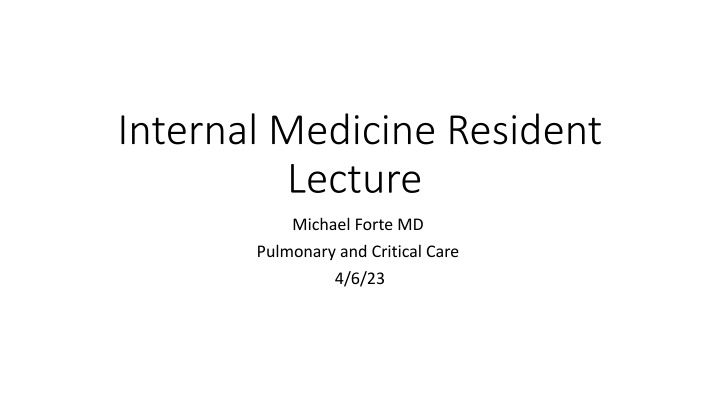

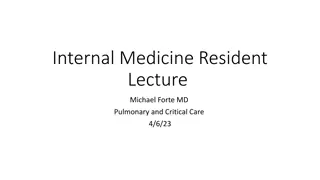

Internal Medicine Resident
Lecture
Michael Forte MD
Pulmonary and Critical Care
4/6/23
Overview...
•
Bronchiectasis
•
Sarcoidosis
•
Pulmonary Vasculitis and Hemorrhage
Bronchiectasis
•
Bad syndrome – irreversible airway dilation and destruction of
bronchi and inadequate clearance of mucous and pooling of
secretions
•
Recurrent infections, inflammatory response
•
Major divide CF versus non CF bronchiectasis
•
Symptoms- cough, sputum, recurrent infections, foul smelling
sputum, hemoptysis, dyspnea, weight loss
•
Common pathogens H flu, PSA, Strep PNA, Staph Aureus
Spiral of Death
Etiologies
Diagnosis
•
Classic symptoms plus HRCT findings
•
3 major classifications : cylindrical, varicose, cystic
•
Tram track sign (lack of tapers, 1-1.5 x size of vessel), signet ring
sign, string of pearls
CT images
Location Clues
Investigations/Workup
•
PFT- usually obstruction
•
HRCT
•
CBC
•
Sputum cultures and AFB
•
RF/ANA/Autoimmune workup
•
Immunoglobulins
•
Alpha 1
•
Sweat chloride
•
Aspergillus antibodies
•
RF
•
HIV
•
Bronchoscopy
Treatment
•
Treat underlying etiology
•
No specific therapies approved for NCFB
•
Bronchodilators ICS etc
•
Airway clearance most important
•
Mucolytics
•
Dornase alpha/pulmozyme --NO
•
HTS/mannitol/NAC?
•
Suppressive abx? Especially inhaled abx PSA
•
? macrolides -- frequent exabations?
•
Longer courses of abx for acute exacerbation
Sarcoidosis
•
Chronic granulomatous disease of unclear etiology
•
Must rule out exposure to beryllium, WTC works and interferon
therapy can show same pathological findings
•
Disease of young patients.
•
Scandanaivan countries and African Americans
•
F>M
•
Small fraction heredity
•
Some association with HLA genes
Presentation
Clinical Findings
•
Constitutional symptoms are common
•
Weight loss, fever, night sweats etc
•
Cough, wheezing, dyspnea, pleurisy
•
PFT- obstruction, restriction or both
•
+methacholine challenge
•
FVC and DLCO most important to monitor disease progression
Labs and Imaging
•
Hypercalcemia, hypercalcuria
•
ACE levels
•
BAL lymphocytosis with >cd4/cd8 ratio
•
CXR nonspecific
•
CT classic findings adenopathy +/-nodules
•
Will be PET +, not usually helpful
•
ECG, ECHO, CMR
Classic CT
Diagnosis / Path
•
No lab diagnosis
•
Bronchoscopy of biopsy showing noncaseating granuloma in absense
of fungal and AFB
•
TBBX
•
EBUS
•
Endobronchial disease
Treatment
•
Spontaneous remissions occur and prognosis is based on the initial radiographic
•
stage:
•
1 55–90% of patients with Stage I disease
•
2 40–70% with Stage II disease
•
310–20% with Stage III disease
•
4 0% with Stage IV disease
•
The course of the disease is usually dictated within 18–24 months of onset.
•
Patients with worsening symptoms, worsening forced vital capacity and/or DLCO,
or worsening lung fibrosis should receive therapy.
•
Extrathoracic abnormalities also play a role in deciding whether treatment
should be initiated ie cardiac sarcoid, hypercalcemia etc
Drugs
Pulmonary Vasculitis
•
Small vessel vasculitis, systemic and necrotizing
•
This group of diseases includes granulomatosis with polyangiitis
•
(GPA), microscopic polyangiitis (MPA), and eosinophilic
granulomatosis with polyangiitis (EGPA).
•
Frequent occurrence of ANCA is pathognomonic, but not required for
diagnosis.
•
More than half of patients with these vasculitides haveANCA
positivity as well as predominant pulmonary symptoms.
Breakdown
Treatment
Anti GBM
DAH
•
DAH is characterized by diffuse hemorrhage into the alveolar spaces.
•
Hemoptysis may be absent in up to 30% of patients. Progressive
dyspnea and hypoxemia leadsto respiratory failure. Chest radiograph
typically shows diffuse alveolar infiltrate sbilaterally. Reduced and/or
declining hemoglobin (iron-deficiency) is also seen.
•
Coagulopathy and thrombocytopenia can predispose to alveolar
hemorrhage.
DAH etiology
DAH Diagnosis
•
BRONCHOSCOPY—DAH from any cause is best confirmed by
bronchoalveolar lavage (BAL). The serial lavage aliquots will be
gradually more hemorrhagic, confirming the alveolar origin of the
blood.
•
Hemosiderin-ladenmacrophages (demonstrated by Prussian blue
staining) are also characteristically found in BAL fluid from patients
with DAH,
•
In the absence of active hemorrhage, > 20% of hemosiderin-laden
macrophages in the BAL seals diagnosis
DAH BAL
DAH management
•
Pulse dose steroids -- ?evidence
•
Plasma exchange
•
Cyclophosphamide
•
Rituxumab
•
Not RCT but favoring lower steroid now ?need for plasma exchange
Question 1
•
A 54-year-old man is evaluated for a 2-year history of chronic productive cough.
He has intermittent wheezing, shortness of breath with exertion, and nasal
congestion.
•
On physical examination, vital signs are normal. Bibasilar crackles are present.
Cardiac examination is normal.
•
CT scan of the chest shows cylindrical bronchiectasis of bilateral lower lobes.
•
Which of the following is the most appropriate diagnostic test to perform next?
•
A Bronch BAL
•
B Serum Immunoglobulins
•
C
Measurement of IgG response to pneumococcal immunization
•
D Nasal Ciliary Biopsy
Question 2
•
A 23-year-old woman is evaluated for chronic cough. She reports several episodes of chronic bronchitis as a
child and persistent cough productive of thick purulent sputum since childhood. She also has chronic nasal
congestion and chronic diarrhea. Medications are albuterol and glucocorticoid inhalers and benzonatate as
needed.
•
On physical examination, vital signs are normal; oxygen saturation is 96% with the patient breathing
ambient air. BMI is 18. Lung examination reveals bilateral diffuse crackles. The remainder of the examination
is normal.
•
Complete blood count and immunoglobulin levels are normal.
•
Chest CT scan shows bilateral upper-lobe-predominant bronchiectasis with luminal filling.
•
Spirometry shows an FEV
1
of 68% of predicted.
•
Which of the following is the most likely diagnosis?
•
A ABPA
•
B Alpha 1
•
C CF
•
D IgA Def
Question 3
•
A 72-year-old woman is evaluated for exacerbation of bronchiectasis symptoms over the past 3
days. Chronic productive cough has worsened in frequency and severity, and her sputum has
increased in amount, become thicker, and changed in color from white to dark yellow. She has
been using albuterol and hypertonic saline nebulization with a positive expiratory pressure device
three times daily since her symptoms increased.
•
On physical examination, vital signs are normal. Lung examination reveals bibasilar crackles. There
is no accessory muscle use.
•
Prior sputum cultures have grown
Pseudomonas aeruginosa
and
Haemophilus parainfluenzae
.
•
Chest radiograph reveals chronic interstitial markings but no acute change.
•
Which of the following is the most appropriate treatment?
•
A Azithro
•
B Dornase Alpha
•
C Prednisone
•
D Cipro
Question 4
•
A 31-year-old man is evaluated following an abnormal finding on a chest radiograph obtained as a part of
pre-employment screening. He is a lifelong nonsmoker with no history of dust exposure. His medical history
is unremarkable, and he has no known respiratory or constitutional symptoms.
•
The vital signs and physical examination are normal.
•
Spirometry is normal.
•
Chest radiograph reveals bilateral symmetric hilar prominence with clear lung fields.
•
Interferon-γ release assay is normal.
•
Which of the following is the most appropriate management
•
A Bronch with biopsy and EBUS
•
B MTX
•
C Prednisone
•
D Observation
•
E Bone marrow biopsy
Question 5
•
A 58-year-old man is evaluated in the hospital for new-onset heart failure after presenting with palpitations,
light-headedness, and progressive dyspnea. Medical history includes hypertension, dyslipidemia, and
pulmonary sarcoidosis.
•
On physical examination, blood pressure is 110/70 mm Hg and pulse rate is 70/min and irregular. Oxygen
saturation is 96% with the patient breathing ambient air. The central venous pressure is elevated. An S
3
is
present, but the lungs are clear to auscultation.
•
An ECG demonstrates frequent premature ventricular contractions and left bundle branch block. Frequent
three- to five-beat runs of nonsustained monomorphic ventricular tachycardia are noted on telemetry.
•
An echocardiogram demonstrates a dilated left ventricle, with an ejection fraction of 39%. Regional wall
motion abnormalities include hypokinesis of the inferobasal and mid-anterolateral left ventricular walls. A
coronary angiogram demonstrates no obstructive coronary artery disease.
•
Which of the following is the most appropriate next step in management?
•
A Amiodarone
•
B CMR
•
C Endomyocardial biopsy
•
D ICD
Question 6
•
A 67-year-old woman is evaluated in the hospital for malaise, fatigue,
arthralgia, and rash of 8 weeks' duration; dry cough and sinus
congestion of 6 weeks' duration; and painless eye redness and
dyspnea that began several days ago.
•
On physical examination, temperature is 38.2 °C (100.8 °F), blood
pressure is 122/76 mm Hg, pulse rate is 104/min, respiration rate is
24/min, and oxygen saturation is 92% with the patient breathing
ambient air. Bilateral, localized ocular injection is seen. Scattered
rhonchi are heard on lung auscultation, and petechiae and purpura
are visible on the legs.
Q 6
A kidney biopsy, B skin biopsy, C lung biopsy, D
Sinus biopsy
Thank you for your attention
