Overview of Exchange Online Protection

Exchange Online Protection (EOP) is a cloud-based email filtering service that helps safeguard your organization against malicious software threats. It provides advanced security features to protect your emails from spam, malware, phishing attacks, and other harmful content. EOP integrates with Microsoft Exchange Online to provide a comprehensive defense mechanism for your email communication. By leveraging EOP, organizations can enhance their email security posture and ensure a safe and reliable messaging environment for users.

• Email Security
• Cloud Service
• Microsoft Exchange
• Malware Protection

jaylamar Follow

Uploaded on Mar 02, 2025 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

Presentation Transcript

1. Exchange Online Protection

2. About Speaker Prabhat Nigam Microsoft MVP: Exchange Server MCSE: Messaging 2013, MCITP 2010/2007, MS Ex Microsoft Exchange PSS Employee Blog: MSExchangeguru.com & MVP Community Speaker: LAEXUG, NJUCUG, TechStravaganza, NetCom Learning, NYEXUG & Microsoft Author: Kaplan and Opsgility

3. RELEASED CHECK MY BLOGS HERE: HTTP://MSEXCHANGEGURU.COM/?S=%22EXCHANGE+SERVER+2016%3A+ALL%22 HTTP://BIT.LY/1JSYCNF

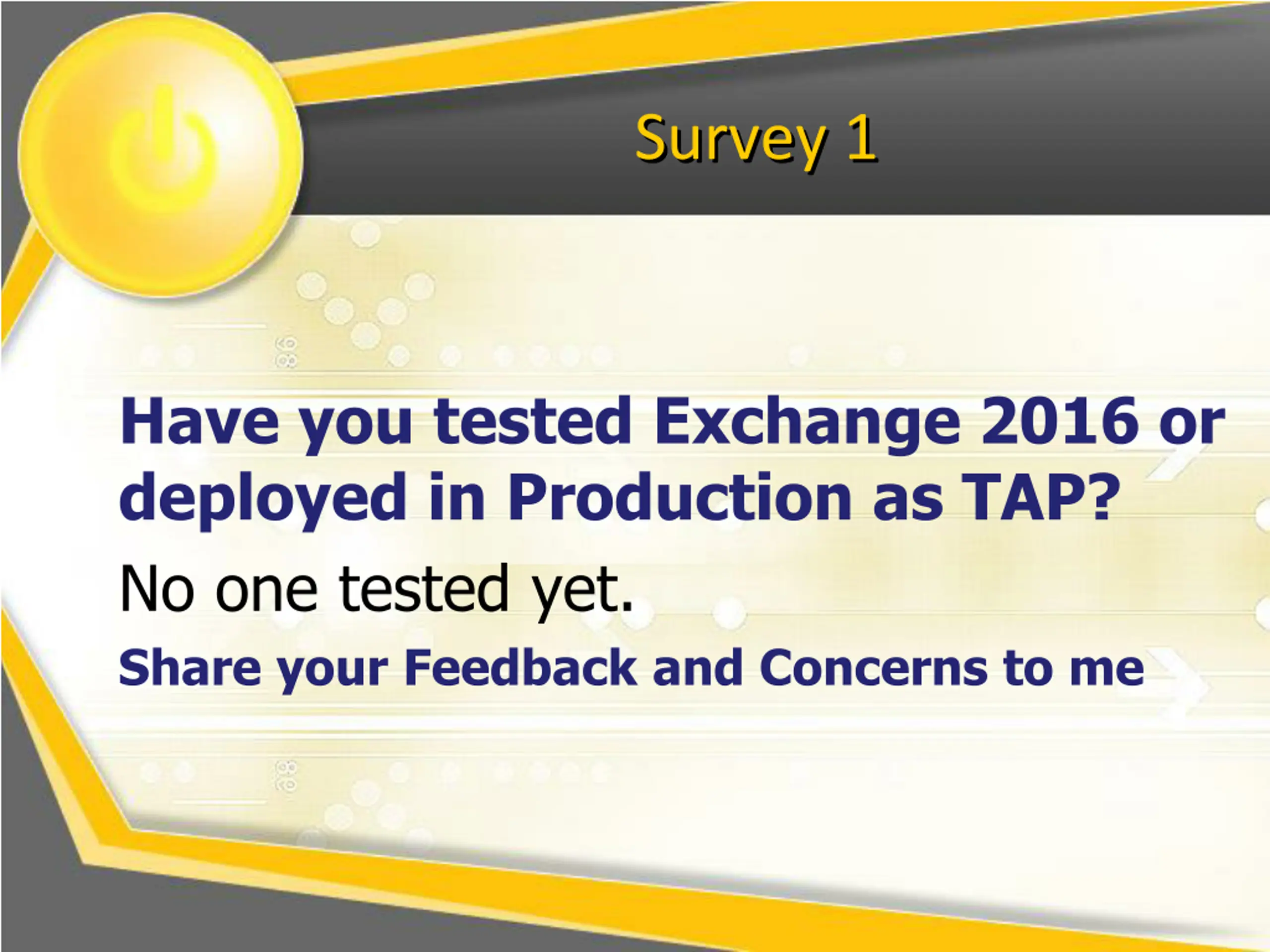

4. Survey 1 Have you tested Exchange 2016 or deployed in Production as TAP? No one tested yet. Share your Feedback and Concerns to me

5. AGENDA Overview Benefits of EOP EOP Architecture EOP Mailflow EOP Challenges EOP Connectors Demo Best Practice for EOP Other Options Summary

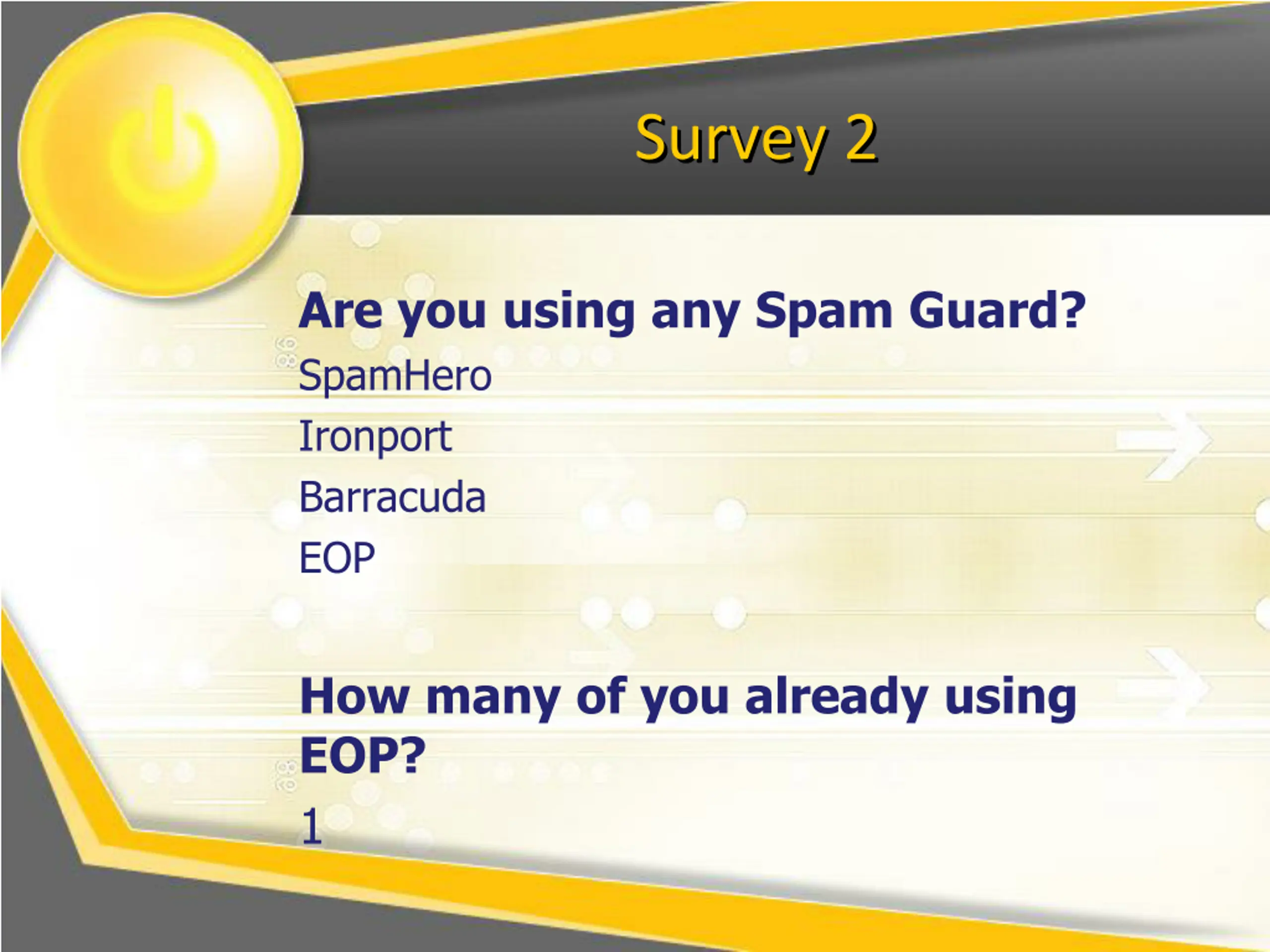

6. Survey 2 Are you using any Spam Guard? SpamHero Ironport Barracuda EOP How many of you already using EOP? 1

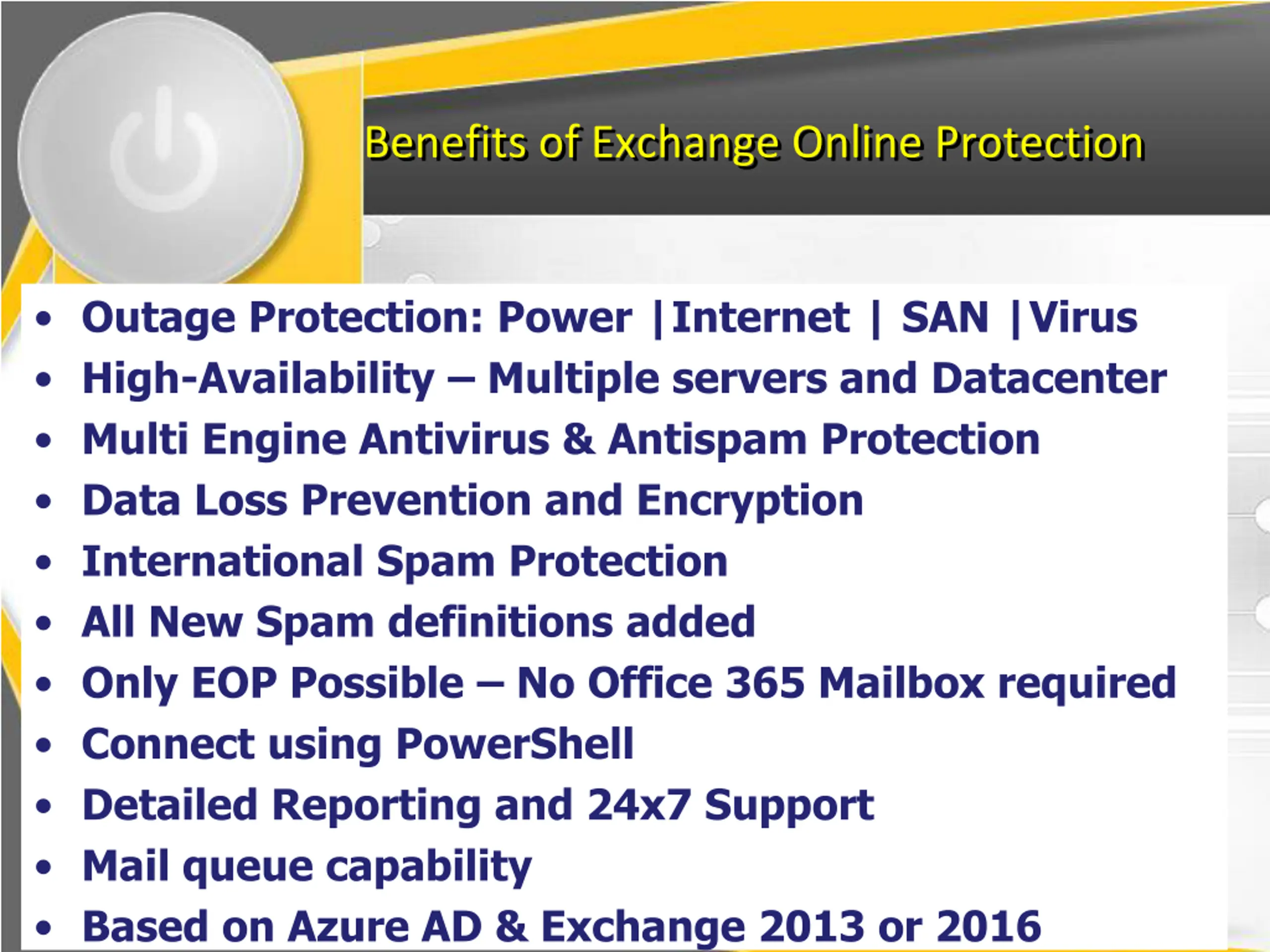

7. Benefits of Exchange Online Protection Outage Protection: Power |Internet | SAN |Virus High-Availability Multiple servers and Datacenter Multi Engine Antivirus & Antispam Protection Data Loss Prevention and Encryption International Spam Protection All New Spam definitions added Only EOP Possible No Office 365 Mailbox required Connect using PowerShell Detailed Reporting and 24x7 Support Mail queue capability Based on Azure AD & Exchange 2013 or 2016

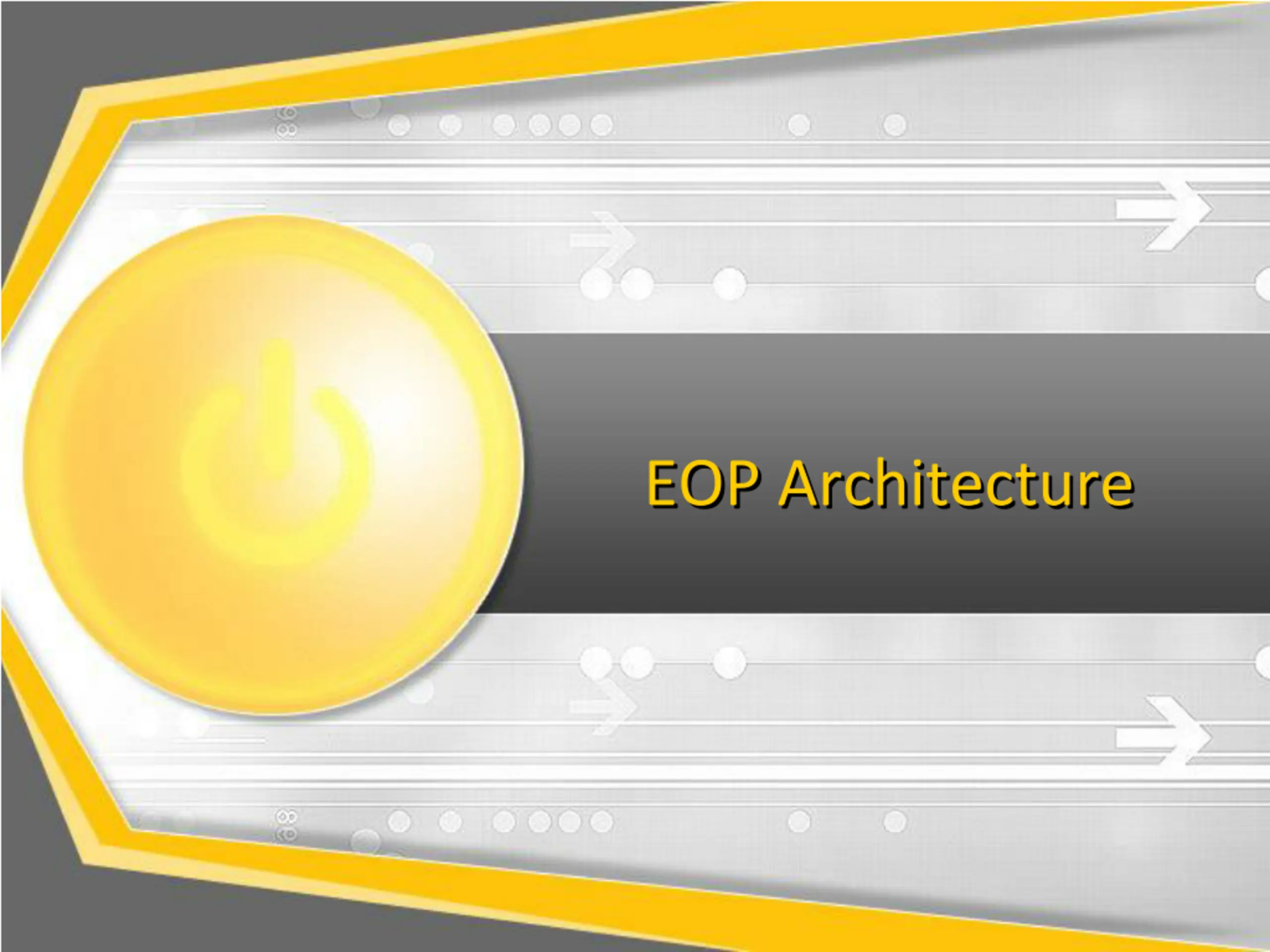

8. EOP Architecture

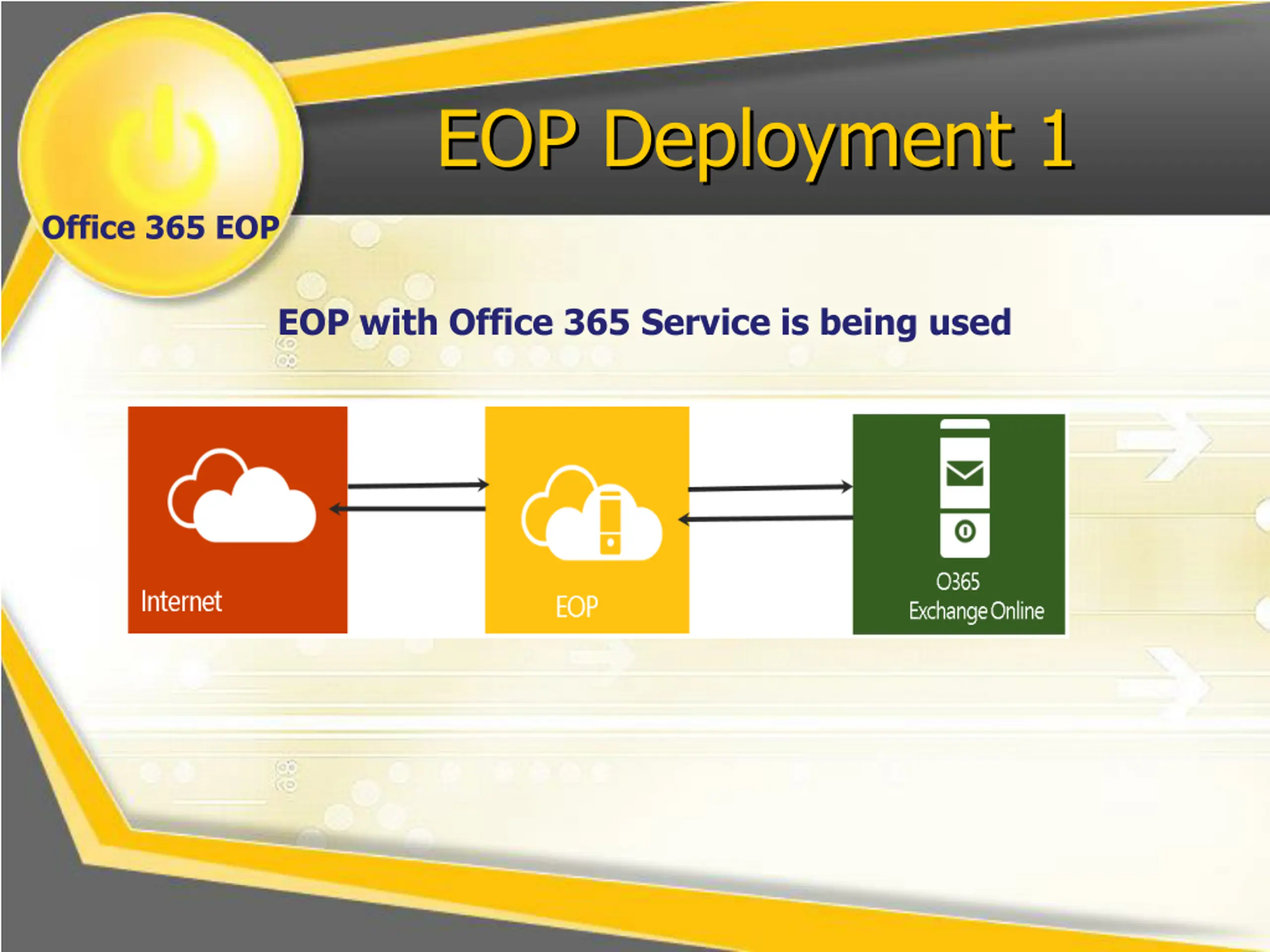

9. EOP Deployment 1 Office 365 EOP EOP with Office 365 Service is being used

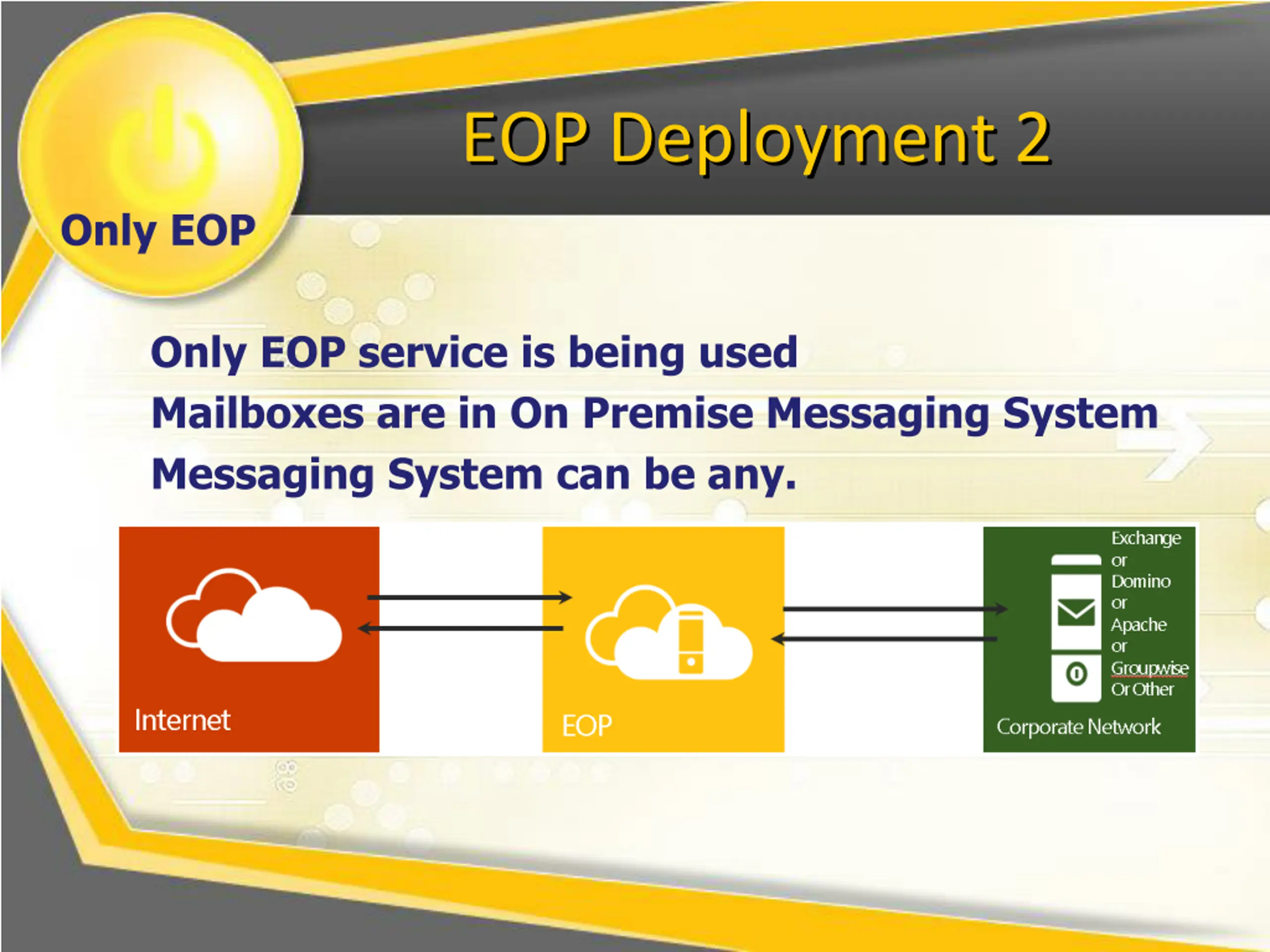

10. EOP Deployment 2 Only EOP Only EOP service is being used Mailboxes are in On Premise Messaging System Messaging System can be any.

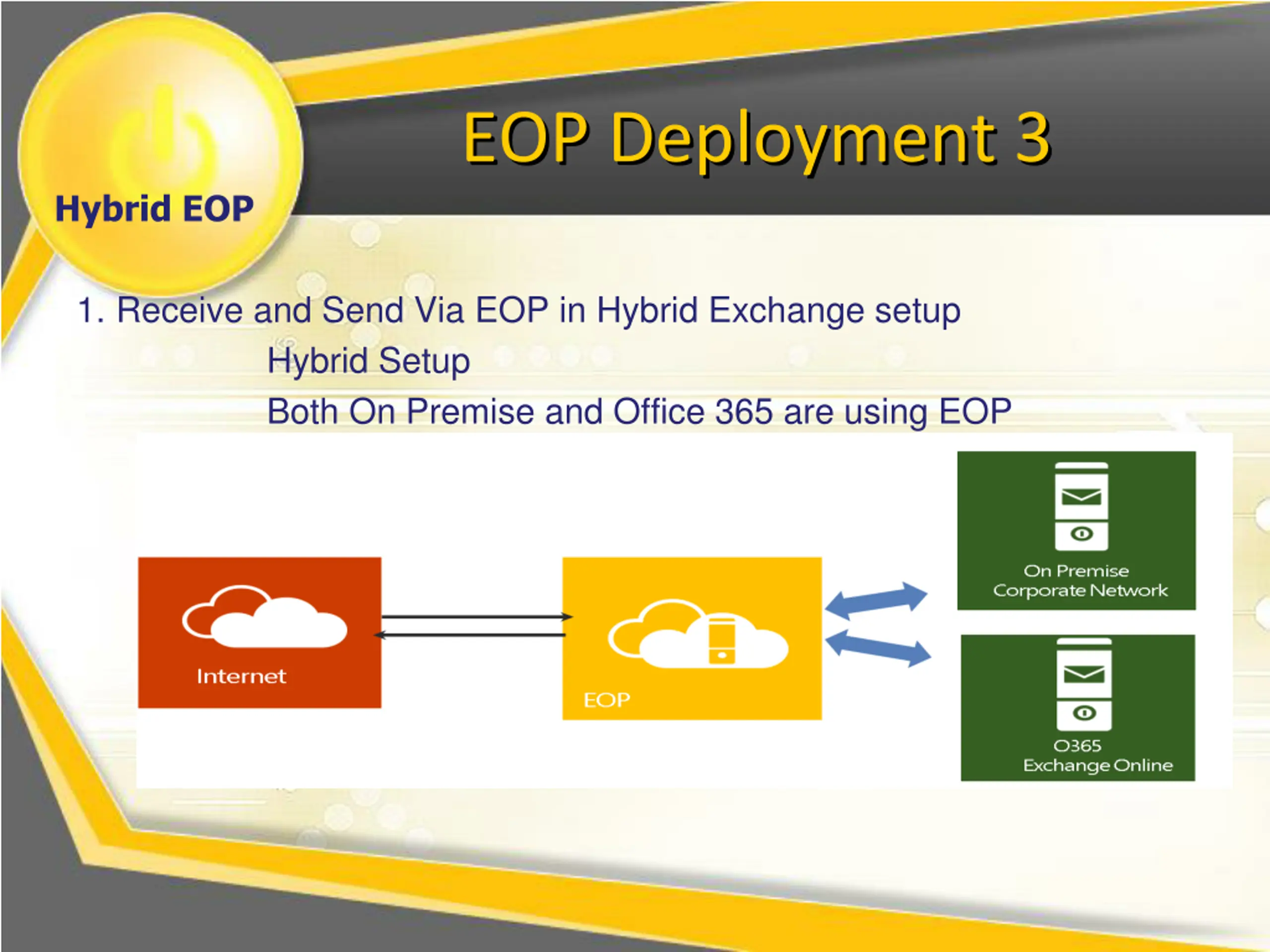

11. EOP Deployment 3 Hybrid EOP 1. Receive and Send Via EOP in Hybrid Exchange setup Hybrid Setup Both On Premise and Office 365 are using EOP

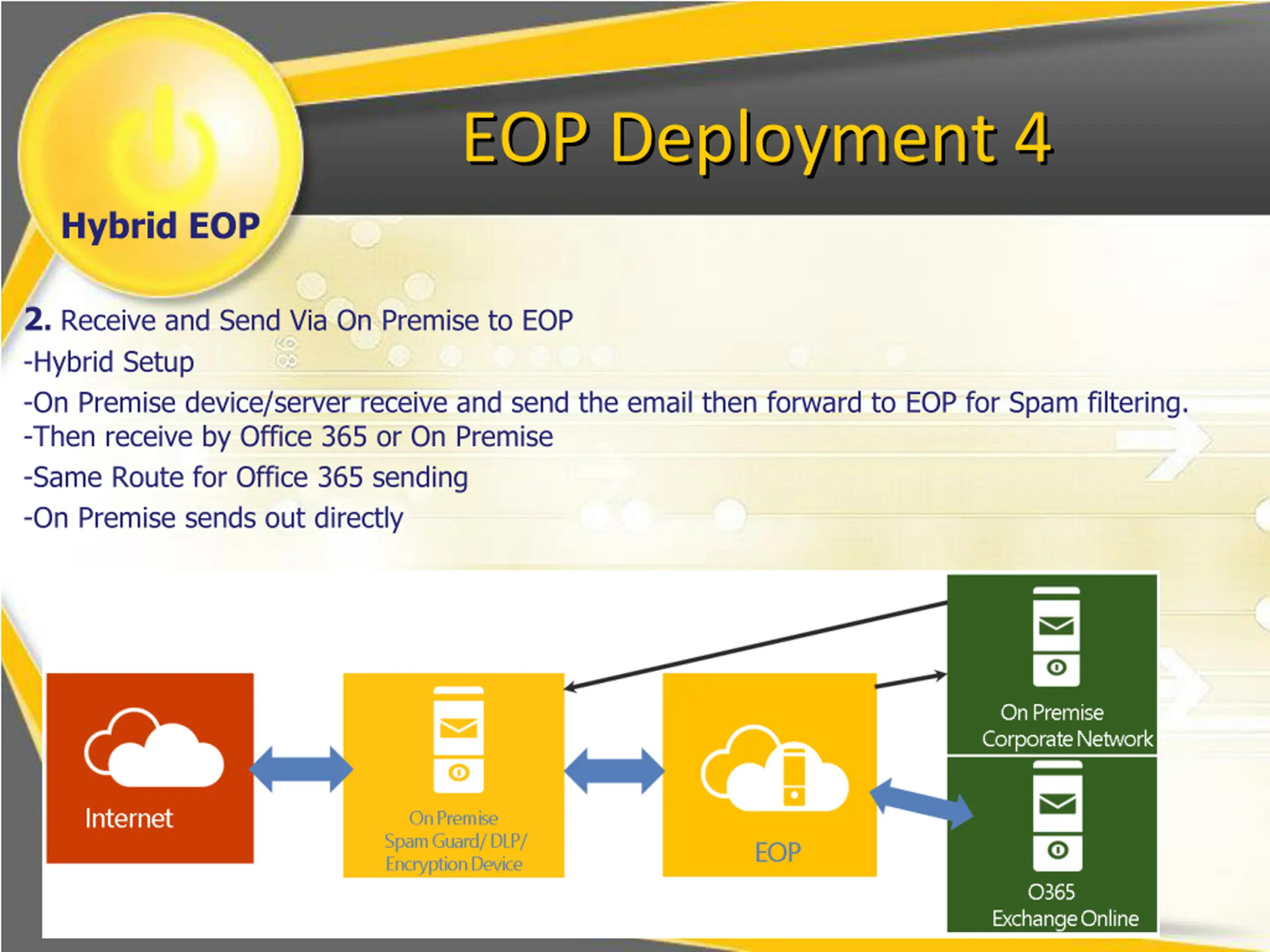

12. EOP Deployment 4 Hybrid EOP 2. Receive and Send Via On Premise to EOP -Hybrid Setup -On Premise device/server receive and send the email then forward to EOP for Spam filtering. -Then receive by Office 365 or On Premise -Same Route for Office 365 sending -On Premise sends out directly

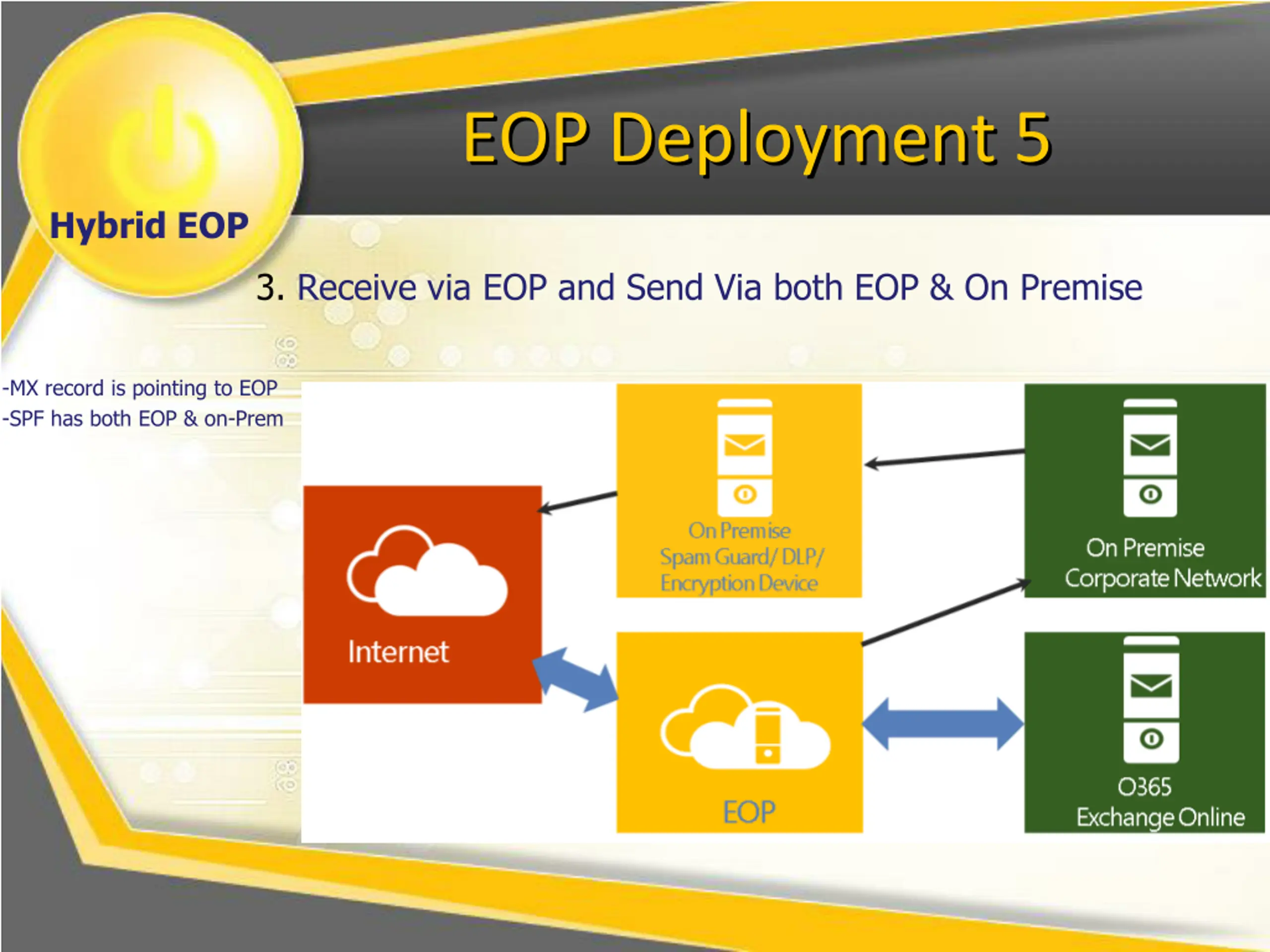

13. EOP Deployment 5 Hybrid EOP 3. Receive via EOP and Send Via both EOP & On Premise -MX record is pointing to EOP -SPF has both EOP & on-Prem

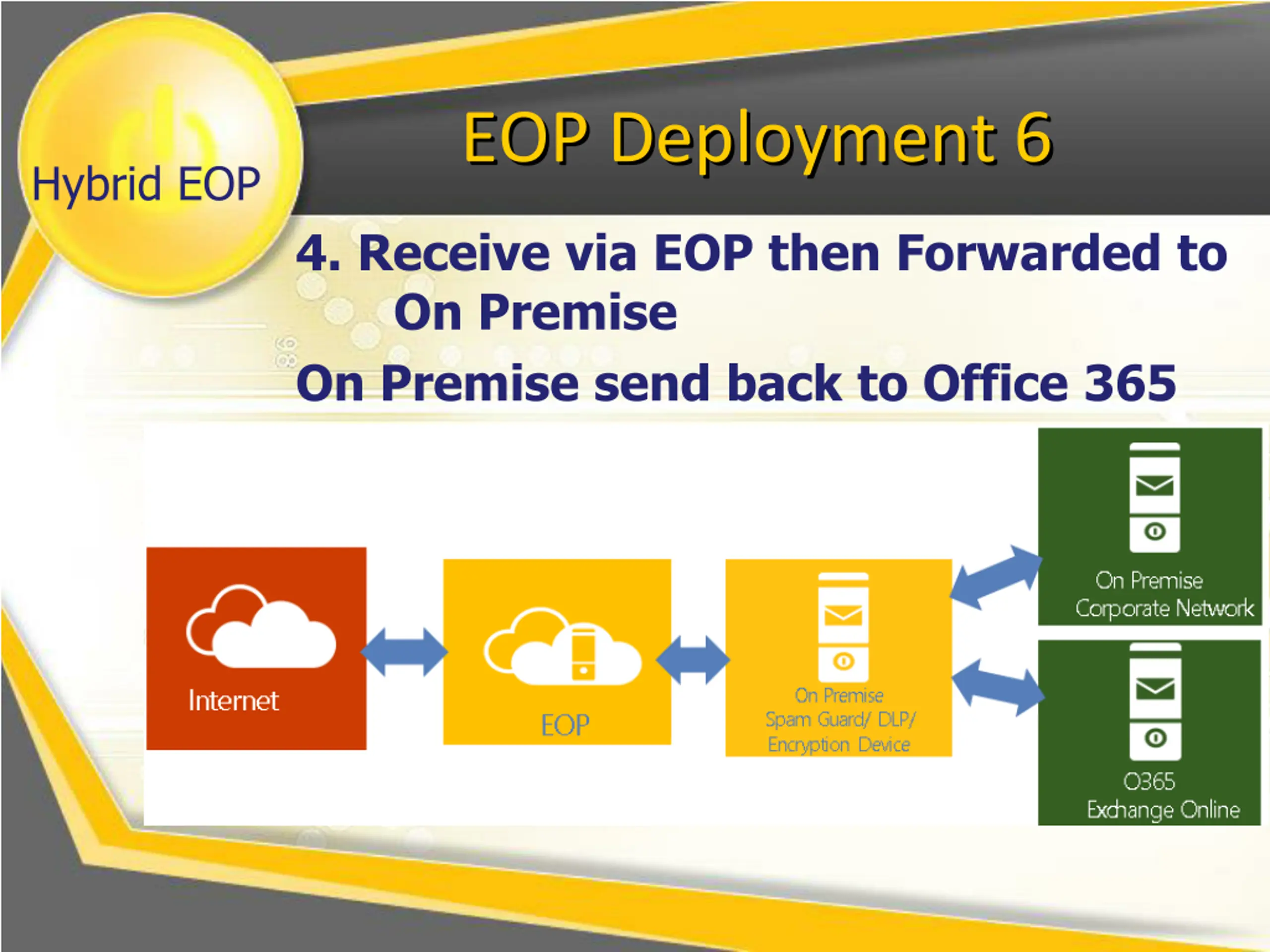

14. EOP Deployment 6 Hybrid EOP 4. Receive via EOP then Forwarded to On Premise On Premise send back to Office 365

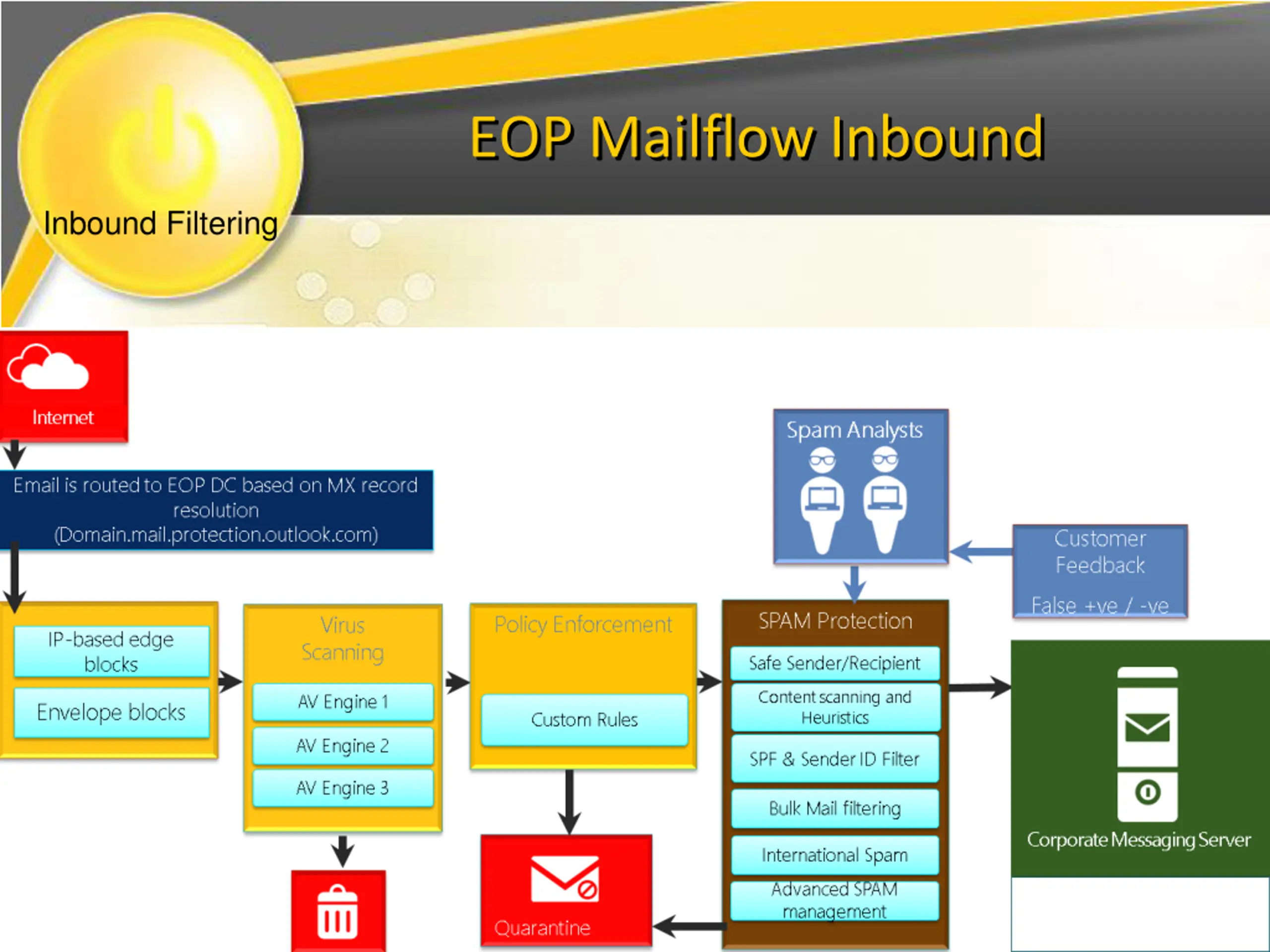

15. EOP Mailflow Inbound Inbound Filtering

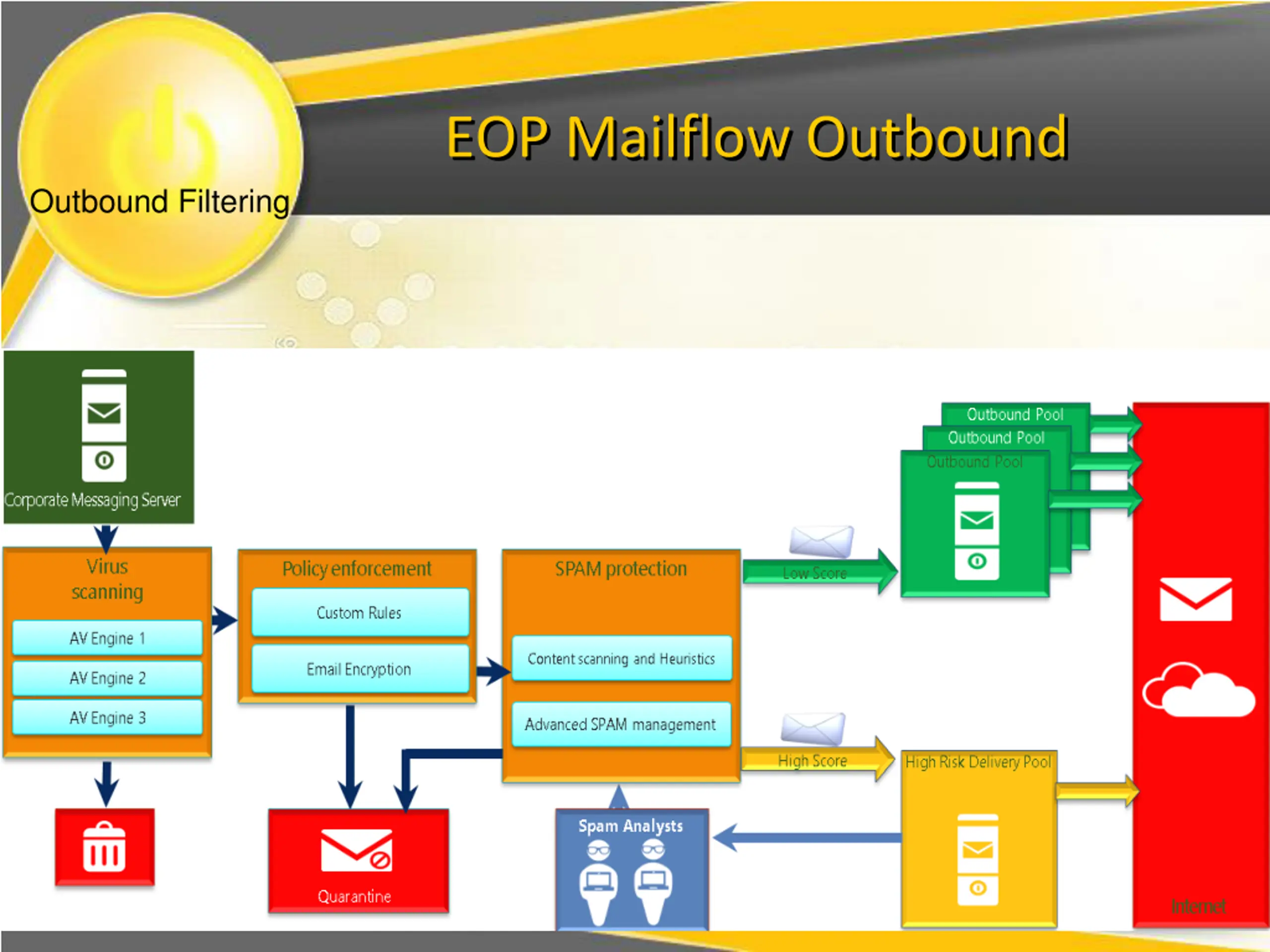

16. EOP Mailflow Outbound Outbound Filtering

17. EOP SLA & COST SLA 100% known virus detection 99% spam detection rate 99.999% uptime for only EOP Customers Average email delivery time of less than 1 minute for only EOP customers Cost $1 Per User Per Mailbox

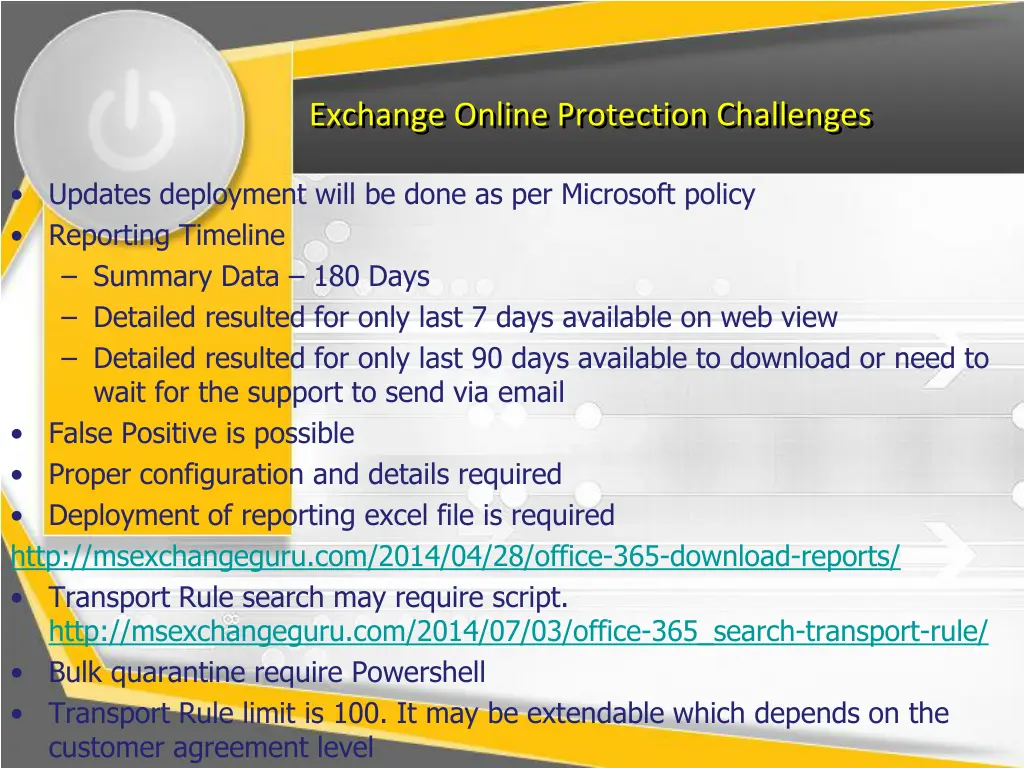

18. Exchange Online Protection Challenges Updates deployment will be done as per Microsoft policy Reporting Timeline Summary Data 180 Days Detailed resulted for only last 7 days available on web view Detailed resulted for only last 90 days available to download or need to wait for the support to send via email False Positive is possible Proper configuration and details required Deployment of reporting excel file is required http://msexchangeguru.com/2014/04/28/office-365-download-reports/ Transport Rule search may require script. http://msexchangeguru.com/2014/07/03/office-365_search-transport-rule/ Bulk quarantine require Powershell Transport Rule limit is 100. It may be extendable which depends on the customer agreement level

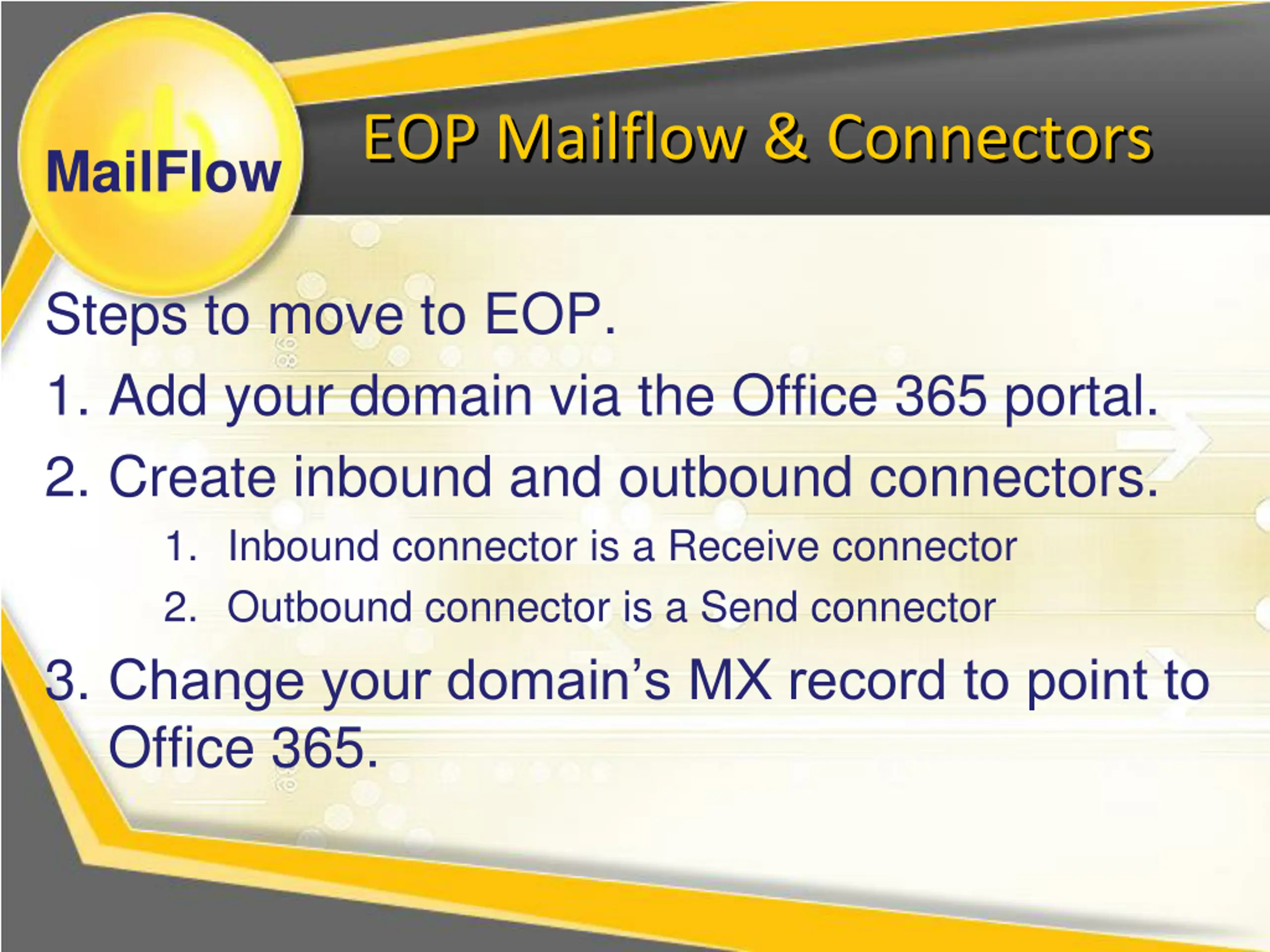

19. EOP Mailflow & Connectors MailFlow Steps to move to EOP. 1. Add your domain via the Office 365 portal. 2. Create inbound and outbound connectors. 1. Inbound connector is a Receive connector 2. Outbound connector is a Send connector 3. Change your domain s MX record to point to Office 365.

20. DEMO - LAB

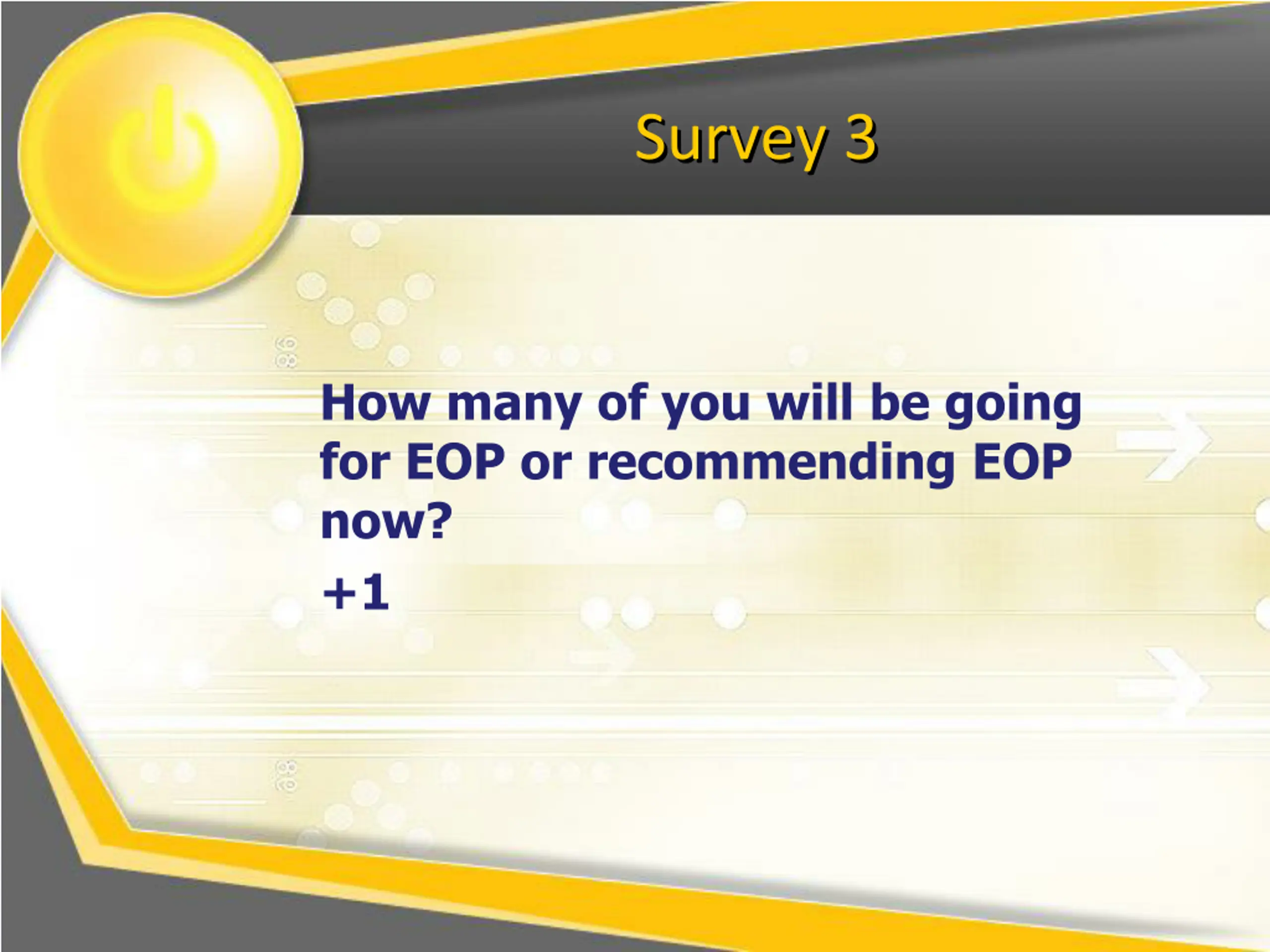

21. Survey 3 How many of you will be going for EOP or recommending EOP now? +1

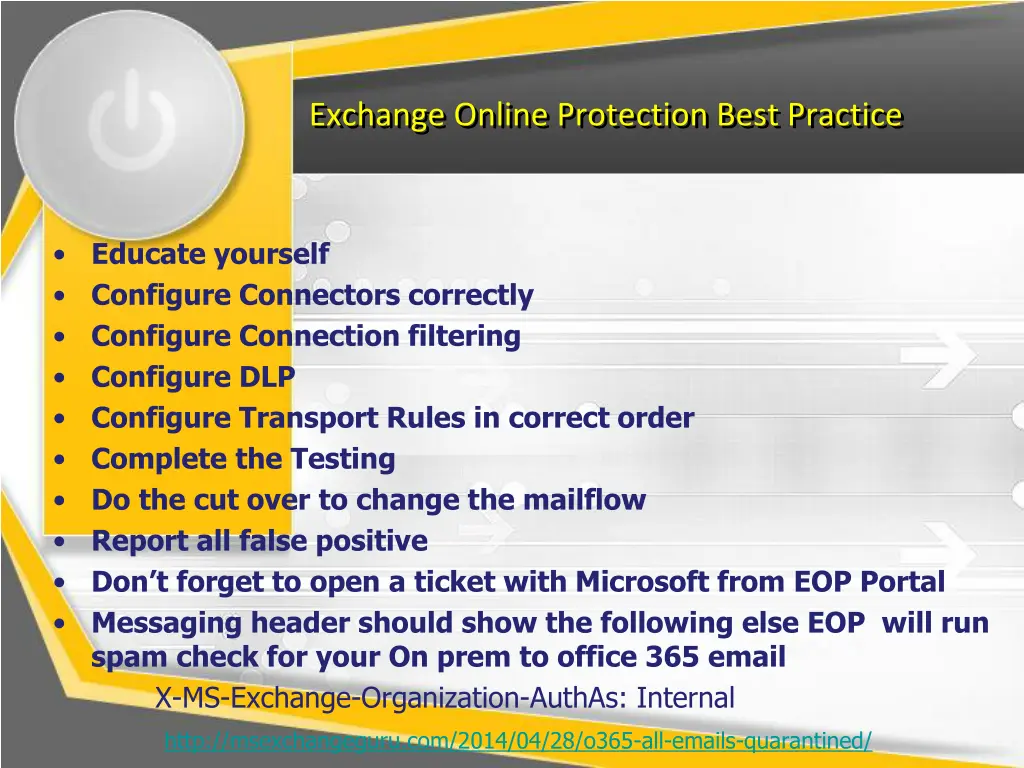

22. Exchange Online Protection Best Practice Educate yourself Configure Connectors correctly Configure Connection filtering Configure DLP Configure Transport Rules in correct order Complete the Testing Do the cut over to change the mailflow Report all false positive Don t forget to open a ticket with Microsoft from EOP Portal Messaging header should show the following else EOP will run spam check for your On prem to office 365 email X-MS-Exchange-Organization-AuthAs: Internal http://msexchangeguru.com/2014/04/28/o365-all-emails-quarantined/

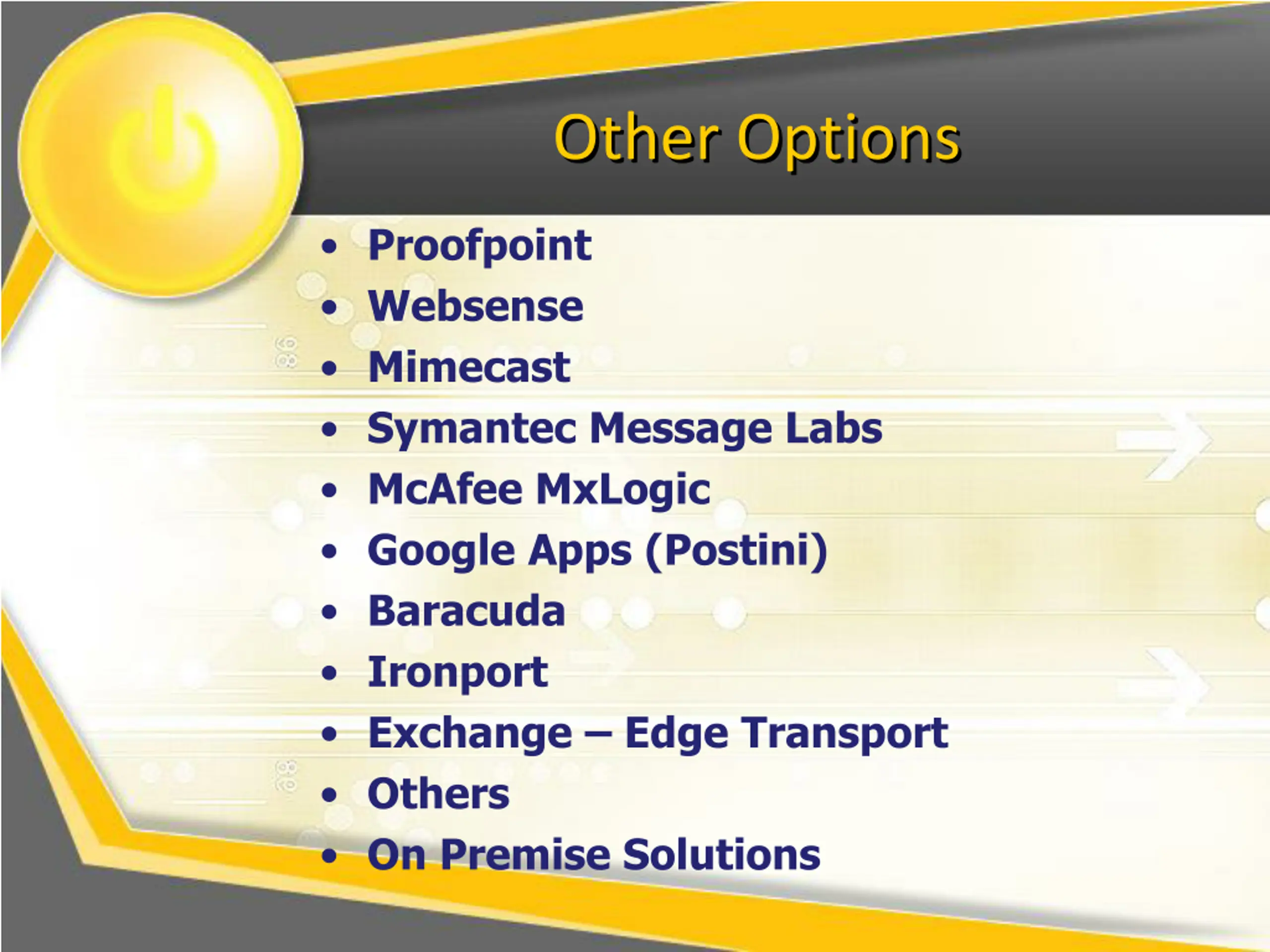

23. Other Options Proofpoint Websense Mimecast Symantec Message Labs McAfee MxLogic Google Apps (Postini) Baracuda Ironport Exchange Edge Transport Others On Premise Solutions

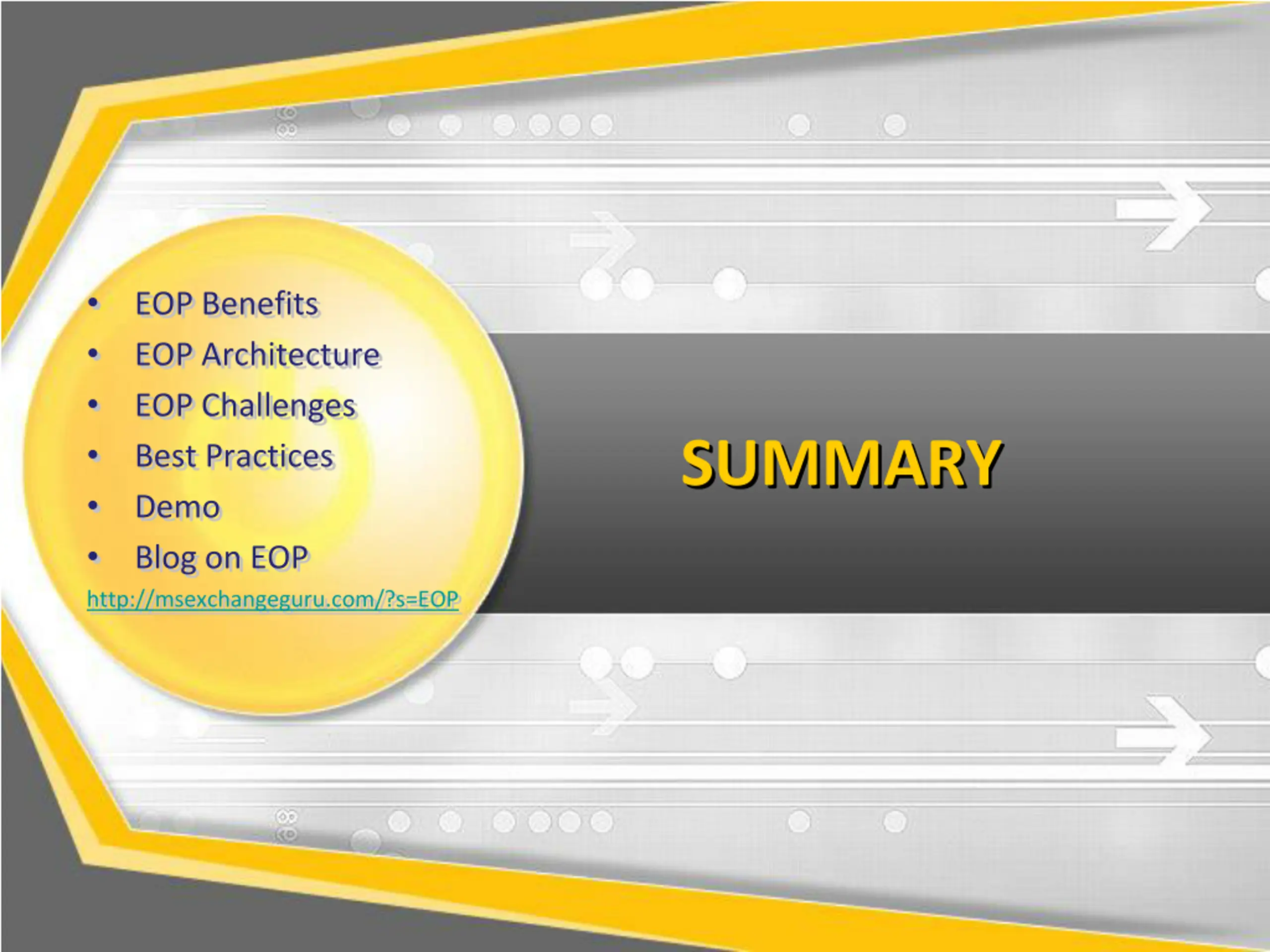

24. http://msexchangeguru.com/?s=EOP EOP Benefits EOP Architecture EOP Challenges Best Practices Demo Blog on EOP SUMMARY

25. LOS ANGELES EXCHANGE USER GROUP LAEXUG Next Big Thing https://meetup.com/LAExUG Launch 09.09.2015

26. Connections For More Feedback: Blog: Prabhat@MSExchangeGuru.com http://MSExchangeGuru.com Twitter: Facebook: YouTube: LinkedIn: #MSExchangeGuru @MSExchangeGuru MSExchangeGuru Channel Microsoft Exchange Server Microsoft Exchange Server 2013 Facebook: LinkedIn: Microsoft Exchange 2016 Microsoft Exchange Server 2016

27. Merci mul umesc
