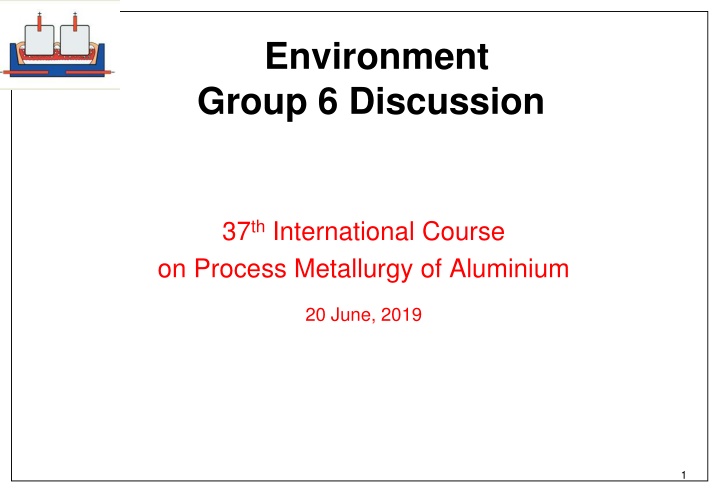

1. Environment Group 6 Discussion 37thInternational Course on Process Metallurgy of Aluminium 20 June, 2019 1

2. Current Situation Aluminum smelter on Trondheim: 271 000 tonnes of CO2-e per year Must reduced below 200 000 tonnes CO2-e per year to avoid 3 Million USD penalty per year Situation of the potline: - 200 AP- 18 pots operating at 235 kA from 220 kA - CE: 92.0 % from 95.5 % - High temperatures, squeezed ACD, spikes and burn offs - Net carbon: 0.47 t/t Al from 0.42 t/t Al - Annual production @ 235 kA = 126 971 tonnes/ year Anode baking furnace: - Very poor conditions 2

3. Current Situation - Cont. Purchasing: low density coke Out of specifications Alumina: below 45 m : more than 30 % (spec 8 %) below 20 m : more than 15 % (spec 1%) Anode effect kill logic: Long waiting time before squelching (45 seconds) 3

4. Objective Reduce CO2-e emission to < 200 000 t CO2-e/y to avoid paying the tax Restore operational practice and good operation 4

5. Recommendations Reduce amperage only to 230 kA To ease the a-c distance by slightly increasing target pot voltage with a reasonable increase of current efficiency to 95% ( not 95.5% achieved at 220 kA) Review & enforce operating procedures: Permanently maintained bath level height by measuring before and after metal tapping and correct as required (Tap or pour bath) Maintain correct anode cover thickness with 2 redressing per week and carry out systematic anode cover thickness audit Systematic skimming of the bath from carbon dust this requires to hire additional 16 operators (4 workers/shift and 2/ potroom) 5

6. Recommendations Cont. Meet with Purchasing Department Stress on the following: 1. make sure to buy alumina according to the acceptable specifications ( 45 < 8 % and 20 < 1%) 2. buy coke according to specification Renovate anode furnaces - (a 2 year project) Upgrade and modify Anode effect kill logic - ( a 2 months project) 1. immediate squelching 2. have a target of 20 seconds to kill anode effect Finally, look at creep increase back to 235 kA after the situation has been restored at 230 kA. 6

7. New Recommended Realistic Operating Targets Amperage: slight decrease to 230 kA Current efficiency: 95 % Anode consumption: 0.415 t/tAl Anode Effect Frequency (AEF): 0.2 AEF min. 0.067 Anode Effect Duration (AED): 20 seconds 7

8. Expected Annual Production and Emissions Annual production: 128 322 tons (improvement from 126 971 due to improve CE 95 % instead of 92 % in spite of lower amperage) Total emissions: From anodes: CO2-e: 190 750 t (instead of 213 500) From Anode Effects: CO2-e 5141 t (instead of 56 947) Total: 195 891 t CO2 8

9. Calculations CO2 from Anode A B C E F D (100% D-C) (A*B*E)*3.67 Potline, 200 Cells Al Net Anode Consume (t C/t Al) 0.415 Sulfur (%) Ash (%) Carbon Content CO2 (tonne/yr) Emissions (tonnes CO2) 230 kA & 95% CE 128 322 2.0 0.4 0.976 190 750 9

10. Calculations CO2-e from Anode Effects A B C E D (A*B*C) (AEF*Minutes) (D*6.5) Potline, 200 Cells Al CF4 Slope Factor 0.092 AE Total CF4 (Kg CF4 ) CO2-e (tonne CO2 (Minutes) (tonne) 230 kA & 95% CE 128 322 0.067 791 5141 Total: 195 891 t CO2 10 Potline operation - M Reverdy

11. Thank you! 11
