Csilla Farkas Department of Computer Science and Engineering University of South Carolina farkas@cec.sc.edu
Who is Impacted by Cyber Attacks? Source: http://www.cagle.com/2010/05/internet-privacy/
What is Cyber Security? Highly Technical People, processes, and technology Legislation and Regulation Risk management

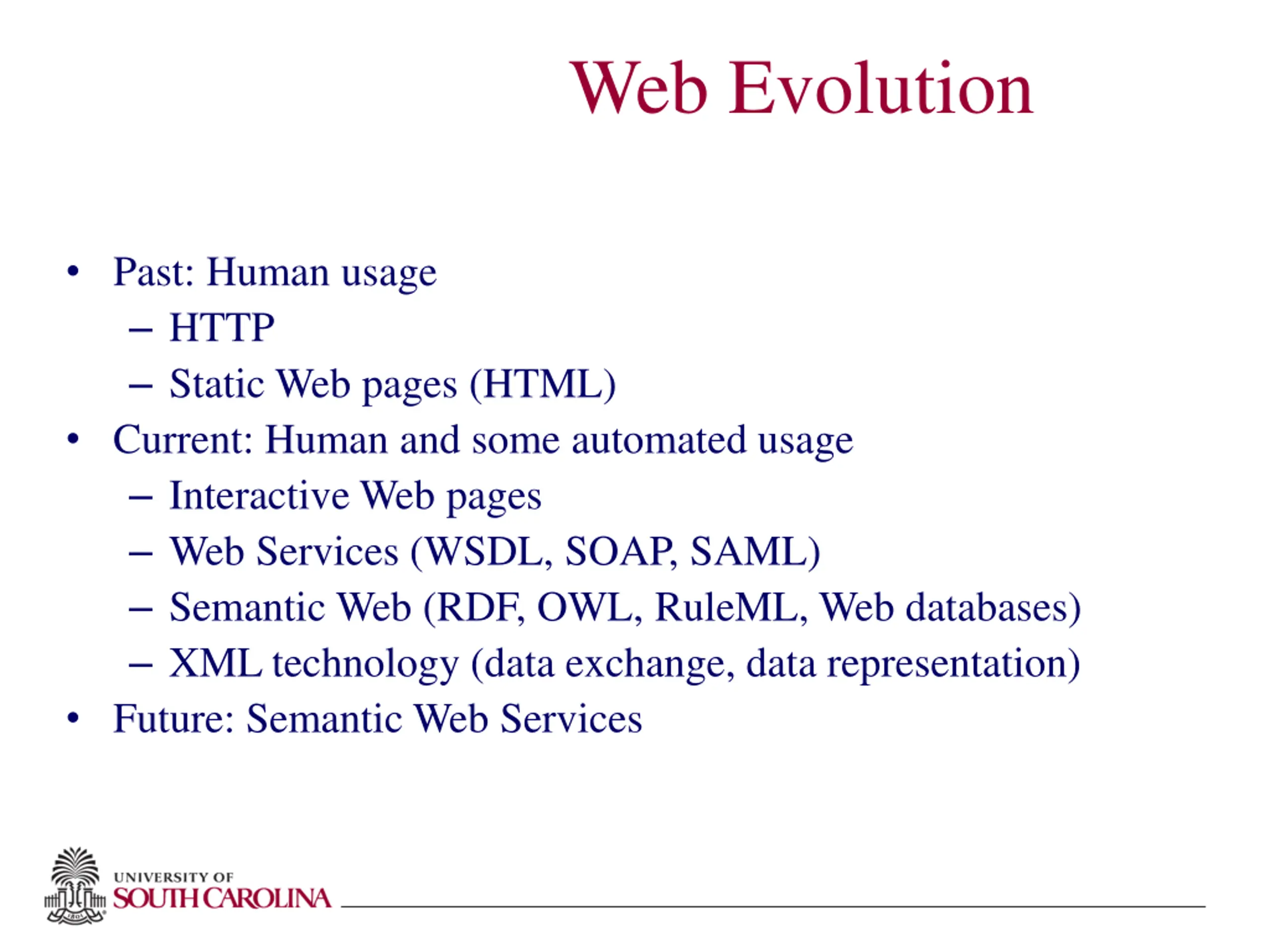

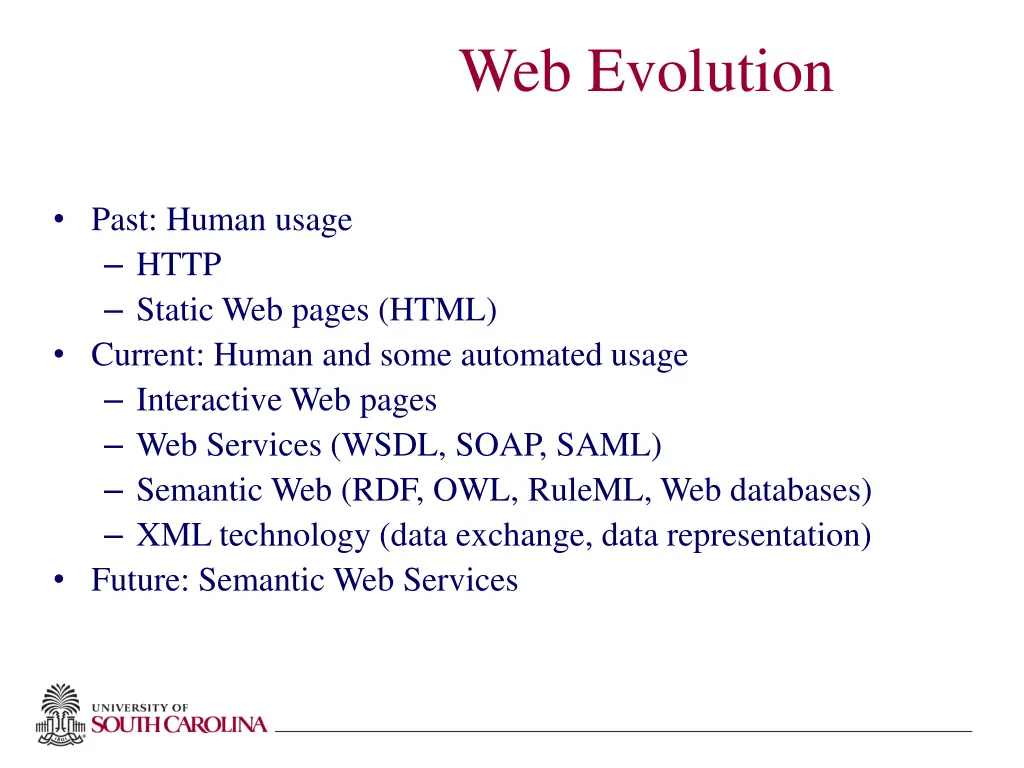

Web Evolution Past: Human usage HTTP Static Web pages (HTML) Current: Human and some automated usage Interactive Web pages Web Services (WSDL, SOAP, SAML) Semantic Web (RDF, OWL, RuleML, Web databases) XML technology (data exchange, data representation) Future: Semantic Web Services
ARE THE EXISTING SECURITY MECHANISMS SUFFICIENT TO PROVIDE DATA AND APPLICATION SECURITY OF THE NEXT GENERATION WEB?

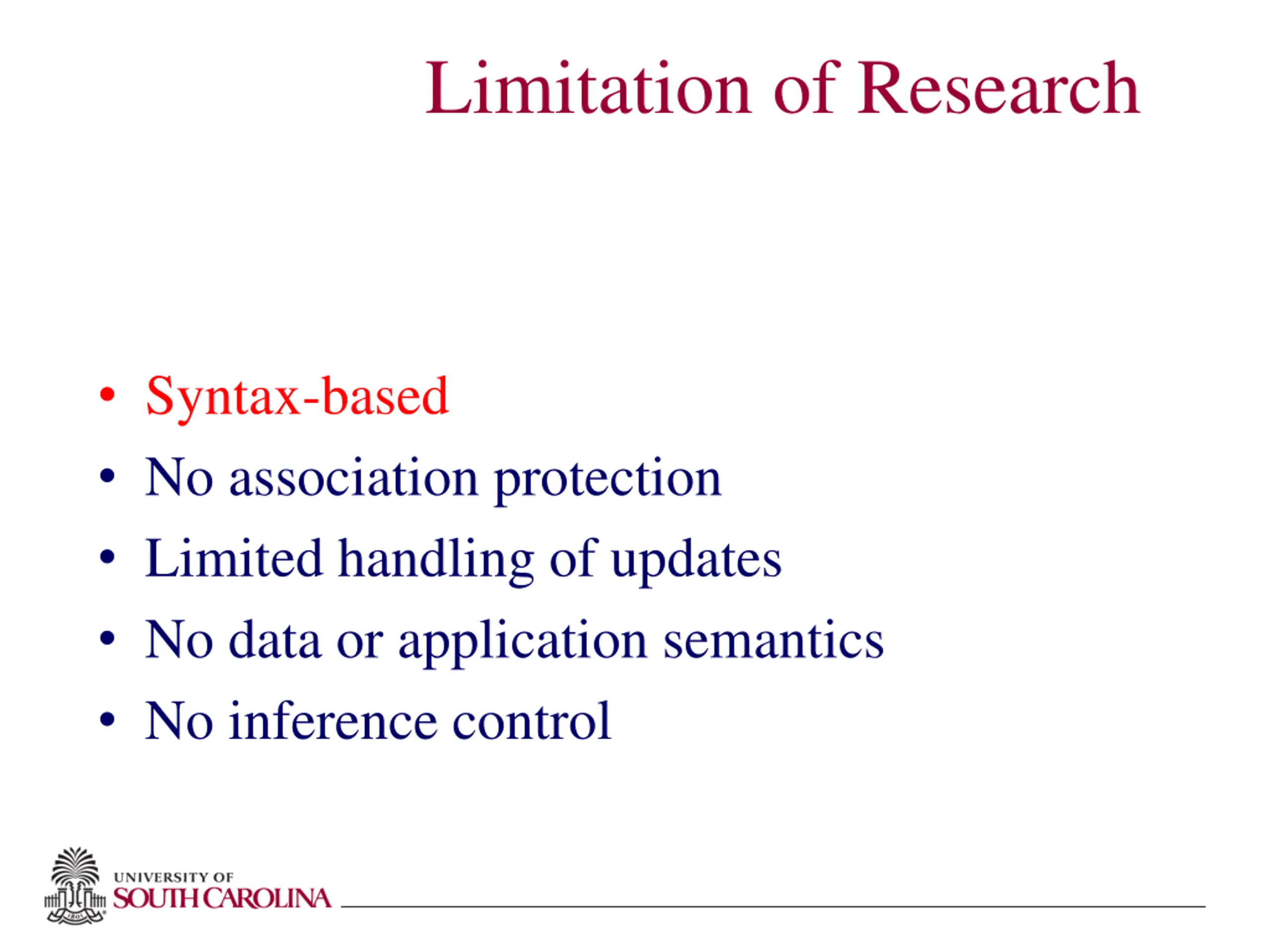

Limitation of Research Syntax-based No association protection Limited handling of updates No data or application semantics No inference control

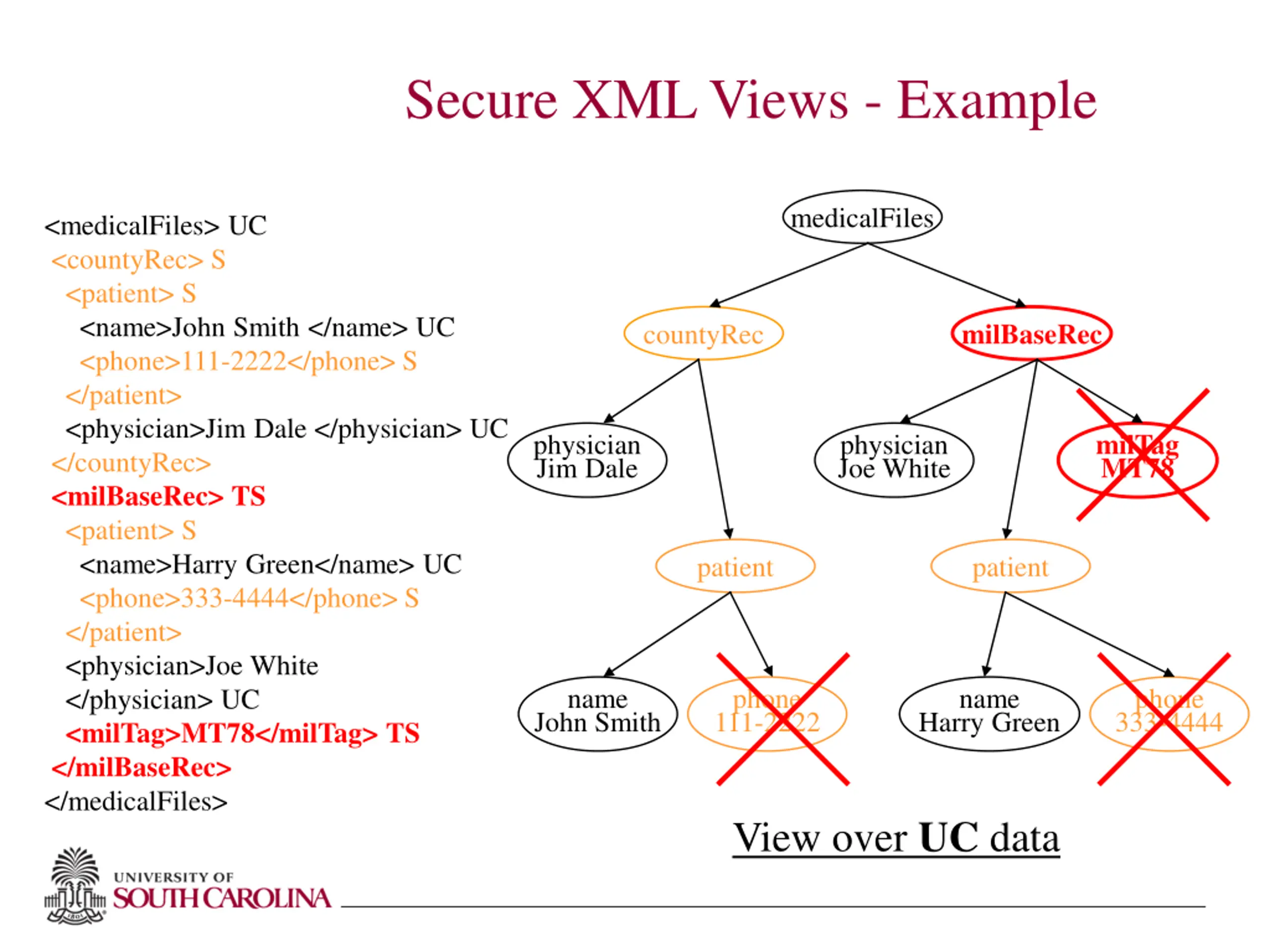

Secure XML Views - Example medicalFiles <medicalFiles> UC <countyRec> S <patient> S <name>John Smith </name> UC <phone>111-2222</phone> S </patient> <physician>Jim Dale </physician> UC </countyRec> <milBaseRec> TS <patient> S <name>Harry Green</name> UC <phone>333-4444</phone> S </patient> <physician>Joe White </physician> UC <milTag>MT78</milTag> TS </milBaseRec> </medicalFiles> milBaseRec countyRec milTag MT78 physician Jim Dale physician Joe White patient patient name phone 111-2222 name phone 333-4444 John Smith Harry Green View over UC data
Secure XML Views - Example cont. medicalFiles <medicalFiles> <countyRec> <patient> <name>John Smith</name> </patient> <physician>Jim Dale</physician> </countyRec> <milBaseRec> <patient> <name>Harry Green</name> </patient> <physician>Joe White</physician> </milBaseRec> </medicalFiles> milBaseRec countyRec physician Jim Dale physician Joe White patient patient name name John Smith Harry Green View over UC data

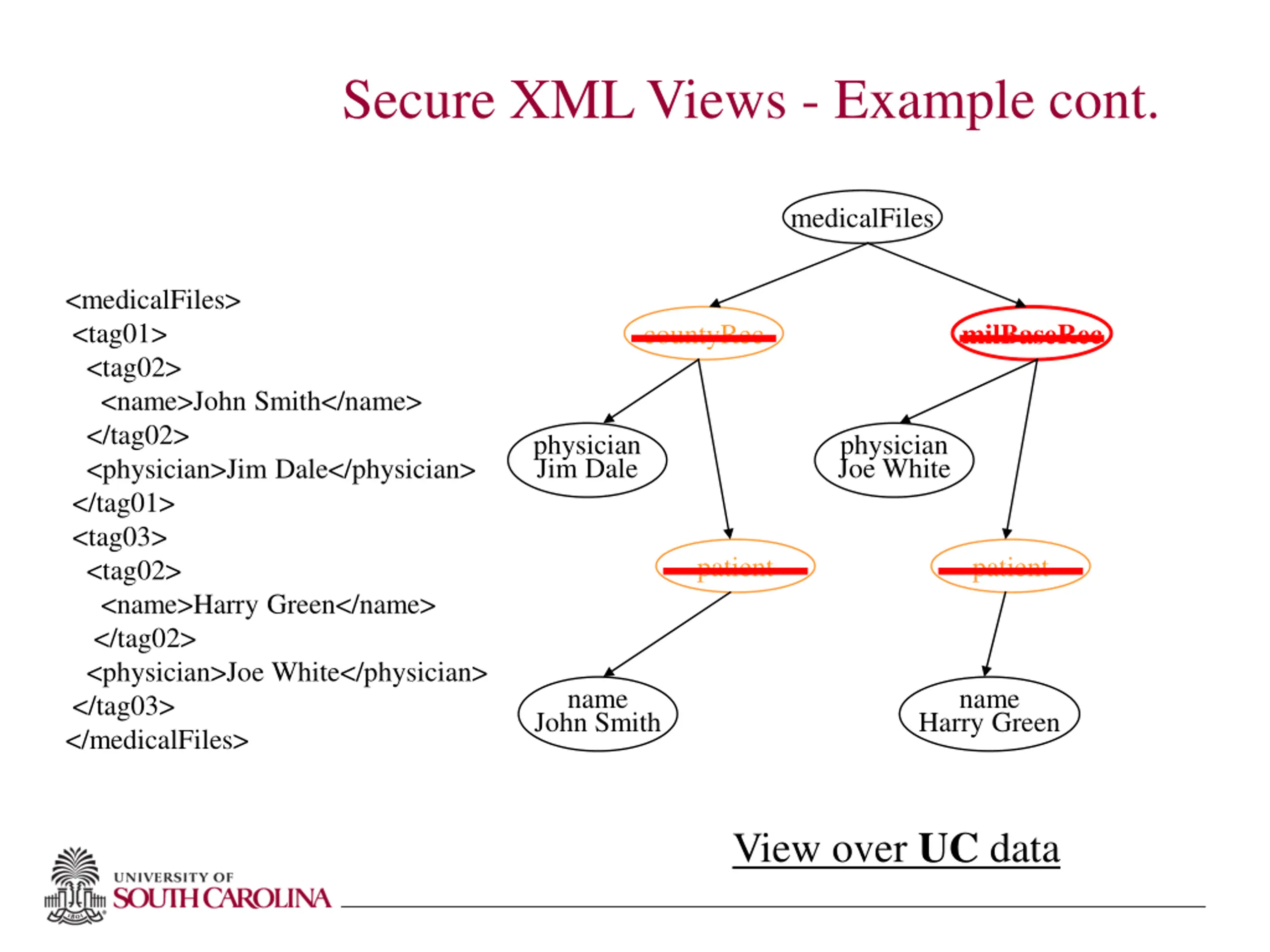

Secure XML Views - Example cont. medicalFiles <medicalFiles> <tag01> <tag02> <name>John Smith</name> </tag02> <physician>Jim Dale</physician> </tag01> <tag03> <tag02> <name>Harry Green</name> </tag02> <physician>Joe White</physician> </tag03> </medicalFiles> milBaseRec countyRec physician Jim Dale physician Joe White patient patient name name John Smith Harry Green View over UC data

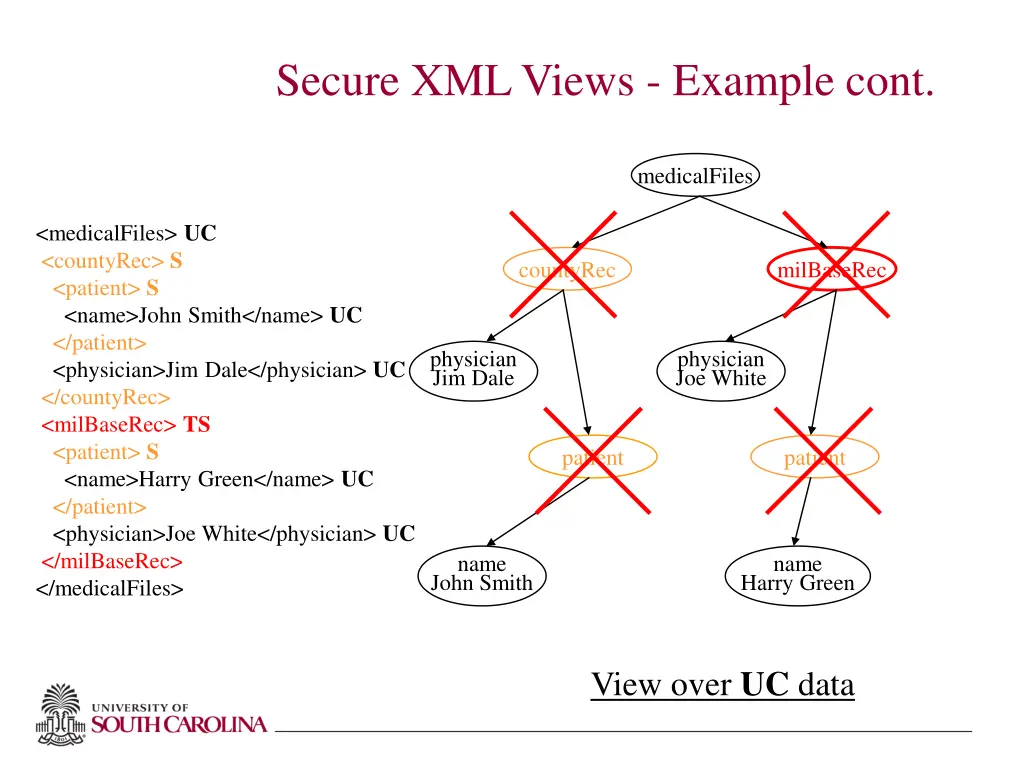

Secure XML Views - Example cont. medicalFiles <medicalFiles> UC <countyRec> S <patient> S <name>John Smith</name> UC </patient> <physician>Jim Dale</physician> UC </countyRec> <milBaseRec> TS <patient> S <name>Harry Green</name> UC </patient> <physician>Joe White</physician> UC </milBaseRec> </medicalFiles> countyRec milBaseRec physician Jim Dale physician Joe White patient patient name name John Smith Harry Green View over UC data

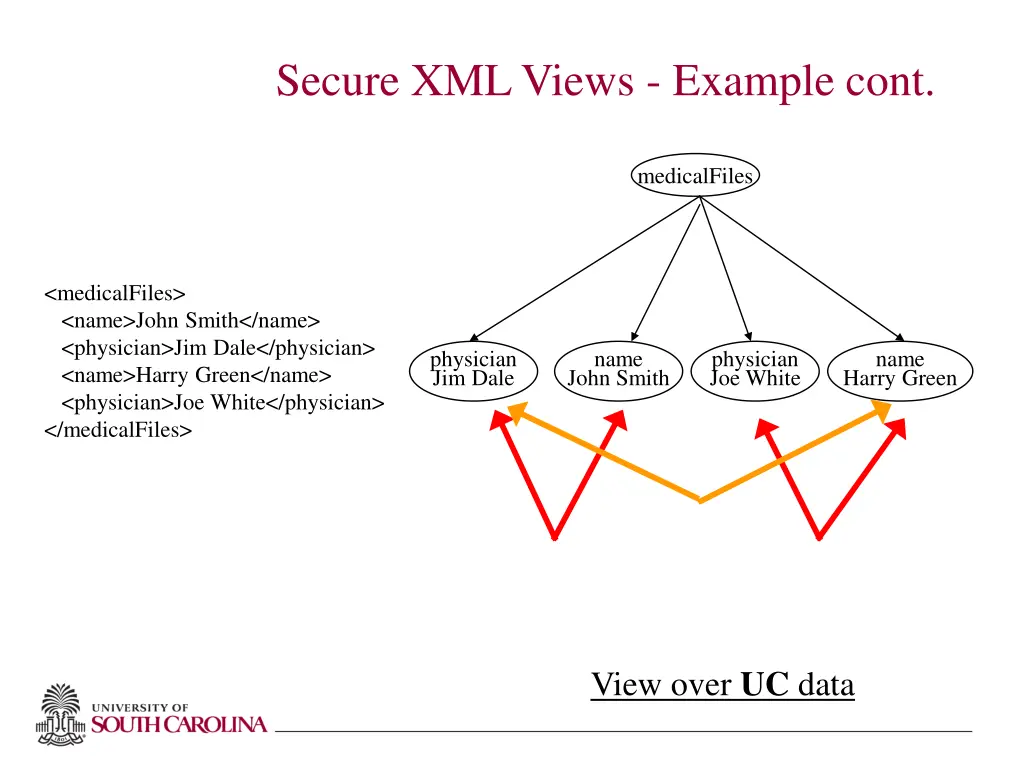

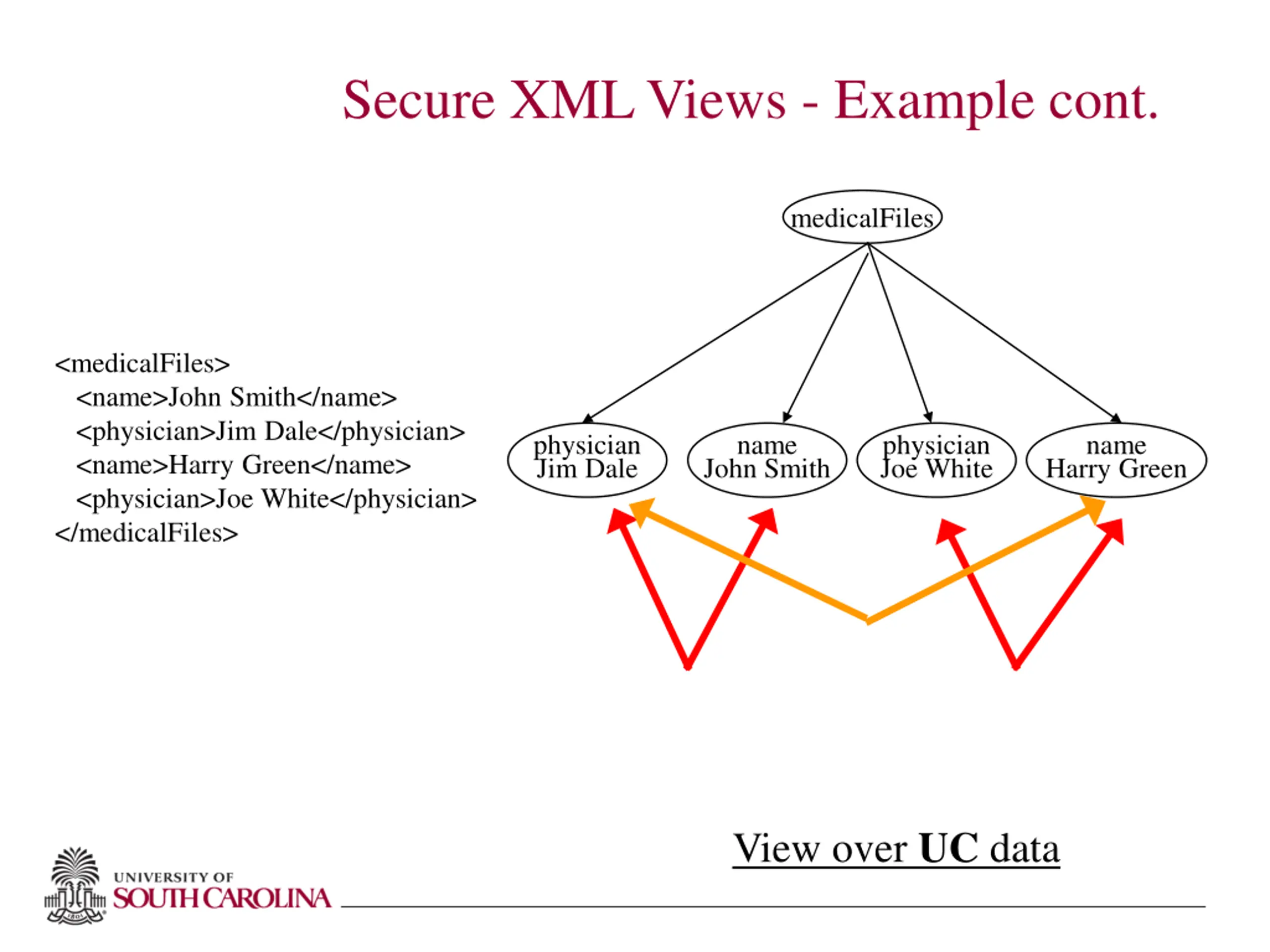

Secure XML Views - Example cont. medicalFiles <medicalFiles> <name>John Smith</name> <physician>Jim Dale</physician> <name>Harry Green</name> <physician>Joe White</physician> </medicalFiles> physician Jim Dale name physician Joe White name John Smith Harry Green View over UC data

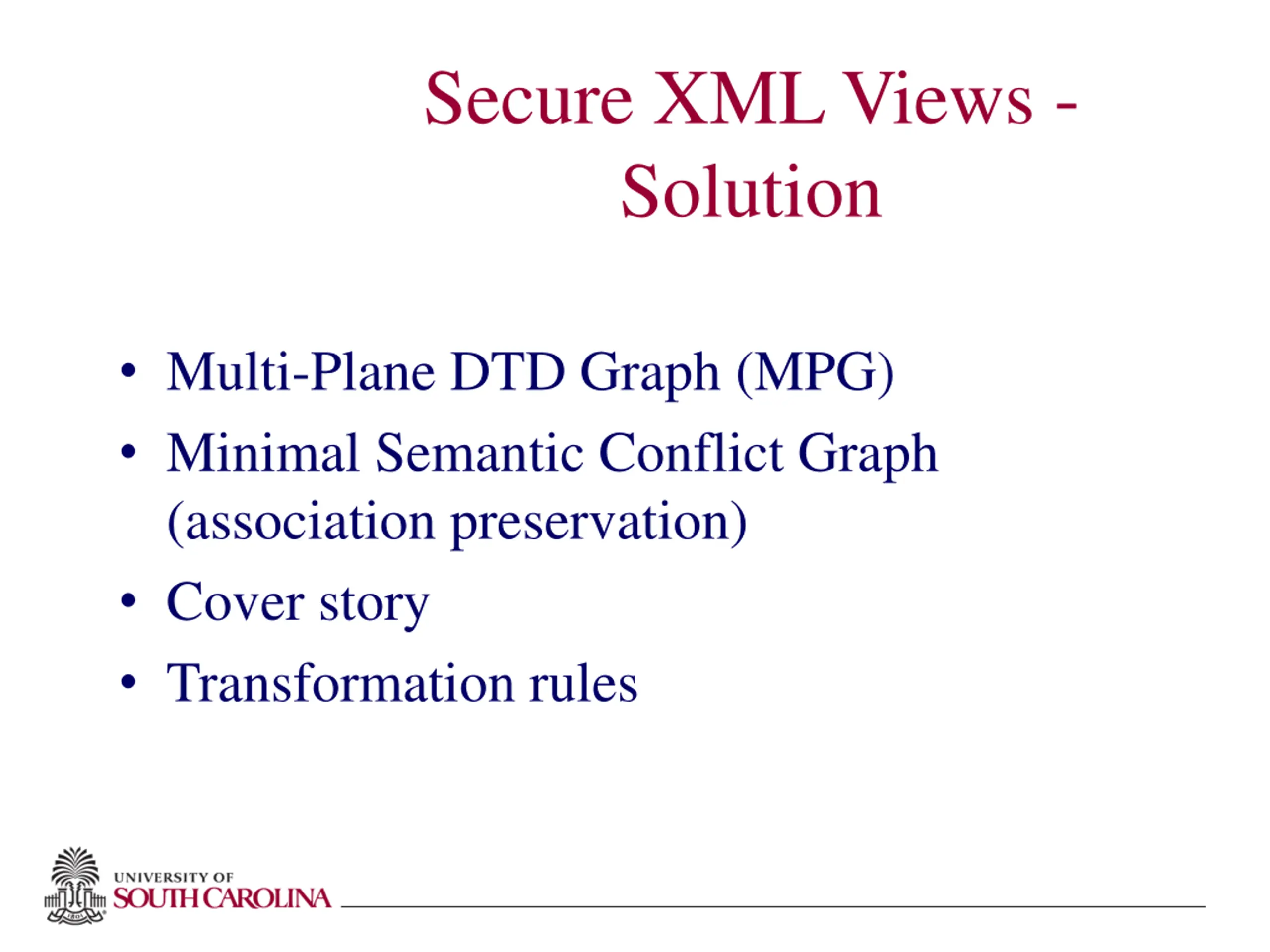

Secure XML Views - Solution Multi-Plane DTD Graph (MPG) Minimal Semantic Conflict Graph (association preservation) Cover story Transformation rules

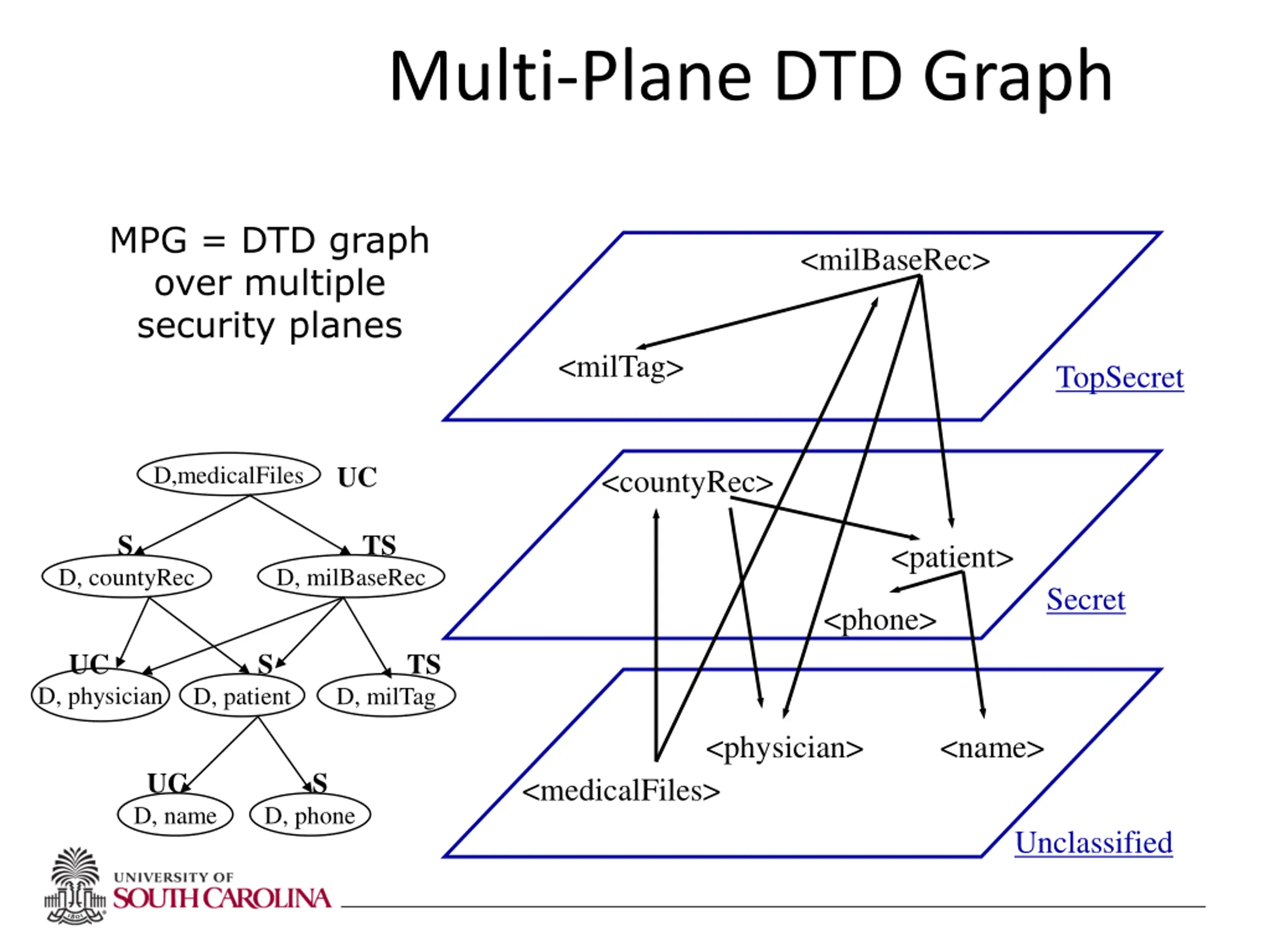

Multi-Plane DTD Graph MPG = DTD graph over multiple security planes <milBaseRec> <milTag> TopSecret UC D,medicalFiles <countyRec> S TS <patient> D, countyRec D, milBaseRec Secret <phone> UC S TS D, physician D, patient D, milTag <physician> <name> UC S <medicalFiles> D, name D, phone Unclassified

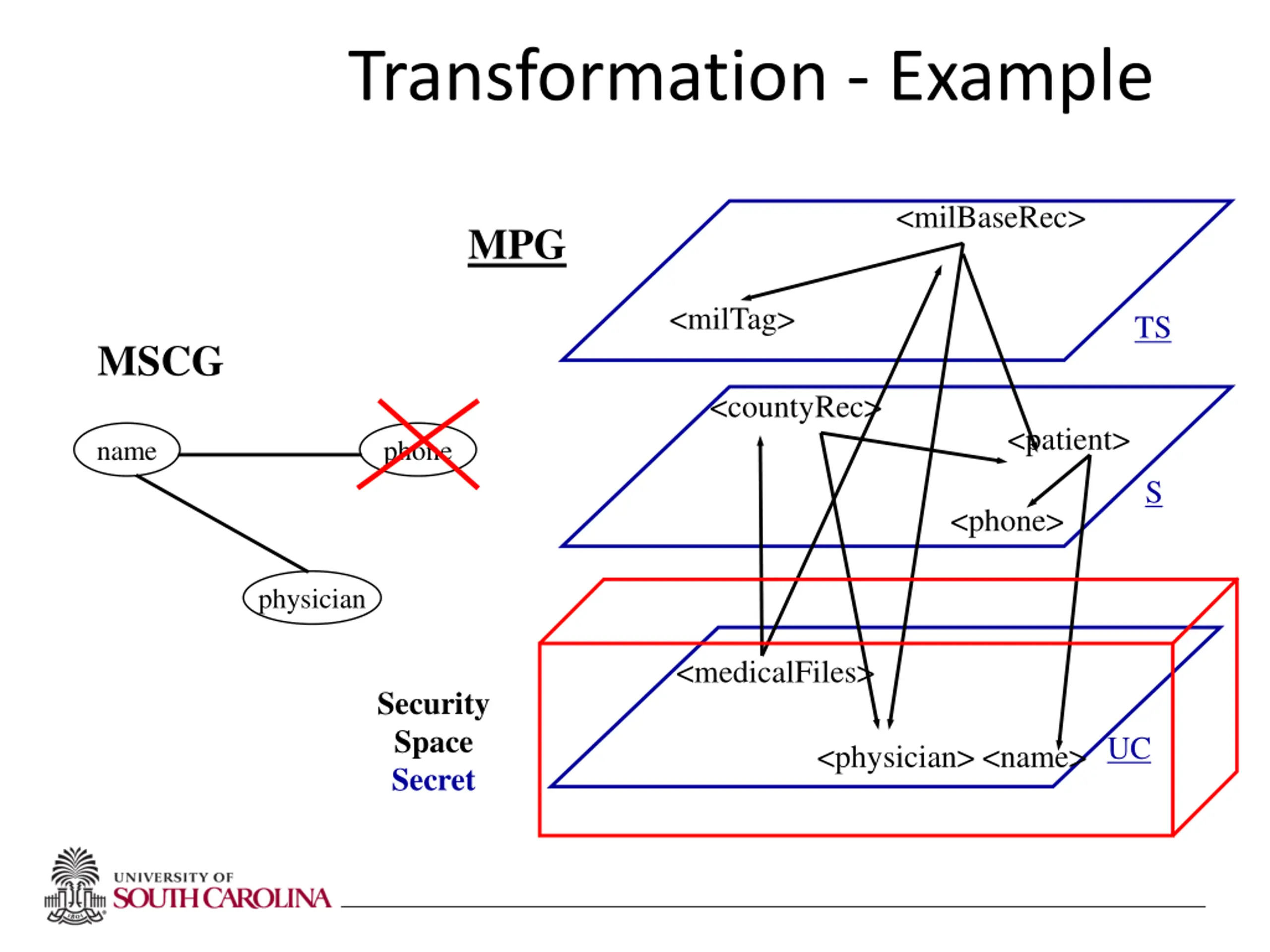

Transformation - Example <milBaseRec> MPG <milTag> TS MSCG <countyRec> <patient> name phone S <phone> physician <medicalFiles> Security Space Secret UC <physician> <name>

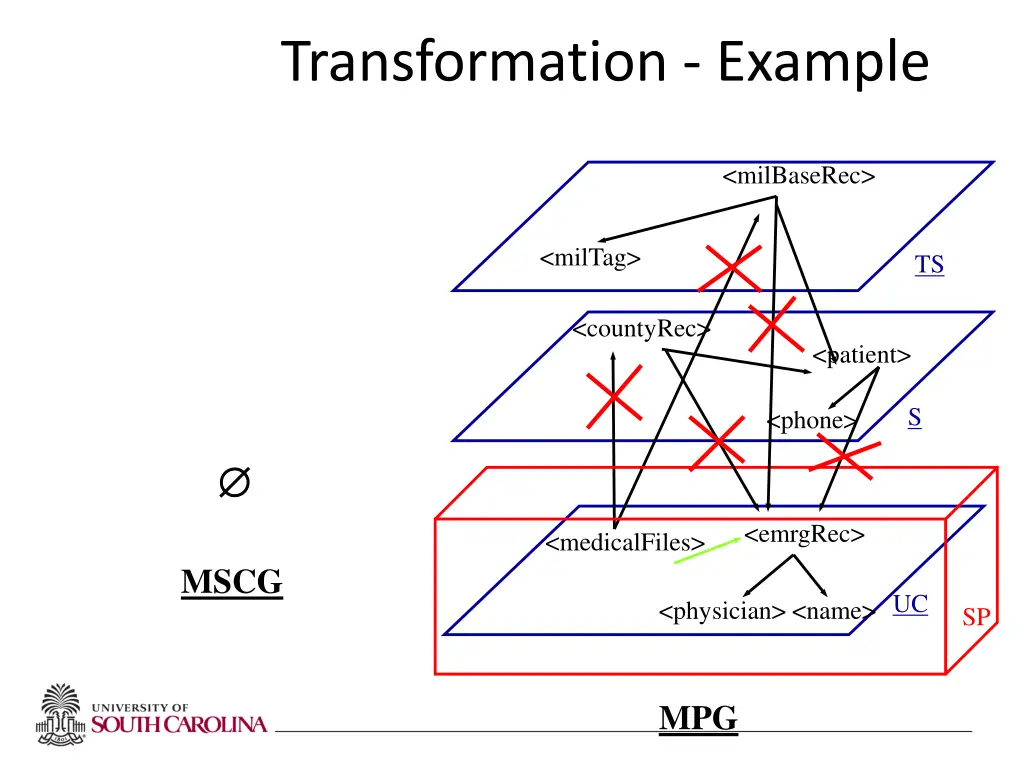

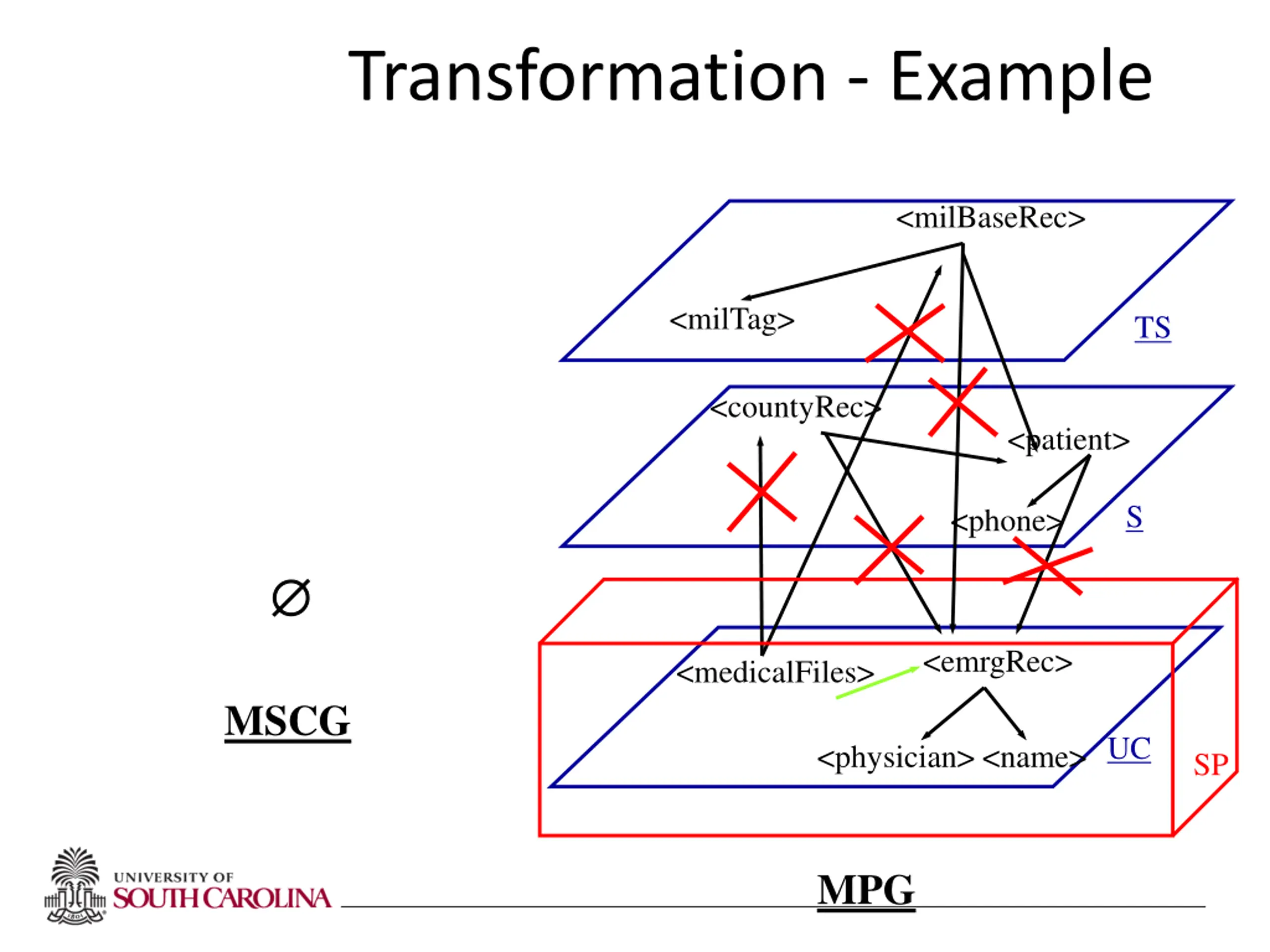

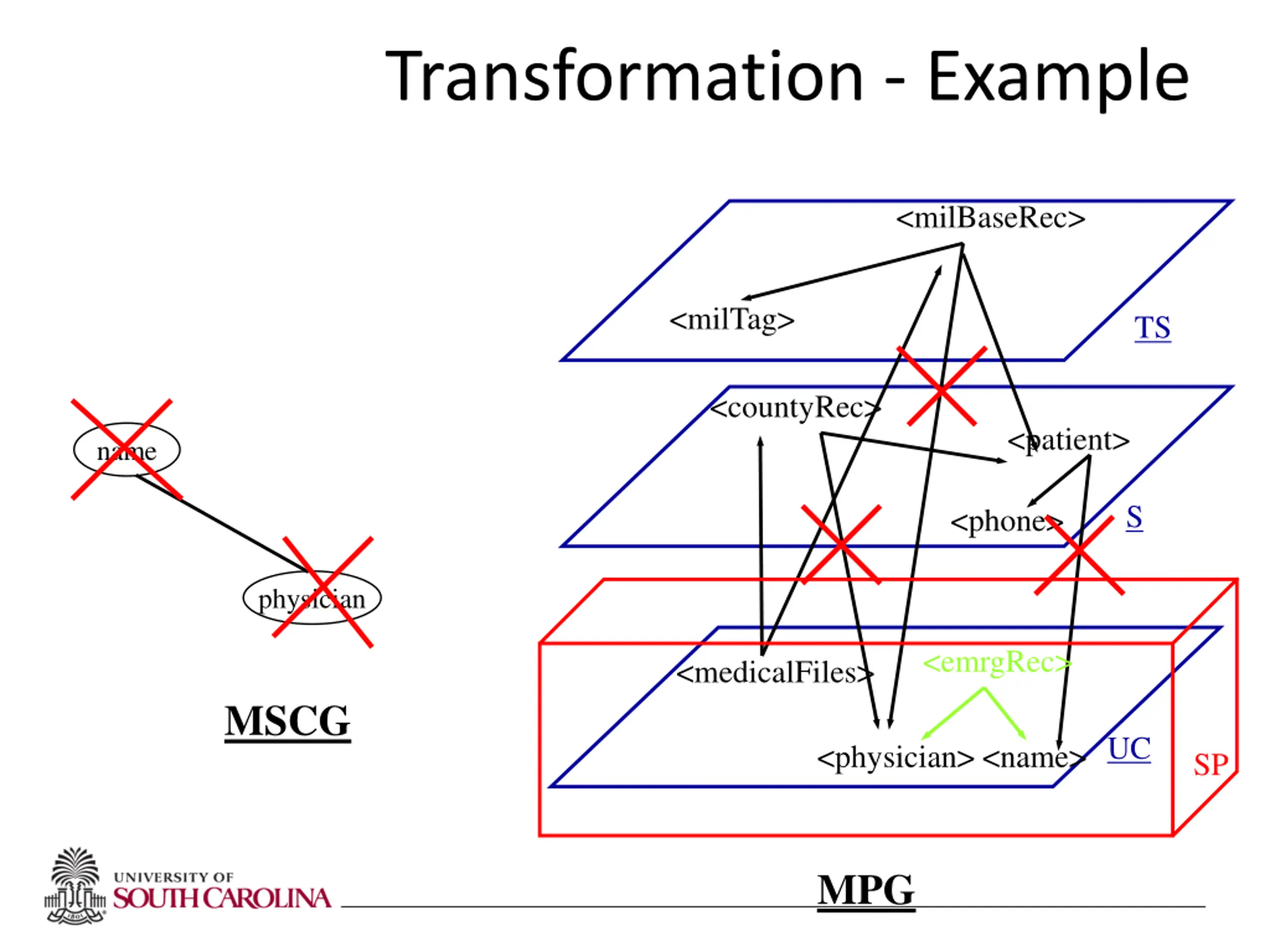

Transformation - Example <milBaseRec> <milTag> TS <countyRec> <patient> name S <phone> physician <emrgRec> <medicalFiles> MSCG UC <physician> <name> SP MPG
Transformation - Example <milBaseRec> <milTag> TS <countyRec> <patient> S <phone> <emrgRec> <medicalFiles> MSCG UC <physician> <name> SP MPG

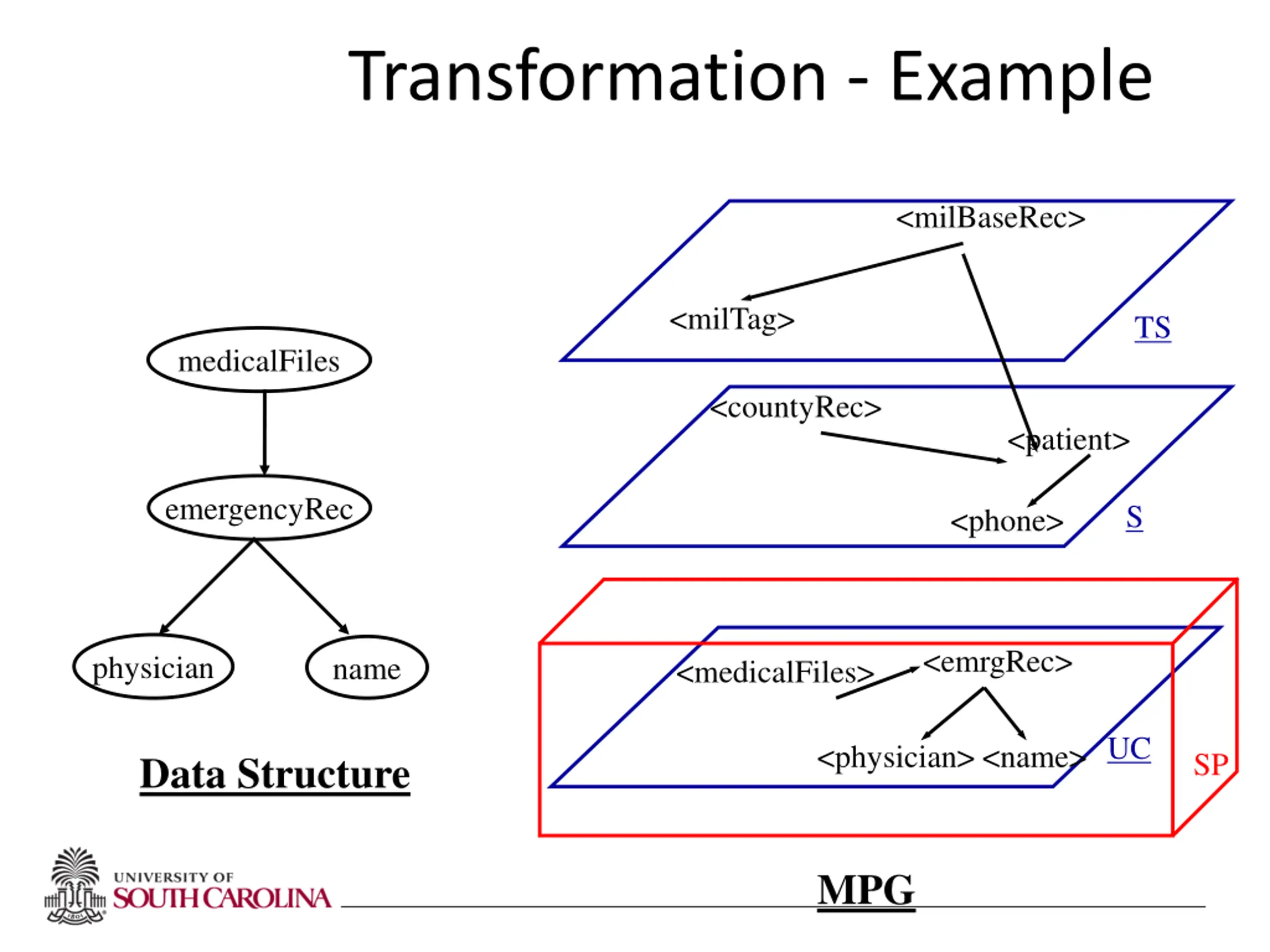

Transformation - Example <milBaseRec> <milTag> TS medicalFiles <countyRec> <patient> emergencyRec S <phone> <emrgRec> physician name <medicalFiles> UC <physician> <name> SP Data Structure MPG

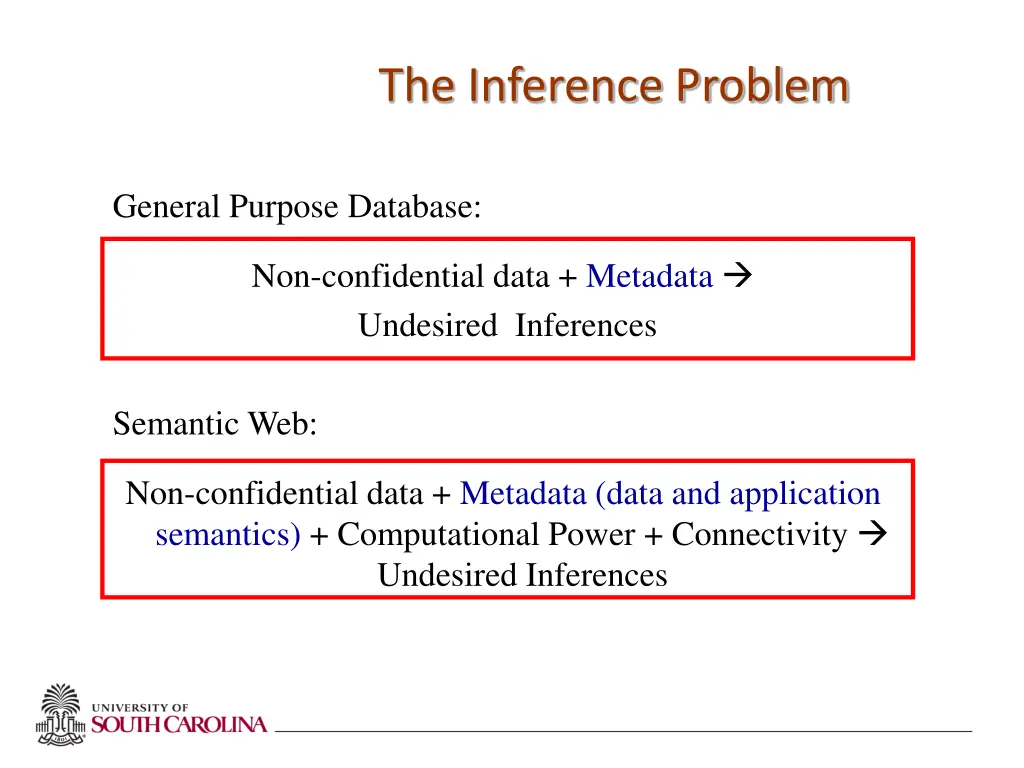

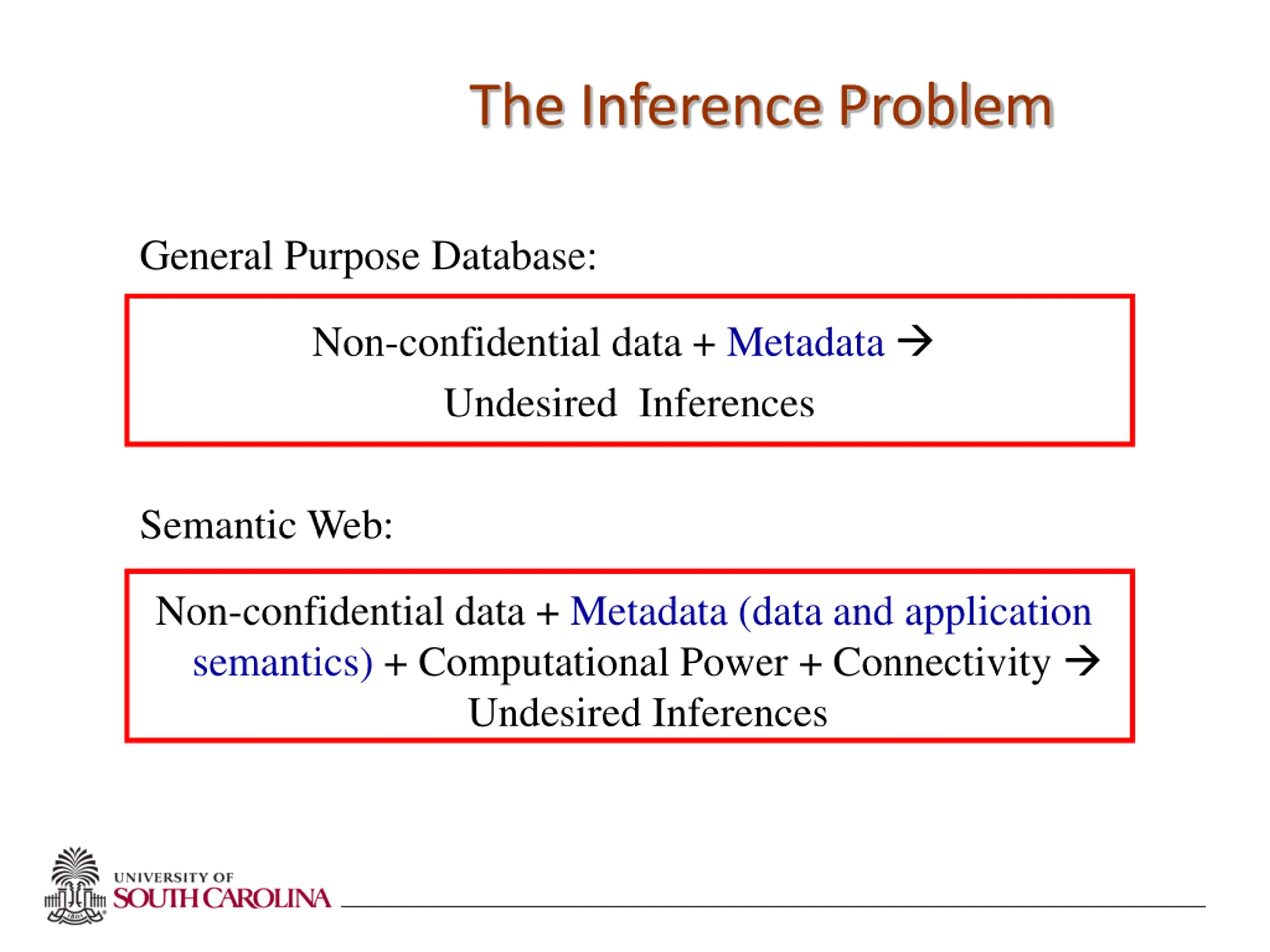

The Inference Problem General Purpose Database: Non-confidential data + Metadata Undesired Inferences Semantic Web: Non-confidential data + Metadata (data and application semantics) + Computational Power + Connectivity Undesired Inferences

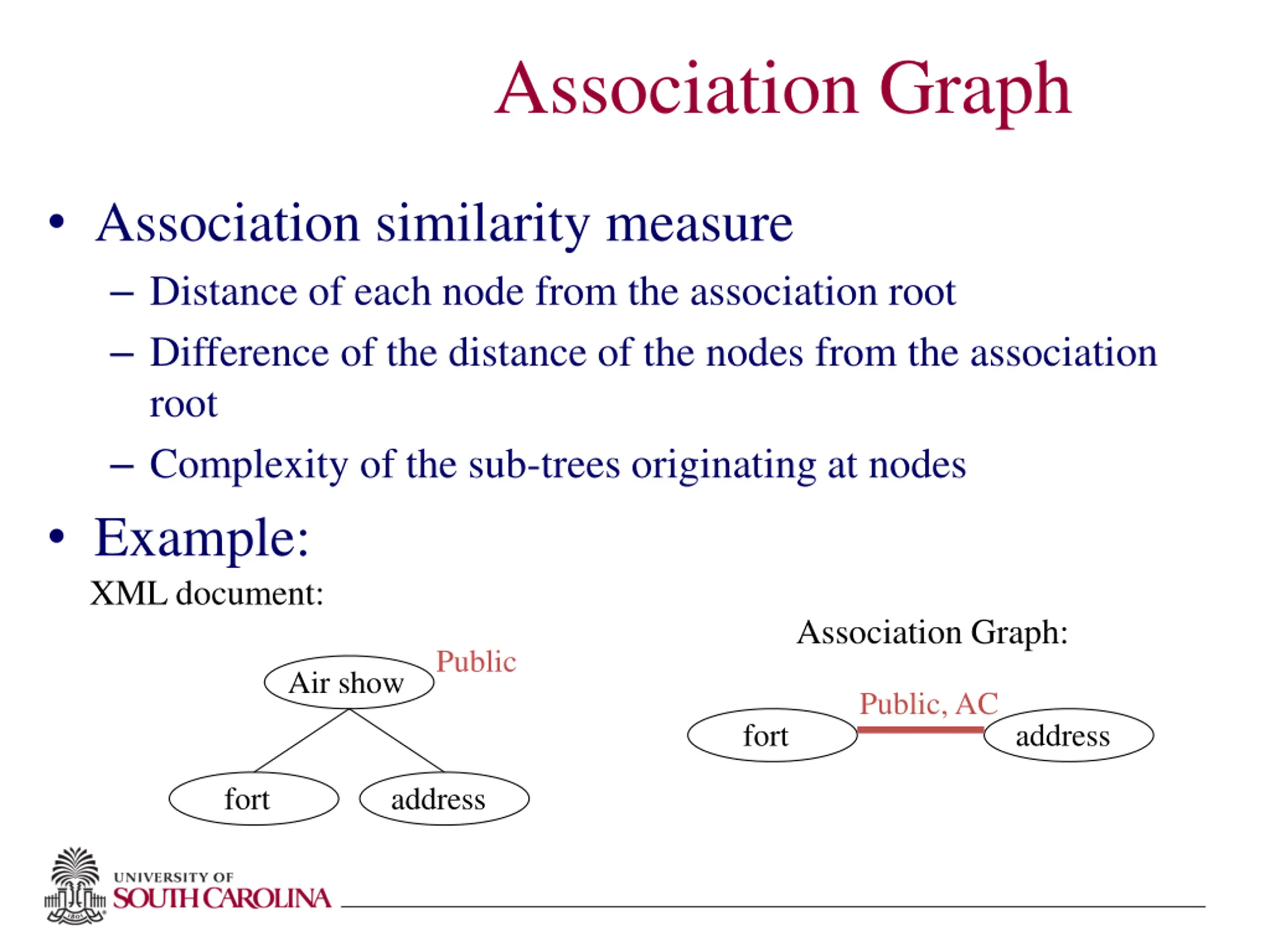

Association Graph Association similarity measure Distance of each node from the association root Difference of the distance of the nodes from the association root Complexity of the sub-trees originating at nodes Example: XML document: Association Graph: Public Air show Public, AC fort address fort address

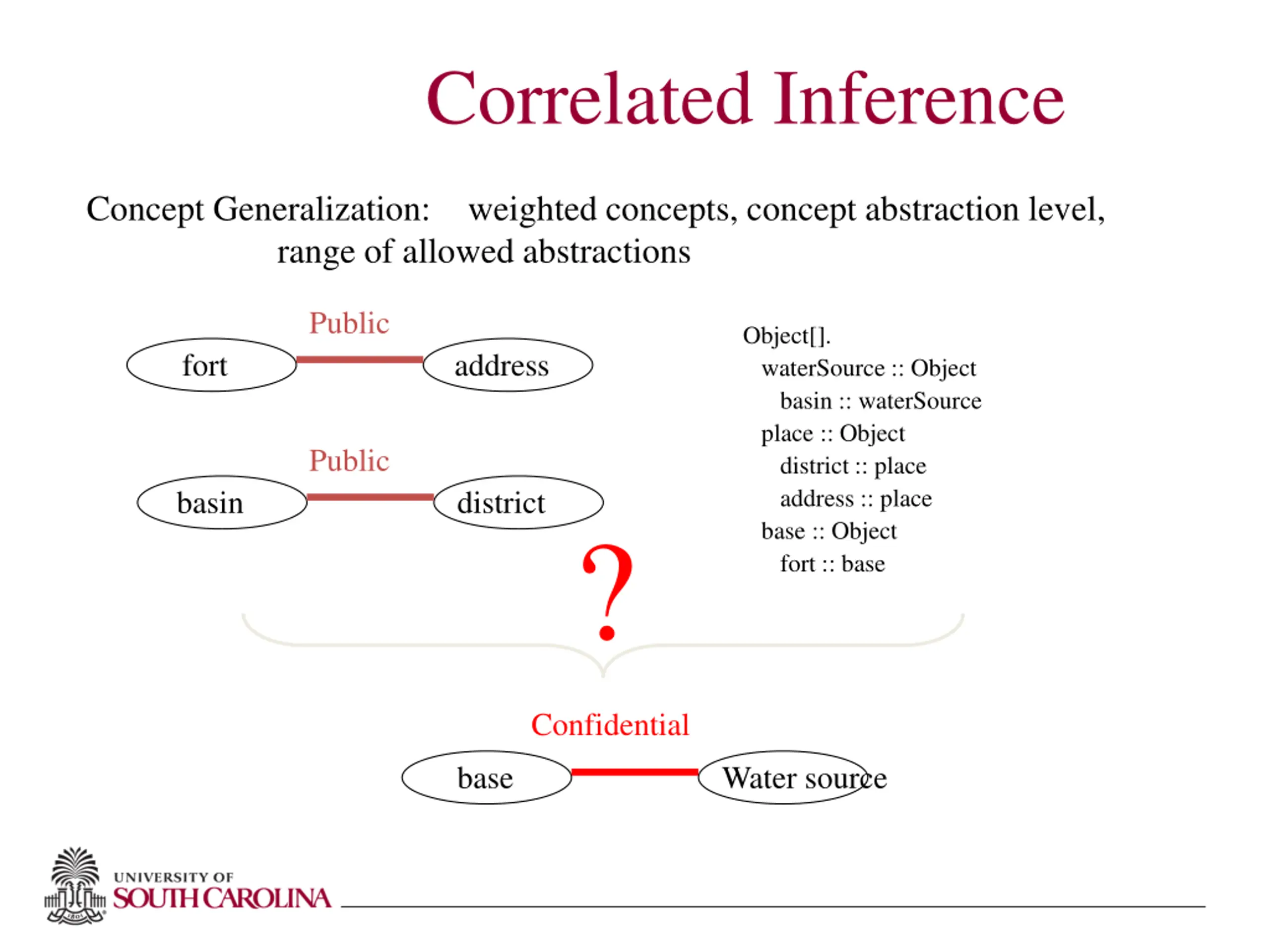

Correlated Inference Concept Generalization: weighted concepts, concept abstraction level, range of allowed abstractions Public Object[]. waterSource :: Object basin :: waterSource place :: Object district :: place address :: place base :: Object fort :: base fort address Public basin district ? Confidential base Water source

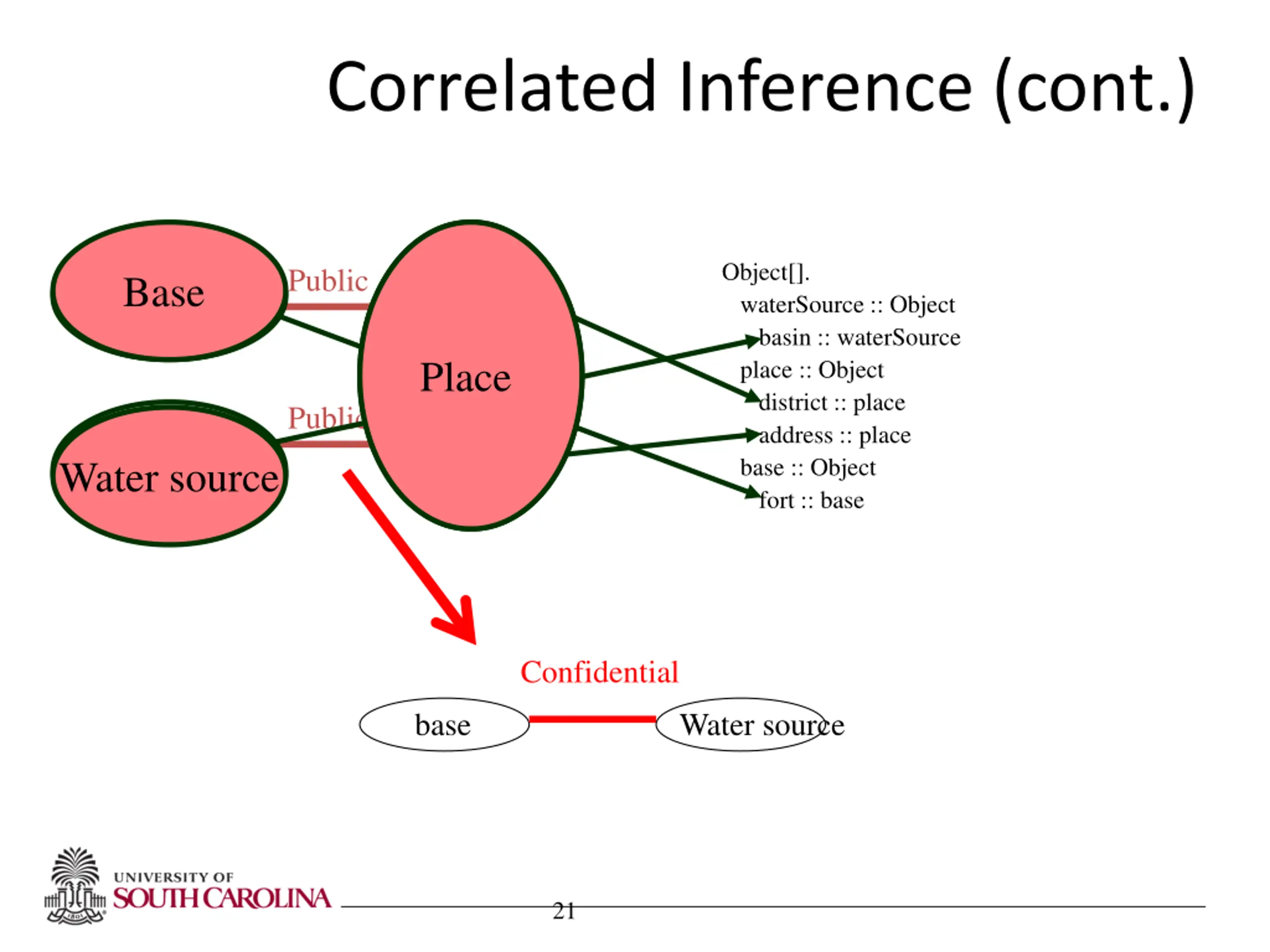

Correlated Inference (cont.) place base Object[]. waterSource :: Object basin :: waterSource place :: Object district :: place address :: place base :: Object fort :: base Public fort Base address Place Public basin district Water source Water Source Confidential base Water source 21

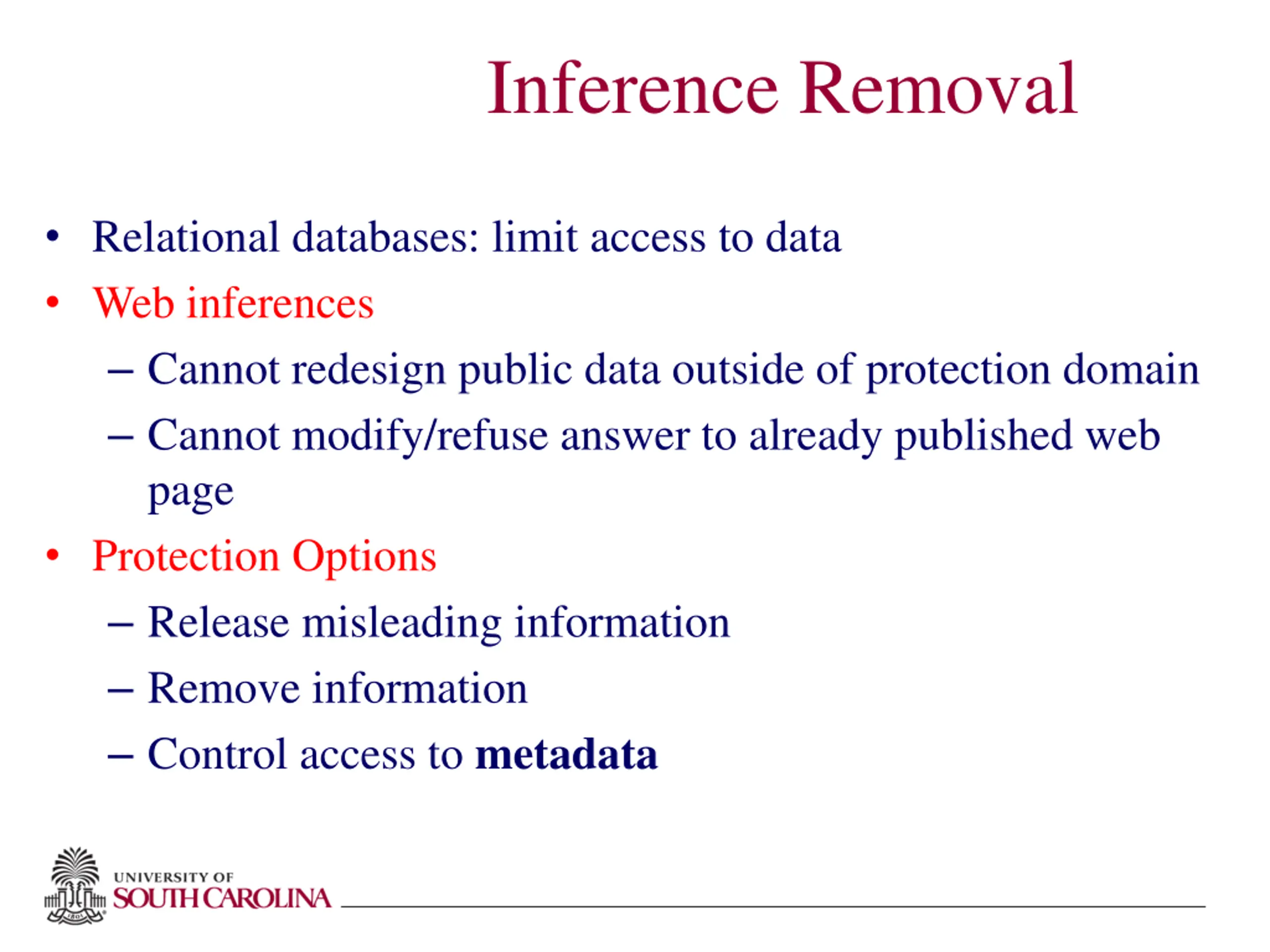

Inference Removal Relational databases: limit access to data Web inferences Cannot redesign public data outside of protection domain Cannot modify/refuse answer to already published web page Protection Options Release misleading information Remove information Control access to metadata

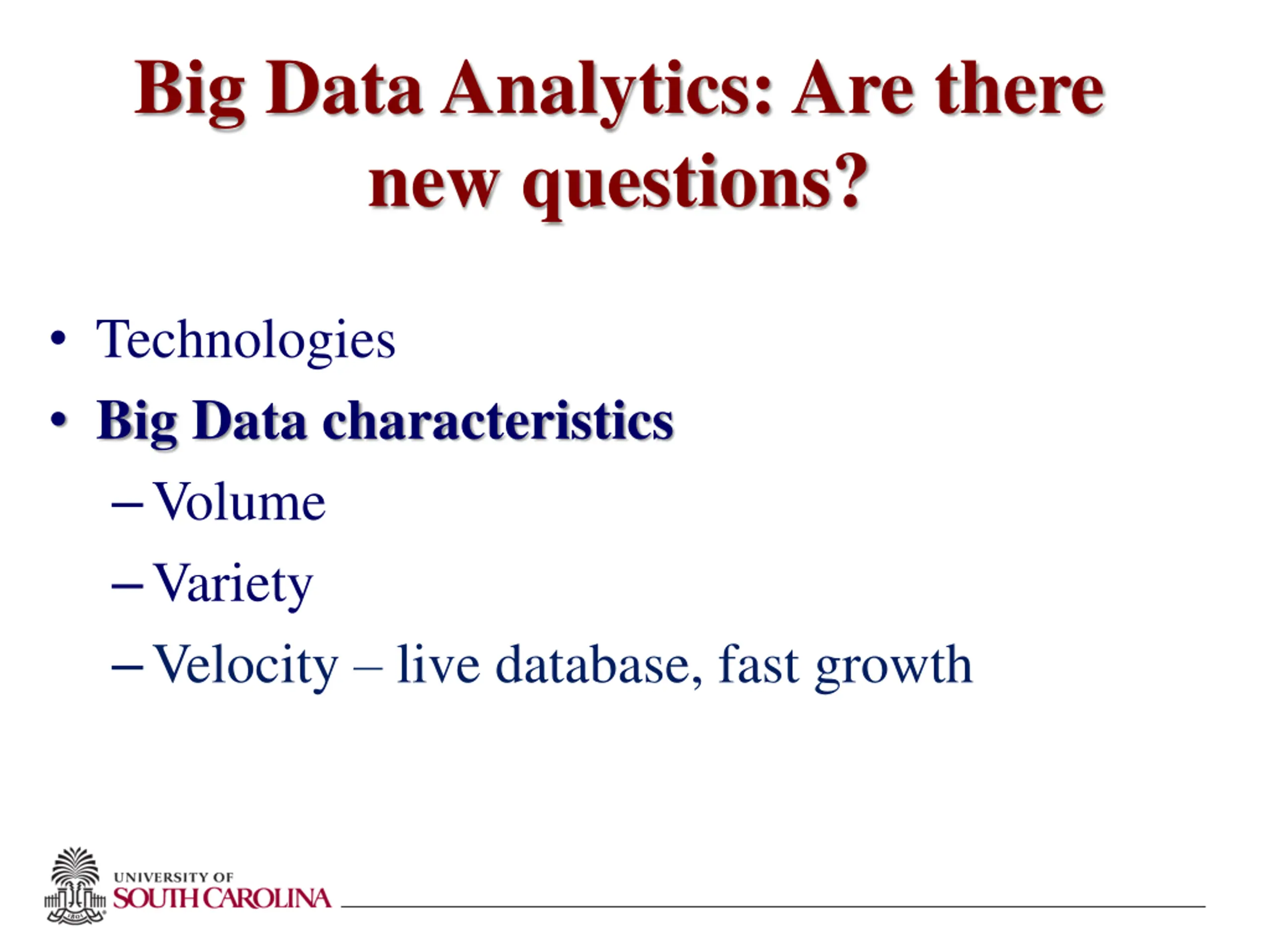

Big Data Analytics: Are there new questions? Technologies Big Data characteristics Volume Variety Velocity live database, fast growth

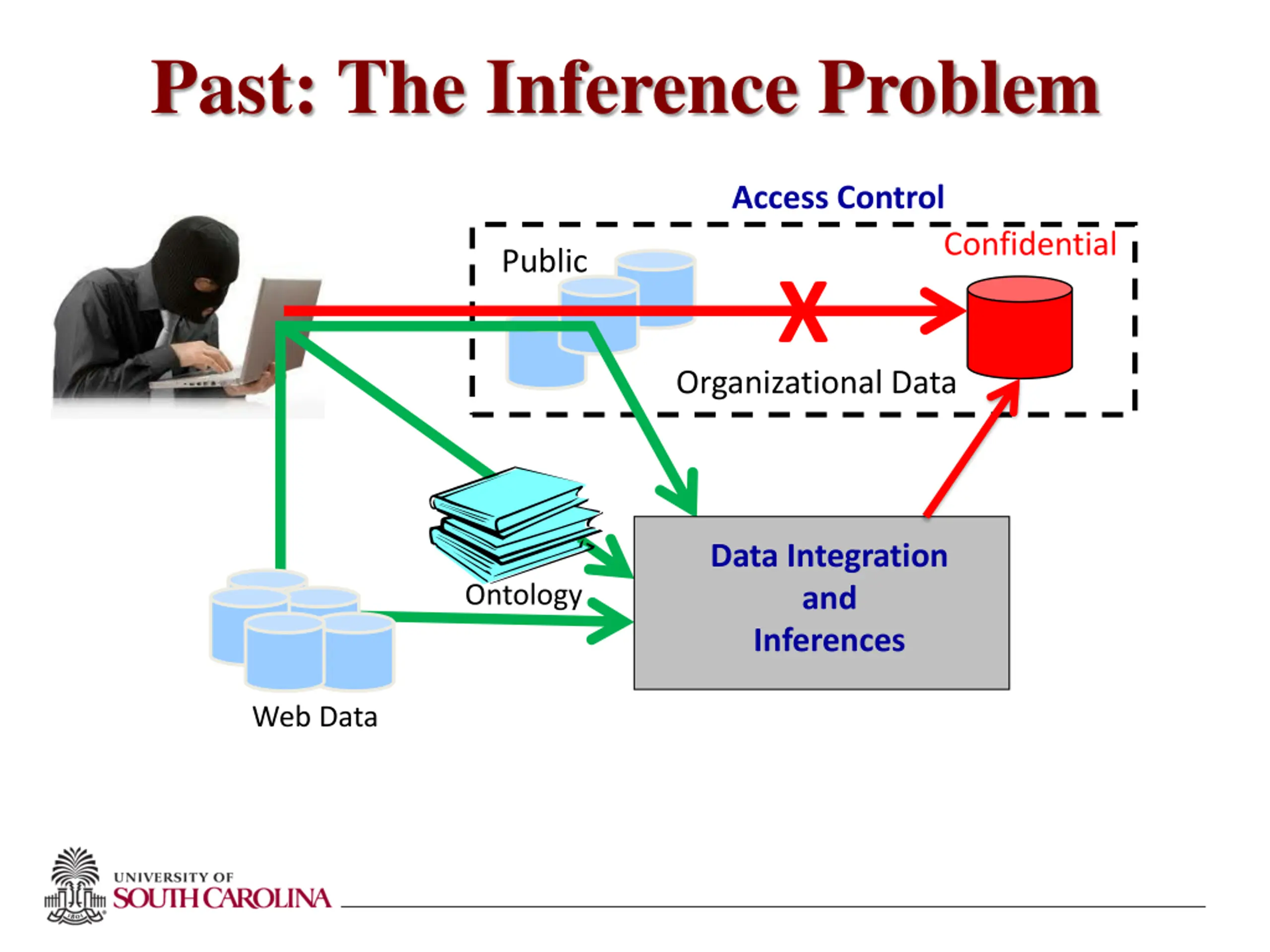

Past: The Inference Problem Access Control Confidential Public Organizational Data X Attacker Data Integration and Inferences Ontology Web Data

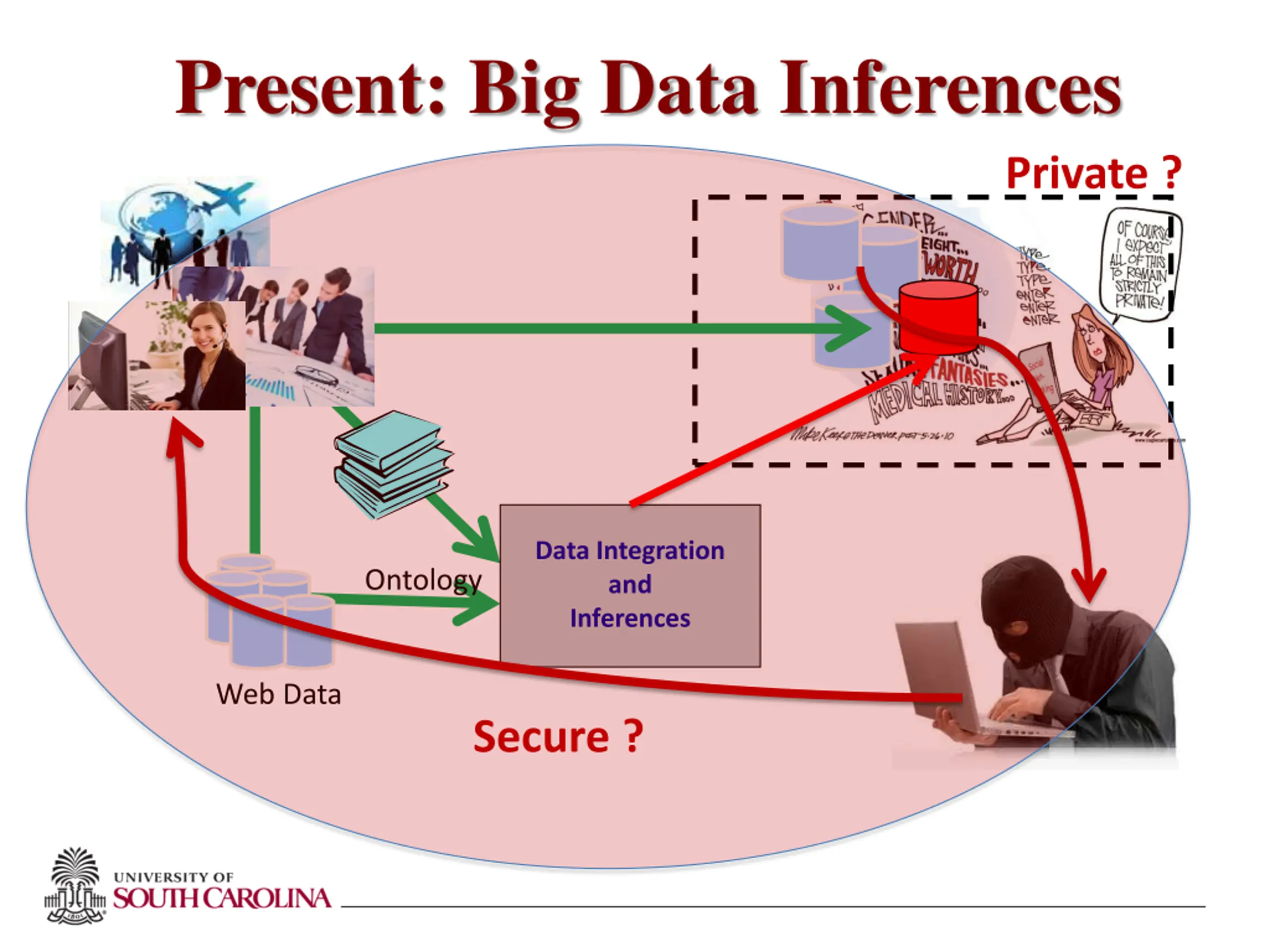

Present: Big Data Inferences Private ? Data Integration and Inferences Ontology Web Data Secure ?

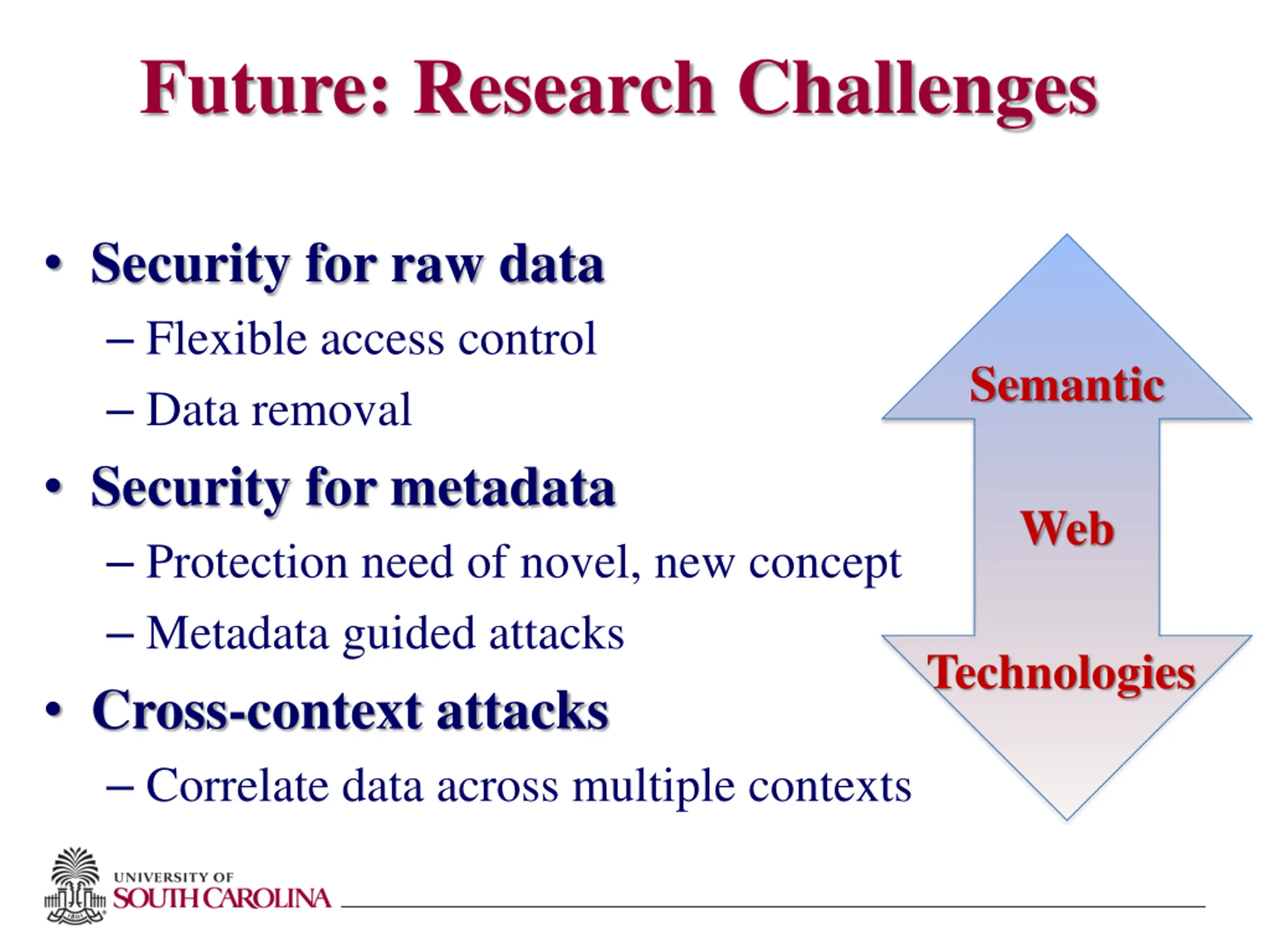

Future: Research Challenges Security for raw data Flexible access control Data removal Security for metadata Protection need of novel, new concept Metadata guided attacks Cross-context attacks Correlate data across multiple contexts Semantic Web Technologies

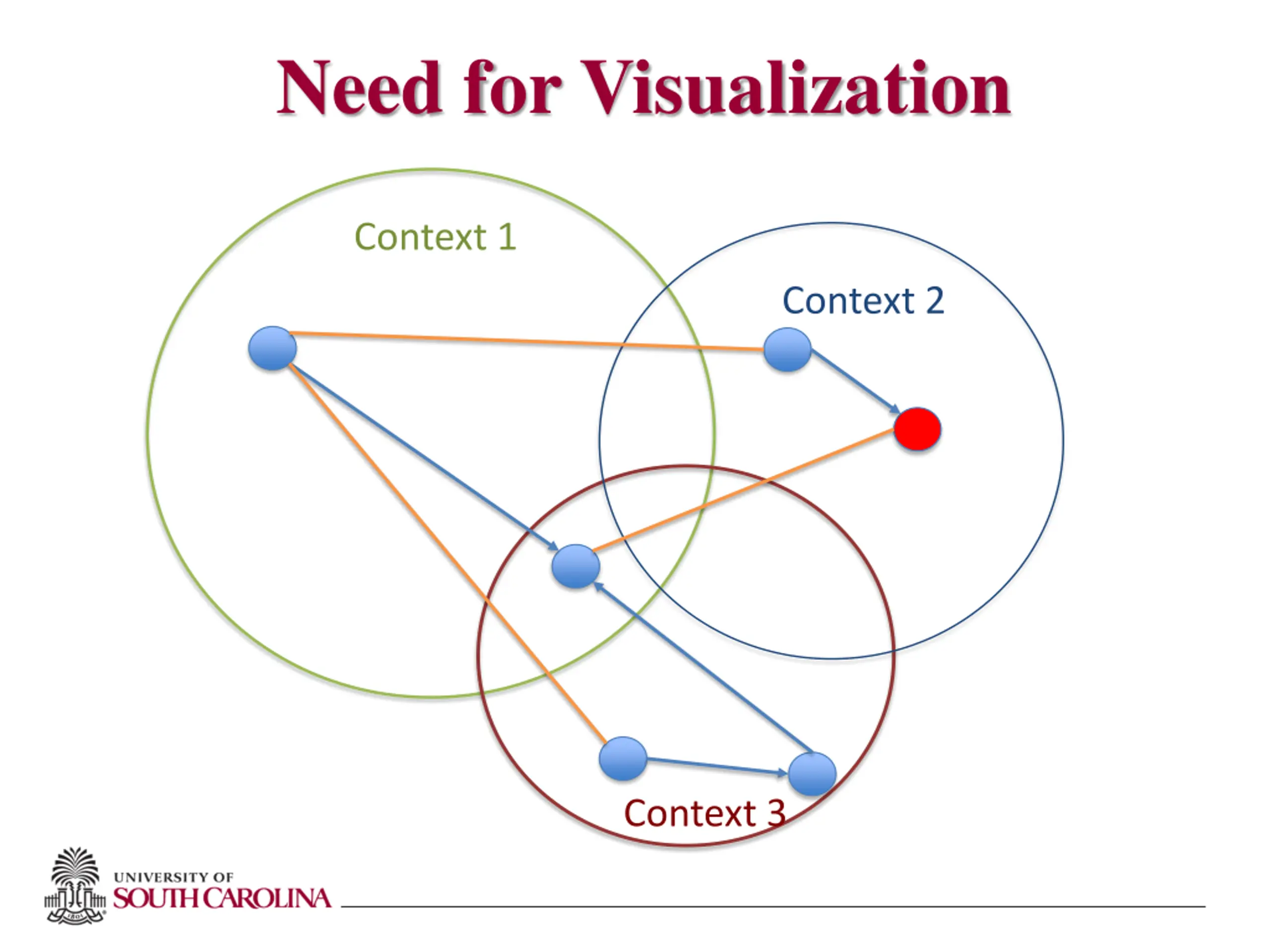

Need for Visualization Context 1 Context 2 Context 3
National Center of Academic Excellence in Information Assurance Education National Training Standards, Knowledge Units

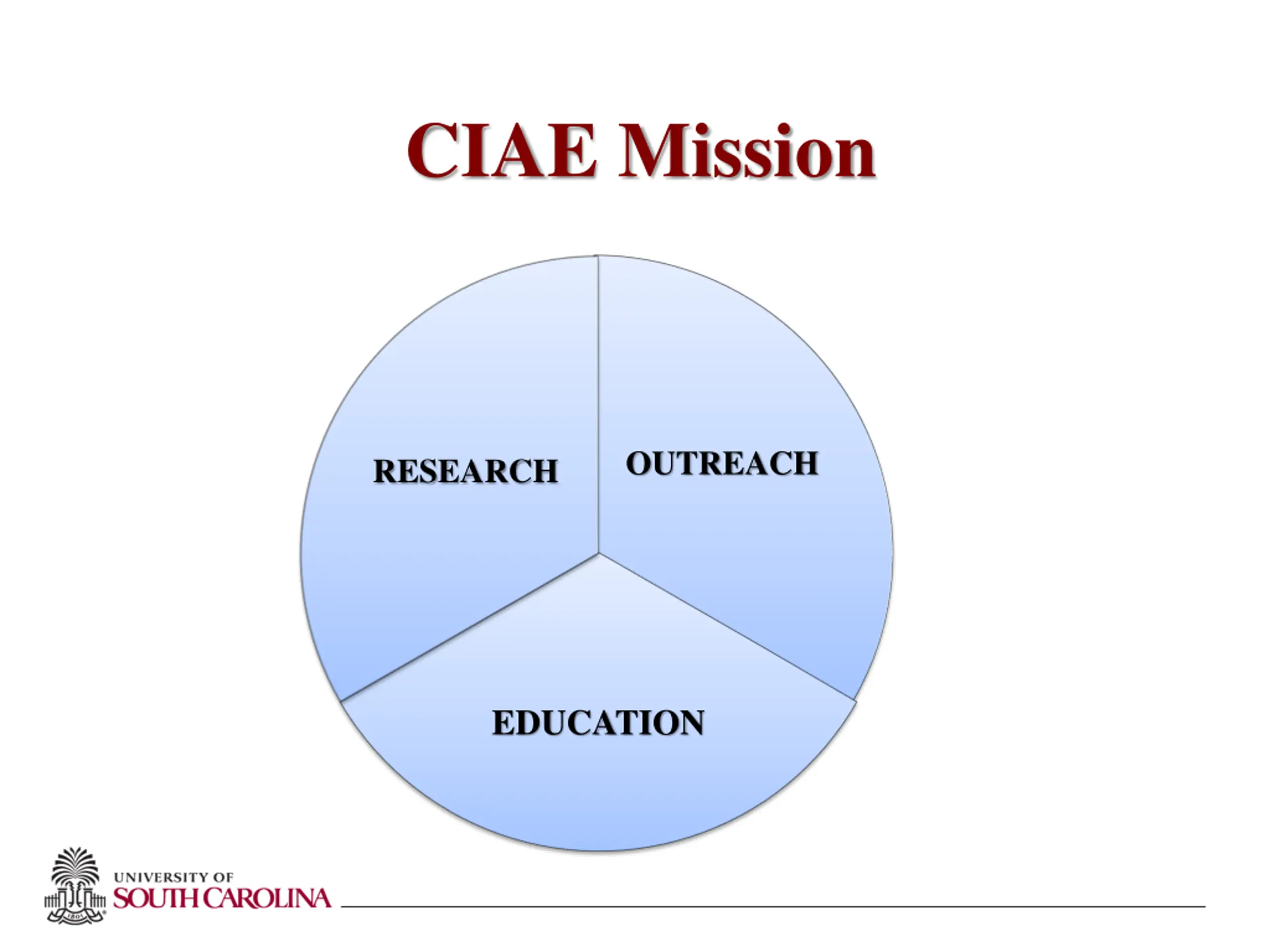

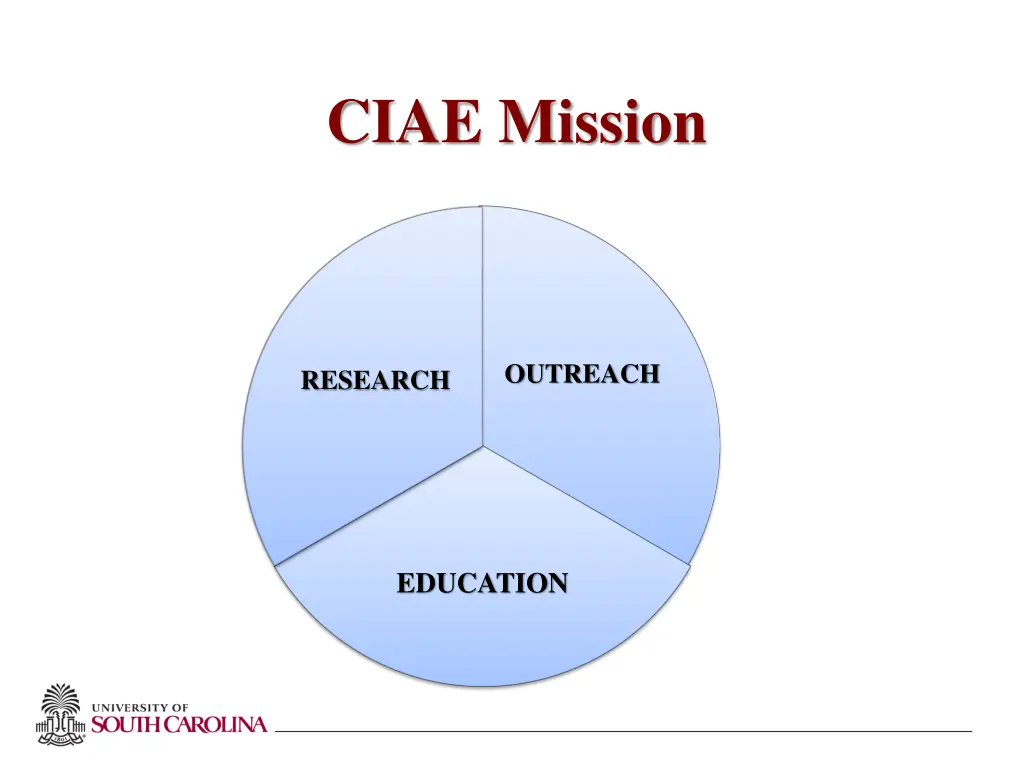

CIAE Mission OUTREACH RESEARCH EDUCATION

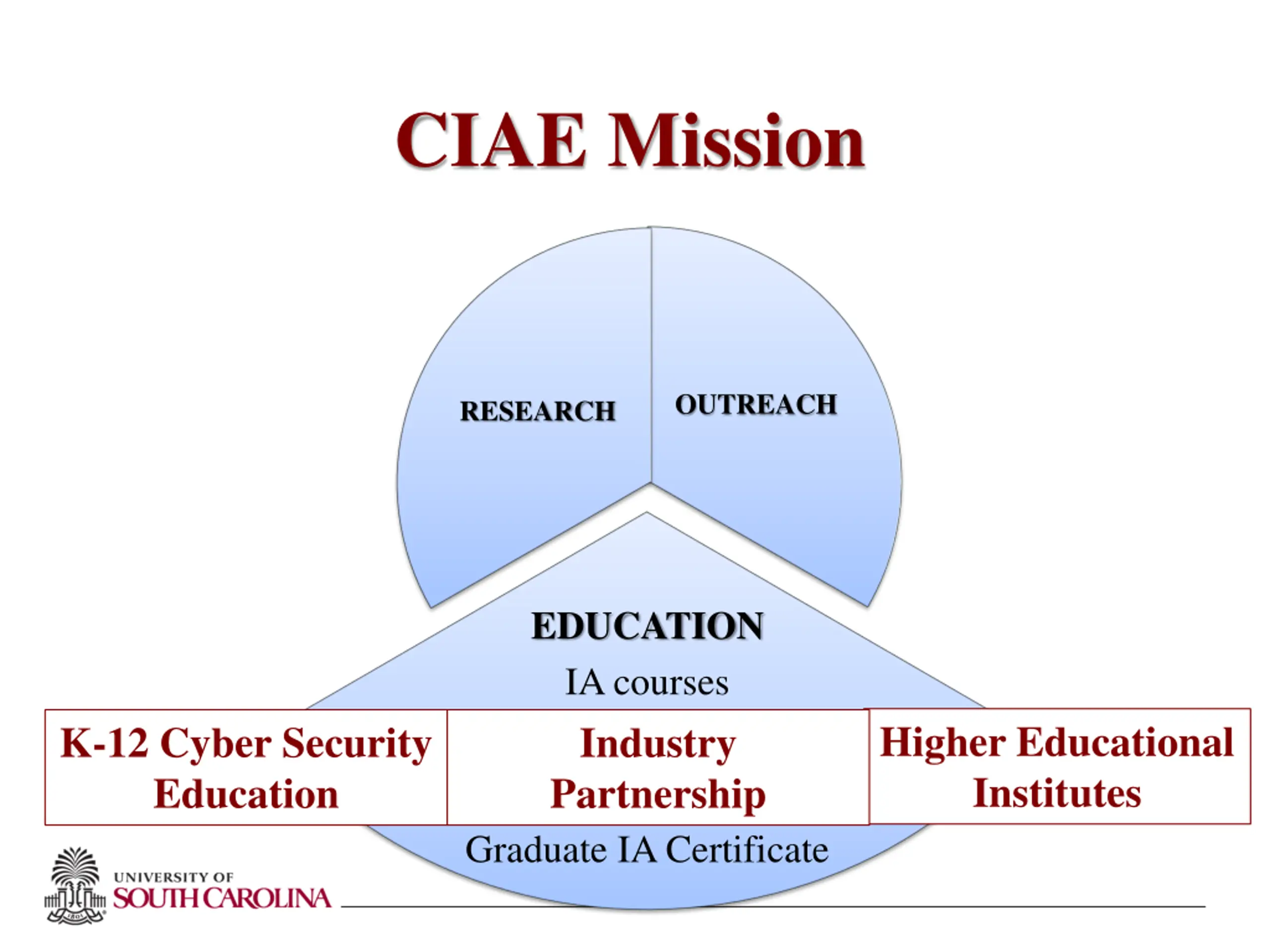

CIAE Mission OUTREACH RESEARCH EDUCATION IA courses IA specialization Applied Computing Graduate IA Certificate Higher Educational Institutes K-12 Cyber Security Education Industry Partnership

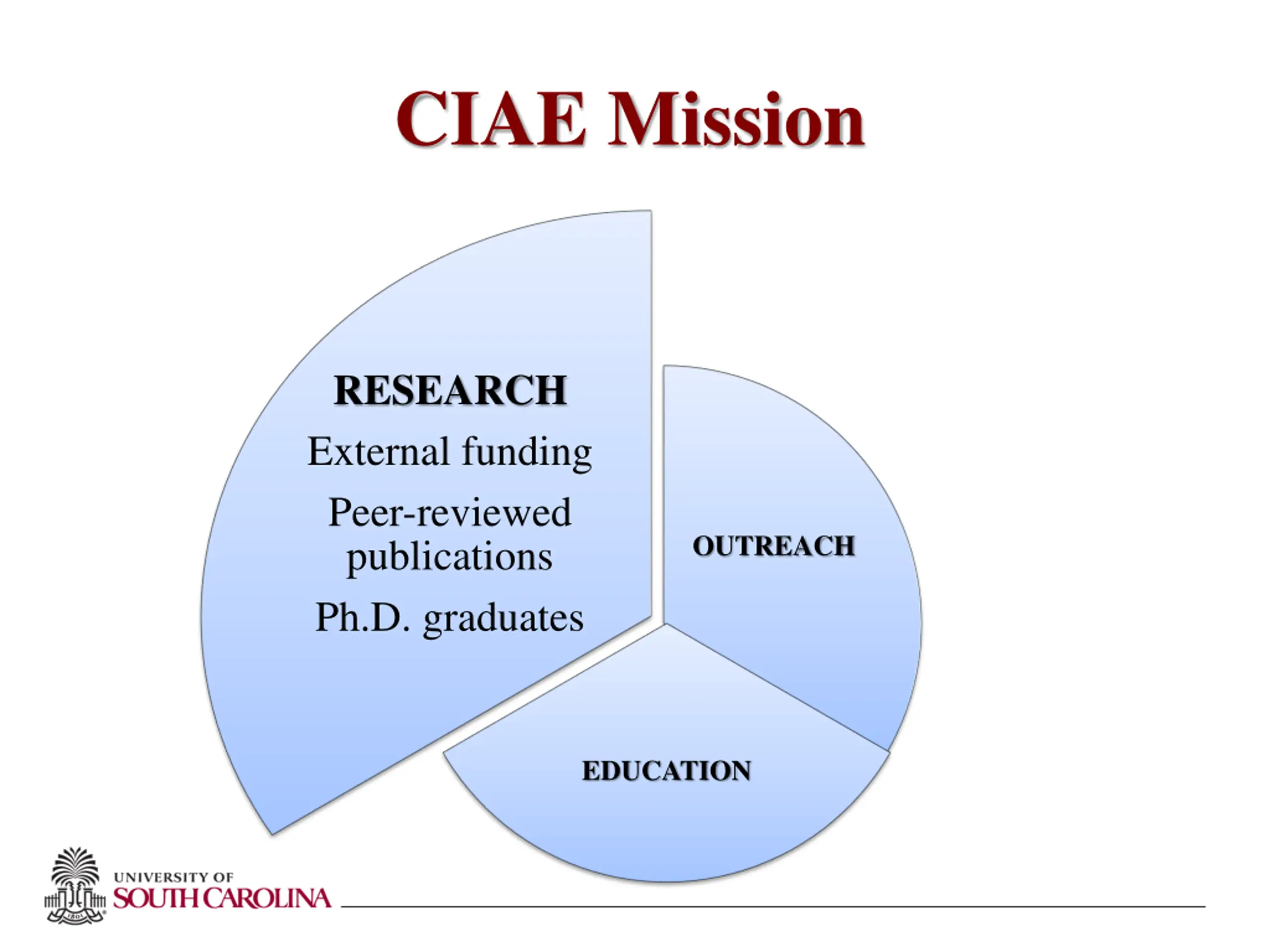

CIAE Mission RESEARCH External funding Peer-reviewed publications Ph.D. graduates OUTREACH EDUCATION
