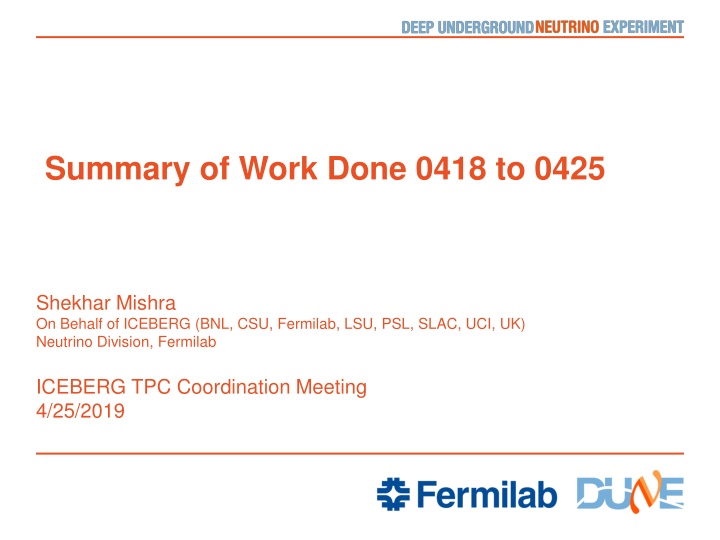

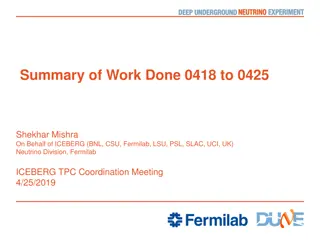

1. Summary of Work Done 0418 to 0425 Shekhar Mishra On Behalf of ICEBERG (BNL, CSU, Fermilab, LSU, PSL, SLAC, UCI, UK) Neutrino Division, Fermilab ICEBERG TPC Coordination Meeting 4/25/2019

2. FEMB test with BNL Firmware We tested 4 FEMBs in Air using BNL Firmware and found significant number of channels to be unresponsive We installed all the BNL software on a Fermilab PC and put one FEMB in Cryogenic Test Stand in LN2. - All the unresponsive channels become responsive in LN2 - When the FEMB was brought to room temperature in Air unresponsive channels returned. This FEMB with 3 additional FEMBs have been sent to BNL for further testing.

3. 6 FEMBs in CTS with DAQ We tested 6 FEMBs (2 at a time) using the BU firmware and DAQ system - Unresponsive channels in Air at Room temperature - Nominal channels in LN2 - This is reproduceable 4/25/2019 Mishra | Plan for returning TPC back in the Cryostat 3

4. Field Cage We had reported about 1 G Ohm resistor issue last week and measurement of current fluctuation on LAr Fill side of the Field Cage. Current ~0.75 uAmp Consistent with 15 GOhm Voltage 2 kv Current ~1.2 uAmp Voltage 10kv Time in Mins Time in Mins Bottom FC (LAr Fill Side) when attached by wires to Right Side of the Field Cage cannot go beyond 2 kv Bottom FC (LAr Fill Side) can be taken to 10 kv Field Cage has been removed from APA to test each side on Bench 4/25/2019 Mishra | Plan for returning TPC back in the Cryostat 4
