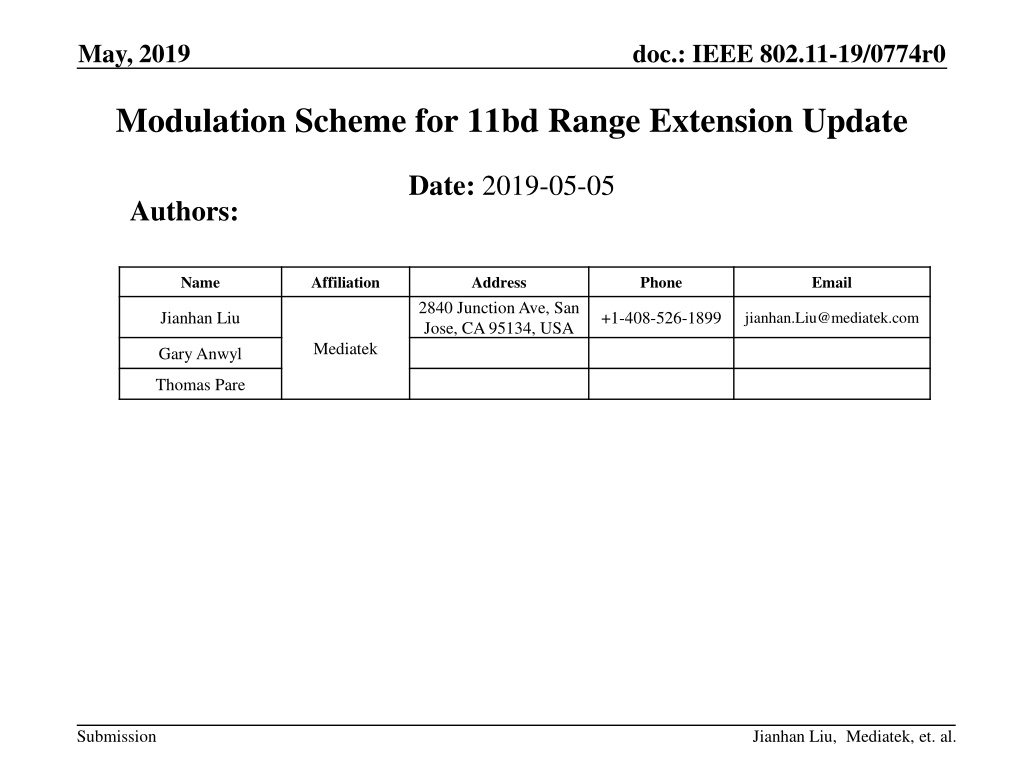

Modulation Schemes for IEEE 802.11bd Range Extension


Modulation Scheme for 11bd Range Extension Update

May, 2019

Date:
 2019-05-05

Authors:

Jianhan Liu,  Mediatek, et. al.

Schemes for Range Extension

In the PAR of 11bd [1], it says “
this amendment also defines at least
one mode that achieves at least 3dB lower sensitivity level (longer
range)
”.
Different schemes can be applied to achieve 3dB lower sensitivity. We
should select the scheme with following considerations:
1. Implementation friendly: low cost, low complexity and easy to
implement;
2. Proven technology: avoid unexpected corner cases that the technology
may fail.
3. Better be the technology already adopted in IEEE 802.11.

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 1

Introduce 11ax DCM scheme for MCS0

DCM scheme has been adopted in 11ax for range extension.
It is implementation friendly: no extra antenna needed, no latency added,
no extra coding efforts, just the addition of two LLRs.
It is a proven technology in UWB and 11ax.
We will show the performance gain of MCS0 DCM is more than 3dB
in the following slides.
We had presented the simulation results in [3] in the March 2019 IEEE
TGbd meeting.
The straw poll showed that there is no objection to adopt BPSK-DCM
modulation scheme.
There was a question about the spectrum of BPSK-DCM scheme. We
evaluate the spectrum of our proposed BPSK-DCM scheme and show
there is no difference with BPSK modulation used in 11p.

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 2

 MCS0 DCM modulation scheme in 11ax

Jianhan Liu,  Mediatek, et. al.

      and              are modulated symbol for data subcarrier k and
k+N
SD
for DCM.
are both BPSK modulated.







To reduce the PAPR of MCS0 DCM modulation, we propose the
following modulation scheme

Note: N
SD
is defined for DCM which is half of            .

May, 2019

Slide 3

Why Rotate
 by (k+N_sd)*Pi?

We can see that the
proposed MCS0 DCM
modulation scheme reaches
the similar PAPR as BSPK
modulation.

Other MCS0 DCM
modulation schemes have
larger PAPR.

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 4

Spectrum of 11bd with DCM Modulation

In the March meeting, the question on the spectrum of BPSK-DCM
modulation has been asked.
We compared the spectrum of ½ rate BPSK and ½ rate BPSK-DCM with Sample
Rate = 40MHz.

We can see that the
proposed BPSK-DCM
modulation scheme in fact
has similar spectrum to
BPSK.
In fact, the proposed
BPSK-DCM modulation
scheme has slightly better
spectrum than BPSK in
the out bands.

May, 2019

Slide 5

Jianhan Liu,  Mediatek, et. al.

Straw Poll #1


Do you agree to include the following BPSK DCM modulation scheme
in the section 3 of 11bd SFD for achieving lower sensitivity?

Jianhan Liu,  Mediatek, et. al.

May, 2019

Where N
SD
is defined for DCM which is half of

       .

Slide 6

Back Up Slides

May, 2019

Slide 7

Jianhan Liu,  Mediatek, et. al.

Simulation Results

Settings
Configuration = 1x1, 10MHz Channel, 8usec symbols
MCS = 0, 1, 0-DCM, 1-DCM
Coding = LDPC
Midamble = Inserted every 10 symbols
Packet = 300 bytes/packet, 400 packets
Rx processing = DFE Channel Tracking using slicer outputs
Channel = C2C channel models [2]

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 8

Results: Rural LOS

We can see MCS0 DCM has 3.3dB gain over MCS 0 in Rural LOS.

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 9

Results: Highway LOS

We can see MCS0 DCM has 4.1dB gain over MCS 0 in Highway
LOS.

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 10

Results: Urban Approaching LOS

We can see MCS0 DCM has 4.2dB gain over MCS 0 in Urban
Approaching LOS.

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 11

Results: Highway NLOS

We can see MCS0 DCM has 3.2dB gain over MCS 0 in Highway
NLOS.

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 12

Results: Urban Crossing NLOS

We can see MCS0 DCM has 3.4dB gain over MCS 0 in Urban
Crossing NLOS.

Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 13

Reference

[1].  “
802.11 NGV Proposed PAR”, IEEE 802.11-18/0861r9, Bo Sun,
Hongyuan Zhang.
[2]. "Simulation of NGV Channel Models", IEEE 802.11-19/0017r4,
Prashat Sharma, Rui Cao, Hongyuan Zhang
[3] “
Modulation Scheme for 11bd Range Extension”,
IEEE 802.11-
19/0343r1, Jianhan Liu.


Jianhan Liu,  Mediatek, et. al.

May, 2019

Slide 14
Slide Note
Embed
Share

The document discusses modulation schemes for extending the range in IEEE 802.11bd, aiming for at least 3dB lower sensitivity levels. It highlights the need for an implementation-friendly, proven technology already adopted in IEEE 802.11. The introduction of the MCS0 DCM scheme in 11ax is also covered, showcasing its benefits and performance gains. Evaluation of spectrum and modulation schemes is presented, emphasizing similarities with existing technologies like BPSK. The proposed schemes prioritize cost-effectiveness, simplicity, and performance in range extension.

  • Modulation schemes
  • IEEE 802.11bd
  • Range extension
  • MCS0 DCM scheme
  • Implementation-friendly

Uploaded on Aug 09, 2024 | 1 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

E N D

Presentation Transcript


  1. May, 2019 doc.: IEEE 802.11-19/0774r0 Modulation Scheme for 11bd Range Extension Update Date: 2019-05-05 Authors: Name Affiliation Address Phone Email 2840 Junction Ave, San Jose, CA 95134, USA Jianhan Liu +1-408-526-1899 jianhan.Liu@mediatek.com Mediatek Gary Anwyl Thomas Pare Submission Jianhan Liu, Mediatek, et. al.

  2. May, 2019 doc.: IEEE 802.11-19/0774r0 Schemes for Range Extension In the PAR of 11bd [1], it says this amendment also defines at least one mode that achieves at least 3dB lower sensitivity level (longer range) . Different schemes can be applied to achieve 3dB lower sensitivity. We should select the scheme with following considerations: 1. Implementation friendly: low cost, low complexity and easy to implement; 2. Proven technology: avoid unexpected corner cases that the technology may fail. 3. Better be the technology already adopted in IEEE 802.11. Submission Slide 1 Jianhan Liu, Mediatek, et. al.

  3. May, 2019 doc.: IEEE 802.11-19/0774r0 Introduce 11ax DCM scheme for MCS0 DCM scheme has been adopted in 11ax for range extension. It is implementation friendly: no extra antenna needed, no latency added, no extra coding efforts, just the addition of two LLRs. It is a proven technology in UWB and 11ax. We will show the performance gain of MCS0 DCM is more than 3dB in the following slides. We had presented the simulation results in [3] in the March 2019 IEEE TGbd meeting. The straw poll showed that there is no objection to adopt BPSK-DCM modulation scheme. There was a question about the spectrum of BPSK-DCM scheme. We evaluate the spectrum of our proposed BPSK-DCM scheme and show there is no difference with BPSK modulation used in 11p. Submission Slide 2 Jianhan Liu, Mediatek, et. al.

  4. May, 2019 doc.: IEEE 802.11-19/0774r0 MCS0 DCM modulation scheme in 11ax k N s+ ks and are modulated symbol for data subcarrier k and k+NSD for DCM. are both BPSK modulated. , SD k N k s s + SD Interleaved/co ded bits DCM IFFT Sub-carrier k Sub-carrier k+NSD To reduce the PAPR of MCS0 DCM modulation, we propose the following modulation scheme = + ( ) j k N k N s + s e SD k SD = 0 DCM SD Note: NSD is defined for DCM which is half of . N Submission Slide 3 Jianhan Liu, Mediatek, et. al.

  5. May, 2019 doc.: IEEE 802.11-19/0774r0 Why Rotate by (k+N_sd)*Pi? We can see that the proposed MCS0 DCM modulation scheme reaches the similar PAPR as BSPK modulation. Other MCS0 DCM modulation schemes have larger PAPR. Submission Slide 4 Jianhan Liu, Mediatek, et. al.

  6. May, 2019 doc.: IEEE 802.11-19/0774r0 Spectrum of 11bd with DCM Modulation In the March meeting, the question on the spectrum of BPSK-DCM modulation has been asked. We compared the spectrum of rate BPSK and rate BPSK-DCM with Sample Rate = 40MHz. We can see that the proposed BPSK-DCM modulation scheme in fact has similar spectrum to BPSK. In fact, the proposed BPSK-DCM modulation scheme has slightly better spectrum than BPSK in the out bands. Submission Slide 5 Jianhan Liu, Mediatek, et. al.

  7. May, 2019 doc.: IEEE 802.11-19/0774r0 Straw Poll #1 Do you agree to include the following BPSK DCM modulation scheme in the section 3 of 11bd SFD for achieving lower sensitivity? + = ( ) j k N k N s + s e SD k SD = 0 DCM SD N Where NSD is defined for DCM which is half of . Submission Slide 6 Jianhan Liu, Mediatek, et. al.

  8. May, 2019 doc.: IEEE 802.11-19/0774r0 Back Up Slides Submission Slide 7 Jianhan Liu, Mediatek, et. al.

  9. May, 2019 doc.: IEEE 802.11-19/0774r0 Simulation Results Settings Configuration = 1x1, 10MHz Channel, 8usec symbols MCS = 0, 1, 0-DCM, 1-DCM Coding = LDPC Midamble = Inserted every 10 symbols Packet = 300 bytes/packet, 400 packets Rx processing = DFE Channel Tracking using slicer outputs Channel = C2C channel models [2] Submission Slide 8 Jianhan Liu, Mediatek, et. al.

  10. May, 2019 doc.: IEEE 802.11-19/0774r0 Results: Rural LOS We can see MCS0 DCM has 3.3dB gain over MCS 0 in Rural LOS. Submission Slide 9 Jianhan Liu, Mediatek, et. al.

  11. May, 2019 doc.: IEEE 802.11-19/0774r0 Results: Highway LOS We can see MCS0 DCM has 4.1dB gain over MCS 0 in Highway LOS. Submission Slide 10 Jianhan Liu, Mediatek, et. al.

  12. May, 2019 doc.: IEEE 802.11-19/0774r0 Results: Urban Approaching LOS We can see MCS0 DCM has 4.2dB gain over MCS 0 in Urban Approaching LOS. Submission Slide 11 Jianhan Liu, Mediatek, et. al.

  13. May, 2019 doc.: IEEE 802.11-19/0774r0 Results: Highway NLOS We can see MCS0 DCM has 3.2dB gain over MCS 0 in Highway NLOS. Submission Slide 12 Jianhan Liu, Mediatek, et. al.

  14. May, 2019 doc.: IEEE 802.11-19/0774r0 Results: Urban Crossing NLOS We can see MCS0 DCM has 3.4dB gain over MCS 0 in Urban Crossing NLOS. Submission Slide 13 Jianhan Liu, Mediatek, et. al.

  15. May, 2019 doc.: IEEE 802.11-19/0774r0 Reference [1]. 802.11 NGV Proposed PAR , IEEE 802.11-18/0861r9, Bo Sun, Hongyuan Zhang. [2]. "Simulation of NGV Channel Models", IEEE 802.11-19/0017r4, Prashat Sharma, Rui Cao, Hongyuan Zhang [3] Modulation Scheme for 11bd Range Extension , IEEE 802.11- 19/0343r1, Jianhan Liu. Submission Slide 14 Jianhan Liu, Mediatek, et. al.
