Method Verification Paul Ammann

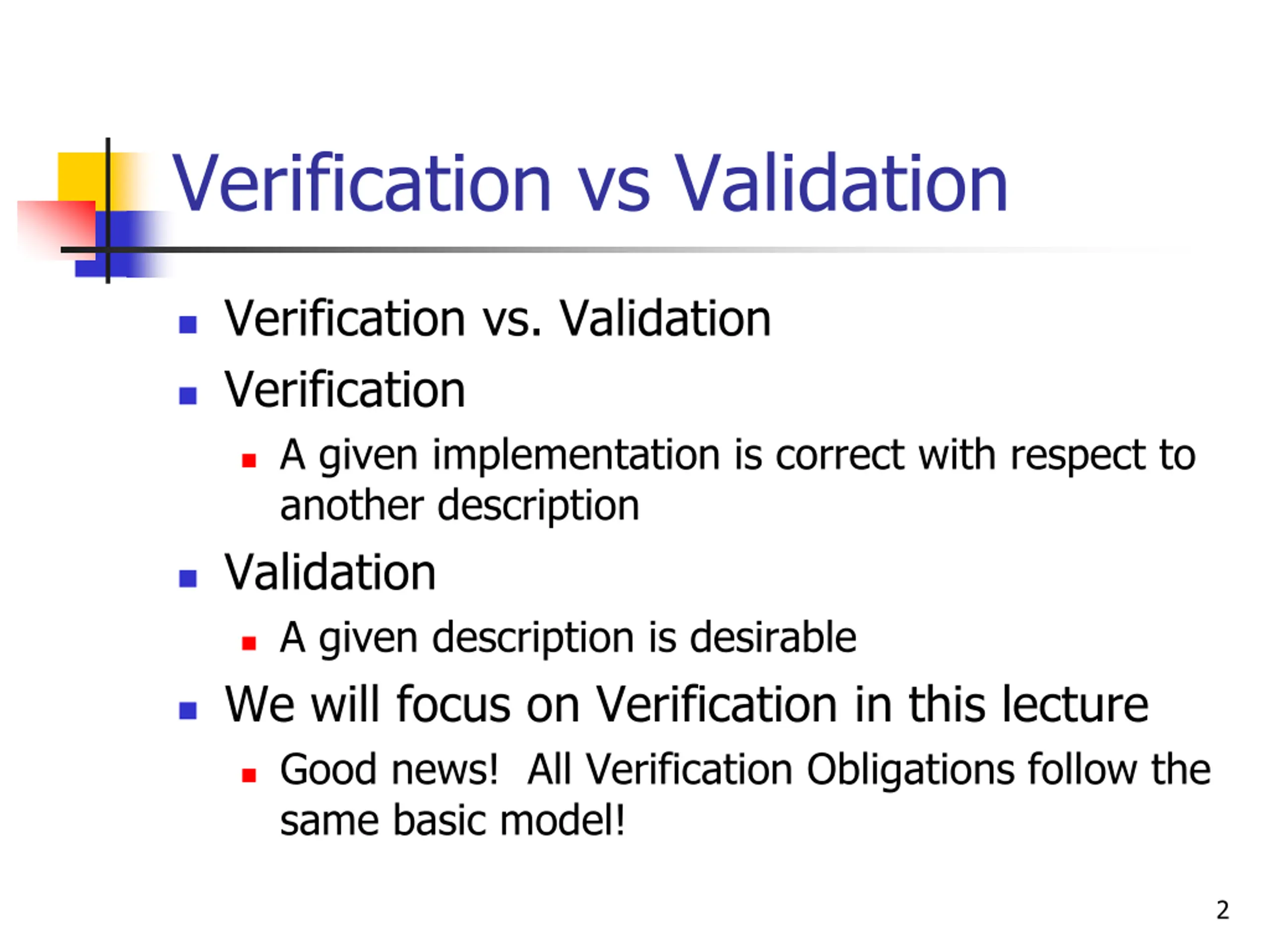

Verification vs Validation Verification vs. Validation Verification A given implementation is correct with respect to another description Validation A given description is desirable We will focus on Verification in this lecture Good news! All Verification Obligations follow the same basic model! 2

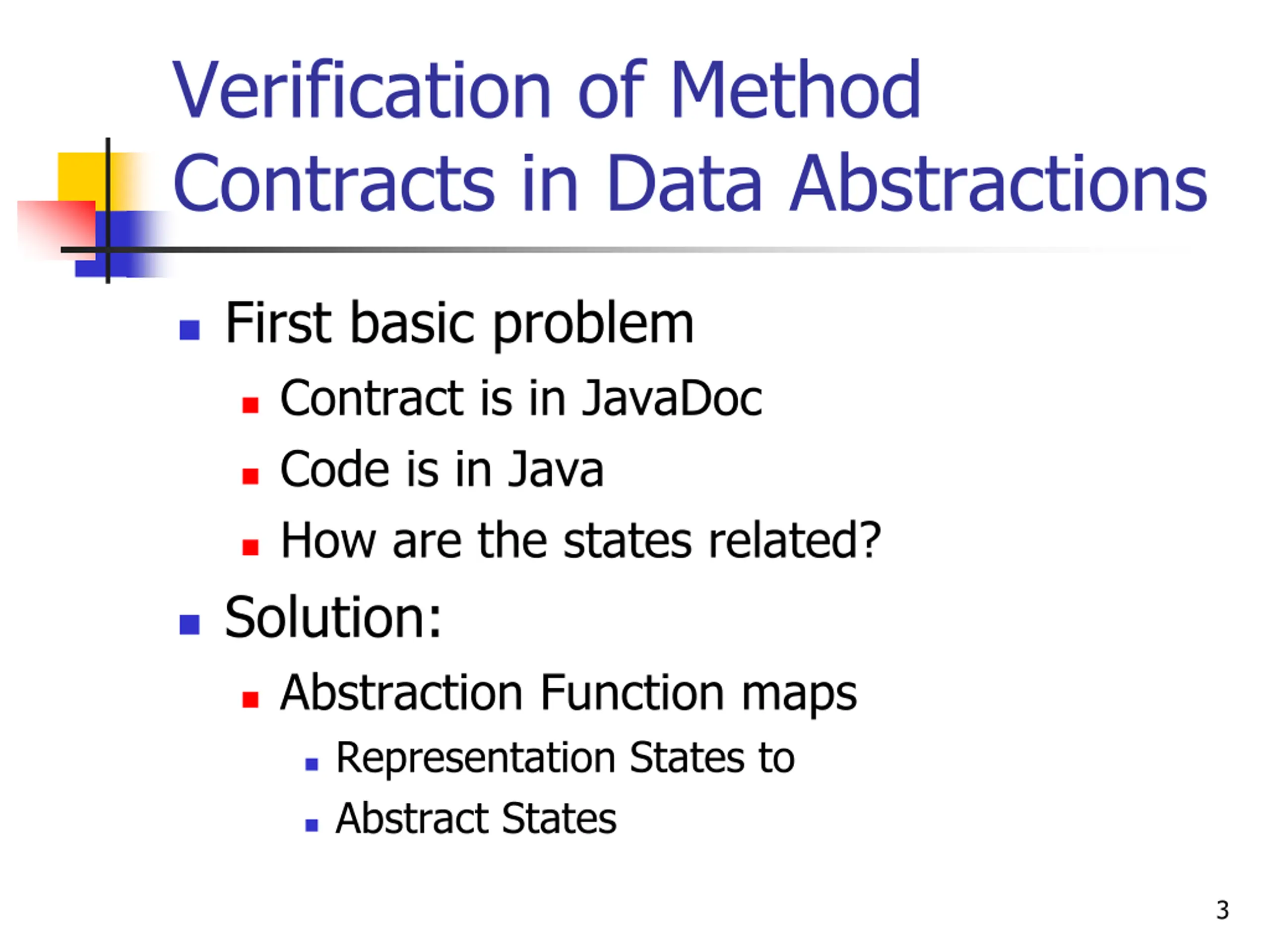

Verification of Method Contracts in Data Abstractions First basic problem Contract is in JavaDoc Code is in Java How are the states related? Solution: Abstraction Function maps Representation States to Abstract States 3

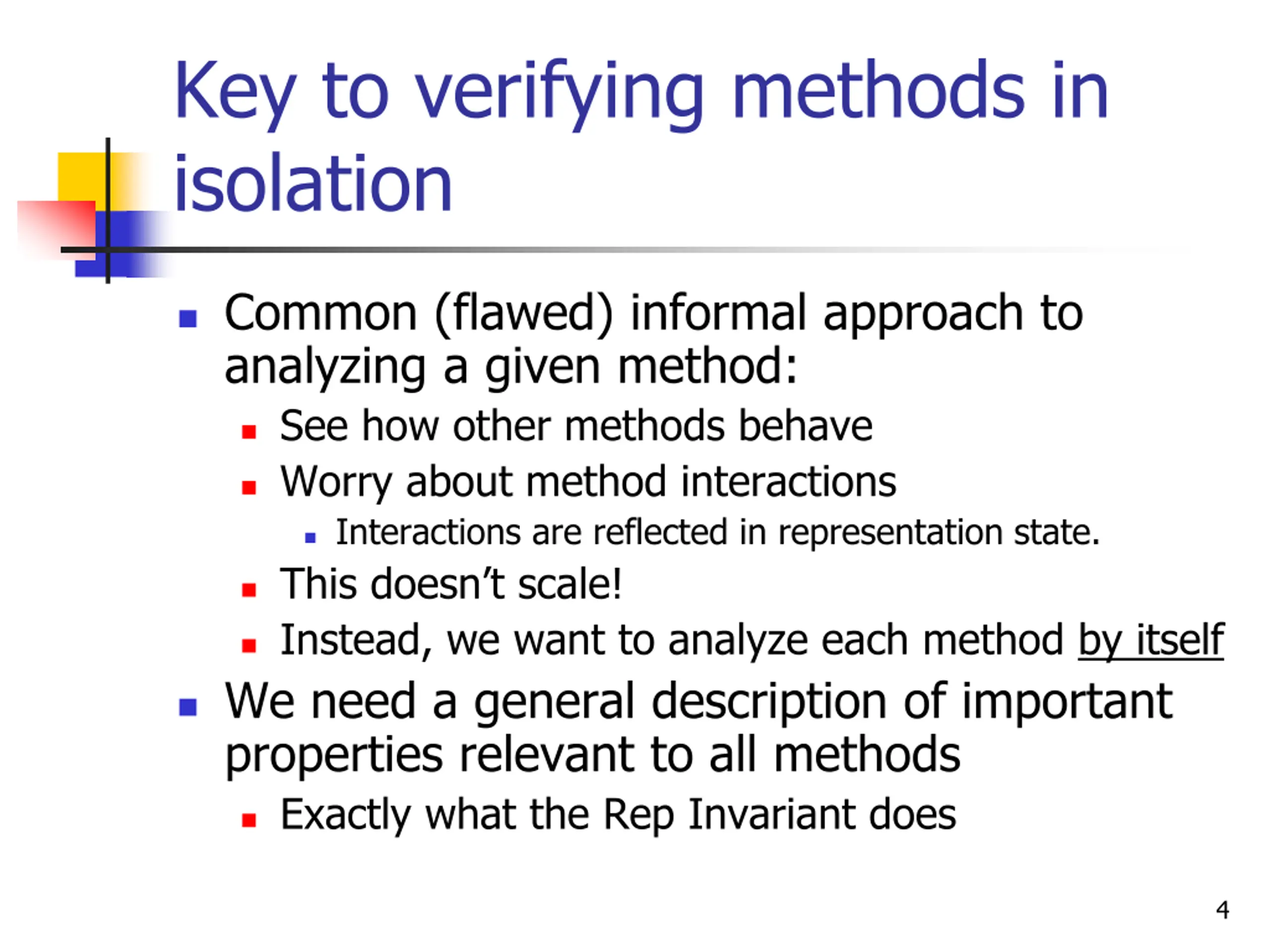

Key to verifying methods in isolation Common (flawed) informal approach to analyzing a given method: See how other methods behave Worry about method interactions Interactions are reflected in representation state. This doesn t scale! Instead, we want to analyze each method by itself We need a general description of important properties relevant to all methods Exactly what the Rep Invariant does 4

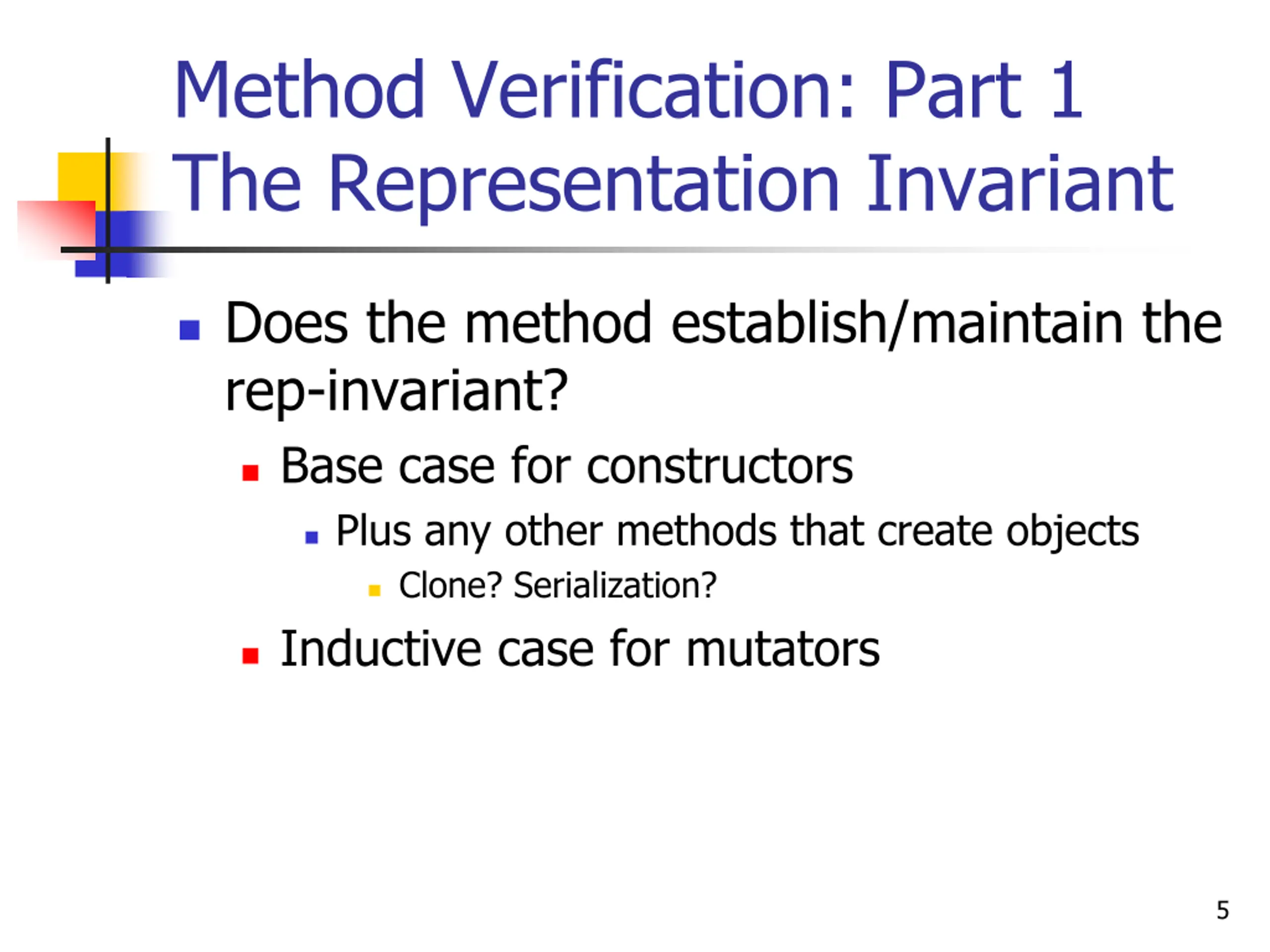

Method Verification: Part 1 The Representation Invariant Does the method establish/maintain the rep-invariant? Base case for constructors Plus any other methods that create objects Clone? Serialization? Inductive case for mutators 5

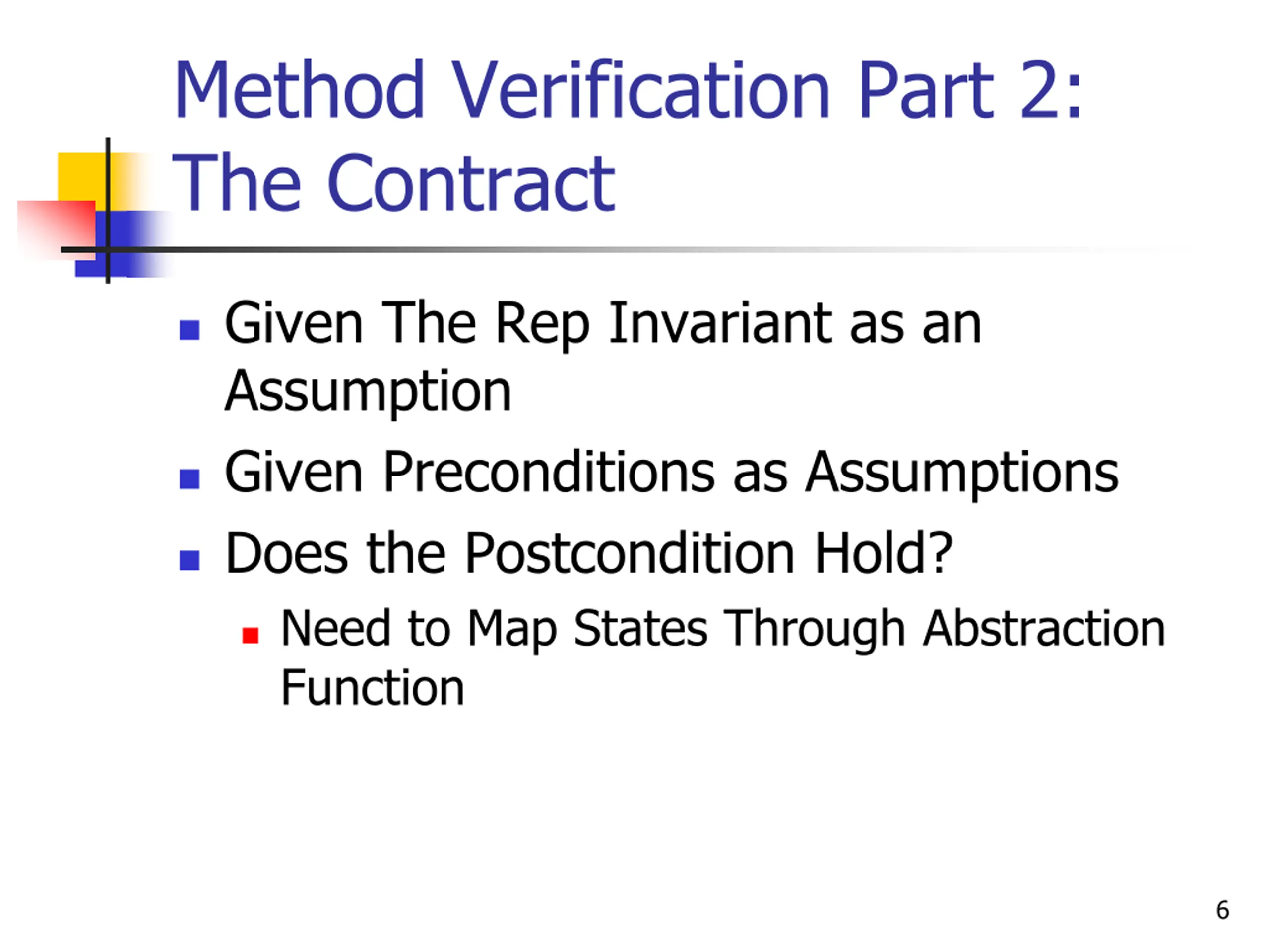

Method Verification Part 2: The Contract Given The Rep Invariant as an Assumption Given Preconditions as Assumptions Does the Postcondition Hold? Need to Map States Through Abstraction Function 6

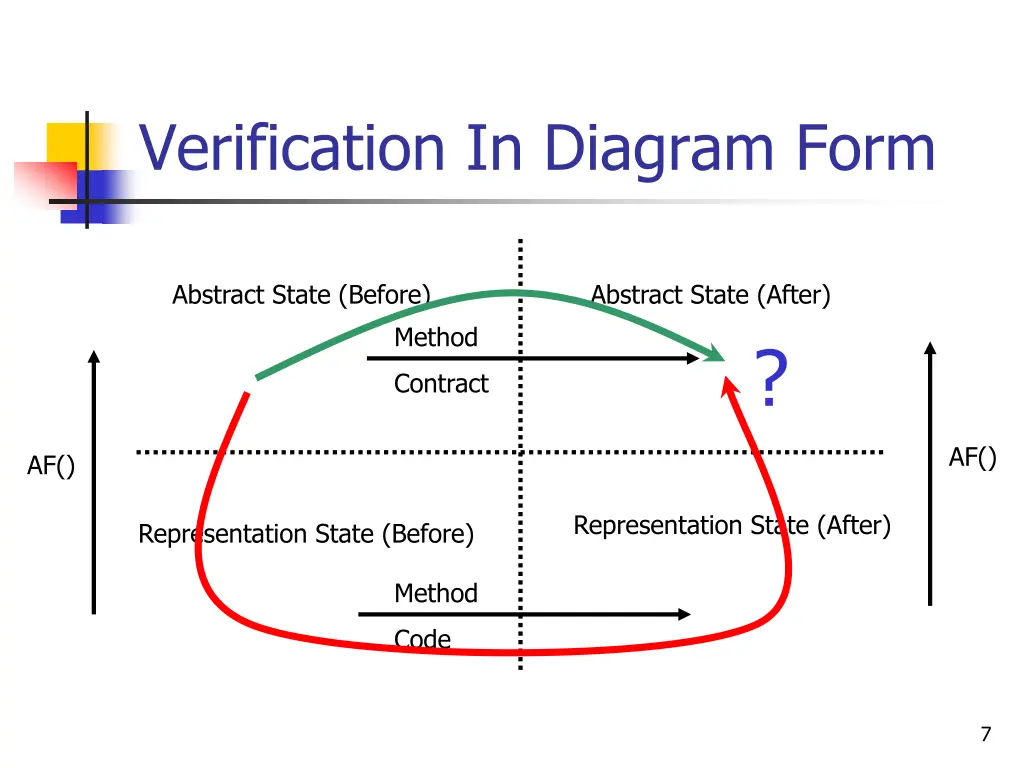

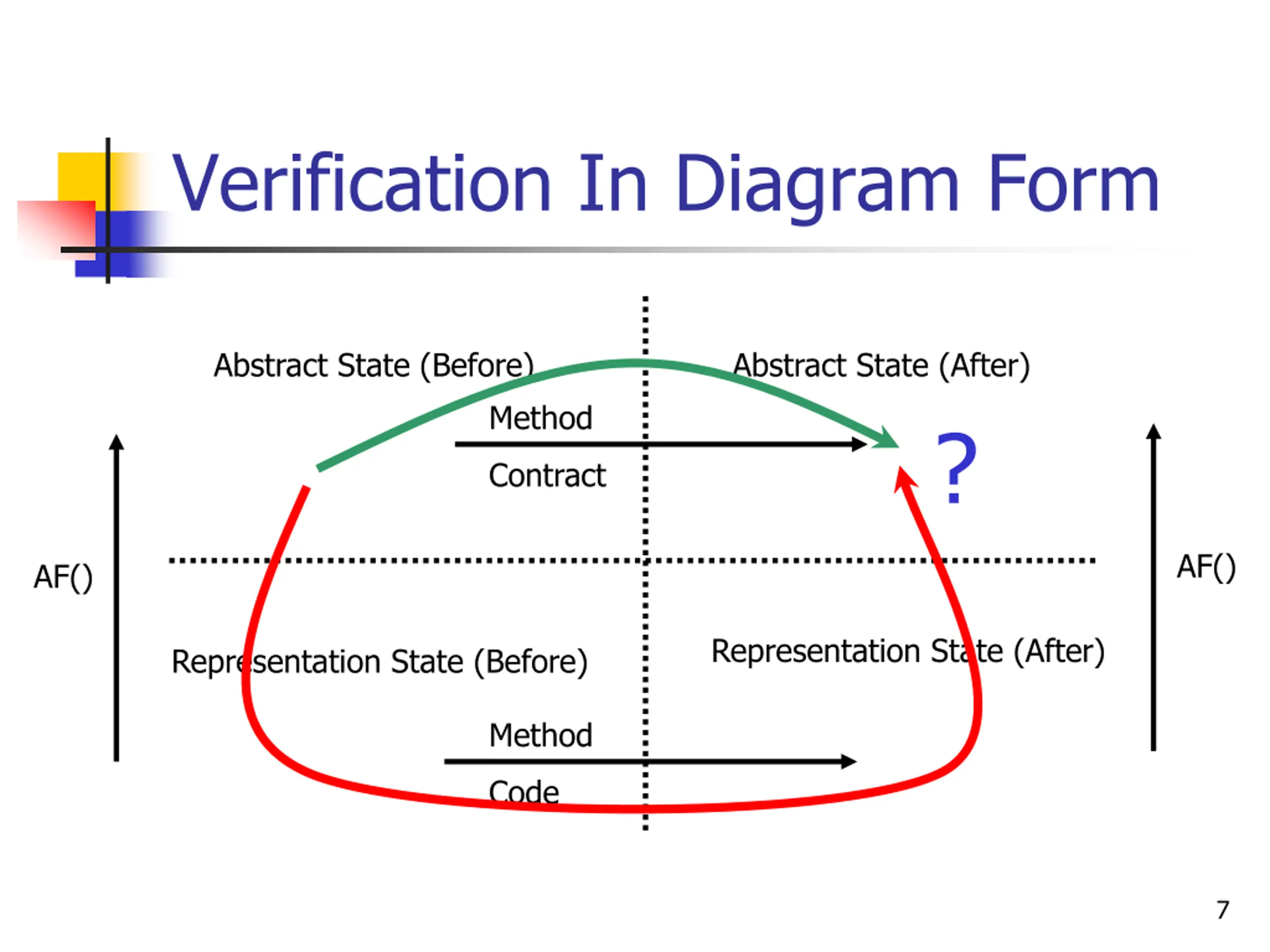

Verification In Diagram Form Abstract State (Before) Abstract State (After) Method ? Contract AF() AF() Representation State (After) Representation State (Before) Method Code 7

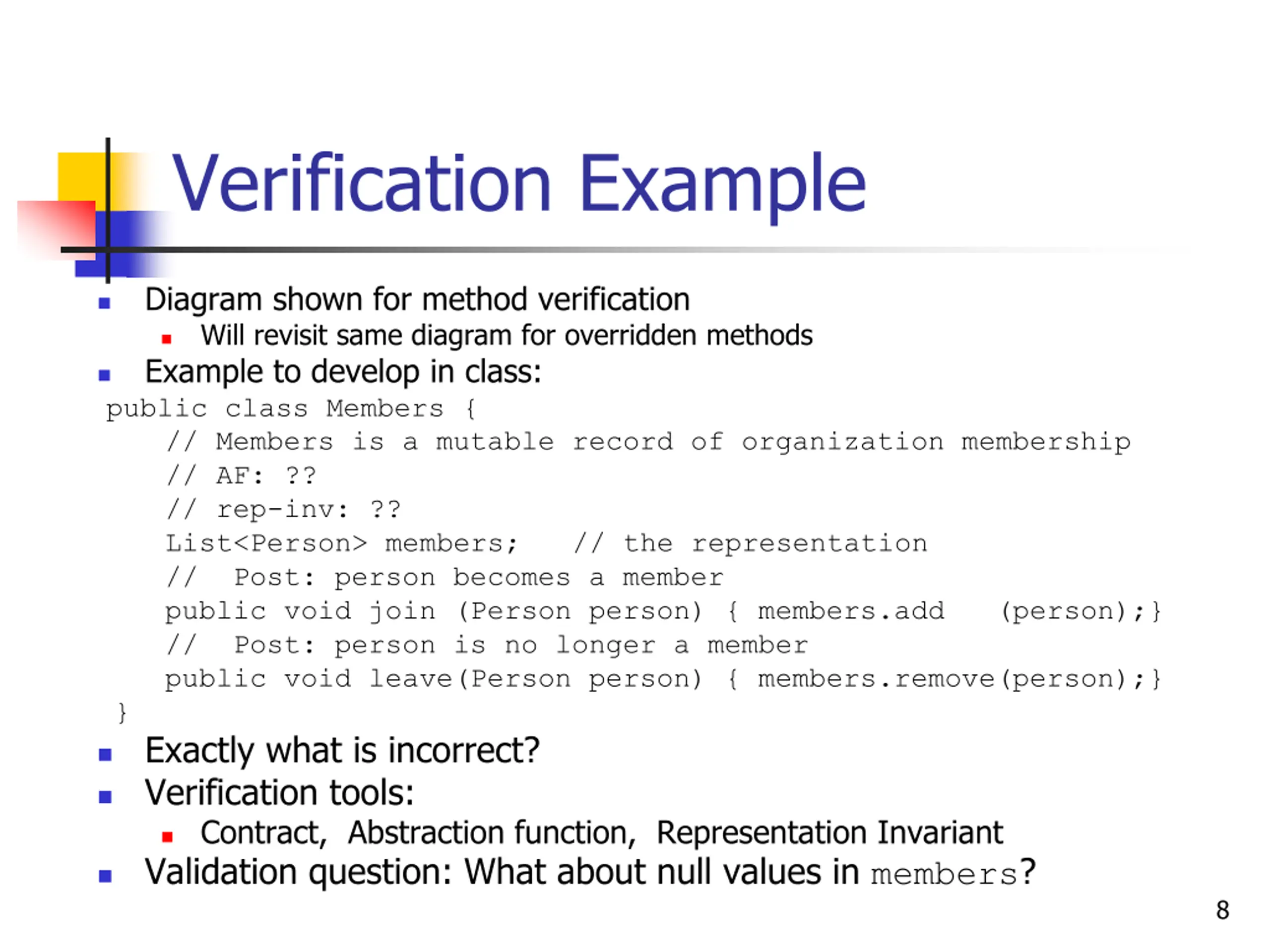

Verification Example Diagram shown for method verification Will revisit same diagram for overridden methods Example to develop in class: public class Members { // Members is a mutable record of organization membership // AF: ?? // rep-inv: ?? List<Person> members; // the representation // Post: person becomes a member public void join (Person person) { members.add (person);} // Post: person is no longer a member public void leave(Person person) { members.remove(person);} } Exactly what is incorrect? Verification tools: Contract, Abstraction function, Representation Invariant Validation question: What about null values in members? 8

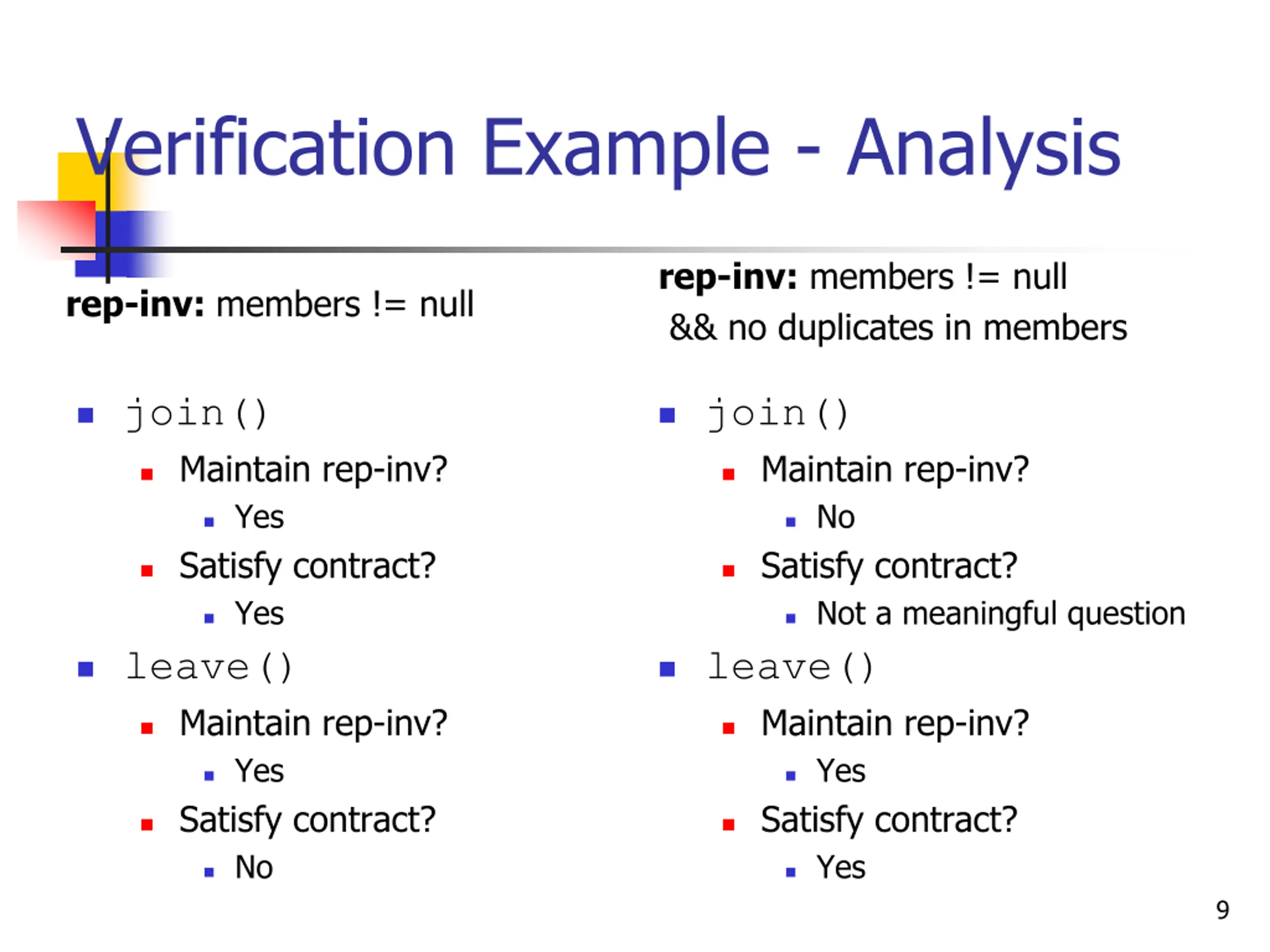

Verification Example - Analysis rep-inv: members != null && no duplicates in members rep-inv: members != null join() Maintain rep-inv? Yes Satisfy contract? Yes leave() Maintain rep-inv? Yes Satisfy contract? No join() Maintain rep-inv? No Satisfy contract? Not a meaningful question leave() Maintain rep-inv? Yes Satisfy contract? Yes 9

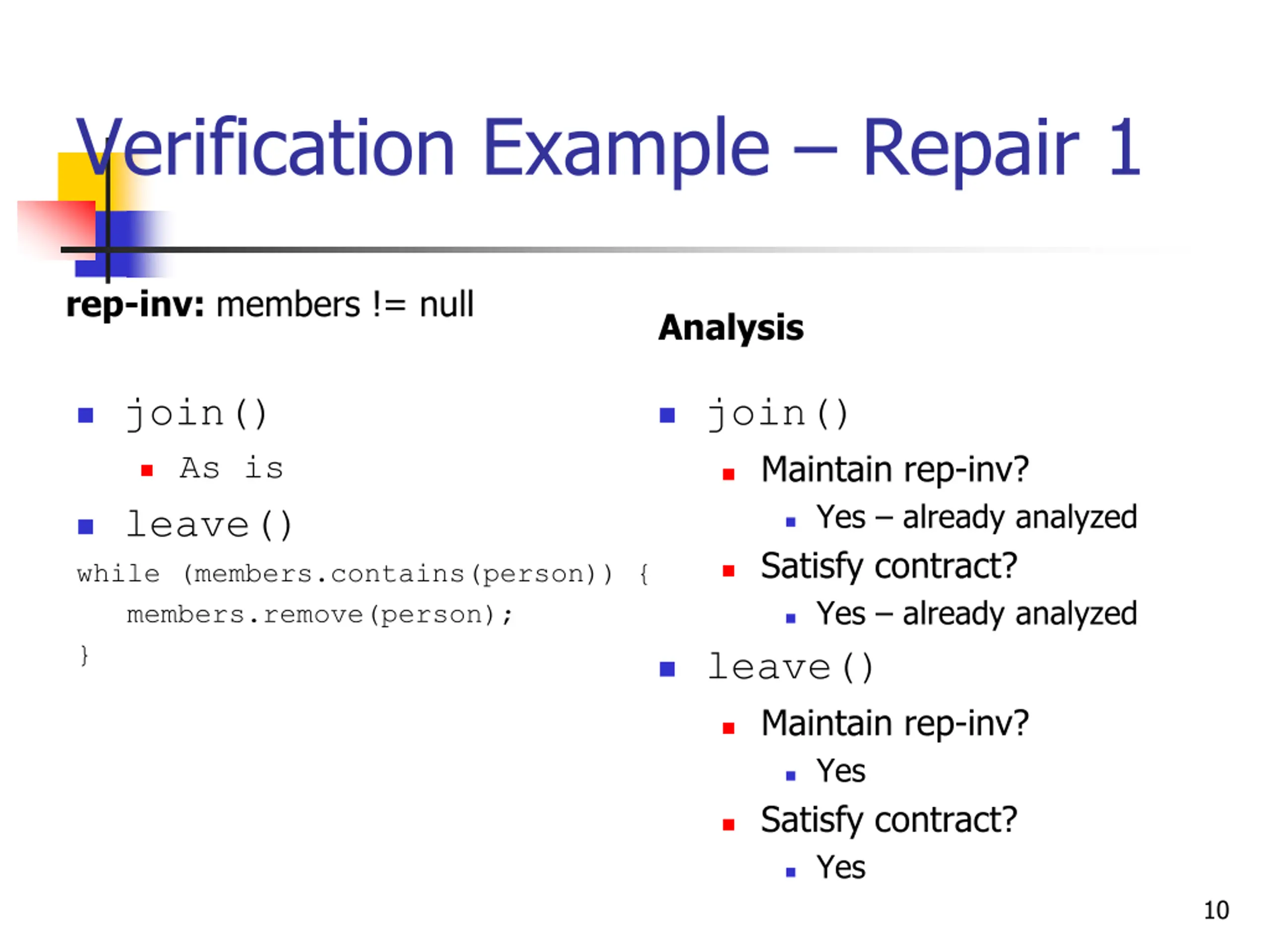

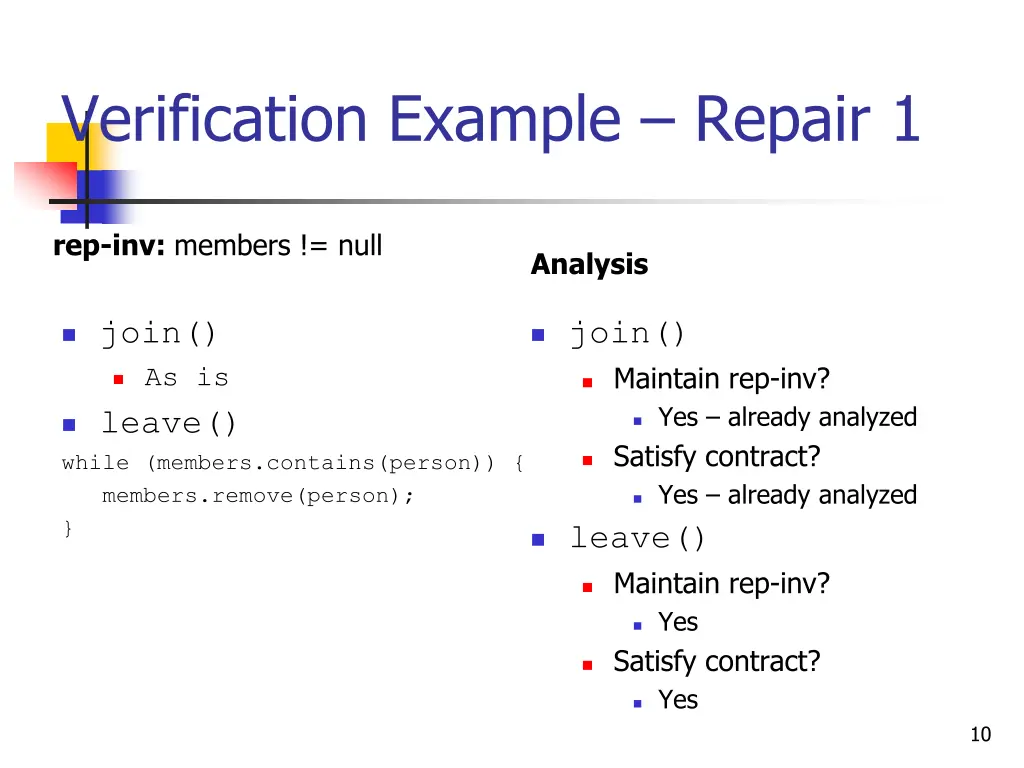

Verification Example Repair 1 rep-inv: members != null Analysis join() join() Maintain rep-inv? Yes already analyzed Satisfy contract? Yes already analyzed leave() Maintain rep-inv? Yes Satisfy contract? Yes As is leave() while (members.contains(person)) { members.remove(person); } 10

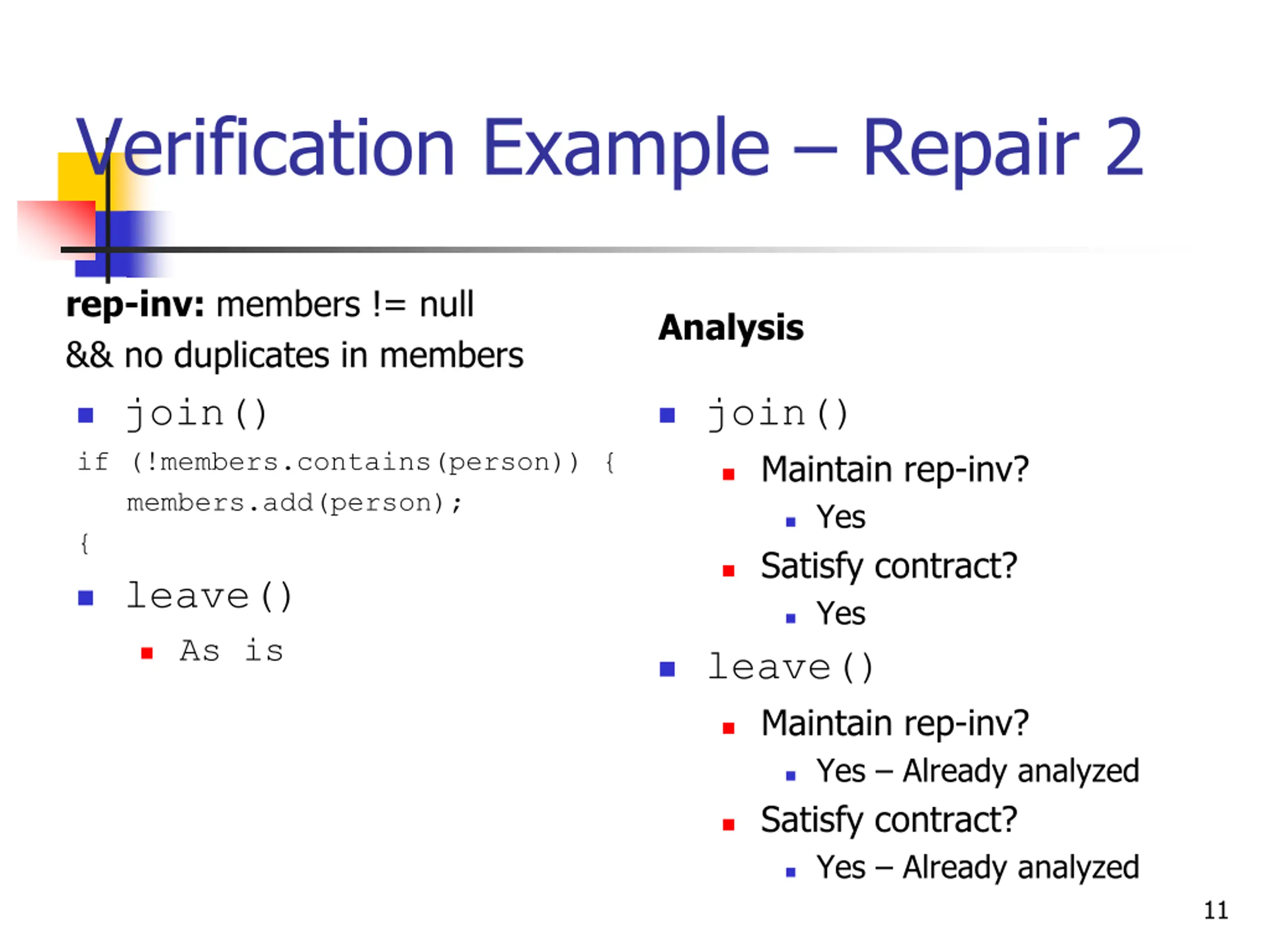

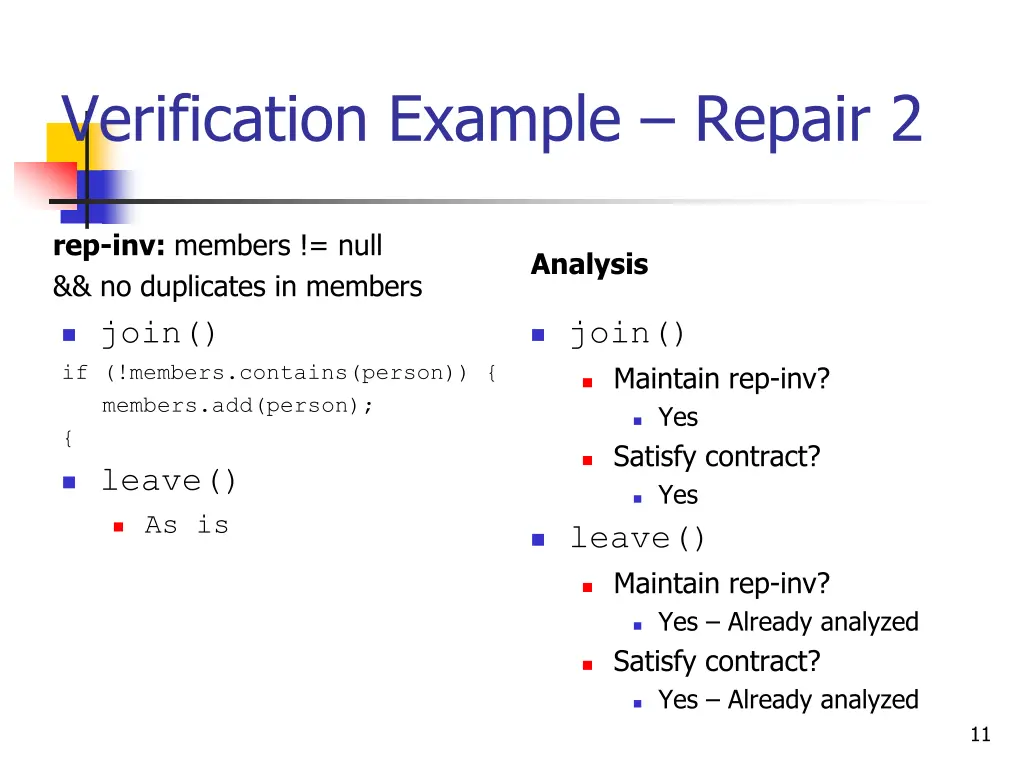

Verification Example Repair 2 rep-inv: members != null && no duplicates in members Analysis join() if (!members.contains(person)) { members.add(person); { leave() join() Maintain rep-inv? Yes Satisfy contract? Yes leave() Maintain rep-inv? Yes Already analyzed Satisfy contract? Yes Already analyzed As is 11

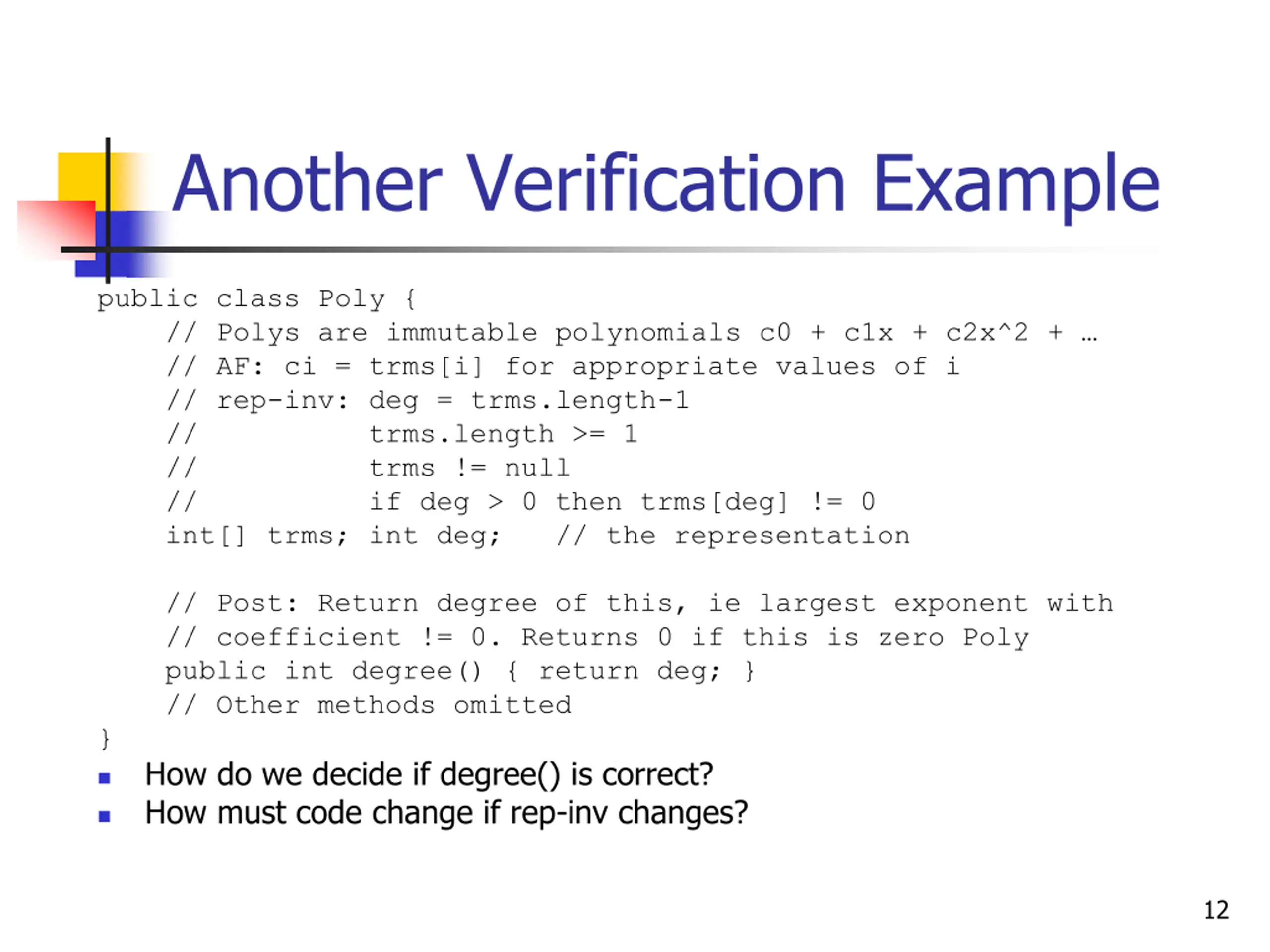

Another Verification Example public class Poly { // Polys are immutable polynomials c0 + c1x + c2x^2 + // AF: ci = trms[i] for appropriate values of i // rep-inv: deg = trms.length-1 // trms.length >= 1 // trms != null // if deg > 0 then trms[deg] != 0 int[] trms; int deg; // the representation // Post: Return degree of this, ie largest exponent with // coefficient != 0. Returns 0 if this is zero Poly public int degree() { return deg; } // Other methods omitted } How do we decide if degree() is correct? How must code change if rep-inv changes? 12
