MASTERColour CDM-Tm Elite Mini GU6.5 35W/930: Enhanced Performance & Longevity
Introducing the new generation of MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 in May 2011, offering increased lumen output, higher lumen maintenance, and longer lifetime. The lamp is ideal for retail, display lighting, spot, and track lighting applications, providing crisp white light with superior color rendering. With improved technology, this mini lamp offers energy efficiency and cost savings compared to halogen lamps.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

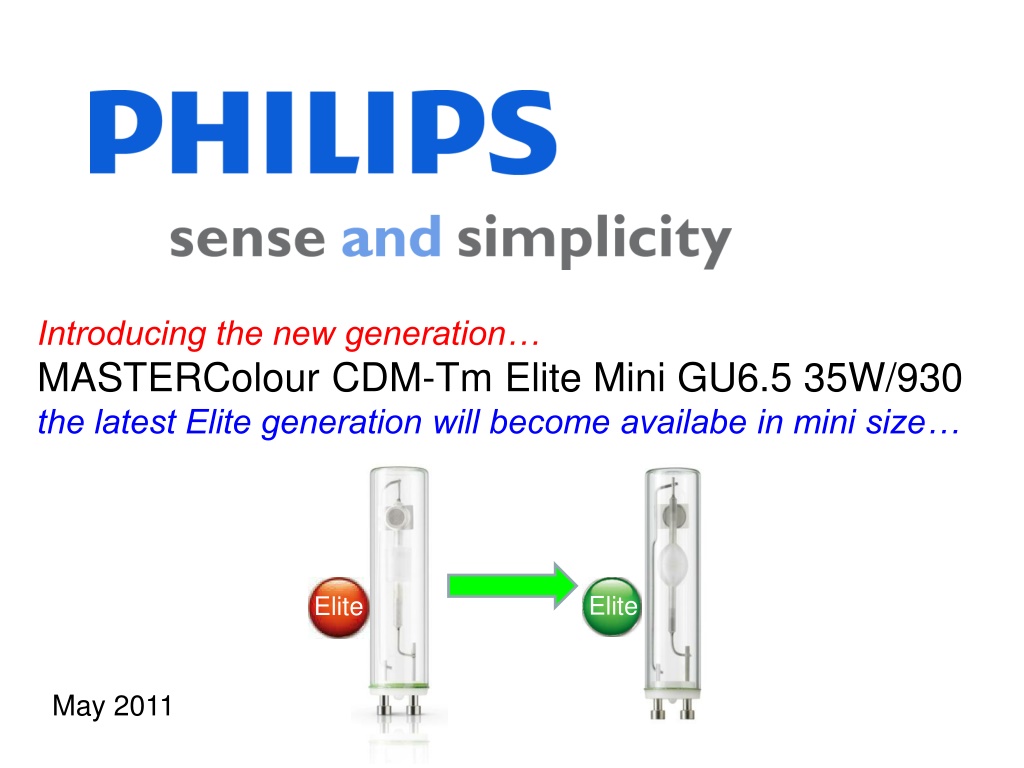

Introducing the new generation MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 the latest Elite generation will become availabe in mini size Elite Elite May 2011
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 the latest Elite generation will become availabe in mini size In June 2011, we will replace the existing CDM-Tm Elite Mini GU6.5 35W/930 with a new generation lamp: What will change? Elite Elite increased lumen output: 3.300 -> 3.800 lm increased lumen maintenance @ 12 khrs: 70% -> 80% increased lifetime: 12.000 hrs -> 15.000 hrs improved visible red rendering Confidential 2
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 key applications Mini lamp with high lumen output provides freedom in luminaire design Retrofit for existing GU6.5 solutions: - Lamps fit in existing GU6.5 35W luminaires Ideal for use in Retail - Display lighting - Spot and track lighting - Down lighting Lighting differentiation -- Crisp, white sparkling light with - Higher lumen output (most efficient mini lamp lamp) - Higher lumen maintenance - Better red coloring - Longer life Confidential 3
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 value proposition at a glance Miniaturised design, fitting into existing GU6.5 luminaires Mini lamp and gear makes miniaturaised luminaire design possible Fits into existing GU6.5 luminaires with best-in-class performance with MASTERColour CDM Elite light quality Fantastic merchandise representation CRI = 90 crisp white sparkling light higher lumen output with the best lumen maintenance Superior color point control and stability over life and lowest cost of ownership. very high lumen output: only 35W needed to produce 3.800 lumens Excellent lumen maintenance: 70% @ 15k hours longer lifetime with proven lifetime reliability energy efficient: save up to 75% energy versus halogen Confidential 4
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 technical specifications and benchmark spec CDM-Tm Elite Mini GU6.5 35W/930 2010 intro CDM-Tm Elite Mini GU6.5 35W/930 2011 replacement Osram HCI-TF 35W/930 GE Supermini 35W/930 3.300 3.800 3.400 3.400 lumen output 85 97 87 87 efficacy (lm/W) 90 90 90 88 CRI 40 R9 45 10 83% 70% maintenance @ 12.000 hr n.a. 75% maintenance @ 15.000 hr 6.000 9.000 survival 95% (hr) 7.000 10.000 survival 90% (hr) 9.000 12.000 survival 80% (hr) 12.000 15.000 12.000 10.000 survival 50% (hr) Elite Elite Remarks: EL gear with EOL protection only. Philips HID-PV and AV gear types all have EOL protection. Confidential 5
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 features and benefits Retrofit into existing luminaires. Unique flat top Flat top avoides dark spot in beam pattern Highly efficient and longlife MASTERColour CDM Elite burner Crisp white sparkling light with excellent colour rendering and high lumen output Lowest total cost of ownership Long life:15.000 hrs High lumen maintenance: 75% @ 15.000 hrs. Unique flat base technology Elite Flat base provides large inside volume and is less temperature sensitive` standard GU6.5 lamp foot Philips Green Flagship product -> Confidential 6
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 dimensions Dimensions lamp mm D L C Dimensions gear mm A1 A2 B1 C1 D1 max max nom 13.3 30 52 CDM-Tm Elite Mini GU6.5 35W/930 HID-PV m 35 /S 97 88 44 30 4.2 HID-PV m 35 /I 235 225 50 34 4.8 CDM-Tm Elite Mini GU6.5 35W/930 has same dimensions as the 20W. Lamp dimensions comply with IEC61167. This mini lamp can also be operated on normal (non-mini) HID-PV gear Confidential 7
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 logistic information Phase-in per June 6th, 2011 12nc = GPC EOC Elite MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 9281 874 05130 15382500 Phase-out per June 6th, 2011 12nc = GPC EOC Elite MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 9281 836 05119 89085300 Gear compatibility matrix The new mini lamps can be operated with: Naming 12nc = GPC EOC 9137 006 53666 872790088341100 HID-PV m 35 /S CDM 220-240V 50/60Hz HID-PV m 35 /I CDM 220-240V 50/60Hz 9137 006 53566 872790089164500 9137 006 52766 872790085962100 HID-PV C 35 /S CDM 220-240V 50/60Hz HID-PV C 35 /I CDM 220-240V 50/60Hz 9137 006 53166 872790085973700 Samples Samples are available per 01.04.2011. Pricing Same as previous generation Elite mini lamp. Confidential 8
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 FAQ (1) When will this new mini lamp be available? The new lamp will be commercially available from June 6, 2011. Will the new lamp replace the existing Elite Mini GU6.5 35W/930? Yes the new lamp will replace the existing Elite mini GU6.5 35W/930 lamp. No change in luminaire is needed (a check on optics is advisable for small beam angles in combination with horizontal burning position). Can the new Elite Mini GU6.5 35W/930 also run on EM gear? No, because use of EM gear is not safe at end of life. The lamp is designed to run only on EL gear with end-of-life protection. This can be mini gear or standard 35W gear. Can this lamp replace a GU6.5 35W lamp from another brand? Yes, this new GU6.5 35W lamp is open and standard. That means it will fit into existing luminaires and operate on any EL gear that follows IEC standards. This new lamp is an absolute best-in-class performer on critical items such as quality of light, lumen output, lumen maintenance and lifetime. Confidential 9
MASTERColour CDM-Tm Elite Mini GU6.5 35W/930 FAQ (2) Can this mini GU6.5 lamp replace a mini PGJ5? Adaptation of the luminiare is needed when going from PGJ5 to GU6.5, because of differences in lampholder, light centre length (LCL) and lamp dimensions. Will Philips keep existing PGJ5 mini lamps in the portfolio? Yes. Our PGJ5 is unique because of its smallest dimensions in the industry and we will continue future supplies of the PGJ5 mini lamp for both initial and relamping business. Confidential 10
MASTERColour CDM mini lamps Overview of the mini family Elite Elite spec CDM-Tm Mini PGJ5 20W/830 CDM-Tm Mini PGJ5 35W/930 CDM-Tm Mini GU6.5 20W/830 CDM-Tm Elite Mini GU6.5 35W/930 June 2011 CDM-Tm Elite Mini GU6.5 50W/930 Oct. 2011 1.650 3.000 1.800 3.800 5.000 lumen output 22 39 20 39 50 Lamp power (W) 80 76 90 97 100 efficacy (lm/W) 85 90 85 90 90 CRI 83% 80% < 60% < 70% 80% maintenance @ 12.000 hr n.a. n.a. 73% 75% 75% maintenance @ 15.000 hr 9.000 9.000 9.000 9.000 9.000 survival 95% (hr) 12.000 12.000 15.000 15.000 15.000 survival 50% (hr) 22W PGJ5 (only) 35W mini (only) 20W 35W 50W Gear Confidential 11
More questions? Please contact: Bob vd Linden Product Marketing CDM Philips Lighting GBU HID Steenweg op Gierle 417 B-2300 Turnhout, Belgium Freek Langeveld Business Development Manager CDM Philips Lighting Mathildelaan 1 5611 BD Eindhoven, The Netherlands office: +31 (0)40 275 60 85 cell: +31 (0)6 212 40 599 office: +32 (0)14 40 7692 cell: +32 (0)471 97 76 76 email: freek.langeveld@philips.com email: bob.vd.linden@philips.com Confidential 12
