Master Version Control with GitHub in Computer Science 209.1

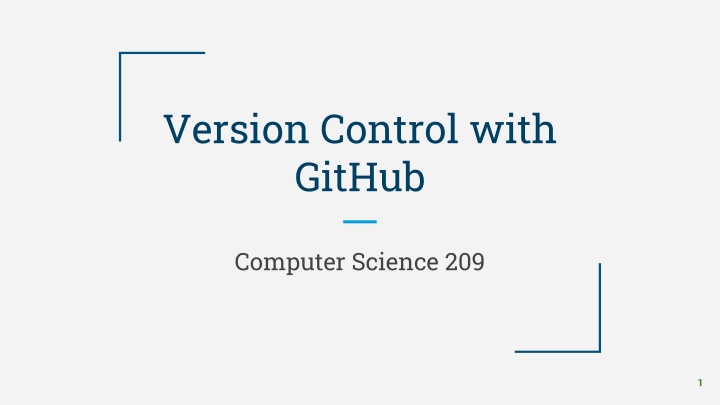

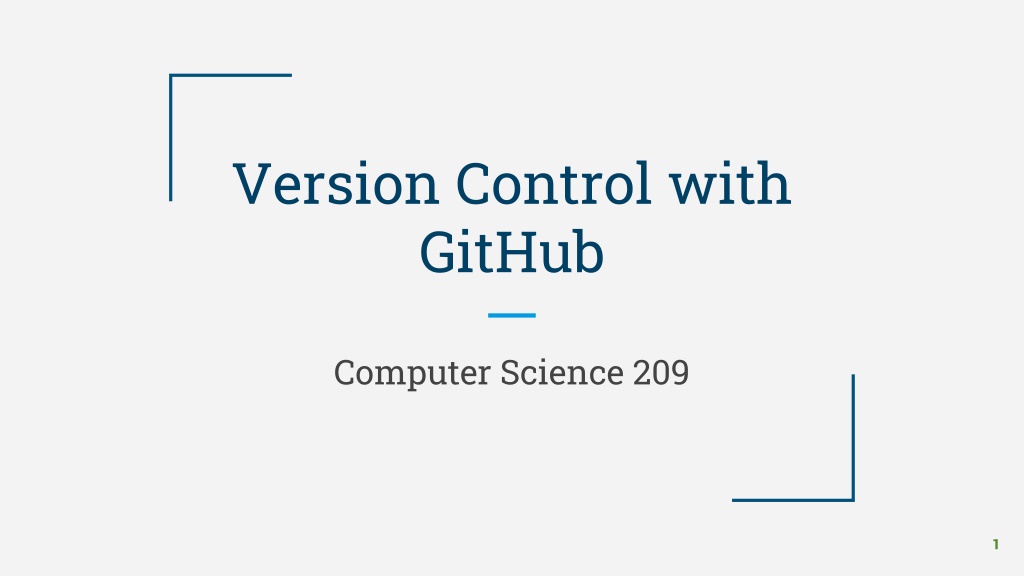

Version Control with
GitHub
Computer Science 209
1
What is GitHub?
●
A code hosting platform for version control and
collaboration
●
Facilitates collaboration
●
Uses repositories, branches, commits, and Pull Requests
●
Available as command-line or GUI
2
Downloading GitHub Desktop
●
The GUI provided by GitHub
●
https://desktop.github.com/
●
You must also make a GitHub account
3
Repositories
●
A
repository
is usually used to organize a single project
●
Repositories can contain anything your project needs
○
Files, folders, images, etc
●
GitHub uses repositories as a controllable folder for your
project
4
Creating a Repository in GitHub
Desktop
1.
Select
New repository
a.
Either on the right side of the screen or under the File menu
2.
Name your repository
3.
Write a short description
4.
Select public or private accessibility
5.
(Optionally) Select
Initialize this repository with a
README
6.
Click
Create Repository
5
File Location
●
GitHub will manage the files on your local computer for
you
●
You can access these files with Ctrl+Shift+F on windows
●
Edits made locally to these files will be detected by
GitHub Desktop
●
These files will also update to your current
branch
of
code
6
Master Branch
●
By default the repo has one branch named
master
●
The
master
branch is the "definitive branch"
●
Other branches are created for making edits to the
master
●
Once satisfied with the edits, the branch is then
committed
to the master
●
In general,
don't
edit the master branch
7
Branches
●
Have you ever saved different versions of a file?
○
story.txt
○
story-liz-edit.txt
○
story-liz-edit-final.txt
●
Branches accomplish similar goals in GitHub repositories
●
Creating a branch off the master branch is making a copy
of master
○
As it was at that point in time
8
Making a Branch
1.
Go to your repository
2.
Click the drop down at the top of the file list that says
branch: master
3.
Type a branch name into the new branch text box
4.
Select the blue
Create
branch box or hit
Enter
on your
keyboard
The branch will be identical to the master until edits are
made
9
Switching Branches
●
Selecting the drop-down menu at the top will let you
switch between published branches
●
GitHub will automatically change the files on your local
computer
○
Give it a little time to update on larger projects
●
Make sure you're on the correct branch before editing any
files!
10
Making Edits and Running Programs
●
You can use any editor of your choice on the files in the
GitHub repo
○
It behaves just like any other folder on your computer
●
Same for running the code
○
javac, java
●
Saving locally will not save to the repo branch
●
To save to the branch you must
commit
the edits
11
Committing
●
On GitHub, saved changes are called commits
●
Each commit has an associated commit message
○
A description explaining why a particular change was made
●
Commit messages capture the history of your changes
○
Other contributors can understand what you’ve done and why
●
Committing also shows how frequently you are working
on your code
○
This will be important for projects 5 onwards
12
Edit and Commit
1.
Open the file you wish to edit
2.
Make edits
3.
Write a commit message
a.
Describe your changes briefly in the summary bar
b.
More details can go in the box in the larger text box
4.
Click the blue
commit
button to save to the
current branch
a.
You can select which files are committed with the
checkboxes to the left of the files
13
Differences
●
GitHub Desktop will show you a visualization of the
changes made
○
Red means removed
○
Green means added
14
Pushing
●
Committing will only update your local repo
●
Making a
push
request will update the repo online
○
So that other collaborators can see the changes
●
In order to finally accept the new edits as final, a
pull
request is needed
●
Push by using the blue button or typing Ctrl+P
15
Pull Requests
●
Pull request propose your changes to the rest of your
collaborators
○
Requesting that someone review the code
○
Finally pull in your contribution and merge them into their branch
●
Pull requests show diffs (differences) of the content from
both branches
○
The changes, additions, and subtractions are shown in green and red
16
More on Pulling
●
Typing @mention in your pull request message will tag
that user in the request
●
You can even open pull requests in your own repository
and merge them yourself
○
A great way to learn the GitHub flow before working on larger projects
17
How to Make a Pull Request
1.
Click the blue "pull request" button
a.
You must be logged in to GitHub for this page to load
b.
If you get a 404 error, log in!
2.
Fill out information about your edits
3.
Click create pull request
18
Finally, Merging
●
When a branch is complete it’s time to bring the changes
together
○
A branch can be considered complete when one new element is added
which does not
break
the code
○
Everything still compiles, other tests do not crash, etc.
●
This is achieved by
merging
the branch into the master
branch
19
How to Merge a Branch
1.
Click the green Merge pull request button to merge the
changes into master
2.
Click Confirm merge
3.
Delete the branch with the Delete branch button in the
purple box
a.
Since its changes have been incorporated it is no longer needed
20
Conflicts
●
The bane of every GitHub user's existence is
conflicts
between local check-outs of repos
○
If two people change the same file in different ways, GitHub does not
know which one to use
●
Avoid conflicts at all costs!
○
Never work on the same file as another user
○
Communicate with your team
●
All else fails… nuke it
○
Save your edits somewhere else and check out a new copy of the
master branch
21
