Presentation Transcript

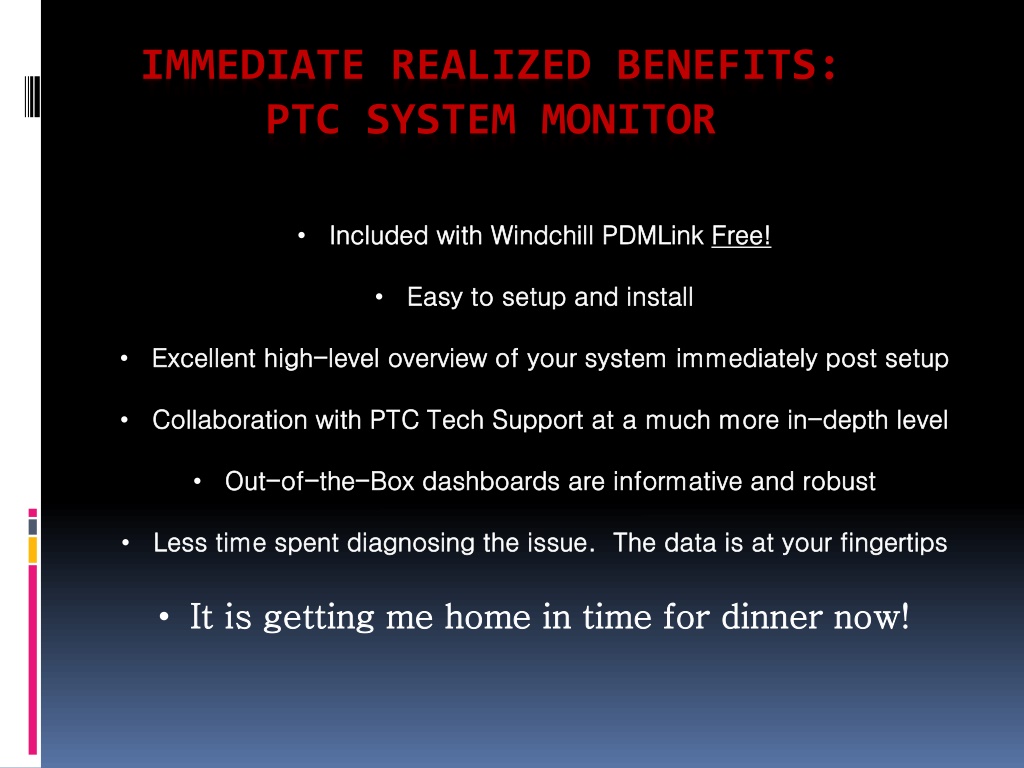

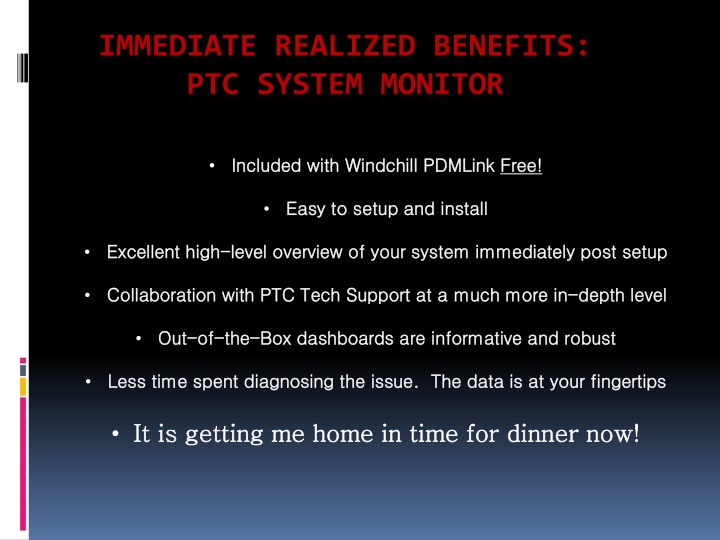

IMMEDIATE REALIZED BENEFITS: PTC SYSTEM MONITOR Included with Windchill PDMLink Included with Windchill PDMLink Free! Free! Easy to setup and install Easy to setup and install Excellent high Excellent high- -level overview of your system immediately post setup level overview of your system immediately post setup Collaboration with PTC Tech Support at a much more in Collaboration with PTC Tech Support at a much more in- -depth level depth level Out Out- -of of- -the the- -Box dashboards are informative and robust Box dashboards are informative and robust Less time spent Less time spent diagnosing the diagnosing the issue. The data is at your issue. The data is at your fingertips fingertips It is getting me home in time for dinner now! It is getting me home in time for dinner now!

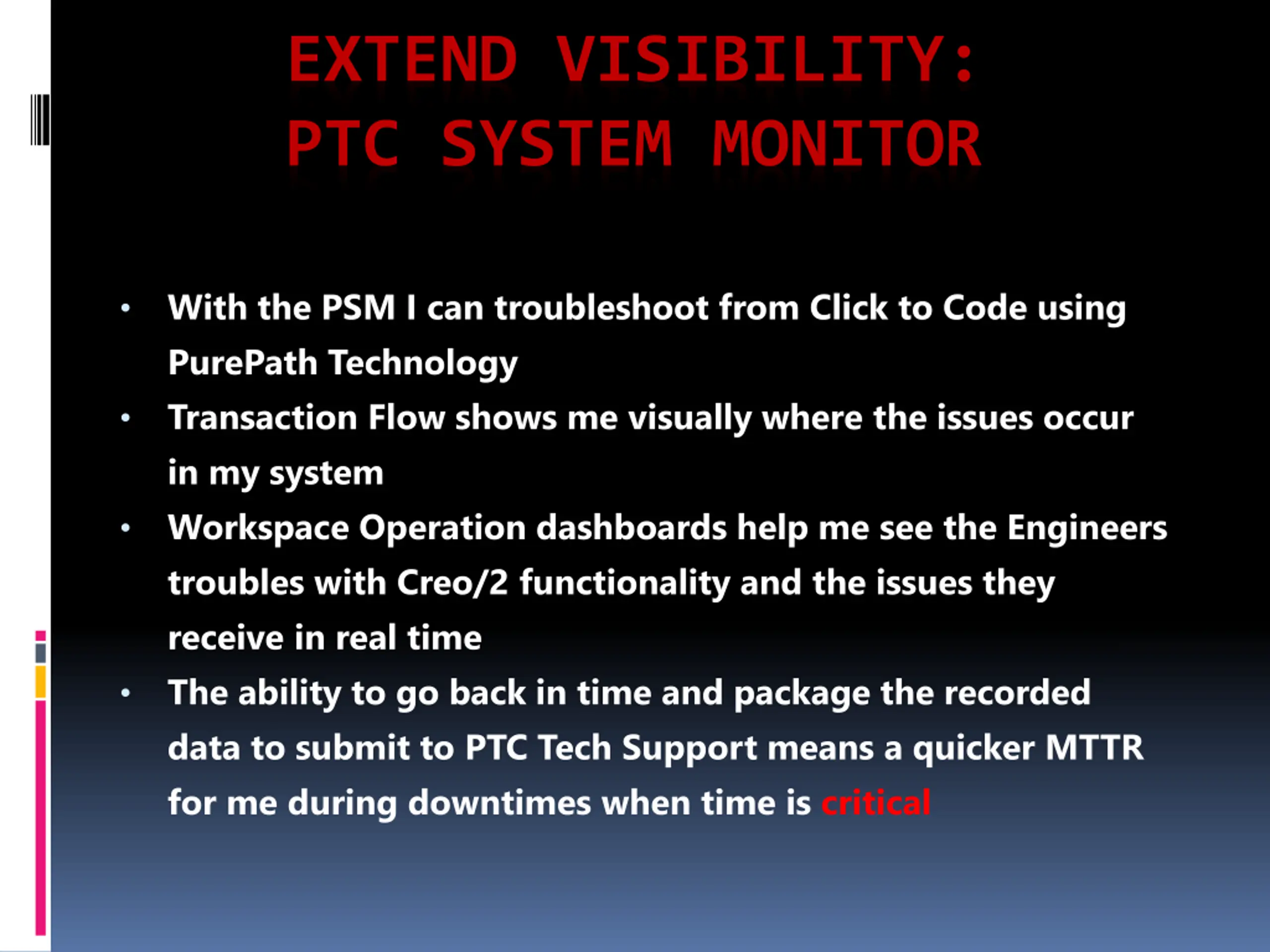

EXTEND VISIBILITY: PTC SYSTEM MONITOR With the PSM I can troubleshoot from Click to Code using PurePath Technology Transaction Flow shows me visually where the issues occur in my system Workspace Operation dashboards help me see the Engineers troubles with Creo/2 functionality and the issues they receive in real time The ability to go back in time and package the recorded data to submit to PTC Tech Support means a quicker MTTR for me during downtimes when time is critical

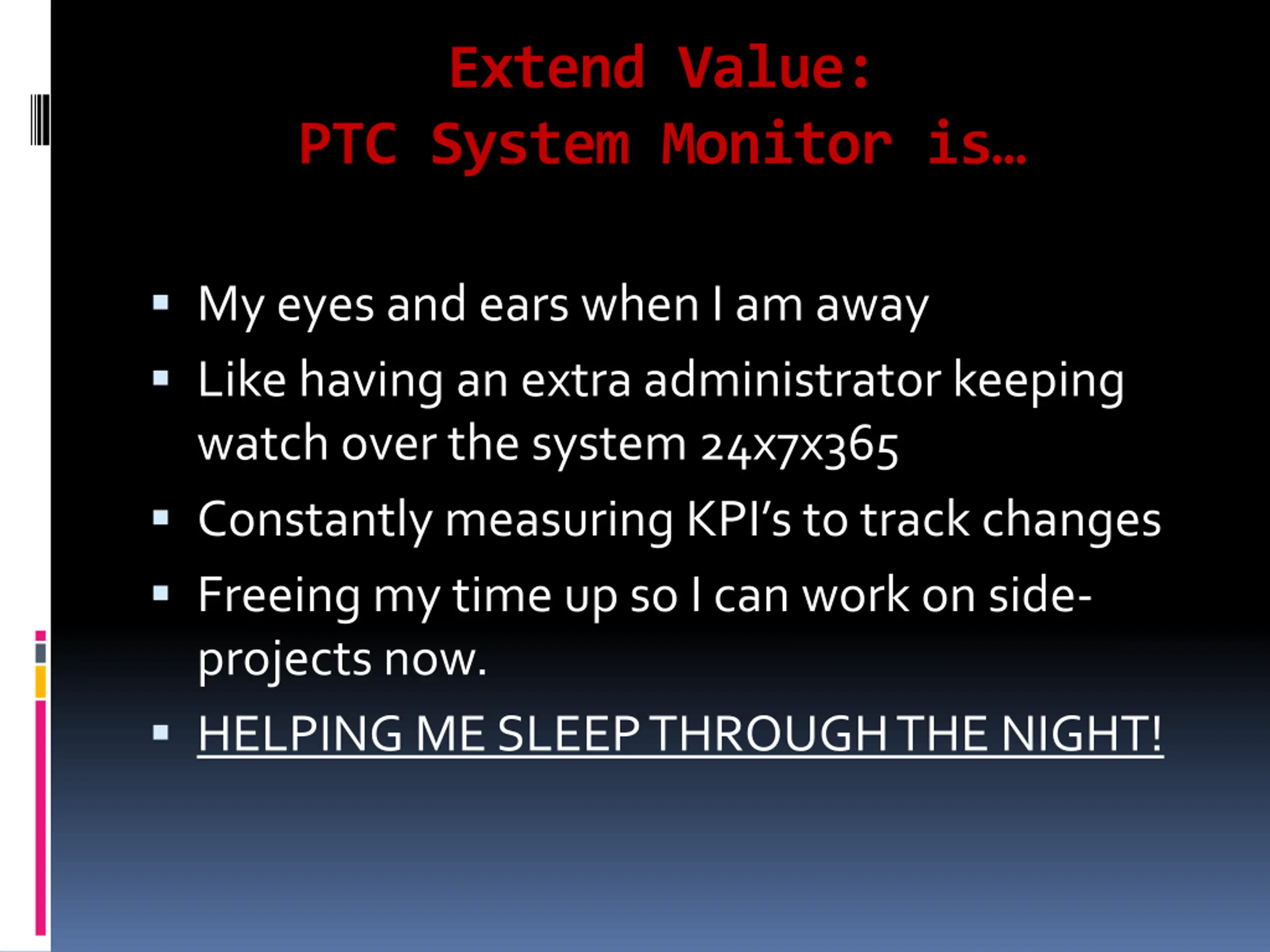

Extend Value: PTC System Monitor is My eyes and ears when I am away Like having an extra administrator keeping watch over the system 24x7x365 Constantly measuring KPI s to track changes Freeing my time up so I can work on side- projects now. HELPING ME SLEEP THROUGH THE NIGHT!

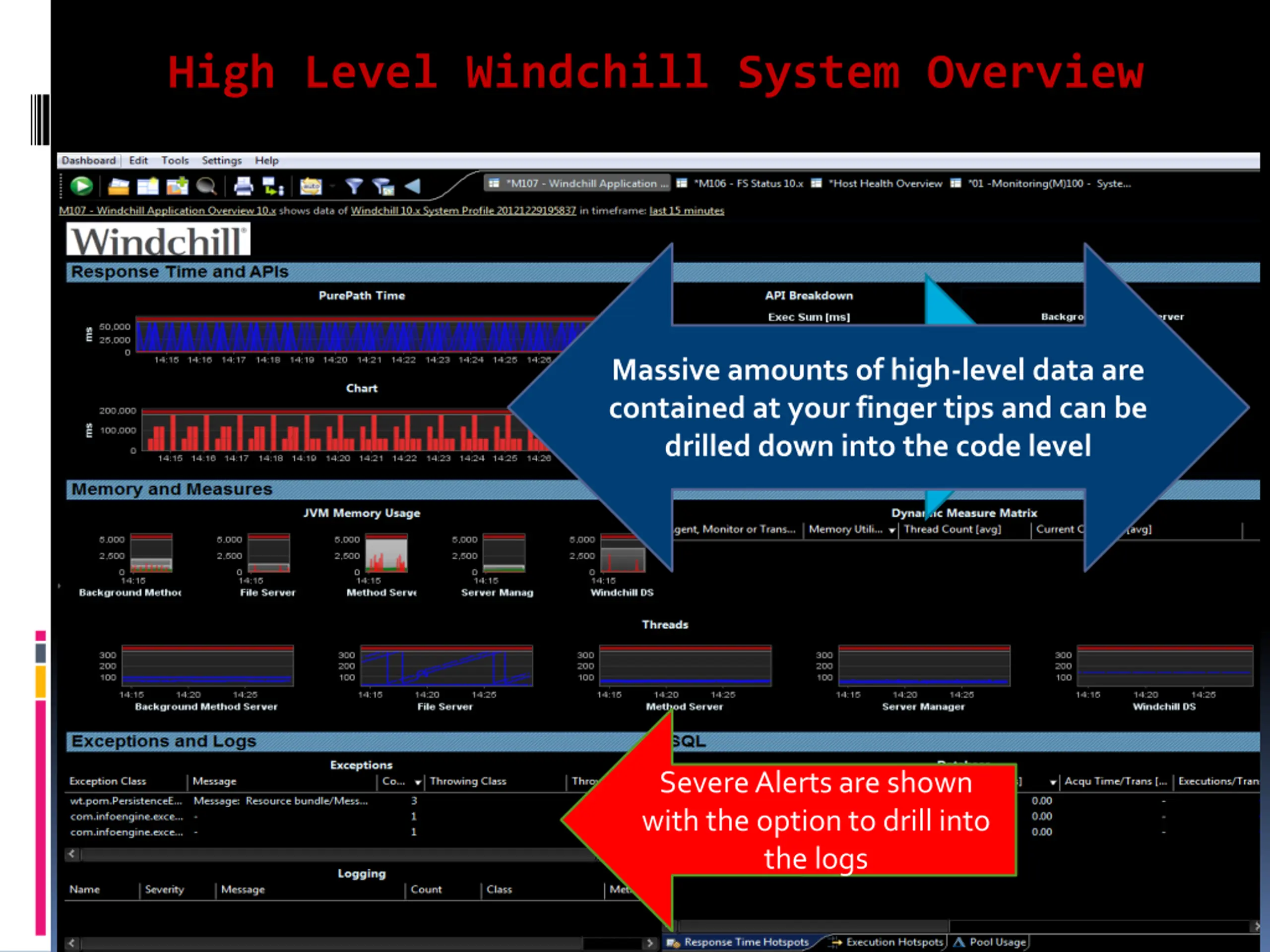

High Level Windchill System Overview Massive amounts of high-level data are High Level System Indicator contained at your finger tips and can be drilled down into the code level Severe Alerts are shown with the option to drill into the logs

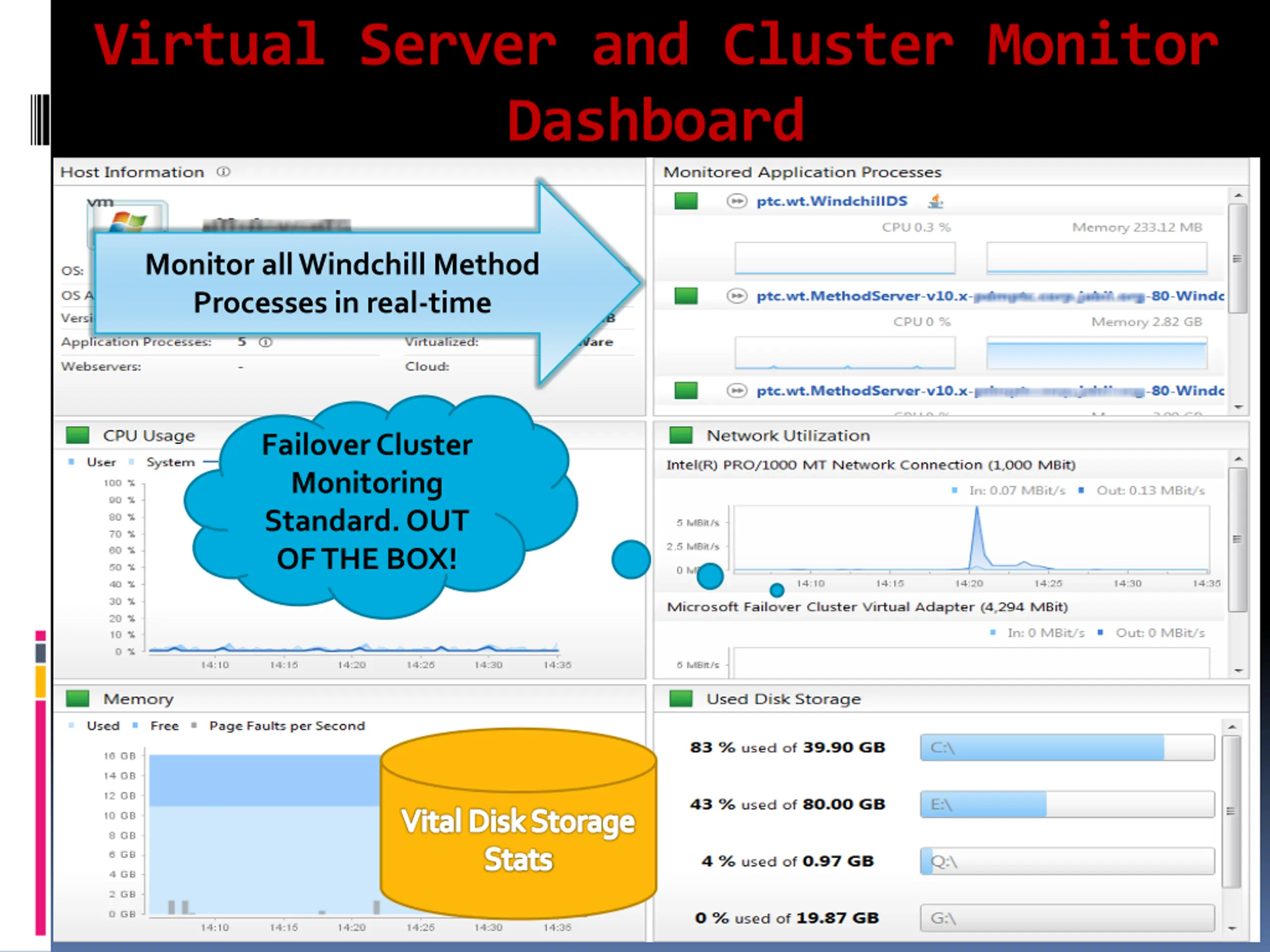

Virtual Server and Cluster Monitor Dashboard Monitor all Windchill Method Processes in real-time Failover Cluster Monitoring Standard. OUT OF THE BOX! Vital Disk Storage Stats

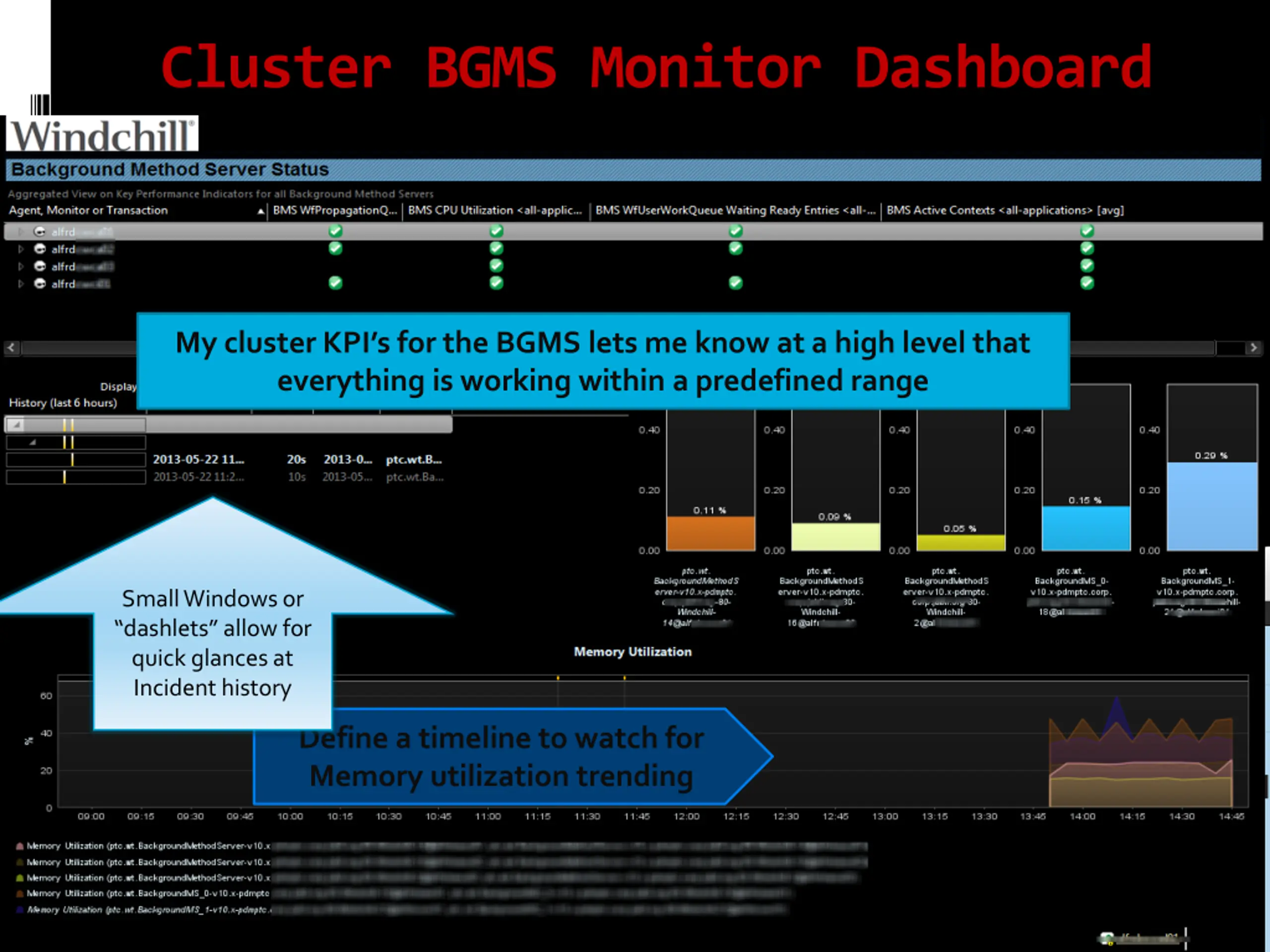

Cluster BGMS Monitor Dashboard My cluster KPI s for the BGMS lets me know at a high level that everything is working within a predefined range Small Windows or dashlets allow for quick glances at Incident history Define a timeline to watch for Memory utilization trending

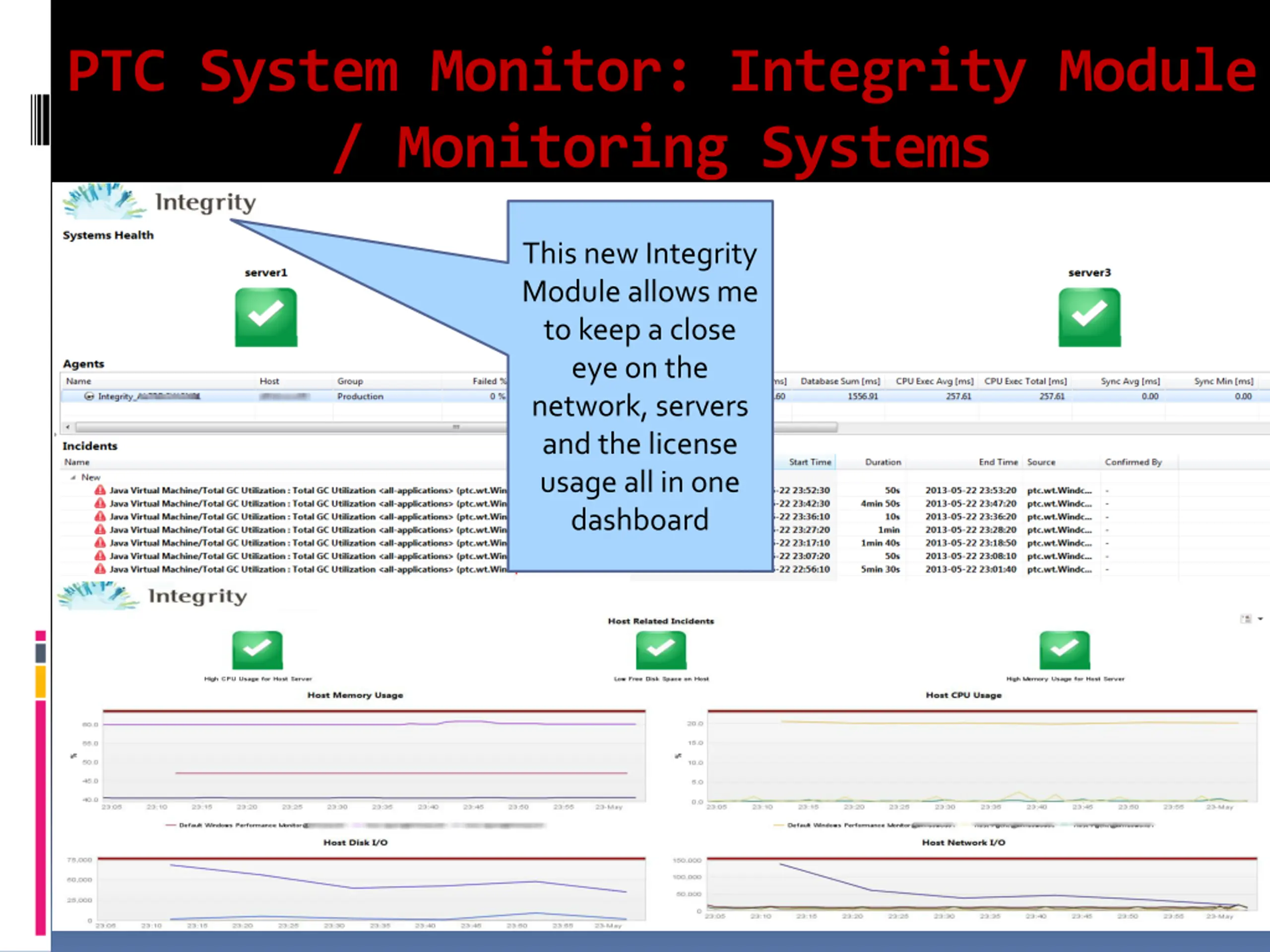

PTC System Monitor: Integrity Module / Monitoring Systems This new Integrity Module allows me to keep a close eye on the network, servers and the license usage all in one dashboard

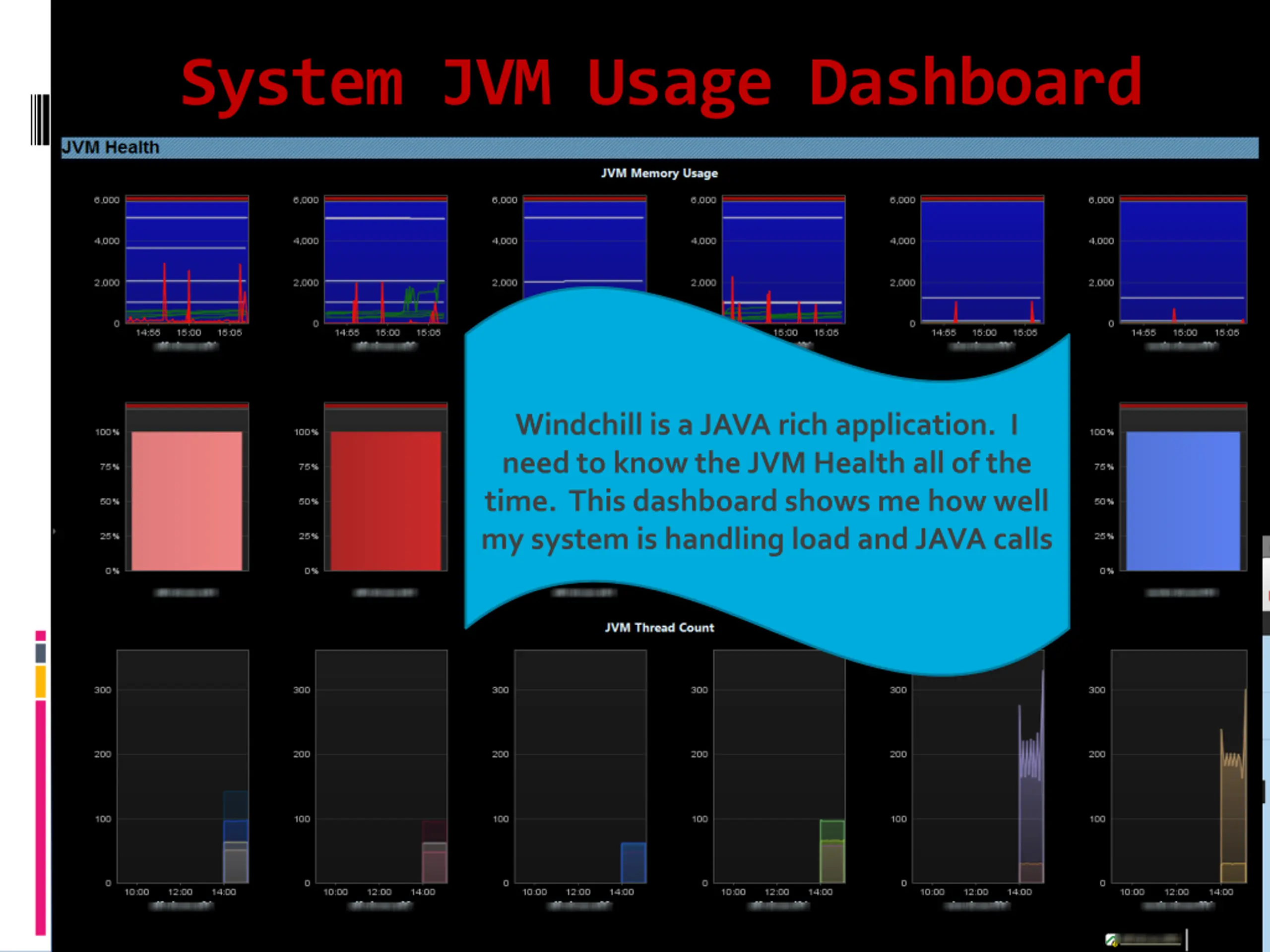

System JVM Usage Dashboard Windchill is a JAVA rich application. I need to know the JVM Health all of the time. This dashboard shows me how well my system is handling load and JAVA calls

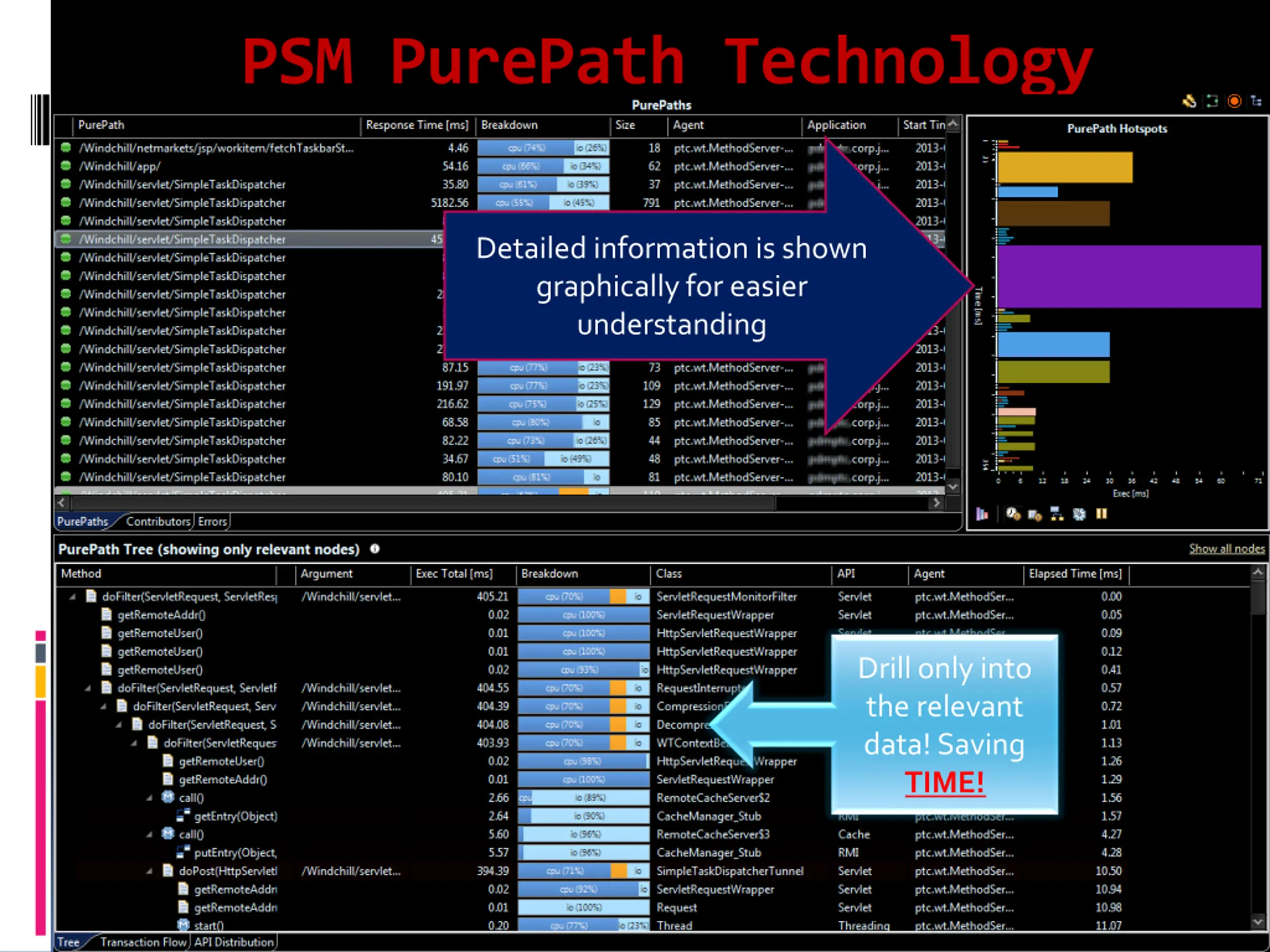

PSM PurePath Technology Detailed information is shown graphically for easier understanding Drill only into the relevant data! Saving TIME!

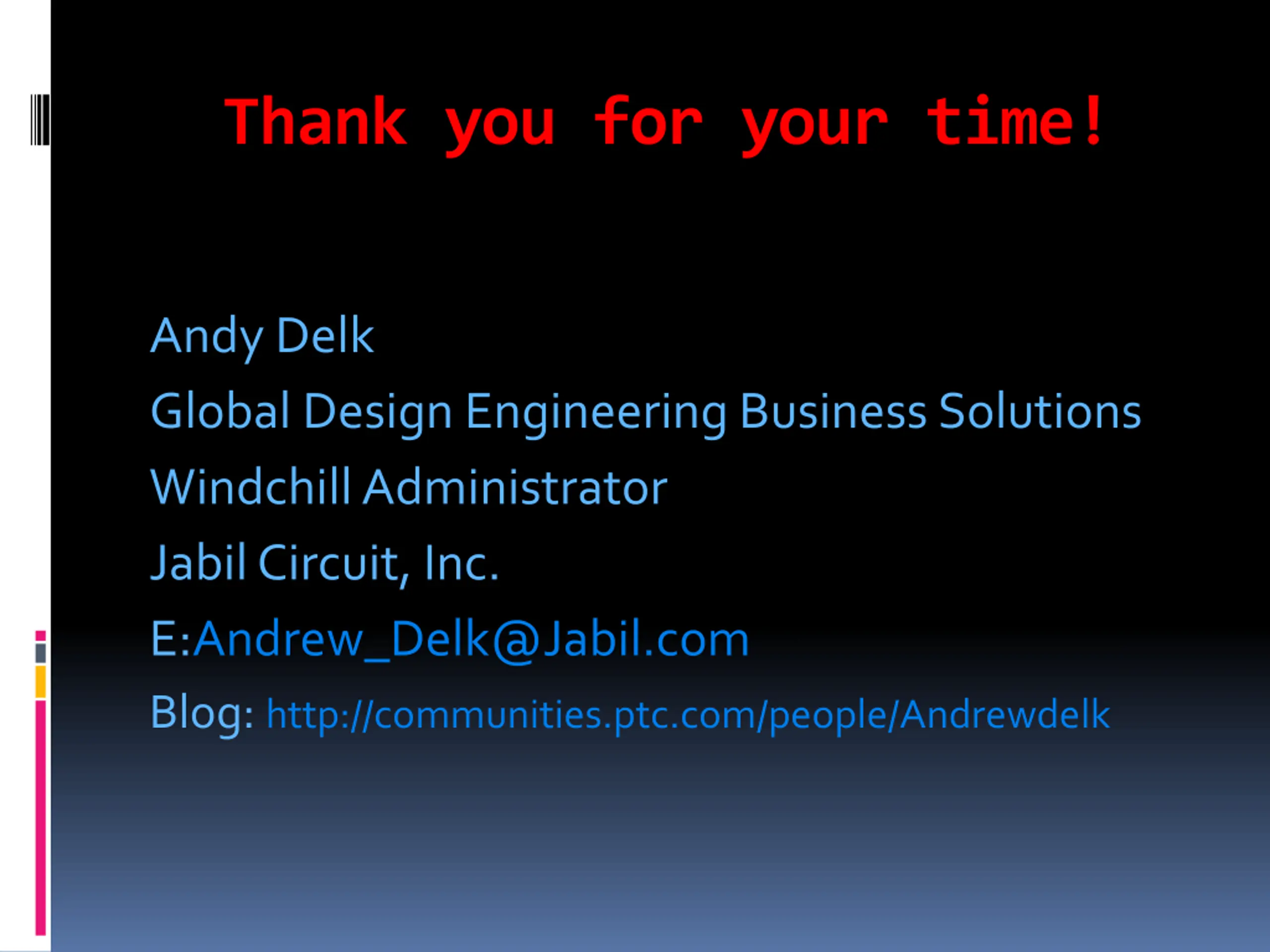

Thank you for your time! Andy Delk Global Design Engineering Business Solutions Windchill Administrator Jabil Circuit, Inc. E:Andrew_Delk@Jabil.com Blog: http://communities.ptc.com/people/Andrewdelk
