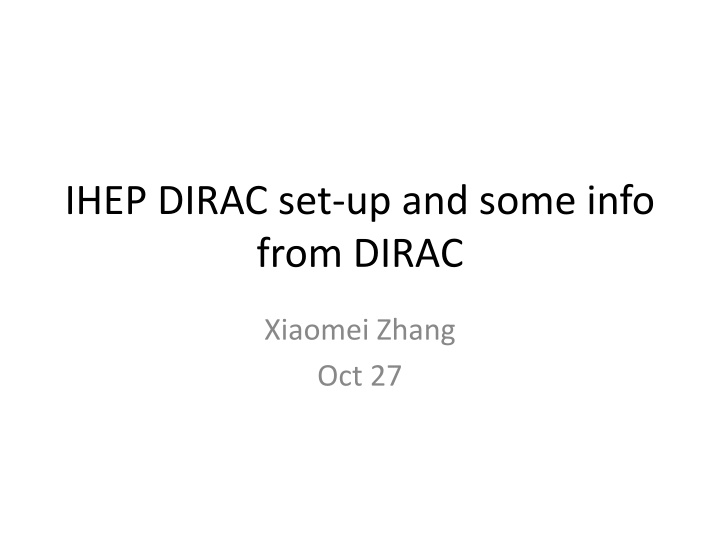

IHEP DIRAC set-up and some info from DIRAC Xiaomei Zhang Oct 27
IHEP DIRAC set-up One server with all the services and agents, including DB server Hardware Intel(R) Xeon(R) CPU Silver 4116 @ 2.10GHz with 24 cores, 128GB Mem with 4TB disk DIRAC Set-up Setup: CAS_Production DIRAC version: v6r22p3 Extension Set-up WebApp version v4r0p7 VM version v2r4-pre2 IHEPDIRAC Set-up IHEPDIRAC version: v0r18
Services in set-up (1) 'Accounting': ['DataStore', 'ReportGenerator'] 'Configuration': ['Server'] 'DataManagement': ['FTS3Manager','StorageElement', 'FileCatalog', 'StorageElementProxy'] 'Framework': ['SystemAdministrator , 'ComponentMonitoring', 'SystemLoggingReport', 'Monitoring', 'Notification', 'SecurityLogging', 'UserProfileManager', 'ProxyManager', 'SystemLogging', 'Plotting', 'BundleDelivery']
Services in set-up (2) 'Monitoring': ['Monitoring'] 'RequestManagement': ['ReqManager', 'ReqProxy'] 'ResourceStatus': ['ResourceStatus', 'ResourceManagement', 'Publisher', 'PublisherIHEP', 'ResourceManagementIHEP'] 'Transfer': ['Dataset', 'TransferRequest'] 'Transformation': ['TransformationManager'] 'WorkloadManagement': ['SandboxStore', 'Matcher', 'JobMonitoring', 'JobManager , 'JobStateUpdate', 'WMSAdministrator , 'OptimizationMind', VirtualMachineManager', 'TaskManager', 'PilotManager']
Agents in set-up (1) 'Configuration': ['Bdii2CSAgent', 'VOMS2CSAgent'], 'DataManagement': ['FTS3Agent'], 'Framework': ['SystemLoggingDBCleaner', 'TopErrorMessagesReporter'], 'RequestManagement': ['RequestExecutingAgent'], 'ResourceStatus': ['CacheFeederAgent', 'EmailAgent', 'SiteInspectorAgent', 'CacheFeederIHEPAgent', 'SAMTestAgent'], 'Transfer': ['TransferAgent']
Agents in set-up (2) 'Transformation': ['InputDataAgent', 'MCExtensionAgent', 'RequestTaskAgent', 'TransformationAgent', 'TransformationCleaningAgent', 'ValidateOutputDataAgent', 'WorkflowTaskAgent', 'WorkflowTaskAgent- JUNO', 'WorkflowTaskAgent-CEPC , 'RequestTaskAgent- JUNO', 'RequestTaskAgent-CEPC'], 'WorkloadManagement': ['PilotStatusAgent', 'JobCleaningAgent', 'StalledJobAgent', 'StatesAccountingAgent', 'StatesMonitoringAgent', 'TaskAgent', 'CloudDirectorJUNO', 'SiteDirectorJUNO', 'SiteDirectorBOINC', 'CloudDirectorAWS']
DIRAC duplications (1) Not all the components can be duplicated, which means we can t have a full DIRAC mirror somewhere For services, most of they can be duplicated For agents, instead, this probably means that they can not be duplicated DIRAC redundancy can aim for sharing loads and scaling, not for avoiding single-point failure More details: https://dirac.readthedocs.io/en/latest/AdministratorGuid e/ServerInstallations/scalingAndLimitations.html
DIRAC duplications (2) Even some services can be duplicated, but they have to interact with one DB, so the efficiency of replicating the services and agents?

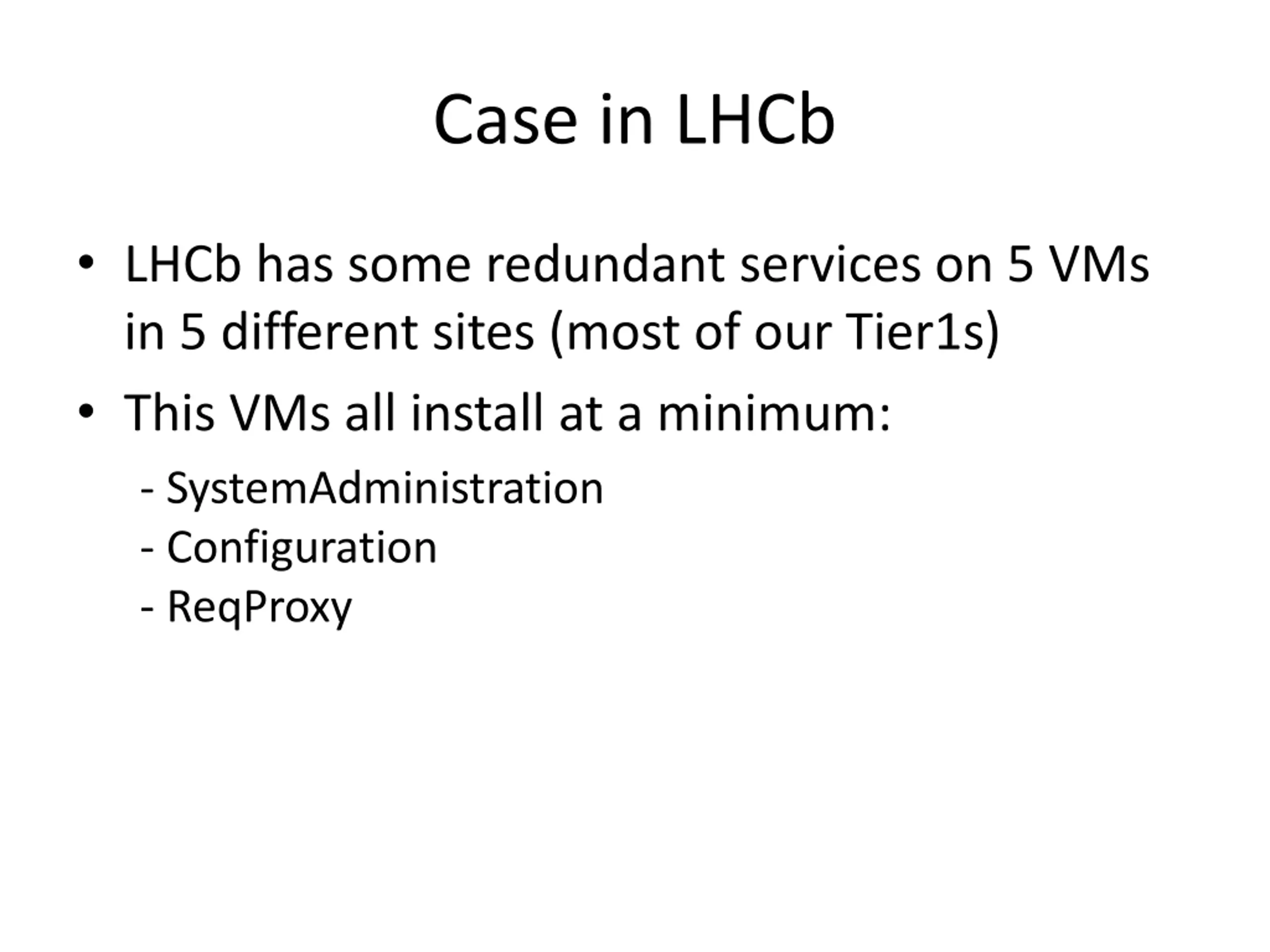

Case in LHCb LHCb has some redundant services on 5 VMs in 5 different sites (most of our Tier1s) This VMs all install at a minimum: - SystemAdministration - Configuration - ReqProxy
Redundancy server in JINR JINR has done the same as what LHCb T1 has done Igor will have more details on that There are two servers appeared in IHEP CS Other sites will do the same?
Discussions Machines or VMs needed? How to set up redundancy servers in data centers? How do we know it is working or failing? Pilots use server info from CS when they are setting up local environment, what about clients? Randomly choose one from servers info in CS? Look like it only can be seen from the site CS log? Monitoring? From LHCb, no monitoring needed, look like DIRAC can ignore the problematic servers if exists But need to something watch on the healthy of redundancy server?
