Presentation Transcript

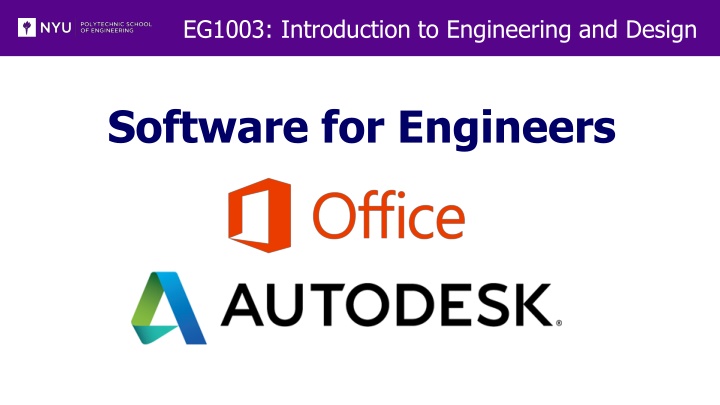

1. EG1003: Introduction to Engineering and Design Software for Engineers

2. Overview Objectives Software Tasks Background Procedure Assignment Closing

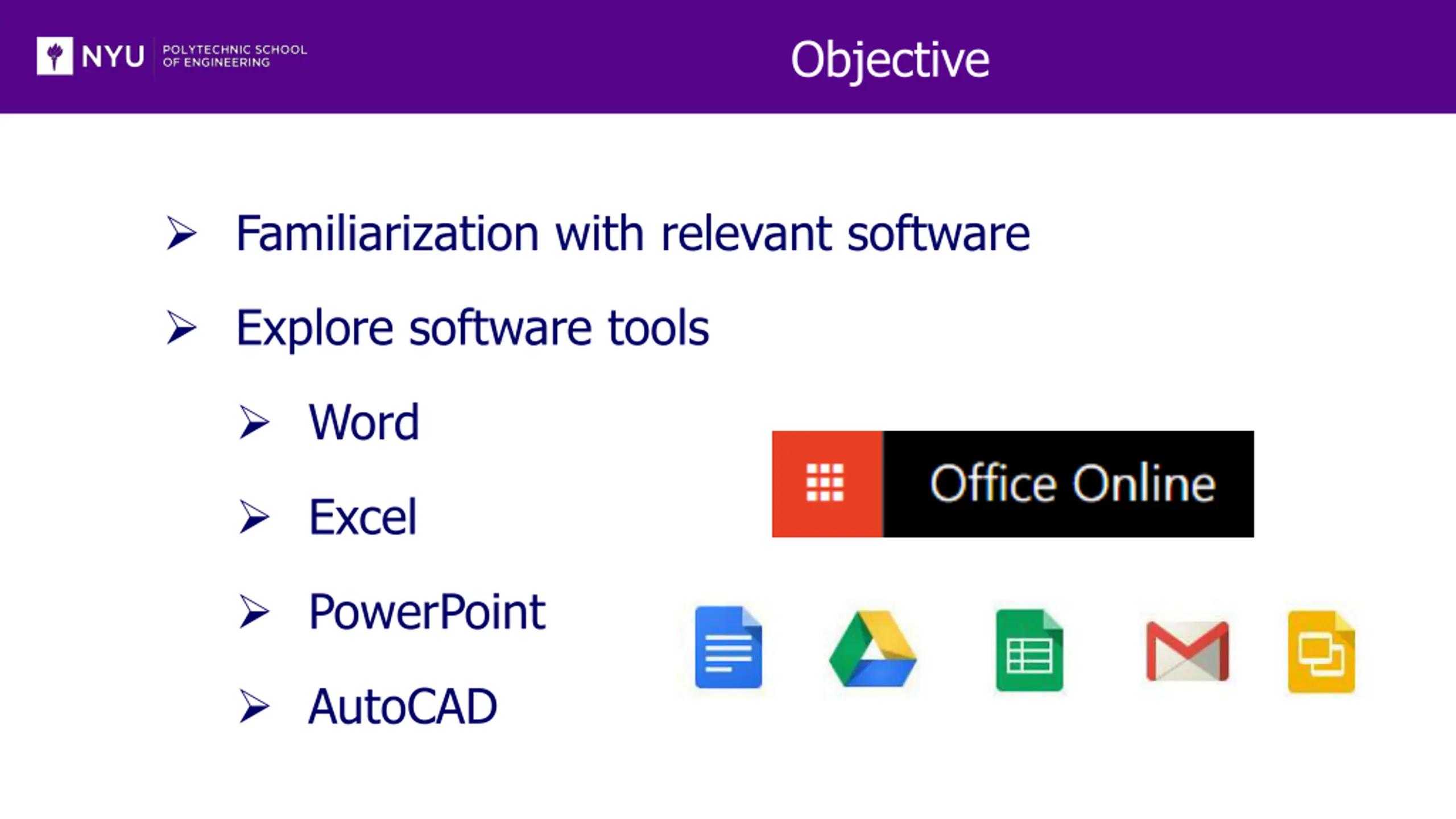

3. Objective Familiarization with relevant software Explore software tools Word Excel PowerPoint AutoCAD

4. Software Tasks Microsoft Office Autodesk AutoCAD Enter Excel equations Create Word template for lab reports Create PowerPoint template for lab presentations Learn the basics of CAD software Practice 2D and 3D drawing functions Build an EG logo keychain Export to 3D print file

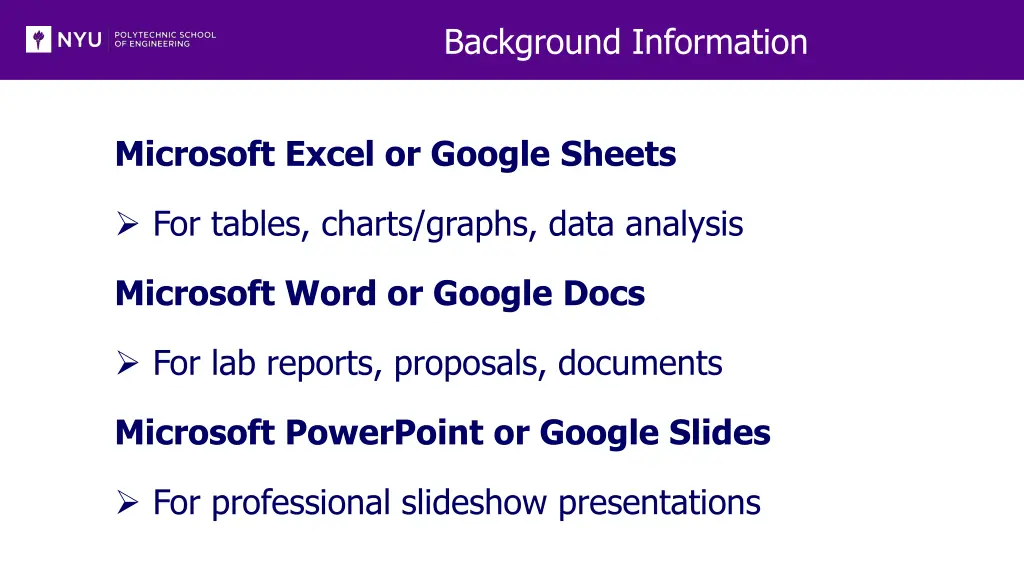

5. Background Information Microsoft Excel or Google Sheets For tables, charts/graphs, data analysis Microsoft Word or Google Docs For lab reports, proposals, documents Microsoft PowerPoint or Google Slides For professional slideshow presentations

6. Example: Word and PowerPoint

7. Example: Excel Fric. Fac. f Run # Diff. Press. (in) 0.042 0.083 0.156 0.198 0.203 0.026 Q (cfs) 0.00355 0.00502 0.00688 0.00774 0.00784 0.00281 Vel., v1 (fps) 3.55 5.02 6.88 7.74 7.84 2.81 hL (ft) 0.73 1.38 2.32 2.99 3.06 0.46 Rey. No. R (x104) 1.21 1.71 2.34 2.63 2.67 0.96 1 2 3 4 5 6 0.027 0.025 0.023 0.023 0.023 0.027 Graph of Head Loss vs. Velocity y = 2.5605Ln(x) - 2.4235 Head Loss, hL (ft) 10.00 1.00 0.10 0 2 4 6 8 10 Velocity, v1 (fps)

8. Procedure: Excel Term n R P Number Units 3 mol Create tables and figure based on Ideal Gas Law All data values are provided in an Excel file Using Ideal Gas Law, calculate volumes at specified temperatures Plot volume vs. temperature based on generated tables 0.082057 L*atm*mol-1*K-1 1 atm Temperature ( F) Temperature ( C) Temperature (K) 0 5 10 15 20 25 30 35 40 45 Volume (L) -17.78 -15.00 -12.22 -9.44 -6.67 -3.89 -1.11 1.67 4.44 7.22 255.37 258.15 260.93 263.71 266.48 269.26 272.04 274.82 277.59 280.37 62.87 63.55 64.23 64.92 65.60 66.28 66.97 67.65 68.34 69.02

9. Procedure: Word and PowerPoint Create templates to use for this class Change highlighted text to your info Use online resources, partners, and TAs Focus on professional formatting (paste as image) Attention to detail is a critical skill for engineers Match the given templates accurately

10. Procedure: AutoCAD Use the AutoCAD template and tutorial to create a 3D model of EG logo keychain Export to 3D printer file (STL) If your team has time before the mousetrap car competition, explore Thingiverse or design your own 3D ideas with CAD

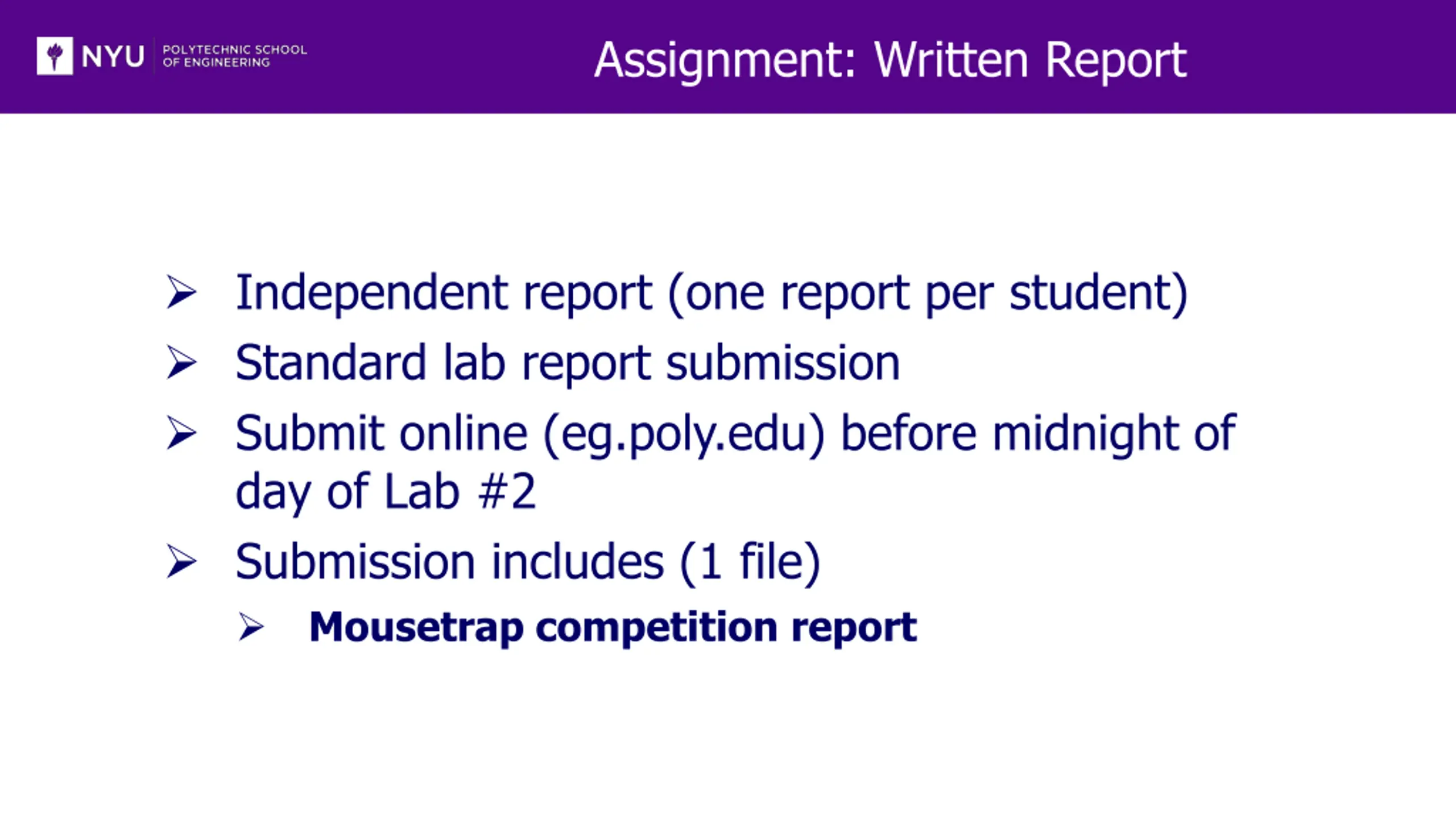

11. Assignment: Written Report Independent report (one report per student) Standard lab report submission Submit online (eg.poly.edu) before midnight of day of Lab #2 Submission includes (1 file) Mousetrap competition report

12. Closing Each team member must use software Submit all work electronically by 11:59pm before Lab #2 Work together with your partner TA is always available for assistance Mousetrap Car Competition Following MS Office and AutoCAD Exercise

13. Closing When importing into Microsoft from Google docs, slides, and sheets formatting errors may occur Submissions must be Microsoft files, so recheck your final Microsoft formatting Copy and paste all figures and tables as pictures All files needed are available in Lab 1A and 1B Write-ups on the EG manual (2 PDF templates, 1 Excel file with data, 1 AutoCAD template)
