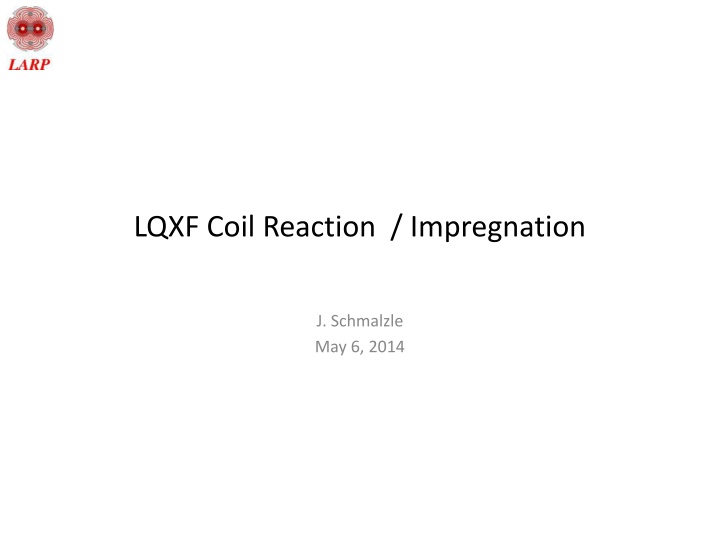

LQXF Coil Reaction / Impregnation J. Schmalzle May 6, 2014
LQXF Reaction Fixture Longer version of SQXF fixture 8 alignment pins into coil keyway. Torque bolts in steps, check for closure. JDS - May 6, 2014 2
LQXF Reaction Fixture Lift / Flip Beams mounted to side of fixture, pivot point in center. Similar system used for LQ & LHQ. JDS - May 6, 2014 3
LQXF Reaction Process Monitor / Log Data: Oven Temperature 8 internal thermocouples. Used by oven control system. Fixture Temperature 10 thermocouples mounted to surface of fixture. Used to monitor / record fixture temperature. Oven Argon flow rate. Fixture Argon flow rate. Oven pressure (~ water). Fixture pressure (~ 20 water). Primary Argon Cylinder weight. Independent flow to oven & to fixture. Secondary Argon Cylinder weight. Backup starts flowing if pressure in primary runs low. Ability to view via the web / smartphone. Email / text alerts. Backup power supplies: Oven controls Data acquisition computer JDS - May 6, 2014 4
