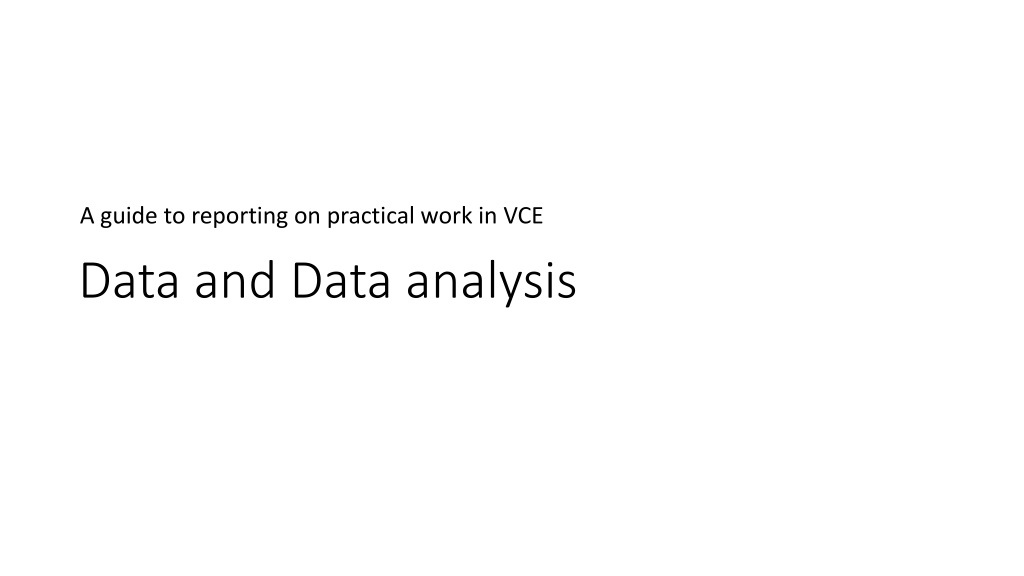

Data and Data analysis
A guide to reporting on practical work in VCE
Key Resources
•
VCAA Physics Study Design
•
U1 – U4 Key Science Skills (p11 – p12)
•
Scientific Investigation Poster/Report template
(p13)
•
VCAA Advice to Teachers: Physics – Scientific
Investigations
•
VCAA Advice to Teachers: Physics – Measurement in
Science
•
VCE Physics Guide to Reporting on Practical Work
Study Design: AOS 3
Key knowledge
• independent, dependent and controlled variables
• the physics concepts specific to the investigation and their significance, including definitions of key terms, and physics
representations
• the characteristics of scientific research methodologies and techniques of primary qualitative and quantitative data
collection relevant to the selected investigation, including experiments (gravity, magnetism, electricity, Newton’s laws of
motion, waves) and/or the construction and evaluation of a device;
consideration of precision, accuracy, reliability and
validity of data; and the identification of, and distinction between, uncertainty and error
• identification and application of relevant health and safety guidelines
•
methods of organising, analysing and evaluating primary and/or secondary data to identify patterns and relationships
including sources of uncertainty and error, representation of error bars, and limitations of data, and methodologies and
methods
•
models and theories, and their use in organising and understanding observed phenomena and physics concepts
including their limitations
•
the nature of evidence that supports or refutes a hypothesis, model or theory
• the key findings of the selected analysis and evaluation of the investigation and their relationship to concepts
associated with waves, fields and/or motion
• the conventions of scientific report writing and/or scientific poster presentation, including physics terminology and
representations, symbols, equations and formulas, units of measurement, significant figures, standard abbreviations
and acknowledgment of references.
Secondary Data Analysis example
•
basketball is dropped from a
height of 2.0m
•
time of the bounce and the
rebound height are measured,
•
need to interpret the data to
understand the physics of the
system
Measurement Uncertainty and Uncertainty in
Multiple Trials
1.
Any reading of an instrument has an associated uncertainty which
should be recorded at the time that the reading is taken.
Manufacturer will specify the maximum precision that can be
obtained from the instrument.
2.
Experimenter skill and circumstance can also affect the uncertainty
of the value being measured
3. By executing multiple trials, the effect of experimenter skill and
circumstance can be accounted for.
Ball impact time data
•
The spread of trial values = (Max
value – min value)/2
•
If the spread of trial values is larger
than the individual measurement
uncertainty, then it represents the
uncertainty of the average over
multiple trials
•
Within uncertainties, there is no
variation in impact time with drop
height.
•
This experiment is
not precise
enough
to detect variation in
impact time.
Rebound height data
Energy transfer during the ball bounce
•
Rebound height indicates that
an amount of energy,
Δ
E = mg
Δ
h
has been lost during the ball
bounce
•
Impulse = F
av
Δt
•
During the bounce, the ball
compresses and then
decompresses
•
Assuming that air resistance is
not significant, the change in
energy of the ball corresponds
to a change in kinetic energy
before and after the bounce.
•
Energy will be lost due to
inelastic behaviour of the ball
•
Need to derive physical
quantities from data and
associated uncertainties
Elastic characteristics of the ball
Data seems to have two distinct
linear regions:
Region A: approx. 25% of energy
is dissipated in the collision
Region B: approx. 50% of energy is
dissipated in the collision
Coefficient of restitution
•
Coefficient of restitution
decreases as drop height
increases.
•
More energy is dissipated,
probably mostly lost in
deformation, as the drop height
increases.
•
This behaviour is typical for
bouncing balls (
see Adli Haron and K A
Ismail 2012
IOP Conf. Ser.: Mater. Sci. Eng.
36
012038
)
Collision and impulse
What does it mean if the average
force during the collision is
proportional to the initial velocity
before the collision?
Further consideration:
•
Further investigation: measure force versus time during collision to
learn more about the response of the basketball
•
Does the surface affect the observed response?
•
Is the behaviour repeated in subsequent bounces?
Aim of presentation:
Introduce guide to report writing and demonstrate how it addresses key knowledge of AOS 3
Give an example of data analysis on secondary data
Give possible rubrics for assessing AOS 3
To do: modify reporting guide to improve section on background info, modify rubric criteria to more closely align with key knowledge, use one example throughout report guide? Assessing logbook and poster – include also in rubric
This comprehensive guide focuses on key science skills, scientific investigation, physics concepts, data collection methodologies, analysis techniques, scientific reporting, and more, essential for VCE students in their practical work. It covers topics such as independent, dependent, and controlled variables, data organization, analysis, and evaluation, along with scientific report writing conventions. A valuable resource for students undertaking VCE data and data analysis projects.
Uploaded on Sep 07, 2024 | 0 Views
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
A guide to reporting on practical work in VCE Data and Data analysis
VCAA Physics Study Design U1 U4 Key Science Skills (p11 p12) Scientific Investigation Poster/Report template (p13) Key Resources VCAA Advice to Teachers: Physics Scientific Investigations VCAA Advice to Teachers: Physics Measurement in Science VCE Physics Guide to Reporting on Practical Work
Key knowledge independent, dependent and controlled variables the physics concepts specific to the investigation and their significance, including definitions of key terms, and physics representations the characteristics of scientific research methodologies and techniques of primary qualitative and quantitative data collection relevant to the selected investigation, including experiments (gravity, magnetism, electricity, Newton s laws of motion, waves) and/or the construction and evaluation of a device; consideration of precision, accuracy, reliability and validity of data; and the identification of, and distinction between, uncertainty and error identification and application of relevant health and safety guidelines methods of organising, analysing and evaluating primary and/or secondary data to identify patterns and relationships including sources of uncertainty and error, representation of error bars, and limitations of data, and methodologies and methods models and theories, and their use in organising and understanding observed phenomena and physics concepts including their limitations the nature of evidence that supports or refutes a hypothesis, model or theory the key findings of the selected analysis and evaluation of the investigation and their relationship to concepts associated with waves, fields and/or motion the conventions of scientific report writing and/or scientific poster presentation, including physics terminology and representations, symbols, equations and formulas, units of measurement, significant figures, standard abbreviations and acknowledgment of references.
Secondary Data Analysis example basketball is dropped from a height of 2.0m time of the bounce and the rebound height are measured, need to interpret the data to understand the physics of the system
Measurement Uncertainty and Uncertainty in Multiple Trials 1. Any reading of an instrument has an associated uncertainty which should be recorded at the time that the reading is taken. Manufacturer will specify the maximum precision that can be obtained from the instrument. 2. Experimenter skill and circumstance can also affect the uncertainty of the value being measured 3. By executing multiple trials, the effect of experimenter skill and circumstance can be accounted for.
Ball impact time data The spread of trial values = (Max value min value)/2 If the spread of trial values is larger than the individual measurement uncertainty, then it represents the uncertainty of the average over multiple trials Within uncertainties, there is no variation in impact time with drop height. This experiment is not precise enough to detect variation in impact time. Drop height (m) uncertaint y Impact Time (s) average Trial 1 Trial 2 Trial 3 Trial 4 Trial 5 (s) (s) 2.000 0.183 0.194 0.179 0.204 0.187 0.19 0.01 1.800 0.196 0.177 0.187 0.181 0.205 0.19 0.01 1.600 0.177 0.197 0.181 0.208 0.184 0.19 0.02 1.400 0.183 0.195 0.196 0.179 0.203 0.19 0.01 1.200 0.205 0.185 0.175 0.188 0.196 0.19 0.02 1.000 0.187 0.181 0.204 0.195 0.189 0.19 0.01 0.800 0.179 0.198 0.192 0.204 0.186 0.19 0.01 0.600 0.203 0.183 0.186 0.196 0.198 0.19 0.01 0.400 0.196 0.186 0.203 0.183 0.198 0.19 0.01 0.200 0.198 0.203 0.183 0.186 0.196 0.19 0.01
Rebound height data Rebound height versus drop height 1.20 Drop height (m) uncertaint y Rebound height (m) average hf = 0.63hi0.71 1.00 Trial 1 Trial 2 Trial 3 Trial 4 Trial 5 (m) (m) 2.000 1.000 0.985 1.030 0.995 1.020 1.00 0.02 0.80 Rebound height (m) 1.800 0.955 0.930 0.905 0.940 0.925 0.93 0.03 1.600 0.850 0.845 0.860 0.895 0.880 0.86 0.03 0.60 1.400 0.805 0.795 0.830 0.815 0.780 0.81 0.02 1.200 0.740 0.720 0.700 0.750 0.730 0.73 0.03 0.40 1.000 0.650 0.625 0.670 0.640 0.665 0.65 0.02 0.20 0.800 0.605 0.575 0.550 0.590 0.560 0.58 0.03 0.600 0.460 0.450 0.475 0.505 0.490 0.47 0.03 0.00 0.000 0.500 1.000 1.500 2.000 2.500 0.400 0.350 0.320 0.315 0.340 0.360 0.33 0.02 Drop height (m) 0.200 0.190 0.175 0.180 0.195 0.180 0.19 0.01
Energy transfer during the ball bounce Rebound height indicates that an amount of energy, E = mg h has been lost during the ball bounce Impulse = Fav t During the bounce, the ball compresses and then decompresses Assuming that air resistance is not significant, the change in energy of the ball corresponds to a change in kinetic energy before and after the bounce. Energy will be lost due to inelastic behaviour of the ball Need to derive physical quantities from data and associated uncertainties
Elastic characteristics of the ball Data seems to have two distinct linear regions: Region A: approx. 25% of energy is dissipated in the collision Region B: approx. 50% of energy is dissipated in the collision Energy loss versus initial kinetic energy 7.0 6.0 Energy loss during collision (J) 5.0 4.0 3.0 2.0 1.0 0.0 0.00 2.00 4.00 6.00 8.00 10.00 12.00 14.00 Initial kinetic energy before collision (J)
Coefficient of restitution Coefficient of restitution decreases as drop height increases. More energy is dissipated, probably mostly lost in deformation, as the drop height increases. This behaviour is typical for bouncing balls (see Adli Haron and K A Ismail 2012 IOP Conf. Ser.: Mater. Sci. Eng. 36 012038) Coefficient of restitution versus drop height 1.20 1.00 coefficient of restitution 0.80 0.60 0.40 0.20 0.00 0.000 0.500 1.000 1.500 2.000 2.500 drop height (m)
Collision and impulse velocity after collision versus velocity before collision What does it mean if the average force during the collision is proportional to the initial velocity before the collision? 4.50 4.00 3.50 3.00 final velocity (m/s) 2.50 2.00 1.50 1.00 0.50 0.00 0.000 1.000 2.000 3.000 4.000 5.000 6.000 7.000 initial velocity (m/s)
Further consideration: Further investigation: measure force versus time during collision to learn more about the response of the basketball Does the surface affect the observed response? Is the behaviour repeated in subsequent bounces?
