Grinding and Granulation Equipment for Wood Pellets Production
For sale: New press KAHL for wood pellets production, designed for a 5-ton output per hour. The system includes grinding, moistening, granulation, and cooling of end products, fully integrated into a production cycle. This equipment line is located in Lithuania and ready for immediate operation, offering significant cost savings compared to new factory equipment. With various components such as a hammer mill, pelleting press, ripening hopper, and granule cooler, this equipment works efficiently for wood pellets production. It is suitable for applications like the Pellet-Energy plant in Ukraine.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

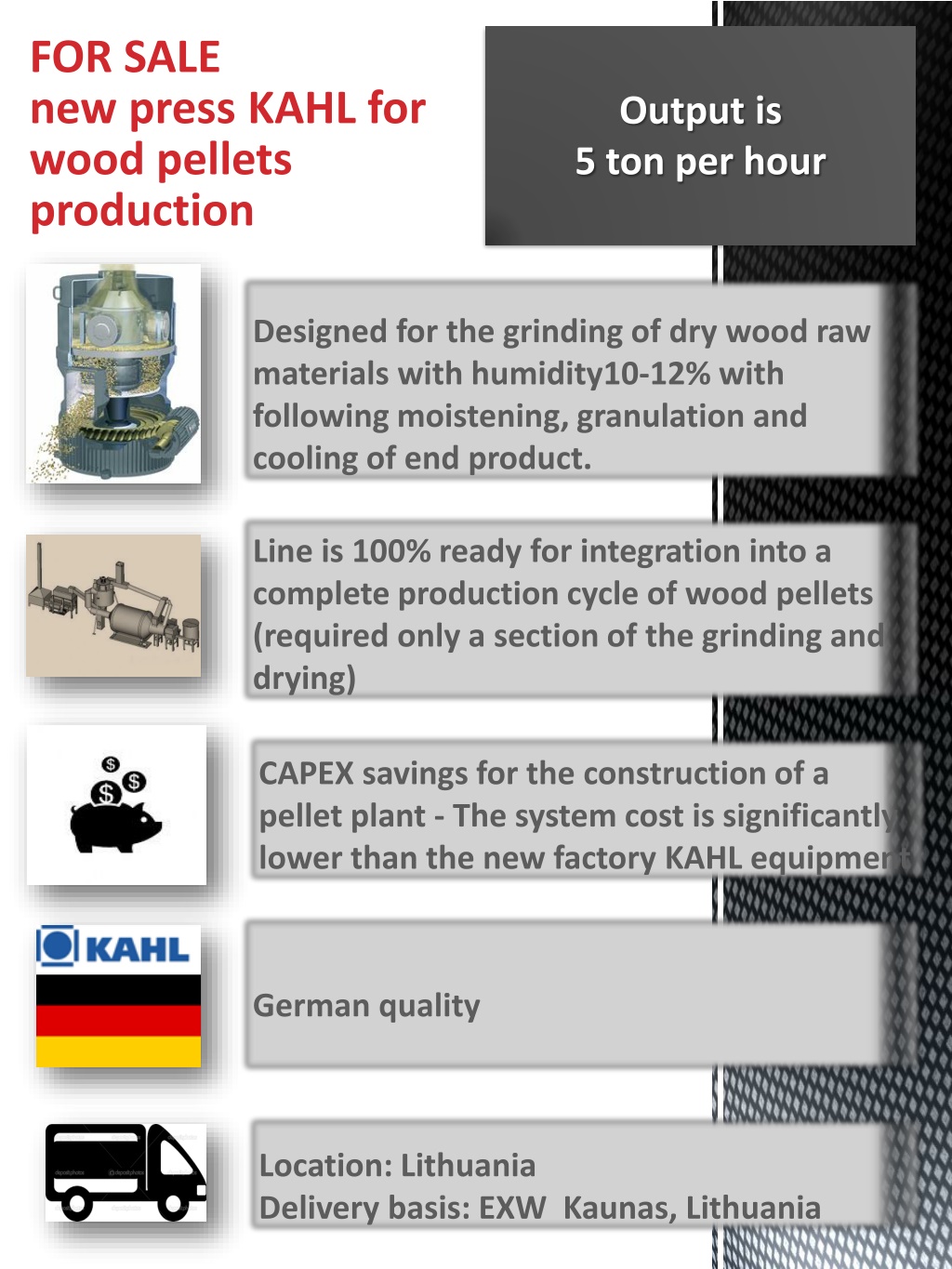

FOR SALE new press KAHL for wood pellets production Output is 5 ton per hour Designed for the grinding of dry wood raw materials with humidity10-12% with following moistening, granulation and cooling of end product. Line is 100% ready for integration into a complete production cycle of wood pellets (required only a section of the grinding and drying) CAPEX savings for the construction of a pellet plant - The system cost is significantly lower than the new factory KAHL equipment German quality Location: Lithuania Delivery basis: EXW Kaunas, Lithuania
The grinding and granulation line of dry raw materials consist of: 100% readiness for running into operation Hammer mill 660/1000 1 unit. Automatic water metering system WD-GLI 15 1unit. Mixing screw 500 1unit. Ripening hopper RWB 2205-1 1 unit. Dosing and mixing screw DM 400 1 unit. Auxiliary water metering system 1 unit. Pelleting press with flat die 60-1250 1 unit. Electric hoist for dismantlement of die and chaser mills 1 unit. Counterflow granule cooler GK19x19 1 unit. Vibrosieve for granules sifting 1 unit. Pellet plant structure
Equipment work around the clock Application example on Pellet-Energy plant in Ukraine Hammer mill 660/1000 Pelleting press with flat die 60- 1250 Ripening hopper RWB 2205-1 Counterflow granule cooler GK19x19
Brief specifications and purpose of the equipment : Hammer mill 660/1000 is designed for grinding of dry raw materials to the fraction less 4 mm, catching of metal inclusions.It s completed by double screw feeder, mill power is 6 tones per hour. Installed capacity of driving gear is 160 kW. The number of hammers is 240 pieces. The number of sieves is 2 pieces. Automatic water metering system WD-GLI 15 is designed for automatic metering installed amount of water by DCS operator (Digital Control System) into mixing screw before ripening hopper. The power is 25-315 liters per hour under pressure that makes up 3-10 bars. Mixing screw 500 is designed for prior moistening of the grinded dry raw materials before ripening hopper. The screw power is 6 tones per hours. Installed capacity of driving gear is 11 kW. Ripening hopper RWB 2205-1 is designed for even mixing of moistened raw materials and giving them homogeneity by humidity. The volume of ripening hopper is 5, 5 m3. Installed capacity of driving gear is 9, 2 kW. Auxiliary water metering system (as required) is designed for moistening of the dry raw materials before loading into pelleting press in case of disrepair of basic moistening system.. Dosing and mixing screw DM 400 is designed for final moistening and feeding of grinded dry raw materials to pelleting press. The screw power is 6 tones per hour. Installed capacity of driving gear is 5, 5 kW. Pelleting press with flat die 60-1250 is designed for forced compaction of grinded dry raw materials in canals of the die and forming of fuel granules according to the established quality. The power of pelleting press is 5 tones per hour. Installed capacity of driving gear is 400 kW. The number of chaser mills is 5 pieces. The oiling of pelleting press is carried out automatically. Electric hoist is designed for acceleration of dismantlement, adjusting and tuning operations of the die and chaser mills of pelleting press. Counterflow granule cooler GK19x19 is designed for cooling, giving strength to granules, dust removal, further metered flow of granules to the vibrosieve. Vibrosieve for granules sifting is designed for separation of fine particles and dust from fuel granules with further feeding of granules on transfer mechanisms.
Reason for sale: It was purchased of 3 new lines from Kahl , two of them are located in Ukraine at the Pellet-Energy project, one line is stored at the moment in Lithuania and has not been installed due to lack of resources in the project Our contacts: Alexander Pismenniy Commercial director alexander.pismenniy@pellet-energy.biz Tel.: +38 097 043 55 80 Maria Kachula Sales and Purchasing maria.kachula@pellet-energy.biz Tel.: +38 095 139 49 62
