Ginos worm mold
Throughout the process of creating a mold worm using TinkerCAD, challenges arose and innovative solutions were implemented, such as shaping a wavy line into a worm-like form and engraving it into a block. Despite initial setbacks like hollow insides and ill-fitting cone attachments, adjustments were made to improve the design. The journey involved trial and error, learning from mistakes, and adapting the design to ensure a successful outcome in creating the injection mold for the worm.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript

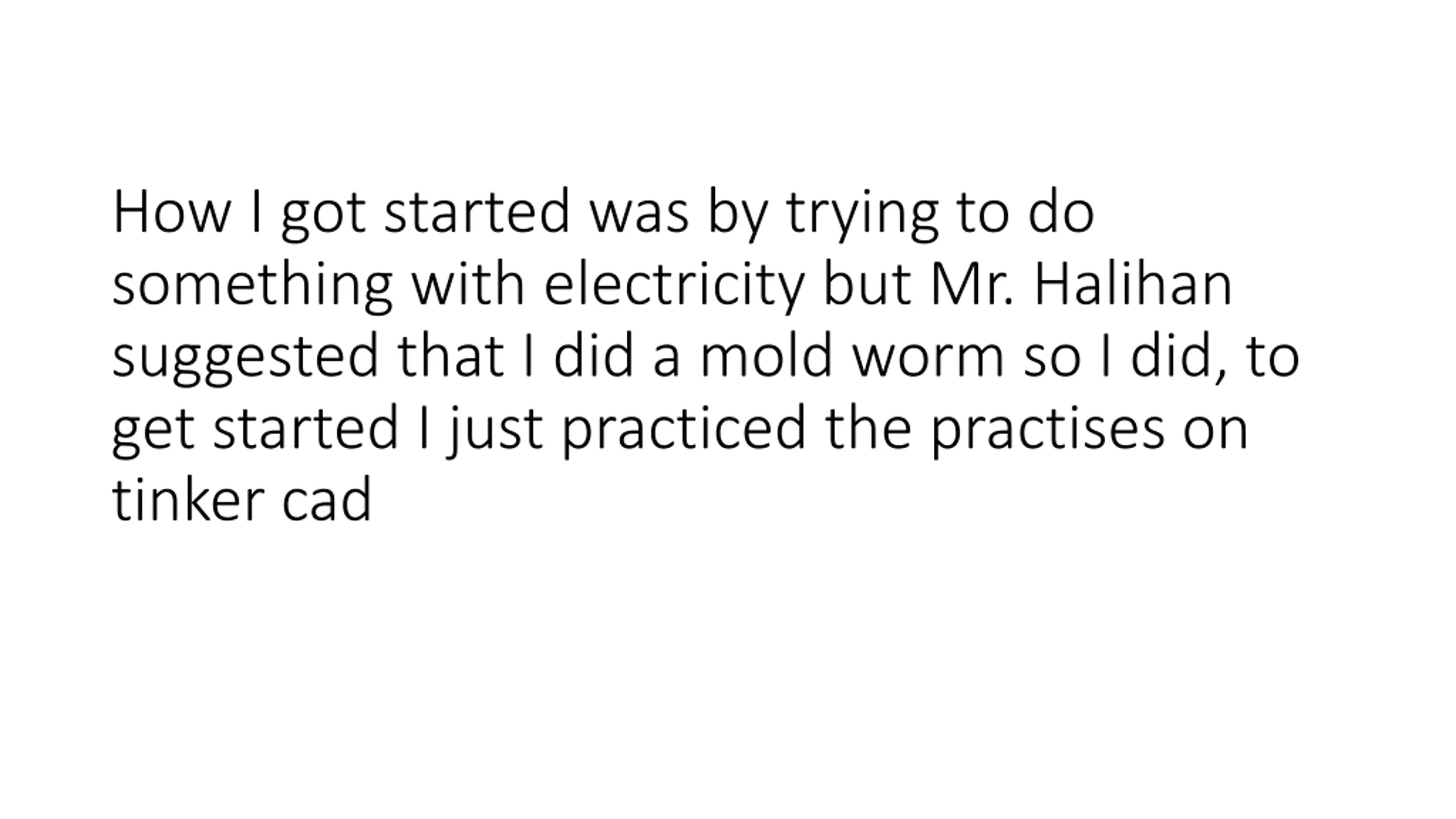

How I got started was by trying to do something with electricity but Mr. Halihan suggested that I did a mold worm so I did, to get started I just practiced the practises on tinker cad

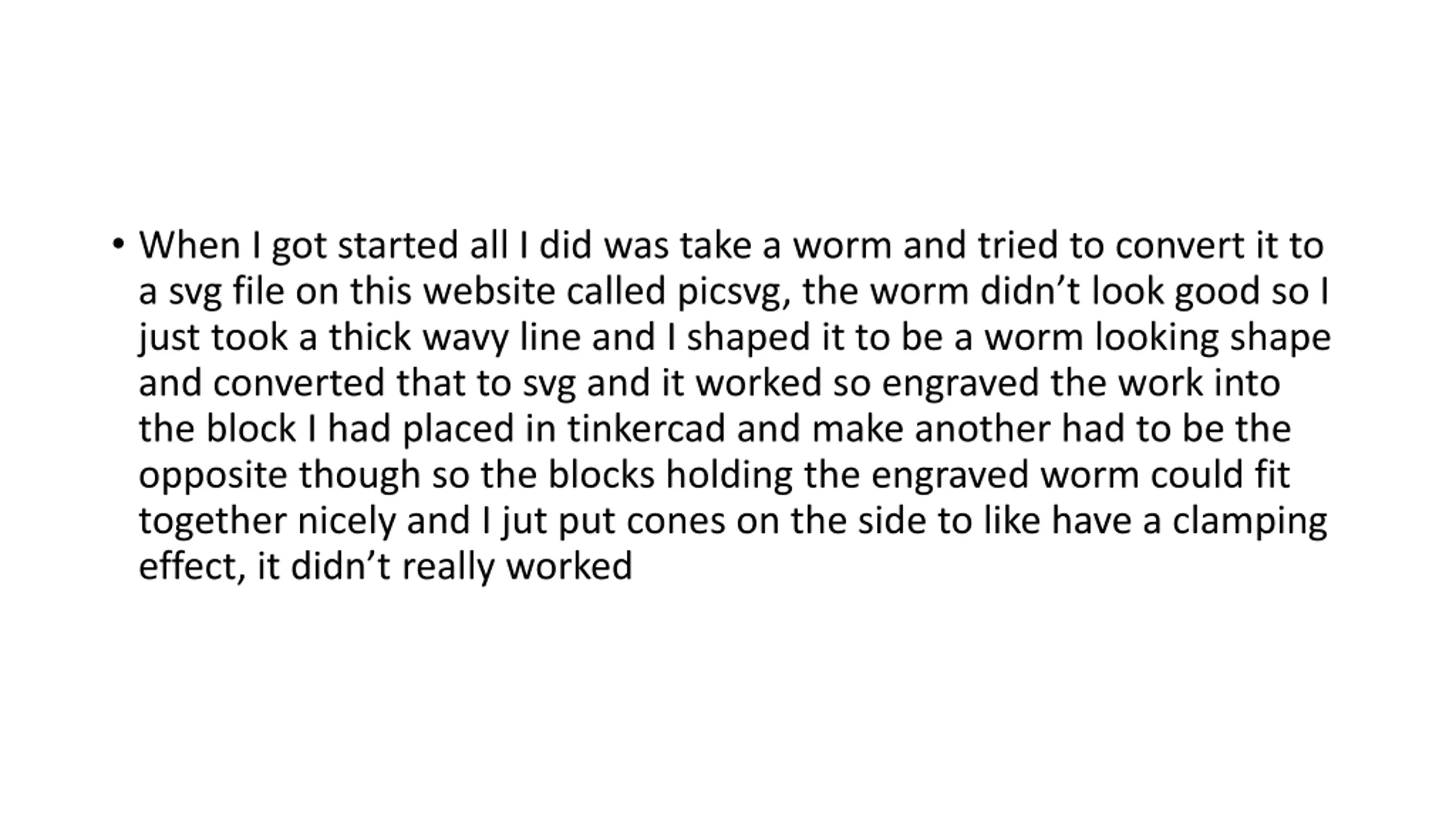

When I got started all I did was take a worm and tried to convert it to a svg file on this website called picsvg, the worm didn t look good so I just took a thick wavy line and I shaped it to be a worm looking shape and converted that to svg and it worked so engraved the work into the block I had placed in tinkercad and make another had to be the opposite though so the blocks holding the engraved worm could fit together nicely and I jut put cones on the side to like have a clamping effect, it didn t really worked

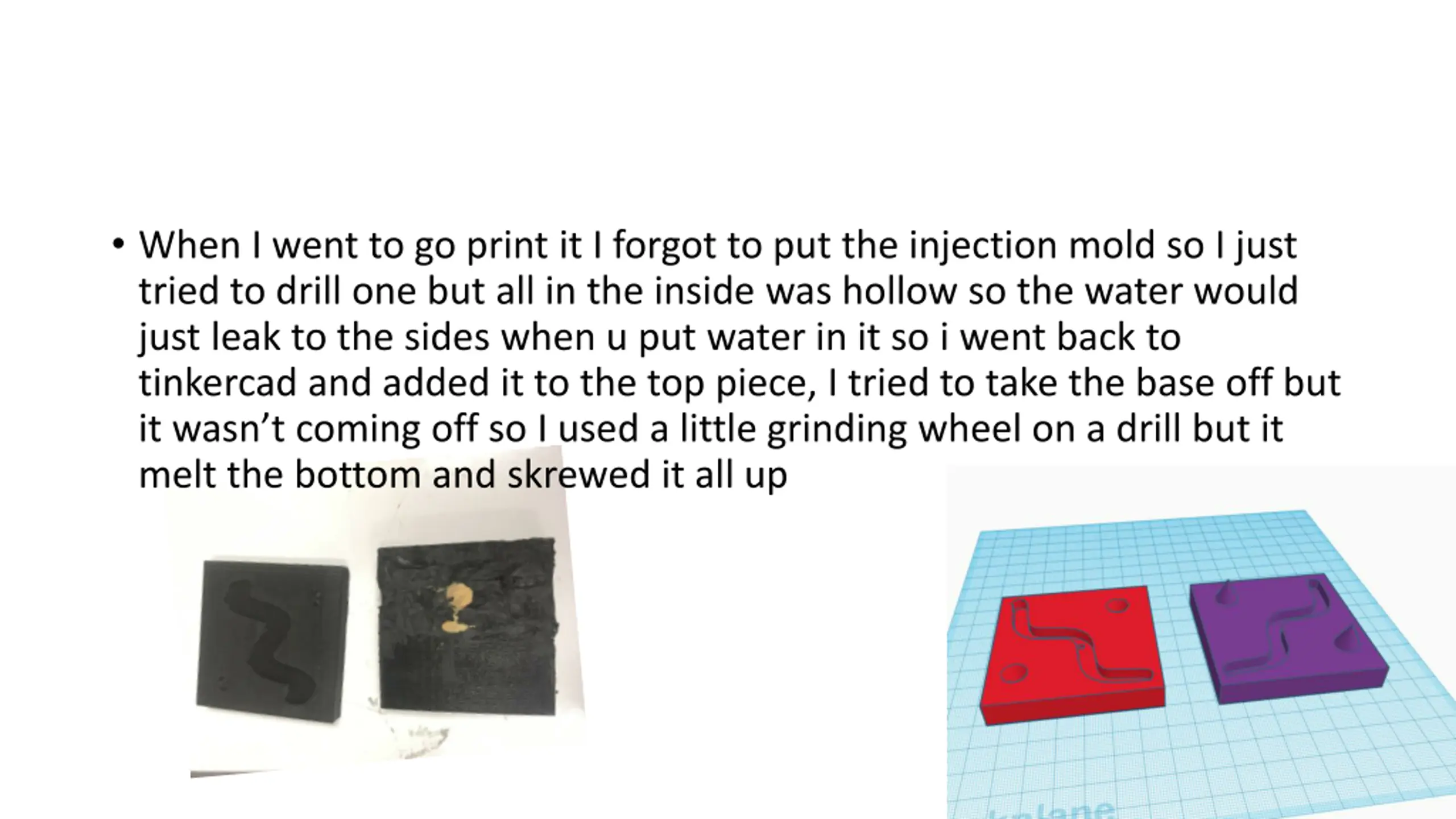

When I went to go print it I forgot to put the injection mold so I just tried to drill one but all in the inside was hollow so the water would just leak to the sides when u put water in it so i went back to tinkercad and added it to the top piece, I tried to take the base off but it wasn t coming off so I used a little grinding wheel on a drill but it melt the bottom and skrewed it all up

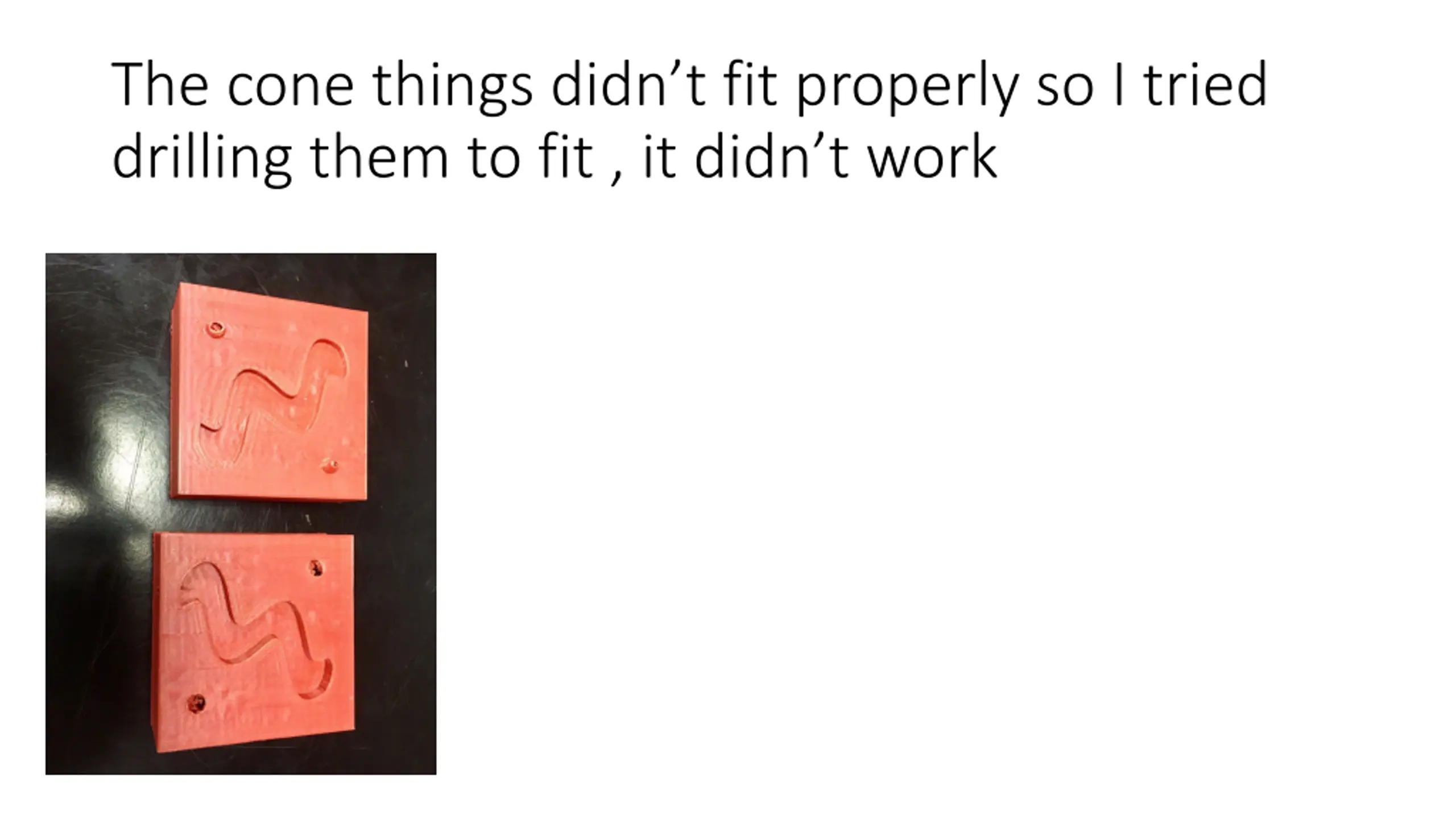

The cone things didnt fit properly so I tried drilling them to fit , it didn t work
