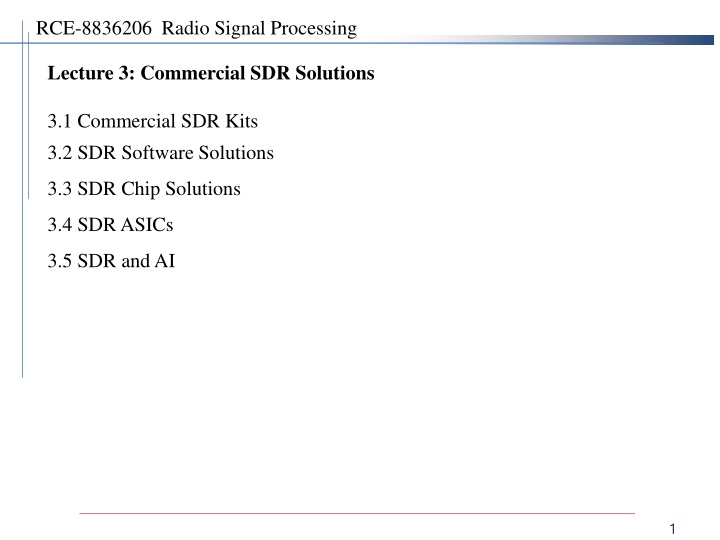

RCE-8836206 Radio Signal Processing Lecture 3: Commercial SDR Solutions 3.1 Commercial SDR Kits 3.2 SDR Software Solutions 3.3 SDR Chip Solutions 3.4 SDR ASICs 3.5 SDR and AI 1
10 SDR's in 2020: https://blog.bliley.com/10-popular-software-defined-radios-sdr 1. HackRF : 1MHz - 6GHz, half-duplex, 20Msps, GNU Radio, SDR# 2. Ubertooth One SDR : 2.4GHz, open source 3. YARD Stick One USB Transceiver: 300-348, 391-464, 782-928MHz, half-duplex, 0.5Mbps 4. Kiwi SDR : 10kHz-30MHz 5. NESDR Mini 2+ 6. NESDR Nano 2+ 7. RTL-SDR: 0.5MHz-1.7GHz, receive only 8. Ham It Up 9. NESDR Nano 3 OTG: 25-1700MHz 10. NESDR SMArt HF Bundle 4
Other kits: - TZT : 70MHz-6GHz SDR platform - Elektor SDRShield -Ancrotek SDR-KIT 770T2R4 - SiDRadio - LimeSDR Mini - PicoZed SDR - STEMlab 125-14 SDR - CML Microcircuis DE9941A - PlanetComm SOLO8 SDR Comprehensive list on Wiki: https://en.wikipedia.org/wiki/List_of_software-defined_radios 5
3.2 SDR Software HackRF support software: - GNU Radio - GQRX - SDR# - SDR_Radio.com V2 - Universal Radio Hacker - QSpectrumAnalyzer - SDRUno - HDSDR - SDR Console 6
3.3 SDR Chip Solutions Lime Microsystems: - On chip RF - RF to digital baseband in a chip (RF SoC) - Zero-IF architecture - LMS6002D RF SoC: RF 0.3-3.8 GHz, bandwidth 1.5-28MHz, Auto-calibration programming - Nutaq Radio420x FMC module: LMS6002D + SW selectable RF BPF + RF gain blocks - Myriad-RF open source wireless platform: LMS6002DFN + Altera FPGA module - LimeSDR-Mini v1.1 Figure: Myriad-RF (left) and LimeSDR-Mini 7
3.4 ASICs for SDR SatixFy: 8
3.4 ASICs for SDR On Semiconductor: - Structured ASIC 9
3.5 AI in SDR National Instruments (NI): -AI in SIGINT ( ) -AI in 5G networks Deepwave: -AIR-T (AI radio transceiver): Deep learning (training and inference) - NVIDIA TensorRT inference accelerator software, TensorFlow, MATLAB, Caffe2, Chainer, CNTK, MxNet, PyTorch 10
RCE-8836206 Radio Signal Processing Lecture 3: Commercial SDR Solutions 11
