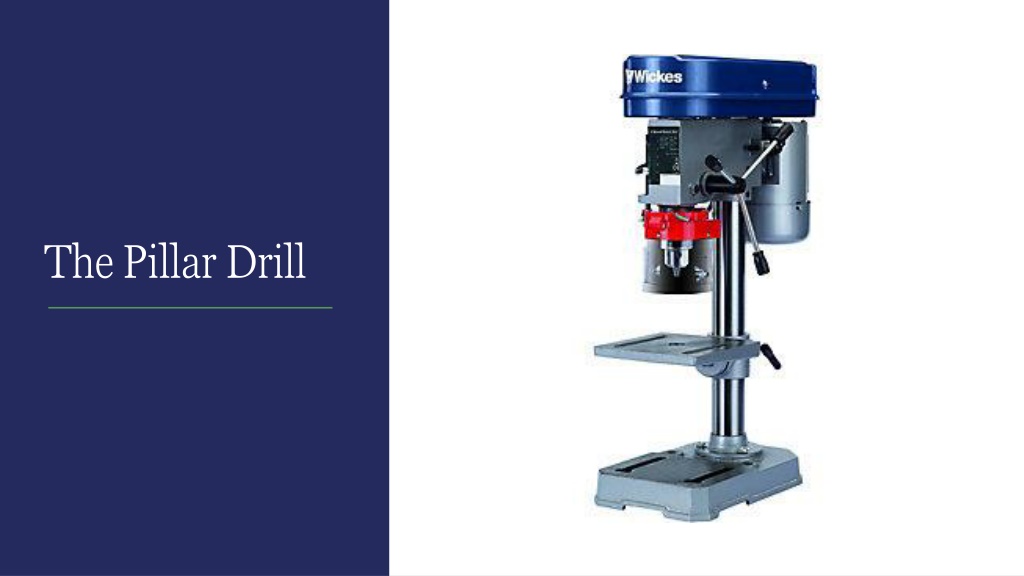

The Pillar Drill
Safety on the Pillar Drill


Ensure you wear goggles

Check guards are fitted and in place

Tie up long hair and no loose clothing should be worn near the drill

Know the location of the emergency stop button

Report any damage or broken parts

Use correct speed for work being carried out

Securely clamp work piece

Remove the chuck key before starting the machine

Clean down the drill after use
Parts of the Pillar Drill


A- Belt/Gear behind a Guard

B- Motor

C- Feed lever

D- Column

E- Table locking lever

F- Base

G- Table

H- Chuck and Chuck guard

B

C

D

E

F

G

H

A
undefined

The Motor.
This takes electricity and turns it into rotary motion powering the spindle.

The spindle and gears.
Different gears are needed for different jobs. The gears are connected to the motor and the spindle allowing it to turn
at different speeds.

The Feed Lever.
This moves the drill to and from the piece.

The column
This is attached to the base and supports the table as well as the motor spindle and the gears.

The Base
this is made from cast iron and is bolted to the floor. It can be used to support large pieces when drilling.

The table.
This is attached to the column and can be moved up or down and can be rotated.

The chuck
This is connected to the spindle and is used to hold parallel shank drills. The chuck is tightened using the chuck key.



undefined

Sketch a picture of
the Pillar Drill in
your Engineering
room

ENSURE YOU INCLUDE ALL THE LABELS
Slide Note
Embed
Share

Learn about the components of a pillar drill, essential safety measures, and how it functions. Understand the roles of the motor, spindle, gears, feed lever, column, base, table, and chuck. Find out how to operate a pillar drill safely and efficiently, including using the correct speed, securing workpieces, and maintaining the machine. Improve your knowledge of this powerful tool for woodworking and metalworking projects.

  • Pillar Drill
  • Safety Measures
  • Machine Components
  • Power Tool
  • Woodworking

Uploaded on Jul 17, 2024 | 2 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript


  1. The Pillar Drill

  2. Safety on the Pillar Drill Ensure you wear goggles Check guards are fitted and in place Tie up long hair and no loose clothing should be worn near the drill Know the location of the emergency stop button Report any damage or broken parts Use correct speed for work being carried out Securely clamp work piece Remove the chuck key before starting the machine Clean down the drill after use

  3. A B Parts of the Pillar Drill C A- Belt/Gear behind a Guard B- Motor H C- Feed lever D D- Column G E- Table locking lever E F- Base G- Table H- Chuck and Chuck guard F

  4. The Motor. This takes electricity and turns it into rotary motion powering the spindle. The spindle and gears. Different gears are needed for different jobs. The gears are connected to the motor and the spindle allowing it to turn at different speeds. The Feed Lever. This moves the drill to and from the piece. The column This is attached to the base and supports the table as well as the motor spindle and the gears. The Base this is made from cast iron and is bolted to the floor. It can be used to support large pieces when drilling. The table. This is attached to the column and can be moved up or down and can be rotated. The chuck This is connected to the spindle and is used to hold parallel shank drills. The chuck is tightened using the chuck key.

  5. Sketch a picture of the Pillar Drill in your Engineering room ENSURE YOU INCLUDE ALL THE LABELS
