Electric Charge and Interactions Between Objects
undefined

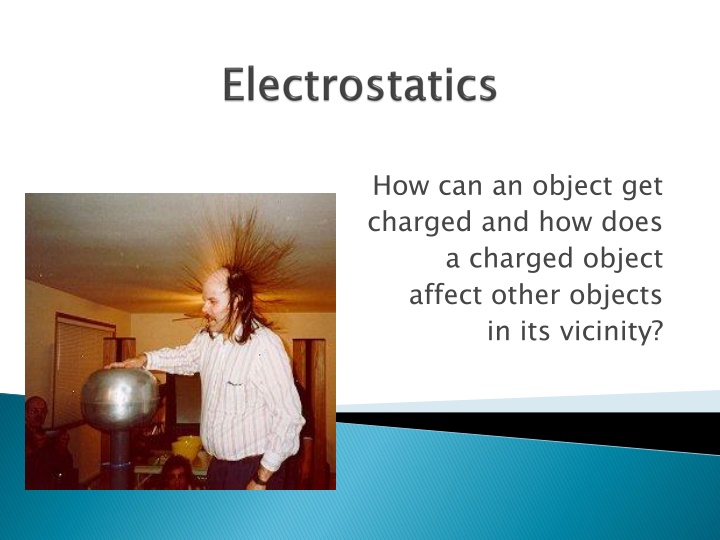

How can an object get
charged and how does
a charged object
affect other objects
in its vicinity?
What makes up all matter?
What does it mean to be “charged”?
What is GROUNDING?
What are insulators & conductors?
What are the (names &) methods of charging?
Hey wait, what IS charge? A measurement, a
concept….?
What do charged objects do? (to other objects)
Matter is made of Neutrons, Protons and
Electrons
Protons have POSITIVE charge
Electrons have NEGATIVE charge
Neutrons are uncharged
Which has “more” charge?
Being charged means having an excess or
shortage of __________
Which charges
move
to charge an object?
Why do
they
move?
This term is used for the process that “un-
charges” a charged object.
It is performed by contacting a charged
object to an object that can give, OR receive
___________ charges, so that the initially
charged object is made neutral.
It can (partially) happen w/o contact when
one object that is highly charged discharges
across a gap – that is a spark
A good CONDUCTOR allows negative charges
to travel around through the material making
up the conductor, with very little RESISTANCE.
A good INSULATOR makes it very hard for
negative charges to travel around through the
material making up the insulator. These have
a lot of RESISTANCE.
A SUPERCONDUCTOR is a material that allows
negative charges to flow through it without
any RESISTANCE.
What happens when fur is rubbed on the rubber
wand? Cloth on the glass wand?
What happens when the wand is brought near a metal
bar or gray sphere? Why?
What happens when the wand touches the metal bar
or gray sphere, and then is held near? Why?
What happens when the two gray spheres that have
been touched by the same wand are brought near
each other? Why?
What happens when the two gray spheres that have
been touched by different wands are brought near
each other? Why?
What happens if someone touches the metal bar or
spheres after they have been touched by a wand?
Charging by :
◦
Friction
Materials rubbed “against” each other transfer …
◦
Conduction
A charged object is brought in contact with a conductor and there is a
transfer of …
◦
Induction
A charged object is brought NEAR a conductor, the conductor is grounded,
there is a transfer of….. the ground is removed, and finally the charged
object is moved away from the conductor
◦
Polarization
(
not really charging, as a polarized object’s NET charge can be zero
)
A charged object is brought near a neutral conductor, electrons on the
conductor move (toward, or away from the charged object) and then the
polarized object behaves as if it has the ________ charge as the object that
caused the polarization.
1. Use the negatively charged wand to charge the electroscope by
CONDUCTION (needs contact). Remove the wand, then bring it back near
scope.
◦
You observe:
◦
Charge the glass with the cloth. Bring it near the charged scope. You observe:
2. Ground scope. Use the negatively charged wand to charge the
electroscope by INDUCTION (no contact with charged wand, but a ground
must be connected and disconnected at the appropriate time. Remove the
wand, then bring it back near scope.
◦
You observe:
◦
Charge the glass with the cloth. Bring it near the charged scope. You observe:
3. Record the four steps to charging the scope by induction. Do you know
what goes in in each of the four steps? These are found in Lesson 2b on
PCR
The SI unit for charge is the COULOMB (C)
The charge of one electron is -1.6x10-
19
C
The charge of one proton is +1.6x10-
19
C
The quantity of charge equal to 1.6x10-
19
C is often
written as
e
so the charge of one electron is –e
To calculate the charge of a certain number of
electrons or protons, use the equation:
Q =
+
ne
where Q is quantity of charge, and n is the # of charge carriers
To calculate the charge of a certain number
of electrons or protons, use the equation:
Q =
+
ne
*
where Q is quantity of charge, and n is
the # of charge carriers
*e = 1.602 x 10
-19
C
* The mass of an electron was also
determined to be 9.11x10
-31
kg
If sphere on a VanDeGraaf generator is
charged to10,000 volts, it has had 1.74x10
12
electrons moved off of it. What is the charge
of the sphere (sign and number)?
Opposite charges attract and like charges repel
Charged objects can attract neutral objects, by
polarizing the neutral objects. Conductors are
easy to polarize, insulators are not easy to
polarize.
Electrons are the only charges to get transferred
The
force
between charged objects can be
mathematically described by Coulomb’s Law
Review Electroscope Investigation
PCR Static Electricity Lessons 1&2
CYU
◦
Lesson 1: a(1), b(1-6), c(all), d(1-3), e(1,2,4,5,6)
◦
Lesson 2: a(3,4), b(4), c(all), d(all)
Quest: Electrostatics
1. If one million electrons are added to the top of a Van
de Graff generator, what is its charge in coulombs?
2. Use the negatively charged wand to charge the
electroscope by INDUCTION. Remove the wand, then
bring it back near scope.
◦
You observe:
◦
Charge the glass with the cloth. Bring it near the charged
scope. You observe:
3. Check the four steps to charging the scope by
induction. Do you know what goes in in each of the
four steps?
But wait, what IS force?
When does an electric force occur?
What factors affect the size and direction of
the electric Force on an object?
What is the mathematical relationship
between
electric force
(in newtons) and the:
quantity of charge
A (in coulombs)?
quantity of charge
B (in coulombs)?
distance
(in meters) between charges A & B
?
|F
e
|(N) and Q
A
(C)? (What if you double, triple, … Q
A
)
|F
e
|(N) and Q
B
(C)? (What if you double, triple, … Q
B
)
|
F
e
|
(N) and d (m)?
◦
F
e
is electric force
◦
d is distance between the electric charges
Use the Gizmo simulation: Coulomb Force
Username:
Password:
F
e
= k(Q
1
Q
2
)/d
2
F
e
:
k = 9 x 10
9
(Nm
2
/C
2
)
d:
Q
1
& Q
2
are:
The concept of a
field
is utilized by
scientists to explain the surprising force
phenomenon that occurs in the absence of
physical contact.
The electric field is a ratio, comparing the
size of the force on a charged object to the
size of the charge
E=F
e
/Q
F
e
=EQ
A slightly charged object in an electric field
will experience a small electric force, while
a heavily charged object will experience a
____________ force.
As the distance from a charged object
doubles, the electric field ________________
Ex: If a small “test charge” is 0.40m from the
center of a charged Van de Graff, it
experiences an electric force F. How big is
the force when the test charge is:
a)
0.80 from the center?
b)
1.20m from the center?
c)
0.20m from the center?
The field “lines” are really arrows that show the
direction of force on a positive “test” charge, and
show field strength by how closely the lines are
spaced
Electric Field Lines for Two (different,
isolated) Point Charges
Skim PCR Static electricity 4C, and complete
the CYU questions
Complete WS on Electric Fields
Play Electric Field Hockey
◦
Google Phet, go to play with sims, Physics,
electricity
If the electrons from one gram of hydrogen
were placed in a container and taken to the
South Pole, and the protons from the same
gram of hydrogen were placed in a container
and taken to the North Pole, How much force
would these two containers exert on each
other?
