Effective Storing Techniques for Agricultural Produce

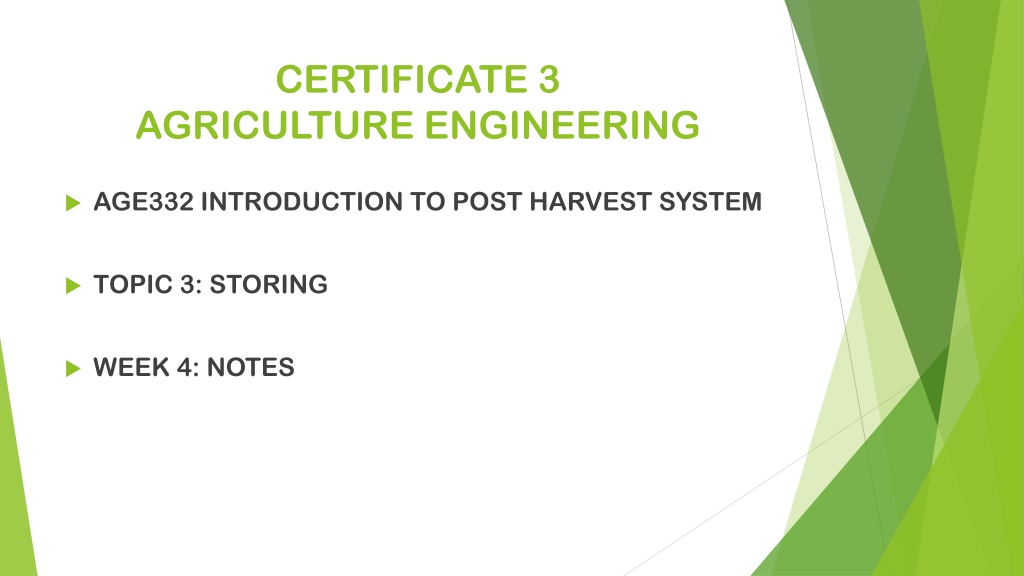

CERTIFICATE 3
AGRICULTURE ENGINEERING
AGE332 INTRODUCTION TO POST HARVEST SYSTEM
TOPIC 3: STORING
WEEK 4: NOTES
The need for storage
Most fruit and vegetable production in temperate areas
is seasonal.
In contrast, cultivation and harvest periods are much
longer in tropical and subtropical areas.
Demand is year round and it is normal practice to use
storage in order to ensure continuity of supply.
Moreover, storage is a strategy for achieving higher
returns.
Produce can be held temporarily to overcome gluts
thus limiting price falls or to address shortage periods
when prices are high.
Storing of Farm Produce
As a rule, there are many ways of storing a product.
The length of storage time can be longer in specifically
designed structures.
With refrigeration and controlled atmospheres,
storage periods can be even longer.
The technology utilized depends on whether the
benefits (higher prices) outweigh the costs
.
Natural or field storage
This is the most rudimentary system and is still in use for
many crops.
For example, roots (carrots, sweet potato, and cassava)
and tubers (potato).
Crops should be left in the soil until preparation for the
market. This is similar to how citrus and some other fruits
are left on the tree.
Although storing products under natural conditions is
widely practiced, it leaves them exposed to pests and
diseases as well as to adverse weather conditions. This can
have a detrimental effect on quality.
Another method widely used is field storage in heaps.
This method ensures that produce is free from soil humidity and is
protected from the weather with a tarpaulin, straw, or plastic
materials.
It is a low cost alternative for bulky crops that require large
buildings. For example, potato, onions, pumpkins, sweet potato
etc.
Field storage in bins is a more recent variation where a pair of
them (one on top of the other, the one above protected from the
weather) is left in the field.
It has the additional advantage of making it possible to undertake
mechanical handling later.
Field storage of onions in heaps covered with straw.
Natural ventilation
Amongst the wide range of storage systems, this is the most
simple.
It takes advantage of the natural airflow around the product to
remove heat and humidity generated by respiration.
Buildings providing some form of protection from the external
environment and with gaps for ventilation can be used.
Produce can be placed in bulk, bags, boxes, bins, pallets etc
Although simple, some key concepts need to be taken into
account for the efficient operation of this system.
Differences in internal temperature and relative humidity
conditions compared to conditions externally, need to be minimal.
What this means is that this system can only be used with crops
that store well under natural conditions such as potato, onions,
sweet potato, garlic, pumpkins, etc.
For adequate ventilation, openings need to be wide. This means
they need to be fitted with screens to keep animals, rodents, and
pests out.
As with any other type of fluid, air follows the path of least
resistance. This means that if product is stored in a compact
mass, air will circulate to remove heat and gases which have
accumulated as a result of respiration. Efficient ventilation
requires adequate space. However, this reduces storage
capacity.
Hot and humid air rises within the storage facility. If no
ventilation gaps exist, this leads to the build up of hot and
humid areas which in turn affects the quality of stored
goods.
This presents the ideal conditions for the development of
disease.
Within certain limits, it is possible to take advantage of
natural changes in temperature and relative humidity.
Natural ventilation
Storing garlic in shelters with natural ventilation.
Forced air ventilation
Heat and gas exchange can be improved provided air
is forced to pass through the stored product. This
system allows for more efficient utilization of space for
bulk storage.
Air conducts run under a perforated floor and air is
forced through the product.
Again, as air follows the least resistance path, loading
patterns as well as fan capacity and conduct
dimensions should be carefully calculated.
This is to ensure that there is uniform distribution of
air throughout the product.
Forced air storage facilities. Product is piled up
to the yellow line. Air from the floor openings is
forced to pass thought the stored mass. An
inspection alley is located on the upper right
hand side with ladders to sample product during
storage.
Inside of a forced air storage facility. Air conducts
are removed and empty space is used to shelter
farm machinery and equipment when there are no
products in storage.
Refrigeration
Cold storage is the one widely practiced method for
bulk handling of the perishables between production
and marketing processing.
It is one of the methods of preserving perishable
commodities in fresh and whole some state for a
longer period by controlling temperature and humidity
with in the storage system.
Maintaining adequately low temperature is critical, as
otherwise it will cause chilling injury to the produce.
Every crop has an optimal combination of temperature
and relative humidity for storage.
Also, relative humidity of the storeroom should be kept
as high as 80-90% for most of the perishables, below
(or) above which his detrimental effect on the keeping
quality of the produce.
Most fruits and vegetables have a very limited life after
harvest if held at normal harvesting temperatures.
Postharvest cooling rapidly removes field heat,
allowing longer storage periods.
Advantages of Cooling Post Harvest
Produce
Proper postharvest cooling can:
• Reduce the activity of microorganisms responsible
for quality deterioration
• Reduce internal water loss and wilting;
• Slow or inhibit the growth of decay-producing
microorganisms;
• Reduce the production of the natural ripening agent,
ethylene
.
In addition to helping maintain quality,
postharvest cooling also provides marketing flexibility by
allowing the grower to sell produce at the most
appropriate time.
Having cooling and storage facilities makes it unnecessary
to market the produce immediately after harvest.
This can be an advantage to growers who supply
restaurants and grocery stores or to small growers who
want to assemble truckload lots for shipment.
Postharvest cooling is essential to delivering produce of
the highest possible quality to the consumer
Benefits of Cold Storage
Cold storage can be combined with storage in an
environment with added of carbon dioxide, sulfur
dioxide, etc. according to the nature of product to be
preserved.
The cold storage of dried/dehydrated vegetables in
order to maintain vitamin C, storage temperature can
be varied with storage time and can be at 0°-10°C for a
storage time of more than one year, with a relative
humidity of 80-95 %.
Benefits of Cold Storage
The cold storage of perishables has advanced
noticeably in recent years,
leading to better maintenance of organoleptic
qualities,
reduced spoilage,
and longer shelf lives.
These advances have resulted from joint action by
physiologists to determine the requirements of fruit
and vegetables,
and by refrigerating specialists to design and run
refrigerating machines accordingly.
Refrigerated Rooms
Refrigerated space depends on the maximum storage
volume.
Other factors to be considered include walkways and
aisles to handle the product mechanically and the
additional space to ensure uniform distribution of cold
air.
Chamber height depends on product and stacking
pattern: three meters for hand stacking but more than
six may be required if forklifts are utilized.
Refrigerated rooms can be made with concrete, metal,
wood, or other materials.
All external surfaces should be thermally insulated,
including the floor and ceilings.
Type and thickness of insulation material depends on
building characteristics, produce to be stored and the
difference in temperature required between external
and internal conditions.
Polyurethane, expanded polystyrene, cork and other
such materials can be used as insulation materials.
A vapor barrier should be placed on the warm side of
the insulation material.
