Duct Casings for Particulate Filters DCA: Installation and Filter Element Fitting
Explore the features and installation process of Duct Casings for Particulate Filters DCA, with a focus on easy filter changes, Mini Pleat filter fitting, clamping mechanisms for secure sealing, and support brackets for filter elements. Ensure proper airflow, sealing, and airtight fitting for optimal performance.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

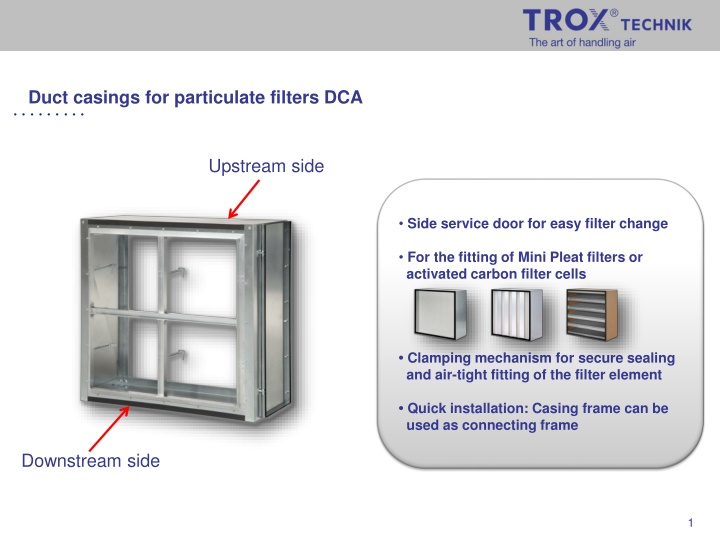

Duct casings for particulate filters DCA Upstream side Side service door for easy filter change For the fitting of Mini Pleat filters or activated carbon filter cells Clamping mechanism for secure sealing and air-tight fitting of the filter element Quick installation: Casing frame can be used as connecting frame Downstream side 1
Duct casings for particulate filters DCA The duct casing can be installed into the duct using the casing frame as a connecting frame. Possible connecting flanges up to 40 mm on the upstream side and on the downstream side Common flange sizes on site are 30 mm Airflow The screws must be set at 15 mm from the bottom of the casing (mid of 30 mm flanges) The casing must be sealed on the perimeter connecting flanges when installed into the duct system 2
Duct casings for particulate filters DCA Frame system inside of the DCA with filters 3
