A Simple Introduction to
Make Utility
CS330E – Elements of Software Engineering I
Dr. Fares Fraij

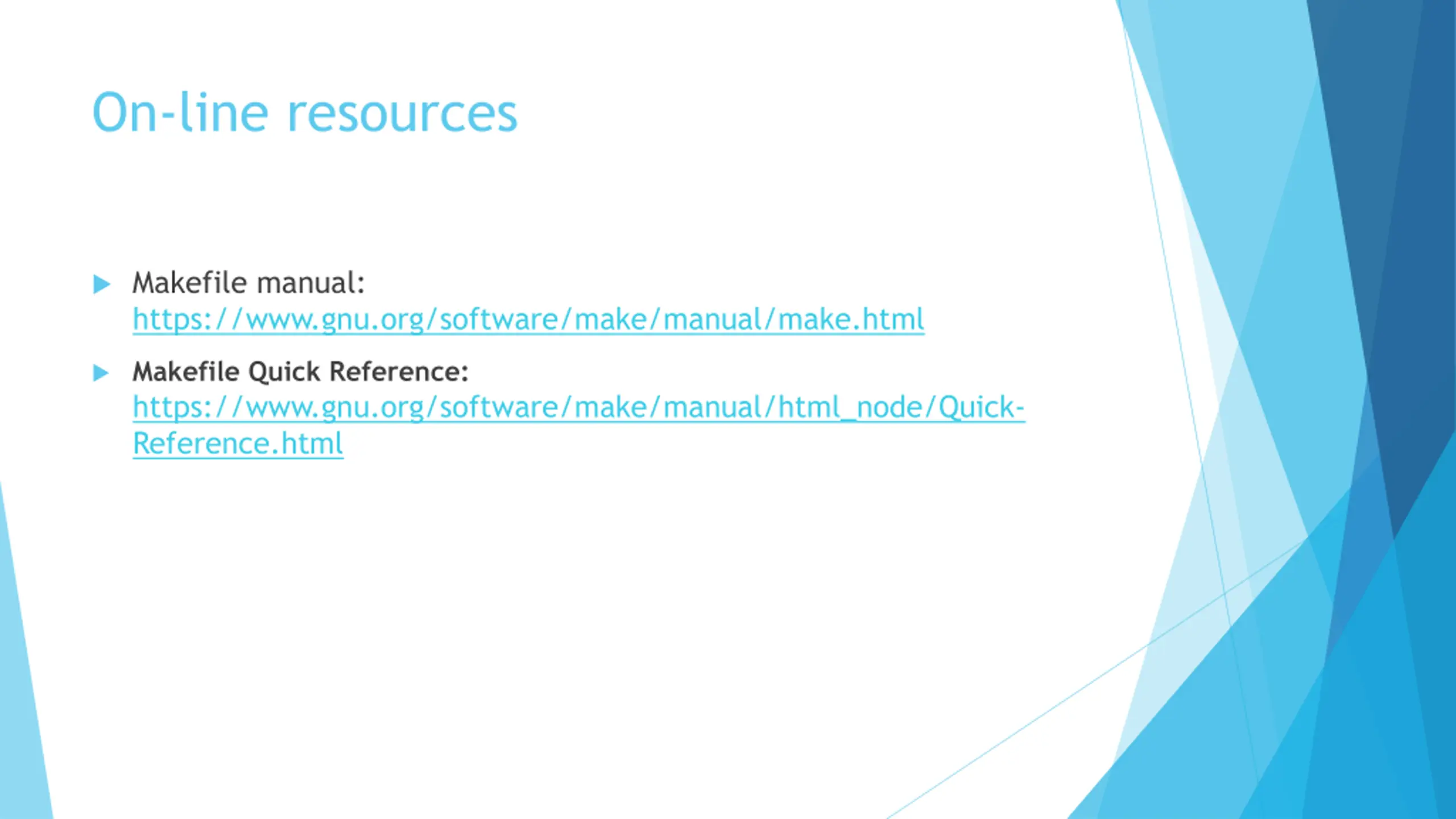

On-line resources
Makefile manual:
https://www.gnu.org/software/make/manual/make.html
Makefile Quick Reference:
https://www.gnu.org/software/make/manual/html_node/Quick-
Reference.html

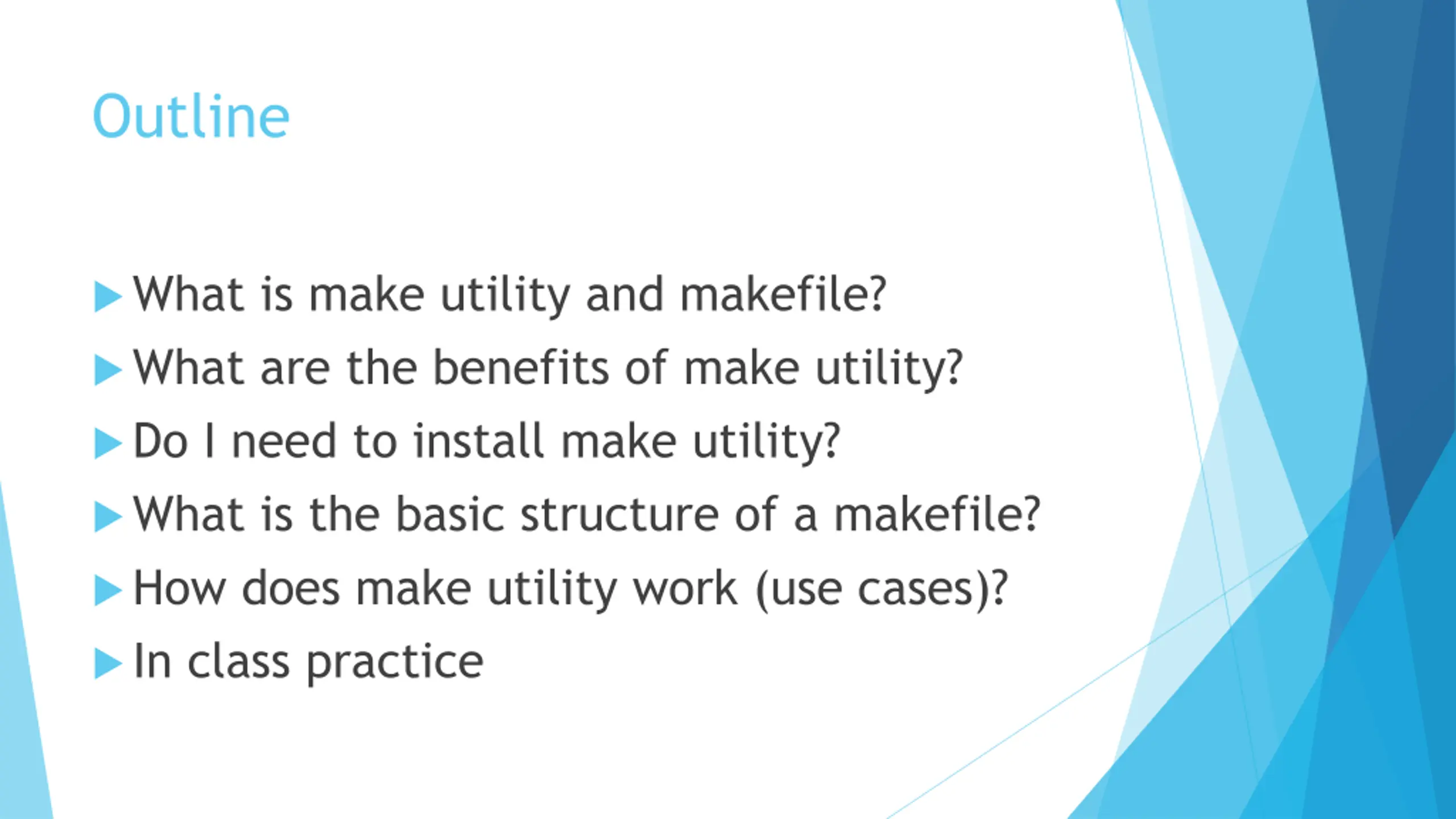

Outline
What is make utility and makefile?
What are the benefits of make utility?
Do I need to install make utility?
What is the basic structure of a makefile?
How does make utility work (use cases)?
In class practice
What is make utility and makefile?
Make utility is an automation tool for running and
compiling your programs efficiently.
Specifically, it’s a handy tool if you want to run or update
a task when certain files are updated.
The make utility requires a file, Makefile (or makefile),
which defines set of tasks to be executed.
make reads the makefile in the current directory
What are the benefits of make utility?
make utility also helps in aliasing commands that span
over multilines.
You group the commands under a target and keep calling the
target to refer to the group of commands.
If you have hundred files that you need to compile
together to create a program, you may not want to type
in a thousand file name in the command line.
You also do not want to retype the file names each time you
change the source files. We need to recompile and link the files
that have only been changed.
Do I need to install make utility?
On UTCS machines and Mac OS, make utility is probably
installed.
On Windows machines, you need to installed
MinGW
(for MinGW installation instructions, read “start here” tab on
the class webpage).
Note: "make" program is a building tool which runs on Unix and
Linux. MinGW is a compiler system based on GNU (free UNIX-
style OD) GCC that compiles and links code to be run on
Windows.
What is the basic structure of a
makefile?
A makefile may consist of rules. A rule is structured as
follows.
target: dependencies
action
makefiles are whitespace sensitive.
“target”
is
all the way to the left
“action”
has a
tab
right before it
How does make work (use case)?
A makefile may consist of rules. A rule is structured as
follows.
target: dependencies
action
Use case for executing the
command
$ make target
is as follows:
(
you must run the command in the shell
within
the folder where the makefile is stored)
:
When there are
NO dependencies
When there are
dependencies
How does make work (use case)?
A makefile may consist of rules. A rule is structured as follows.
target: dependencies
action
Use case for executing the
command
“make target”
is as
follows:
(
you must run the command in the shell
within the
folder where the makefile is stored)
:
When there are
NO dependencies
: If the “target” does not
exists in the current folder, then the
command
will result in
running the corresponding action(s); otherwise, the action(s)
won’t be executed.
How does make work (use case)?
A makefile may consist of rules. A rule is structured as follows.
target: dependencies
action
Use case for executing the
command
“make target”
is as
follows:
(
you must run the command in the shell
within the
folder where the makefile is stored)
:
When there are dependencies: If the “target” does not
exists in the current folder or one of the dependencies is
updated recently, then the
command
will result in running
corresponding action(s); otherwise, the action(s) won’t be
executed.
How does make work (use case)?
A makefile may consist of rules. A rule is structured
as follows.
target: dependencies
action
Use case for running the command “make”, i.e.,
without specifying a target:
Generally, the first target in the makefile (from
top to button) will be considered.
In class practice
Task:
We are going to create a simple makefile
Before you start
In class practice
Before you start
Create a
folder
on my Desktop, for example, call it cs330e.
Choose
a text editor
, NotePad++ for Windows or VIM for Mac.
Decide on a
command-line interpreter
, Git Bash that comes
with Git for Windows or Terminal for Mac.
For Windows machines,
o
Create a shortcut for “bash” on your desktop. On my machine, “bash”
exists at “C:\Program Files\Git\bin”, navigate to that folder and right
click on “bash” > “send to” > Desktop.
o
set “bash” to open in your working folder, cs330e. Right click on
bash > “properties” > in “start in:”, replace the existing path
with the path to your cs330e folder.
Get a
Unix basic commands cheat sheet
.

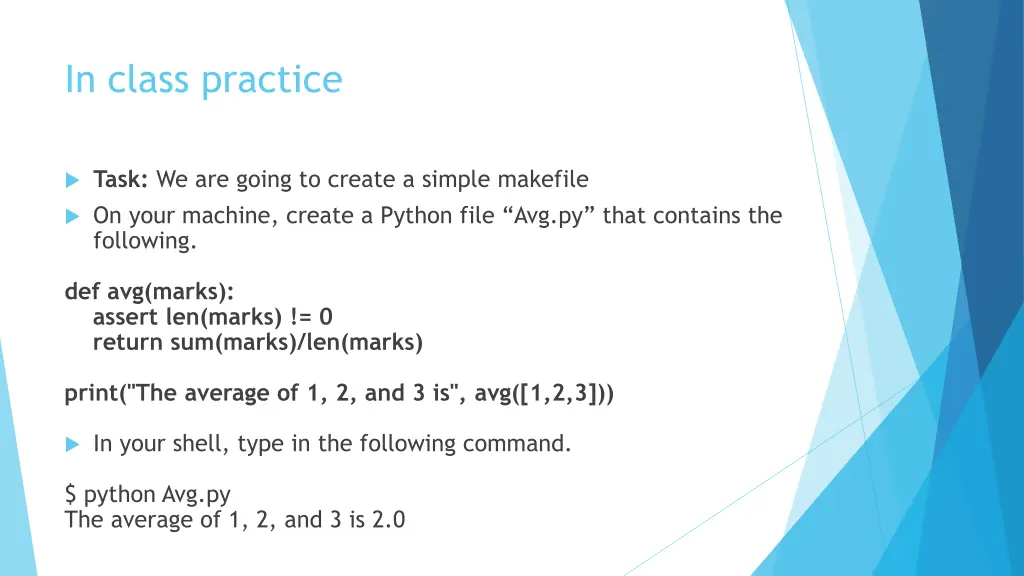

In class practice
Task:
We are going to create a simple makefile
On your machine, create a Python file “Avg.py” that contains the
following.
def avg(marks):
assert len(marks) != 0
return sum(marks)/len(marks)
print("The average of 1, 2, and 3 is", avg([1,2,3]))
In your shell, type in the following command.
$ python Avg.py
The average of 1, 2, and 3 is 2.0
In class practice
On your machine, create a Python file “Avg.py” that contains the following.
def avg(marks):
assert len(marks) != 0
return sum(marks)/len(marks)
print("The average of 1, 2, and 3 is", avg([1,2,3]))
To redirect the standard output stream to the file “Output.txt”, we use the
operator “>” (it will not be visible in the terminal)
$ python Avg.py > Output.txt
To list the contents of the file “Output.txt”
$ cat Output.txt
The average of 1, 2, and 3 is 2.0
Remove Output.txt
$ rm Output.txt
Aliasing a command using a makefile
Now, we are going to alias the command “python Avg.py >
Output.txt” using a makefile.
In the same folder where “Avg.py” is, create a “makefile” that
has the following.
Output.txt:
@echo "Creating Output.txt"
python Avg.py > Output.txt
Note:
You need to save the file as “makefile” with no extension. To
do that in “notepad++”, you choose “All types (*.*)” from the “Save
as type:” menu.
Aliasing a command using a makefile
Now, we are going to alias the command “python Avg.py >
Output.txt” using a makefile.
In the same folder where “Avg.py” is, create a “makefile” that
has the following.
Output.txt:
@echo “Creating Output.txt"
python Avg.py > Output.txt
In your shell, run the command “make Output.txt”.
$ make Output.txt
creating Output.txt
python Avg.py > Output.txt
Aliasing a command using a makefile
To make sure that “Output.txt” was created and has the expected
output, run the following command in your shell.
$ cat Output.txt
The average of 1, 2, and 3 is 2.0
Open “Avg.py” and add anything such as a comment and save.
When you re-run “make Output.txt”.
$ make Output.txt
make.exe": ` Output.txt ' is up to date.
Make interprets the rule to mean "execute Output.txt target to create
the file named Output.txt ". Since the “Output.txt” is already there,
and its dependencies didn't change (in our case there are no
dependencies), nothing will be done.
Aliasing a command using a makefile
To instruct make to execute a certain action even when the
corresponding target already exists and its corresponding
dependencies didn't change, we include that target in a .PHONY
target. Our makefile will look as follows.
.PHONY: Output.txt
Output.txt:
@echo "creating Output.txt"
python Avg.py > Output.txt
Aliasing a command using a makefile
Now, when executing “make Output.txt”, the action will be
executed.
$ make Output.txt
creating Output.txt
python Avg.py > Output.txt
Aliasing a command using a makefile
It’s not necessary for the target to be a filename, it might be just a
name for the recipe. Update the makefile by adding two more targets.
.PHONY: Output.txt
Output.txt:
@echo "creating Output.txt"
python Avg.py > Output.txt
create:
@echo "creating newfile.txt"
touch newfile.txt
clean:
@echo "deleteing Output.txt and newfile.txt"
rm Output.txt
rm newfile.txt
Aliasing a command using a makefile
Now, you can make any of these targets. For example, you can
run make on each target as follows.
$ make Output.txt
$ make create
$ make clean
But what will happen if you run the make command without
specifying any target?
$ make
Aliasing a command using a makefile
“Output.txt” target will only be executed because it is
the first target in the makefile. This target is called the
default target (or default goal).
You can manually specify your default goal by placing the
following at the beginning of the makefile.
.DEFAULT_GOAL := create
Aliasing a command using a makefile
If you have more than one file to be considered as the default
goal, you can place a target at the beginning of the makefile and
specify these files as dependencies.
all: Output.txt create
Now, if you type in “make”, the targets “Output.txt” and “create”
will be executed.
Type in “make clean” to delete the files “Output.txt” and
“newfile.txt”.
Updating dependencies triggers actions
Now, we’re going to use “Avg.py”.
Let’s delete the contents of the previous makefile and
only add the following rule.
Output.txt: Avg.py
python Avg.py > Output.txt
cat output.txt
What is the
main
difference between this new “Output.txt”
rule and the old one?
Output.txt:
@echo "creating Output.txt"
python Avg.py > Output.txt
Updating dependencies triggers actions
In your shell, type in the following commands.
$ make Output.txt
python Avg.py > Output.txt
$ cat output.txt
The average of 1, 2, and 3 is 2.0
Re-type the same command.
$ make Output.txt
make.exe": `Output.txt' is up to date.
Updating dependencies triggers actions
Open “Avg.py” and change something for example by
adding a comment
and then
save
.
$ make Output.txt
python Avg.py > Output.txt
cat output.txt
The average of 1, 2, and 3 is 2.0
Changing the dependency file caused make to re-execute
the actions.
References
https://opensource.com/article/18/8/what-how-makefile
The Dual Credit Tool Kit provides comprehensive guidance on using APA formatting for writing essays. It covers style guidelines, in-text citations, reference list, main sections of an APA paper, and examples of title pages, abstracts, and main body. Knowing APA style is crucial to avoid plagiarism, give credit to authors, and follow a specific format. The kit emphasizes using Times New Roman, 12 pt font, 1" margins, double-spacing, headers, and page numbering. Explore the resources to enhance your academic writing skills in APA style.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.
E N D
Presentation Transcript
A Simple Introduction to Make Utility CS330E Elements of Software Engineering I Dr. Fares Fraij
On-line resources Makefile manual: https://www.gnu.org/software/make/manual/make.html Makefile Quick Reference: https://www.gnu.org/software/make/manual/html_node/Quick- Reference.html
Outline What is make utility and makefile? What are the benefits of make utility? Do I need to install make utility? What is the basic structure of a makefile? How does make utility work (use cases)? In class practice
What is make utility and makefile? Make utility is an automation tool for running and compiling your programs efficiently. Specifically, it s a handy tool if you want to run or update a task when certain files are updated. The make utility requires a file, Makefile (or makefile), which defines set of tasks to be executed. make reads the makefile in the current directory
What are the benefits of make utility? make utility also helps in aliasing commands that span over multilines. You group the commands under a target and keep calling the target to refer to the group of commands. If you have hundred files that you need to compile together to create a program, you may not want to type in a thousand file name in the command line. You also do not want to retype the file names each time you change the source files. We need to recompile and link the files that have only been changed.
Do I need to install make utility? On UTCS machines and Mac OS, make utility is probably installed. On Windows machines, you need to installed MinGW (for MinGW installation instructions, read start here tab on the class webpage). Note: "make" program is a building tool which runs on Unix and Linux. MinGW is a compiler system based on GNU (free UNIX- style OD) GCC that compiles and links code to be run on Windows.
What is the basic structure of a makefile? A makefile may consist of rules. A rule is structured as follows. target: dependencies action makefiles are whitespace sensitive. target is all the way to the left action has a tab right before it
How does make work (use case)? A makefile may consist of rules. A rule is structured as follows. target: dependencies action Use case for executing the command $ make target is as follows: (you must run the command in the shell within the folder where the makefile is stored) : When there are NO dependencies When there are dependencies
How does make work (use case)? A makefile may consist of rules. A rule is structured as follows. target: dependencies action Use case for executing the command make target is as follows: (you must run the command in the shell within the folder where the makefile is stored) : When there are NO dependencies: If the target does not exists in the current folder, then the command will result in running the corresponding action(s); otherwise, the action(s) won t be executed.
How does make work (use case)? A makefile may consist of rules. A rule is structured as follows. target: dependencies action Use case for executing the command make target is as follows: (you must run the command in the shell within the folder where the makefile is stored) : When there are dependencies: If the target does not exists in the current folder or one of the dependencies is updated recently, then the command will result in running corresponding action(s); otherwise, the action(s) won t be executed.
How does make work (use case)? A makefile may consist of rules. A rule is structured as follows. target: dependencies action Use case for running the command make , i.e., without specifying a target: Generally, the first target in the makefile (from top to button) will be considered.
In class practice Task: We are going to create a simple makefile Before you start
In class practice Before you start Create a folder on my Desktop, for example, call it cs330e. Choose a text editor, NotePad++ for Windows or VIM for Mac. Decide on a command-line interpreter, Git Bash that comes with Git for Windows or Terminal for Mac. For Windows machines, o Create a shortcut for bash on your desktop. On my machine, bash exists at C:\Program Files\Git\bin , navigate to that folder and right click on bash > send to > Desktop. o set bash to open in your working folder, cs330e. Right click on bash > properties > in start in: , replace the existing path with the path to your cs330e folder. Get a Unix basic commands cheat sheet.
In class practice Task: We are going to create a simple makefile On your machine, create a Python file Avg.py that contains the following. def avg(marks): assert len(marks) != 0 return sum(marks)/len(marks) print("The average of 1, 2, and 3 is", avg([1,2,3])) In your shell, type in the following command. $ python Avg.py The average of 1, 2, and 3 is 2.0
In class practice On your machine, create a Python file Avg.py that contains the following. def avg(marks): assert len(marks) != 0 return sum(marks)/len(marks) print("The average of 1, 2, and 3 is", avg([1,2,3])) To redirect the standard output stream to the file Output.txt , we use the operator > (it will not be visible in the terminal) $ python Avg.py > Output.txt To list the contents of the file Output.txt $ cat Output.txt The average of 1, 2, and 3 is 2.0 Remove Output.txt $ rm Output.txt
Aliasing a command using a makefile Now, we are going to alias the command python Avg.py > Output.txt using a makefile. In the same folder where Avg.py is, create a makefile that has the following. Output.txt: @echo "Creating Output.txt" python Avg.py > Output.txt Note:You need to save the file as makefile with no extension. To do that in notepad++ , you choose All types (*.*) from the Save as type: menu.
Aliasing a command using a makefile Now, we are going to alias the command python Avg.py > Output.txt using a makefile. In the same folder where Avg.py is, create a makefile that has the following. Output.txt: @echo Creating Output.txt" python Avg.py > Output.txt In your shell, run the command make Output.txt . $ make Output.txt creating Output.txt python Avg.py > Output.txt
Aliasing a command using a makefile To make sure that Output.txt was created and has the expected output, run the following command in your shell. $ cat Output.txt The average of 1, 2, and 3 is 2.0 Open Avg.py and add anything such as a comment and save. When you re-run make Output.txt . $ make Output.txt make.exe": ` Output.txt ' is up to date. Make interprets the rule to mean "execute Output.txt target to create the file named Output.txt ". Since the Output.txt is already there, and its dependencies didn't change (in our case there are no dependencies), nothing will be done.
Aliasing a command using a makefile To instruct make to execute a certain action even when the corresponding target already exists and its corresponding dependencies didn't change, we include that target in a .PHONY target. Our makefile will look as follows. .PHONY: Output.txt Output.txt: @echo "creating Output.txt" python Avg.py > Output.txt
Aliasing a command using a makefile Now, when executing make Output.txt , the action will be executed. $ make Output.txt creating Output.txt python Avg.py > Output.txt
Aliasing a command using a makefile It s not necessary for the target to be a filename, it might be just a name for the recipe. Update the makefile by adding two more targets. .PHONY: Output.txt Output.txt: @echo "creating Output.txt" create: clean: python Avg.py > Output.txt @echo "creating newfile.txt" touch newfile.txt @echo "deleteing Output.txt and newfile.txt" rm Output.txt rm newfile.txt
Aliasing a command using a makefile Now, you can make any of these targets. For example, you can run make on each target as follows. $ make Output.txt $ make create $ make clean But what will happen if you run the make command without specifying any target? $ make
Aliasing a command using a makefile Output.txt target will only be executed because it is the first target in the makefile. This target is called the default target (or default goal). You can manually specify your default goal by placing the following at the beginning of the makefile. .DEFAULT_GOAL := create
Aliasing a command using a makefile If you have more than one file to be considered as the default goal, you can place a target at the beginning of the makefile and specify these files as dependencies. all: Output.txt create Now, if you type in make , the targets Output.txt and create will be executed. Type in make clean to delete the files Output.txt and newfile.txt .
Updating dependencies triggers actions Now, we re going to use Avg.py . Let s delete the contents of the previous makefile and only add the following rule. Output.txt: Avg.py python Avg.py > Output.txt cat output.txt What is the maindifference between this new Output.txt rule and the old one? Output.txt: @echo "creating Output.txt" python Avg.py > Output.txt
Updating dependencies triggers actions In your shell, type in the following commands. $ make Output.txt python Avg.py > Output.txt $ cat output.txt The average of 1, 2, and 3 is 2.0 Re-type the same command. $ make Output.txt make.exe": `Output.txt' is up to date.
Updating dependencies triggers actions Open Avg.py and change something for example by adding a comment and then save. $ make Output.txt python Avg.py > Output.txt cat output.txt The average of 1, 2, and 3 is 2.0 Changing the dependency file caused make to re-execute the actions.
References https://opensource.com/article/18/8/what-how-makefile
