Diversification of Gas Networks

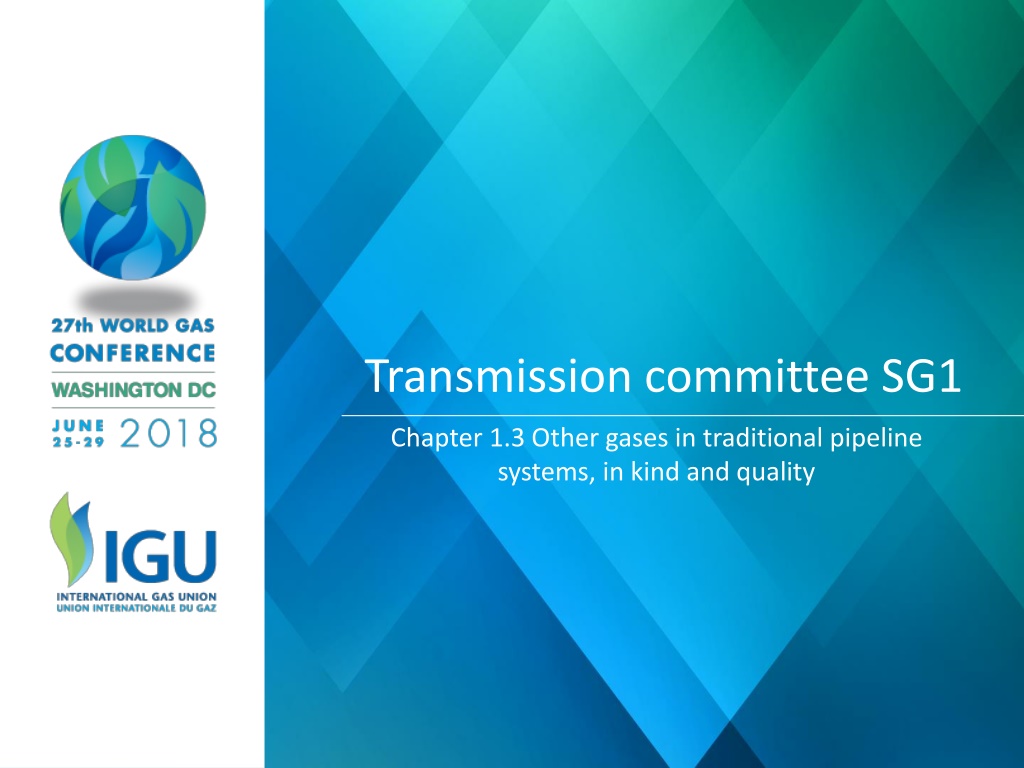

Transmission committee SG1
Chapter 1.3 Other gases in traditional pipeline
systems, in kind and quality
WHY new gases in the networks?
FUELING THE FUTURE
WITH GAS
2
The interest in diversifying the use of existing natural gas infrastructure
with other gases, has increased substantially in recent years. This
motivation has mainly two drivers, the first associated with environmental
issues and the second of economic nature.
The utilization of pipelines in large scale to transport a gaseous fluid is essentially
limited to natural gas, carbon dioxide (CO
2
) and hydrogen (H
2
). In terms of CO
2
transport, there are two main alternatives, one associated with the enhanced oil
recovery and the other one with the mitigation of greenhouse gases emissions. On the
other hand, the H
2
transport is related with energy storage, using of surplus electrical
energy to produce and inject H
2
into the pipeline and for use as a fuel.
Focus on hydrogen
FUELING THE FUTURE
WITH GAS
3
In terms of hydrogen fraction that is tolerated in the natural gas
transmission network, most regulatory agencies do not specify limits. The
determination of a maximum hydrogen rate is still a research topic for
gas industry. As long as hydrogen has a lower energy density, the limits
are indirectly established through the ranges that define the calorific
value of the gas.
Border connections is a main concern for transmission companies, as
long as, there are different requirements in terms of gas quality among
the countries. There should be an integrated effort to harmonize the
requirements of gas quality in order to create alternatives of use of the
existing natural gas infrastructure.
FUELING THE FUTURE
WITH GAS
4
B
i
o
g
a
s
,
B
i
o
m
e
t
h
a
n
e
a
n
d
S
y
n
t
h
e
t
i
c
N
a
t
u
r
a
l
G
a
s
Biogas is the gas produced from a biological source. It can be produced
by anaerobic digestion of organic matter (manure, sewage sludge, straw,
municipal waste) in the absence of oxygen. Biogas from fermentable
biological source is composed essentially of methane and carbon dioxide
with traces of contaminants. This gas can be upgraded to a product that
consists almost entirely of methane in concentrations of 95% to 97%, and is
known as upgraded biogas or
biomethane
.
Biomethane can also be obtained by gasification of biomass : a high
temperature, (no oxygen) produces a syngas. It can be clean and refined
up to obtain a biométhane.
The introduction in the same equipment of waste (with carbon : plastic,
rubbers ….) can give the same result, but it can’t be called biométhane.It is
called
synthetic methane
.
Synthetic natural gas is also obtained by a chemical process also called
methanation. Methanation is an artificial process to combine carbon
dioxide with hydrogen to produce pure methane. The reaction can be
obtained by a catalytical or biological device.
From renewable energies to synthetic natural gas
FUELING THE FUTURE
WITH GAS
5
Frequently, the wind and solar generation plants are removed from grid
to avoid overloading the electricity system. One possible solution for this
problem is to use the surplus electrical energy in the production of
hydrogen through the concept know as Power-to-Gas. This solution can
avoid to build oversized electrical grid, up to absorb such production
surpluses, and convert them to gas.
Power to Gas case study in the French context
General introduction
•
The Power to Gas technology provides an innovative solution
by transforming surplus supplies of electricity from wind and
solar sources into synthesized gas, a carbon-neutral gas that
can be injected in full into the natural gas network.
FUELING THE FUTURE
6
Description of the philosophy and of the gases
Green hydrogen will be produced using two electrolyzers
involving different technologies, from 100% renewable energy.
The CO2 necessary will be captured on a nearby industrial site. In
the light of the performance levels shown by the demonstrator,
the partners will work on the future technical and economic
standards of a full-sized installation of this type.
FUELING THE FUTURE
WITH GAS
7
Jupiter 1000 project
FUELING THE FUTURE
WITH GAS
8
The project has 8 French partners: Grt Gaz, Atmostat, the CEA, CNR,
Leroux and Lotz Technologies, McPhy Energy, TIGF and the Grand Port
Maritime of Marseille.
FUELING THE FUTURE
WITH GAS
9
General experience and Long term view
There are already twenty or so demonstrators in use in Europe,
mainly in Germany, the
Jupiter 1000
project, with a power rating of
1 MWe, is the first installation at this production scale in France.
In
2025, excess renewables power could reach big values,
divided
between short period and long period surpluses. Yet, between all
existing storage technologies, the Power to Gas seems to be today,
the most appropriate technology for long time storage.
Status point :
the 8 project participants have finalized the project
agreement and have launched engineering studies and permitting
applications during the first quarter of 2016.
FUELING THE FUTURE
WITH GAS
10
Benefits/advantages
The project will allow the participants to :
To validate technologies and their performance in an integrated system.
To release a new methanation technology (for the first time in a pre-
industrial size).
To design interfaces and an injection & gas mixing unit for transmission
grid injection.
To be ready to connect safely Power to Gas unit to the transmission grid
To launch a new industry for energy storage
To identify technical constraints of such system in operation
Advantages of the power to gas solution
•
the enormous transportation and storage capacity of the existing
infrastructure including underground storage facilities can be used
directly
•
it helps to avoid the construction of new electricity transmission lines.
Biomethane injection in transmission networks
Situation in France
Legal
•
Law on Energy Transition and green growth (August 2015):
renewable gas = 10% of consumption in 2030
Development
•
With regard to renewable gases, in 2015, 17 facilities were able
to inject 82 GWh of biomethane into the entirety of France’s
gas grids (15 on distribution networks and 2 on transmission
networks). Since January 2016, 6 new plants have been
injected biomethane into networks (September 2016 data),
FUELING THE FUTURE
WITH GAS
11
•
In September 2015, GRTgaz connected a major biomethane
production unit to its network.
•
In November 2015, TIGF put into service, on its transmission
network, the largest biomethane production unit in France to
date.
•
For the time being all the projects have the restriction of no
biomethane injection in the main transmission network, as
there is limited experience in the operation of these injection
points (so a condition to have also consumptions not too far
from the injection points has been established) and the field
data that will be accumulated in the coming months/years will
allow the development of an analysis of the operation of these
plants.
FUELING THE FUTURE
WITH GAS
12
Biomethane injection in transmission networks
Conclusions
•
Limited experience in
the operation of these injection points,
so limitation to a local consumption
•
There are specific issues (legal, technical) that are to be
highlighted and analysed for each country (e.g. limitation in
pesticides, injection in storages, …)
•
Need of data to provide a complete picture at
European/worldwide level.
FUELING THE FUTURE
WITH GAS
13
