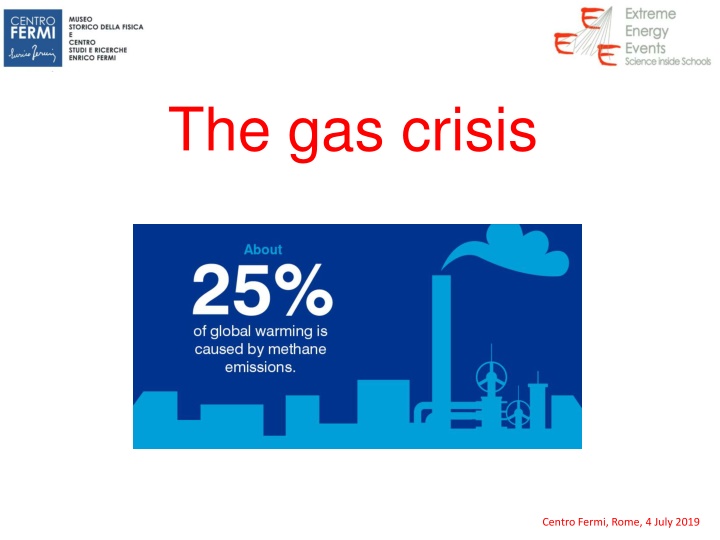

The gas crisis
Centro Fermi, Rome, 4 July 2019
European Community since long time issued regulations to
reduce the emission of gas potentially harmful to the
environment
In 1990s gases with a high Ozone Deplation Power were
banned
CF3Br and CF4, used at the time for RPCs,
were phased down and C2H2F4 (R134a) was introduced
Since a dozen of years EC is planning to progressively ban
gases with a Global Worming Power (GWP) > 150 (where
GWP(CO2)=1)
Scientific applications are extempted from this prohibition
The problem will progressively come from supply problems
and high prices
CERN started in 2013 an R&D program to replace C2H2F4
(GWP=1240) and SF4 (GWP=13400) in the detectors of
the experiments at LHC, where o(2000 l/h) are leaked out
Prodroms to the problem
Price of
one
40 kg bottle of R134a has increased from € 260
to around € 1100
i.e. from 6.5 €/kg to around 27.5 €/kg
(Price of SF6 has stayed constant)
C2H2FGas consumption in EEE: in 2018 used about 83
bottles in around 40 stations taking data
1 bottle = 40 kg of gas, whose density is 4.25 kg/m3
1
bottle =
9411 litres (at atmospheric pressure)
Maximum flux allowed in EEE 2 l/h
one bottle is enough
for
4705 hours = 196 days = 6.53 months
(in 2018 also 9 bottles of SF6 used)
The EEE gas problem
At the moment we do not have a suitable gas mixture for
replacement
Tests started in 2017, then stopped, now resumed
Possible suitable gas mixtures based on tetrafluoropropane
(it exists in three allotropic forms, we need HFO-R1234ze)
Cost of R1234ze is still higher than R134a (about 30 €/kg),
density is unknown
Mixtures are tipically made of R1234ze/C02 (or He) 50/50
At the moment we do not have a recirculation system
The ones in use at LHC experiments cost 30-40 k€ and need
maintenance (filter replacement)
We need about 60 of such systems
The EEE gas problem
Find suppliers who would sell us R134a at a lower price
(a.k.a. which is the real price of R134a?)
R134a is sold at CERN by Pangas at 7.5 CHF/kg
One 40 kg bottle of R134a is sold at 547 CHF on EDH (=12
€/kg)
Spanish supplier would provide 40 kg bottles at around 750 €
each (17.5 €/kg)
SIAD would supply R134a to EEE at 17.5 €/kg
Listen to talks by Daniele and Fabrizio!!!
Chinese suppliers sell R134a at 1-2 €/kg
but importing
almost impossible
Problems connected with importing R134a from CERN in
Italy to be investigated
(Custom duties) + EC quotas + transportation
What we are doing to
provide a solution
Let us reduce the maximum allowed flux to 1 l/h
Tests ongoing (talk by Marco and Stefano)
Spot and eliminate any gas leackage
imperative
A thorough campaign has to be carried on
before Run-6
Reduce gas consumption
Contacted Roberto Guida and Barbara Mandelli from CERN
They have designed and built the recirculation systems for
LHC experiments
First meeting 3 of June
“We have a possible solution in mind, we will let you know
for the end of this week”
none got
Many more emails sent
On 25 June: “We are investigating the possibility to use
Raspberry PI to control this system, we need some
weeks”
EEE has a lot of experience on Raspberry PI
Asked for an approximate cost of the system
2.5 k€ +
(maybe) 1.5 k€ for humidity sensors
A recirculation system for EEE
Fine tuning of the mixtures based on HFO
Resume tests on them
How much do they cost?
Use other gas mixtures
In particular simpler gases
RPCs were in origin used in streamer with Ar, CO2, (Ne), …
By pass the amplification electronics?
Two test laboratories: CERN and Cosenza
An important program of tests has to be carried out
Talk by Ivan
New gas mixtures
