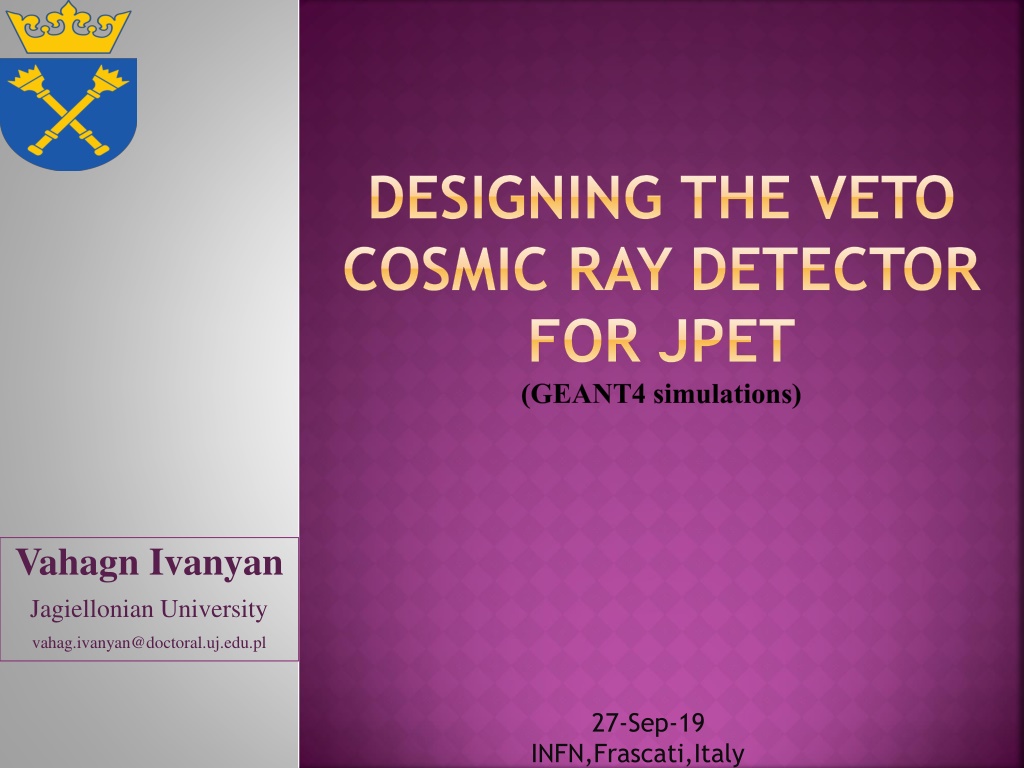

1. DESIGNING THE VETO COSMIC RAY DETECTOR FOR JPET (GEANT4 simulations) Vahagn Ivanyan Jagiellonian University vahag.ivanyan@doctoral.uj.edu.pl 27-Sep-19 INFN,Frascati,Italy

2. CURRENT VERSION VETO Veto JPET (Outer Ring) 2 27-Sep-19

3. CURRENT VERSION OF VETO 42 scintillators (2cmx5cmx3m) 1 m 1 m 1 m Veto from the top Veto from the front-bottom 3

4. 4 GeV COSMIC MUONS (+-) The Distribution is COS2 4 27-Sep-19

5. PARTICLE GENERATOR FOR COS2 DISTRIBUTION Step 1st (Generation of the imaginary hit-points for JPET Scintilattor) 7 mm 19 mm 50 cm 5 27-Sep-19

6. PARTICLE GENERATOR FOR COS2 DISTRIBUTION (4 GeV MUONS) Step 1st Generation of the imaginary hit-points for JPET Scintilattor Step 2nd Finding the start points and Turn on cos2 Distribution 7 mm 19 mm 50 cm 6 27-Sep-19

7. THE COS2 GENERATOR IN ACTION 7 27-Sep-19

8. GENERATED PHI ANGLES (0- 360) FOR COSMIC MUONS ( + -) DISTRIBUTION 8 27-Sep-19

9. (96 Scintillators of the outer ring) 9 27-Sep-19

10. (42 Plastic Scintillators) 10 27-Sep-19

11. ENERGY DEPOSITION INSIDE OF THE VETO SCINTILLATORS 11 27-Sep-19

12. ENERGY DEPOSITION INSIDE OF THE VETO SCINTILLATORS 12 27-Sep-19

13. ENERGY DEPOSITION INSIDE OF THE VETO SCINTILLATORS 13 27-Sep-19

14. THE COMPARISON BETWEEN ENERGY DEPOSITIONS IN 10THAND 2NDSCINTILLATORS OF VETO 14 27-Sep-19

15. ENERGY DEPOSITION INSIDE OF THE JPET SCINTILLATORS 15 27-Sep-19

16. THE COMPARISON BETWEEN ENERGY DEPOSITION INSIDE OF THE 15THAND 1STSCINTILLATORS OF JPET 16 27-Sep-19

17. ENERGY DEPOSITION CUTS (50 keV 1.5 MeV) FOR THE VETO SCINTILLATORS 17 27-Sep-19

18. 50 keV ENERGY CUT FOR THE VETO SCINTILLATORS 18 27-Sep-19

19. 100 keV ENERGY CUT FOR THE VETO SCINTILLATORS 19 27-Sep-19

20. 250 keV ENERGY CUT FOR THE VETO SCINTILLATORS 20 27-Sep-19

21. 500 keV ENERGY CUT FOR THE VETO SCINTILLATORS 21 27-Sep-19

22. 750 keV ENERGY CUT FOR THE VETO SCINTILLATORS 22 27-Sep-19

23. 1 MeV ENERGY CUT FOR THE VETO SCINTILLATORS 23 27-Sep-19

24. 1.5 MeV ENERGY CUT FOR THE VETO SCINTILLATORS 24 27-Sep-19

25. CONCLUSION & PLANS FOR THE FUTURE cos2 Generator + Veto Design (Not the Last version) + Energy Deposition for JPET + Energy Deposition for Veto + Energy Cuts for Veto(50 keV- 1.5 MeV) + Generation of Muons for all Scintillators of JPET The efficiency of a single veto detector as a function of the cut on the deposited energy Keep only Single hits inside of the Veto Scintillator to check the efficiency of Veto and if needed change the shape 3 Rings of JPET 25 27-Sep-19
