Depth-First Search in Graph Algorithms
CS 4412 – Graph Algorithms
1
Convex Hull Questions?
CS 4412 – Graph Algorithms
2
Review: DFS in
undirected graphs
CS 4412 – Graph Algorithms
3
Depth-First Search in
Directed
Graphs

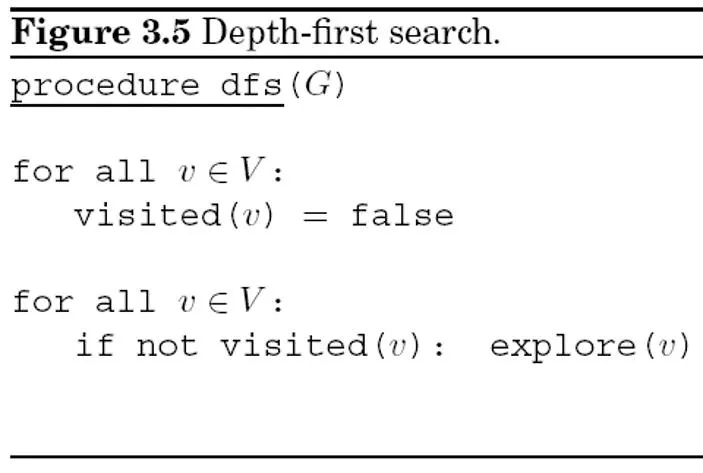

Can use the same DFS algorithm as before, but
only traverse edges in the prescribed direction
–
Thus, each edge just considered once (not twice like
undirected)
still can have separate edges in both directions (e.g., if we
had (e, b))
–
Root node of DFS tree is A in this case (if we go
alphabetically), Other nodes are descendants of A
in
the DFS tree
–
Natural definitions for ancestor, parent, child in the
DFS Tree
CS 4412 – Graph Algorithms
4
Let's do it
CS 4412 – Graph Algorithms
5
A
1,16
B
2
,11
E
3,10
F
4,7
G
5,6
H
8,9
C
12,15
D
13,14
Depth-First Search in Directed Graphs
Tree edges and back edges (2 below) the same as before
Added terminology for
DFS Tree
of a directed graph
–
Forward edges
lead from a node to a nonchild descendant (2 below)
–
Cross edges
lead to neither descendant or ancestor; lead to a node which has
already had its postvisit (2 below)
CS 4412 – Graph Algorithms
6
Back Edge Detection
Ancestor/descendant relations, as well as edge types can be
read off directly from pre and post numbers of the DFS
tree – just check nodes connected by each edge
Initial node of edge is
u
and final node is
v
Tree/forward reads pre(
u
) < pre(
v
) < post(
v
) < post(
u
)
CS 4412 – Graph Algorithms
7
•
If G First?
TAPPS
Perform depth-first search the
graph; whenever there’s a
choice of vertices, pick the one
that is alphabetically first.
Classify each edge as a tree
edge, forward edge, back edge,
or cross edge, and give the pre
and post number of each vertex.
CS 4412 – Graph Algorithms
8
CS 4412 – Graph Algorithms
9
A
1,16
C
2,9
D
3
,8
F
4
,7
J
5
,6
H
10,15
G
11,14
I
12,1
3
B
17,18
E
19,20
cross edge
cross
edge
back
edge
D
A
G
–
D
i
r
e
c
t
e
d
A
c
y
c
l
i
c
G
r
a
p
h
DAG – a directed graph with no cycles
Very common in applications
–
Ordering of a set of tasks. Must finish pre-tasks before another task can be done
How do we test if a directed graph is acyclic in linear time?
Property: A directed graph has a cycle iff DFS reveals a back edge
Just do DFS and see if there are any back edges
Given the DFS tree, how do we check DFS for back edges and what is complexity?
O(
|
E
|) – for edge check pre/post values of nodes
–
Could equivalently test while building the DFS tree
CS 4412 – Graph Algorithms
10
TAPPS
Is this graph a DAG?
–
How do you know?
CS 4412 – Graph Algorithms
11
DAG Properties
Every DAG can be
linearized:
nodes put in sequence so parents always come before children
–
More than one linearization usually possible
Algorithm to linearize
–
Property: In a DAG, every edge leads to a node with lower post number
–
Do DFS, then linearize by choosing nodes by decreasing post number
–
Where do we start DFS? Makes no difference, B always has largest post (Try A and F)
Another property: Every DAG has at least one
source
and at least one
sink
–
Source has no input edges – If multiple sources, linearization can start with any of them
–
Sink has no output edges
Is the above directed graph connected?
Looks like it if it were undirected (i.e. weakly connected), a DAG is never a
strongly
connected graph
CS 4412 – Graph Algorithms
12
Linearizations:
-
B,A,D,C,E,F
-
B,D,A,C,F,E
TAPPS
What are the source and sink
nodes in this graph?
CS 4412 – Graph Algorithms
13
Alternative Linearization Algorithm
Another linear time linearization algorithm
This technique will help us in our next goal
–
Find a source node and put it next on linearization list
How do we find source nodes?
Do a DFS and and count
in-degree
of each node
Put nodes with 0 in-degree in a
source list
Each time a node is taken from the source list and added to the linearization, decrement the in-
degree count of all nodes to which the source node had an out link. Add any adjusted node with
0 in-degree to the source list
–
Delete the source node from the graph
–
Repeat until the graph is empty
CS 4412 – Graph Algorithms
14
Strongly Connected Components
Two nodes
u
and
v
in a directed graph are
connected
if there is a path from
u
to
v
and a path
from
v
to
u
The disjoint subsets of a directed graph which
are connected are called
strongly connected
components
Source SCCs and sink SCCs
How could we make the entire graph strongly
connected?
CS 4412 – Graph Algorithms
15
Meta-Graphs
EVERY directed graph can be represented as a DAG of its strongly
connected components
CS 4412 – Graph Algorithms
16
This meta-graph decomposition is
very useful in many applications
(e.g. a high level flow of the task with
subtasks abstracted)
Algorithm to Decompose a Directed Graph
into its Strongly Connected Components
explore
(
G
,
v
) terminates precisely when all nodes reachable from
v
have been visited
If we could pick any node
v
from any sink meta-node and then call explore, it would
explore that complete SCC, marking all nodes in it as a SCC, and not reach any other
nodes
CS 4412 – Graph Algorithms
17
Then remove SCC from the graph (or just use visited
flags), and repeat
How do we detect if a node is in a meta-sink?
How about starting from the node with the
lowest
post-
visit value?
Doesn't work with arbitrary graphs (with cycles) which
are what we are dealing with.
B
below could have a lower
post order than
C
even though it is not a sink
A
B
C
Algorithm to Decompose a Directed Graph
into its Strongly Connected Components
18
Property: Node with the highest post in a DFS
search must lie in a
source
SCC
Just temporarily reverse the edges in the
graph and do a DFS on
G
R
to get post
ordering
Then node with highest post in DFS of
G
R
,
which will be in a source SCC of
G
R
, must be
in a sink SCC in
G
Repeat until graph is empty: Pick node with
highest remaining post score (from DFS on
G
R
), explore and mark that SCC in
G
, and
then prune that SCC
G
G
R
Example
Create
G
R
by reversing graph
G
Do DFS on
G
R
Repeat until graph
G
is empty:
–
Pick unvisited node with highest remaining post
score (from DFS tree on
G
R
), and explore starting
from that node
in
G
, marking each as member of a
particular number SCC
–
During the depth-first search, process the vertices
in decreasing order of their post numbers
–
That will discover one sink SCC in
G
–
Prune all nodes in that SCC from
G
(or just use
the fact that they have been visited)
CS 4412 – Graph Algorithms
G
G
R
1,2
3
,6
4
,5
7,10
8,9
11,12
13,24
14
,23
15,22
16,21
17,20
18,19
TAPPS: Decompose into SCCs
Do DFS on
G
R
Repeat until graph
G
is empty:
–
Pick unvisited node with highest remaining post score
(from DFS tree on
G
R
), explore starting from that node
in
G
, marking each as member of a particular number
SCC
–
During the DFS, process the vertices in decreasing order
of their post numbers
–
That will discover one sink SCC in
G
–
Prune all nodes in that SCC from
G
(or use the fact that
they have been visited)
Which are source SCCs and which are sink SCCs?
Draw the “metagraph” (each meta-node is an SCC of G).
What is the minimum number of edges you must add to this
graph to make it strongly connected?
CS 4412 – Graph Algorithms
20
Solution: Decompose into SCCs
Do DFS on
G
R
Repeat until graph
G
is empty:
–
Pick unvisited node with highest remaining post score
(from DFS tree on
G
R
), explore starting from that node
in
G
, marking each as member of a particular number
SCC
–
During the DFS, process the vertices in decreasing order
of their post numbers
–
That will discover one sink SCC in
G
–
Prune all nodes in that SCC from
G
(or use the fact that
they have been visited)
Which are source SCCs and which are sink SCCs?
Draw the “metagraph” (each meta-node is an SCC of G).
What is the minimum number of edges you must add to this
graph to make it strongly connected?
CS 4412 – Graph Algorithms
21
TAPPS:
Complexity
We know complexity of DFS is
linear -
O(|
V
| + |
E
|)
Is our new algorithm still linear?
Only if our new requirements are
linear
–
Create
G
R
–
Order vertices of
G
by decreasing
post values
TAPPS: Propose a linear time
method for each of these
CS 4412 – Graph Algorithms
G
G
R
Graph Connectedness Conclusion
By doing one linear time, O(|
V
|+|
E
|), depth-first search (DFS), we can efficiently
gather lots of important information about arbitrary undirected or directed
graphs
–
Cycles
–
Connectivity
–
Finding and labeling Connected Components (in directed/undirected graphs)
–
Strongly Connected Components (in directed graphs)
–
Linearizations
–
Finding source and sink nodes and components
–
etc.
CS 4412 – Graph Algorithms
23
