DAG2000 Series VoIP Access Gateway Overview

DAG2000 series Voice Gateway is a VoIP access gateway that supports SIP protocol, compatible with mainstream IP PBX and softswitch platforms. It provides quality voice services for carriers, enterprises, village users, and companies. The gateway offers features such as primary and secondary SIP accounts, VLAN management, IP trunking, traffic shaping, flexible routing, firmware updates, and more. It also includes physical interfaces like SIP V2.0 and various phone ports. Additionally, it offers services like multi-language support, web-based configuration, call routing, and maintenance management. The gateway ensures seamless communication and efficient voice service delivery.

• VoIP
• Voice Gateway
• SIP Protocol
• Quality Service
• Gateway

nadeem_s Follow

Uploaded on Sep 10, 2024 | 3 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

You are allowed to download the files provided on this website for personal or commercial use, subject to the condition that they are used lawfully. All files are the property of their respective owners.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author.

Presentation Transcript

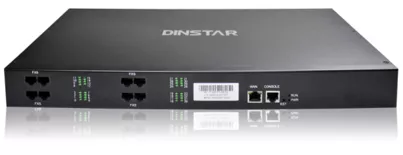

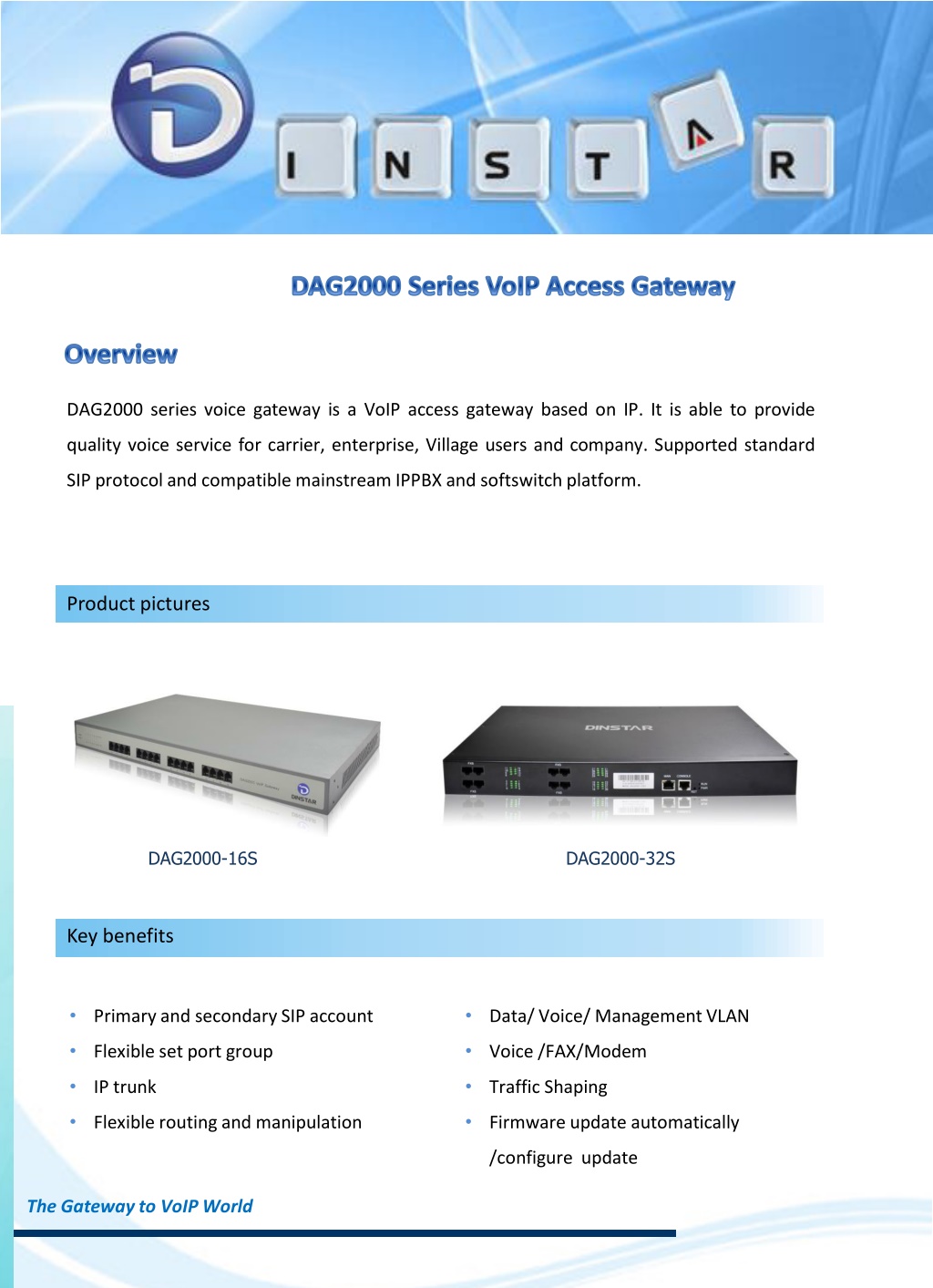

1. DAG2000 Series VoIP Access Gateway Overview DAG2000 series voice gateway is a VoIP access gateway based on IP. It is able to provide quality voice service for carrier, enterprise, Village users and company. Supported standard SIP protocoland compatiblemainstreamIPPBX and softswitchplatform. Product pictures DAG2000-16S DAG2000-32S Key benefits Primary and secondary SIP account Data/ Voice/ Management VLAN Flexible set port group Voice /FAX/Modem IP trunk Traffic Shaping Flexible routing and manipulation Firmware update automatically /configure update The Gateway to VoIP World

2. Decade focused Creates the high-quality goods Physical Interfaces Protocol SIP V2.0 (RFC 3261,3262,3264) Phone ports: 16/24/32FXS, RJ-11 SDP (RFC 2327) Ethernet Interfaces: REFER (RFC 3515) 16FXS: 4*RJ-45 10/100Mbps, RJ-45 RTP/RTCP(RFC 1889,1890) 24FXS: 4* RJ-45 10/100Mbps, RJ-45 STUN (RFC 3489) 32FXS: 4* RJ-45 10/100Mbps, RJ-45 ARP/RARP(RFC 826/903) Voice & FAX SNTP (RFC 2030) G.711A/U law, G.723.1, G.729A/B DHCP/PPPoE Comfort Noise Generation(CNG) TFTP/HTTP/HTTPS Voice Activity Detection(VAD) DNS/DNS SRV (RFC 1706/RFC 2782) Echo Cancellation(G.168) VLAN 802.1P/802.1Q Adaptive (Dynamic) Jitter Buffer Supplement Service Hook flash test Programmable Gain Control Call waiting T.38/Pass-through/Modem FAX mode, Call transfer(Blind transfer, Attend Transfer , Up to 14.4kbps Half blind transfer) DTMF mode: Signal/RFC2833/INBAND Quick pick Call forwarding Private Service Hotline Inquire LAN port IP *158# Call hold Inquire WAN port IP *159# DND Get IP address *150* 3-way conference 1/2/4FXS Support Restart*111# Voice mail Factory reset*166*000000# Direct IP address call The Gateway to VoIP World

3. Customer first Services more intimately Maintain & Upgrade Call & Route Web based configuration Port group Telnet configuration IP trunk Data backup/restore Primary and secondary SIP account Support English and Chinese 32 inbound routing 32 outbound routing language Firmware upgrade by TFTP Number manipulation Syslogand CDR Dial plan set Web & telnet login password modify Network Feature Factory reset Automatic time synchronization NAT (Rout and Bridge) SNMP Static IP, PPPoE, DHCP IVR local maintenance management DHCP server Dimension & Weight: IP,TCP, UDP,TFTP, FTP, TCP,ARP,RARP, Ping, NTP, SNTP, Http, DNS, Trancert 16FXS:442(L)*280(W)*44(H)mm 3.0kg Static/dynamic ARP 24FXS:442(L)*250(W)*44(H)mm 3.5kg 32FXS:442(L)*250(W)*44(H)mm 3.5kg Environment Packing Content Power input:100-240VAC,50-60Hz Power consumption: 24FXS:80W; Gateway 32FXS:100W Power adapter temperature(operator): 0 ~ 45 RJ-45 Network cable (storage): -20 ~80 User s Manual CD Humidity: 10%-90% no condensation Authentication CE, FCC The Gateway to VoIP World

4. Trust Growth Cooperation Sharing System Application Dinstar Technologies Co., Ltd. The Gateway to VoIP World
