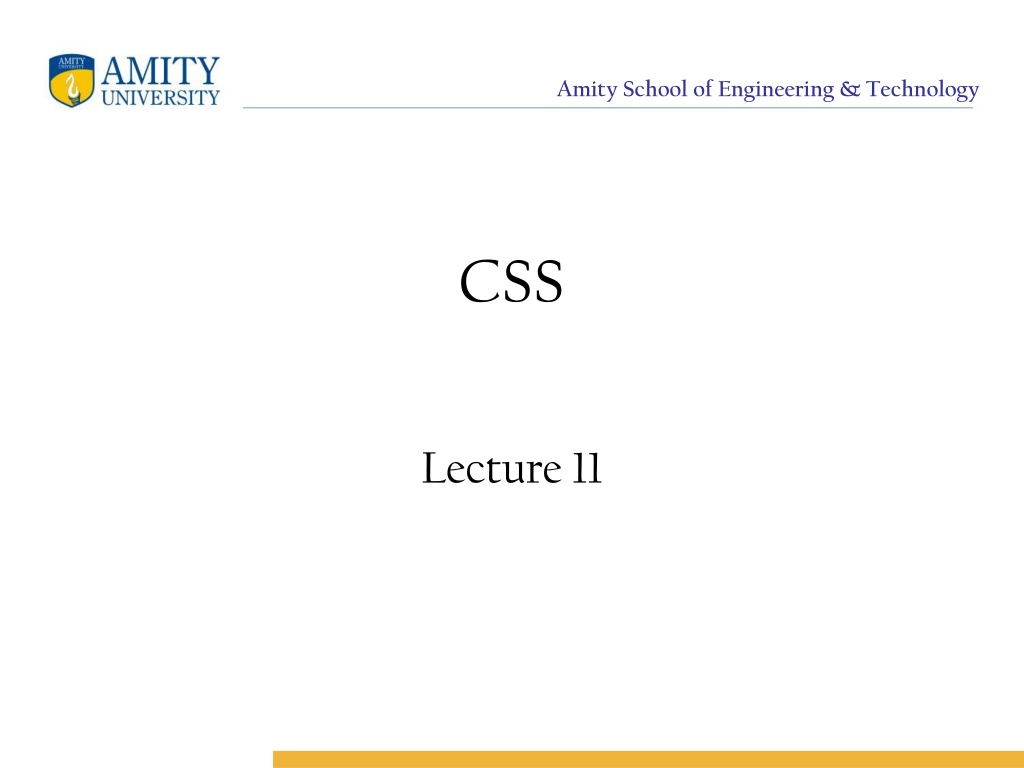

CSS in Amity School of Engineering & Technology
CSS
Lecture 11
CSS
CSS
•
Presenting
a document to a user means
converting it into a usable form for your
audience.
Browsers
,like
Firefox
,
Chrome
or
Intern
et Explorer
, are designed to present documents
visually, for example, on a computer screen,
projector or printer.
Cascading Style Sheet
•
CSS code is simple written instructions that
tell web browsers. How to display things on a
page.
For Example
•
make text bold.
•
position things a page.
•
set the font style for a page or paragraph etc.
How does CSS affect HTML?
•
Web browsers apply
CSS rules
to a document
to affect how they are displayed.
A CSS rule is formed from:
•
A set of
properties
, which have values set to
update how the HTML content is displayed,
for example
I want my element's width to be 50% of
its parent element, and its background to be red
.
Cont..
•
A
selector
, which
selects
the element(s) you
want to apply the updated property values to.
For example,
I want to apply my CSS rule to all the
paragraphs in my HTML document
.
•
A set of CSS rules contained within
a
stylesheet
determines how a webpage
should look
How does CSS actually work?
•
When a browser displays a document, it must
combine the document's content with its style
information. It processes the document in two
stages:
Cont..
1.
The browser converts
HTML
and
CSS
into
the
DOM
(
Document Object Model
). The DOM
represents the document in the computer's
memory. It combines the document's content
with its style.
2.
The browser displays the contents of the
DOM.
Cont..
Load
HTML
Parse
HTML
Create
DOM tree
Display
Load
CSS
Parse
CSS
Attached Style to
DOM node
HTML CODE
<p> Let's use:
<span>Cascading</span>
<span>Style</span>
<span>Sheets</span>
</p>
In DOM
•
P
├─
"Let's use:"
├─
SPAN
|
└─
"Cascading"
├─
SPAN
|
└─
"Style"
└─
SPAN
└─
"Sheets"
How to apply your CSS to your HTML
•
There are three different ways to apply CSS to
an HTML document.
1.
Inline
2.
Internal
3.
External
Inline
•
Inline styles
are CSS declarations that affect
one element only, contained within
a
style
attribute:
Example
<html>
<head>
<title>My CSS experiment</title>
</head>
<body>
<h1 style="color: blue; background-color:
yellow; border: 1px solid black;">Hello World!
</h1>
<p style="color:red;">This is my first CSS example
</p>
</body>
</html>
Internal
<
html>
<head>
<title>My CSS experiment</title>
<style>
h1
{color: blue;
background-color: yellow;
border: 1px solid black;
}
P
{color: red;
}
</style>
</head>
<body>
<h1>Hello World!</h1>
<p>This is my first CSS example</p>
</body>
</html>
External
•
An external stylesheet is when you have your
CSS written in a separate file with
a .css extension, and you reference it from an
HTML
<link>
element.
Example HTML FILE
<html>
<head>
<title>My CSS experiment</title>
<link rel="stylesheet" href="style.css">
</head>
<body>
<h1>Hello World!</h1>
<p>This is my first CSS example</p>
</body>
</html>
CSS File
•
h1
{color: blue;
background-color: yellow;
border: 1px solid black;
}
p
{color: red;
}
What is DOM
•
A DOM has a tree-like structure. Each element,
attribute and piece of text in the markup language
becomes a
DOM node
in the tree structure. The
nodes are defined by their relationship to other
DOM nodes. Some elements are parents of child
nodes, and child nodes have siblings.
•
Understanding the DOM helps you design, debug
and maintain your CSS because the DOM is where
your CSS and the document's content meet up.
How to specify a rules?
•
Some example
•
H2 { color : blue }•
P { font -size :12pt; font-family: verdana }Difference between Id and Class
•
ID’s are Unique
•
Each element can have only one ID
•
Each page can have only one element with that
ID
•
When you used id for one you can not used id
for different element.
Cont..
•
<p id=“main” > I have an id </p>
•
<p id=“main”>………</p>
•
ID like a driver license number (you can not
have two driver licence with same number)
Class
•
Classes are NOT unique
•
You can use the same class on multiple
elements.
•
You can use multiple classes on the same
element.
Cont..
•
<p class=“chapter” >I am a chapter</p>
•
<p class=“chapter”> I …….</p>
•
<p id =“main” class=“class1 class2 class3..class
n”> hi</p>
Example
•
#t_color
{color:red;
}
•
#t_style
{font-family:arial;
font-size:20px;
}
Cont..
•
<p id=“t_color”>test id only</p>
•
<p id=“t_color”>The box id text</p>
•
<p id=“t_color t_style”>not allow</p>
•
<p class=“t1_color”>test class only</p>
•
<p class=“t1_color t2_style”>the box class</p>
Cont..
•
The unique only means one element can not
have more than one id attribute like class
selector.
•
A simple way to look at it is that an id is
unique to only one element.
•
A class is not unique and applied to multiple
elements.
Priority
•
ID gets higher priority than class in CSS
•
Example:
Universal, Child, and Adjacent Selectors
•
we have covered HTML selectors, Class and
ID selectors, and how to combine selectors to
target specific element boxes.
Universal selectors
•
Using an
asterisk
(“ * ”), you can
target
everything
under the page. You can use it
by itself to set global styles for a page, or as a
descendant of a selector to set styles of everything
within something.
example
•
*
{margin: 0;
padding: 0;
}
Child selectors
•
A
greater-than
symbol (“>”) can be used to
specify something that is a child of something
else, that is, something
immediately
nested
within something
Cont..
•
#genus_examples > li
{ border: 1px solid red }Cont..
•
<ul id="genus_examples">
<li>Cats
<ul>
<li>Panthera</li>
<li>Felis</li>
<li>Neofelis</li>
</ul> </li>
<li>Apes
<ul> <li>Pongo</li> <li>Pan</li> <li>Homo</li> </ul> </li>
</ul>
Cont..
•
a red border would be drawn around “Cats”
and “Apes” only, rather than around every
single list item (which would be the case
with#genus_examples li { border: 1px solid red}). This is because the likes of “Panthera” and
“Felis” are
grandchildren
of
“genus_examples”, not
children
.
HTML SPAN TAG
•
The <span> element is an inline element and does
not break into lines unless the break <br /> tag is
used and the defined text (content) between the
<span> open and </span> close tags is displayed as a
line (by default without using other elements).
•
Inline elements are text elements in the HTML
file and can be defined within the line of another
element.
•
DIV tag
•
<div> tag is used for defining a section of your
document. With the div tag, you can group
large sections of HTML elements together and
format them with CSS.
•
The difference between the div tag and the
span tag is that the div tag is used with
blocklevel elements whilst the span tag is used
with inline elements.
Example
•
<html>
•
<head>
•
<title>
•
</title>
•
<style>
•
.text span {color:red;}•
span { color:blue;}•
h1{color:green;}•
h1{color:black;}•
</style>
•
</head>
•
<body>
•
<h1>
•
<p>
•
<span class="text"><span>Text for span</span></span>
•
</p>
•
</h1>
•
</body>
•
</html>
What is Cache
•
a collection of items of the same type stored in
a hidden or inaccessible place.
