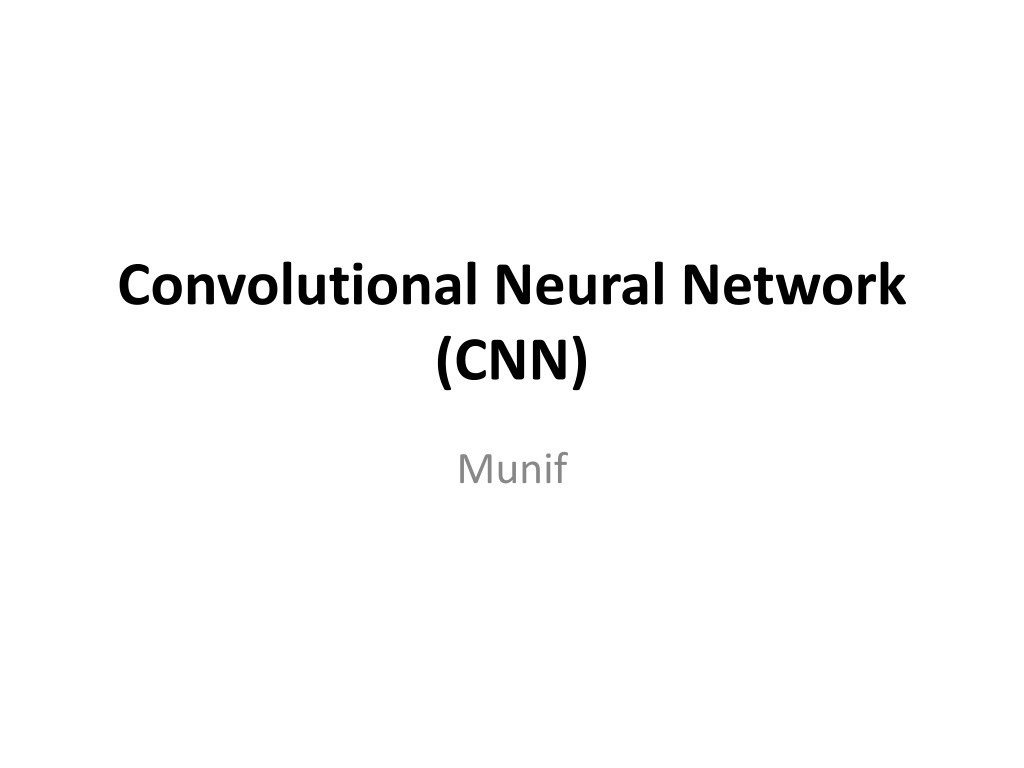

1. Convolutional Neural Network (CNN) Munif

2. CNN The (CNN) consists of: Convolutional layers Subsampling Layers Fully connected layers Has achieved state-of-the-art result for the recognition of handwritten digits

3. Neural Network And CNN CNN has fewer connections Replicating Weights Easier to train reduce the training time. A large-scale datasets input are images ( 2D ) CNN tricky to train

4. Convolution - The new size after convolution! Adapted from: http://deeplearning.stanford.edu/wiki/index.php/File:Convolution_schematic.gif

5. Pooling ( down sampling ) 2 2 4 4 2 4 8 4 4 4 4 1 6 10 3 4 Mean Pooling Max pooling 4 8 2.5 5 10 4 6 3 - The new size after pooling!

6. Convolutional Layer Has feature maps: has small filters ( weights ) the most common size: (5 * 5) or (3 * 3 ) Has Bias Its size = input size filter + 1 = the size of output of layer - Each feature map has 1 or more inputs

7. Pooling Layer Has feature maps: perform down-sampling on the input. Each feature map has 1 weight kernel and 1 bias The most common size: 2 2 larger size may remove and throw away too much information Has Bias Its size = input size/2 = size of the output of this layer - Each feature map has 1 input Reduces computation

8. The architecture of the CNN Vary, mainly depends on the data ( size, type ..etc) (LeNet Models ) proposed by Yann LeCun Other: Multiresolution CNN architecture 1 million YouTube videos annotated with 487 classes http://cs.stanford.edu/people/karpathy/deepvideo/de epvideo_cvpr2014.pdf

10. The Connections Between Layers These connections are also referred as receptive fields (RF) Custom table connections Random connections Fully connected layers

11. forward propagation _ If Convolutional Layer Convolve the inputs with the corresponding kernel. Add Bias to the results _ If pooling Layer Down-sampling the inputs. Add Bias to the results _ Apply activation function ( Ex. sigmoid, hyperbolic tangent) _ Fully Connected (NN ) ? A= ( ?=0 ? ?) + ? A= (? ? + ?) Q = F(A) Fully Connected H4 H3 H2 H1 H1 = Convolutional H2 = pooling H3 = Convolutional H4 = Pooling Input

12. Backpropagation Is almost identical to the Backpropagation algorithm for standard NN. Calculating the delta Error ( D) Updating weight and bias (W) differences weight sharing sub-sampling layers Vector Fully Connected H4 H3 H2 H1 = Convolutional H2 = pooling H3 = Convolutional H4 = Pooling Input

13. Backpropagation in Convolutional layer: Up-sampling To calculate the delta error of Convolutional layer: do up-sample: To propagate the error from the Subsampling (pooling) layer. Then multiply the result of the Up-sample by the derivative of the activation function. Example: In case of mean pooling: Kron = Kroneckor Tensor Product of two matrices

14. Backpropagation in Subsampling layer: Calculating Delta: ??= ??+1 ??+1 * ?? ??+1 1 1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 2 6 6 4 ??+1 2 6 6 1 0 1 2 3

15. Updating Weight Output of last map Q ( l-1) In Convolutional Layer. 1 1 1 1 1 1 1 1 1 1 1 1 10 10 10 10 10 10 Delta (d) * learning rate 10 10 10 1 2 3 4 In Pooling layer, it does not make a big difference.

16. Convolutional NN Libraries. Theano: http://deeplearning.net/ Facebook AI Research (FAIR): open sources deep-learning modules for Torch Caffe, by student from UC Berkeley Deep Learning Toolbox: By Rasmus http://www.mathworks.com/matlabcentral/fileexchange/38310-deep-learning- toolbox

17. The MNIST database of handwritten digits Has Training set of 60,000 examples Test set of 10,000 examples The size of each Image 28x28 Can be download from http://yann.lecun.com/exdb/mnist/

18. Reshape and Prepare Datasets train_x = double(reshape(train_x',28,28,60000))/255; test_x = double(reshape(test_x',28,28,10000))/255; train_y = double(train_y'); test_y = double(test_y');

19. Define layers of CNN Creating 5 Layers including the input layer. cnn.layers = { struct('type', 'i') %input layer struct('type', 'c', 'outputmaps', 6, 'kernelsize', 5) %convolution layer struct('type', 's', 'scale', 2) %sub sampling layer struct('type', 'c', 'outputmaps', 12, 'kernelsize', 5) %convolution layer struct('type', 's', 'scale', 2) %subsampling layer };

20. Define the Parameters opts.alpha = 0.1; opts.batchsize = 2; opts.numepochs = 50;

21. Training and Testing Setting up the network: cnn = cnnsetup(cnn, train_x, train_y); Train_CNN cnn = cnntrain(cnn, train_x, train_y, opts); Test_CNN cnntest(cnn, test_x, test_y);
