Conformance Verification of Privacy Policies Xiang Fu Assistant Professor Department of Computer Science Hofstra University

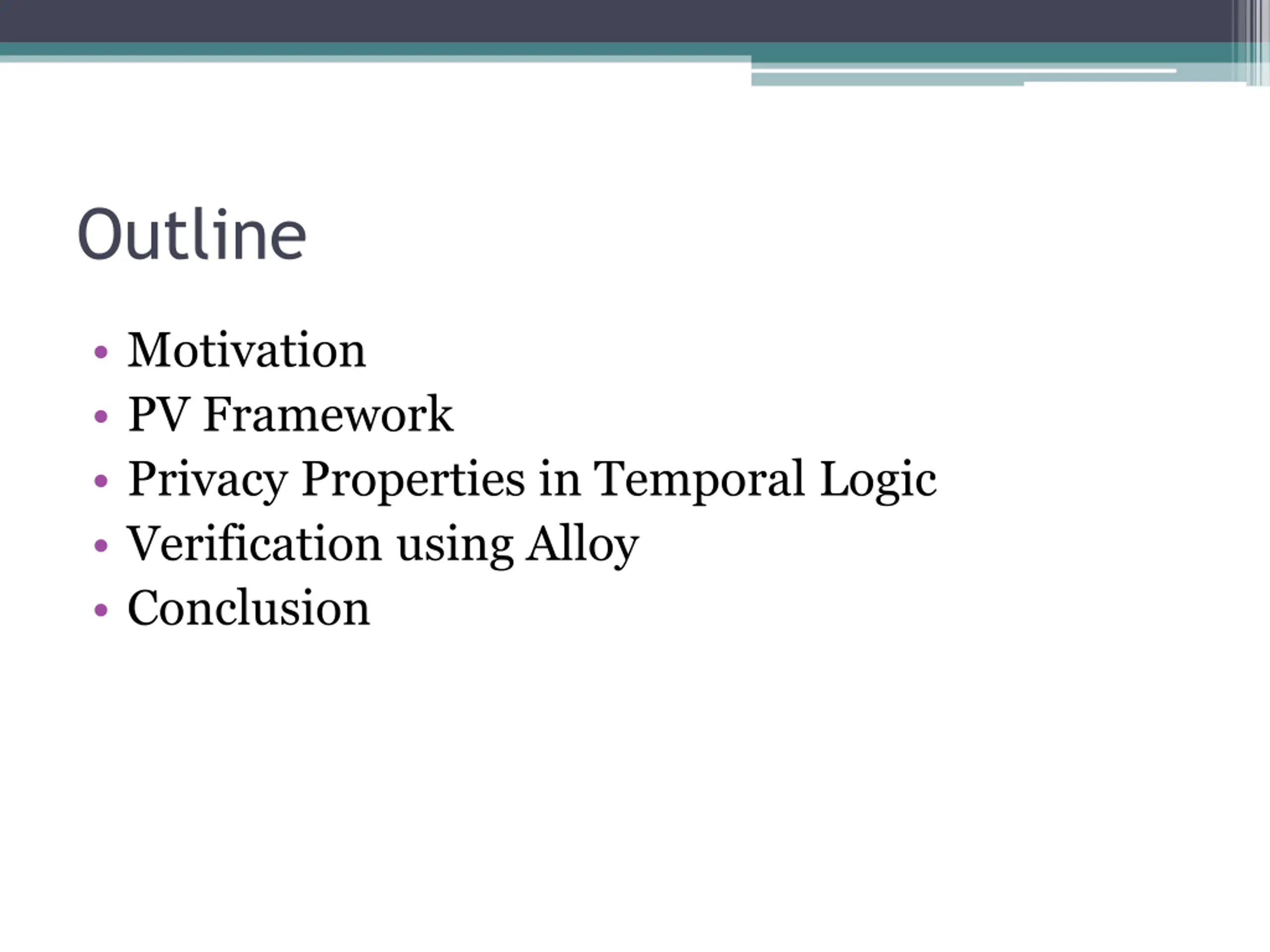

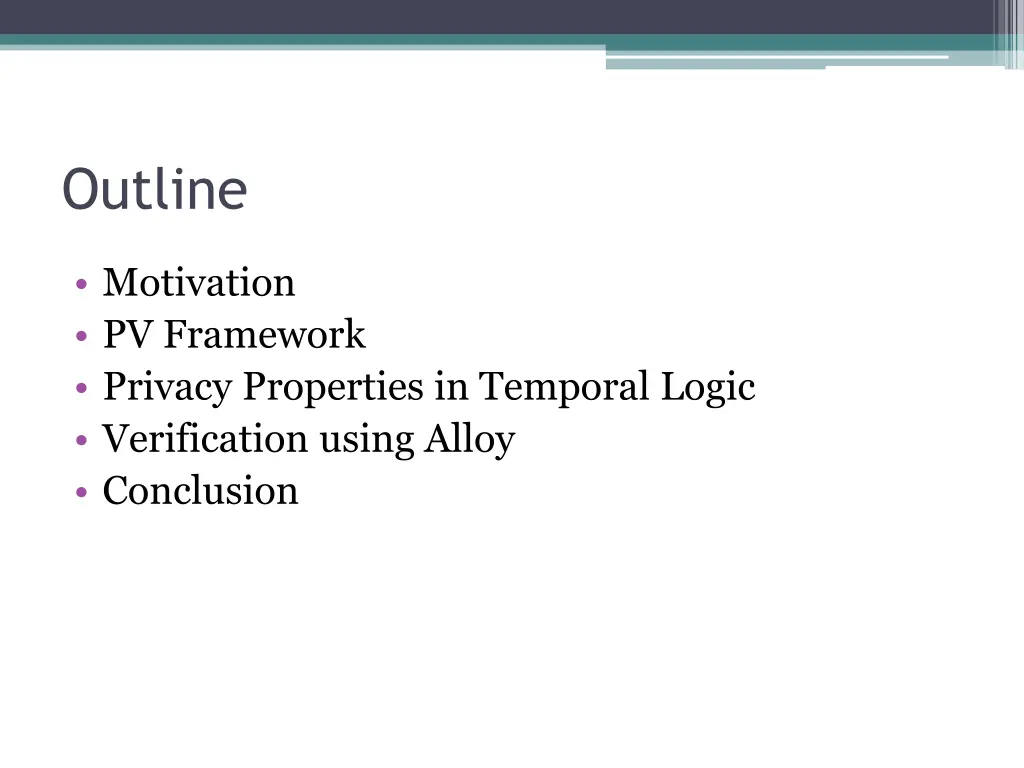

Outline Motivation PV Framework Privacy Properties in Temporal Logic Verification using Alloy Conclusion

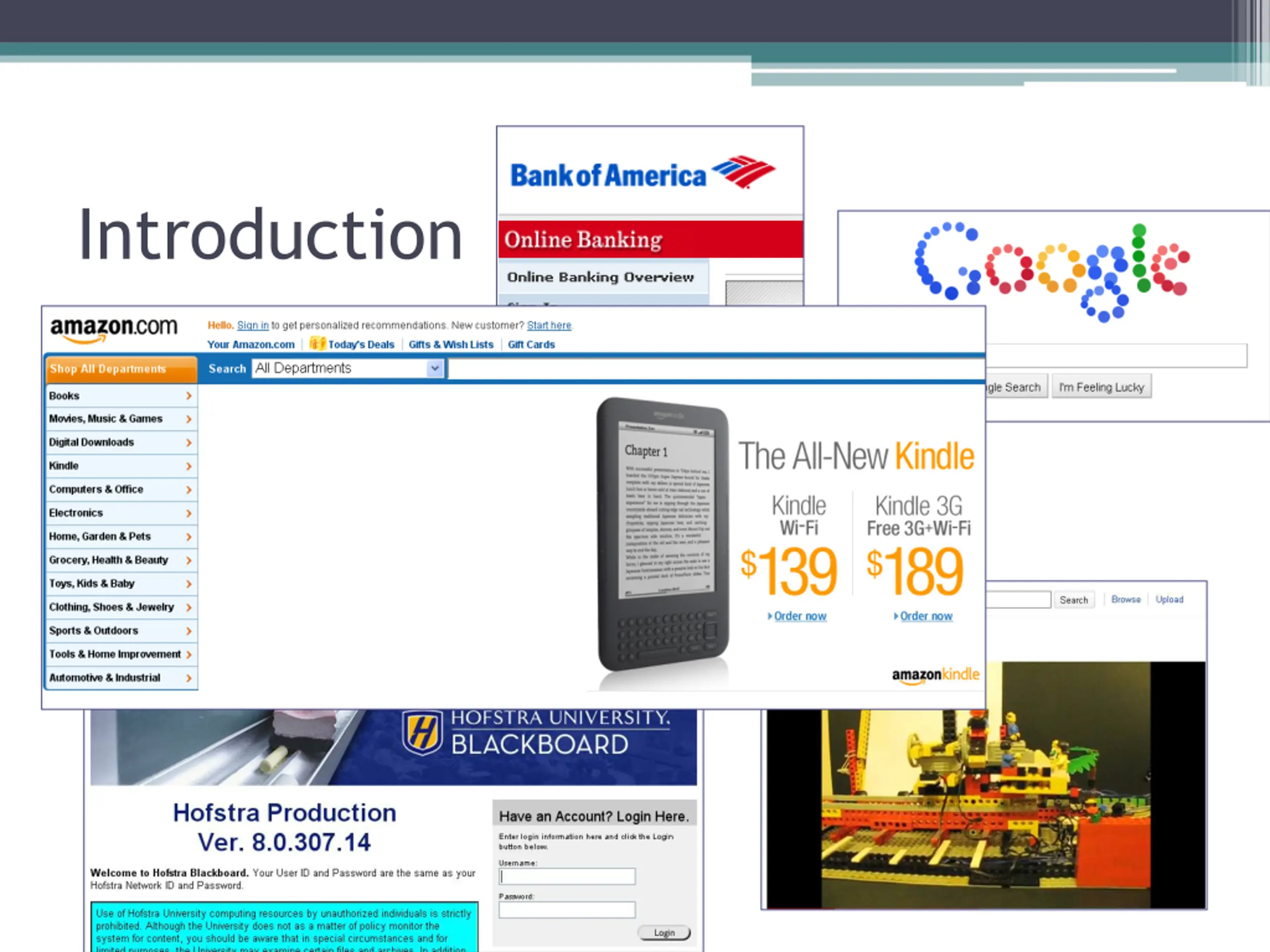

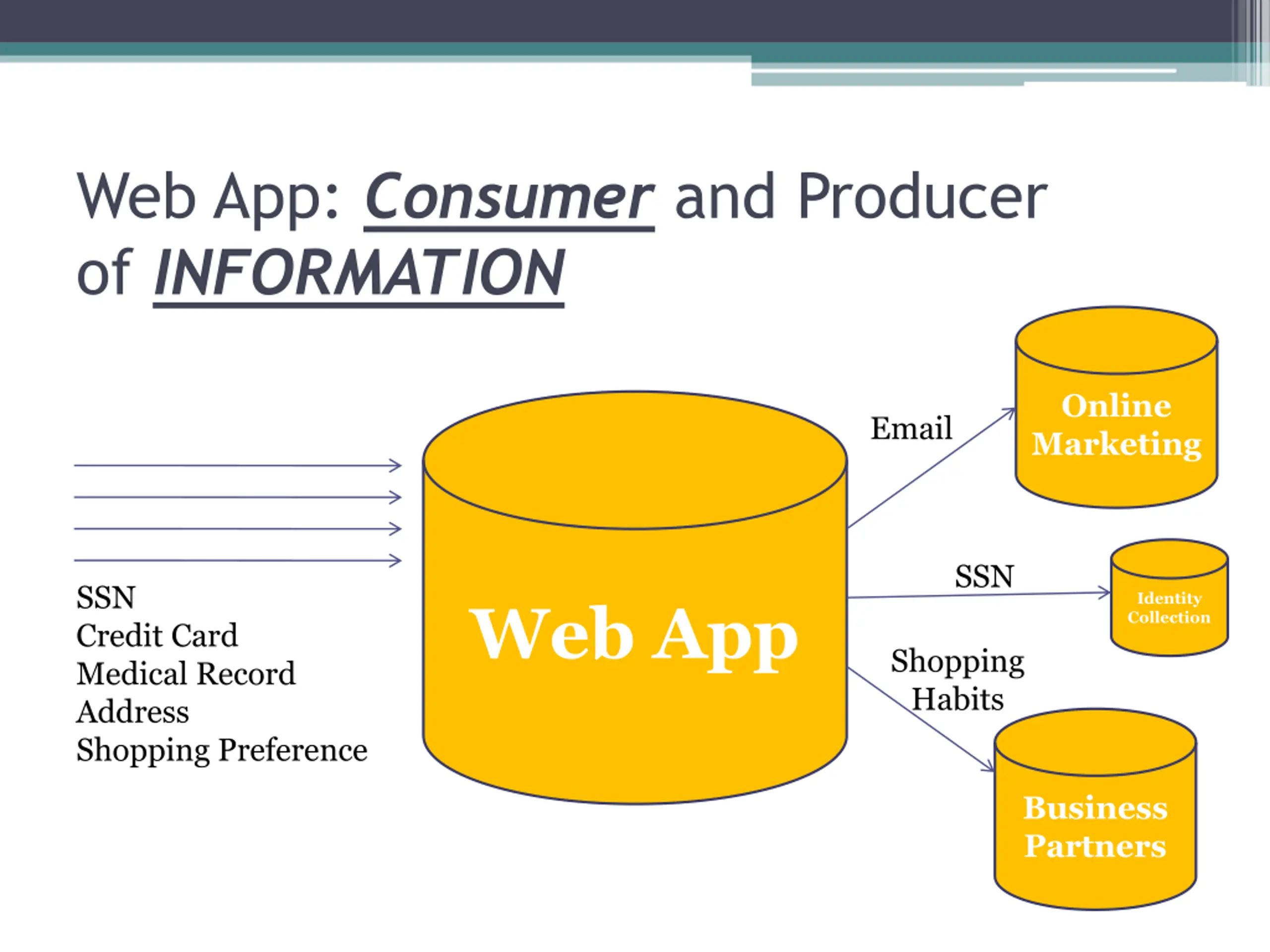

Web App: Consumer and Producer of INFORMATION Online Marketing Email SSN SSN Credit Card Medical Record Address Shopping Preference Identity Collection Web App Shopping Habits Business Partners

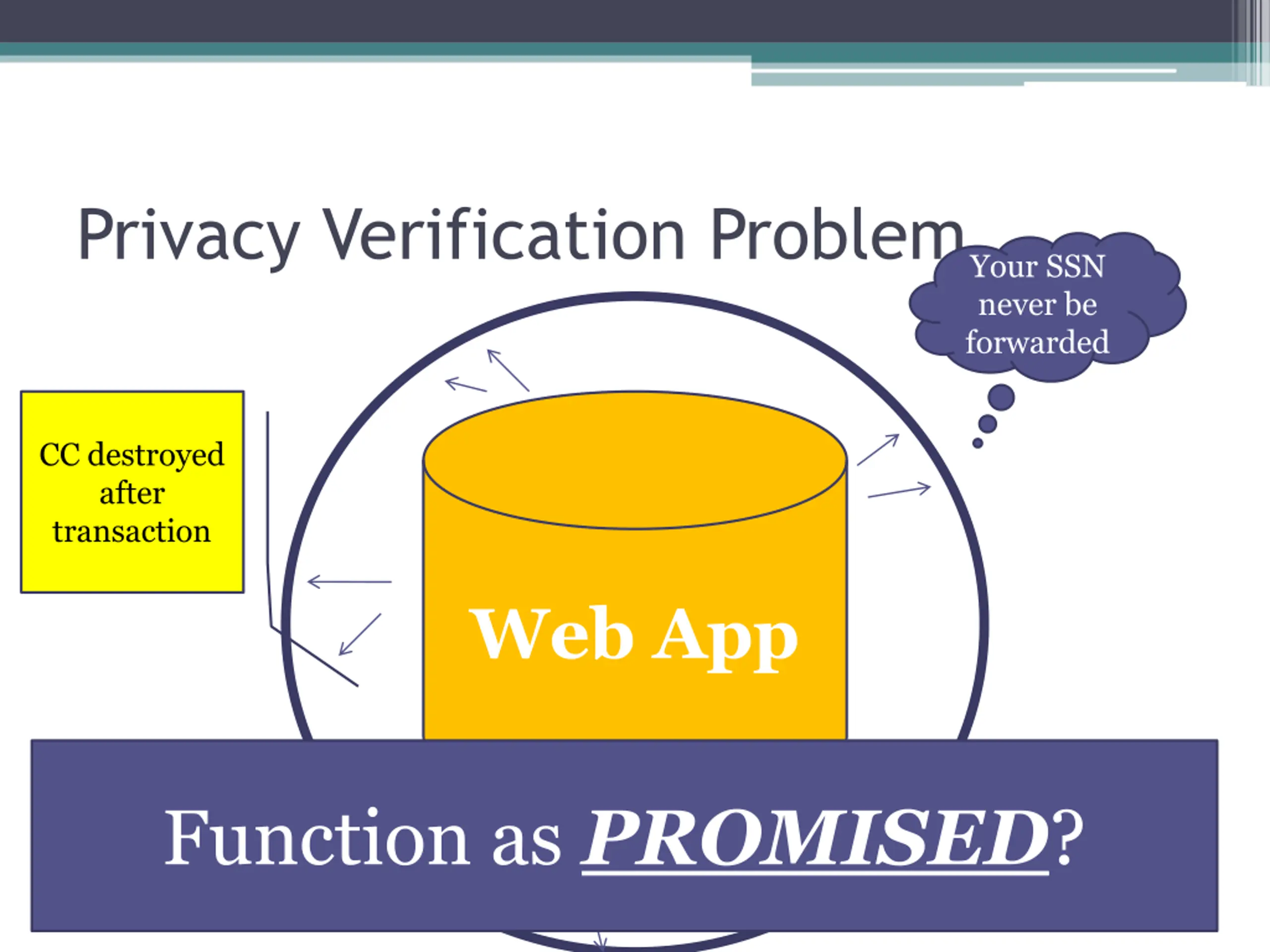

Privacy Verification Problem Your SSN never be forwarded CC destroyed after transaction Web App Function as PROMISED?

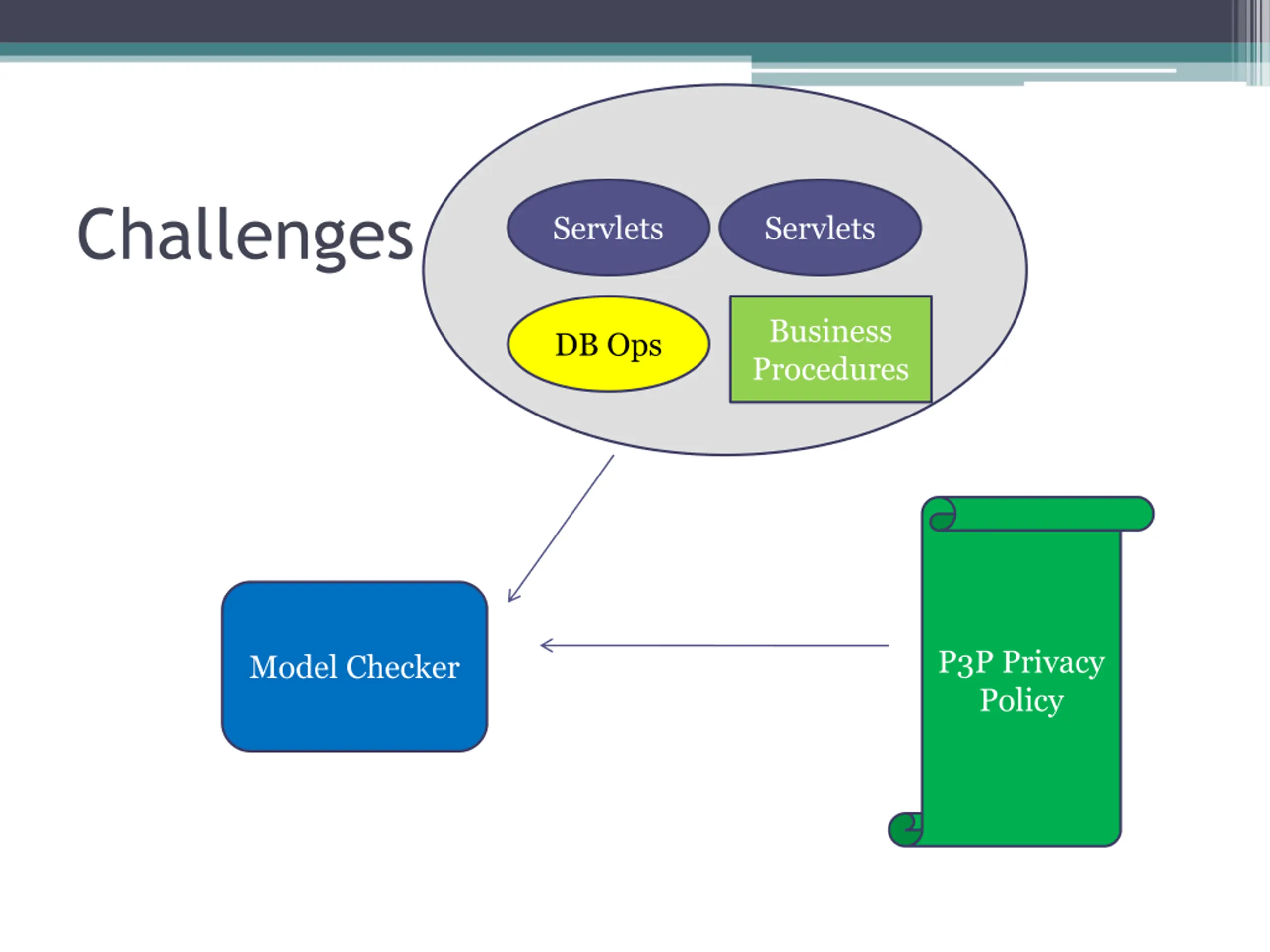

Challenges Servlets Servlets Business Procedures DB Ops P3P Privacy Policy Model Checker

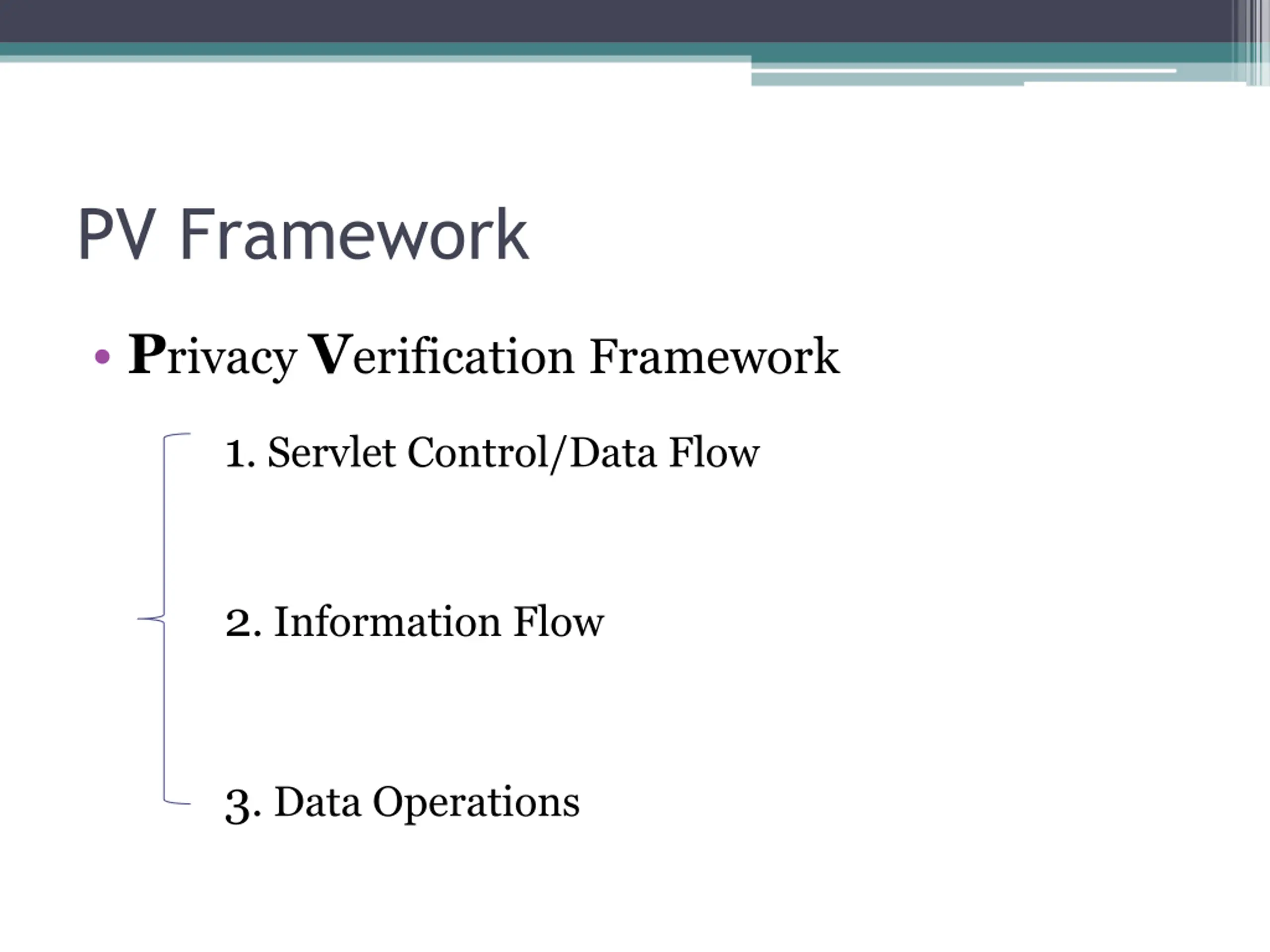

PV Framework Privacy Verification Framework 1. Servlet Control/Data Flow 2. Information Flow 3. Data Operations

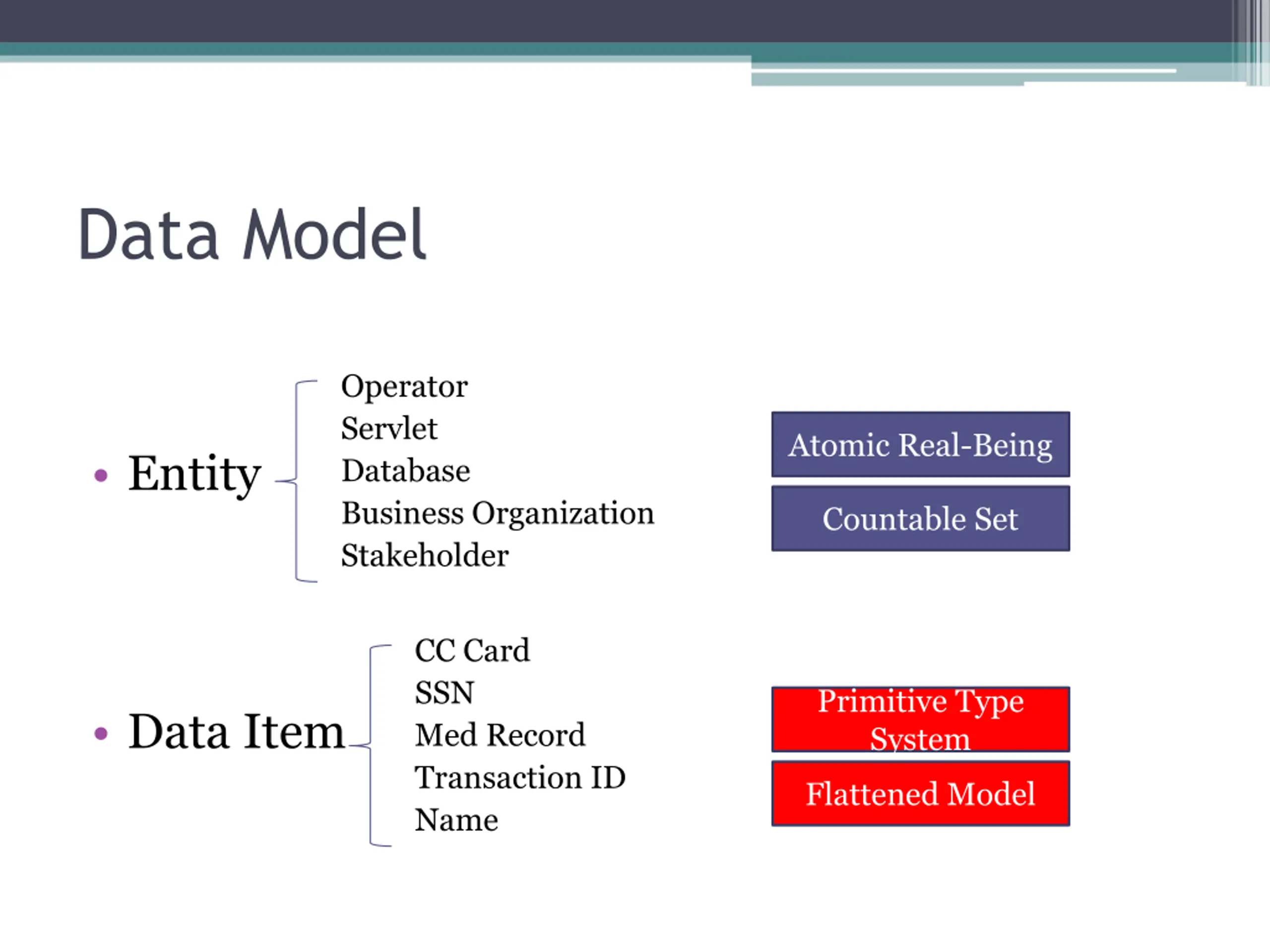

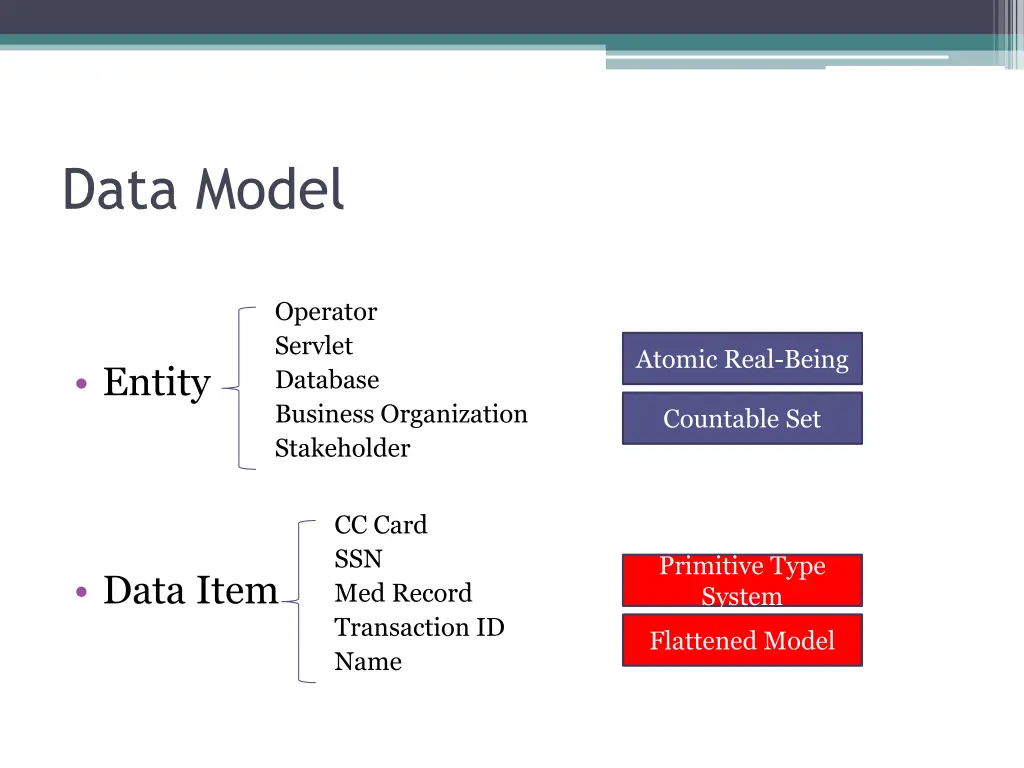

Data Model Operator Servlet Database Business Organization Stakeholder Atomic Real-Being Entity Countable Set CC Card SSN Med Record Transaction ID Name Primitive Type System Data Item Flattened Model

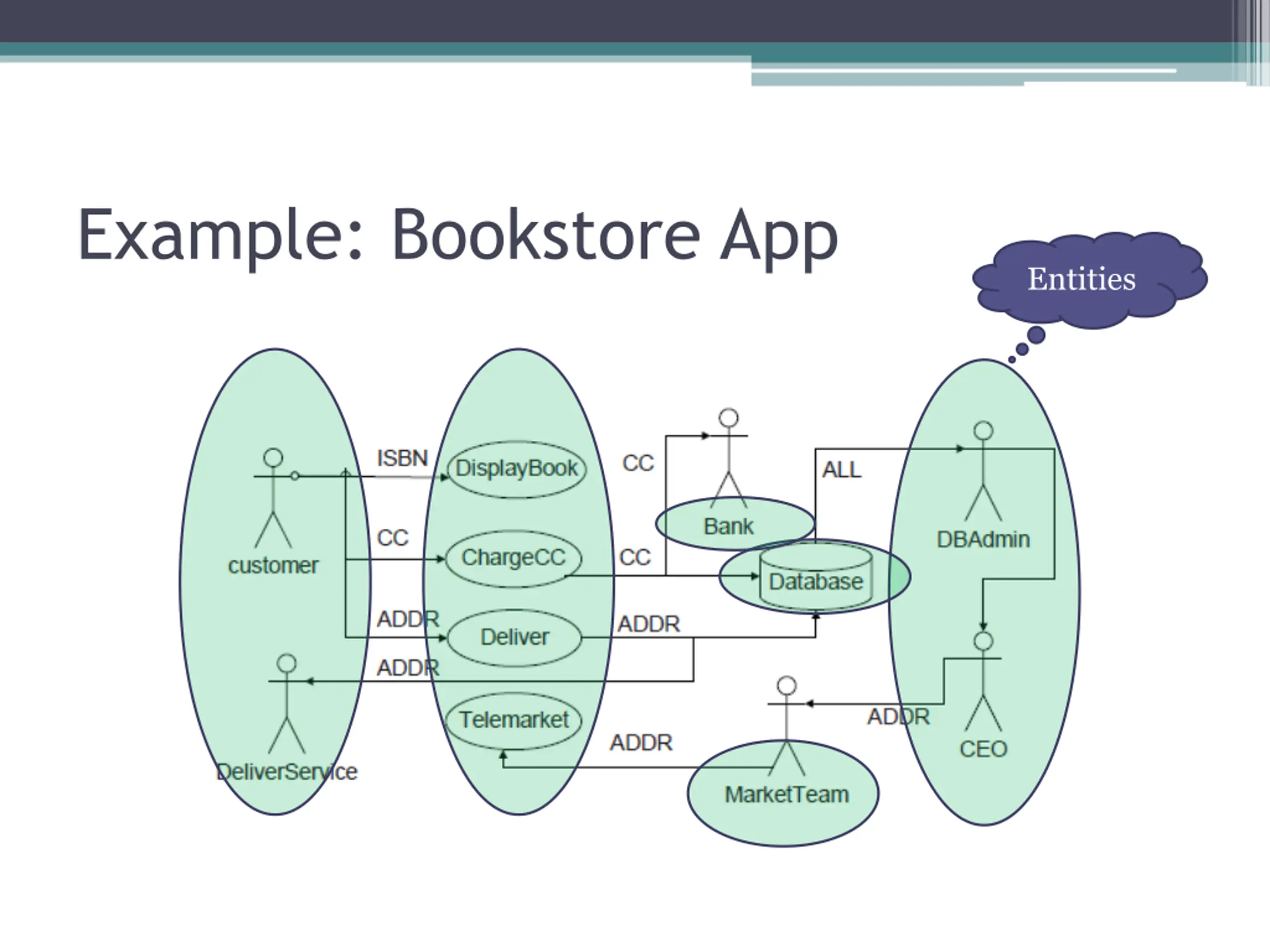

Example: Bookstore App Entities

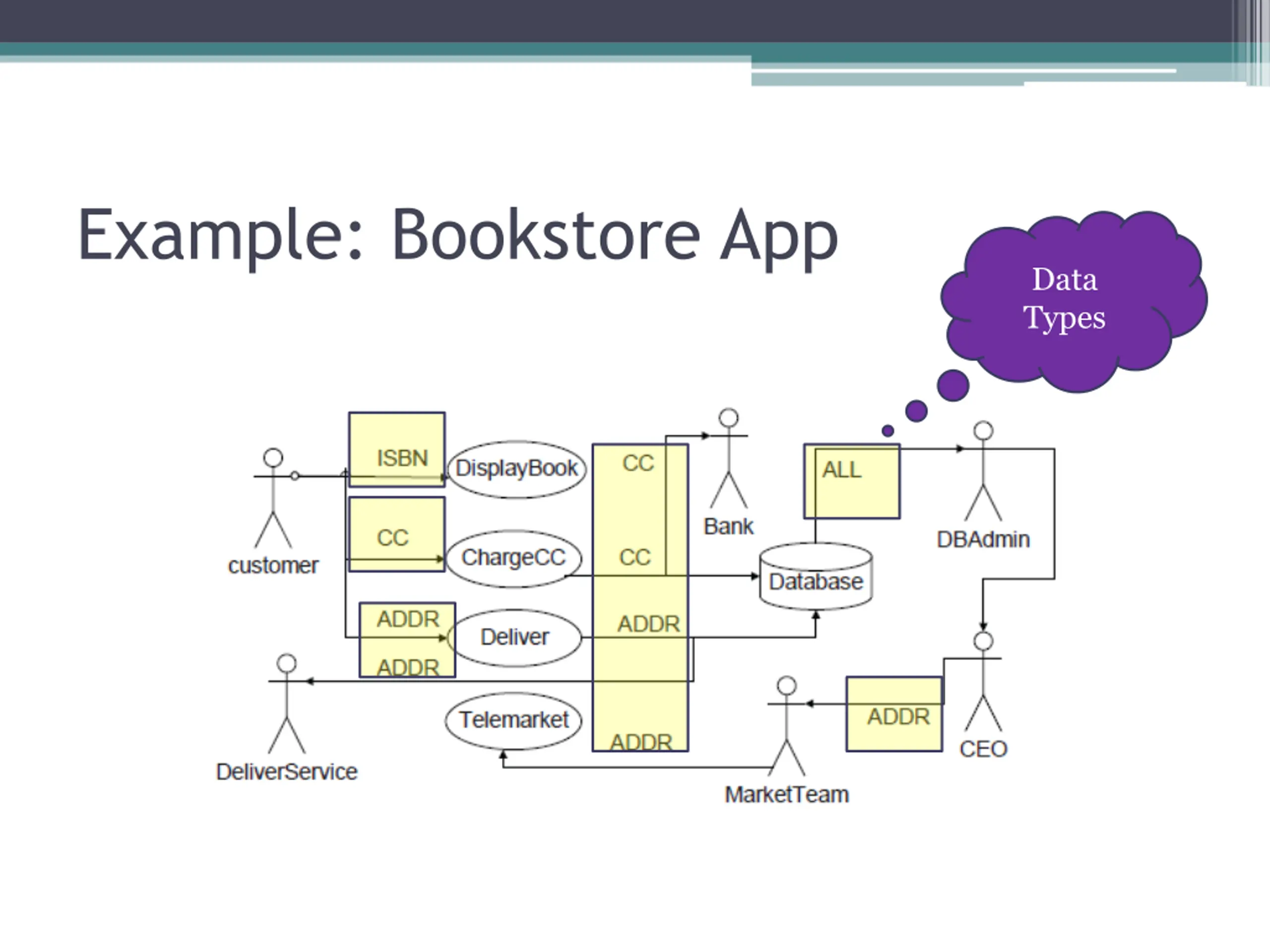

Example: Bookstore App Data Types

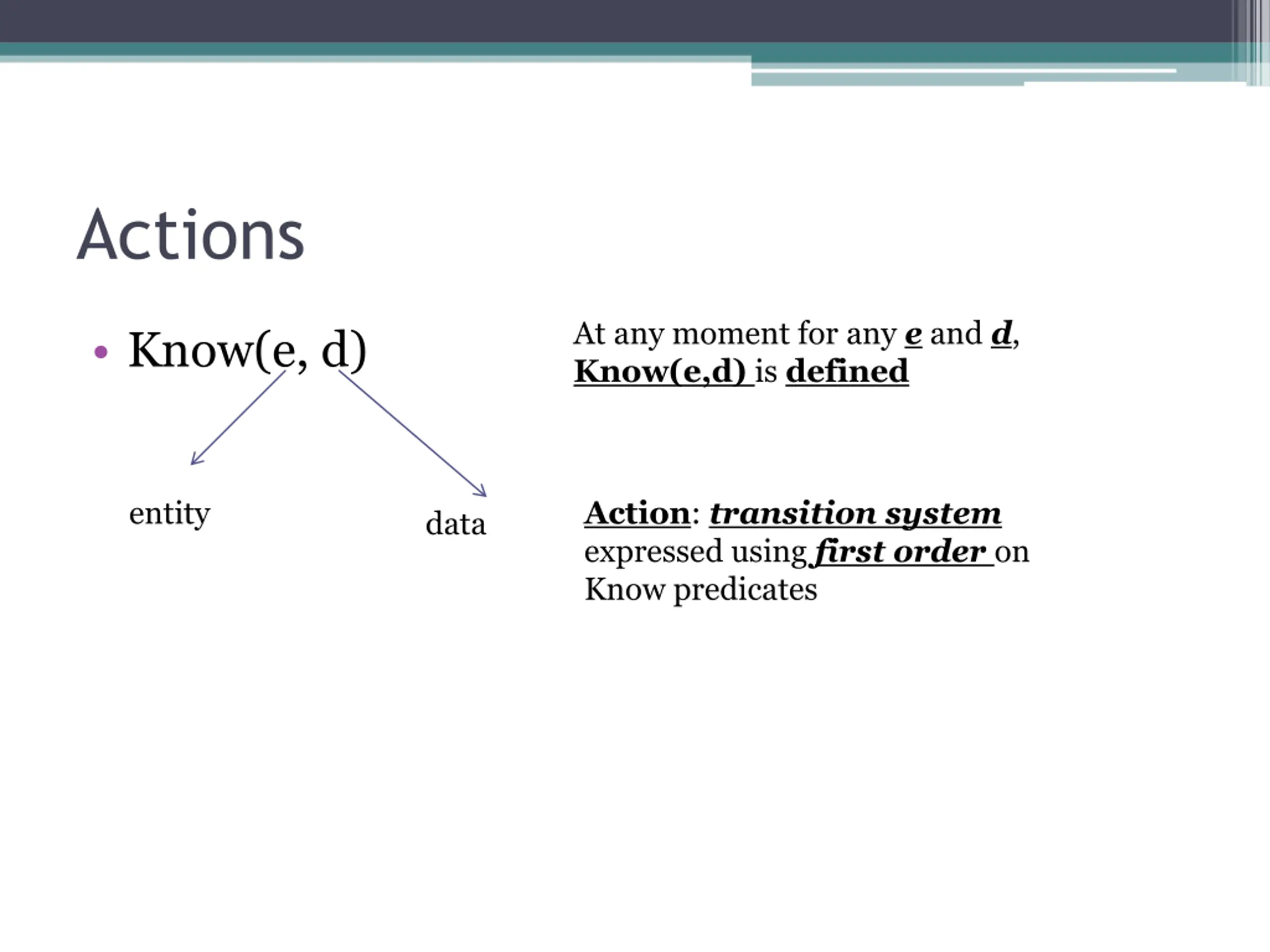

Actions At any moment for any e and d, Know(e,d) is defined Know(e, d) entity Action: transition system expressed using first order on Know predicates data

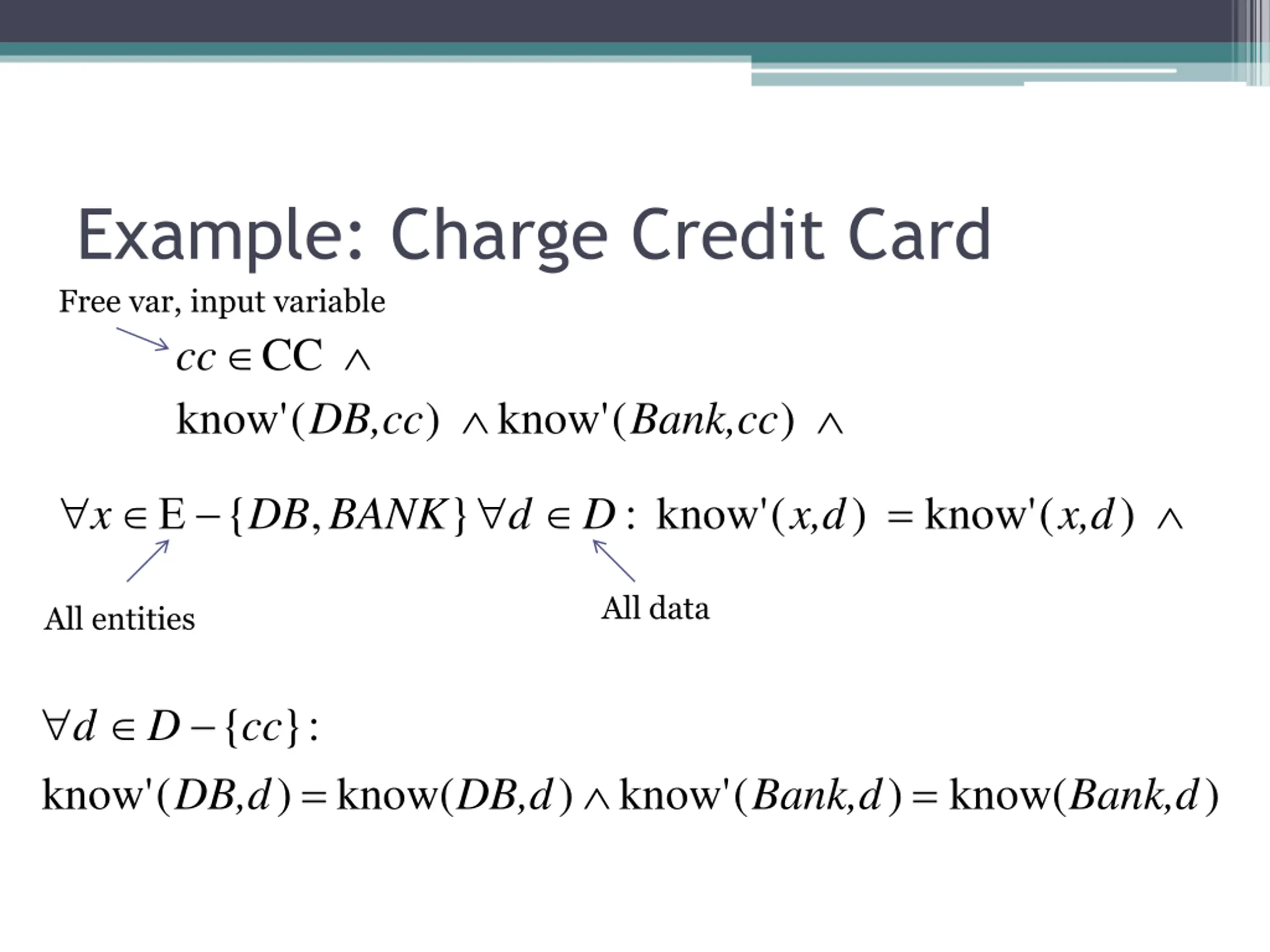

Example: Charge Credit Card Free var, input variable CC ( cc know' ) know' ( ) DB,cc Bank,cc = { , } know' : ( ) know' ( ) x DB BANK d D x,d x,d All data All entities { : } cc d D know( = = know' ( ) ) know' ( ) know( ) DB,d DB,d Bank,d Bank,d

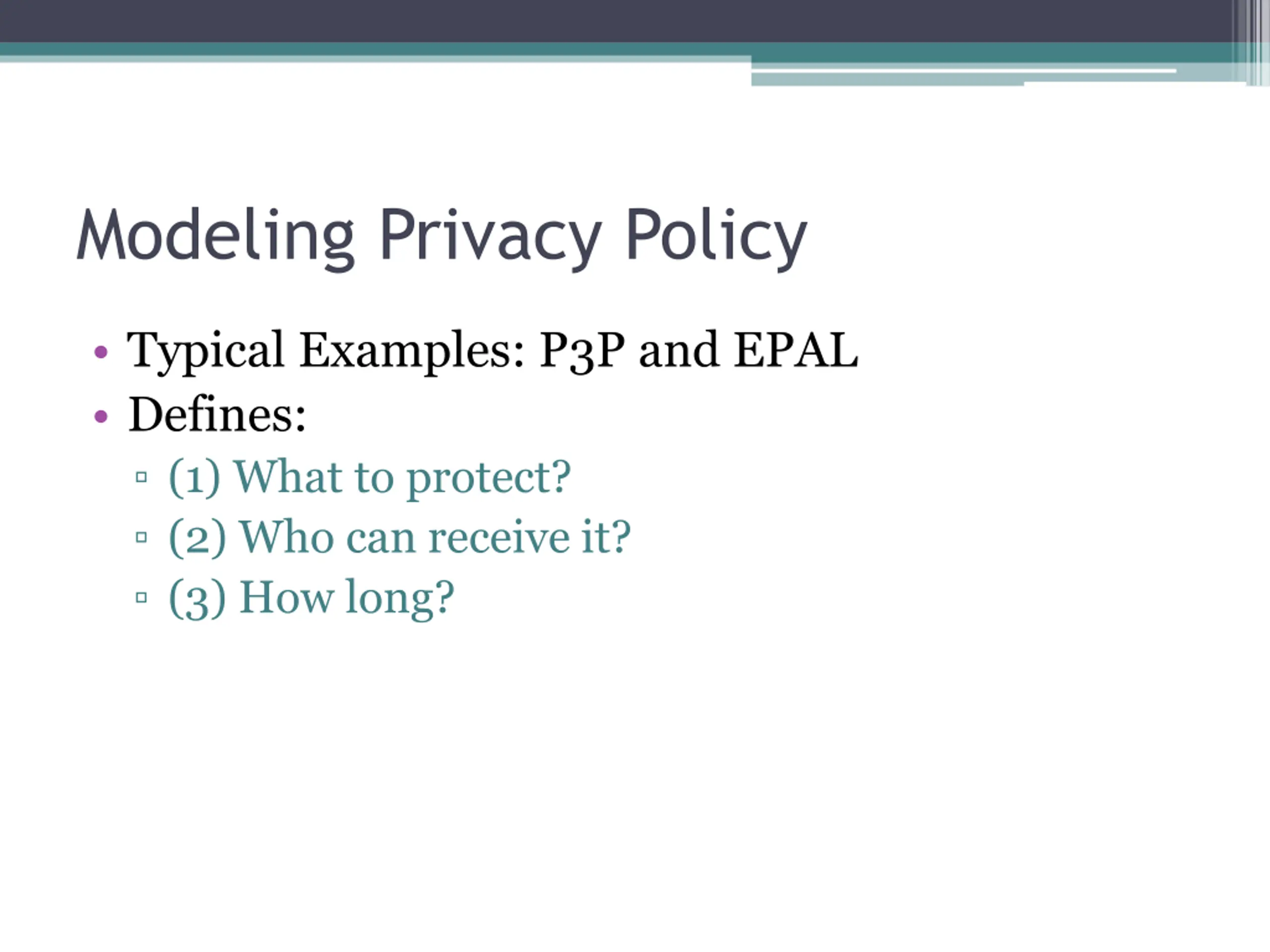

Modeling Privacy Policy Typical Examples: P3P and EPAL Defines: (1) What to protect? (2) Who can receive it? (3) How long?

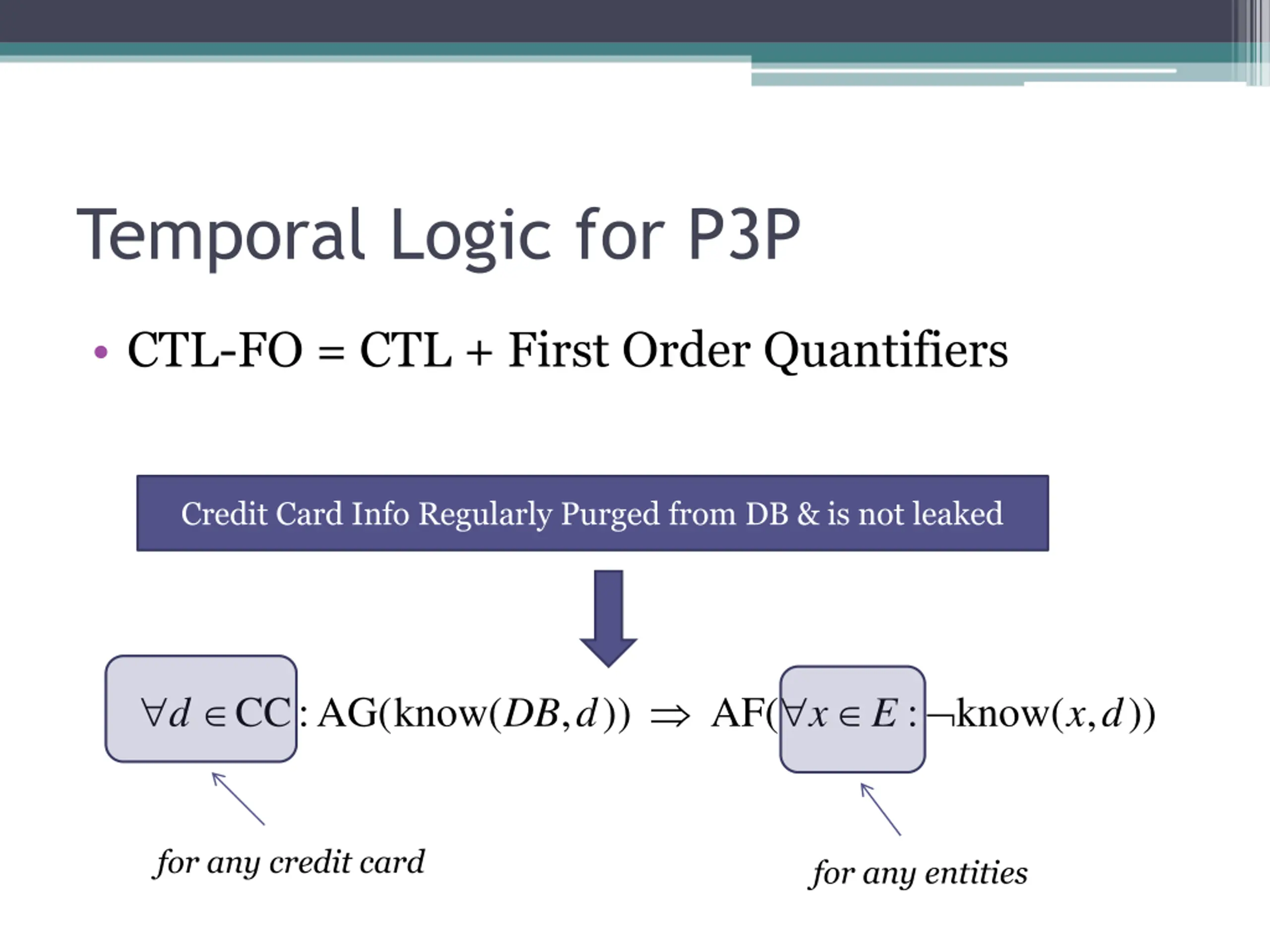

Temporal Logic for P3P CTL-FO = CTL + First Order Quantifiers Credit Card Info Regularly Purged from DB & is not leaked AF( know( CC AG( : know( , ) ) d : , )) d DB x E x d for any credit card for any entities

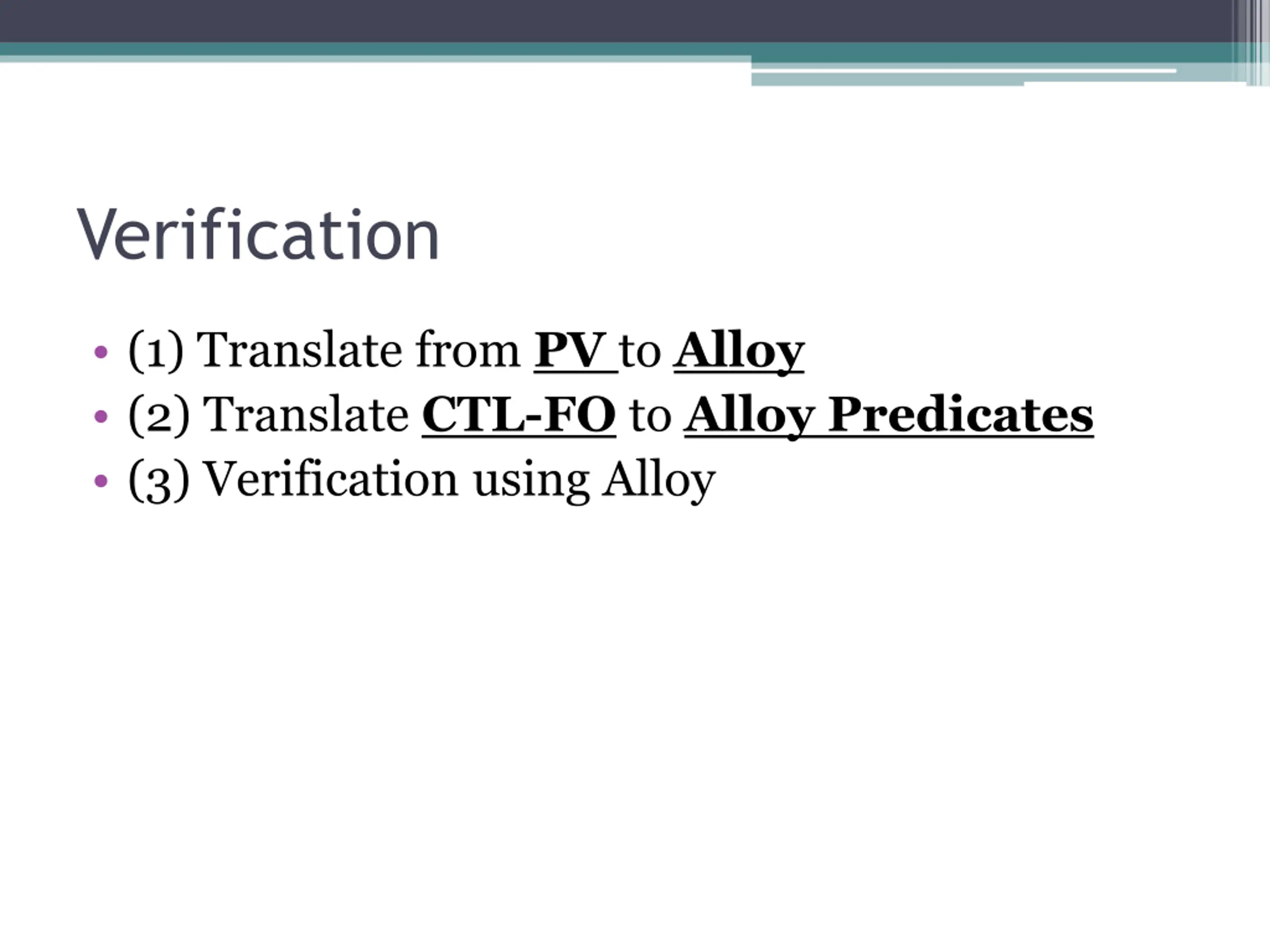

Verification (1) Translate from PV to Alloy (2) Translate CTL-FO to Alloy Predicates (3) Verification using Alloy

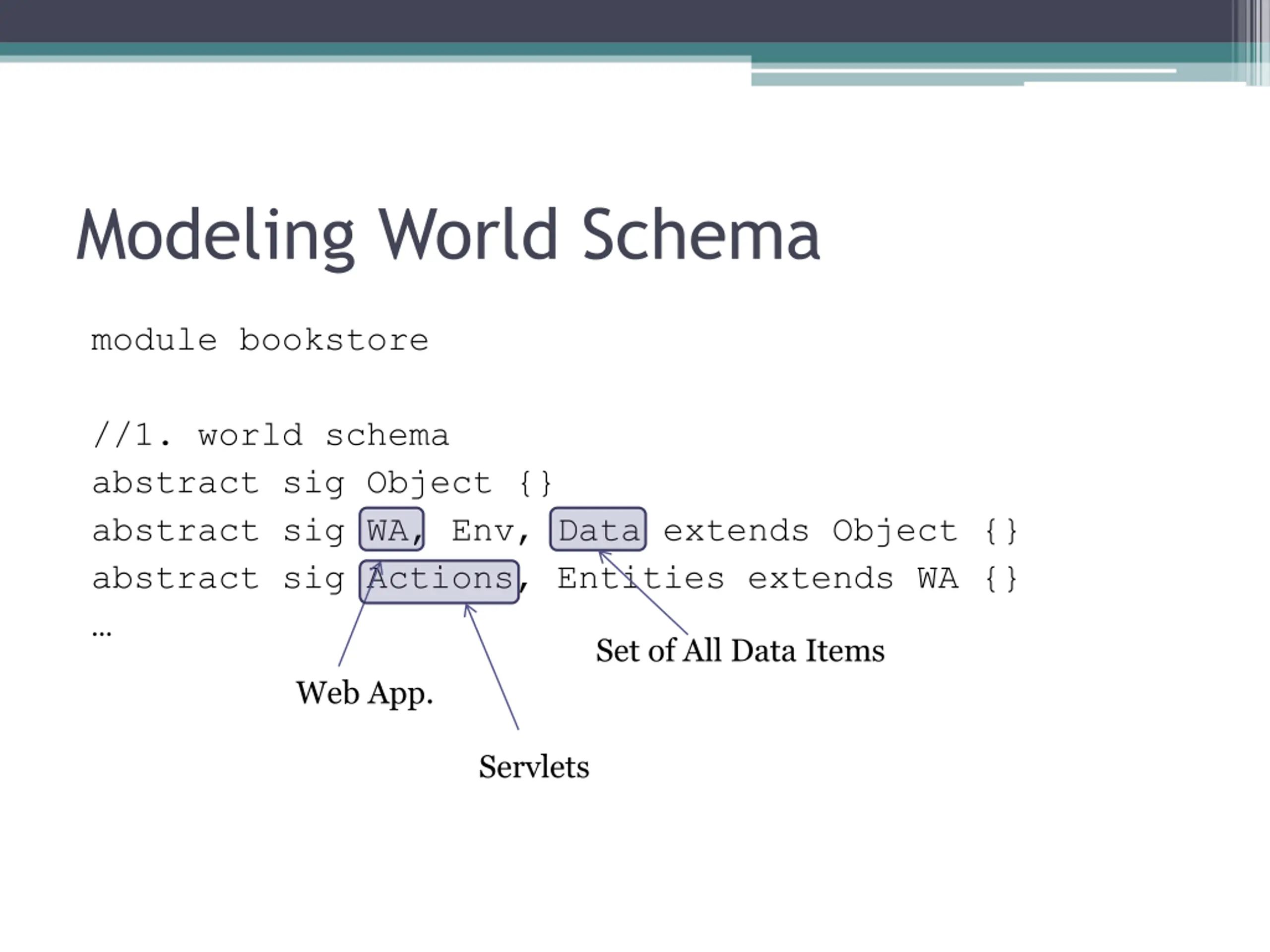

Modeling World Schema module bookstore //1. world schema abstract sig Object {} abstract sig WA, Env, Data extends Object {} abstract sig Actions, Entities extends WA {} Set of All Data Items Web App. Servlets

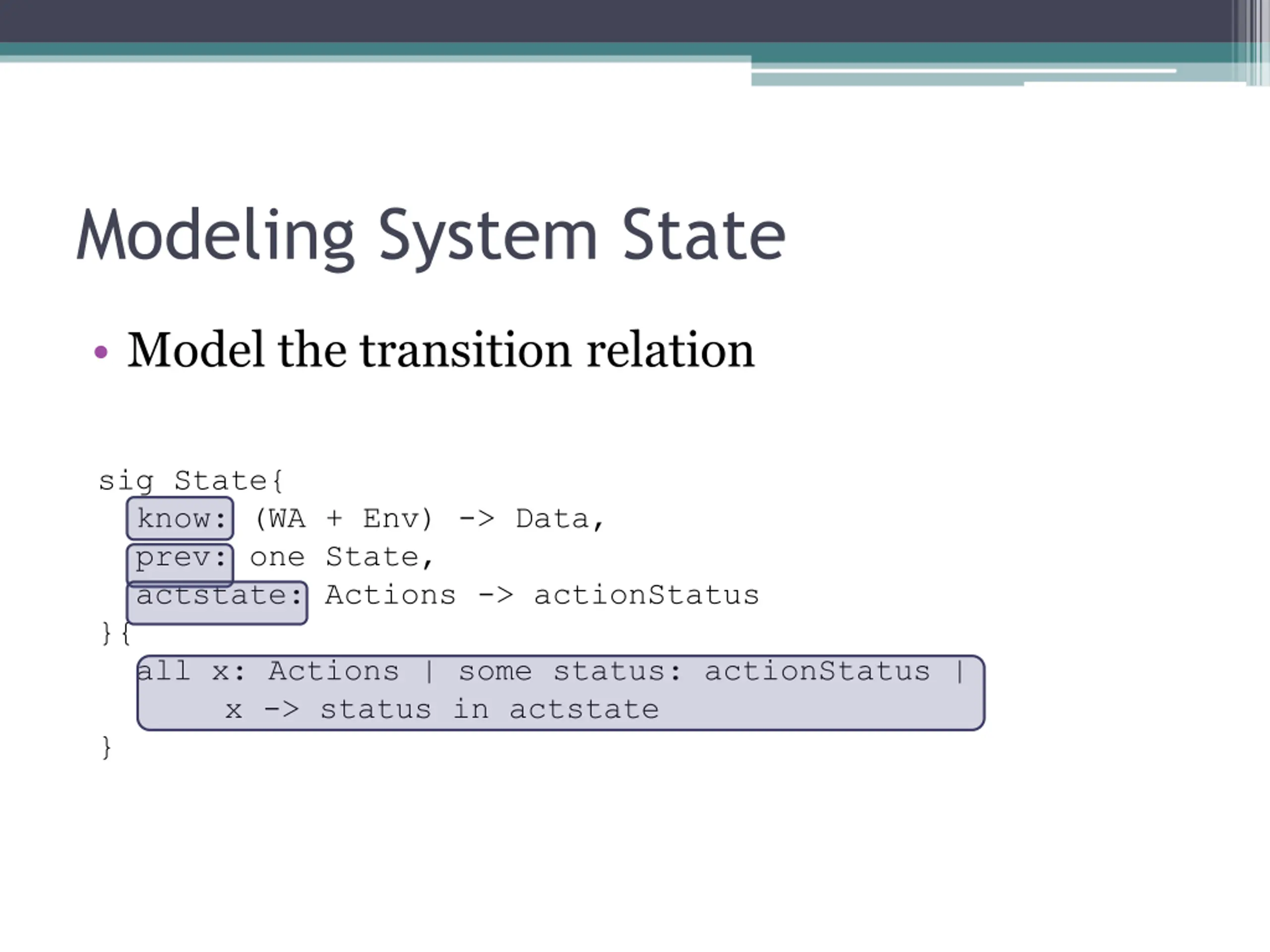

Modeling System State Model the transition relation sig State{ know: (WA + Env) -> Data, prev: one State, actstate: Actions -> actionStatus }{ all x: Actions | some status: actionStatus | x -> status in actstate }

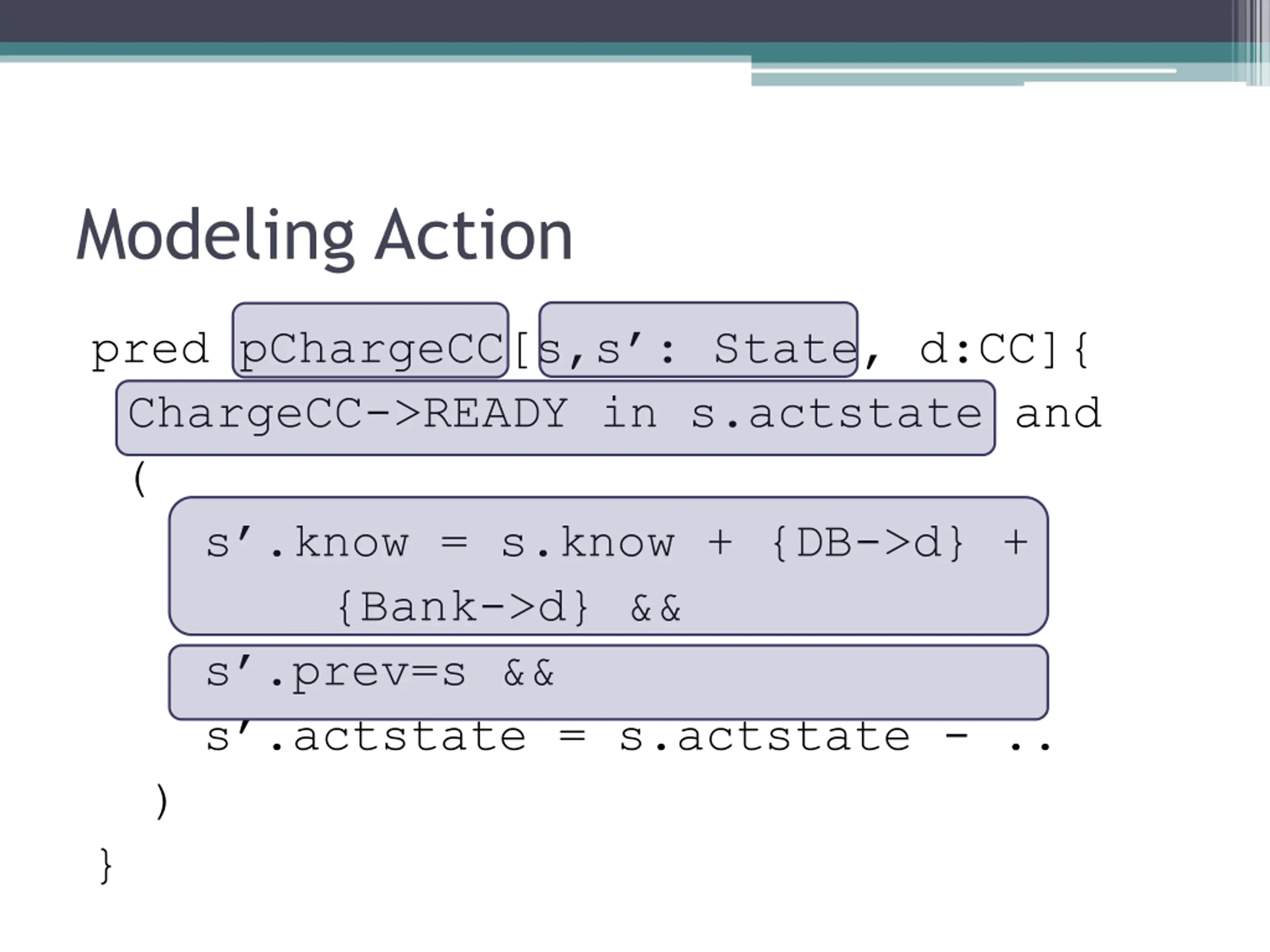

Modeling Action pred pChargeCC[s,s : State, d:CC]{ ChargeCC->READY in s.actstate and ( s .know = s.know + {DB->d} + {Bank->d} && s .prev=s && s .actstate = s.actstate - .. ) }

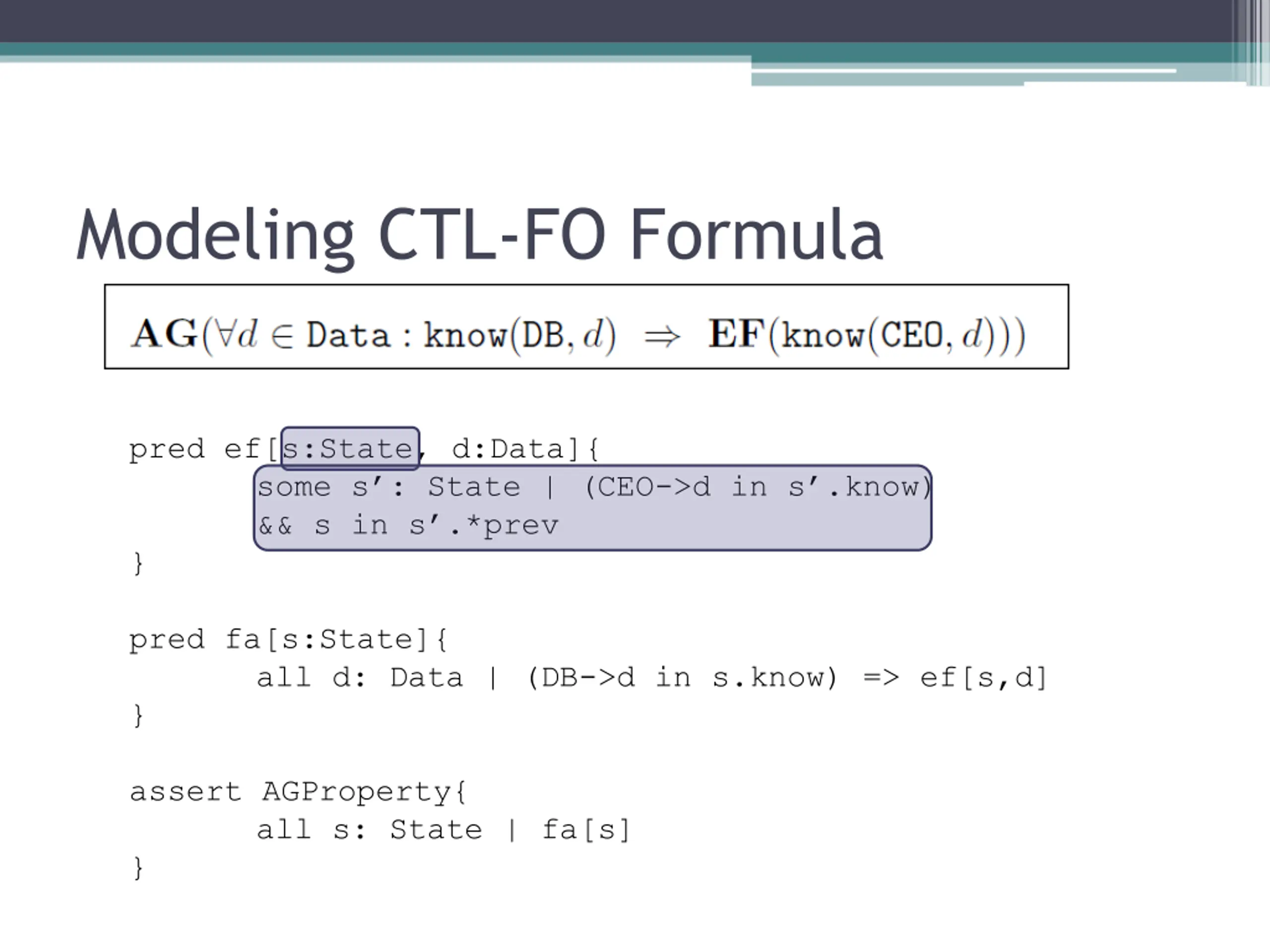

Modeling CTL-FO Formula pred ef[s:State, d:Data]{ some s : State | (CEO->d in s .know) && s in s .*prev } pred fa[s:State]{ all d: Data | (DB->d in s.know) => ef[s,d] } assert AGProperty{ all s: State | fa[s] }

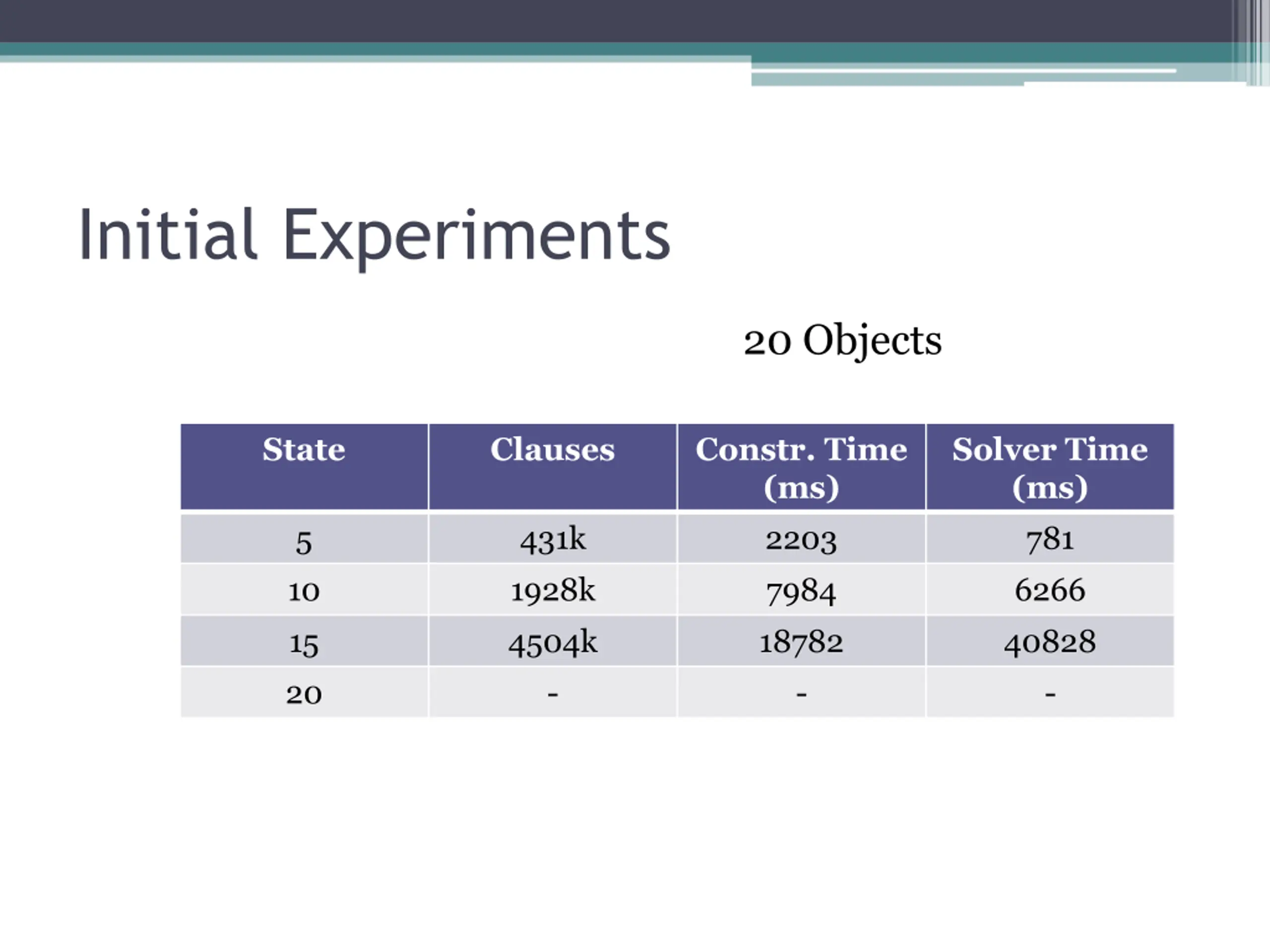

Initial Experiments 20 Objects State Clauses Constr. Time (ms) 2203 7984 18782 - Solver Time (ms) 781 6266 40828 - 5 10 15 20 431k 1928k 4504k -

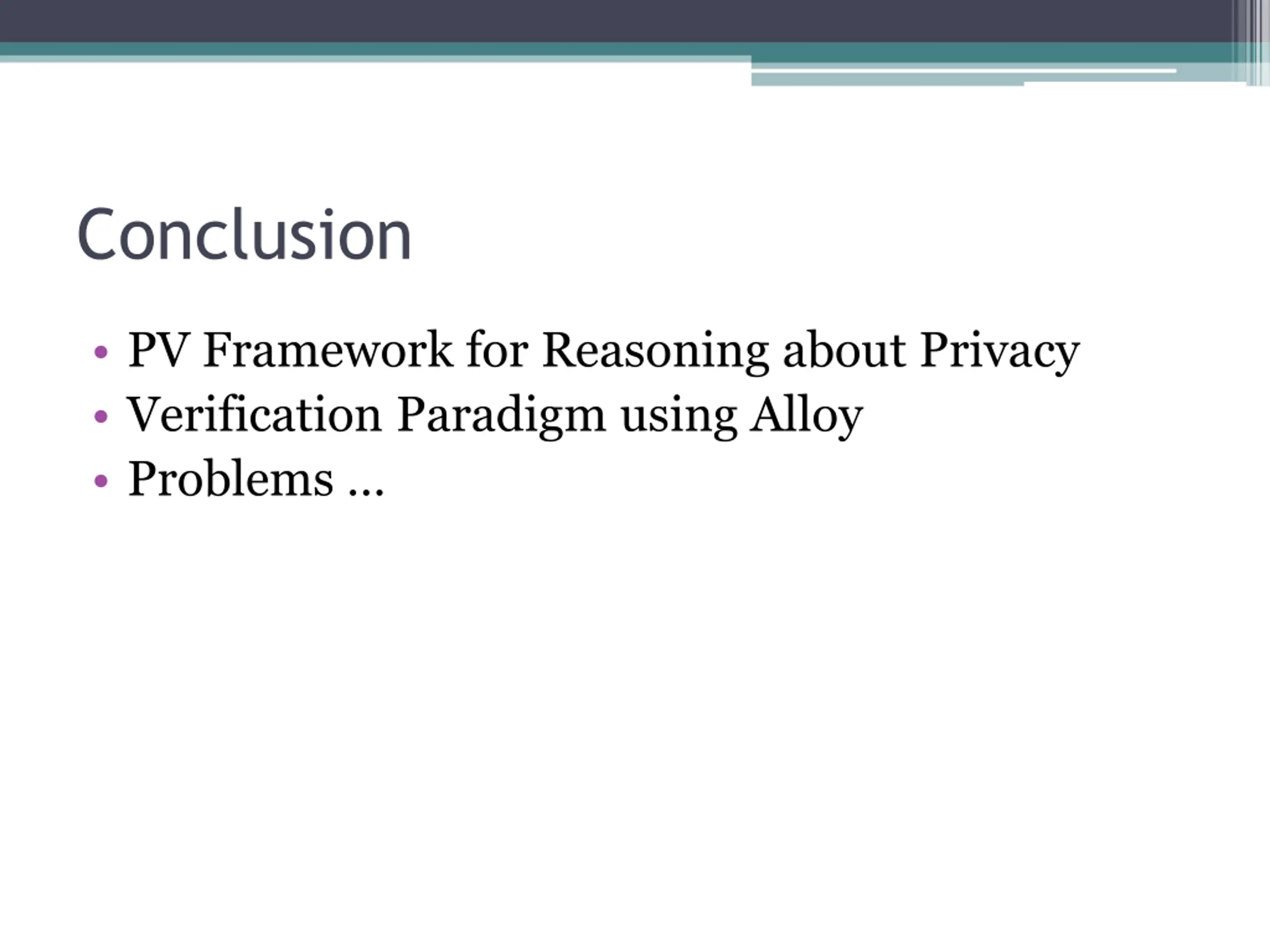

Conclusion PV Framework for Reasoning about Privacy Verification Paradigm using Alloy Problems

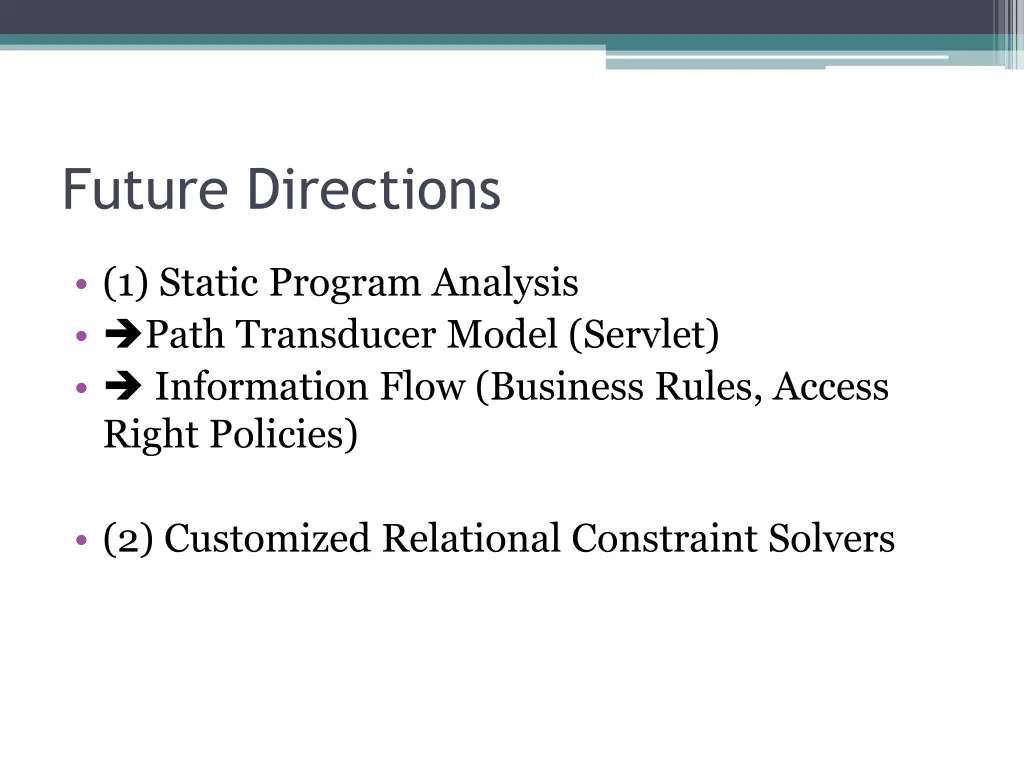

Future Directions (1) Static Program Analysis Path Transducer Model (Servlet) Information Flow (Business Rules, Access Right Policies) (2) Customized Relational Constraint Solvers
