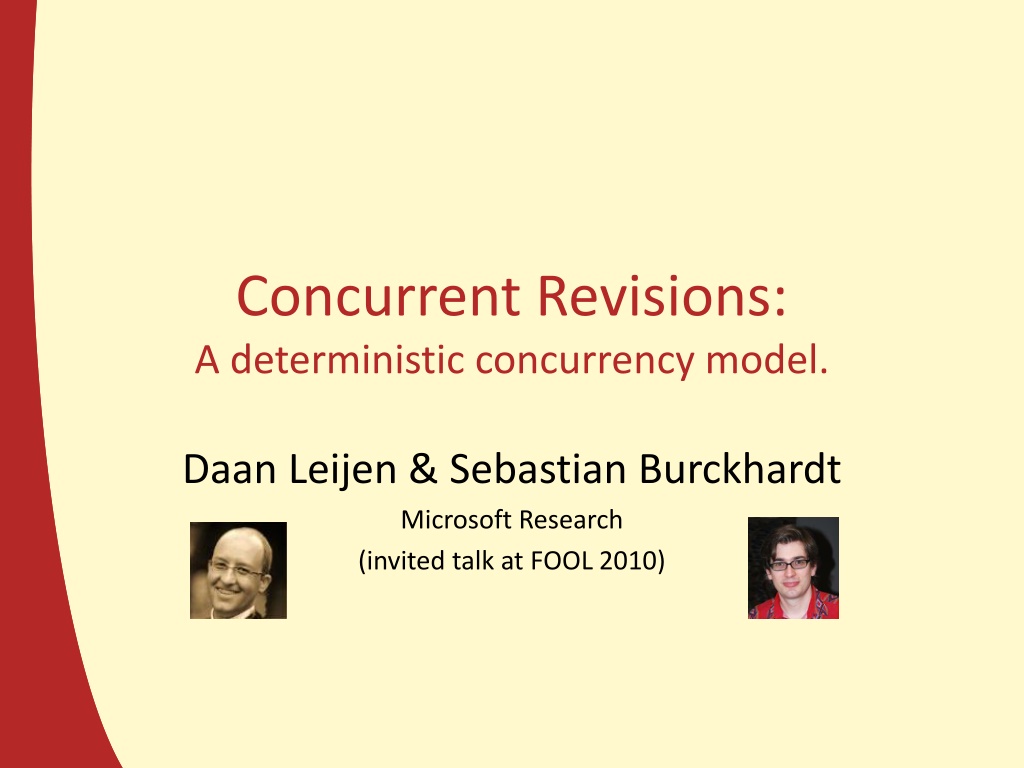

Concurrent Revisions: A deterministic concurrency model. Daan Leijen & Sebastian Burckhardt Microsoft Research (invited talk at FOOL 2010)

Algorithmic/ Scientific Special-Purpose Interactive/ Reactive Operating System Desktop Applications Data Mining Biology Chemistry Physics Database Games Multimedia Signal Processing Concurrent Programming Threads & Locks, Futures, Promises, Transactions, ... Parallel Programming TPL, Fortran, MPI, Cilk, StreamIt, X10, Cuda, ... ? Our Focus.

Application = Shared Data and Tasks Example: Office application Save the document React to keyboard input by the user Perform a spellcheck in the background Exchange updates with collaborating remote users Reader Reader R Mutator R R R Shared Data Mutator Mutator Reader Mutator

Beginning .NET Game Programming in C# Spacewars!

Examples from SpaceWars Game Example 1: read-write conflict Render task reads position of all game objects Physics task updates position of all game objects => Render task needs to see consistent snapshot Example 2: write-write conflict Physics task updates position of all game objects Network task updates position of some objects => Network has priority over physics updates

Conventional Concurrency Control Conflicting tasks can not efficiently execute in parallel. pessimistic concurrency control use locks to avoid parallelism where there are (real or potential) conflicts optimistic concurrency control speculate on absence of conflicts rollback if there are real conflicts either way: true conflicts kill parallel performance.

Our Proposed Programming Model: Revisions and Isolation Types Revision A logical unit of work that is forked and joined Isolation Type A type which implements automatic copying/merging of versions on write-write conflict Deterministic Conflict Resolution, never roll-back Full concurrent reading and writing of shared data No restrictions on tasks (can be long-running, do I/O) Clean semantics Fast and space-efficient runtime implementation

Whats new Isolation types: declares shared data fork revision: forks off a private copy of the shared state Traditional Task Concurrent Revisions int x = 0; task t = fork { x = 1; } assert(x==0 || x==1); join t; assert(x==1); versioned<int> x = 0; revision r = rfork { x = 1; } assert(x==0); join r; assert(x==1); isolation: Concurrent modifications are not seen by others Isolation: side effects are only visible when the revision is joined. Deterministic execution! join revision: waits for the revision to terminate and writes back changes into the main revision

Sequential Consistency int x = 0; int y = 0; task t = fork { if (x==0) y++; } if (y==0) x++; join t; assert( (x==0 && y==1) || (x==1 && y==0) || (x==1 && y==1)); Concurrent Revisions Transactional Memory int x = 0; int y = 0; task t = fork { atomic { if (x==0) y++; } } atomic { if (y==0) x++; } join t; versioned<int> x = 0; versioned<int> y = 0; revision r = rfork { if (x==0) y++; } if (y==0) x++; join r; assert( (x==0 && y==1) || (x==1 && y==0)); assert(x==1 && y==1);

Conflict resolution By default, on a write-write conflict (only), the modification in the child revision wins. Versioned<int> x; x = 0 x = 0 x = 0 x = 1 x = 2 x = 1 x = 0 x = 1 assert( x==2 ) assert( x==0 ) assert( x==1 )

Custom conflict resolution Cumulative<int, (main,join,orig).main + join orig> x; x = 0 0 x += 1 x += 2 merge(1,2,0) 3 1 2 assert(x==3)

x = 0 0 x += 1 x += 2 2 x += 3 merge(1,2,0) 3 1 2 3 5 merge(3,5,2) 6 assert( x==6 )

A Software engineering perspective Transactional memory: Codecentric: put atomic in the code Granularity: too broad: too many conflicts and no parallel speedup too small: potential races and incorrect code Concurrent revisions: Data centric: put annotations on the data Granularity: group data that have mutual constraints together, i.e. if (x + y > 0) should hold, then x and y should be versioned together.

Current Implementation: C# library For each versioned object, maintain multiple copies Map revision ids to versions `mostly lock-free array Revision Value 1 0 40 2 45 7 New copies are allocated lazily Don t copy on fork copy on first write after fork Old copies are released on join No space leak

Demo class Sample { [Versioned] int i = 0; public void Run() { var t1 = CurrentRevision.Fork(() => { i += 1; }); var t2 = CurrentRevision.Fork(() => { i += 2; }); i+=3; CurrentRevision.Join(t1); CurrentRevision.Join(t2); Console.WriteLine("i = " + i); } }

Demo: Sandbox Fork a revision without forking an associated task/thread class Sandbox { [Versioned] int i = 0; public void Run() { var r = CurrentRevision.Branch("FlakyCode"); try { r.Run(() => { i = 1; throw new Exception("Oops"); }); CurrentRevision.Merge(r); } catch { CurrentRevision.Abandon(r); } Console.WriteLine("\n i = " + i); } } Run code in a certain revision Merge changes in a revision into the main one Abandon a revision and don t merge its changes.

By construction, there is no global state: just local state for each revision State is simply a (partial) function from a location to a value

Operational Semantics For some revision r, with snapshot and local modifications and an expression context with hole( x.e) v the state is a composition of the root snapshot and local modifications On a join, the writes of the joinee r take priority over the writes of the current revision: :: On a fork, the snapshot of the new revision r is the current state: ::

Custom merge: per location (type) No conflict if a location was not written in the joinee On a join, using a merge function. No conflict if a location was unmodified in the current revision, use the value of the joinee Conflict otherwise, use a location/type specific merge function Standard merges:

What is a conflict? Merge is only called if: (1) write in child, and (2) modification in main revision: Cumulative<int> x = 0 0 x += 2 2 No conflict (merge function is not called) x += 3 0 2 2 5 No conflict (merge function is not called) assert( x = 5 )

Merging with failure On fail, we just ignore any writes in the joinee

Snapshot isolation Widely used in databases, for example Oracle and Microsoft SQL In essence, in snapshot isolation a concurrent transaction can only complete in the absence of write-write conflicts. Our calculus generalizes snapshot isolation: We support arbitrary nesting We allow custom merge functions to resolve write-write conflicts deterministically

Snapshot isolation We can succinctly model snapshot isolation as: Disallow nesting Use the default merge: Some versions of snapshot isolation do not treat silent writes in a transaction as a conflict:

Sequential merges We can view each location as an abstract data types (i.e. object) with certain operations (i.e. methods). If a merge function always behaves as if concurrent operations for those objects are sequential, we call it a sequential merge. Such objects always behave as if the operations in the joinee are all done sequentially at the join point.

Sequential merges x = o A merge is sequential if: u merge(uw1(o), uw2(o), u(o)) = uw1w2(o) w1 w2 Anduw1w2(o) merge(uw1(o), uw2(o), u(o))

Abelian merges For any abstract data type that forms an abelian group (associative, commutative, with inverses) with neutral element 0 and an operation , the following merge is sequential: merge(v,v ,v0) = v v v0 This holds for example for additive integers and additive sets.

SpaceWars Game Parallel Collision Detection Parallel Collision Detection Parallel Collision Detection Render Screen Graphics Card Simulate Physics Sequential Game Loop: Play Sounds Shared State Send Process Inputs Receive Autosave Key- board Network Connection Disk

Revision Diagram for Parallelized Game Loop Coll. Det. 4 Coll. Det. 1 Coll. Det. 2 Coll. Det. 3 network Render Physics (long running) autosave

Problem Example 1 is solved Render task reads position of all game objects Physics task updates position of all game objects No interference! Coll. Det. 4 Coll. Det. 1 Coll. Det. 2 Coll. Det. 3 network Render Physics (long running) autosave

Problem Example 2 is solved. Physics task updates position of all game objects Network task updates position of some objects Network updates have priority over physics updates Order of joins establishes precedence! Coll. Det. 4 Coll. Det. 1 Coll. Det. 2 Coll. Det. 3 network Render Physics (long running) autosave

Results Autosave now perfectly unnoticeable in background Overall Speed-Up: 3.03x on four-core (almost completely limited by graphics card)

Overhead: How much does all the copying and the indirection cost?

Conclusion Revisions and Isolation Types simplify the parallelization of applications with tasks that Exhibit conflicting accesses to shared data Have unpredictable latency Have unpredictable data access pattern May perform I/O that can not be rolled back Revisions and Isolation Types are easy to reason about (determinism, isolation) have low-enough overhead for many applications
