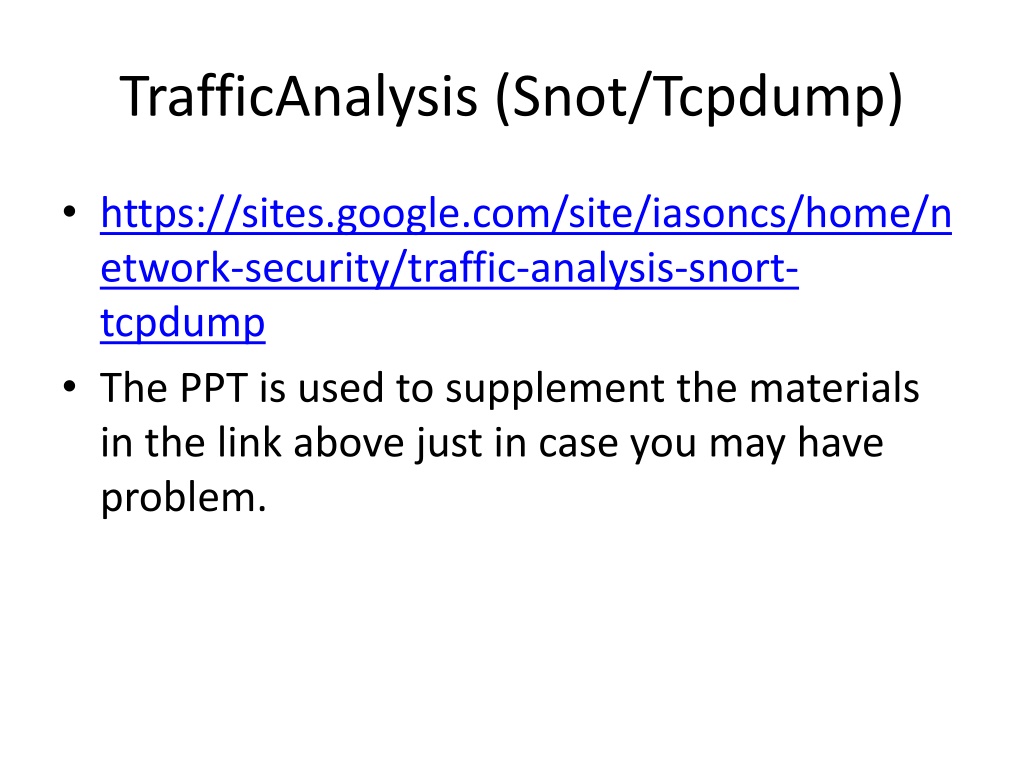

1. TrafficAnalysis (Snot/Tcpdump) https://sites.google.com/site/iasoncs/home/n etwork-security/traffic-analysis-snort- tcpdump The PPT is used to supplement the materials in the link above just in case you may have problem.

2. You should be fine if you follow these rules, good luck! Rule 1: install android studio instead of adb mentioned in the link Rule 2: copy tcpdump file into your rooted device by following the instructions in this PPT instead of those in the link. Rule 3: root your device Rule 4: set the ip address (variable) in client code with the actual ip address of your desktop where the server is running.

3. Root your device http://www.mashinie.com/iroot-rooting- guide.html Help you obtain root privilege so that you can copy/move/delete files in your device through adb shell.

4. Install Android Studio ..

5. Install tcpdump in your device http://www.androidtcpdump.com/android- tcpdump/downloads Open cmd > adb push path/to/tcpdump /sdcard/tcpdump > adb shell > su (allow root privilege from your device as promoted) > cp /sdcard/tcpdump /data/local/tcpdump

6. Download code https://sites.google.com/site/iasoncs/home/n etwork-security/traffic-analysis-snort- tcpdump Download server and client code from the bottom of the link above. Run client in your rooted device through your android studio Run server code from your cmd (go to bin dir) > java TCPDesktopServer

7. Now following 2. Catch the Information section in https://sites.google.com/site/iasoncs/home/n etwork-security/traffic-analysis-snort- tcpdump
