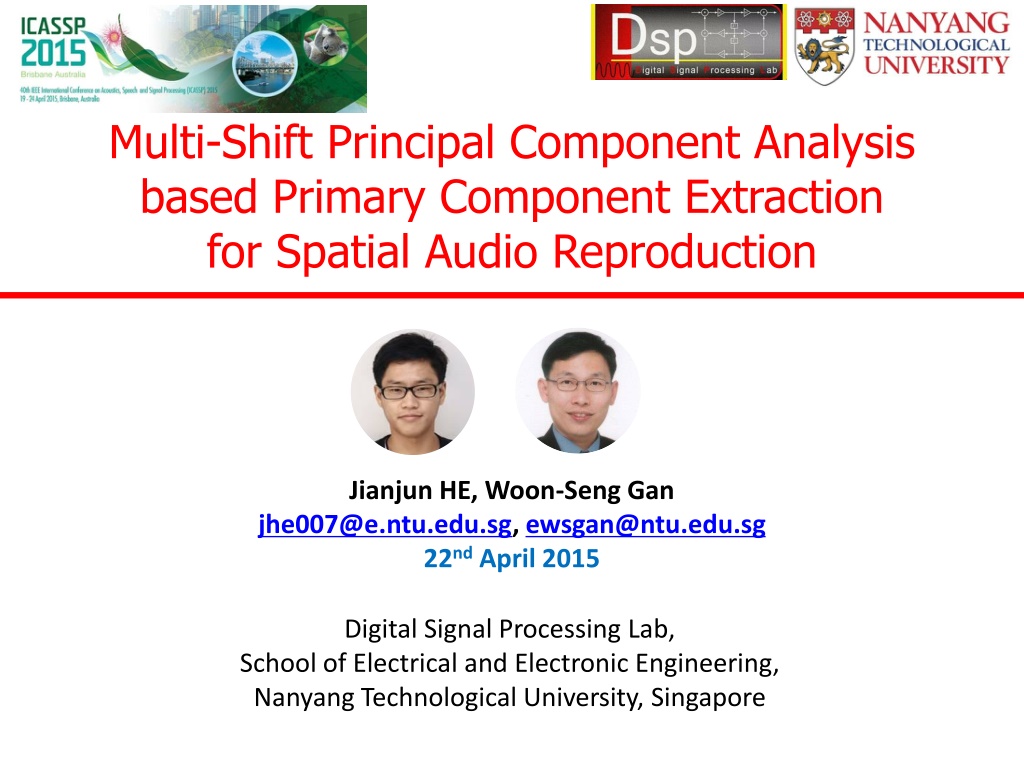

Multi-Shift Principal Component Analysis based Primary Component Extraction for Spatial Audio Reproduction Jianjun HE, Woon-Seng Gan jhe007@e.ntu.edu.sg, ewsgan@ntu.edu.sg 22nd April 2015 Digital Signal Processing Lab, School of Electrical and Electronic Engineering, Nanyang Technological University, Singapore

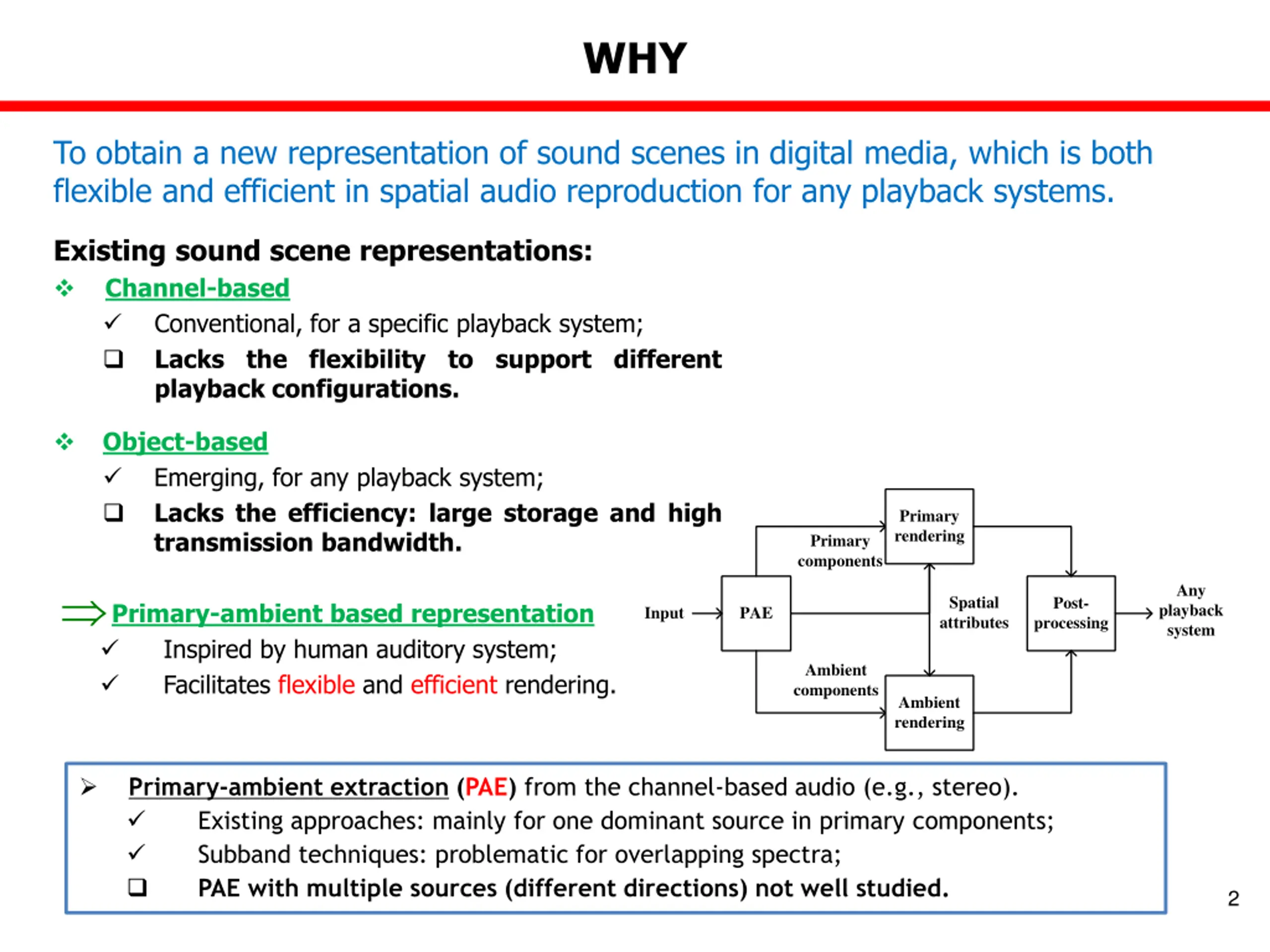

WHY To obtain a new representation of sound scenes in digital media, which is both flexible and efficient in spatial audio reproduction for any playback systems. Existing sound scene representations: Channel-based Conventional, for a specific playback system; Lacks the flexibility to support different playback configurations. Object-based Emerging, for any playback system; Lacks the efficiency: large storage and high transmission bandwidth. Primary rendering Primary components Any Spatial attributes Post- processing Primary-ambient based representation Inspired by human auditory system; Facilitates flexible and efficient rendering. playback system Input PAE Ambient components Ambient rendering Primary-ambient extraction (PAE) from the channel-based audio (e.g., stereo). Existing approaches: mainly for one dominant source in primary components; Subband techniques: problematic for overlapping spectra; PAE with multiple sources (different directions) not well studied. 2

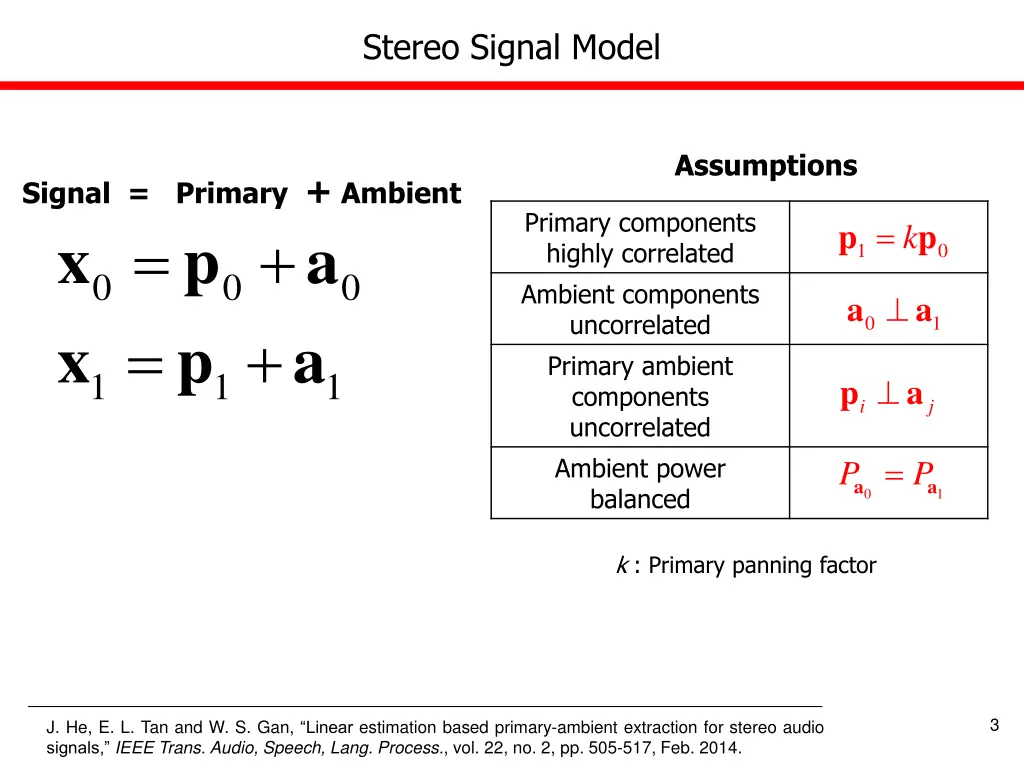

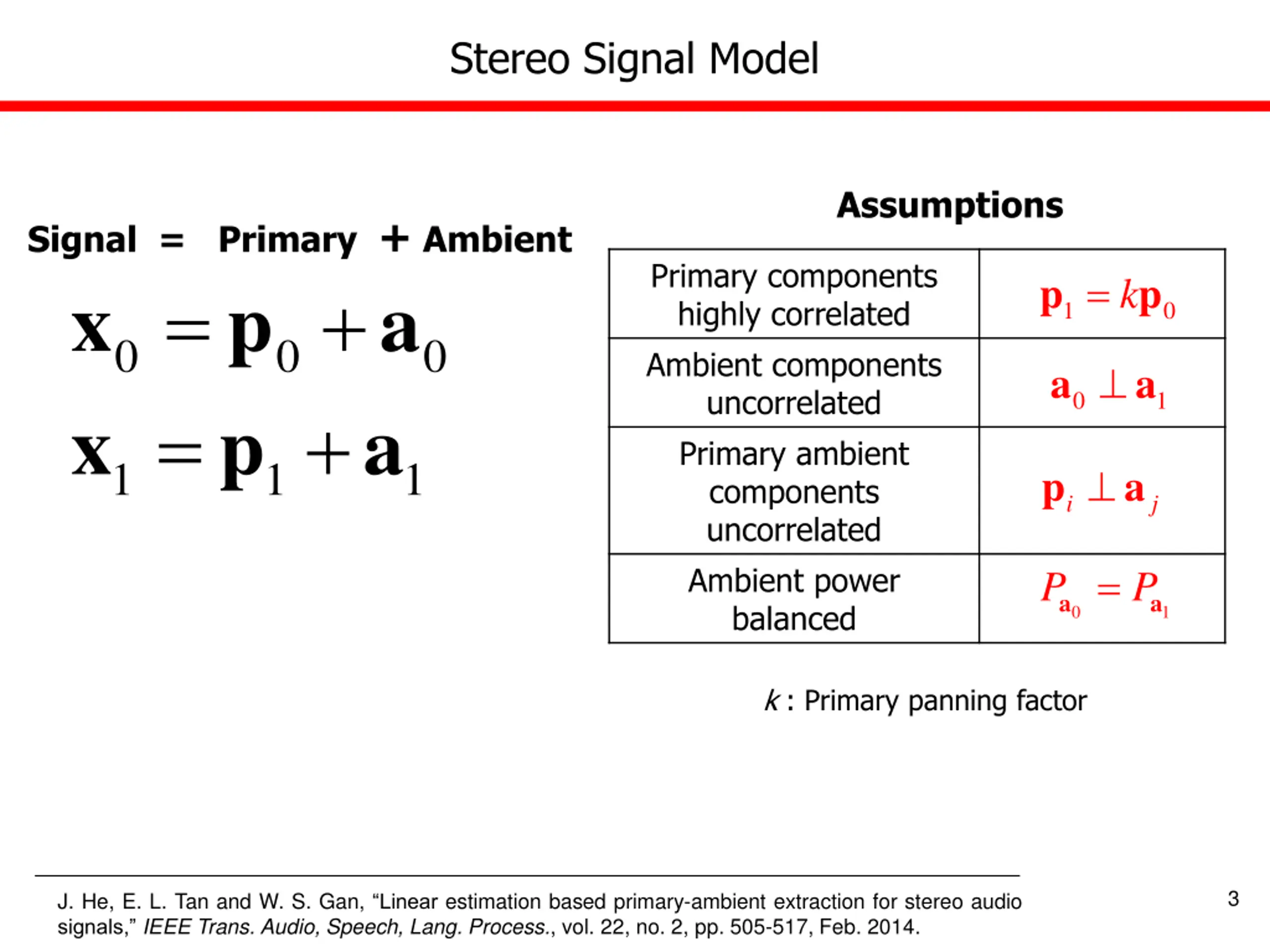

Stereo Signal Model Assumptions Signal = Primary + Ambient Primary components highly correlated Ambient components uncorrelated Primary ambient components uncorrelated Ambient power balanced = p p k = = + + x x p p a a 1 0 0 0 0 a a 0 1 1 1 1 p a i j = P P a a 0 1 k : Primary panning factor 3 J. He, E. L. Tan and W. S. Gan, Linear estimation based primary-ambient extraction for stereo audio signals, IEEE Trans. Audio, Speech, Lang. Process., vol. 22, no. 2, pp. 505-517, Feb. 2014.

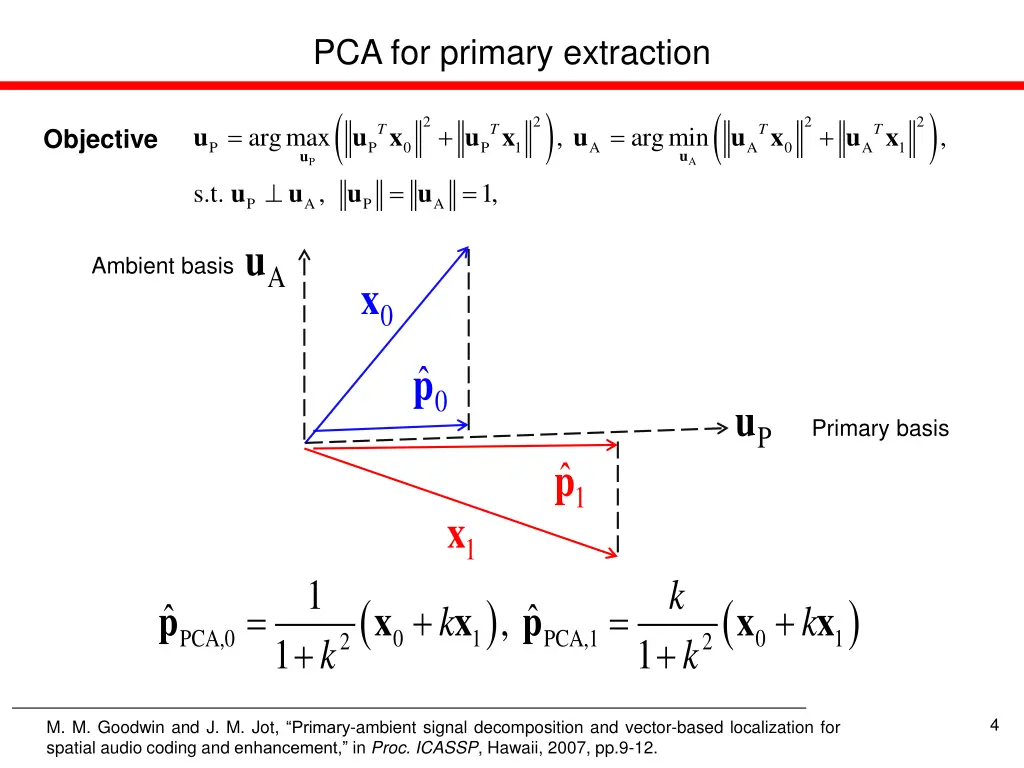

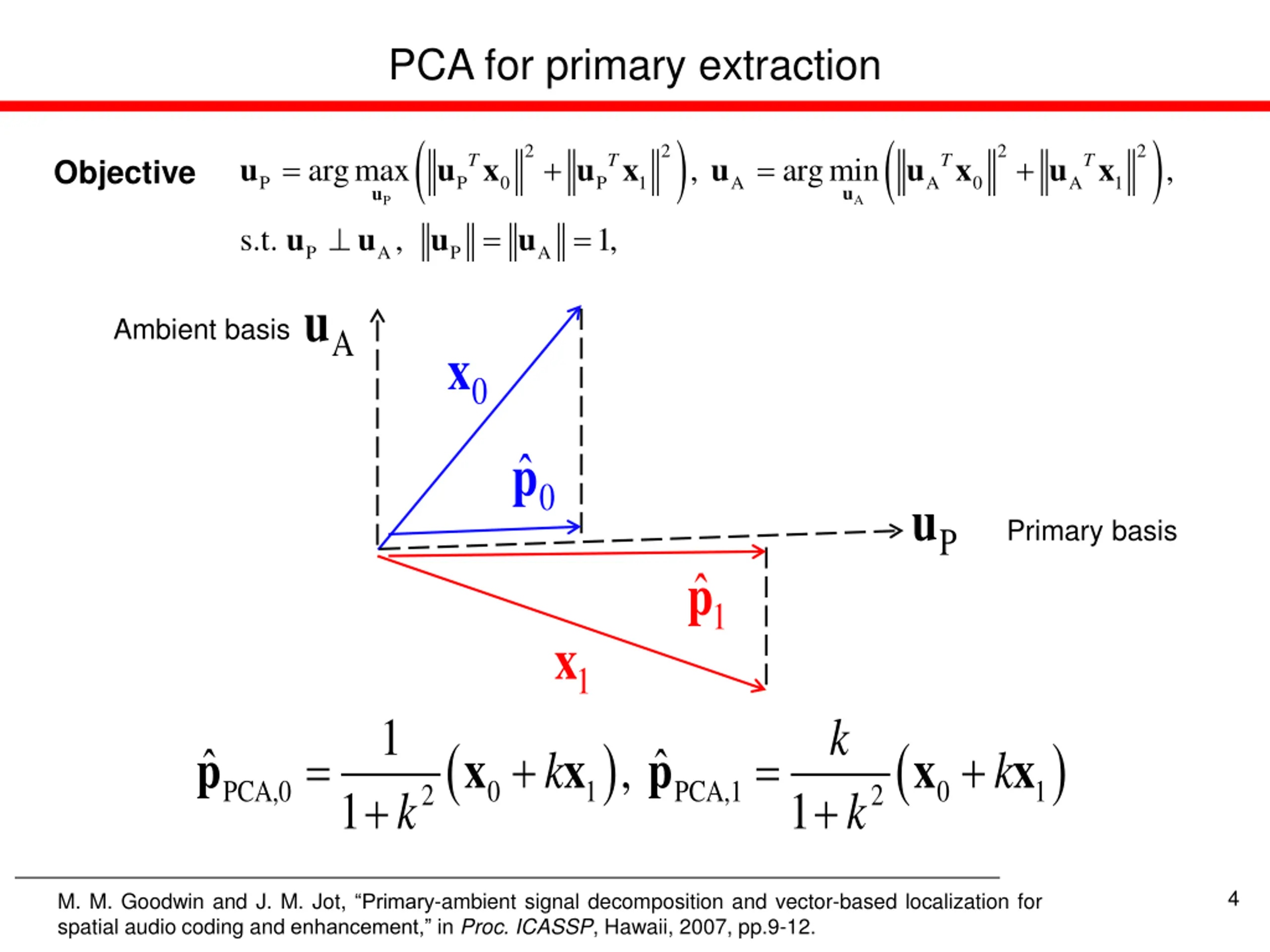

PCA for primary extraction ) ) ( ( 2 2 2 2 = + = + T T T T u u x u x u u x u x argmax , argmin , Objective P P 0 P 1 A A 0 A 1 u u A P = = u u u u s.t. , 1, P A P A u Ambient basis A 0x 0 p u Primary basis P 1 p 1x 1 k ( ) ( ) = + = + p p x x x x , k k PCA,0 0 1 PCA,1 0 1 + + 2 2 1 1 k k 4 M. M. Goodwin and J. M. Jot, Primary-ambient signal decomposition and vector-based localization for spatial audio coding and enhancement, in Proc. ICASSP, Hawaii, 2007, pp.9-12.

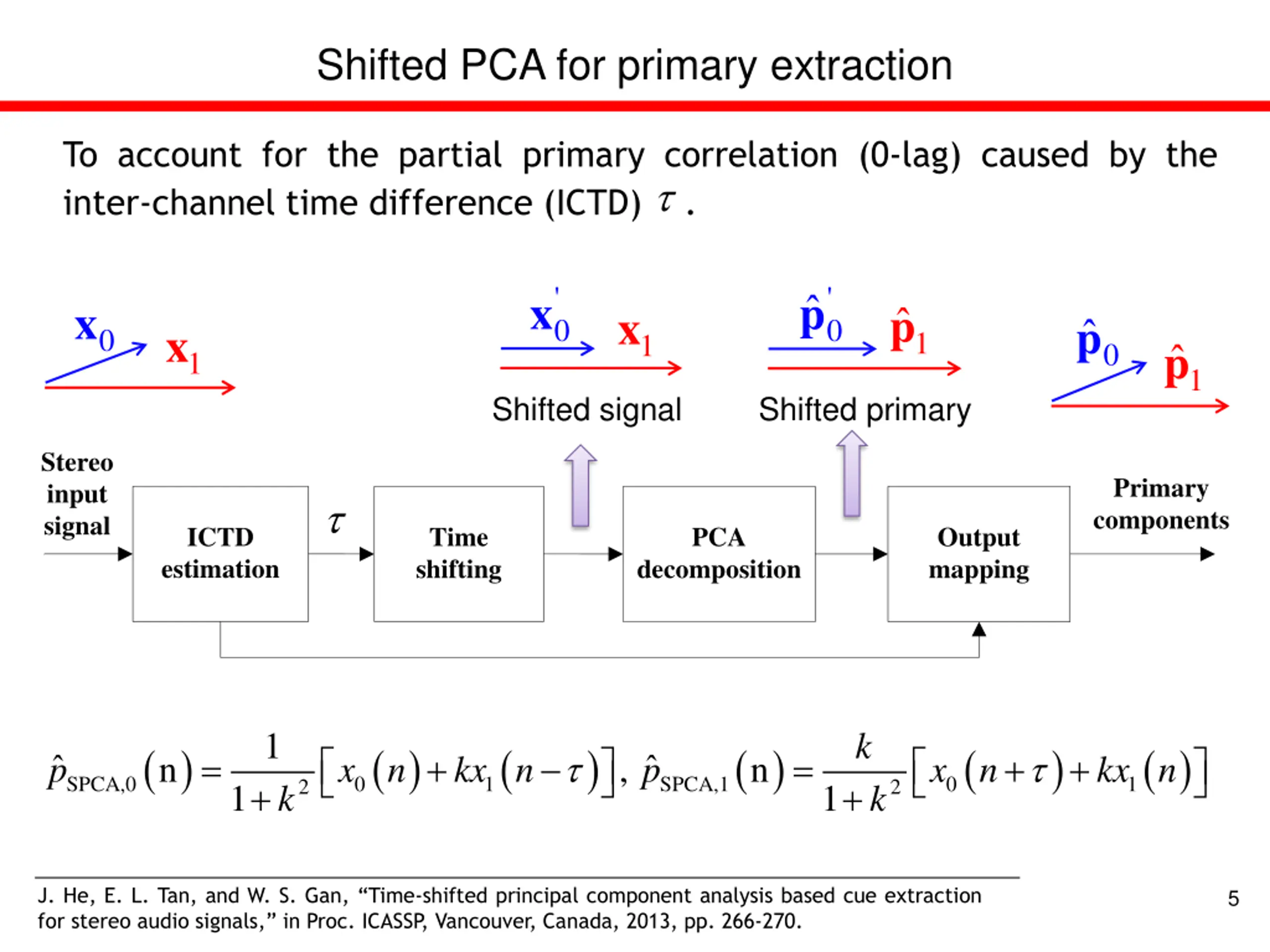

Shifted PCA for primary extraction To account for the partial primary correlation (0-lag) caused by the inter-channel time difference (ICTD) . ' 0 ' 0 p x x 1 p 1 x 0 p 1 x 0 1 p Shifted signal Shifted primary Stereo input signal Primary components ICTD estimation Time shifting Output mapping PCA decomposition 1 k ( ) n ( ) ( ) ( ) n ( ) ( ) = + = + + , SPCA,0 p x n kx n SPCA,1 p x n kx n 0 1 0 1 + + 2 2 1 1 k k J. He, E. L. Tan, and W. S. Gan, Time-shifted principal component analysis based cue extraction for stereo audio signals, in Proc. ICASSP, Vancouver, Canada, 2013, pp. 266-270. 5

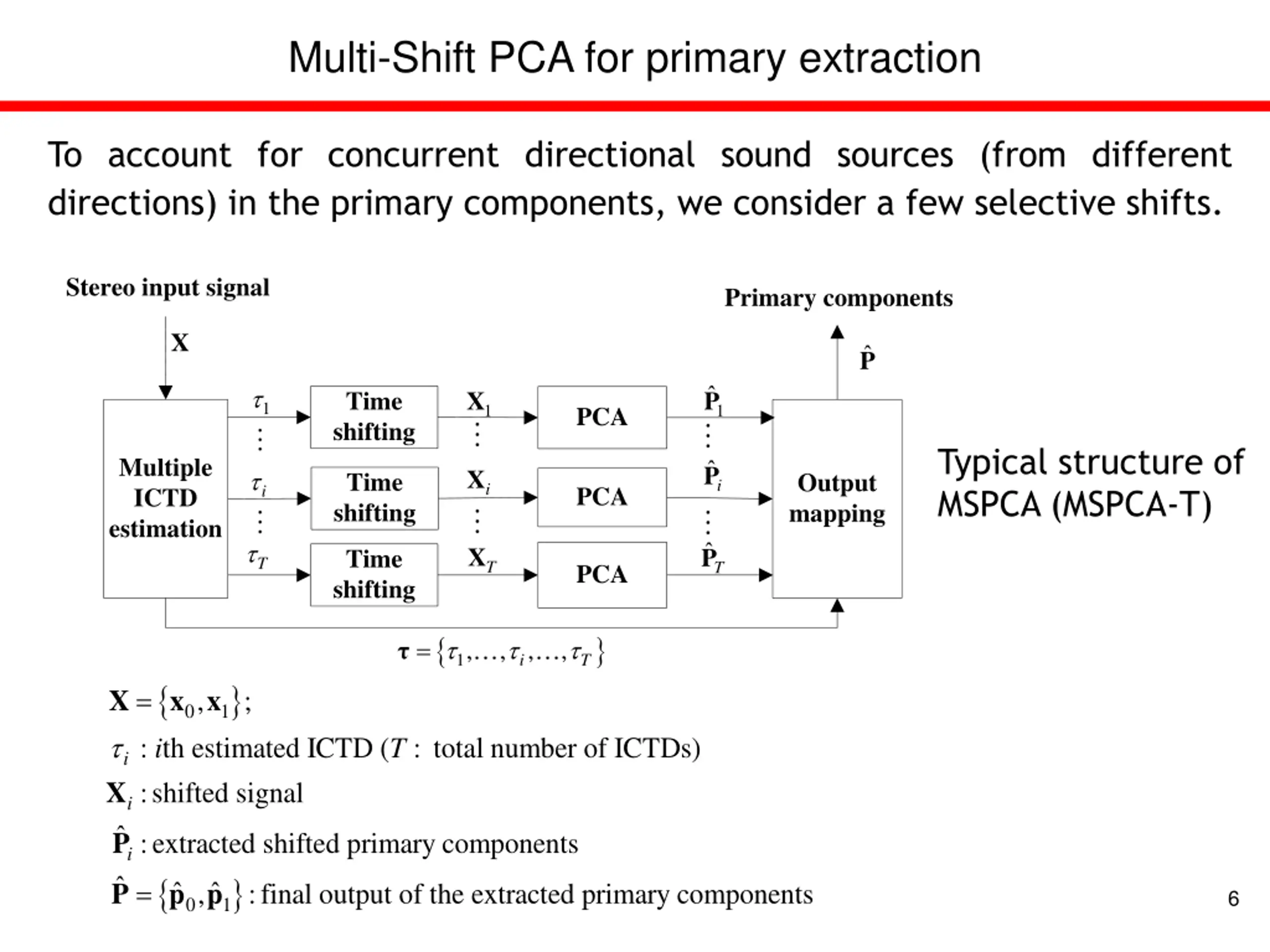

Multi-Shift PCA for primary extraction To account for concurrent directional sound sources (from different directions) in the primary components, we consider a few selective shifts. Stereo input signal Primary components X P 1 P 1 Time shifting X 1 PCA Typical structure of MSPCA (MSPCA-T) Multiple ICTD estimation iP X i Time shifting Output mapping i PCA T P X Time shifting T T PCA = , , 1, , i T i = X x x , ; 0 1 X th estimated ICTD ( : total number of ICTDs) shifted signal : : , final output of the extracted primary compone : = P p p : T i i P extracte d shifted primary components i nts 6 0 1

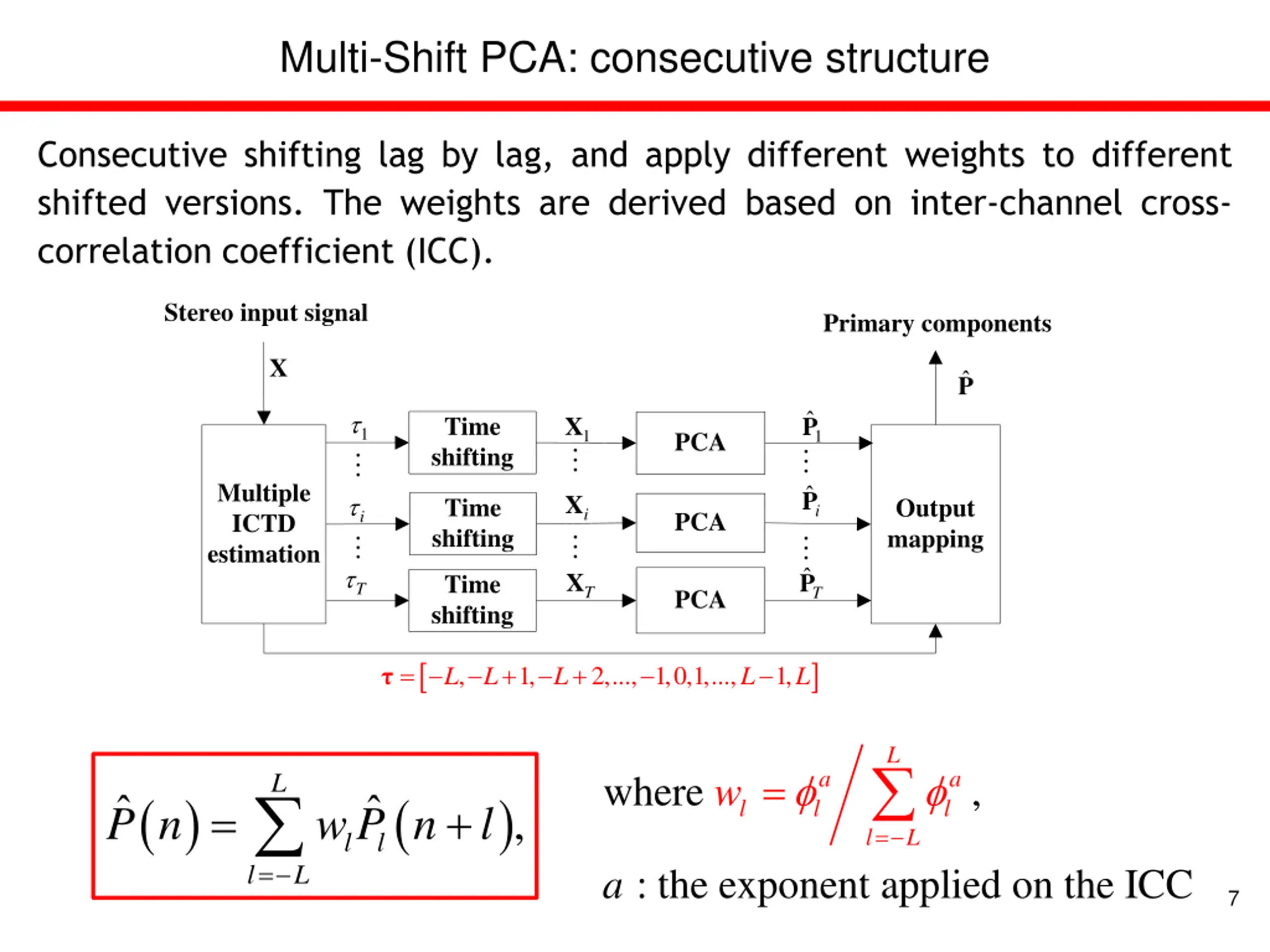

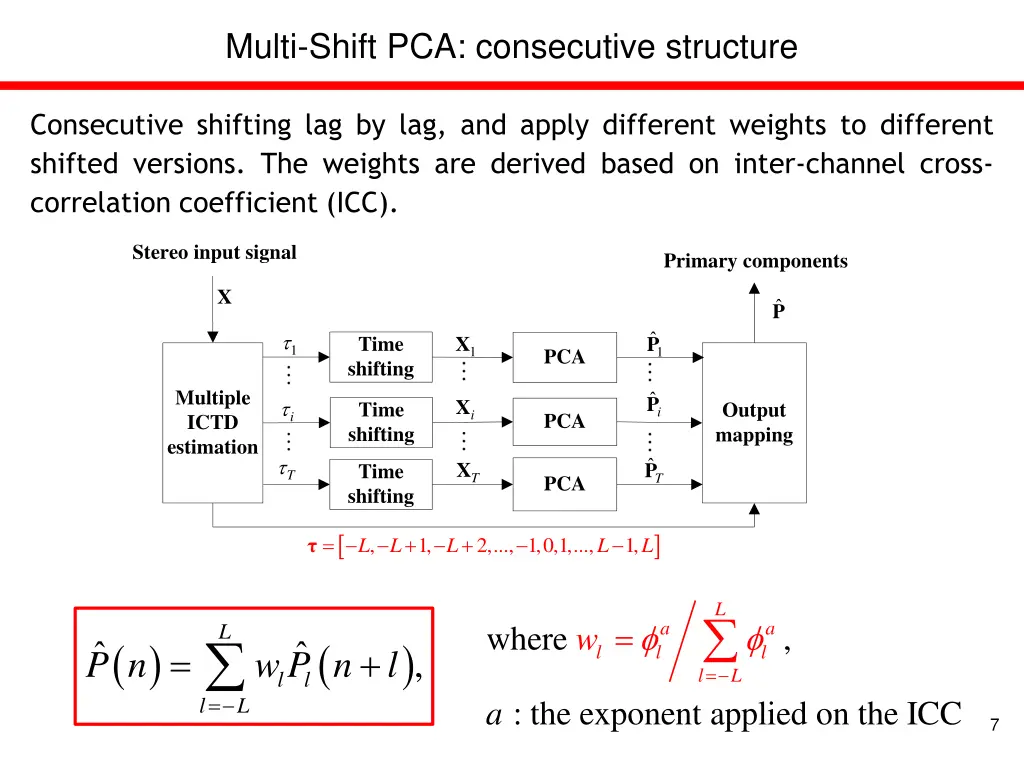

Multi-Shift PCA: consecutive structure Consecutive shifting lag by lag, and apply different weights to different shifted versions. The weights are derived based on inter-channel cross- correlation coefficient (ICC). Stereo input signal Primary components X P 1 P 1 Time shifting X 1 PCA Multiple ICTD estimation iP X i Time shifting Output mapping i PCA T P X Time shifting T T PCA = + + 2,..., 1,0,1,..., , 1, 1, L L L L L L = a l a l where , L w ( ) ( ) = + l , P n wP n l = l L l l = l L : the exponent applied on the ICC a 7

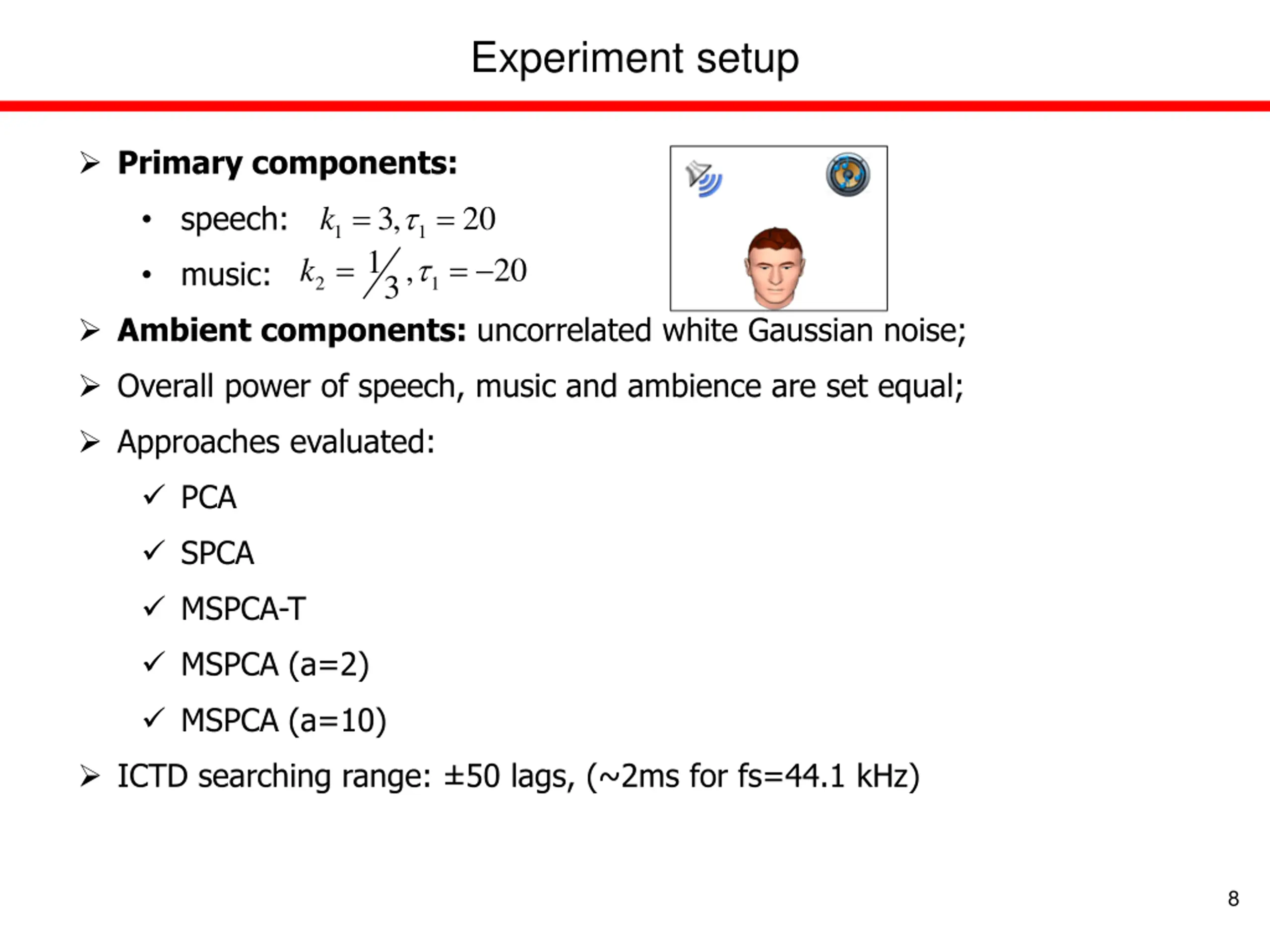

Experiment setup Primary components: = = speech: 3, 1, 3 20 = k 1 = 1 20 k music: 2 1 Ambient components: uncorrelated white Gaussian noise; Overall power of speech, music and ambience are set equal; Approaches evaluated: PCA SPCA MSPCA-T MSPCA (a=2) MSPCA (a=10) ICTD searching range: 50 lags, (~2ms for fs=44.1 kHz) 8

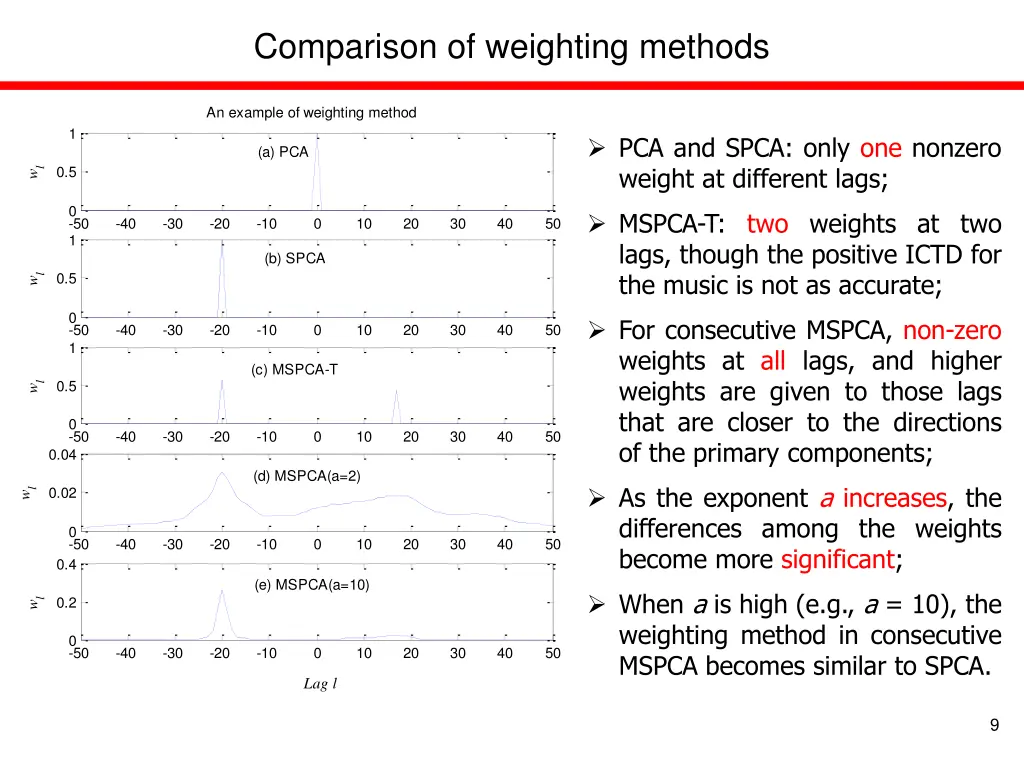

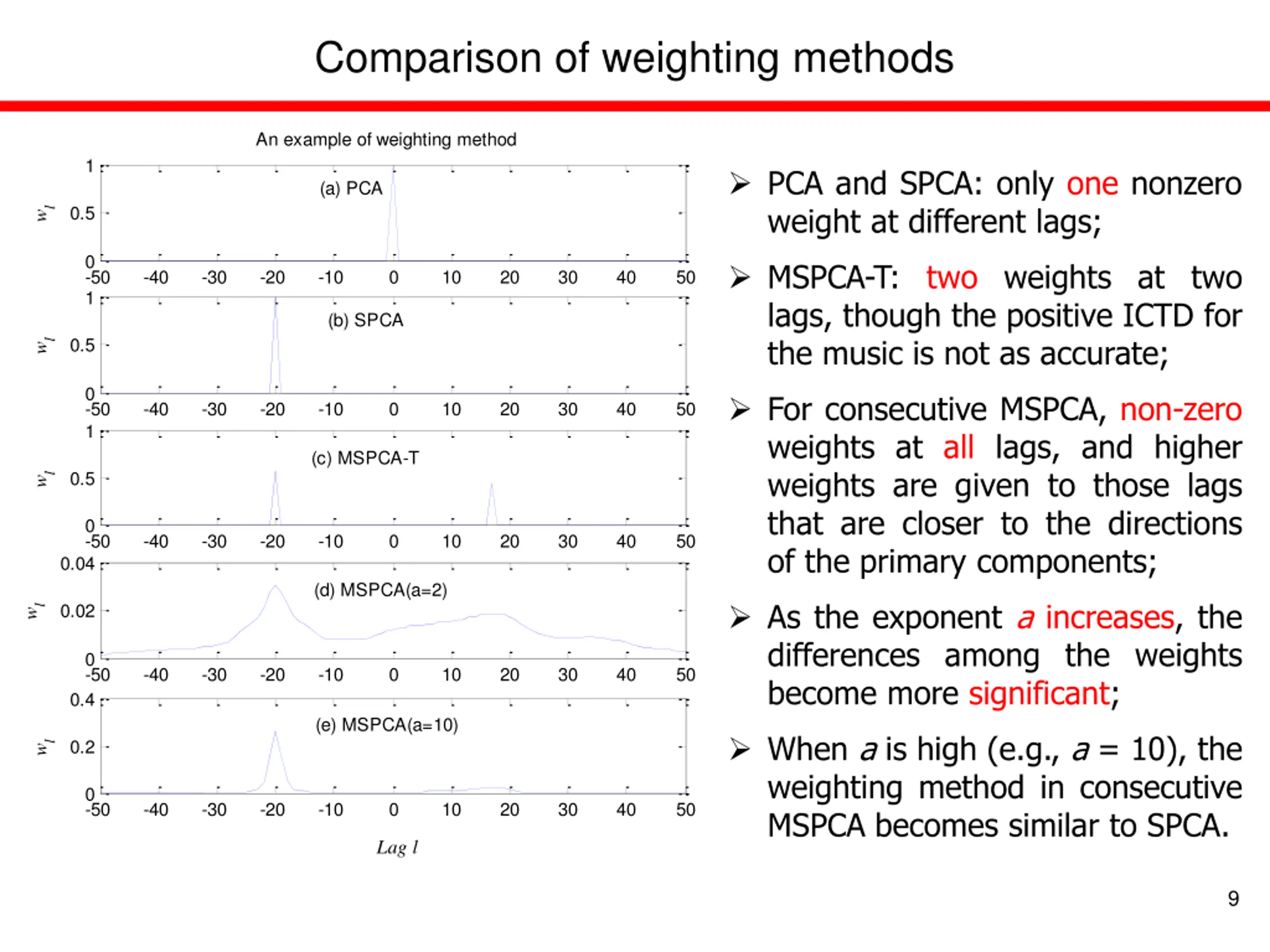

Comparison of weighting methods An example of weighting method 1 PCA and SPCA: only one nonzero weight at different lags; (a) PCA 0.5 wl 0 MSPCA-T: two weights at two lags, though the positive ICTD for the music is not as accurate; -50 1 -40 -30 -20 -10 0 10 20 30 40 50 (b) SPCA 0.5 wl 0 For consecutive MSPCA, non-zero weights at all lags, and higher weights are given to those lags that are closer to the directions of the primary components; -50 1 -40 -30 -20 -10 0 10 20 30 40 50 (c) MSPCA-T 0.5 wl 0 -50 -40 -30 -20 -10 0 10 20 30 40 50 0.04 (d) MSPCA(a=2) As the exponent a increases, the differences among the weights become more significant; 0.02 wl 0 -50 -40 -30 -20 -10 0 10 20 30 40 50 0.4 (e) MSPCA(a=10) When a is high (e.g., a = 10), the weighting method in consecutive MSPCA becomes similar to SPCA. 0.2 wl 0 -50 -40 -30 -20 -10 0 10 20 30 40 50 Lag l 9

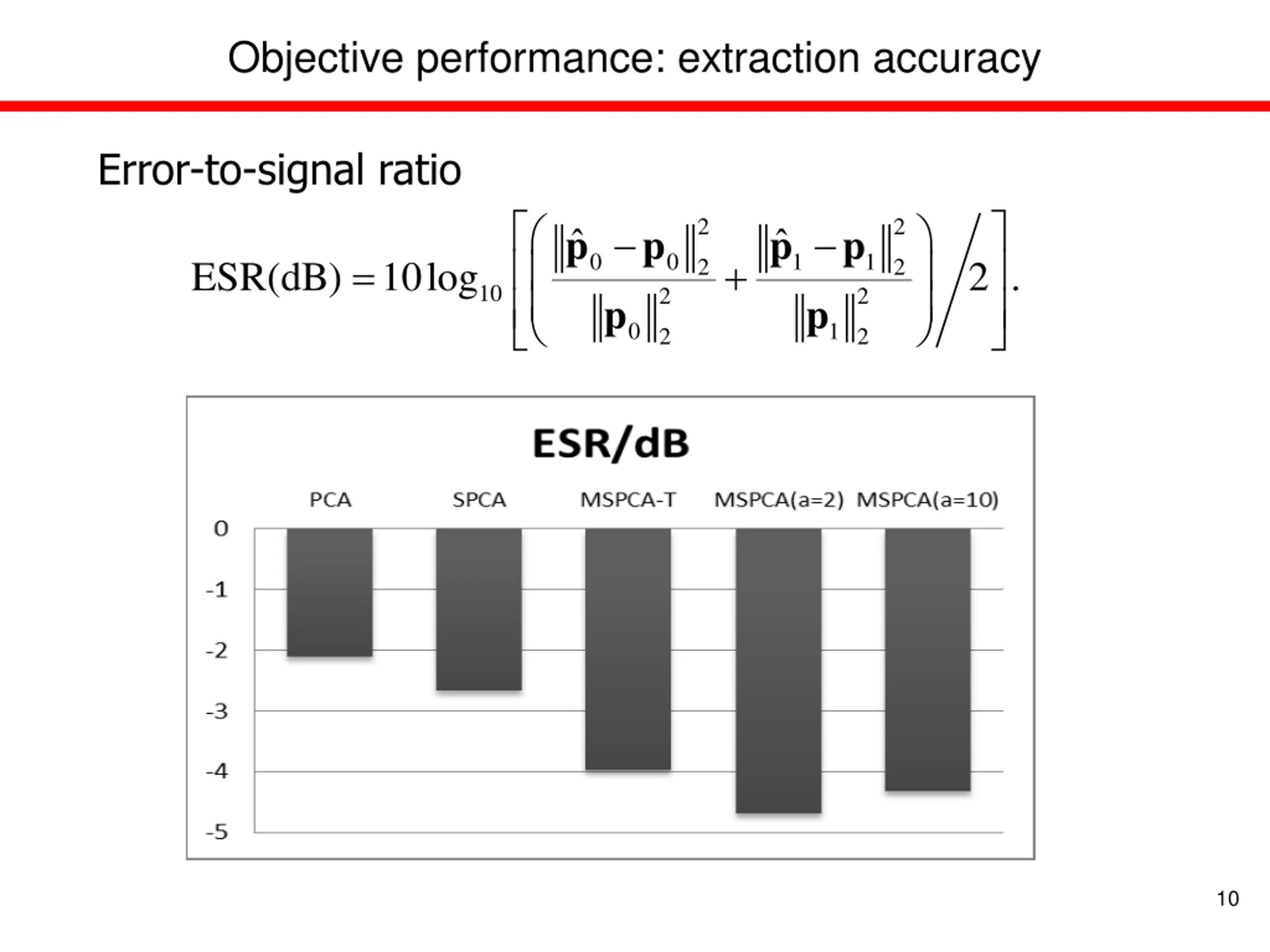

Objective performance: extraction accuracy Error-to-signal ratio 2 2 p p p p 2 . 0 0 1 1 = + ESR(dB) 10log 2 2 10 2 2 p p 0 1 2 2 10

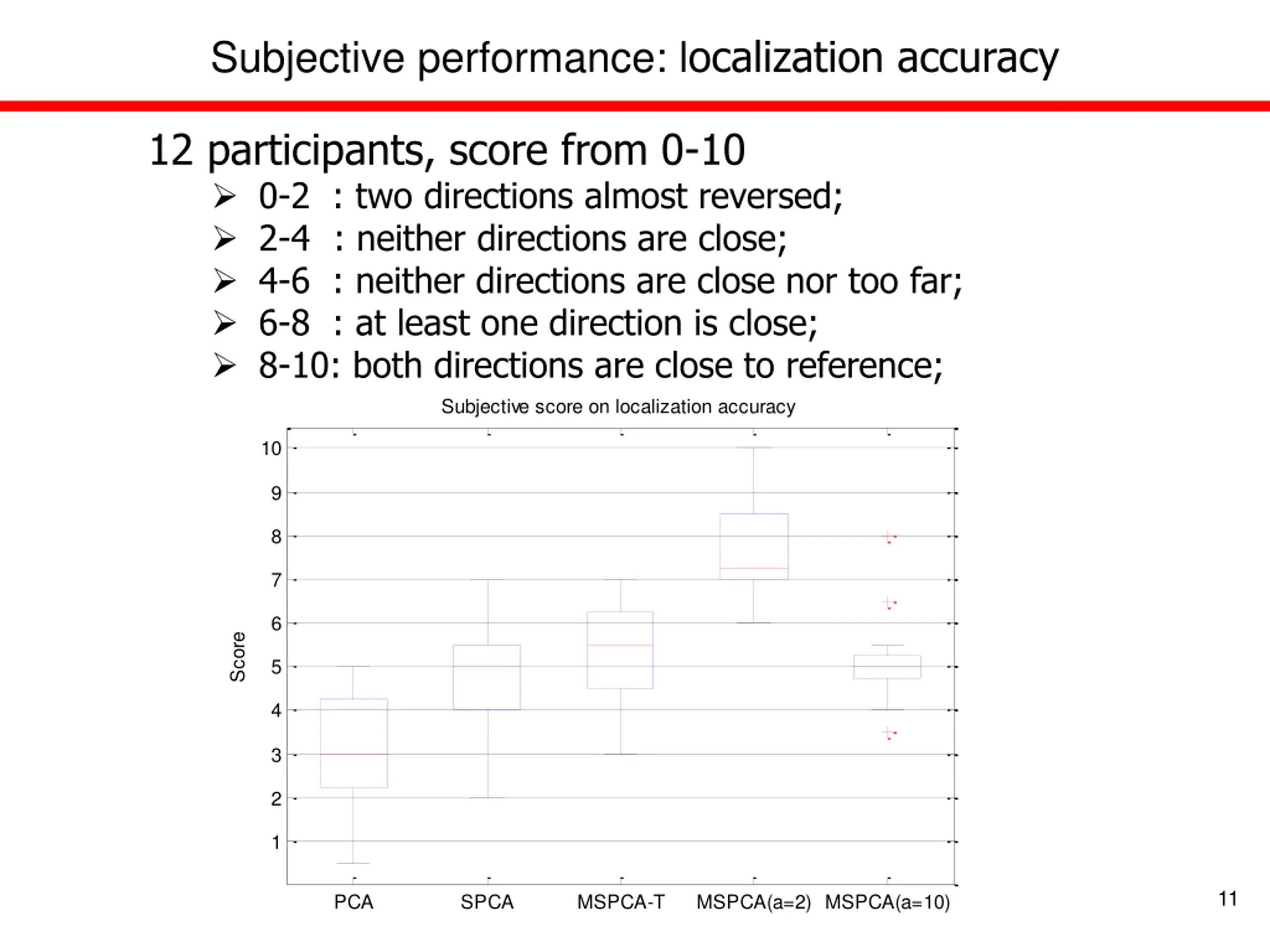

Subjective performance: localization accuracy 12 participants, score from 0-10 0-2 : two directions almost reversed; 2-4: neither directions are close; 4-6 : neither directions are close nor too far; 6-8 : at least one direction is close; 8-10: both directions are close to reference; Subjective score on localization accuracy 10 9 8 7 6 Score 5 4 3 2 1 11 PCA SPCA MSPCA-T MSPCA(a=2) MSPCA(a=10)

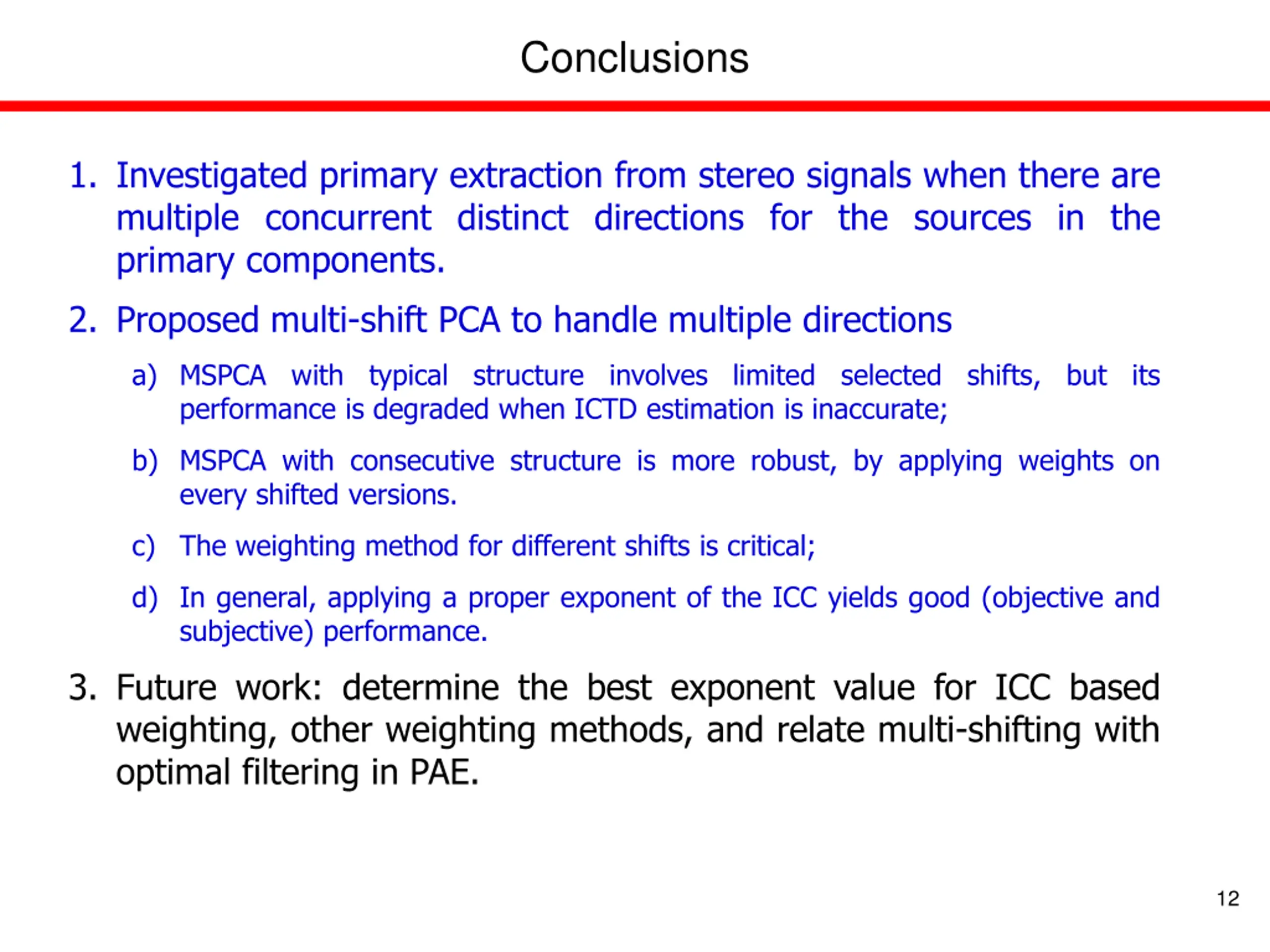

Conclusions 1. Investigated primary extraction from stereo signals when there are multiple concurrent distinct directions for the sources in the primary components. 2. Proposed multi-shift PCA to handle multiple directions a) MSPCA with typical structure involves limited selected shifts, but its performance is degraded when ICTD estimation is inaccurate; b) MSPCA with consecutive structure is more robust, by applying weights on every shifted versions. c) The weighting method for different shifts is critical; d) In general, applying a proper exponent of the ICC yields good (objective and subjective) performance. 3. Future work: determine the best exponent value for ICC based weighting, other weighting methods, and relate multi-shifting with optimal filtering in PAE. 12

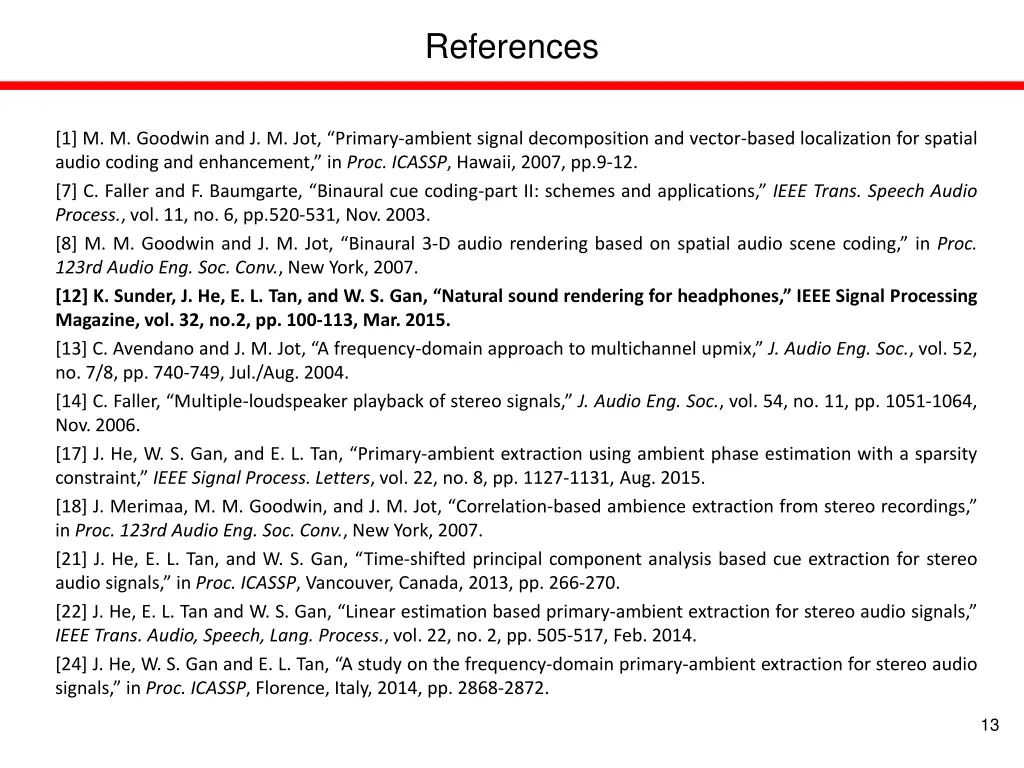

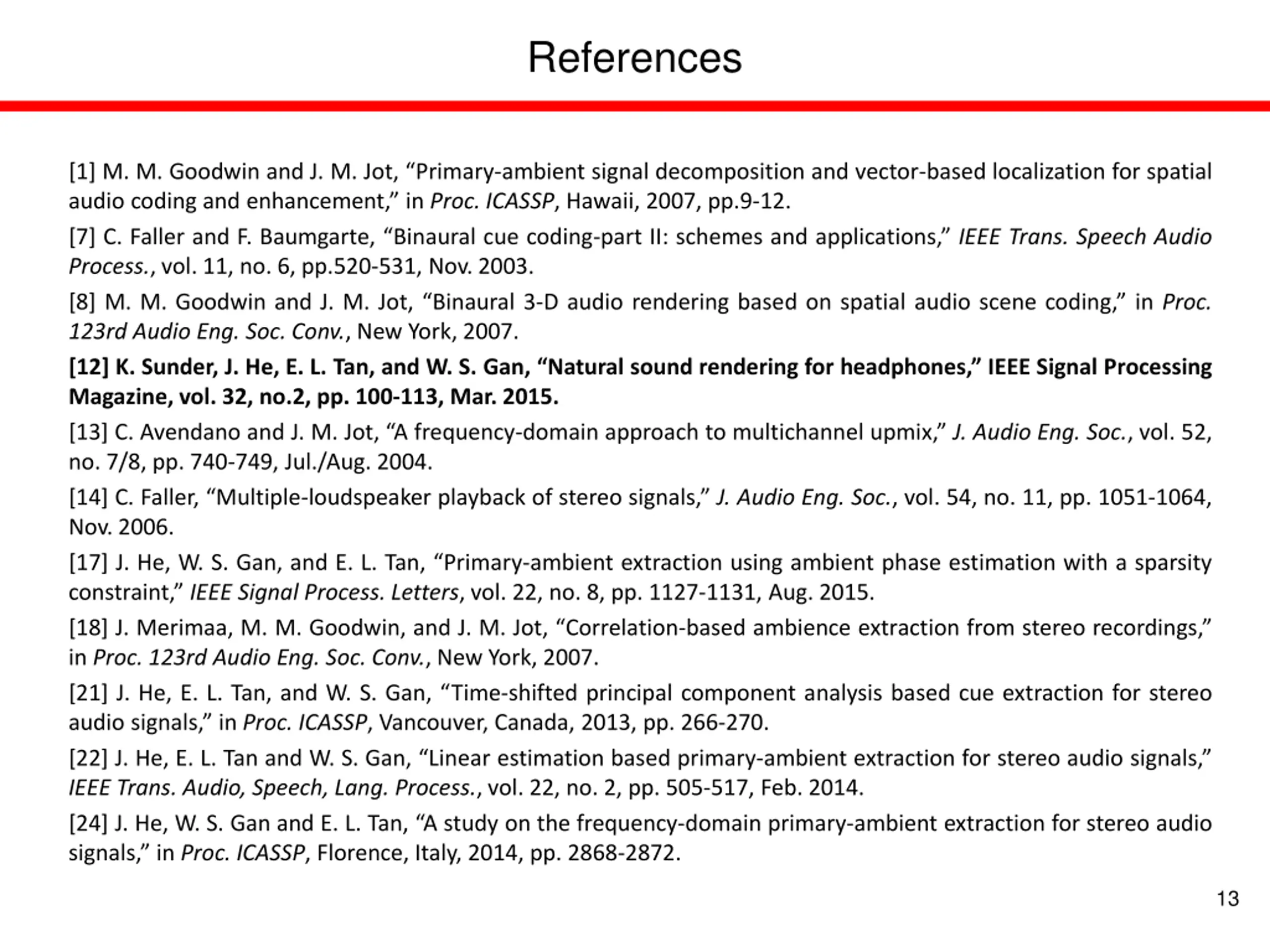

References [1] M. M. Goodwin and J. M. Jot, Primary-ambient signal decomposition and vector-based localization for spatial audio coding and enhancement, in Proc. ICASSP, Hawaii, 2007, pp.9-12. [7] C. Faller and F. Baumgarte, Binaural cue coding-part II: schemes and applications, IEEE Trans. Speech Audio Process., vol. 11, no. 6, pp.520-531, Nov. 2003. [8] M. M. Goodwin and J. M. Jot, Binaural 3-D audio rendering based on spatial audio scene coding, in Proc. 123rd Audio Eng. Soc. Conv., New York, 2007. [12] K. Sunder, J. He, E. L. Tan, and W. S. Gan, Natural sound rendering for headphones, IEEE Signal Processing Magazine, vol. 32, no.2, pp. 100-113, Mar. 2015. [13] C. Avendano and J. M. Jot, A frequency-domain approach to multichannel upmix, J. Audio Eng. Soc., vol. 52, no. 7/8, pp. 740-749, Jul./Aug. 2004. [14] C. Faller, Multiple-loudspeaker playback of stereo signals, J. Audio Eng. Soc., vol. 54, no. 11, pp. 1051-1064, Nov. 2006. [17] J. He, W. S. Gan, and E. L. Tan, Primary-ambient extraction using ambient phase estimation with a sparsity constraint, IEEE Signal Process. Letters, vol. 22, no. 8, pp. 1127-1131, Aug. 2015. [18] J. Merimaa, M. M. Goodwin, and J. M. Jot, Correlation-based ambience extraction from stereo recordings, in Proc. 123rd Audio Eng. Soc. Conv., New York, 2007. [21] J. He, E. L. Tan, and W. S. Gan, Time-shifted principal component analysis based cue extraction for stereo audio signals, in Proc. ICASSP, Vancouver, Canada, 2013, pp. 266-270. [22] J. He, E. L. Tan and W. S. Gan, Linear estimation based primary-ambient extraction for stereo audio signals, IEEE Trans. Audio, Speech, Lang. Process., vol. 22, no. 2, pp. 505-517, Feb. 2014. [24] J. He, W. S. Gan and E. L. Tan, A study on the frequency-domain primary-ambient extraction for stereo audio signals, in Proc. ICASSP, Florence, Italy, 2014, pp. 2868-2872. 13

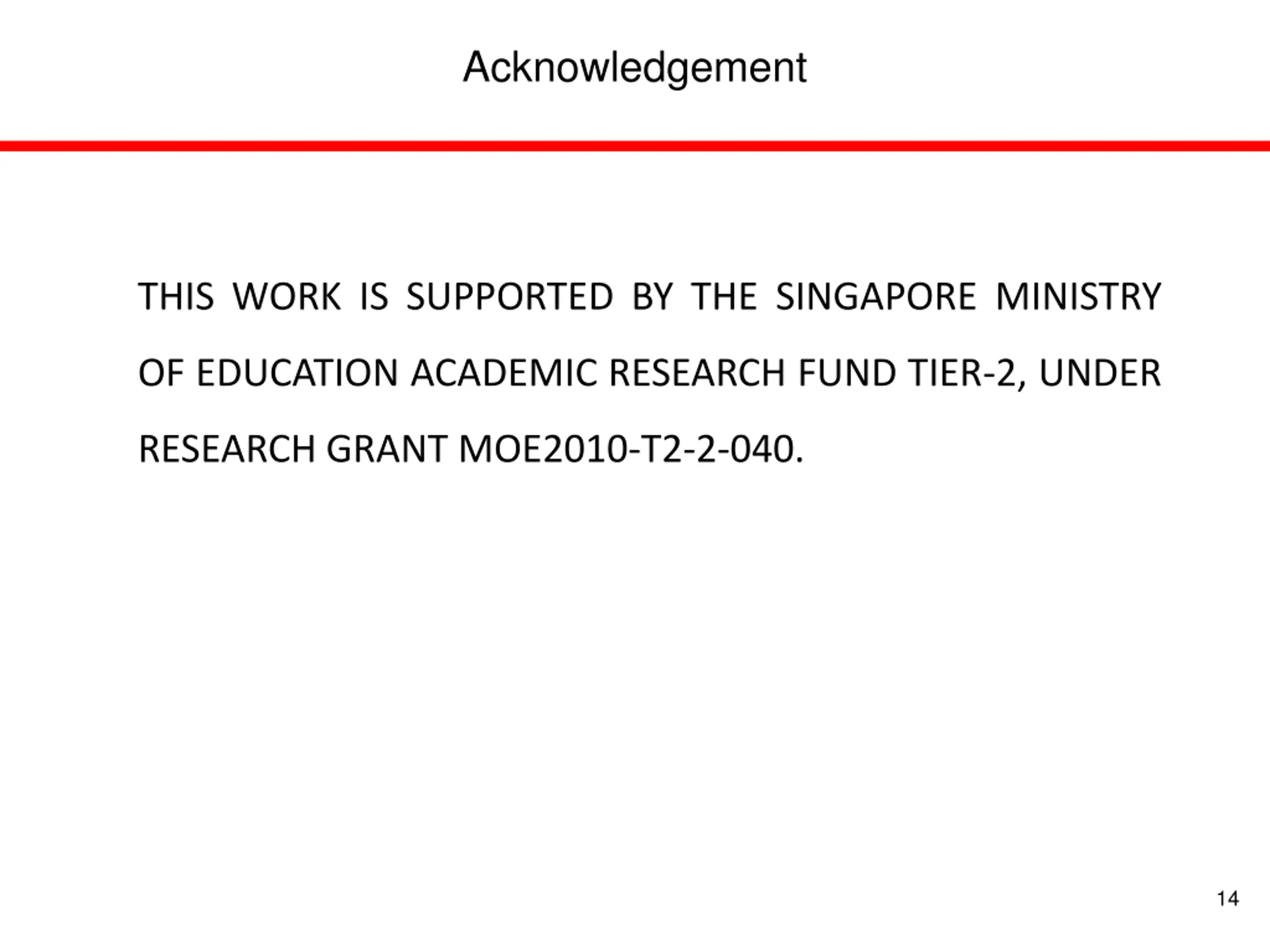

Acknowledgement THIS WORK IS SUPPORTED BY THE SINGAPORE MINISTRY OF EDUCATION ACADEMIC RESEARCH FUND TIER-2, UNDER RESEARCH GRANT MOE2010-T2-2-040. 14
