CIGRE Study Committee B1: Insights on Insulated Power Cables and Future Directions
The CIGRE Study Committee B1, responsible for AC and DC insulated power cable systems, focuses on power transmission, distribution, generation connections, and sustainability. Through collaborative efforts, it addresses theory, design, installation, operation, and more. The committee actively follows strategic directions to shape the future of electrical power systems and promote sustainability. Detailed statistics on membership and the committee's role in preparing for the future of power systems are highlighted.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript

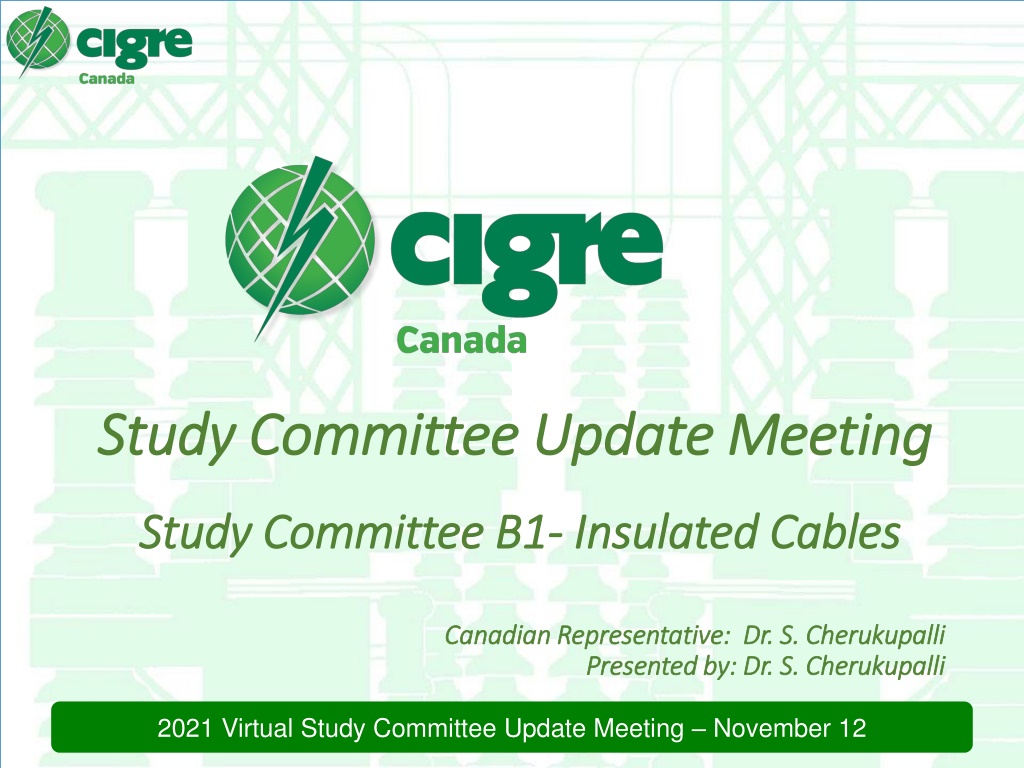

Study Committee Update Meeting Study Committee Update Meeting Study Committee B1 Study Committee B1- - Insulated Cables Insulated Cables Canadian Representative: Dr. S. Cherukupalli Canadian Representative: Dr. S. Cherukupalli Presented by: Presented by: Dr. S. Cherukupalli Dr. S. Cherukupalli 2021 Virtual Study Committee Update Meeting November 12
Composition of CIGRE B1 Chairman, Secretary 3 Advisory Groups 24 Regular Members 13 Observer Members 6 Additional Members with participation of 511 experts and 88 NGNs Marco Marelli Matthieu Cabau 2021 Virtual Study Committee Update Meeting November 12
Statistics of membership in SC B1 Evolution of the participation 80% 2013 2014 2015 2016 2017 2018 2019 2020 70% 60% 50% 40% 30% 20% 10% 0% Participating Inexperienced Participating Experienced Non-Participating Inexperienced Non-Participating Experienced SC B1 experts 100 500 461 90 450 Men 88 80 400 70 350 Young NGN 60 300 57 50 250 Ladies 40 200 30 150 20 100 10 50 0 0 SC B1 Statistics on March 1st2021 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 Ladies Young NGN Total Experts 2021 Virtual Study Committee Update Meeting November 12
Highlights of SC B1 Study Committee (SC) B1 is responsible for AC and DC insulated power cable systems for power transmission, Distribution and generation connections on land and in submarine applications, As well as for power cable systems associated with micro-grids and the integration of distributed resources. Within its technical field of activity, Study Committee B1 addresses theory, design, applications, manufacture, installation, testing, operation, maintenance and diagnostic techniques 2021 Virtual Study Committee Update Meeting November 12
Highlights of SC B1 SC B1 is also engaged to actively follow the four strategic directions given by the Cigr Technical Committee. Thus paying attention: to prepare the electrical power system of the future, to make the best use of existing system, focusing on environment and sustainability and communication on power system issues for decision makers. Power Systems of the Future and Best Use of Existing Systems remain the main focus of most of the work. Newly discussed topics are often around environmental and sustainability aspects. 2021 Virtual Study Committee Update Meeting November 12
Virtual Plenary Session Highlights The plenary meeting of the Study Committee was scheduled on 2 full days (August 25-26, 2021), using GoToMeeting. All Regular SC members were present or represented except for 2 NC (IN and KR). 6 observer members did not attend the meeting, and 4 WG conveners were not able to come. 2021 Virtual Study Committee Update Meeting November 12 6
STUDY COMMITTEE SC B1 Preferential Subjects for 2021 Virtual Session PS 1 : Cables for Future power systems Innovative Cables and Systems Prospective impacts on cable life-cycle from use and implementation of Big data and Industry 4.0 New functionalities expected from cable systems PS 2 : Recent experiences with existing cable systems Design, manufacturing, installation techniques and operation Advances in testing, including failure location and relevant experience Lessons learnt from permitting consent and implementation PS 3: Environmental challenges, asset management, and resilience of cable systems Design, manufacturing, installation techniques and operation Advances in testing, including failure location, and relevant experience Lesson learnt from permitting, consent and implementation 2021 Virtual Study Committee Update Meeting November 12
Canadian Technical Activities within CIGRE B1 SAG CAG TAG Strategic Advisory Group Customer Advisory Group Tutorial Advisory Group WG B1.82 MVDC Cable System requirements WG B1.83 Grounding Aspects for Long HVDC Land Cable connections WG B1.86 Guidelines for safety Issue Associated to Cable System WG B1.87 Finite Element Analysis for Cable Rating Calculations WG B1.88 Non-SF6 GIS Terminations WG B1.89 Guidance for Conducting Cable Systems Failure Analysis 2021 Virtual Study Committee Update Meeting November 12
WGs in 2020 WG B1.76 -Enhancing Quality Assurance/Quality Control Procedures for (E)HV Cable Systems (Freitag/2020 2023) WG B1.80 -Guidelines for Site Acceptance Test of DTS and DAS systems (Cherukupalli/2020-2023) WG D1/B1.75 -Strategies and tools for corrosion prevention for cable systems (D1 leadership, Tusek/2020- 2022 2021 Virtual Study Committee Update Meeting November 12 9
B1-Publications in 2020 Planned article - Submarine cables, there s power under water!Future Connection January 2020 WG B1.50 Sheath bonding systems of AC transmission cables - design, testing, and maintenance TB 797 March 2020 WG B1.44Guidelines for safe work on cable systems under induced voltages or currents TB 801 April 2020 WG B1.57Update of service experience of HV underground and submarine cable systems TB 815 -September 2020 2021 Virtual Study Committee Update Meeting November 12 10
PUBLICATIONS EXPECTED in 2021 WG B1.60 Maintenance of HV Cable Systems TB 825 January 2021 WG B1.38 After laying tests on AC and DC cable systems with new technologies - Q3- 2021 WG B1.56 Cable ratings verification - Q4-2021 WG B1.54 Behavior of cable systems under large disturbances (earthquake, storm, flood, fire, landslide climate change) - Q4-2021 WG B1.62 Recommendations for testing DC extruded cable systems for power transmission at a rated voltage up to and including 800 kV Q4-2021 WG B1.66 Recommendations for testing DC lapped cable systems for power transmission at a rated voltage up to and including 800 kV Q4-2021 2021 Virtual Study Committee Update Meeting November 12 11
Conclusions from 2021 Virtual General Session Active and lively forum of International Experts In Group Discussions hundred of delegates could frankly contribute and discuss most topical issues in the power cable world SC B1 meeting was well attended One tutorial was presented by Sergio Chinosi, S ren Kruger Olsen and Geir Classen and held in GoToWebinar solution organized by CIGRE Central Office 2021 Virtual Study Committee Update Meeting November 12 12
INPUT FROM NEXT GENERATION NETWORK How to embed sensors in submarine cables for environmental supervision How to use materials in cables that are more recyclable after end of service and reduce the CO2footprint The interest in UK factories by introduction of using H2as energy source 2021 Virtual Study Committee Update Meeting November 12 13
Canadian Representative Name Dr. Sudhakar Cherukupalli Company: B.C. Hydro Title: Principal Engineer, Team Lead Transmission Cables and Electrical Teams, , Transmission Engineering Email: s.cherukupalli@ieee.org Phone: (604) 328-4492 2021 Virtual Study Committee Update Meeting November 12 14
