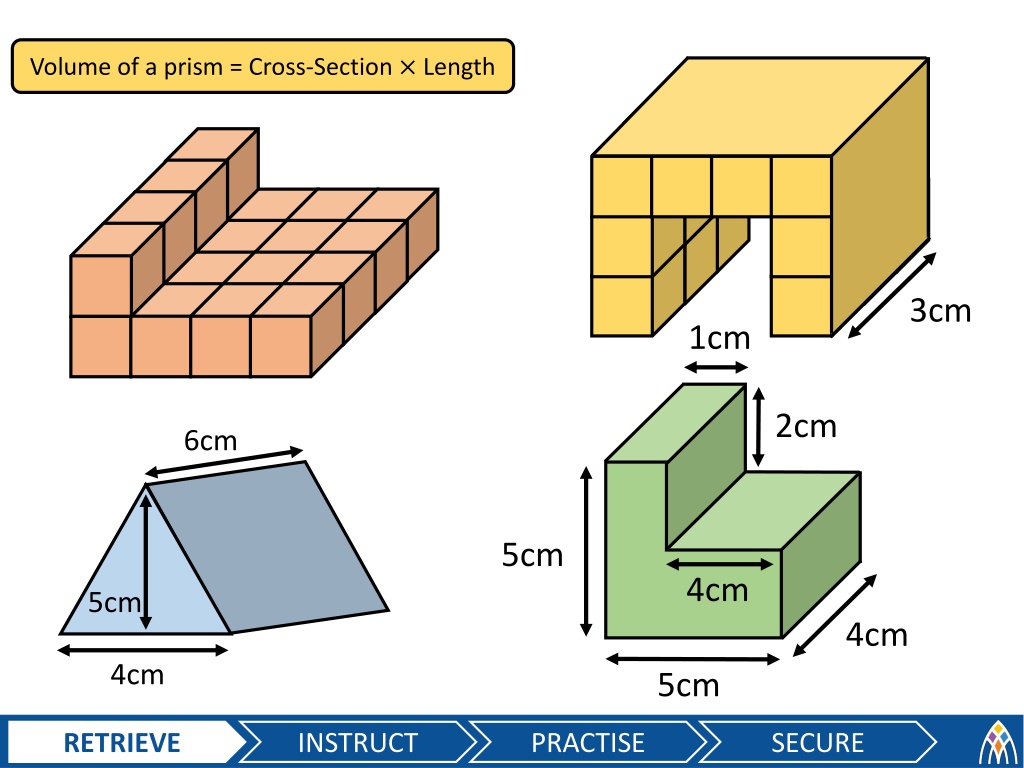

Volume of a prism = Cross-Section Length 3cm 1cm 2cm 6cm 5cm 4cm 5cm 4cm 4cm 5cm RETRIEVE INSTRUCT PRACTISE SECURE

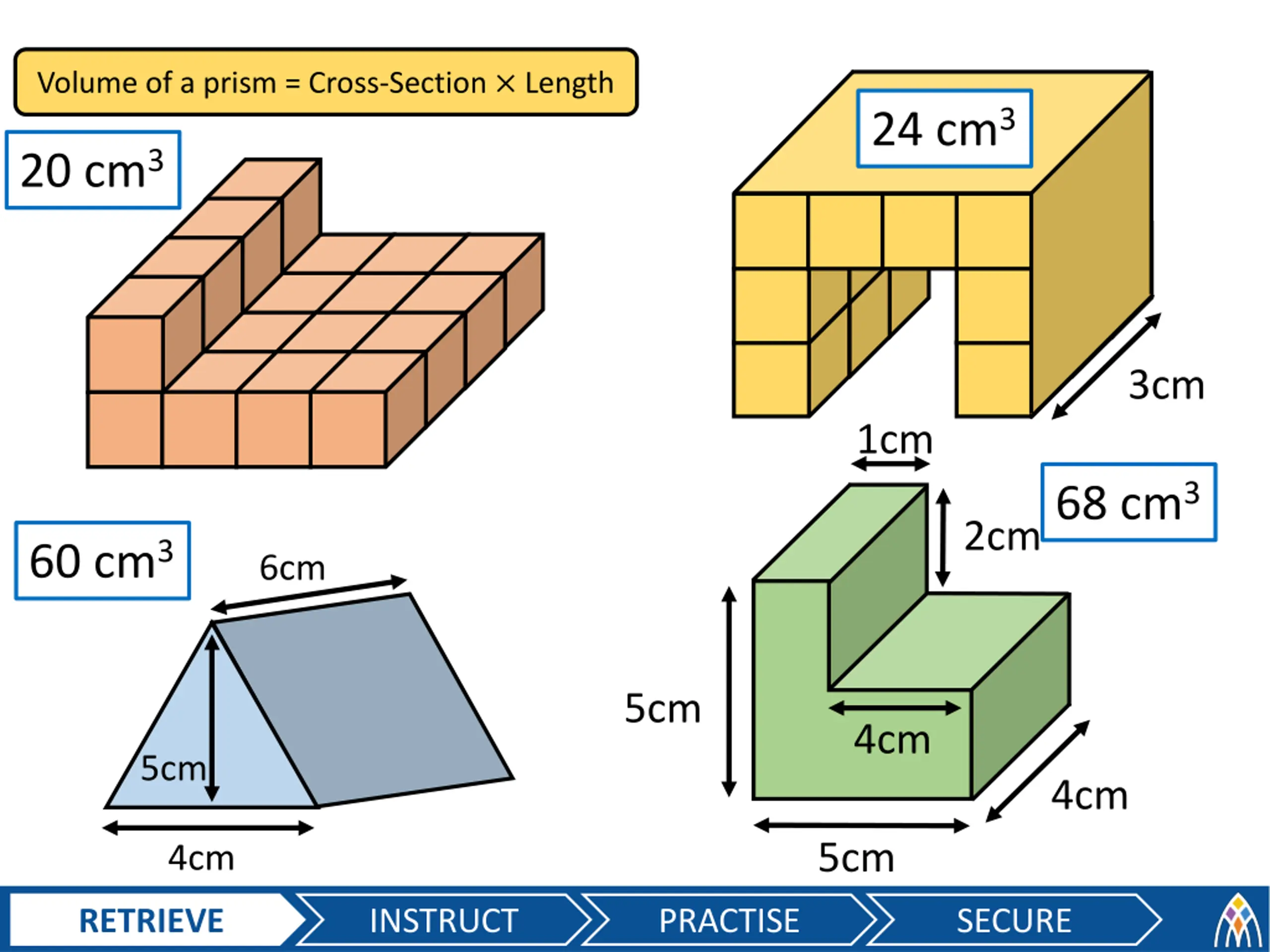

Volume of a prism = Cross-Section Length 24 cm3 20 cm3 3cm 1cm 68 cm3 2cm 60 cm3 6cm 5cm 4cm 5cm 4cm 5cm 4cm RETRIEVE INSTRUCT PRACTISE SECURE

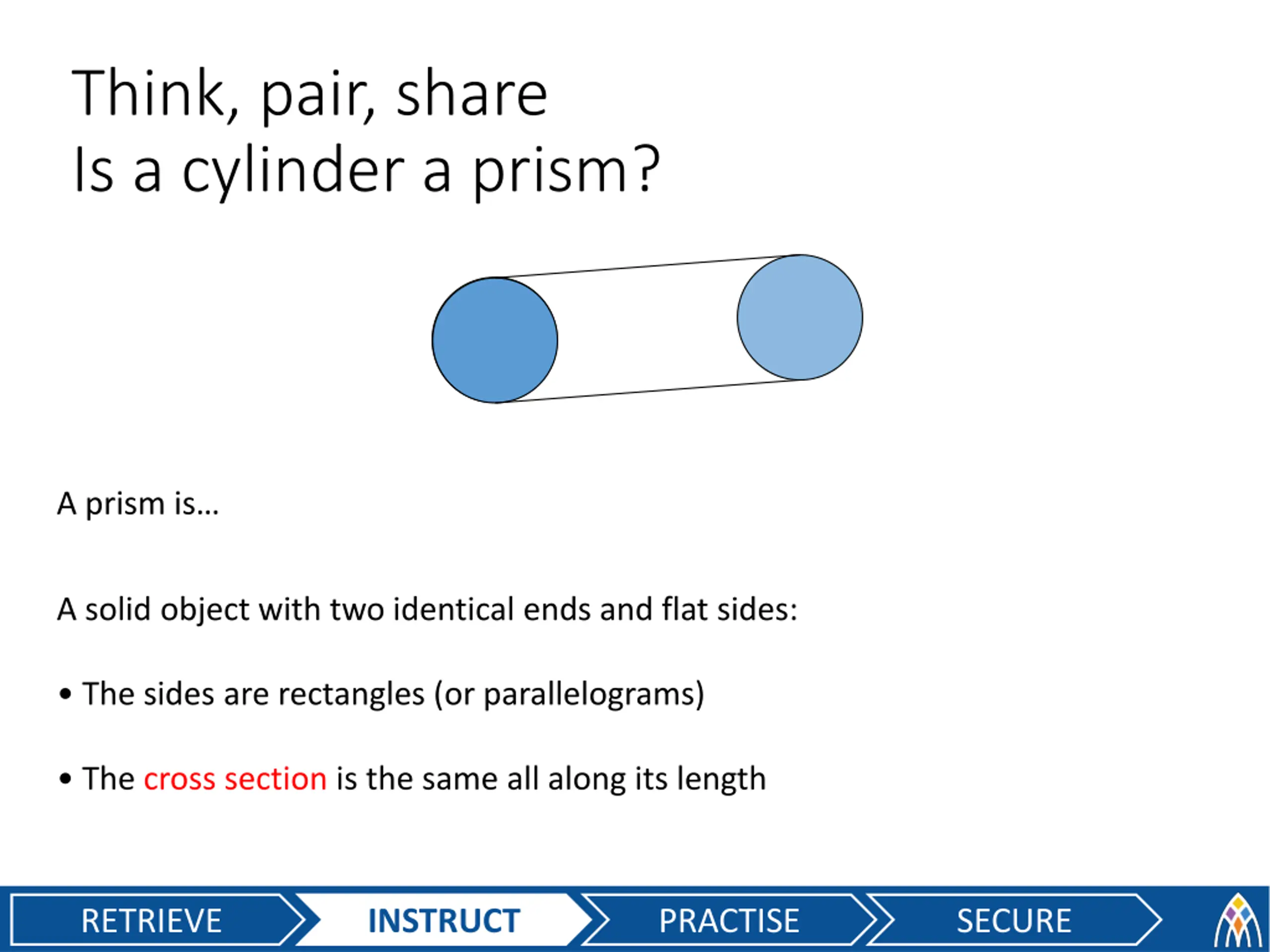

Think, pair, share Is a cylinder a prism? A prism is A solid object with two identical ends and flat sides: The sides are rectangles (or parallelograms) The cross section is the same all along its length RETRIEVE INSTRUCT PRACTISE SECURE

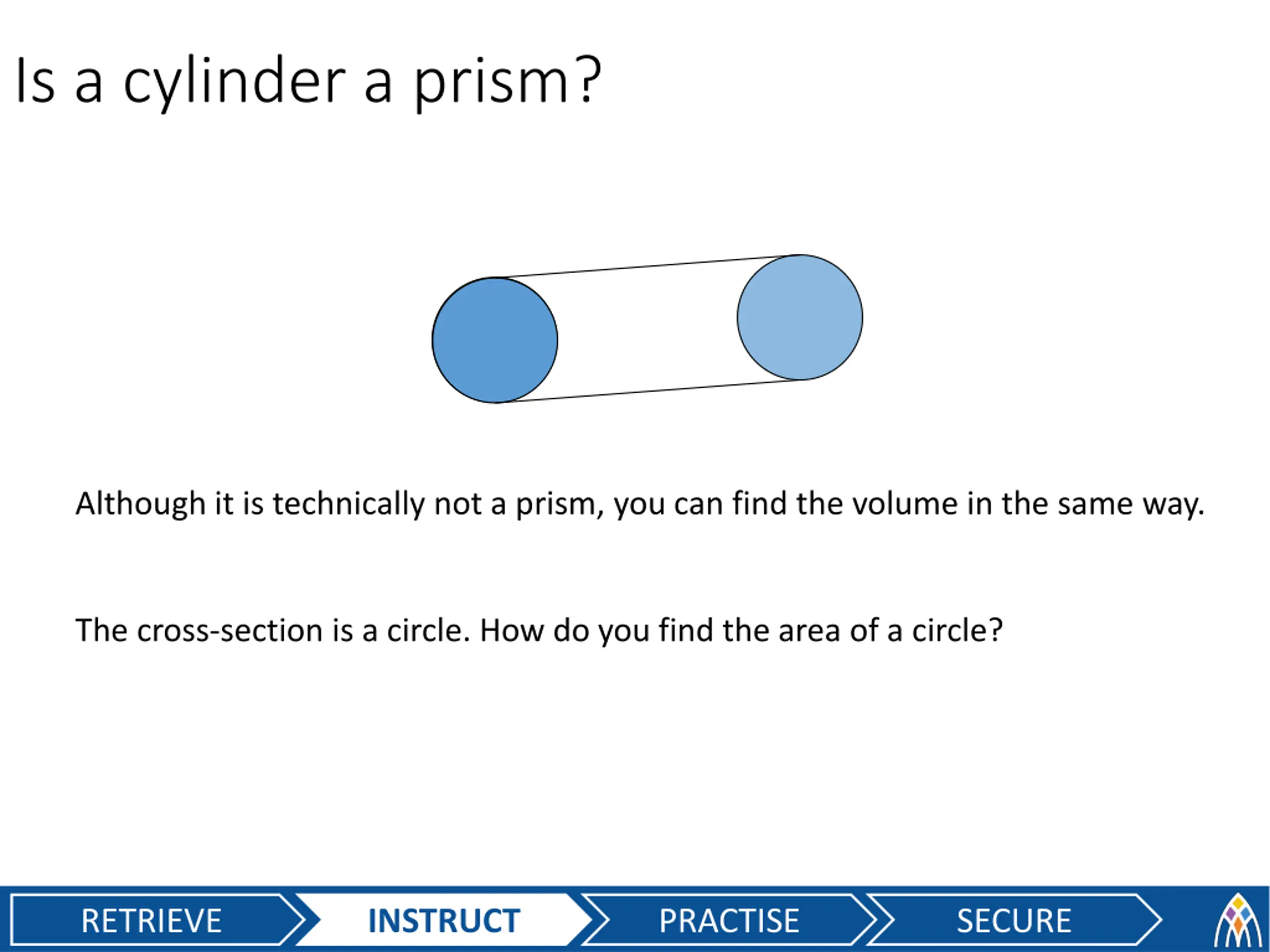

Is a cylinder a prism? Although it is technically not a prism, you can find the volume in the same way. The cross-section is a circle. How do you find the area of a circle? RETRIEVE INSTRUCT PRACTISE SECURE

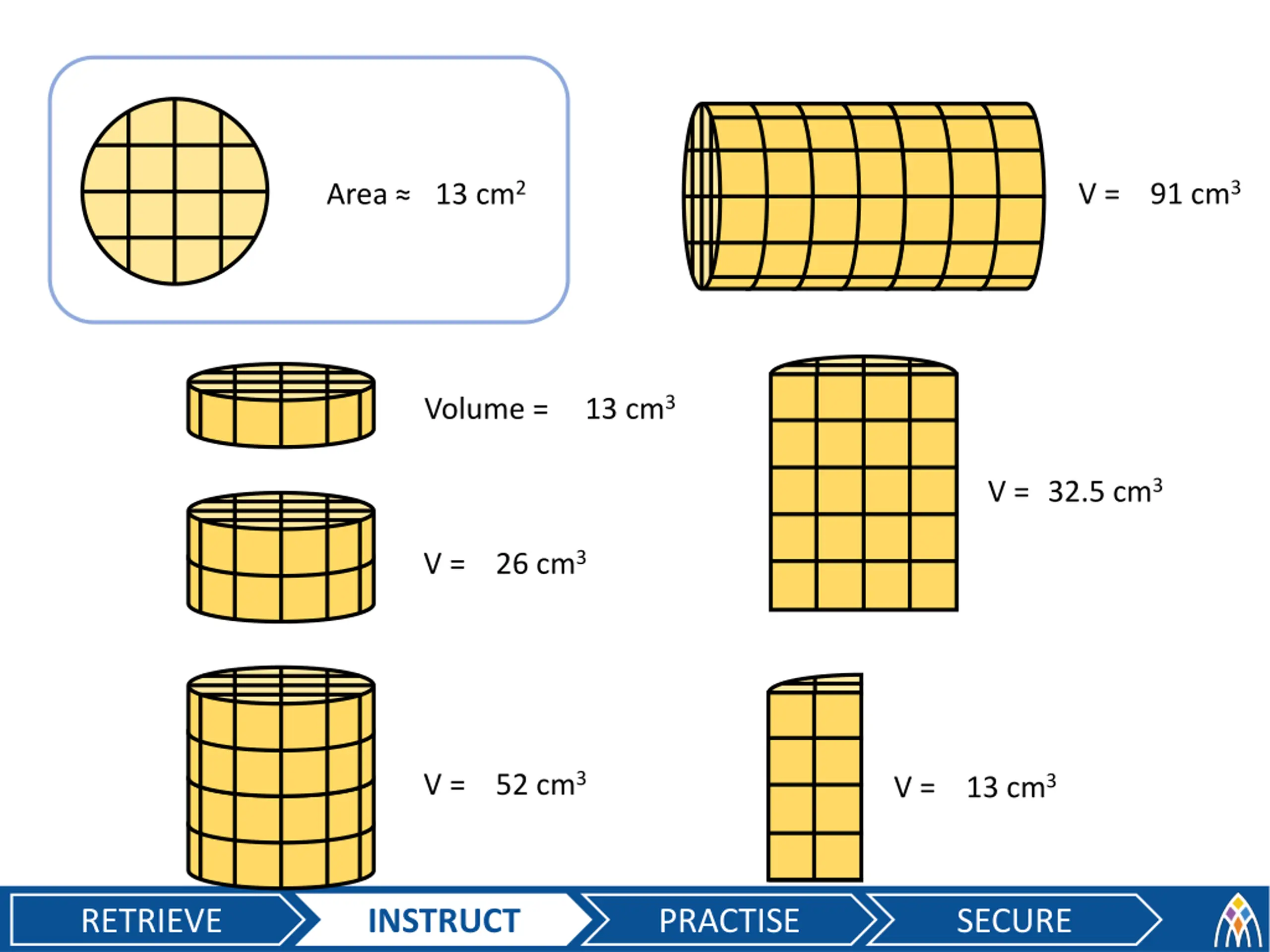

V = 91 cm3 13 cm2 Area Volume = 13 cm3 V = 32.5 cm3 V = 26 cm3 V = 52 cm3 V = 13 cm3 RETRIEVE INSTRUCT PRACTISE SECURE

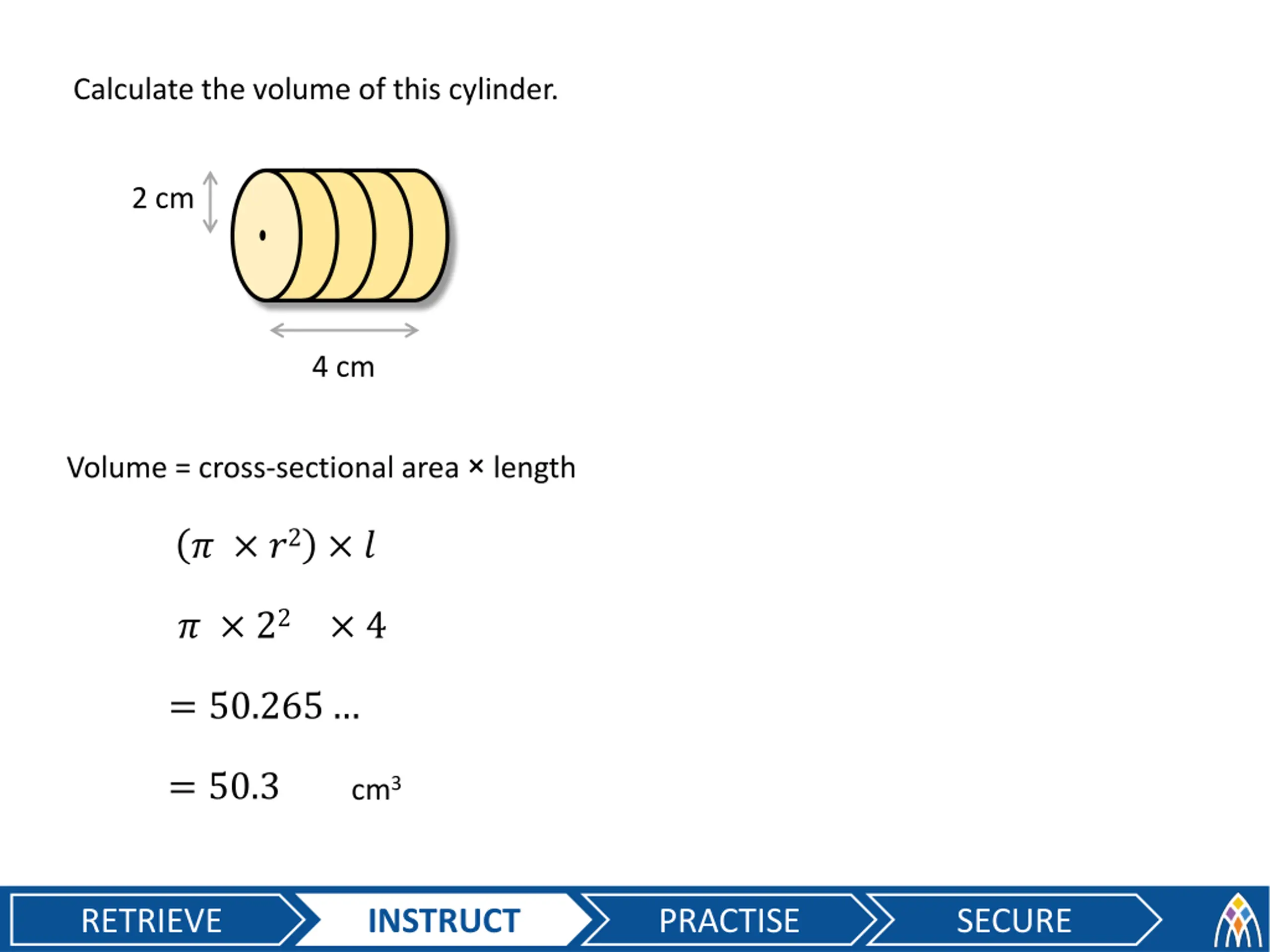

Calculate the volume of this cylinder. 2 cm 4 cm Volume = cross-sectional area length ? ?2 ? ? 22 4 = 50.265 = 50.3 cm3 RETRIEVE INSTRUCT PRACTISE SECURE

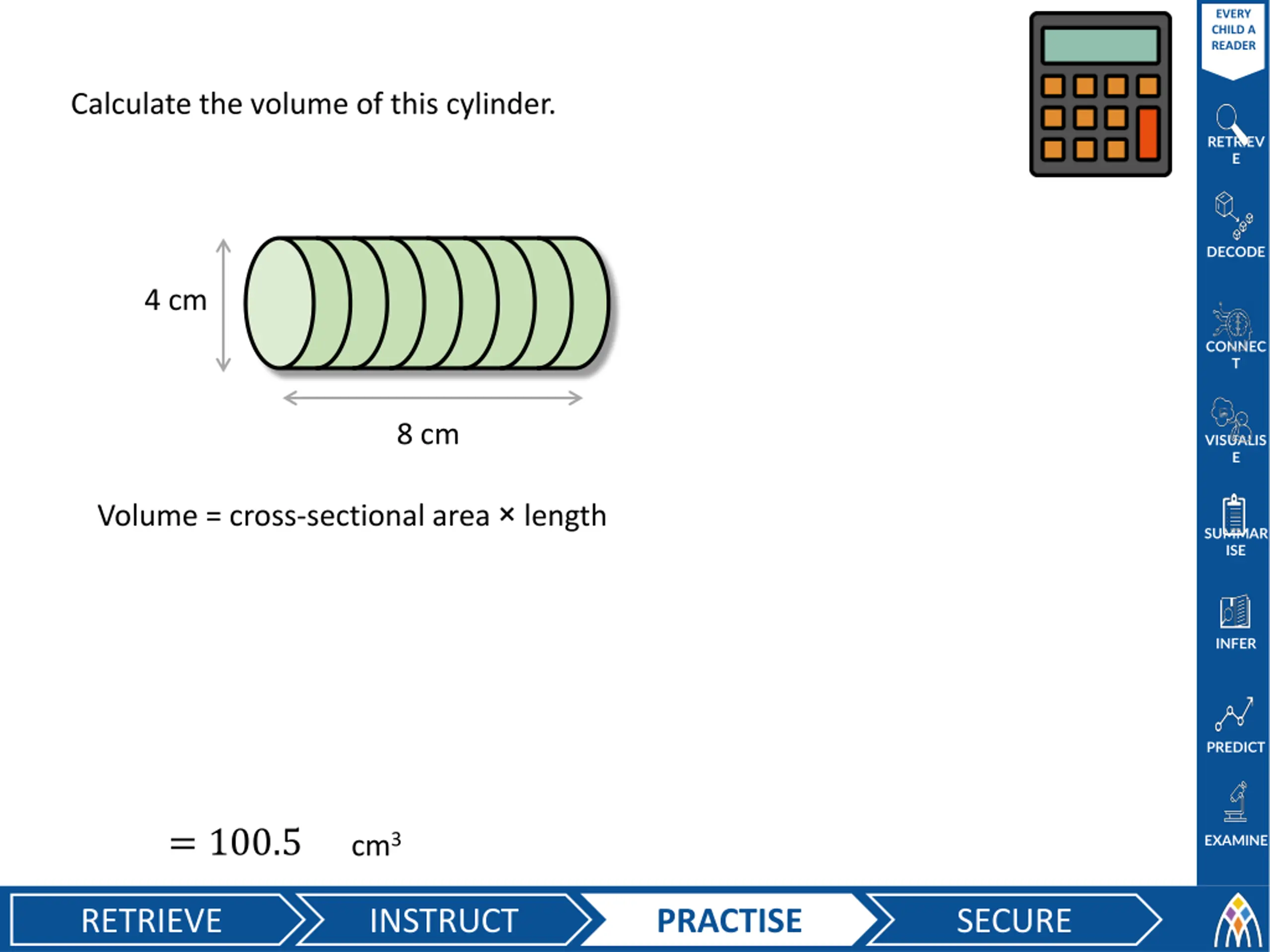

EVERY CHILD A READER Calculate the volume of this cylinder. RETRIEV E DECODE 4 cm CONNEC T 8 cm VISUALIS E Volume = cross-sectional area length SUMMAR ISE INFER PREDICT = 100.5 cm3 EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE

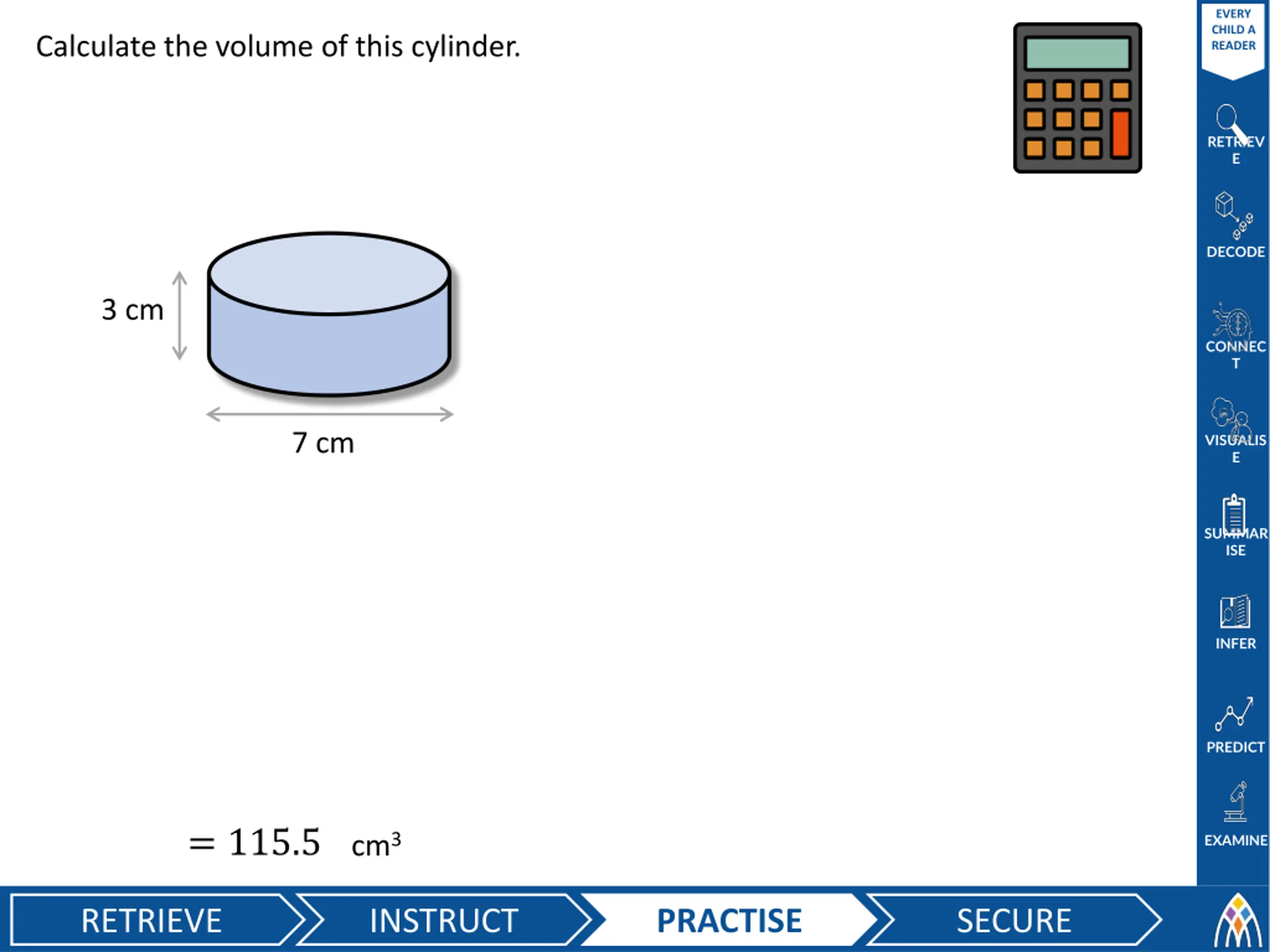

EVERY CHILD A READER Calculate the volume of this cylinder. RETRIEV E DECODE 3 cm CONNEC T 7 cm VISUALIS E SUMMAR ISE INFER PREDICT = 115.5 cm3 EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE

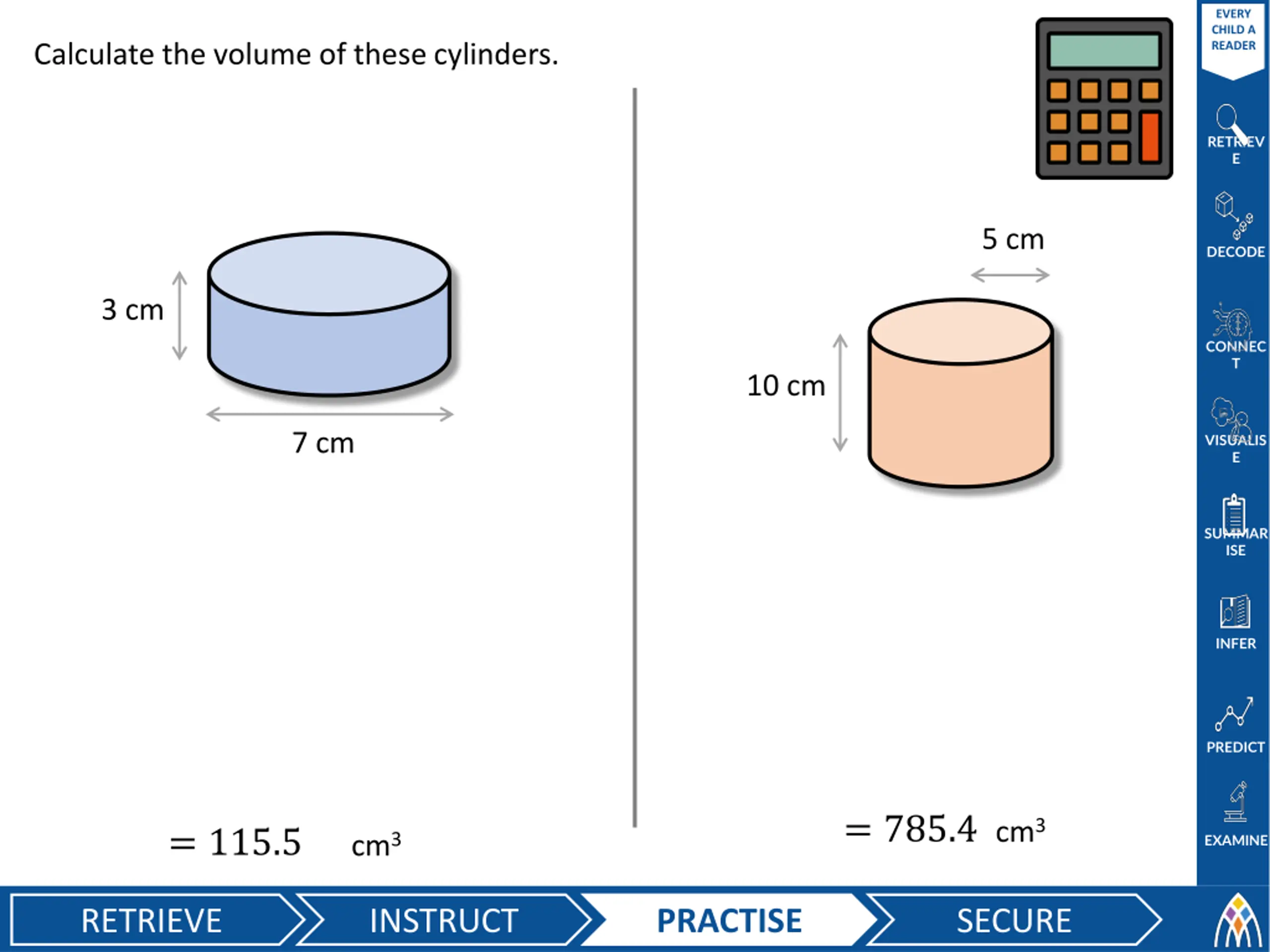

EVERY CHILD A READER Calculate the volume of these cylinders. RETRIEV E 5 cm DECODE 3 cm CONNEC T 10 cm 7 cm VISUALIS E SUMMAR ISE INFER PREDICT = 785.4 cm3 = 115.5 cm3 EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE

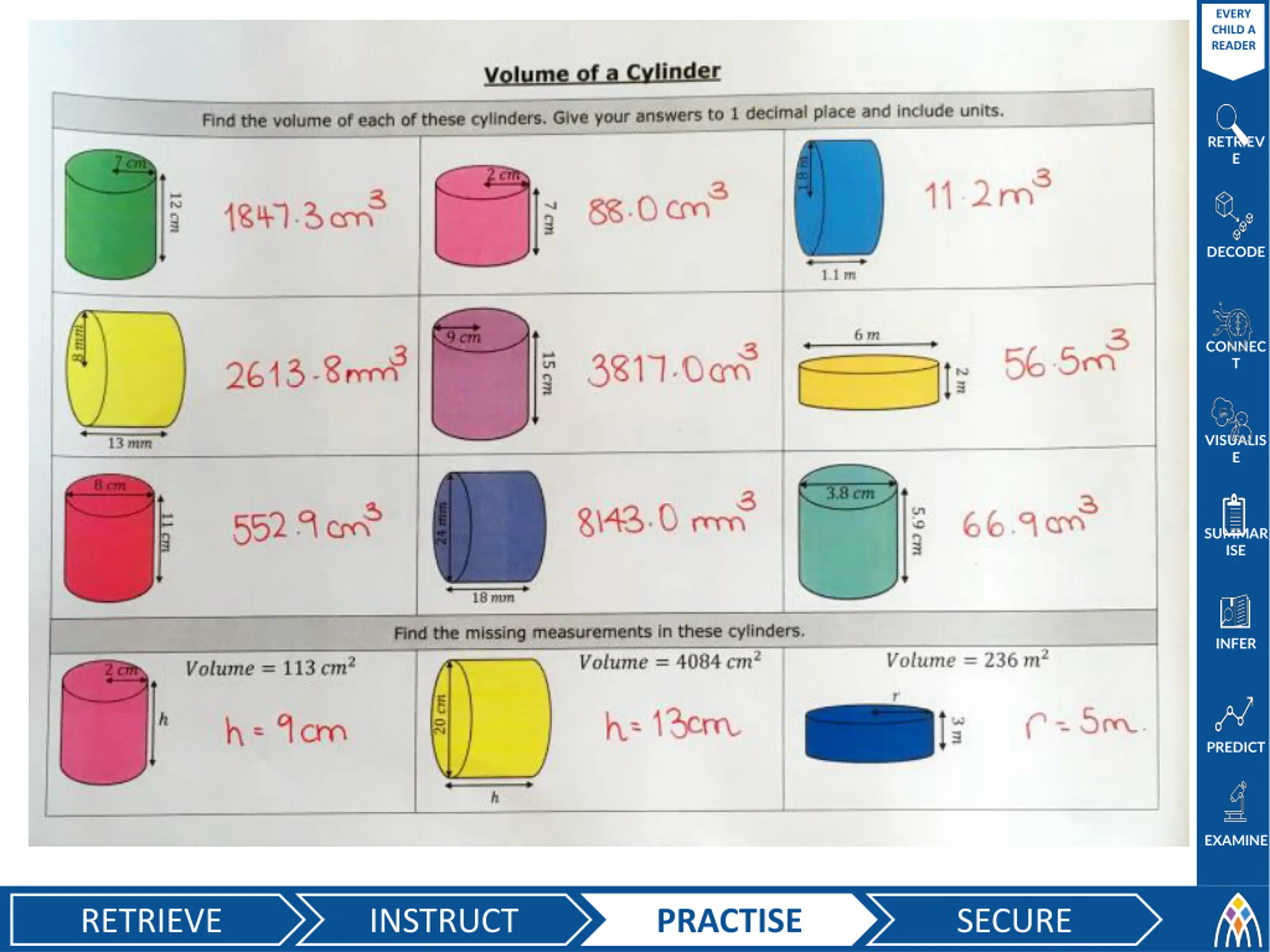

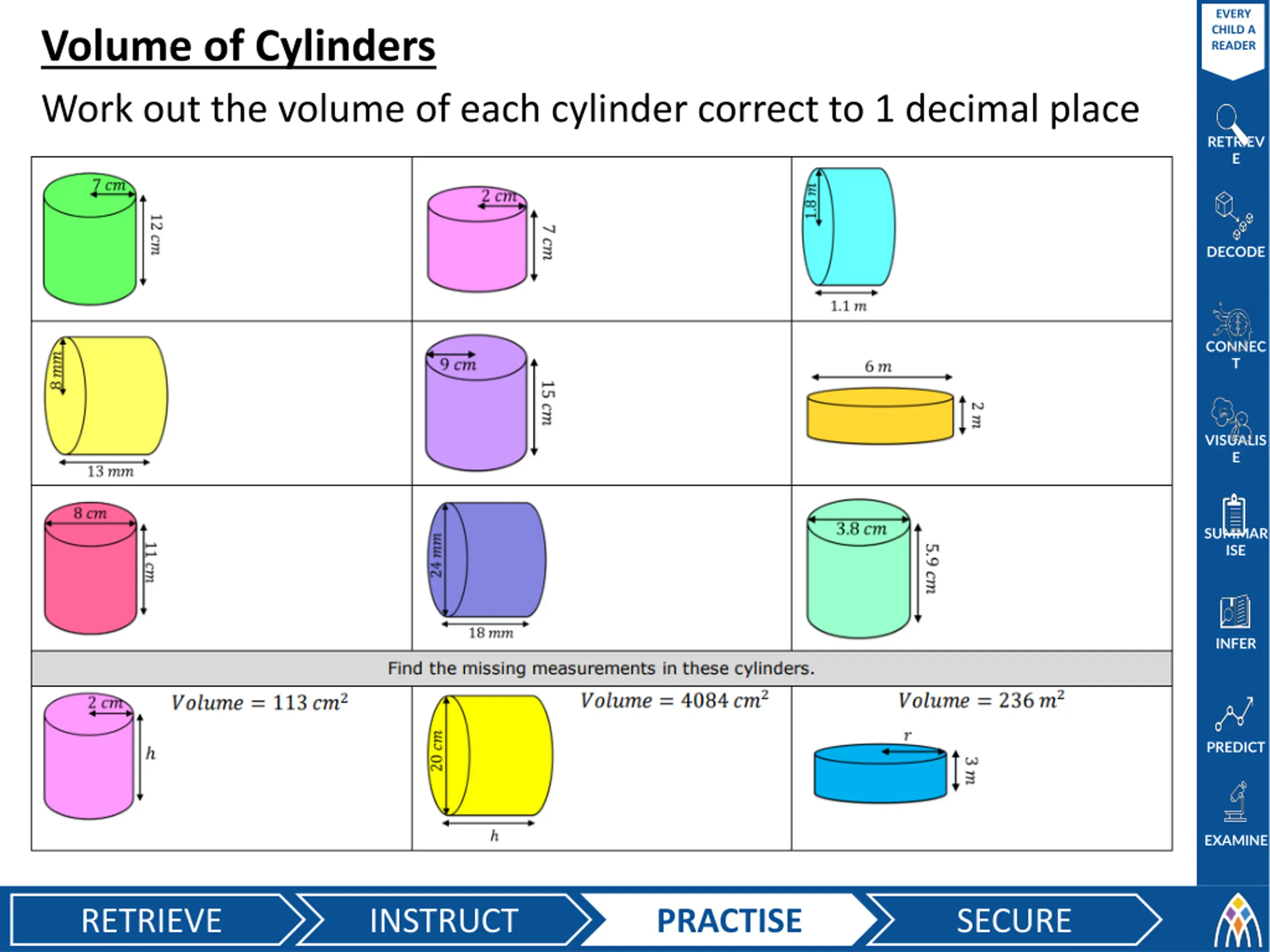

EVERY CHILD A READER Volume of Cylinders Work out the volume of each cylinder correct to 1 decimal place RETRIEV E DECODE CONNEC T VISUALIS E SUMMAR ISE INFER PREDICT EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE
EVERY CHILD A READER RETRIEV E DECODE CONNEC T VISUALIS E SUMMAR ISE INFER PREDICT EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE

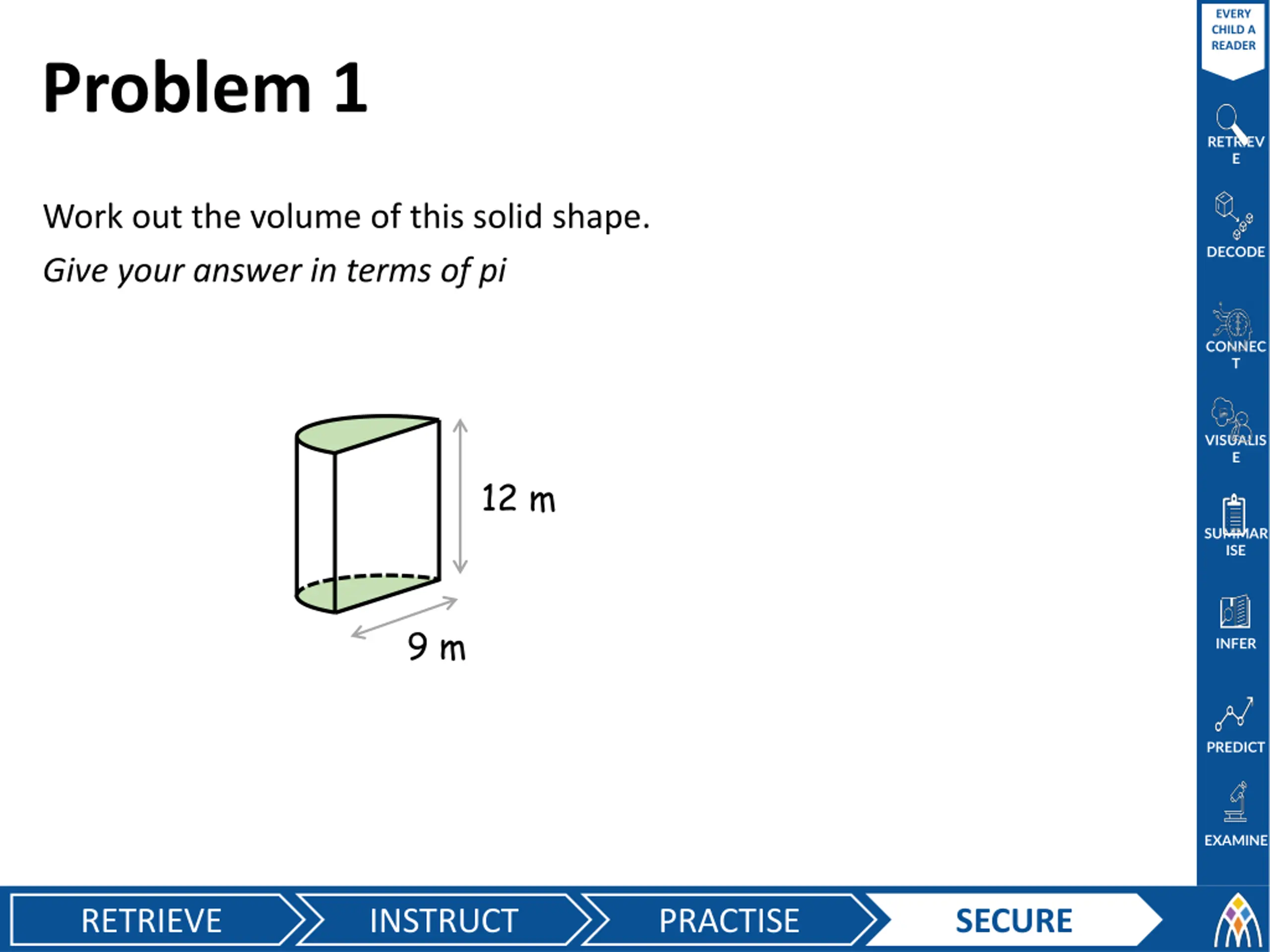

EVERY CHILD A READER Problem 1 RETRIEV E Work out the volume of this solid shape. Give your answer in terms of pi DECODE CONNEC T VISUALIS E 12 m SUMMAR ISE 9 m INFER PREDICT EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE

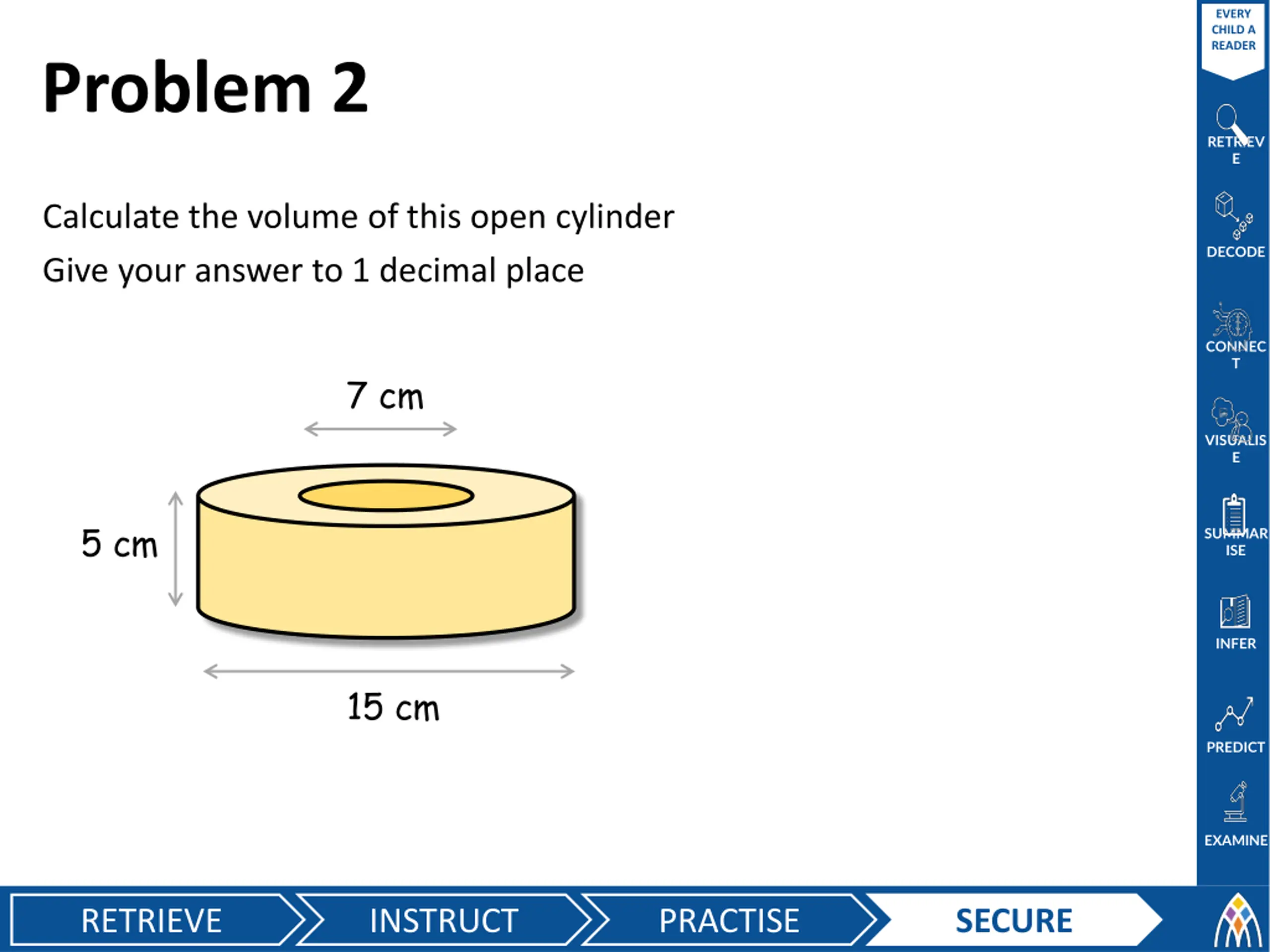

EVERY CHILD A READER Problem 2 RETRIEV E Calculate the volume of this open cylinder Give your answer to 1 decimal place DECODE CONNEC T 7 cm VISUALIS E 5 cm SUMMAR ISE INFER 15 cm PREDICT EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE

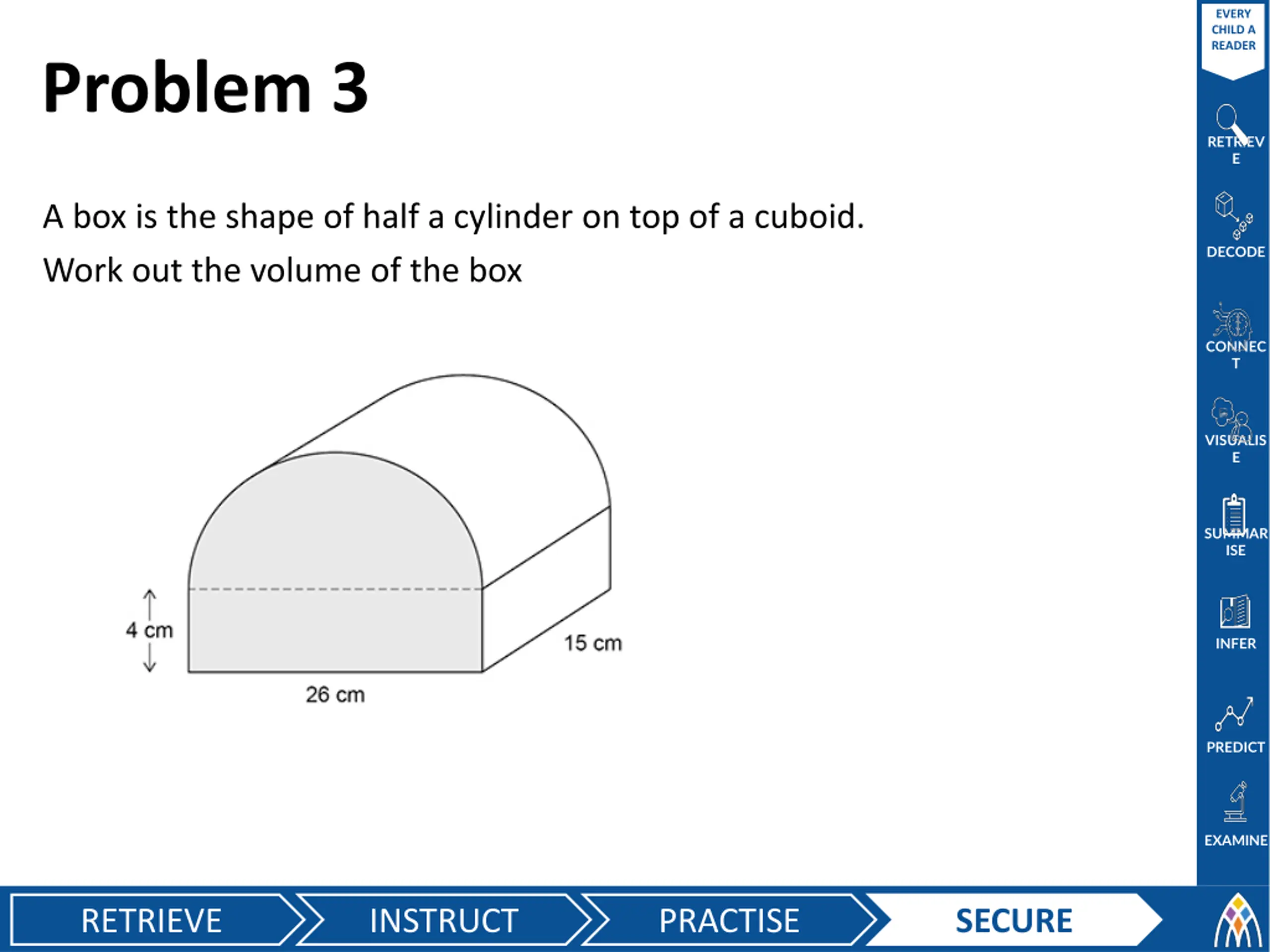

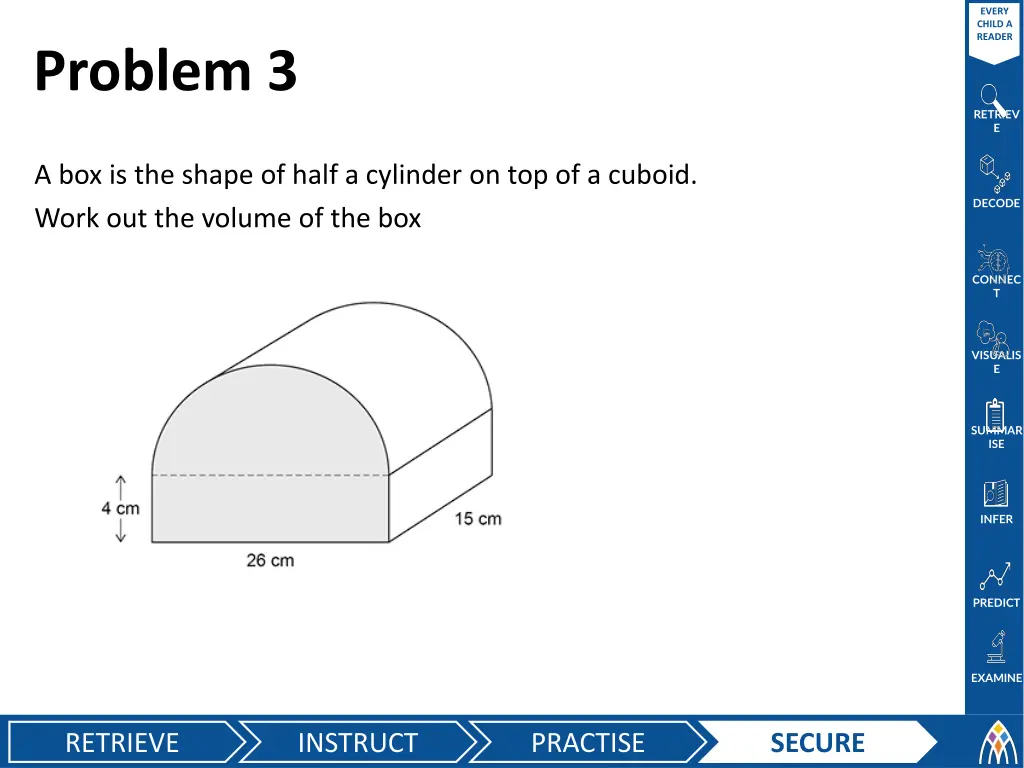

EVERY CHILD A READER Problem 3 RETRIEV E A box is the shape of half a cylinder on top of a cuboid. Work out the volume of the box DECODE CONNEC T VISUALIS E SUMMAR ISE INFER PREDICT EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE

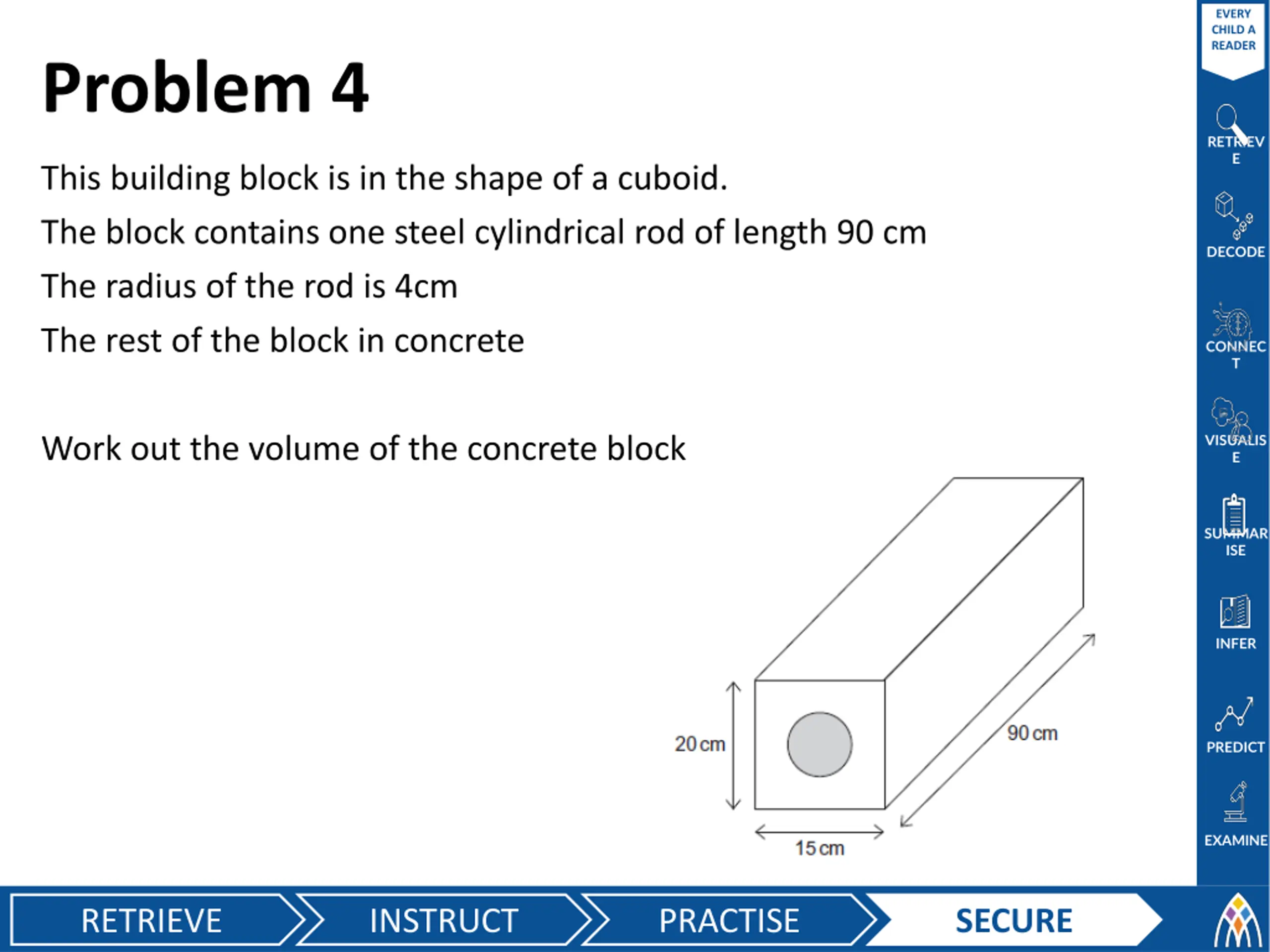

EVERY CHILD A READER Problem 4 RETRIEV E This building block is in the shape of a cuboid. The block contains one steel cylindrical rod of length 90 cm The radius of the rod is 4cm The rest of the block in concrete DECODE CONNEC T VISUALIS E Work out the volume of the concrete block SUMMAR ISE INFER PREDICT EXAMINE RETRIEVE INSTRUCT PRACTISE SECURE
