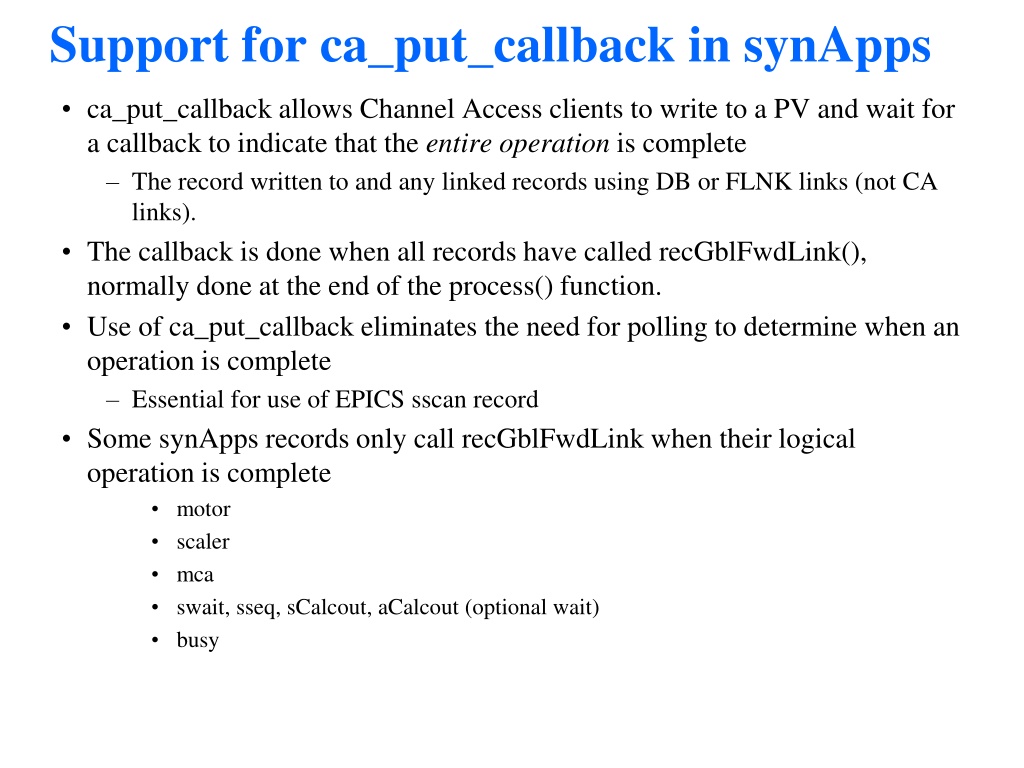

ca_put_callback in EPICS for Efficient Channel Access Operations


ca_put_callback allows Channel Access clients to write to a PV and wait for
a callback to indicate that the
entire operation
is complete
The record written to and any linked records using DB or FLNK links (not CA
links).
The callback is done when all records have called recGblFwdLink(),
normally done at the end of the process() function.
Use of ca_put_callback eliminates the need for polling to determine when an
operation is complete
Essential for use of EPICS sscan record
Some synApps records only call recGblFwdLink when their logical
operation is complete
motor
scaler
mca
swait, sseq, sCalcout, aCalcout (optional wait)
busy

Support for ca_put_callback in synApps

Identical to bo record with 1 exception
It only calls recGblFwdLink() when the VAL field changes
from 1 to 0
Can be used in EPICS databases to signal completion with
ca_put_callback() when not using the records on the previous
slide.
Writes to the busy record can be from
Channel Access
Links in other records in the database
C/C++ callbacks from asyn drivers and asyn device support

Busy record

# This is the energy PV to write to with ca_put_callback
record(ao,"$(P)ID$(xx)_energy") {
    field(FLNK,"$(P)ID$(xx)_busyOn.VAL  PP MS")
}
# This sets the busy record to 1 and forward links to record that sets energy
record(bo,"$(P)ID$(xx)_busyOn") {
    field(DOL,"1")
    field(OUT,"$(P)ID$(xx)_busy.VAL  PP MS")
    field(FLNK,"$(P)ID$(xx)_energyPut.VAL  PP MS")
}
# This is the busy record
record(busy,"$(P)ID$(xx)_busy") {
}
# This fetches the value from _energy and writes the value to the ID control
record(ao,"$(P)ID$(xx)_energyPut") {
    field(OMSL,"closed_loop")
    field(DOL,"$(P)ID$(xx)_energy.VAL  NPP NMS")
    field(OUT,"ID$(xx):ScanEnergy.VAL  PP MS")
}
# This monitors the Busy field of the ID control and writes it to busy record
record(bo,"$(P)ID$(xx)_copyBusy") {
    field(OMSL,"closed_loop")
    field(DOL,"ID$(xx):Busy.VAL  CP MS")
    field(OUT,"$(P)ID$(xx)_busy.VAL  CA MS")
}


Example: Write to undulator energy, wait for completion

record(bo, "$(P)$(R)Acquire") {
   field(DTYP, "asynInt32")
   field(OUT, "@asyn($(PORT),$(ADDR=0),$(TIMEOUT=1))ACQUIRE")
   field(FLNK, "$(P)$(R)SetAcquireBusy")
   info(asyn:READBACK, "1")
}
record(calcout, "$(P)$(R)SetAcquireBusy") {
    field(INPA, "$(P)$(R)Acquire NPP")
    field(CALC, "A")
    field(OOPT, "Transition To Non-zero")
    field(OUT,  "$(P)$(R)AcquireBusy PP")
}
record(busy, "$(P)$(R)AcquireBusy") {}
record(bi, "$(P)$(R)AcquireBusyCB") {
   field(DTYP, "asynInt32")
   field(INP, "@asyn($(PORT),$(ADDR=0),$(TIMEOUT=1))ACQUIRE_BUSY")
   field(SCAN, "I/O Intr")
}
record(calcout, "$(P)$(R)ClearAcquireBusy") {
    field(INPA, "$(P)$(R)AcquireBusyCB CP")
    field(CALC, "A")
    field(OOPT, "Transition To Zero")
    field(OUT,  "$(P)$(R)AcquireBusy PP")
}
record(bo, "$(P)$(R)WaitForPlugins") {
   field(PINI, "YES")
   field(DTYP, "asynInt32")
   field(OUT, "@asyn($(PORT),$(ADDR=0),$(TIMEOUT=1))WAIT_FOR_PLUGINS")
}


Example: areaDetector wait for plugins
Slide Note
Embed
Share

Support for ca_put_callback in synApps EPICS allows clients to write to a PV and wait for a callback to indicate completion, eliminating the need for polling. Essential for sscan records and certain synApps records like motor, scaler, mca, swait, sseq, sCalcout, and aCalcout. Learn how to utilize ca_put_callback effectively and streamline channel access operations in EPICS.

  • EPICS
  • Channel Access
  • ca put callback
  • SynApps
  • Records

Uploaded on Sep 12, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript


  1. Support for ca_put_callback in synApps ca_put_callback allows Channel Access clients to write to a PV and wait for a callback to indicate that the entire operation is complete The record written to and any linked records using DB or FLNK links (not CA links). The callback is done when all records have called recGblFwdLink(), normally done at the end of the process() function. Use of ca_put_callback eliminates the need for polling to determine when an operation is complete Essential for use of EPICS sscan record Some synApps records only call recGblFwdLink when their logical operation is complete motor scaler mca swait, sseq, sCalcout, aCalcout (optional wait) busy

  2. Busy record Identical to bo record with 1 exception It only calls recGblFwdLink() when the VAL field changes from 1 to 0 Can be used in EPICS databases to signal completion with ca_put_callback() when not using the records on the previous slide. Writes to the busy record can be from Channel Access Links in other records in the database C/C++ callbacks from asyn drivers and asyn device support

  3. Example: Write to undulator energy, wait for completion # This is the energy PV to write to with ca_put_callback record(ao,"$(P)ID$(xx)_energy") { field(FLNK,"$(P)ID$(xx)_busyOn.VAL PP MS") } # This sets the busy record to 1 and forward links to record that sets energy record(bo,"$(P)ID$(xx)_busyOn") { field(DOL,"1") field(OUT,"$(P)ID$(xx)_busy.VAL PP MS") field(FLNK,"$(P)ID$(xx)_energyPut.VAL PP MS") } # This is the busy record record(busy,"$(P)ID$(xx)_busy") { } # This fetches the value from _energy and writes the value to the ID control record(ao,"$(P)ID$(xx)_energyPut") { field(OMSL,"closed_loop") field(DOL,"$(P)ID$(xx)_energy.VAL NPP NMS") field(OUT,"ID$(xx):ScanEnergy.VAL PP MS") } # This monitors the Busy field of the ID control and writes it to busy record record(bo,"$(P)ID$(xx)_copyBusy") { field(OMSL,"closed_loop") field(DOL,"ID$(xx):Busy.VAL CP MS") field(OUT,"$(P)ID$(xx)_busy.VAL CA MS") }

  4. Example: areaDetector wait for plugins record(bo, "$(P)$(R)Acquire") { field(DTYP, "asynInt32") field(OUT, "@asyn($(PORT),$(ADDR=0),$(TIMEOUT=1))ACQUIRE") field(FLNK, "$(P)$(R)SetAcquireBusy") info(asyn:READBACK, "1") } record(calcout, "$(P)$(R)SetAcquireBusy") { field(INPA, "$(P)$(R)Acquire NPP") field(CALC, "A") field(OOPT, "Transition To Non-zero") field(OUT, "$(P)$(R)AcquireBusy PP") } record(busy, "$(P)$(R)AcquireBusy") {} record(bi, "$(P)$(R)AcquireBusyCB") { field(DTYP, "asynInt32") field(INP, "@asyn($(PORT),$(ADDR=0),$(TIMEOUT=1))ACQUIRE_BUSY") field(SCAN, "I/O Intr") } record(calcout, "$(P)$(R)ClearAcquireBusy") { field(INPA, "$(P)$(R)AcquireBusyCB CP") field(CALC, "A") field(OOPT, "Transition To Zero") field(OUT, "$(P)$(R)AcquireBusy PP") } record(bo, "$(P)$(R)WaitForPlugins") { field(PINI, "YES") field(DTYP, "asynInt32") field(OUT, "@asyn($(PORT),$(ADDR=0),$(TIMEOUT=1))WAIT_FOR_PLUGINS") }
