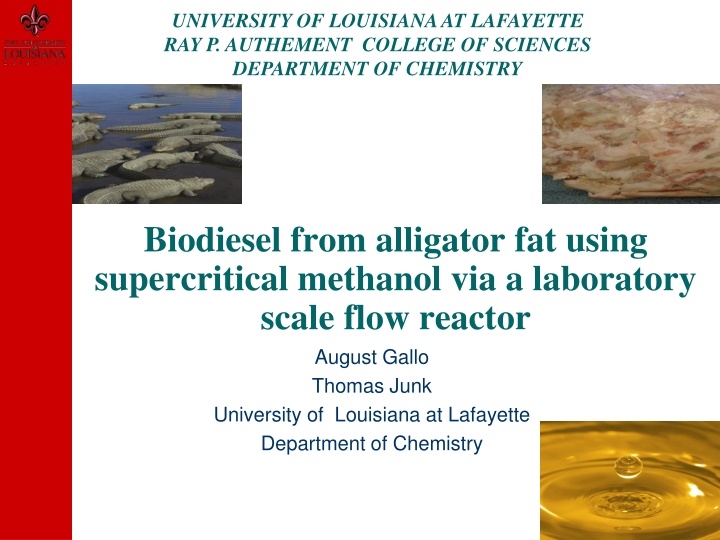

Biodiesel from alligator fat using
supercritical methanol via a laboratory
scale flow reactor


August Gallo
Thomas Junk
University of  Louisiana at Lafayette
Department of Chemistry

UNIVERSITY OF LOUISIANA AT LAFAYETTE
RAY P. AUTHEMENT  COLLEGE OF SCIENCES
DEPARTMENT OF CHEMISTRY

Fossil fuels

According to the Energy Information Administration (EIA),
the world energy consumption is projected to increase by 33%
from 2007 to 2035

 In the year 2007 the United States alone consumed 21% of
the world’s energy

As of 2008, transportation share of the U.S. petroleum
consumption is 71%

The U.S transportation sector is 97 percent reliant on oil, with
60 percent of this oil imported





Biofuels

Energy security
Economic stability
Environmental gains
Dominant biofuels- biodiesel and bioethanol.
Food vs. biofuels


Alligator and its fats

In United States, Louisiana has the population of about 1.5
million alligators constituting 75% of the total population
Louisiana’s wild and farm raised alligator harvest is
approximately 275,000 per year
In the year 2008 the revenue generated

from wild and farm
raised alligators was ~ $70 million
15 million pounds of alligator fat is available annually in
Louisiana, which is currently being disposed as waste

The increasing popularity of alligator farming, coupled
with the high fat content of alligators, strongly supports
the use of waste alligator fat as a source for biodiesel fuel.
It stands to reason, however, that the methods presented
here are of general applicability for the conversion of
other animal fats (e.g., lard, chicken fat) to biodiesel.

C
u
r
r
e
n
t

s
t
a
t
u
s

Biodiesel is increasingly used as a renewable
alternative to conventional diesel fuel. With
approximately 51 billion liters in 2010, the
United States is the largest producer of biofuels.
Biodiesel is prepared from vegetable or animal
fats, usually by transesterification with methanol
(Fig. 1)

An established procedure for the transesterification of fats with
methanol consists of stirring the respective fat with methanol and
a suitable catalyst, usually sodium hydroxide.
An alternative procedure is the rendering of oil prior to
transesterification, leaving a residue of nitrogen-rich material.  In
each case, solid byproducts and an emulsion are obtained, which
have to be separated by filtration and/or centrifugation and
generate a significant amount of caustic solid waste.  A typical
setup is shown in Fig. 2, the formation of solids in the product
mixture is evident by the turbid appearance of the fluid phase.
Optimized conditions consisted of heating the fat with methanol
in a 3:1 weight ratio for 2.5 hours at 65°C in the presence of 1%
of NaOH.

T
r
a
d
i
t
i
o
n
a
l

p
r
o
c
e
s
s
i
n
g

Production of biodiesel


Fig. 2

Conversion using supercritical
methanol - rationale

We are developing an alternative procedure with several objectives
in mind: 1) the reduction of elimination of solid waste products, 2)
the avoidance of emulsions and caustic residues that require
additional separation steps, and 3) reduced reaction times.  The use
of supercritical methanol eliminates the need for a catalyst, promises
short reaction times, and produces product mixtures that are virtually
free of solid residues. Methanol has a critical temperature of approx.
240
°C
, as shown in the diagram below (Fig. 3)

Batch Process Equipment

Fatty acid profile of alligator fat

GC analysis

Main methyl ester after treatment in flow reactor

Conclusions – Batch process

The use of supercritical methanol in the conversion of waste
alligator fat to biodiesel was shown to be a viable alternative to
traditional transesterification.  Key advantages of this method
include: a) avoidance of caustic catalysts, b) the elimination of
solid byproducts posing disposal problems, and c) significant
simplification of the conversion process, no emulsions.  The
use of raw fat containing proteins resulted in the formation of
liquid amines and amides in the resulting product. These pose
no harm; in fact, the addition of amines to increase the thermal
stability of diesel fuels has been patented (USP 4,166,726).
Furthermore, it is common practice to co-inject solutions of
urea into diesel engines to reduce harmful NOX emissions.
Optimized batch conditions were achieved when 2 g of oil was
heated with 8 g of methanol to 300°C for 3 hours, resulting in
95.8 % of methyl esters and undetectable levels of  free acids.

Flow Reactor Study
Several inherent problems with the batch
process- temperature control after completion of
the reaction.
With a flow reactor, the reactants can enter and
leave the system under more controlled
conditions.
A simple system  was devised using an HPLC
pump, shut off valve, woods metal bath, heater,
digital thermometer, 6 ft. column, water cooled
jacket and a pressure valve to control the
pressure.

Flow Reactor

Flow Reactor Study-FAME analysis

Concentration of the main methyl ester as a function of
time, 1 mL/min

Flow Reactor Study-FAME analysis

Concentration of the main methyl ester as a function of
time, 0.2 mL/min

Flow Reactor Study-FAME analysis

Concentration of the main methyl ester as a function of
temperature - 1 mL/min

GC Analysis of FAME vs.Temperature

Conclusions – Flow Reactor

These graphs show the concentration of the esters increases
exponentially.
The highest concentration was reached at 400°C for the all
esters, then the concentrations decreased rapidly. For the
higher flow rate the exponential decrease was not observed.
A new run was carried at 300, 320, 340, 360, 380, 400, 420,
440, 460, 480°C and 500°C.  The number of samples was
increased in order to have more information about the ester
concentration especially between 400°C and 500°C.
These graphs show that the highest concentration was
reached at 460
°
C. In this case we observed, for the
unsaturated ester, a exponential decrease of the
concentration.

E
c
o
n
o
m
i
c

e
v
a
l
u
a
t
i
o
n

The economics of the lipid production was investigated with the
following assumptions:

The cost of lipid source was assigned to be zero, since feed stock
was alligator fat waste that normally entails disposal costs for the
processing industry.

Byproduct glycerol was assumed to fetch a price of $ 0.22 per kg
(ICIS, 2010).

Cost of equipment were taken from SuperPro Designer and from
the equipment data of  Peters and Timmerhaus (Peter and
Timmerhaus, 1981).

Equipment cost

Utilities

Results (Economic analysis)

Fixed capital investment = 2.51 million dollars.
Total capital investment = 2.98 million dollars.
Raw material cost = 0.44 million dollars.
Labor cost (18 people) = 0.87 million dollars.
Utility costs = 0.125 million dollars.
Annual total product cost = 3.01 million dollars.
Average return on investment = 28.5% per year.
Payback period = 2.3 years.

Acknowledgements

I would like to thank the department of chemistry at UL
Lafayette and the following individuals who made this work
possible through support and guidance:

 Dr. Rakesh Bajpai, Professor of Chemical Engineering, UL
 Dean Mark Zappi, Dean of Engineering, UL
 Patrick Spiller, UL
 Kevin Martin, University of Poitiers, France
 Teddy Lacourcelle, University of Poitiers, france
 Dr. William Holmes, UL
 Dr. Yuemin Liu, UL
