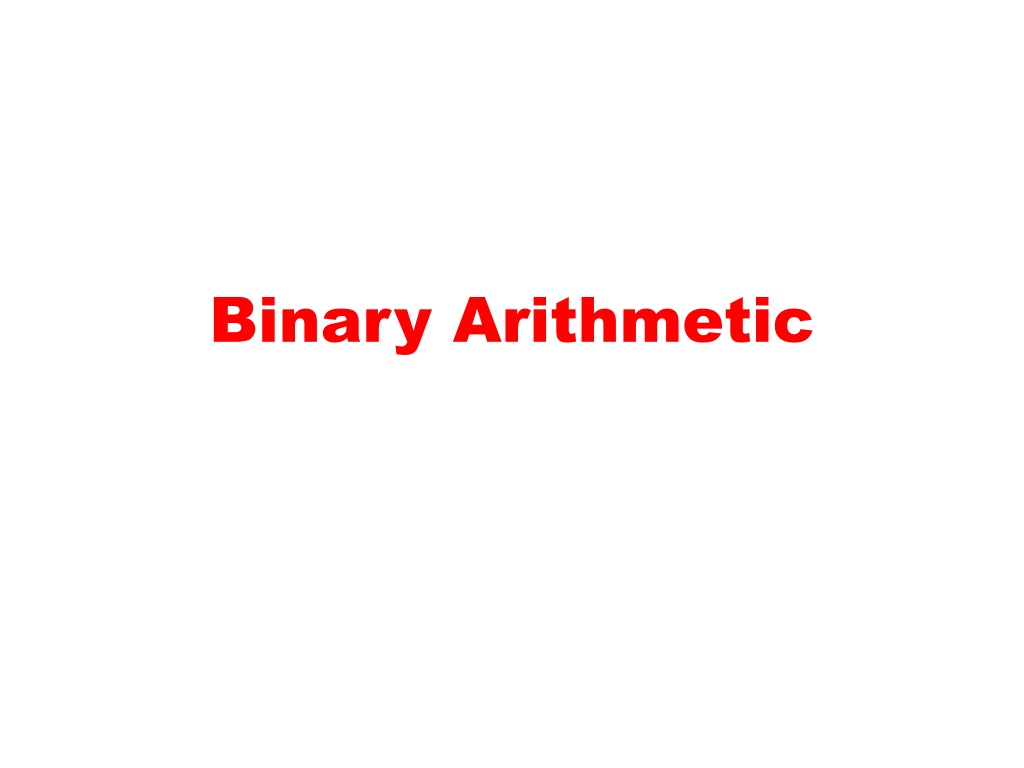

Binary Arithmetic
Binary Arithmetic
Binary operations
•
Binary addition
•
Binary subtraction
•
Binary multiplication
•
Binary division
Binary addition
•
Rules for binary addition:
Binary addition
Addition of large binary numbers
Solve
1.
(12)
10
+ (8)
10
2.
(15)
10
+ (10)
10
3.
(35)
10
+ (48)
10
4.
(10101)
2
+ (10110)
2
5.
(10111)
2
+ (11000)
2
Binary Subtraction
Rules for binary subtraction
Binary subtraction
Subtraction of large binary numbers
11001 - 10111 = 00010
Examples
Binary subtraction
Example 1:
0011010 – 001100
Solution:
1 1 Borrow
0 0 1 1 0 1 0
(-) 0 0 1 1 0 0
——————
0 0 0 1 1 1 0
Decimal Equivalent :
0 0 1 1 0 1 0 = 26
0 0 1 1 0 0 = 12
Therefore, 26 – 12 = 14
The binary resultant 0 0 0 1 1 1 0 is equivalent to the 14
Logic for binary to decimal
0 0 1 1 0 1 0 =26
2
6
2
5
2
4
2
3
2
2
2
1
2
0
64 32 16 8 4 2 1
16 8 2 =26
Binary Subtraction
•
Example 2:
0100010 – 0001010
•
Solution:
•
1 1 Borrow
•
0 1 0 0 0 1 0 = 34
10
•
(-) 0 0 0 1 0 1 0 = 10
10
•
——————
•
0 0 1 1 0 0 0 = 24
10
Binary subtraction
subtract 1010101.10 from 1111011.11
1 borrow
•
1111011.11
– 1010101.10
——————–
0100110.01
——————–
Binary subtraction
using 1’s and 2’s complement method
How to find 1’s Complement of given
number
•
1’s complement of a number is found by changing
all 1’s to 0’s and all 0’s to 1’s.
•
Ex: 1’s complement of a number 10111 is = 01000
•
Solve---- Find 1’s complement of
a.
11010 = 00101
b.
101101= 010010
c.
1010= 0101
d.
1111=0000
e.
1011001=0100110
How to find 2’s Complement of given number
•
The 2’s complement of a number is obtained by adding
1 to the LSB of 1’s complement of that number
•
2’s complement = 1’s complement + 1
•
Ex: obtain 2’s complement of a number
(10110010)
2
Solution:
Solve
•
Find 2’s complement of following numbers.
a.
(1101)
2 0010=1=0011
b.
(10111)
2 01000+1=01001
c.
(101101
)2
010010+1=010011
d.
(1011111)
2
010000+1=010001
e.
(101111101)
2
010000010+1=010000011
Subtraction using 1
s
complement
A) For subtracting a smaller number from a
larger number, the 1
s
complement method is as
follows:
1. Determine the 1
s
complement of the smaller
number.
2. Add the 1
s
complement to the larger number.
3. Remove the final carry and add it to the result.
This is called the end-around carry.
Binary subtraction using 1’s complement
method
•
To perform subtraction
(A)
2
- (B)
2
Step 1: convert number to be subtracted (B)
2
to its 1’s complement.
Step 2: Add first number (A)
2
and 1’s complement of (B)
2
using rules
of binary addition.
Step 3: if final carry is 1 then add it to the result of addition obtained
in step 2 to get final result.
**If final carry in step 2 is 1 then result obtained in step 2 is Positive
and in its true form no conversion required.
Step 4: if final carry in step 2 is 0 then result obtained in step 2 is
negative and in 1’s complement form. So convert it to its true form.
Binary subtraction using 1’s complement
10---------------------------------- 10
-3 - 11-----1’complement of 11 +00
--- -----
-1 10 result
1’s complement of result 01 final
result
carry 0 so result sign is negative
0
•
3 11 11
•
-2 10---------01
•
----------
•
1 0 0
•
1
•
------------
•
01
Binary subtraction using 1’s complement
9 1001 1001
-
15 1111
1’s complement
+0000
------- -------
-6 1001
1’s complement of result 0110 ---6
carry is 0 so result sign is negative
0
Binary Subtraction Questions Using 1’s Complement
Question 1:
(110101)
2
– (100101)
2
Solution:
(1 1 0 1 0 1)
2
= 53
10-------
minuend.
(1 0 0 1 0 1)
2
= 37
10
– subtrahend
Now take the 1’s complement of the subtrahend and add with minuend.
1 carry
1 1 0 1 0 1
(+) 0 1 1 0 1 0
——————
0 0 1 1 1 1
+ 1 carry
——————
0 1 0 0 0 0
Therefore, the solution is 010000
(010000)
2
= 16
10
1
Binary Subtraction Questions Using 1’s
Complement
Question 2:
(101011)
2
– (111001)
2 43-57= -14
Solution:
Take 1’s complement of the subtrahend
1 1 1
1 0 1 0 1 1
(+) 0 0 0 1 1 0 (1’s complement)
——————
1 1 0 0 0 1
Now take the 1’s complement of the resultant since it does not carry 1
The resultant becomes 0 0 1 1 1 0
Now, add the negative sign to the resultant value
Therefore the solution is – (001110)
2
.
Binary subtraction using 2’s
complement method
•
To perform subtraction
(A)
2
- (B)
2
Step 1: convert number to be subtracted (B)
2
to its 2’s
complement.
Step 2: Add first number (A)
2
and 2’s complement of (B)
2
using rules of binary addition.
Step 3: if final carry is 1 then the result Positive and in its
true form no conversion required.
Step 4: if final carry in step 2 is 0 then result obtained in
step 2 is negative and in 2’s complement form. So convert it
to its true form.
** Carry always be discarded.
Binary subtraction using 2’s complement
5 101
-7 111 1’s comple.---000
---- + 1
-2 ------
2’s complement 001
+101
-------
result 110
1’s complement 001
+ 1
--------
2’s complement 010 final result
Carry is 0 so result is negative
0
•
13 1101
-10 1010 0101
------- 1
03 ---------
0110
1101
--------------
1 0011
Subtraction using 2’s complement
33 100001
-45 101101 1’s 010010
----- + 1
-12 ------------
2’s 010011
+100001
------------
110100 result
1’s 001011
+ 1
-------------
2’s 001100 final result
0
Solve the following binary subtraction
using 1’s and 2’s complement method
•
15-23
•
25-18
•
23-18
•
18-9
•
10111 10111
•
-10010 01101 1’s
•
1
•
---------
•
01110
•
10111
•
-----------
•
100101
Binary Multiplication
Multiplication (1 of 3)
•
Decimal (just for fun)
35
x 105
175
000
35
3675
Multiplication
•
Binary, two 1-bit values
Example Binary Multiplication
A = 9
10
= 1001
2
A
3
A
2
A
1
A
0
B = 8
10
= 1000
2
B
3
B
2
B
1
B
0
1001
× 1000
------------------
0000 multiply by B
0
+ 0000 multiply by B
1
+ 0000 multiply by B
2
+ 1001 multiply by B
3
--------------
1001000
Cross check
1 0 0 1 0 0 0
64 32 16 8 4 2 1 place value of result bits
64+8=72
Perform the following multiplication in binary number
system
: 1011
2
× 101
2
1 0 1 1
× 1 0 1
---------
1 0 1 1
+ 0 0 0 0
+ 1 0 1 1
carry 1
-------------------
1 1 0 1 1 1
Perform the following multiplication in
binary number system: 101.1
2
× 11.1
2
1 0 1 .1
× 1 1 .1
----------------
1 0 1 1
+ 1 0 1 1
+ 1 0 1 1
Carry 1 1 1 1
---------------------
1 0 0 1 1. 0 1
Multiplication
•
Binary, two
n
-bit values
–
As with decimal values
–
E.g.,
1110
x 1011
1110
1110
0000
1110
10011010
Binary Multiplication
•
Perform the following multiplication in binary
number system: 15
10
× 8
10
•
Perform the following multiplication in binary
number system: 1001
2
× 1101
2
•
Perform the following multiplication in binary
number system: 111.11
2
× 101.1
2
Solve
•
(205)
10
x (3)
10
•
(1110101)
2
x (1001)
2
•
(110)
2
x (10)
2
•
(1111101)
2
x (101)
2
•
(15)
10
x (8)
10
Binary Division
Binary Division:110
÷10
10) 110 ( 11
- 10
----------
010
- 10
------------
000
Binary division
Ex:
(25)
10
÷ (5)
10
Perform the division 111110.1
÷101
1100.1 quotient
101)
111110.1 5)62.5(12.5
-101 -5
-------------- ---------
0101 12.5
- 101 - 10
------------- --------
0000101 02.5
- 101 - 2.5
-------------- --------
0000000 remainder 000
Solve
•
(205)
10
÷ (3)
10
•
(1110101)
2
÷ (1001)
2
•
(110)
2
÷ (10)
2
•
(1111101)
2
÷ (101)
2
•
100)1100(11
•
100
•
---------------
•
0100
•
100
•
----------------
•
0000
END
