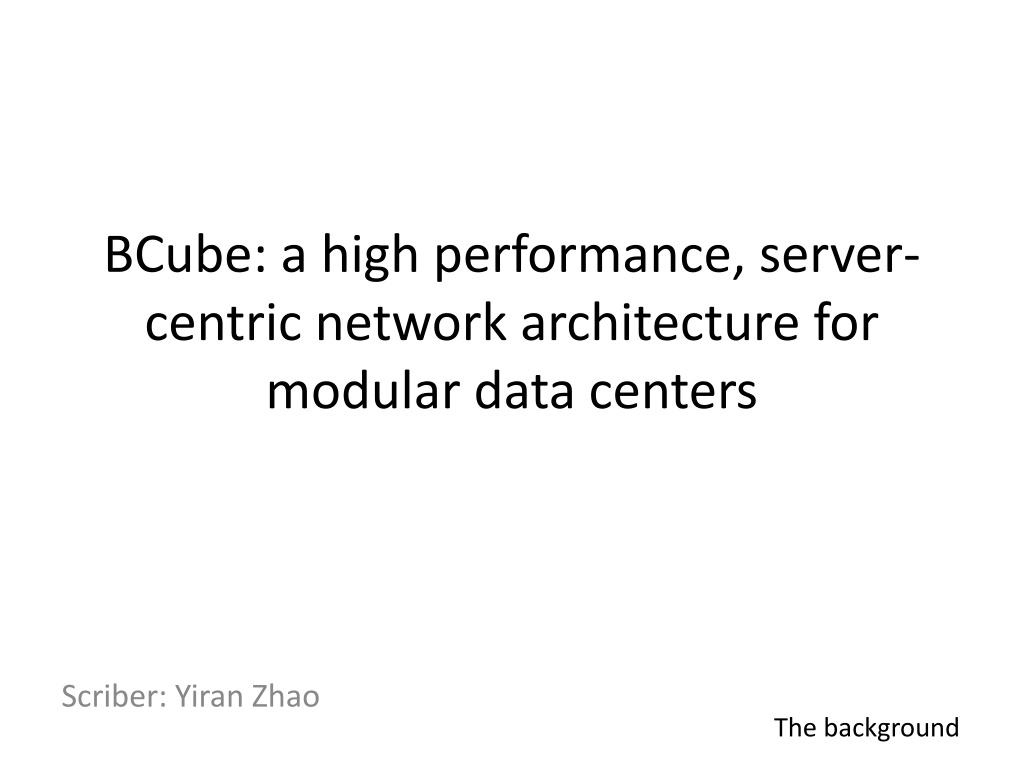

BCube Network Architecture for Data Centers
BCube: a high performance, server-
centric network architecture for
modular data centers
The background
Scriber: Yiran Zhao
BCube(n,k)
n ports, k+1 levels, k+1 NICs
000
001
010
011
100
101
110
111
Level 0
Level 1
Level 2
BCube(2,0)
BCube(2,1)
BCube(2,2)
000
001
010
011
100
101
110
111
Level 0
Level 1
Level 2
•
Path length = 1 hop
000
001
010
011
100
101
110
111
Level 0
Level 1
Level 2
•
Path length = 2 hops.
•
2*1 paths.
000
001
010
011
100
101
110
111
Level 0
Level 1
Level 2
•
Path length = 3 hops.
•
3*2*1=6 paths.
BCube
•
Modularity.
•
Server-centric: source routing.
•
Commodity switches.
•
High Capacity: multiple paths.
•
Low latency: small hops.
CubicRing: Enabling One-Hop Failure
Detection and Recovery for
Distributed In-Memory Storage
Systems
Scriber: Yiran Zhao
•
Pros:
•
Fast, reliable failure detection.
•
Fast recovery.
•
Distinguish switch failure from
server failure.
•
Handle stragglers.
•
Cons:
•
Only cubic topology.
•
Limited data model.
•
Not specific about dynamic re-
assignment of keys.
•
Only evaluate multiple failures of
primary servers.
•
Global coordinator SPF? (mapping
key space, failure detection,
recovery)
•
Over-provision RAM.
•
Fragmentation is an issue.
•
Not good if geo-distributed.
•
False failure detection expensive.
•
Consistency.
•
Not show decrease in false
detection rate.
Thoughts
•
Writes need 2 hops, recovery needs 1 hop?
•
P transfers writes and waits for all B to return?
•
How many hops between coordinator and P ?
•
Equal Cost Multi-Path?
•
Backup battery?
•
Wiring complexity?
P
R
B
P
B
R
V.S.
