Architecture and institutional issues for AeroMACS

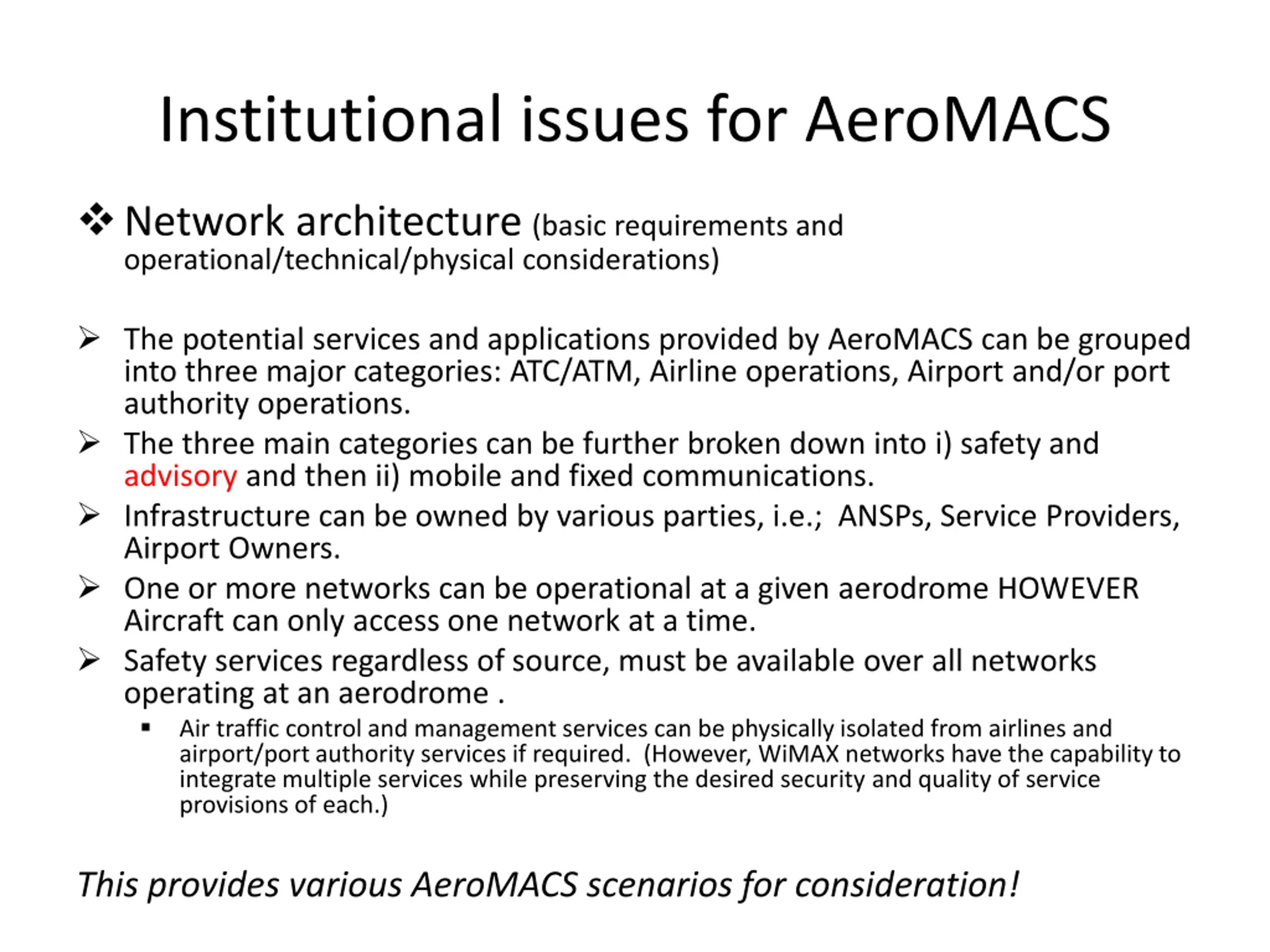

Institutional issues for AeroMACS Network architecture (basic requirements and operational/technical/physical considerations) The potential services and applications provided by AeroMACS can be grouped into three major categories: ATC/ATM, Airline operations, Airport and/or port authority operations. The three main categories can be further broken down into i) safety and advisory and then ii) mobile and fixed communications. Infrastructure can be owned by various parties, i.e.; ANSPs, Service Providers, Airport Owners. One or more networks can be operational at a given aerodrome HOWEVER Aircraft can only access one network at a time. Safety services regardless of source, must be available over all networks operating at an aerodrome . Air traffic control and management services can be physically isolated from airlines and airport/port authority services if required. (However, WiMAX networks have the capability to integrate multiple services while preserving the desired security and quality of service provisions of each.) This provides various AeroMACS scenarios for consideration!

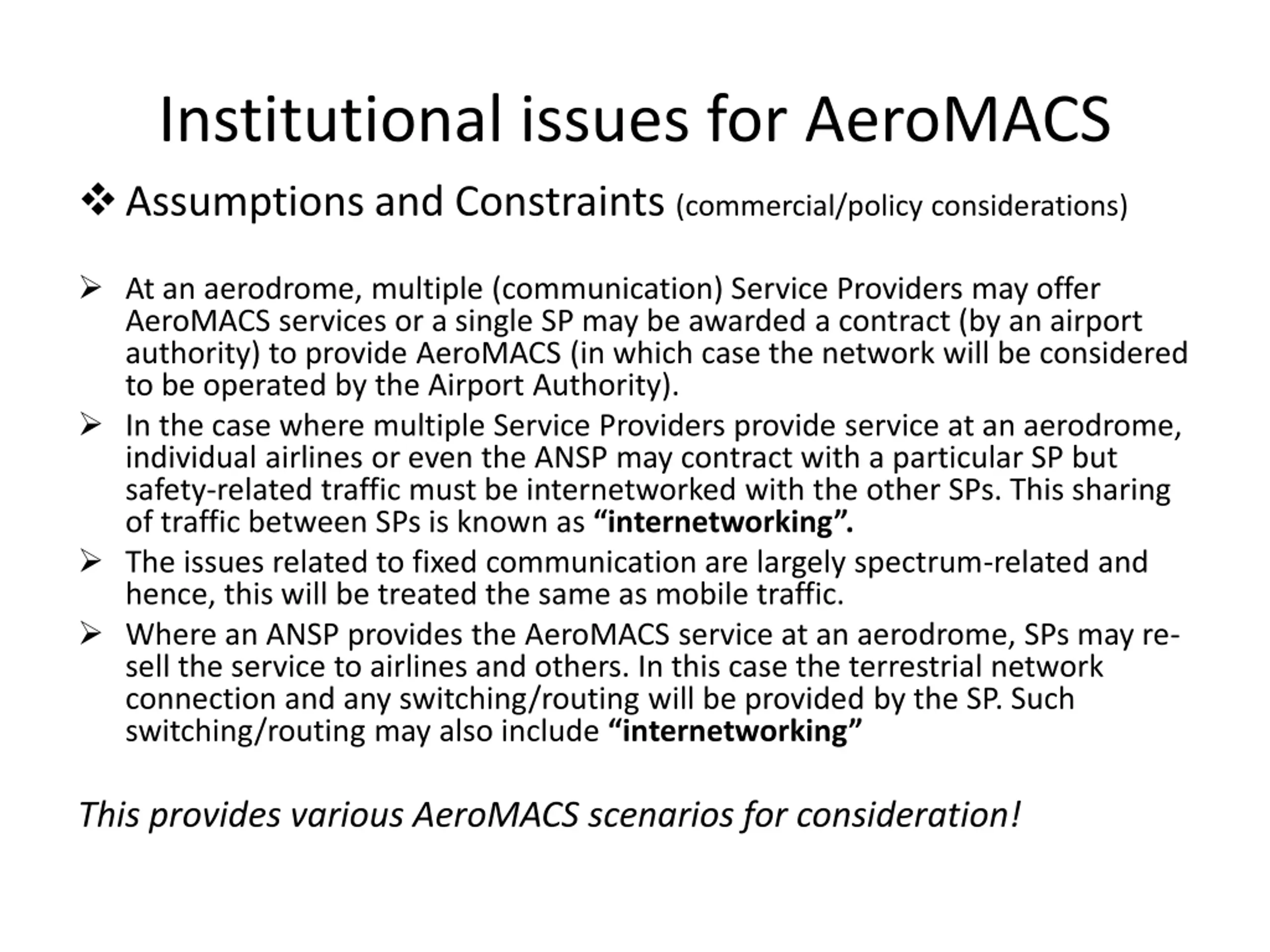

Institutional issues for AeroMACS Assumptions and Constraints (commercial/policy considerations) At an aerodrome, multiple (communication) Service Providers may offer AeroMACS services or a single SP may be awarded a contract (by an airport authority) to provide AeroMACS (in which case the network will be considered to be operated by the Airport Authority). In the case where multiple Service Providers provide service at an aerodrome, individual airlines or even the ANSP may contract with a particular SP but safety-related traffic must be internetworked with the other SPs. This sharing of traffic between SPs is known as internetworking . The issues related to fixed communication are largely spectrum-related and hence, this will be treated the same as mobile traffic. Where an ANSP provides the AeroMACS service at an aerodrome, SPs may re- sell the service to airlines and others. In this case the terrestrial network connection and any switching/routing will be provided by the SP. Such switching/routing may also include internetworking This provides various AeroMACS scenarios for consideration!

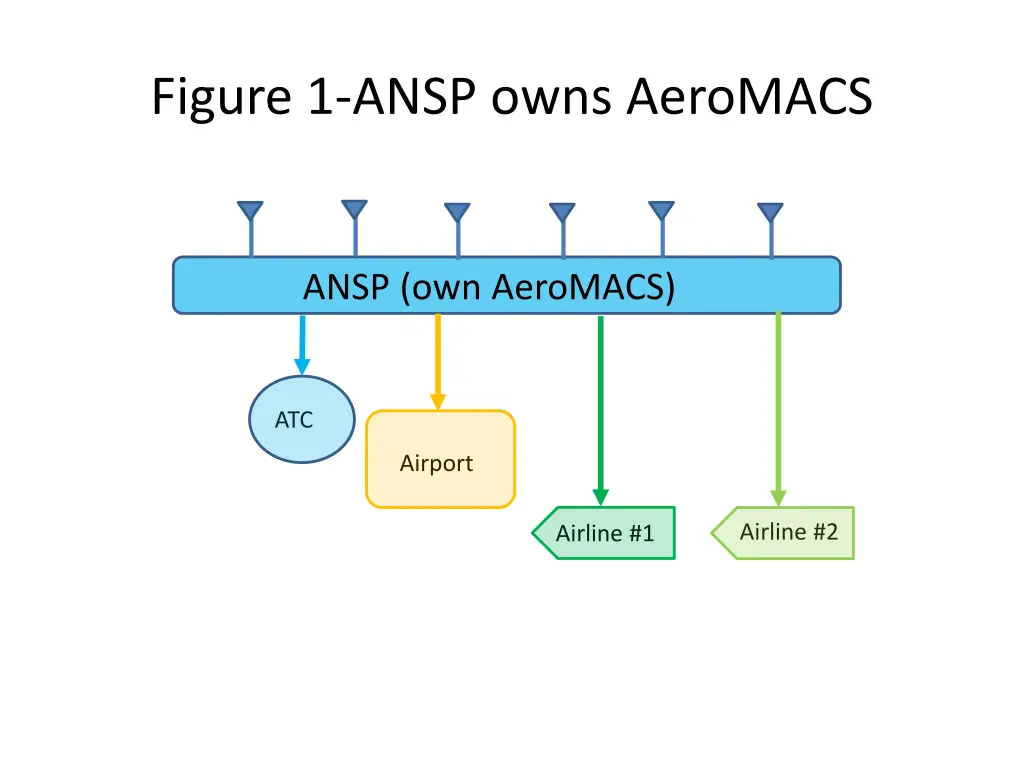

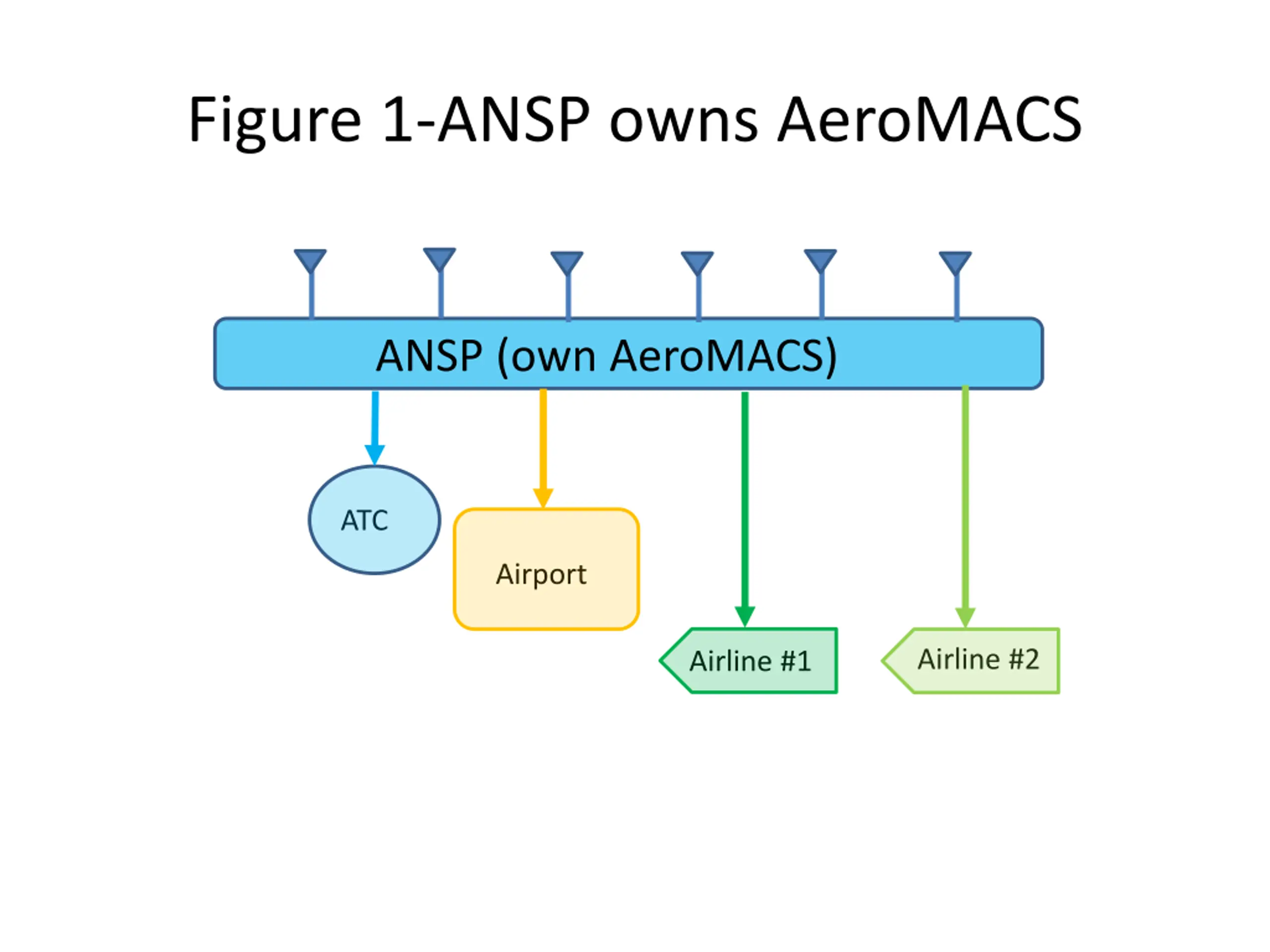

Figure 1-ANSP owns AeroMACS ANSP (own AeroMACS) ATC Airport Airline #2 Airline #1
Figure 2-ANSP owns AeroMACS ANSP (own AeroMACS) ATC Service Provider Airport Airline #2 Airline #1

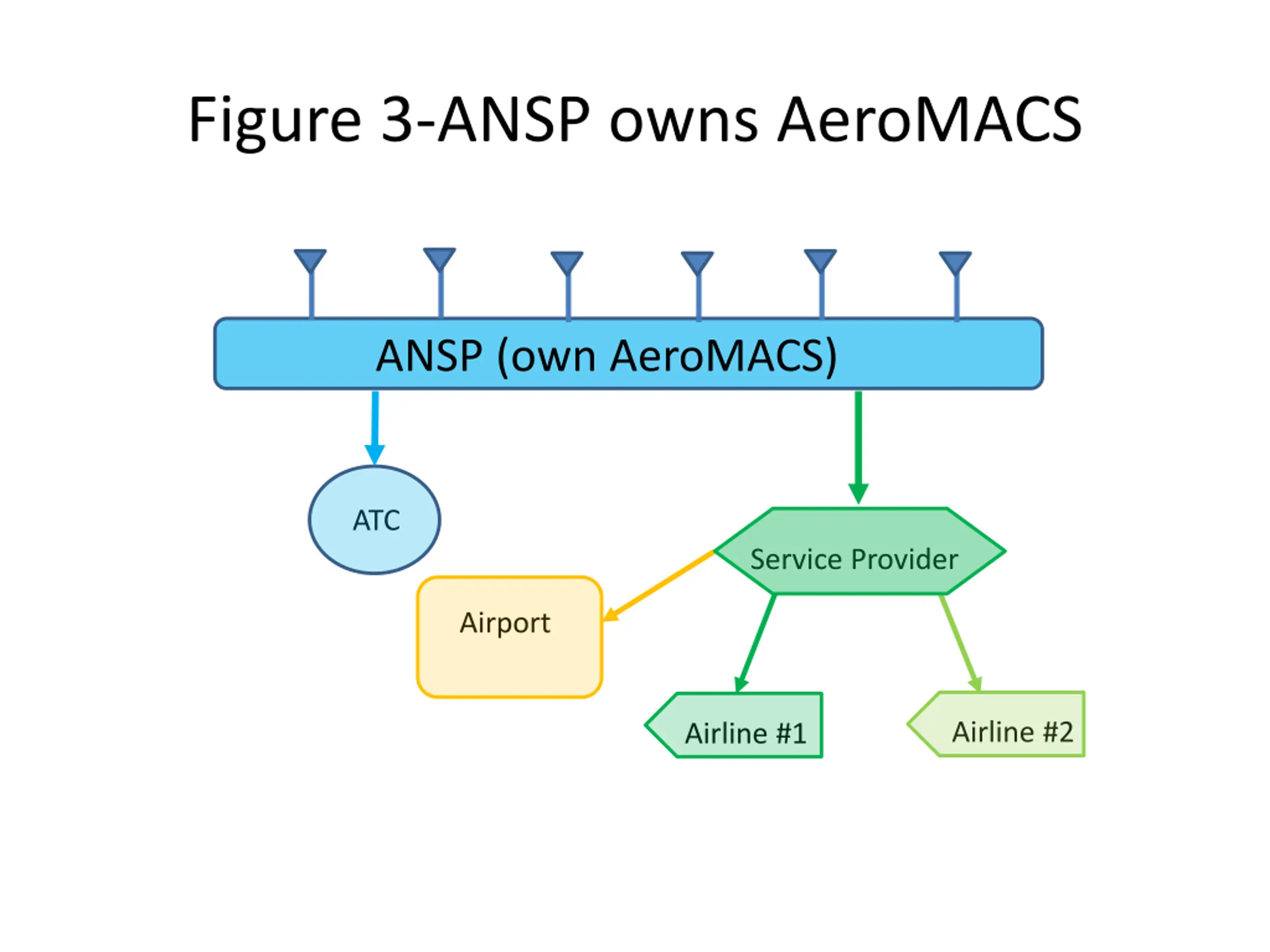

Figure 3-ANSP owns AeroMACS ANSP (own AeroMACS) ATC Service Provider Airport Airline #2 Airline #1

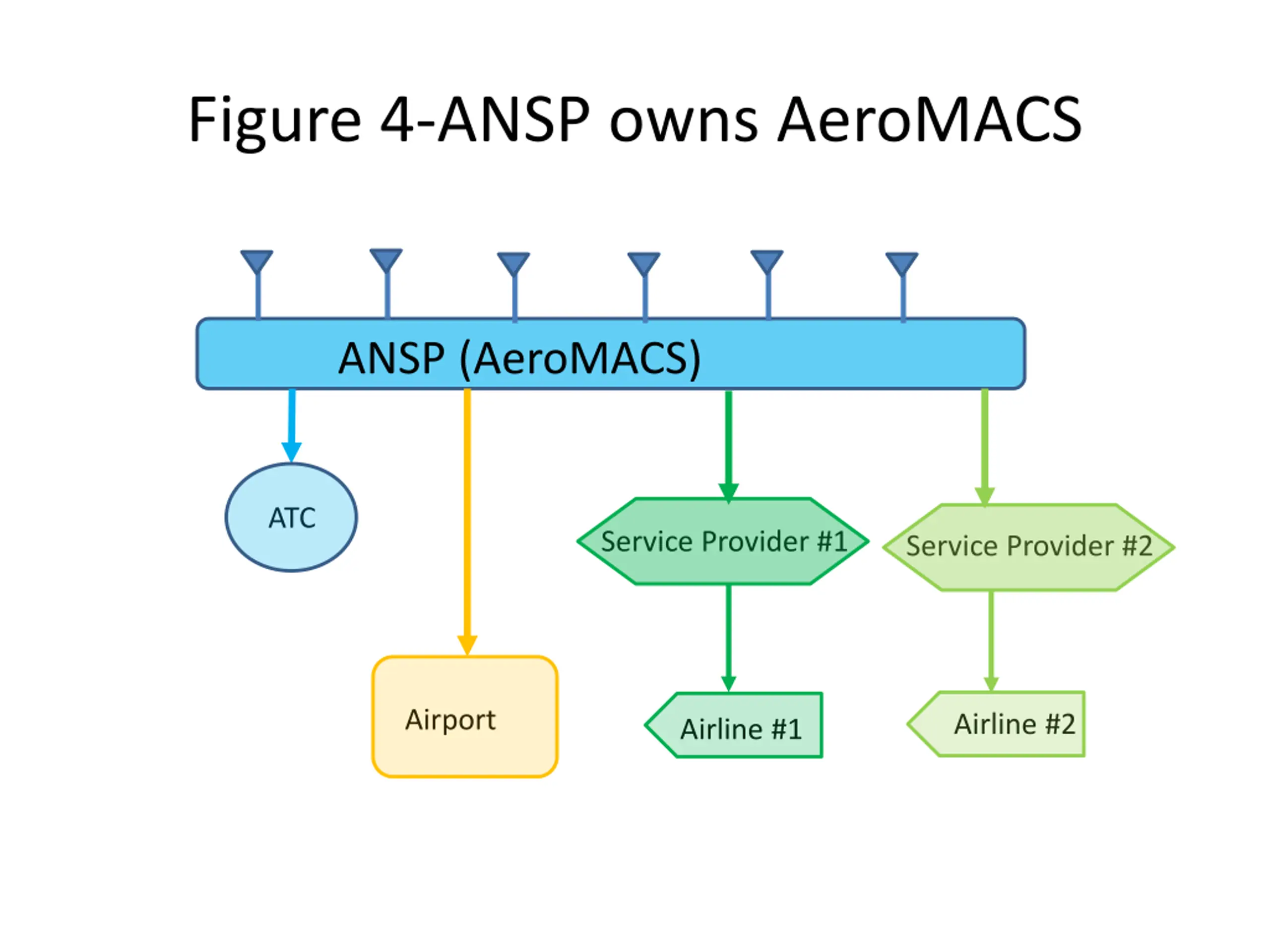

Figure 4-ANSP owns AeroMACS ANSP (AeroMACS) ATC Service Provider #1 Service Provider #2 Airport Airline #2 Airline #1

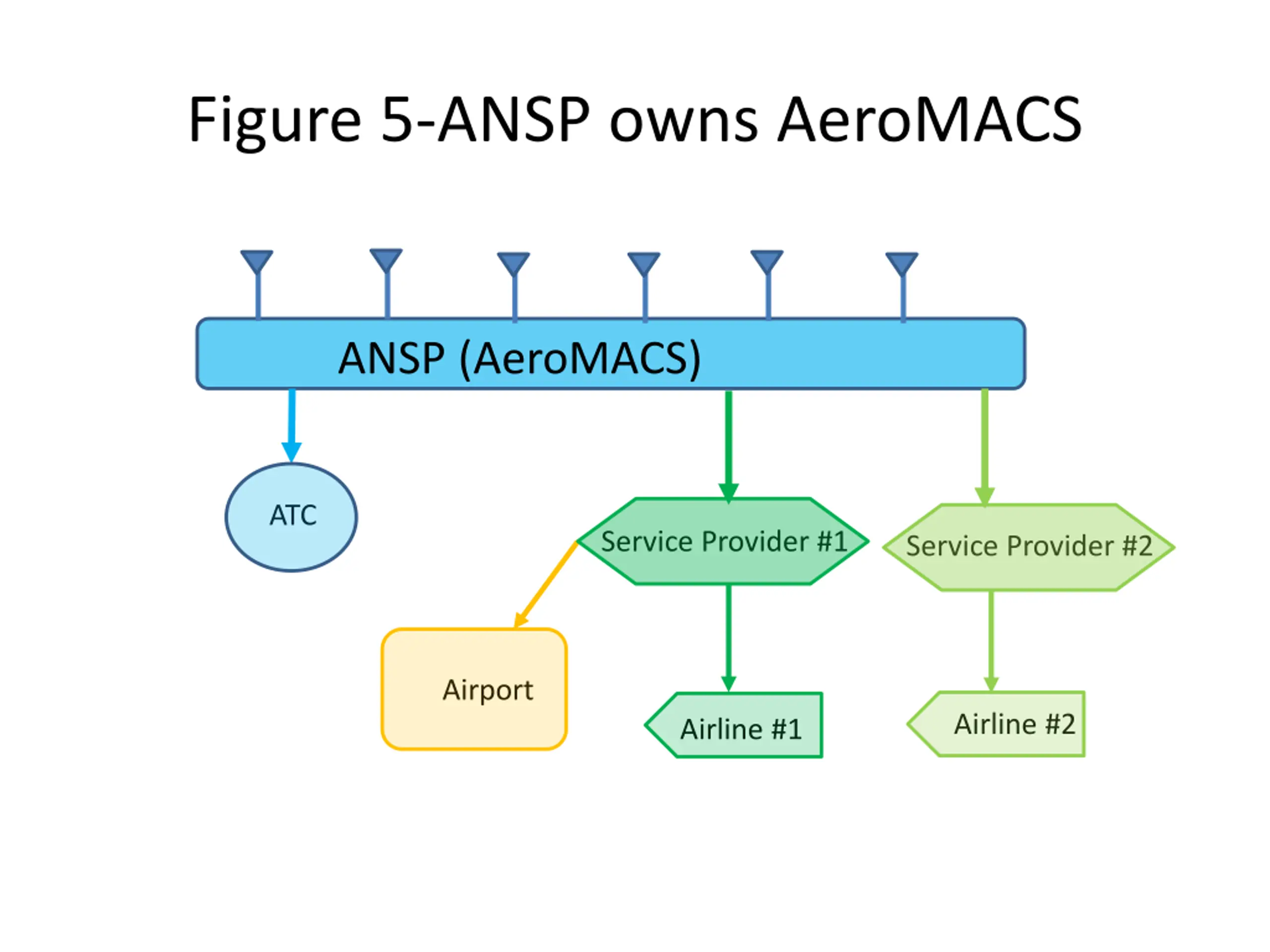

Figure 5-ANSP owns AeroMACS ANSP (AeroMACS) ATC Service Provider #1 Service Provider #2 Airport Airline #2 Airline #1

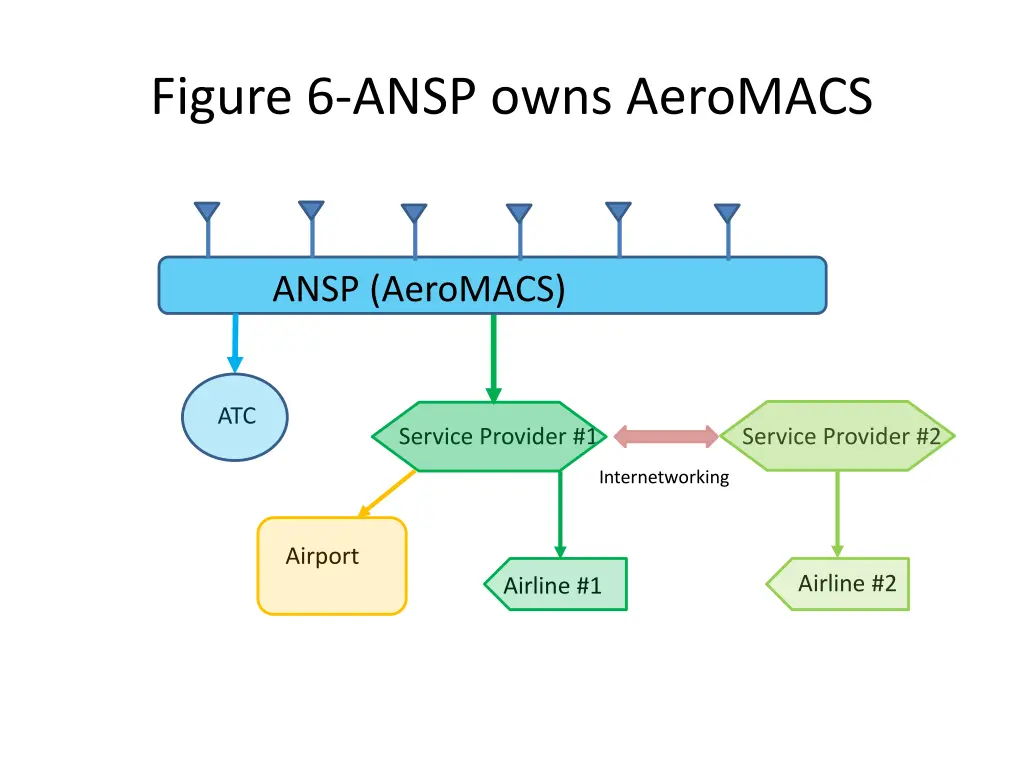

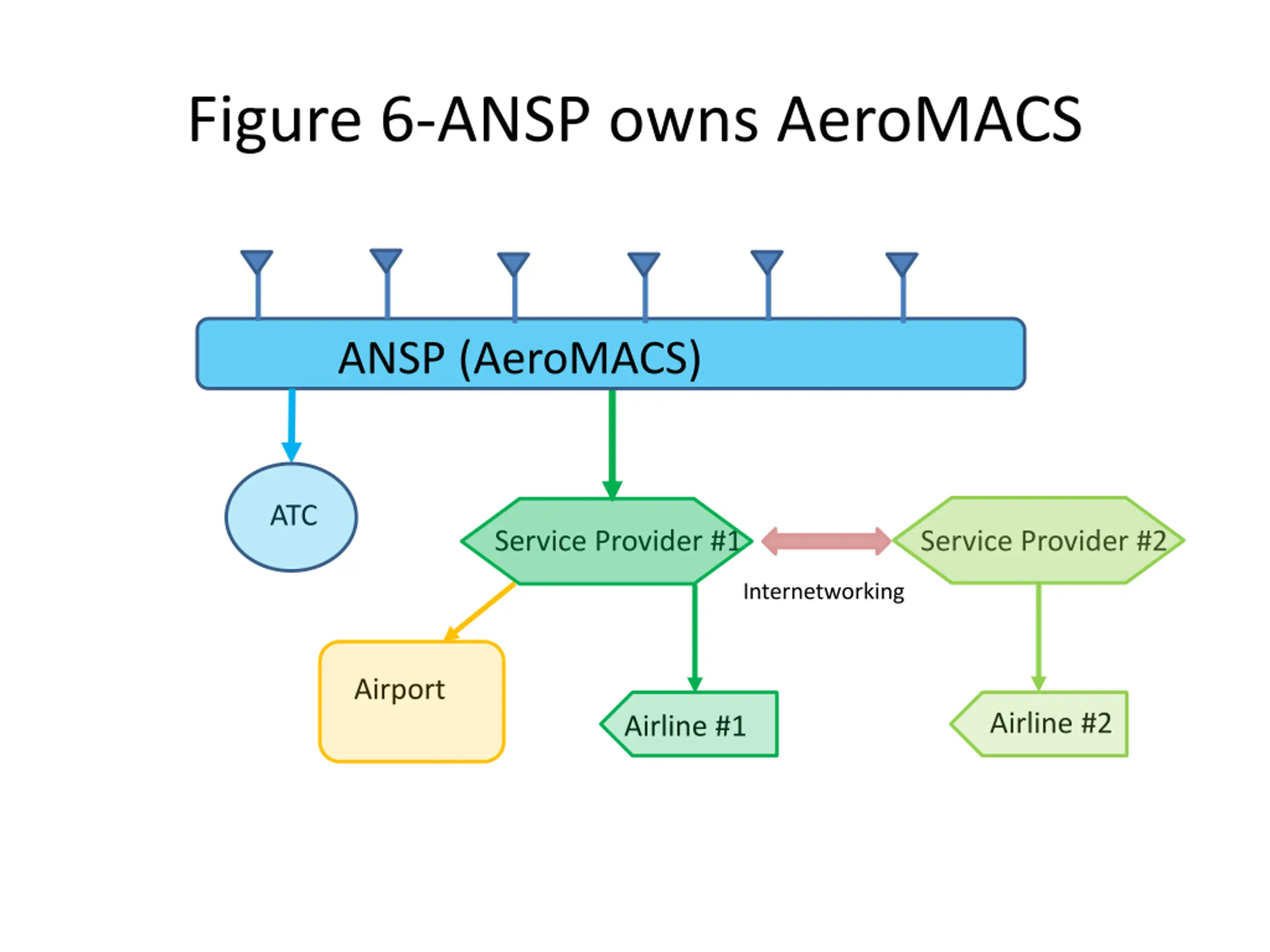

Figure 6-ANSP owns AeroMACS ANSP (AeroMACS) ATC Service Provider #1 Service Provider #2 Internetworking Airport Airline #2 Airline #1

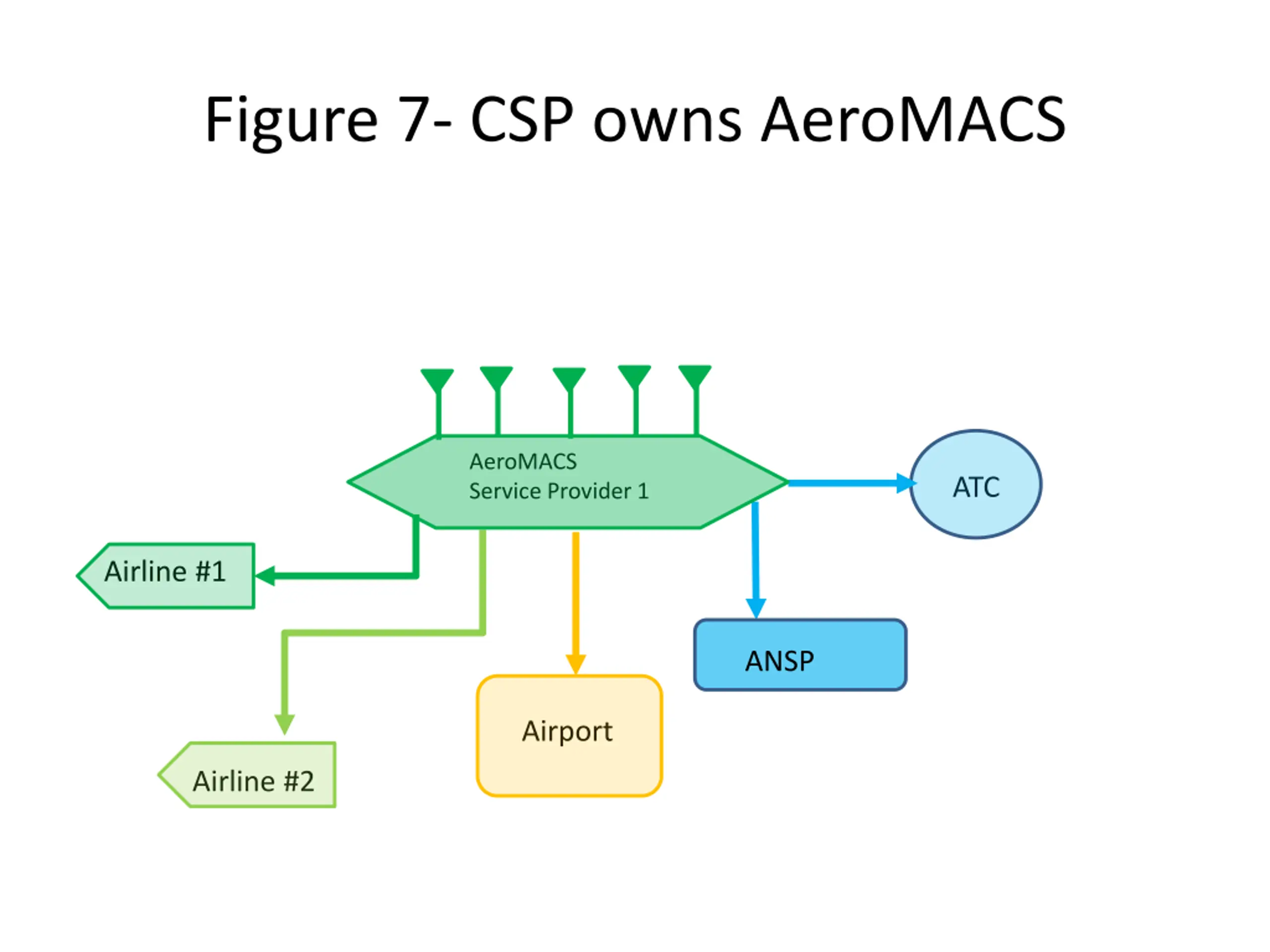

Figure 7- CSP owns AeroMACS AeroMACS Service Provider 1 ATC Airline #1 ANSP Airport Airline #2

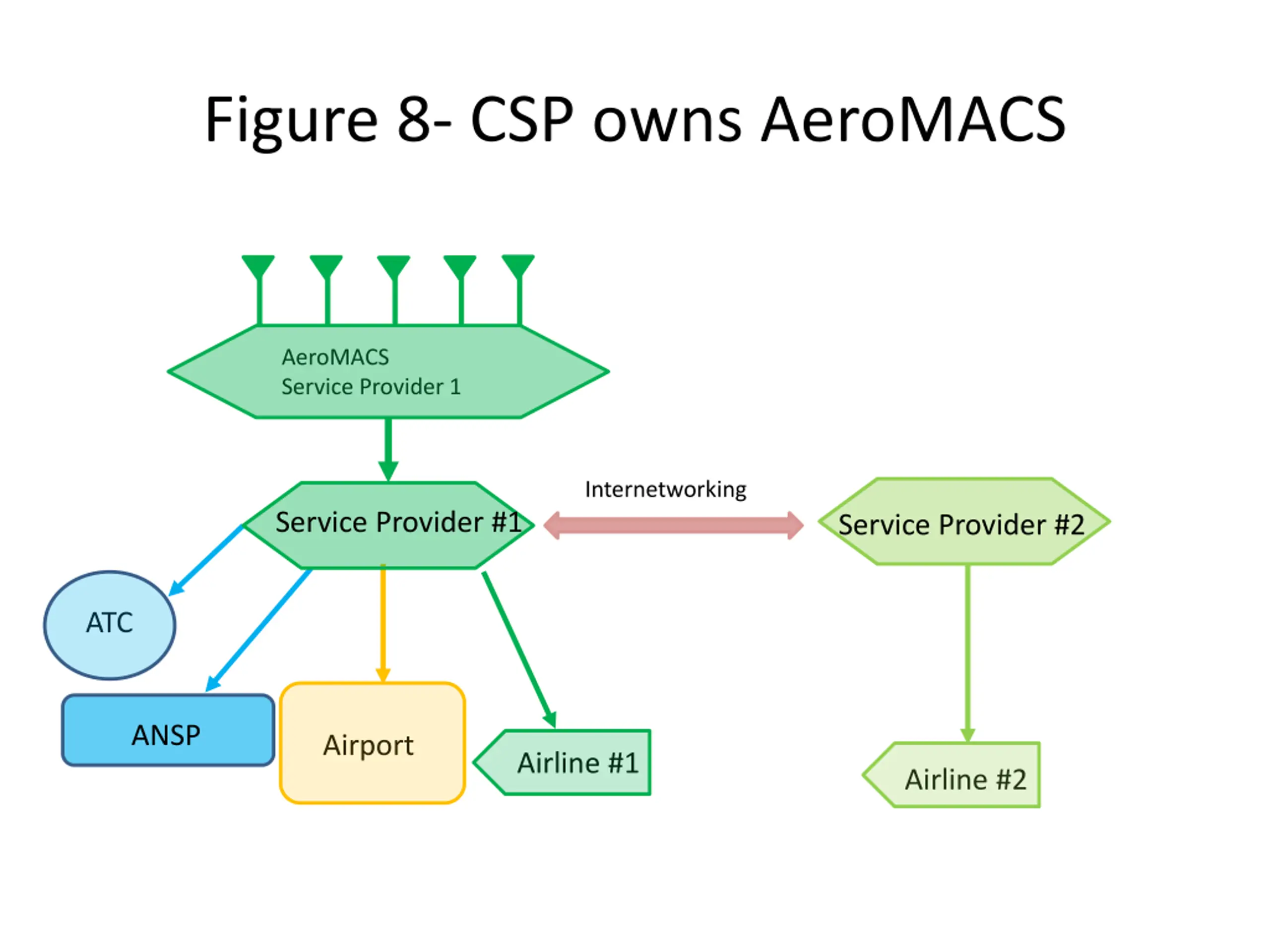

Figure 8- CSP owns AeroMACS AeroMACS Service Provider 1 Internetworking Service Provider #1 Service Provider #2 ATC ANSP Airport Airline #1 Airline #2

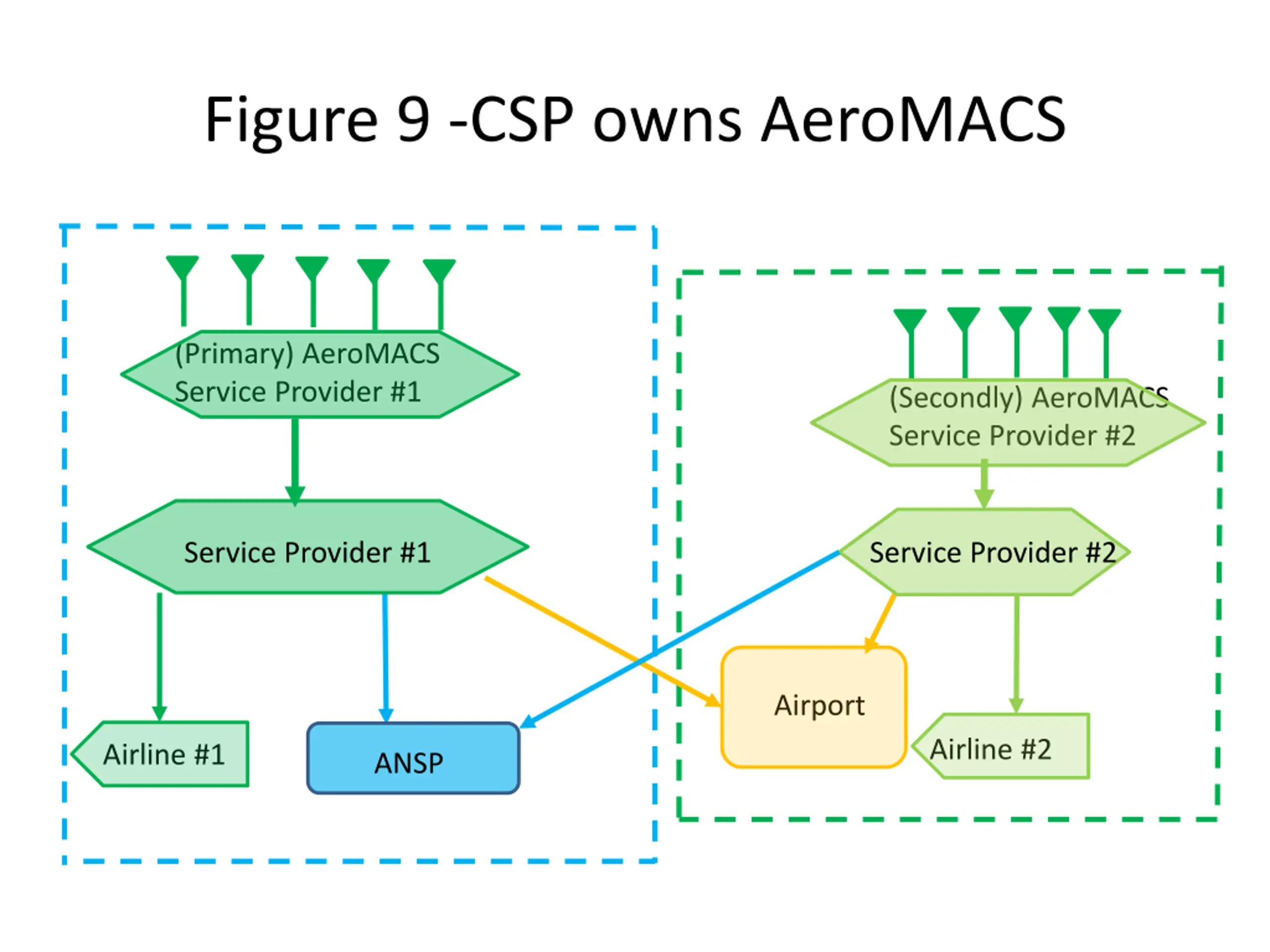

Figure 9 -CSP owns AeroMACS (Primary) AeroMACS Service Provider #1 (Secondly) AeroMACS Service Provider #2 Service Provider #1 Service Provider #2 Airport Airline #2 Airline #1 ANSP

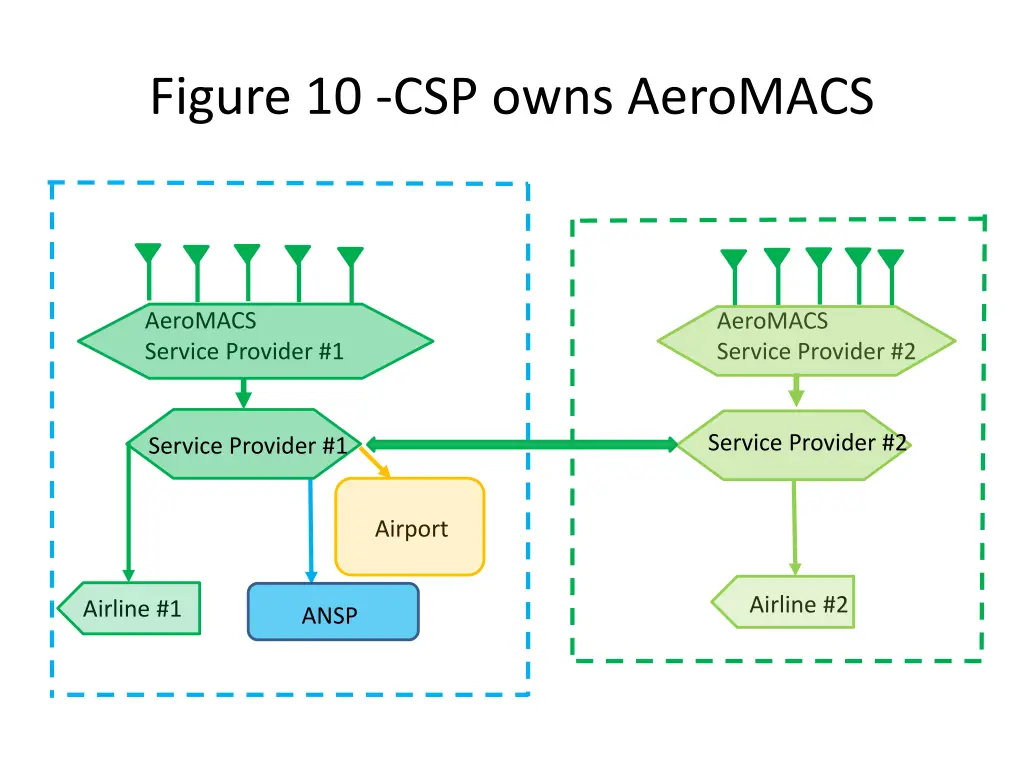

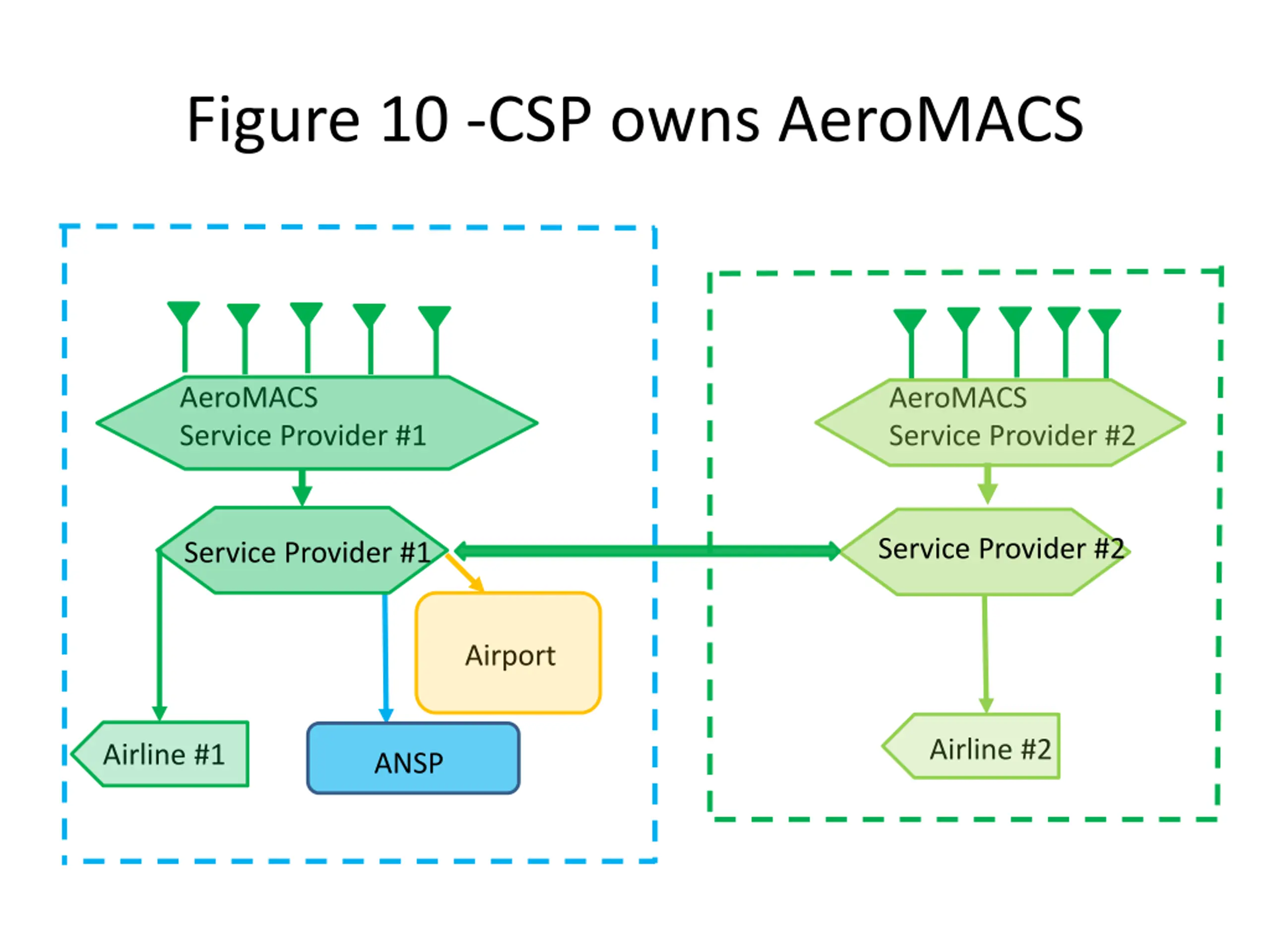

Figure 10 -CSP owns AeroMACS AeroMACS Service Provider #1 AeroMACS Service Provider #2 Service Provider #2 Service Provider #1 Airport Airline #2 Airline #1 ANSP

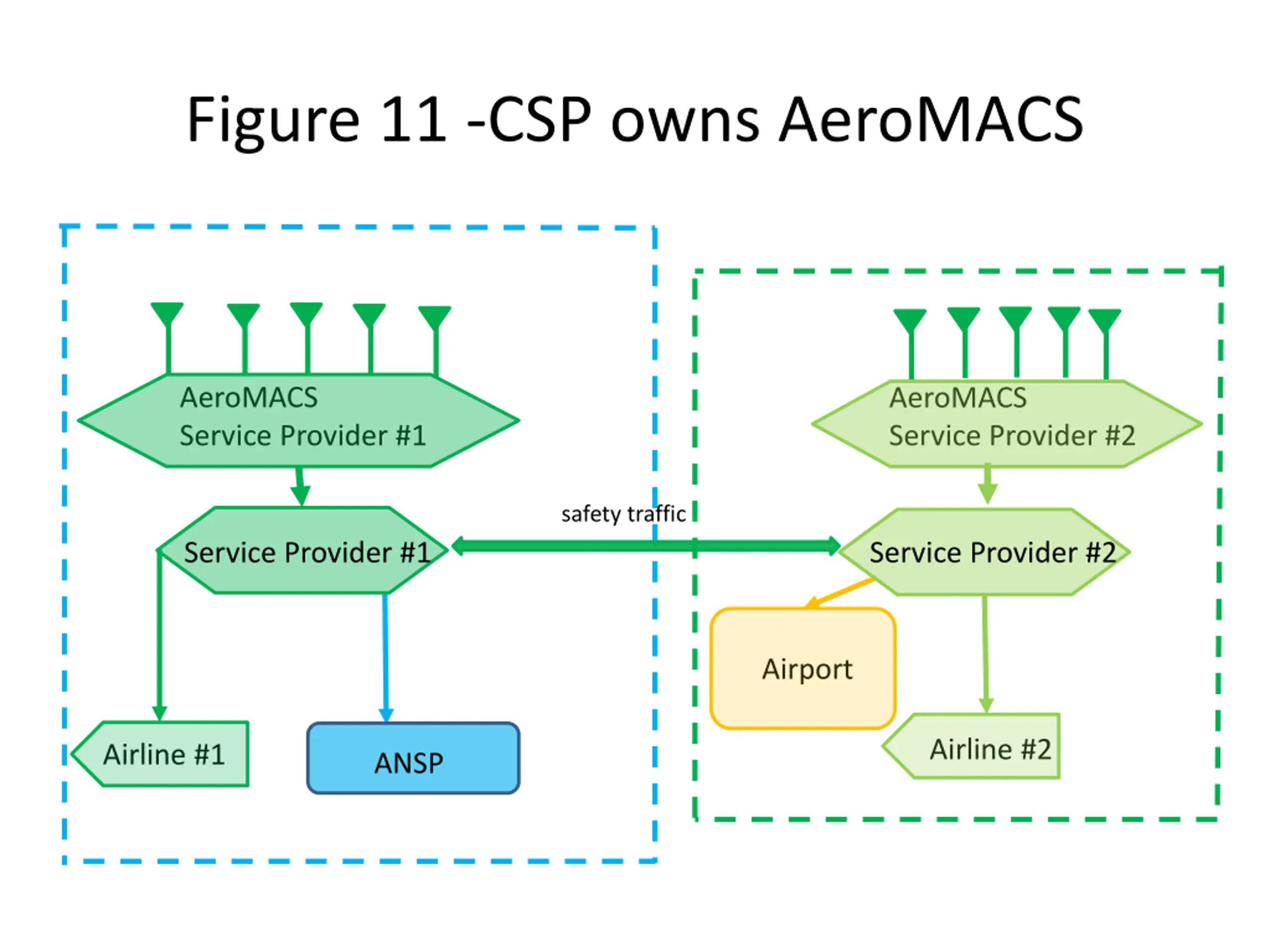

Figure 11 -CSP owns AeroMACS AeroMACS Service Provider #1 AeroMACS Service Provider #2 safety traffic Service Provider #1 Service Provider #2 Airport Airline #2 Airline #1 ANSP

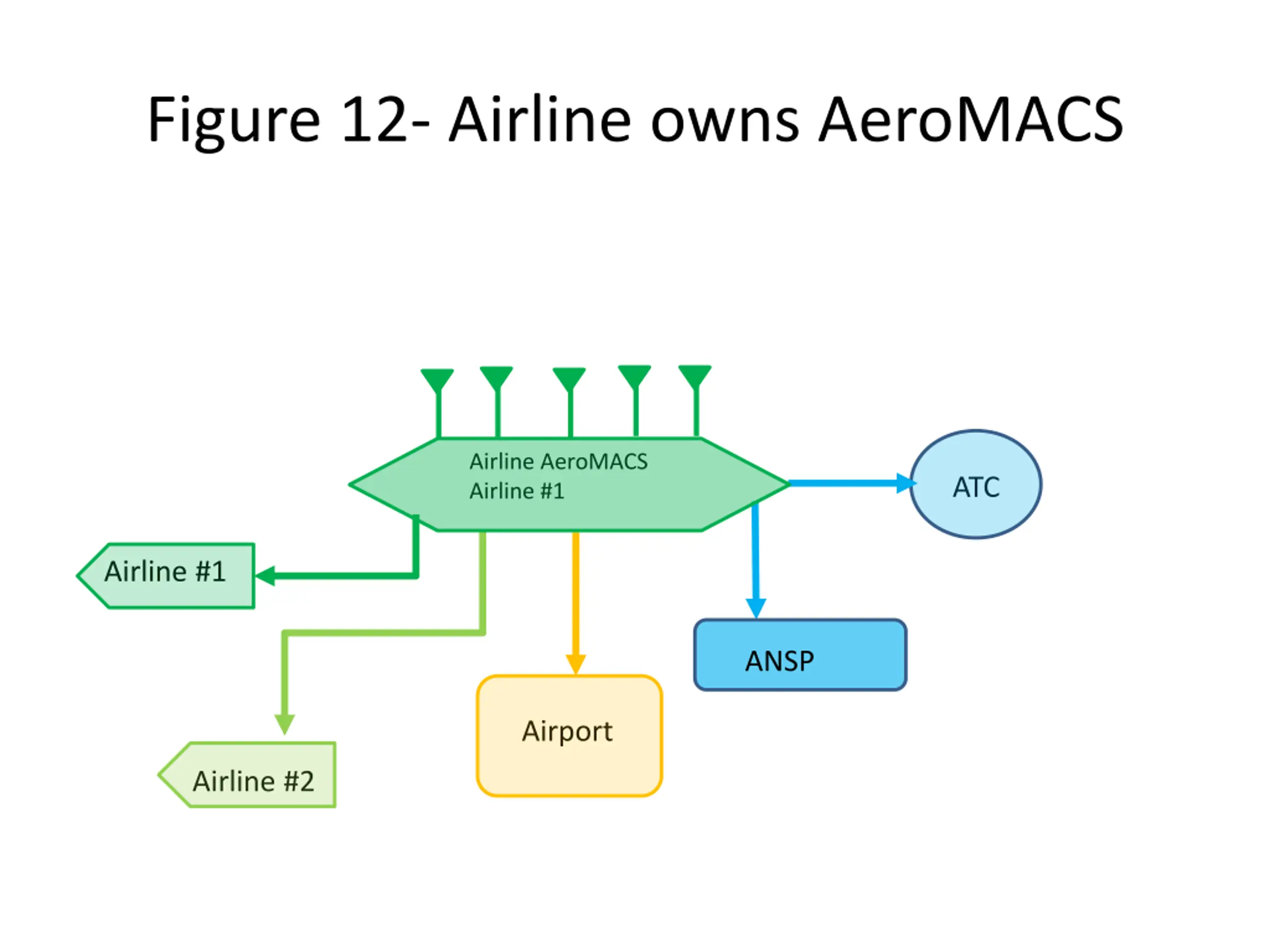

Figure 12- Airline owns AeroMACS Airline AeroMACS Airline #1 ATC Airline #1 ANSP Airport Airline #2

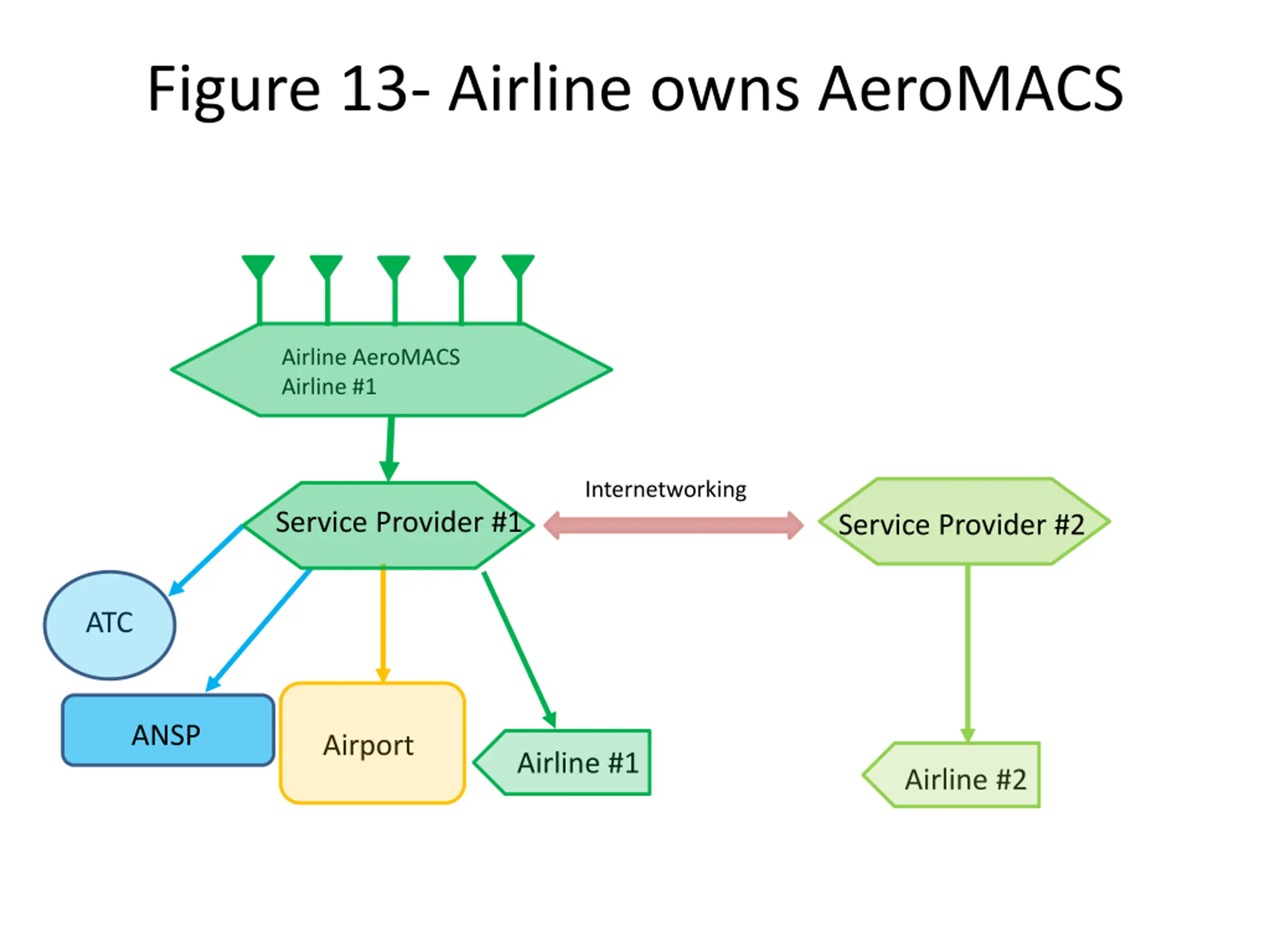

Figure 13- Airline owns AeroMACS Airline AeroMACS Airline #1 Internetworking Service Provider #1 Service Provider #2 ATC ANSP Airport Airline #1 Airline #2

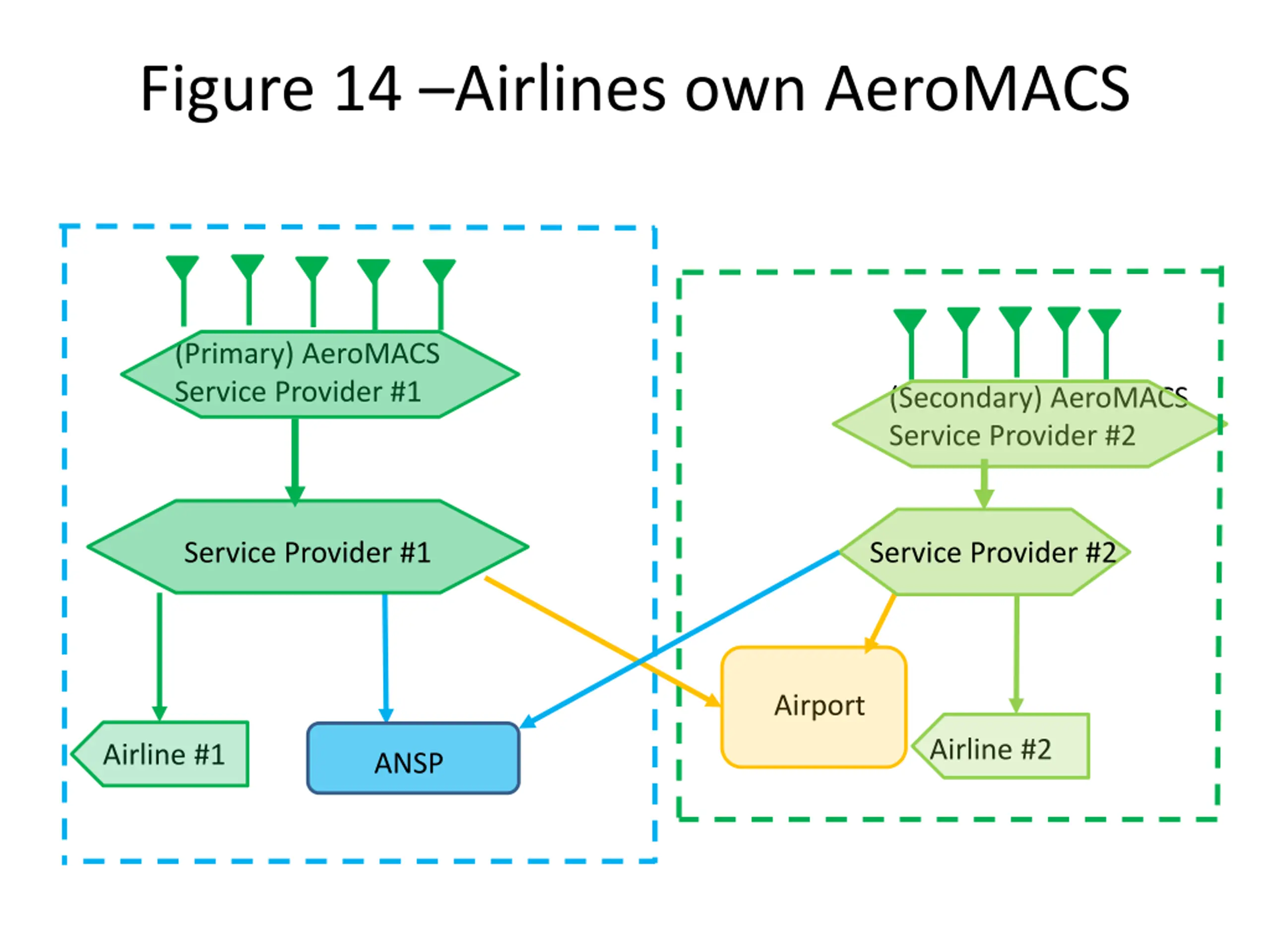

Figure 14 Airlines own AeroMACS (Primary) AeroMACS Service Provider #1 (Secondary) AeroMACS Service Provider #2 Service Provider #1 Service Provider #2 Airport Airline #2 Airline #1 ANSP

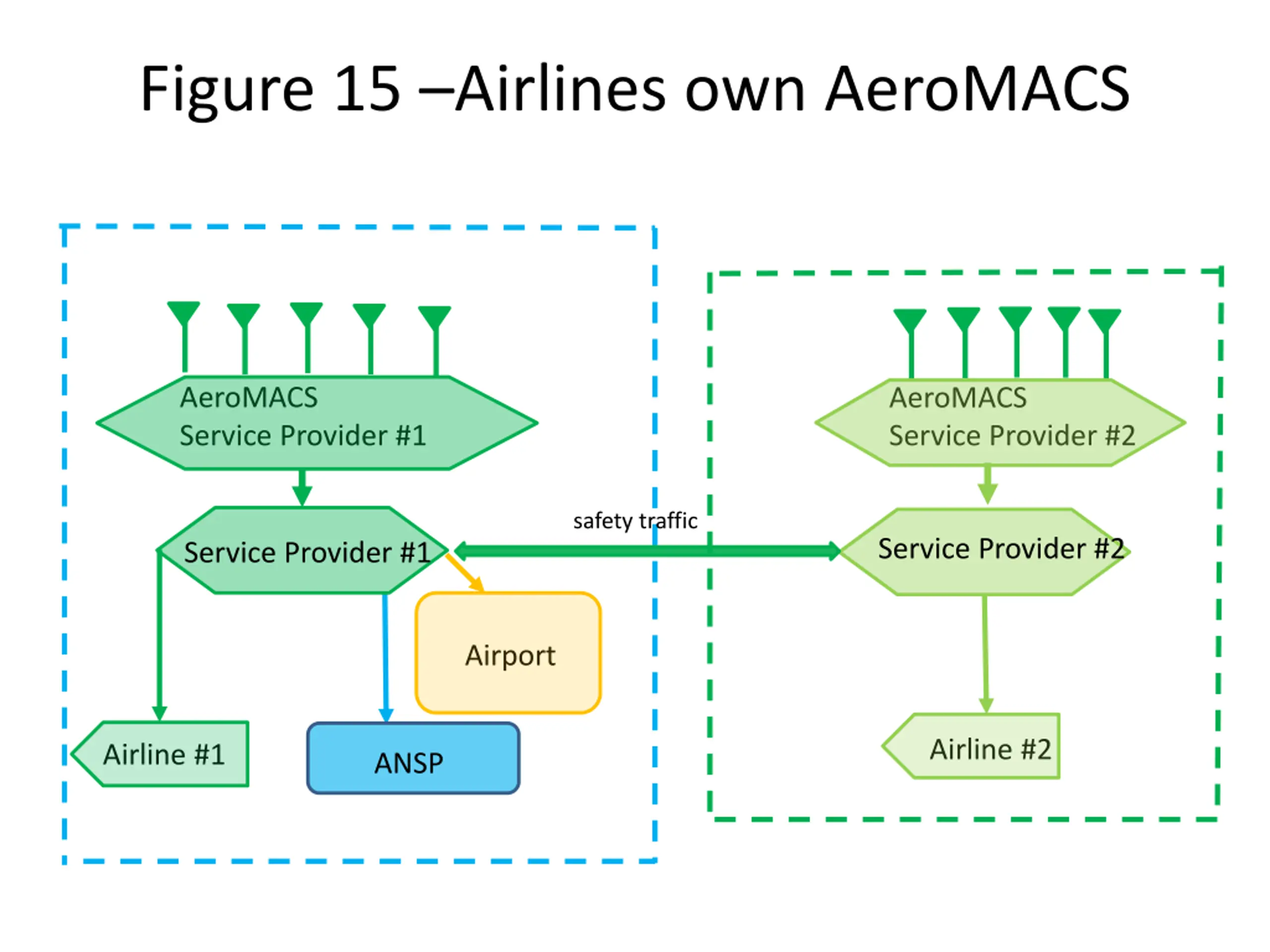

Figure 15 Airlines own AeroMACS AeroMACS Service Provider #1 AeroMACS Service Provider #2 safety traffic Service Provider #2 Service Provider #1 Airport Airline #2 Airline #1 ANSP

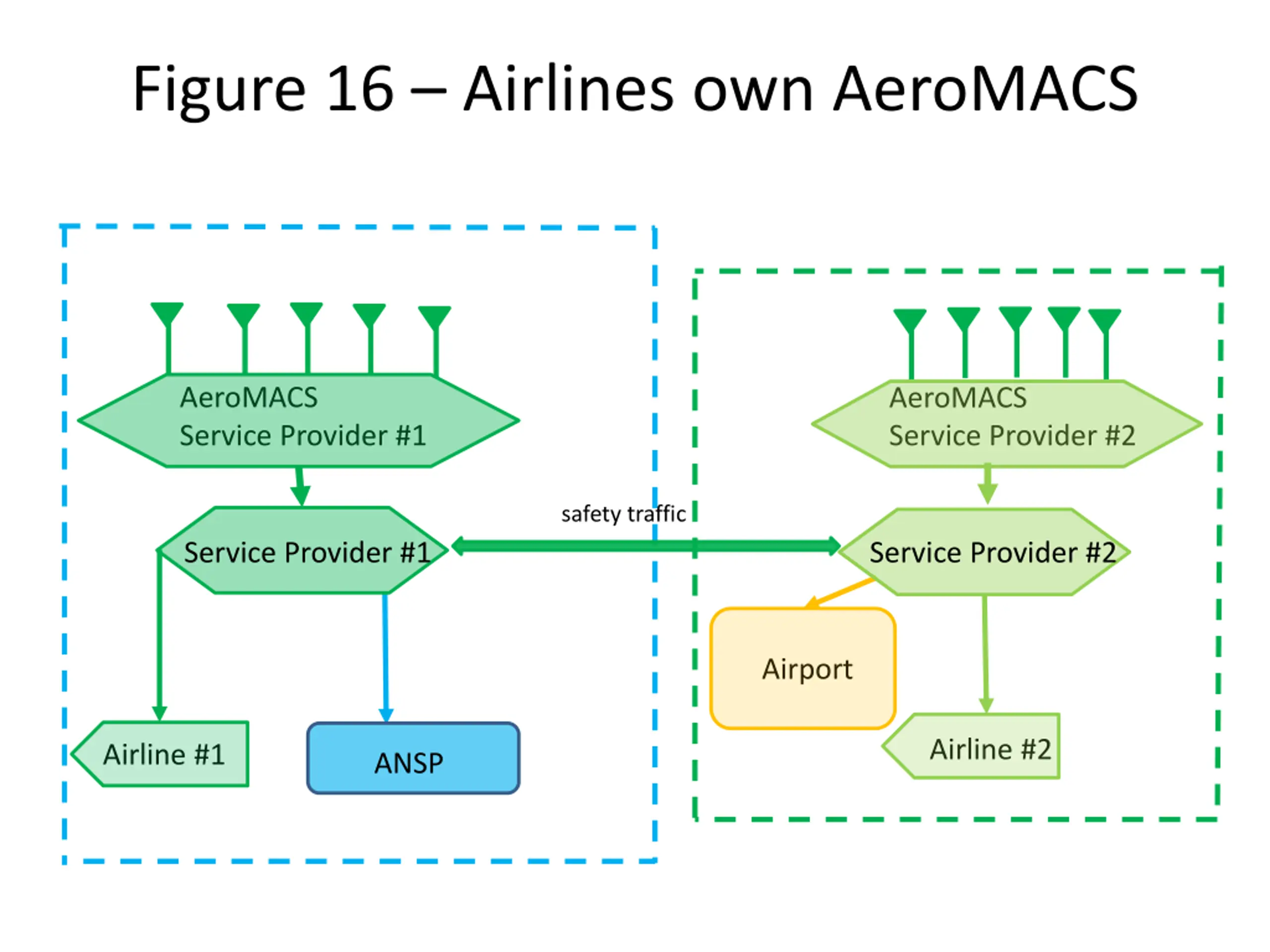

Figure 16 Airlines own AeroMACS AeroMACS Service Provider #1 AeroMACS Service Provider #2 safety traffic Service Provider #1 Service Provider #2 Airport Airline #2 Airline #1 ANSP

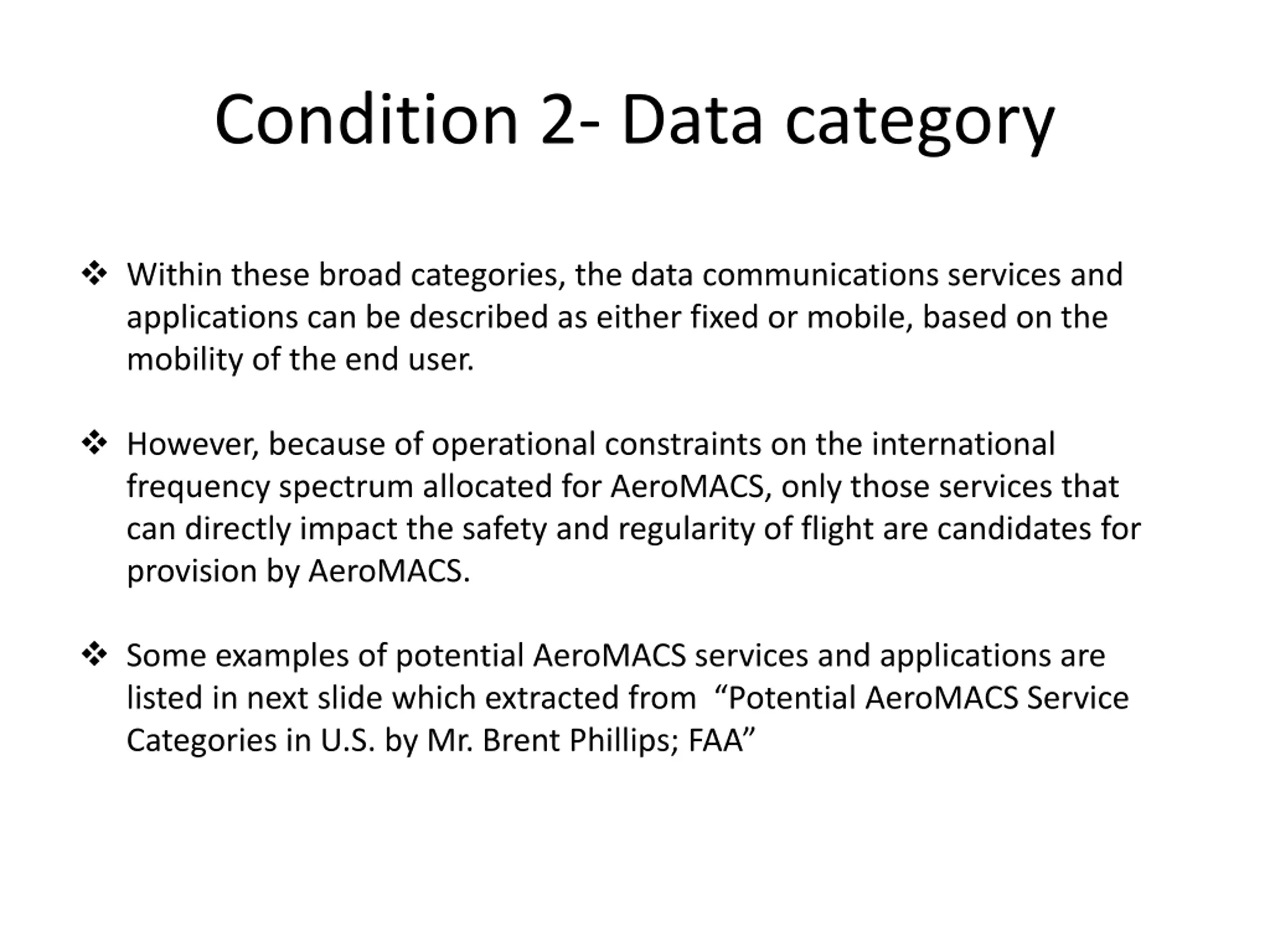

Condition 2- Data category Within these broad categories, the data communications services and applications can be described as either fixed or mobile, based on the mobility of the end user. However, because of operational constraints on the international frequency spectrum allocated for AeroMACS, only those services that can directly impact the safety and regularity of flight are candidates for provision by AeroMACS. Some examples of potential AeroMACS services and applications are listed in next slide which extracted from Potential AeroMACS Service Categories in U.S. by Mr. Brent Phillips; FAA

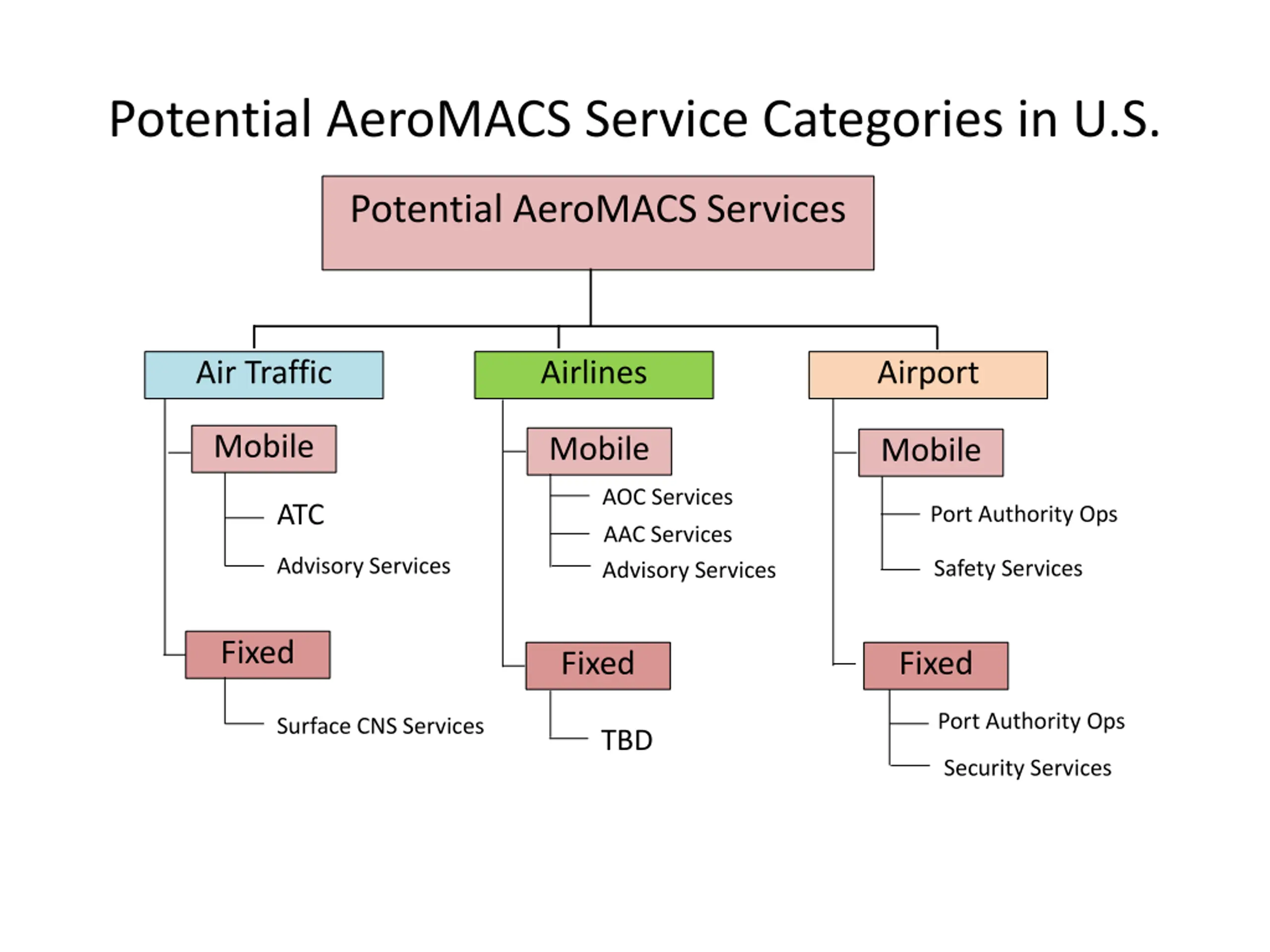

Potential AeroMACS Service Categories in U.S. Potential AeroMACS Services Air Traffic Airlines Airport Mobile Mobile Mobile AOC Services ATC Port Authority Ops AAC Services Advisory Services Advisory Services Safety Services Fixed Fixed Fixed Port Authority Ops Surface CNS Services TBD Security Services
