Anomaly Detection Schemes in Data Mining

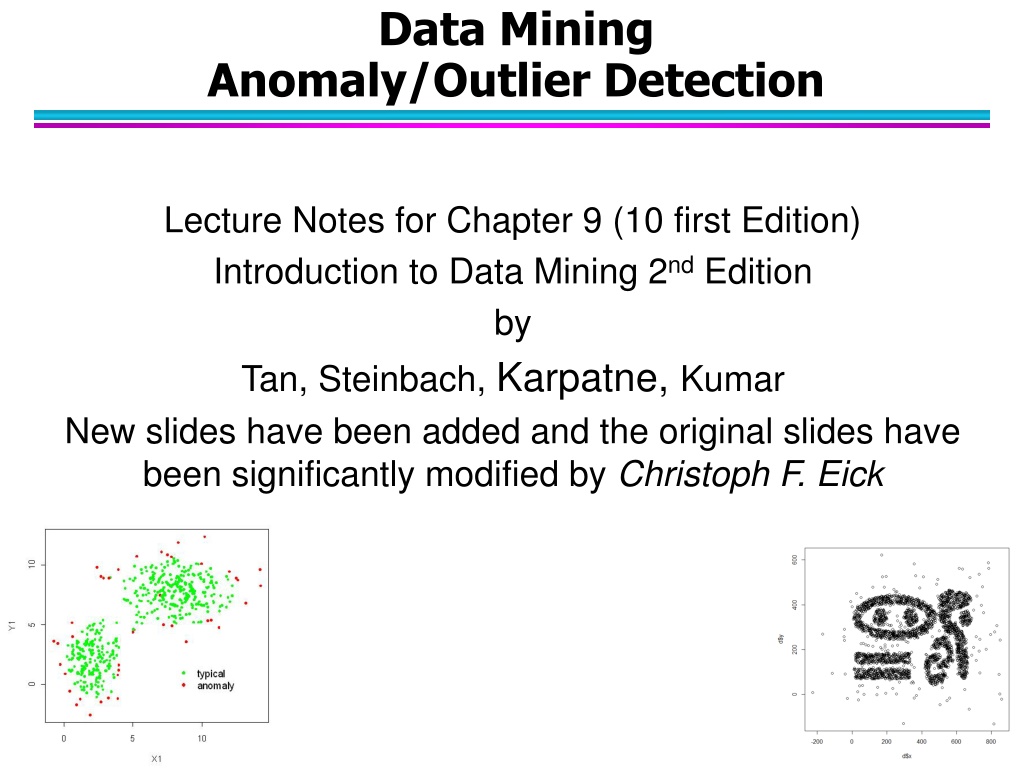

Data Mining Anomaly/Outlier Detection Lecture Notes for Chapter 9 (10 first Edition) Introduction to Data Mining 2nd Edition by Tan, Steinbach, Karpatne, Kumar New slides have been added and the original slides have been significantly modified by Christoph F. Eick

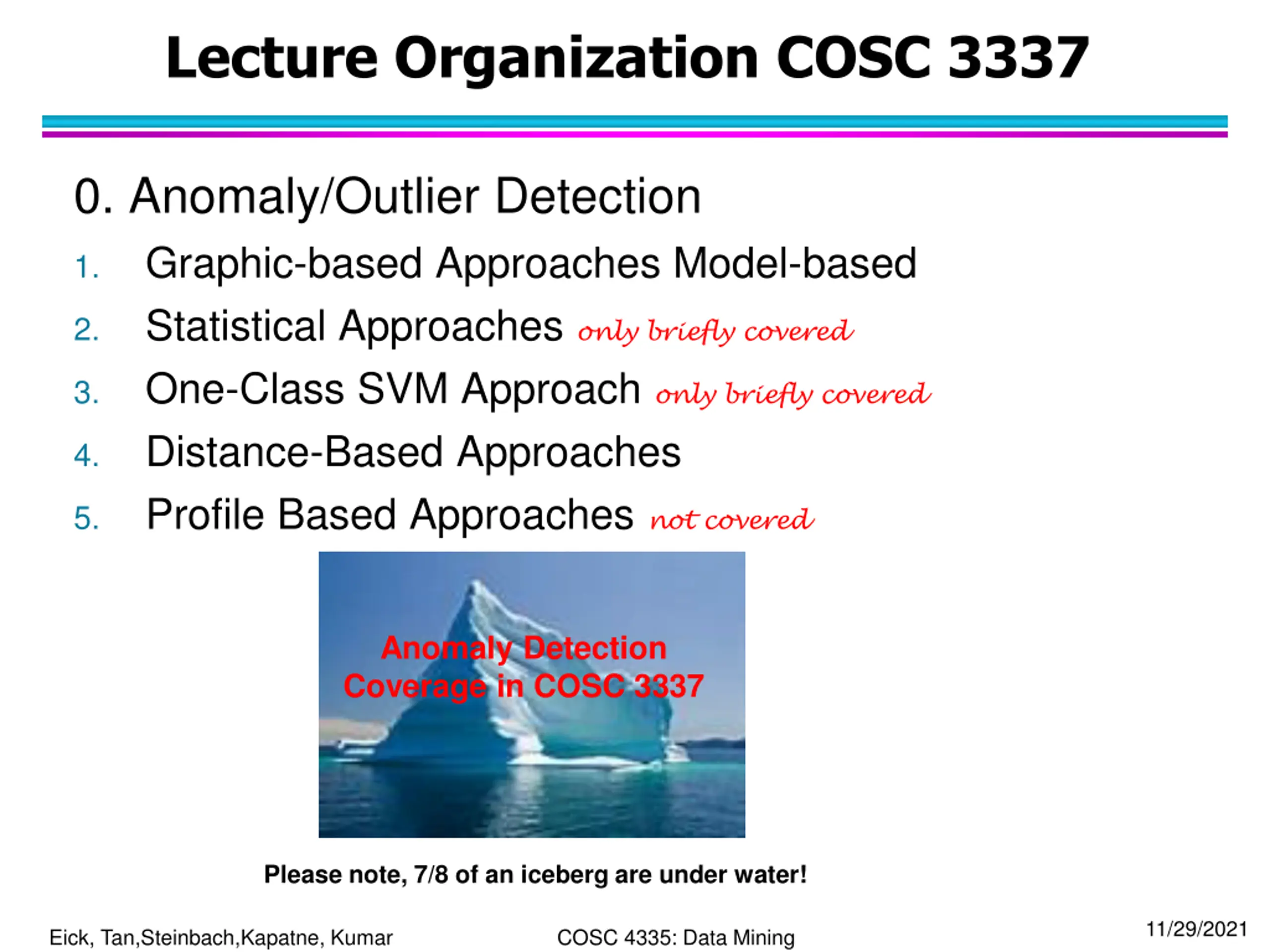

Lecture Organization COSC 3337 0. Anomaly/Outlier Detection Graphic-based Approaches Model-based Statistical Approaches only briefly covered One-Class SVM Approach only briefly covered Distance-Based Approaches Profile Based Approaches not covered 1. 2. 3. 4. 5. http://tse1.mm.bing.net/th?id=OIP.M475b8b96cd2de276a042f9c263e3ddfbH0w=163h=109c=7rs=1qlt=90pid=3.1rm=2 Anomaly Detection Coverage in COSC 3337 Please note, 7/8 of an iceberg are under water! 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

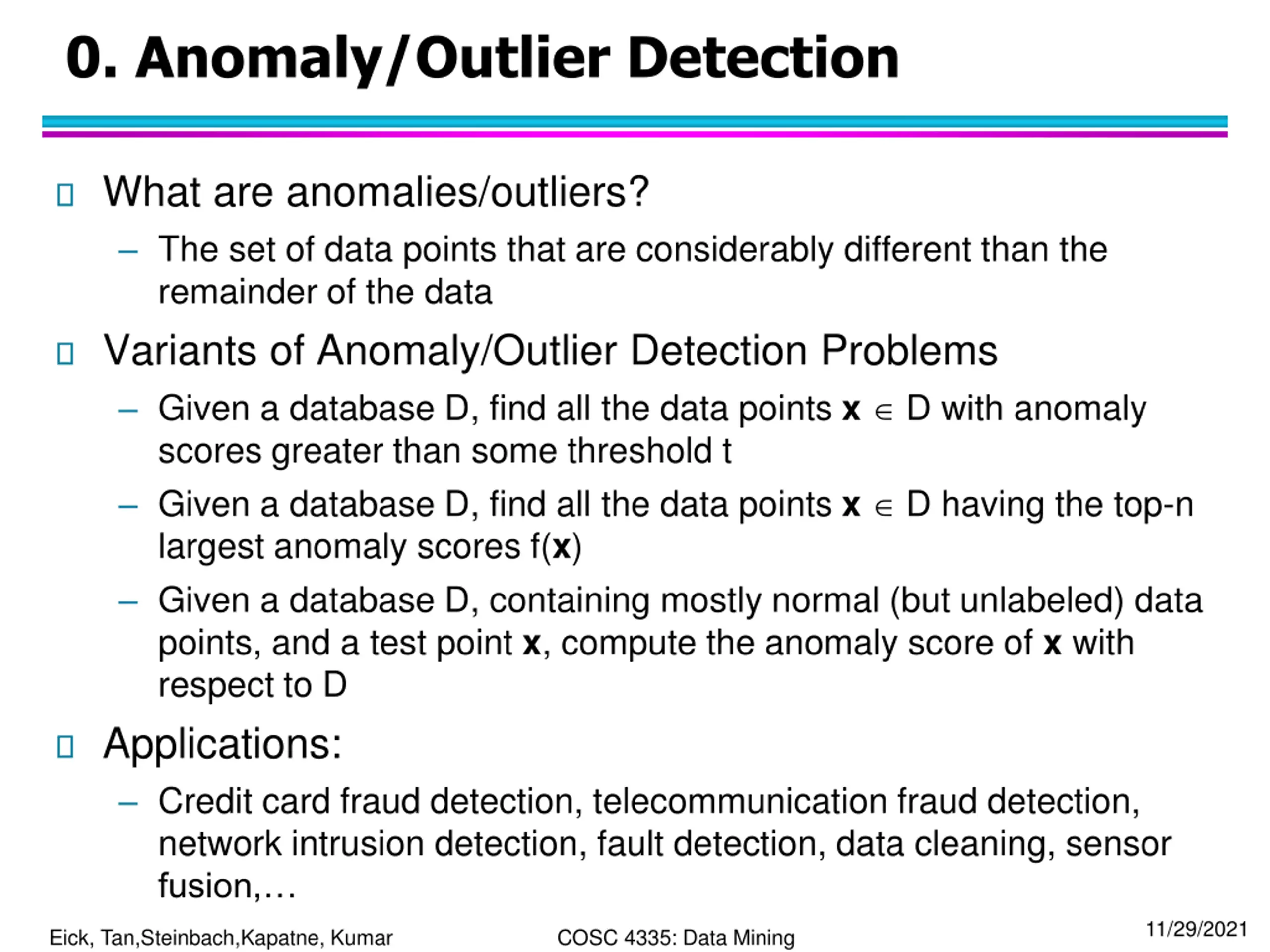

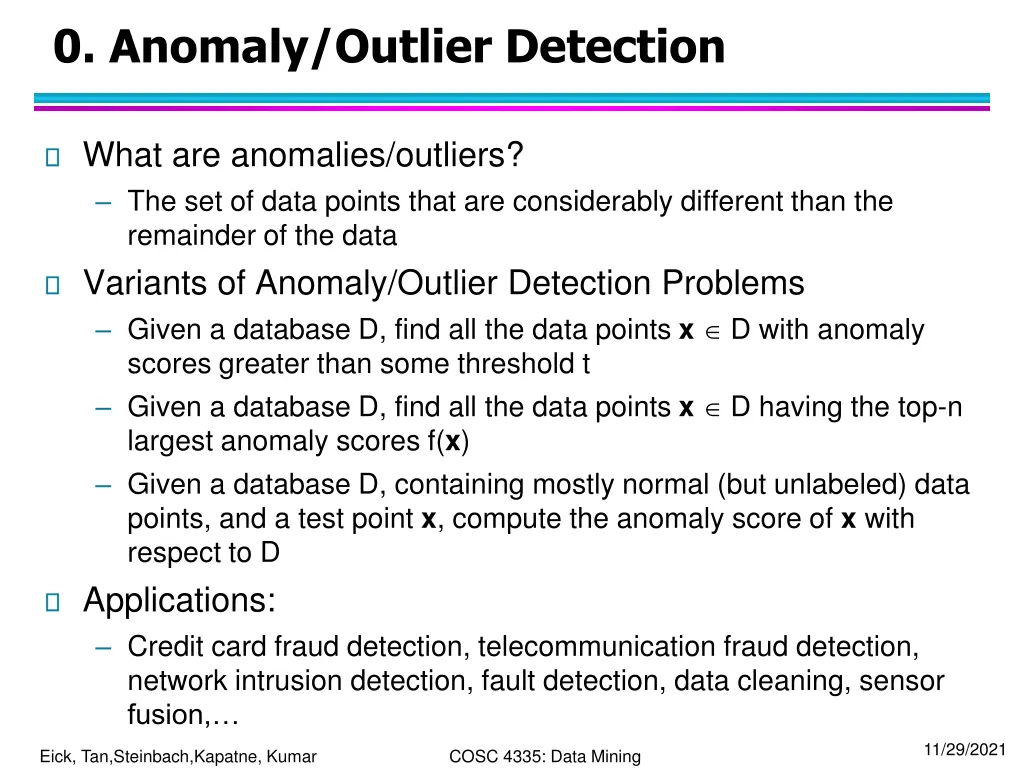

0. Anomaly/Outlier Detection What are anomalies/outliers? The set of data points that are considerably different than the remainder of the data Variants of Anomaly/Outlier Detection Problems Given a database D, find all the data points x D with anomaly scores greater than some threshold t Given a database D, find all the data points x D having the top-n largest anomaly scores f(x) Given a database D, containing mostly normal (but unlabeled) data points, and a test point x, compute the anomaly score of x with respect to D Applications: Credit card fraud detection, telecommunication fraud detection, network intrusion detection, fault detection, data cleaning, sensor fusion, 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

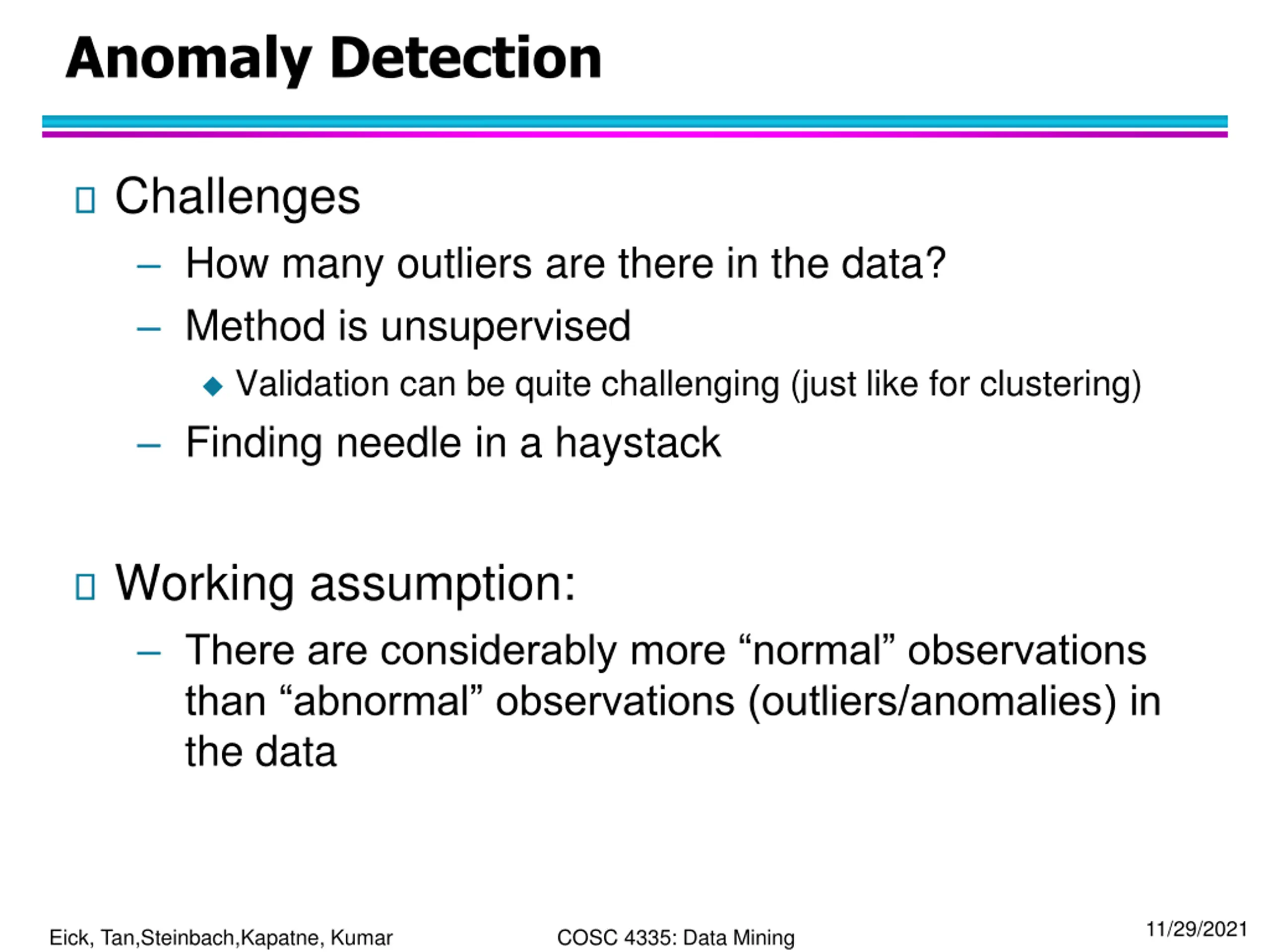

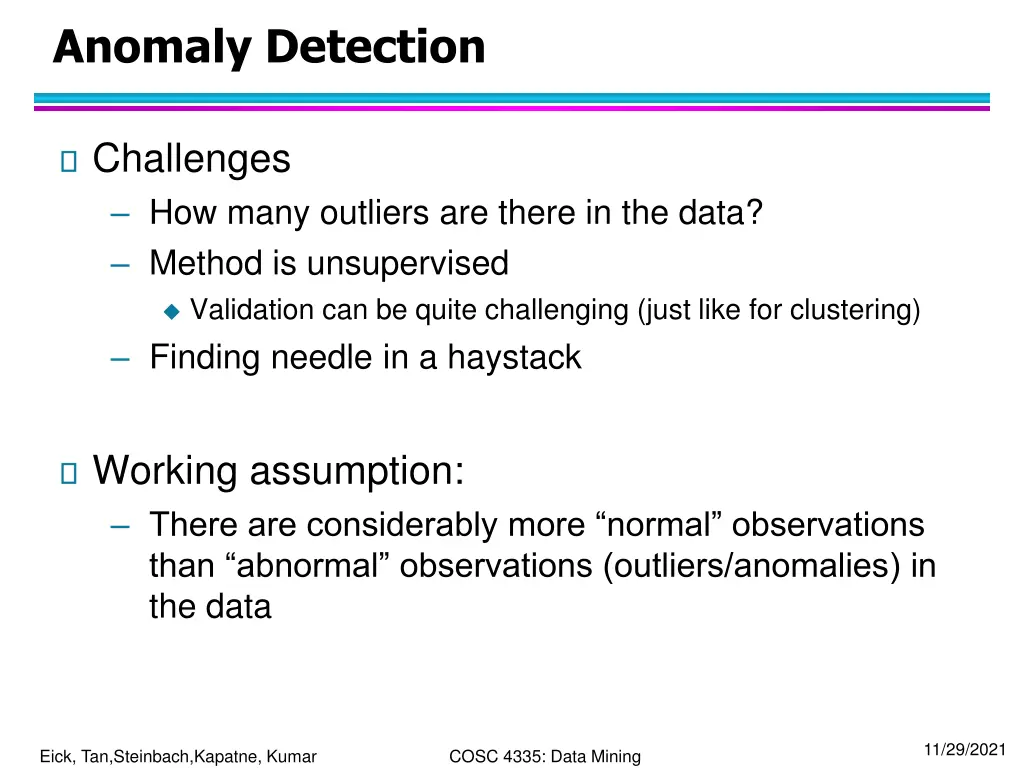

Anomaly Detection Challenges How many outliers are there in the data? Method is unsupervised Validation can be quite challenging (just like for clustering) Finding needle in a haystack Working assumption: There are considerably more normal observations than abnormal observations (outliers/anomalies) in the data 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

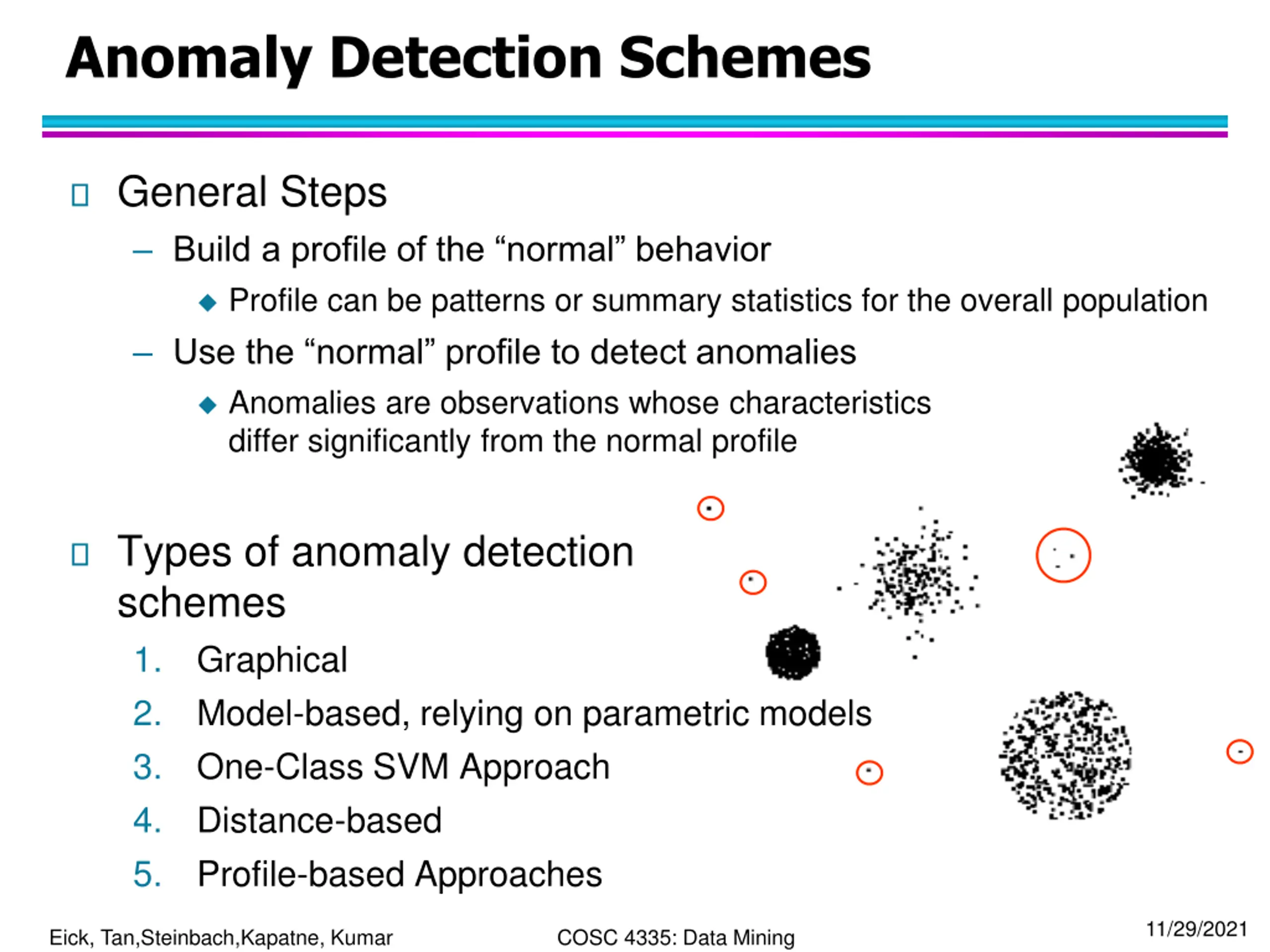

Anomaly Detection Schemes General Steps Build a profile of the normal behavior Profile can be patterns or summary statistics for the overall population Use the normal profile to detect anomalies Anomalies are observations whose characteristics differ significantly from the normal profile Types of anomaly detection schemes 1. Graphical 2. Model-based, relying on parametric models 3. One-Class SVM Approach 4. Distance-based 5. Profile-based Approaches 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

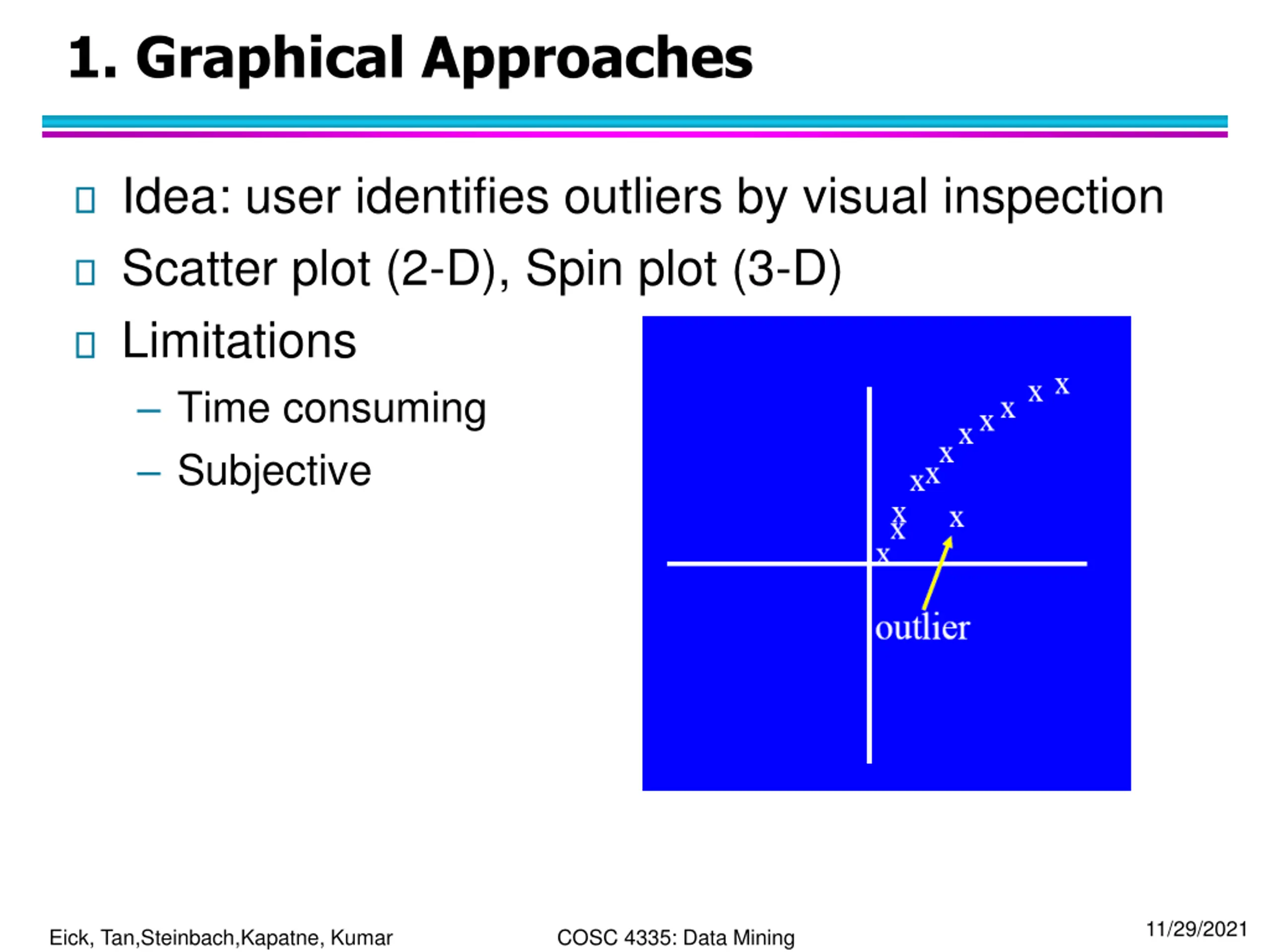

1. Graphical Approaches Idea: user identifies outliers by visual inspection Scatter plot (2-D), Spin plot (3-D) Limitations Time consuming Subjective 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

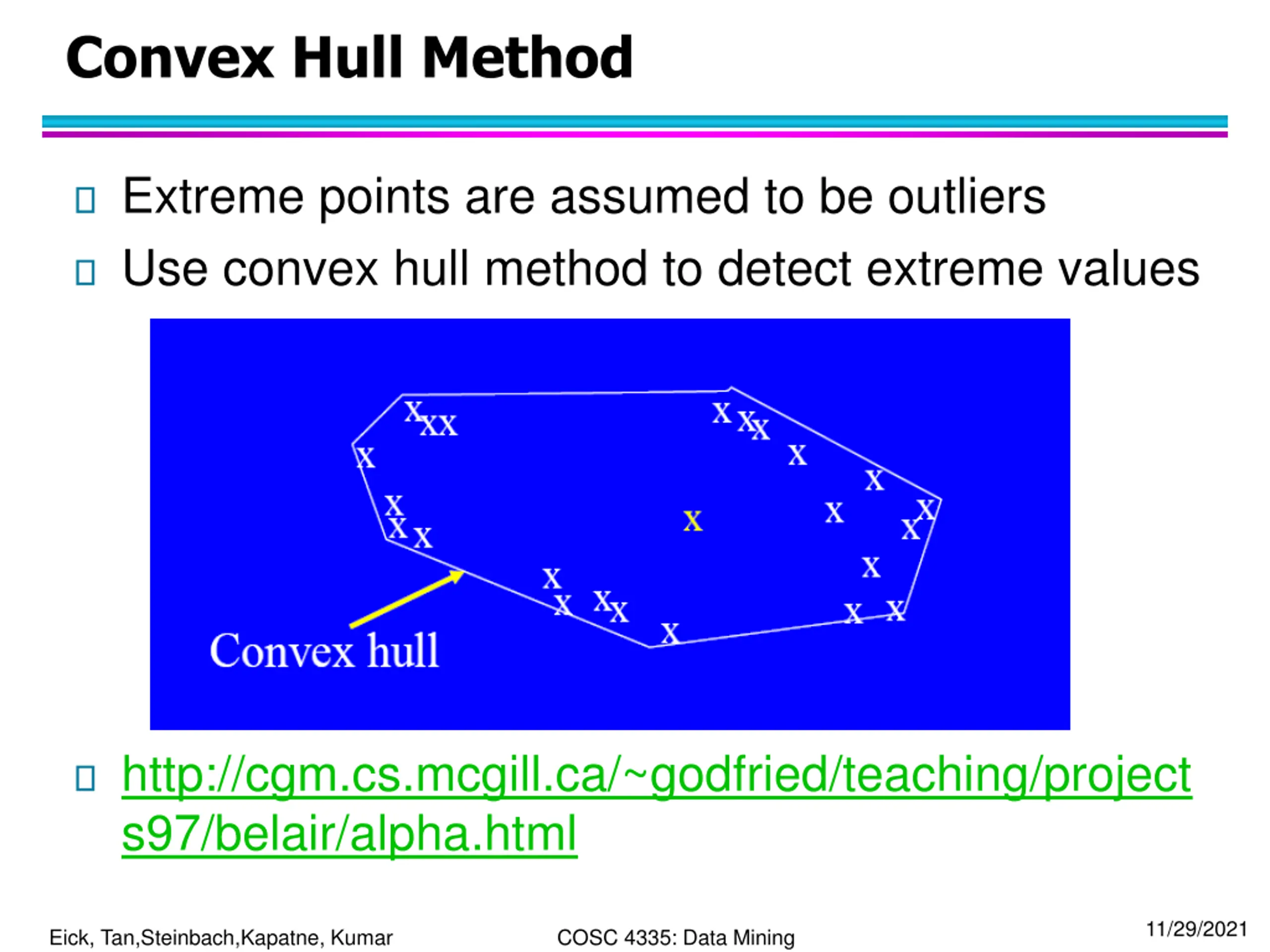

Convex Hull Method Extreme points are assumed to be outliers Use convex hull method to detect extreme values http://cgm.cs.mcgill.ca/~godfried/teaching/project s97/belair/alpha.html 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

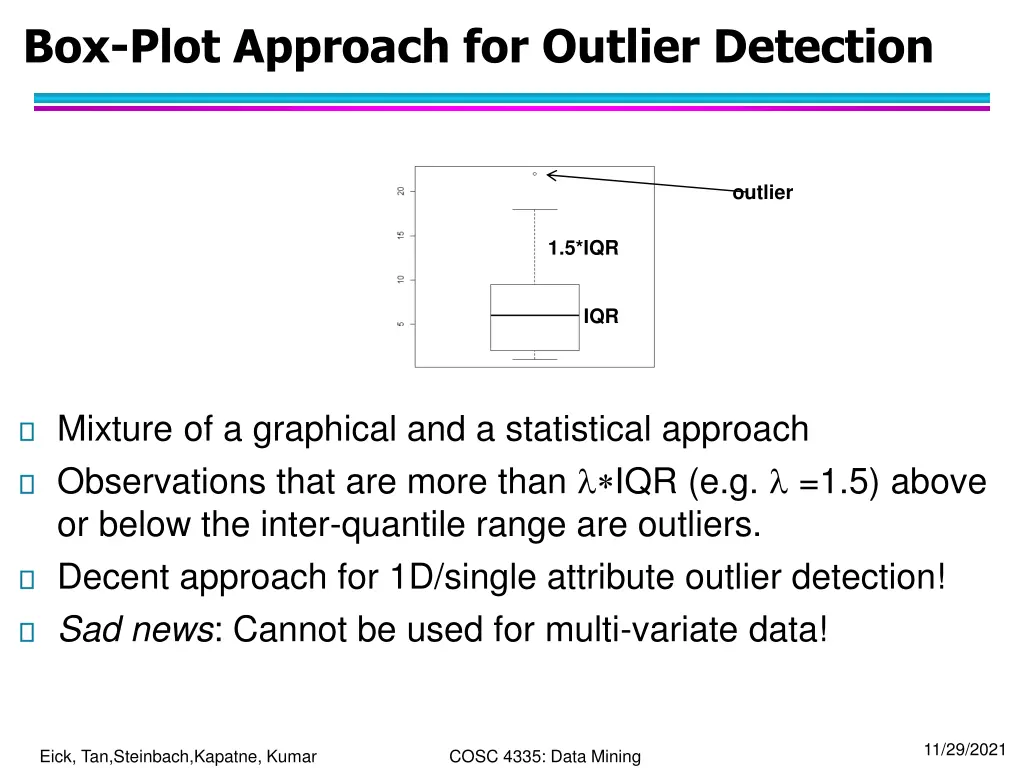

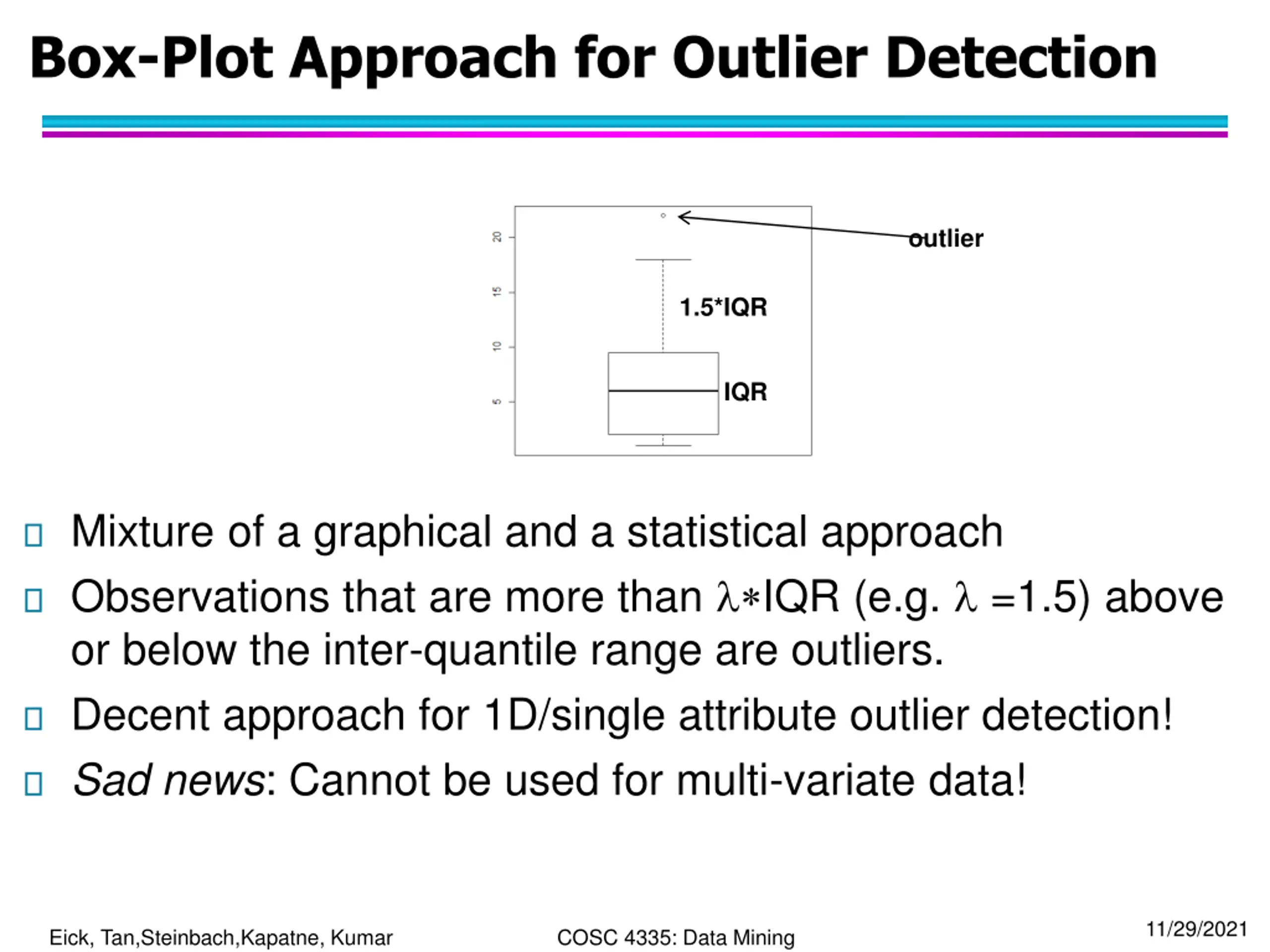

Box-Plot Approach for Outlier Detection outlier 1.5*IQR IQR Mixture of a graphical and a statistical approach Observations that are more than IQR (e.g. =1.5) above or below the inter-quantile range are outliers. Decent approach for 1D/single attribute outlier detection! Sad news: Cannot be used for multi-variate data! 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

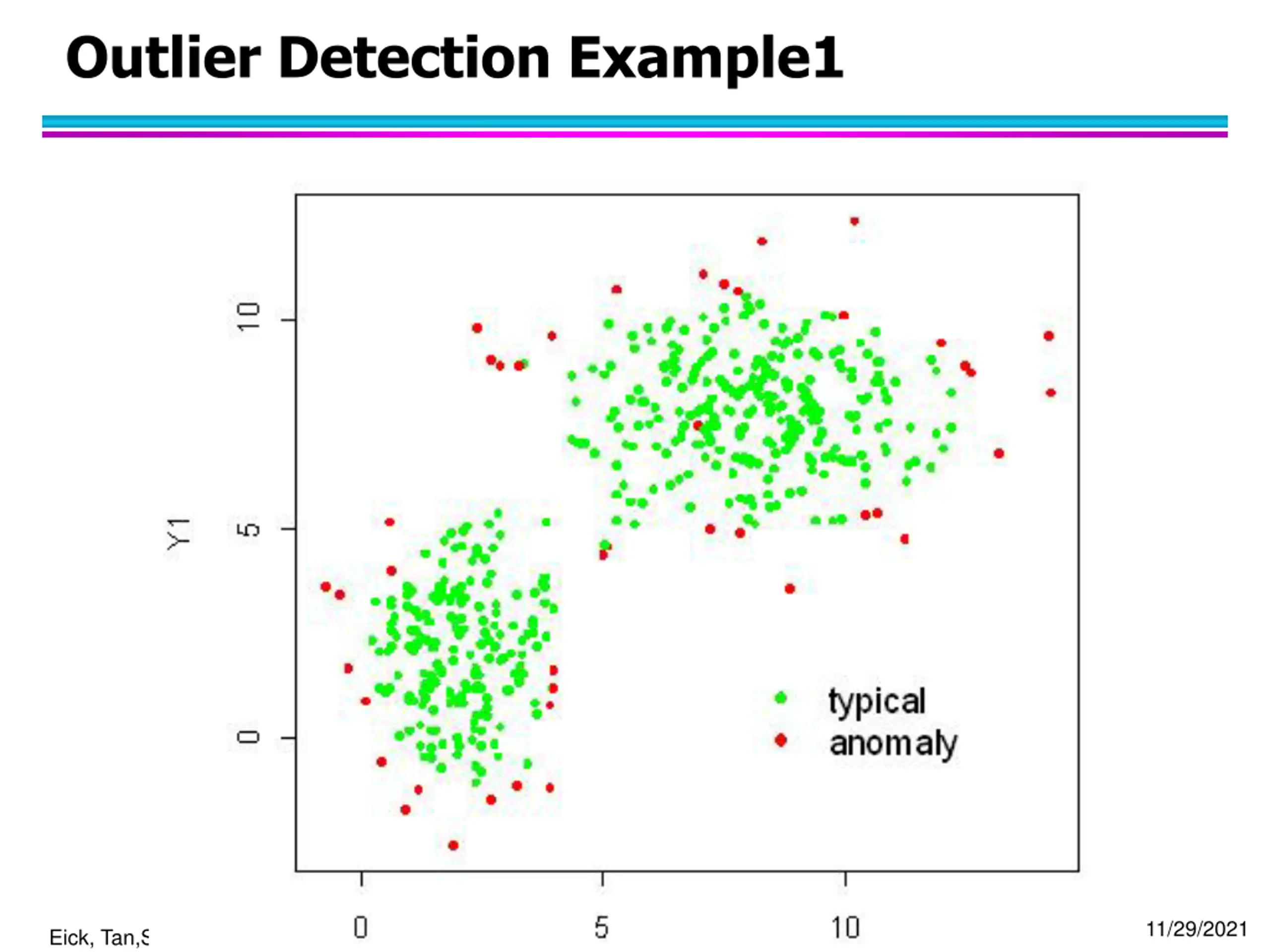

Outlier Detection Example1 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

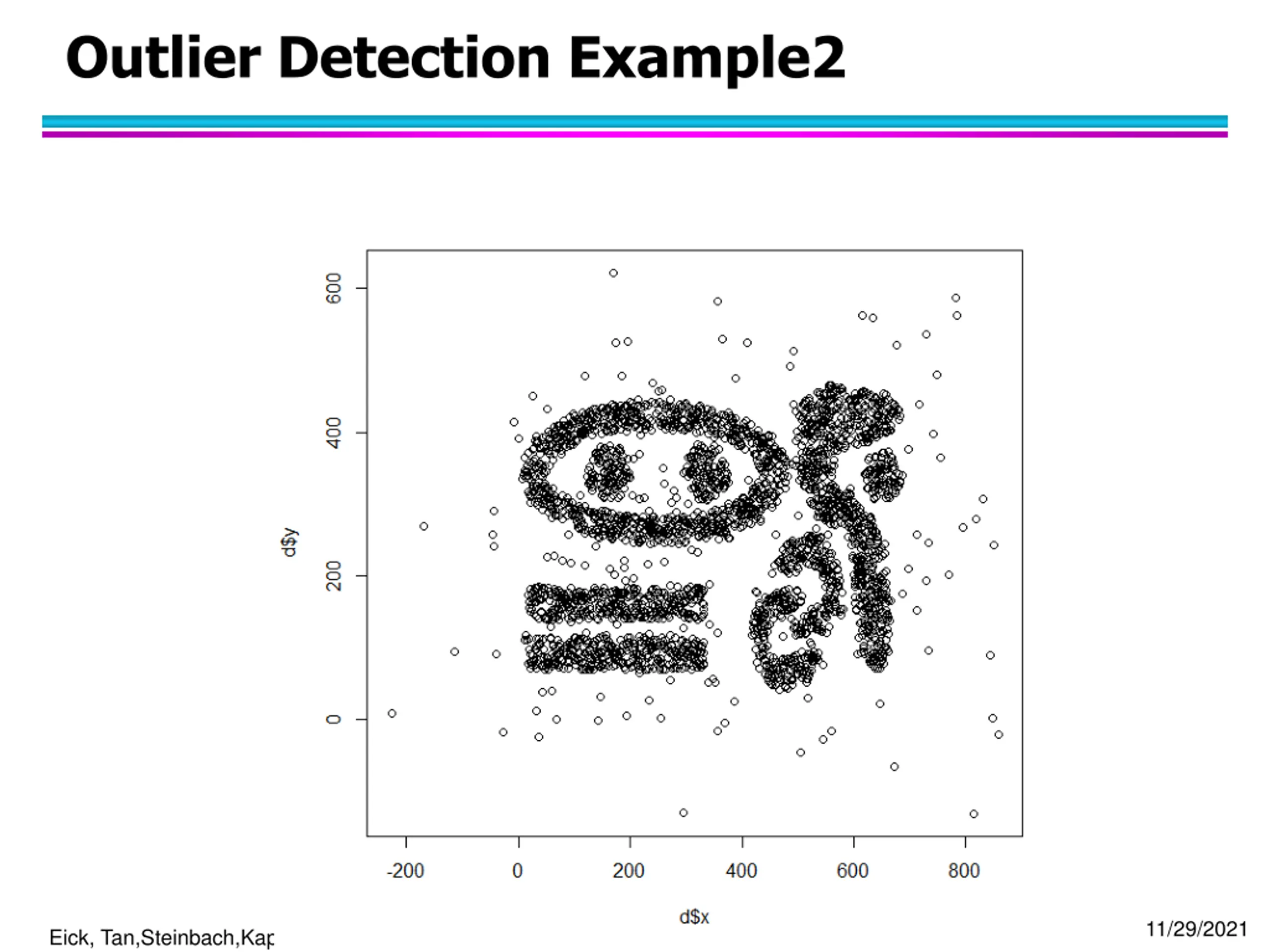

Outlier Detection Example2 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

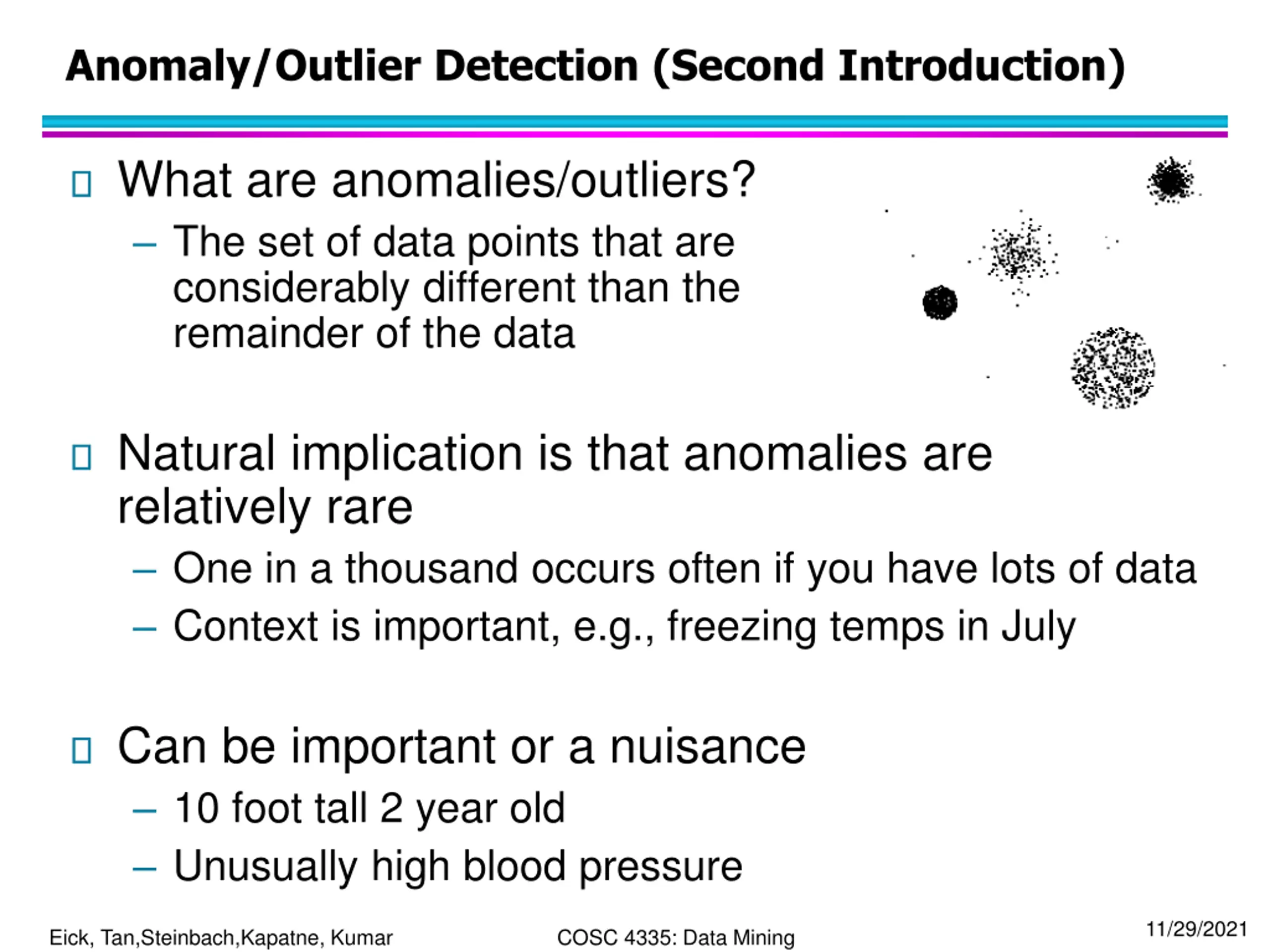

Anomaly/Outlier Detection (Second Introduction) What are anomalies/outliers? The set of data points that are considerably different than the remainder of the data Natural implication is that anomalies are relatively rare One in a thousand occurs often if you have lots of data Context is important, e.g., freezing temps in July Can be important or a nuisance 10 foot tall 2 year old Unusually high blood pressure 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

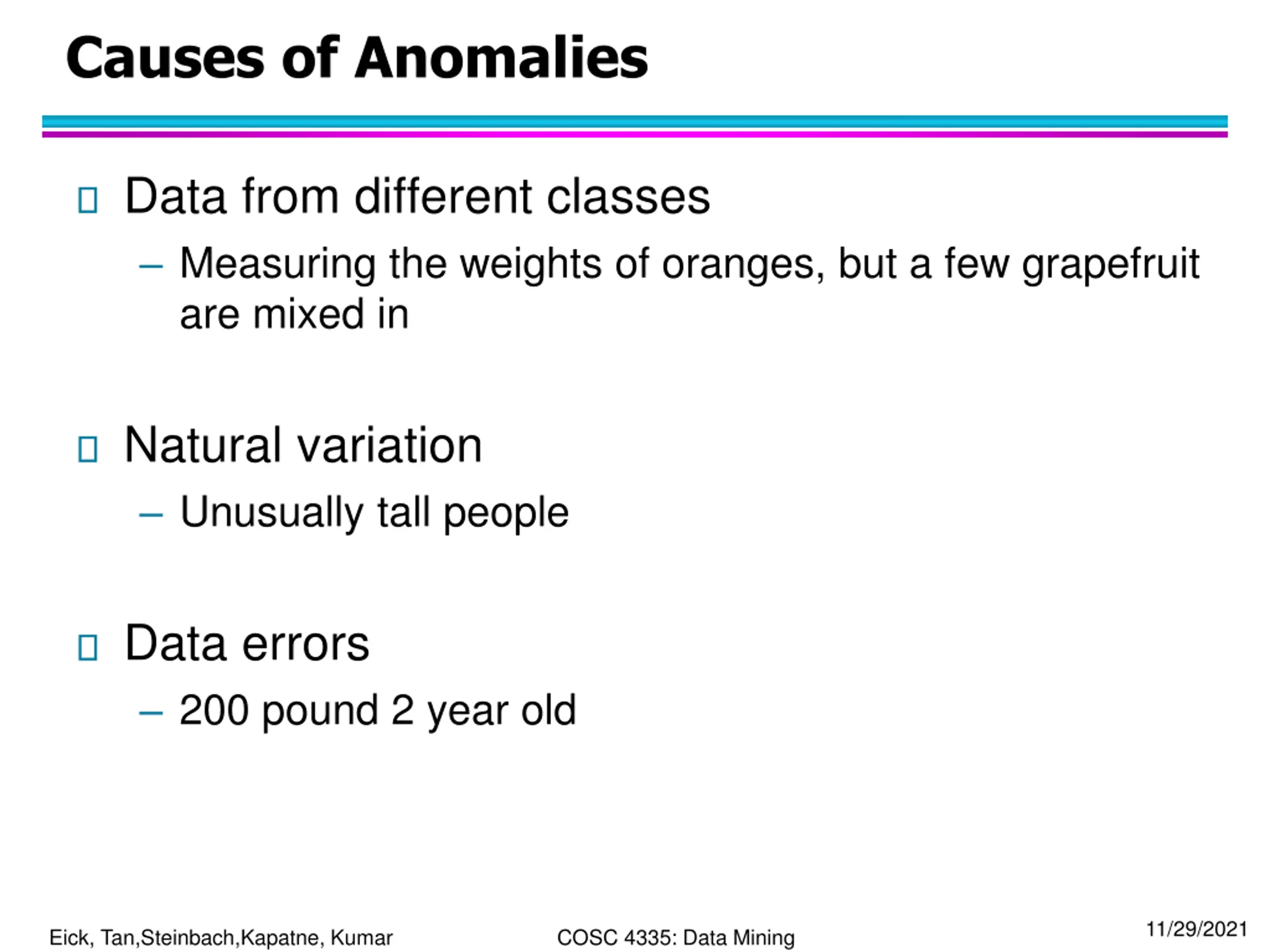

Causes of Anomalies Data from different classes Measuring the weights of oranges, but a few grapefruit are mixed in Natural variation Unusually tall people Data errors 200 pound 2 year old 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

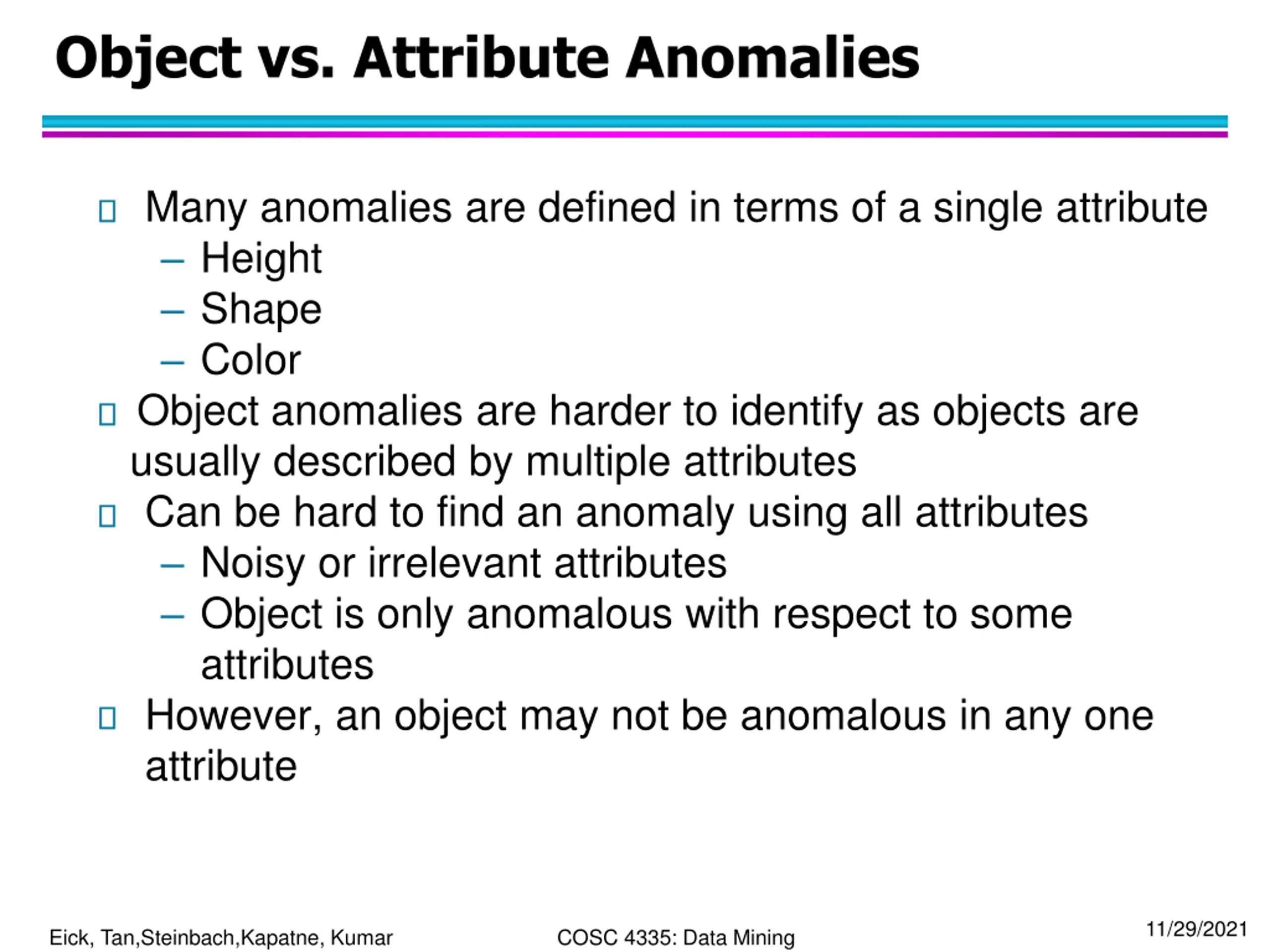

Object vs. Attribute Anomalies Many anomalies are defined in terms of a single attribute Height Shape Color Object anomalies are harder to identify as objects are usually described by multiple attributes Can be hard to find an anomaly using all attributes Noisy or irrelevant attributes Object is only anomalous with respect to some attributes However, an object may not be anomalous in any one attribute 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

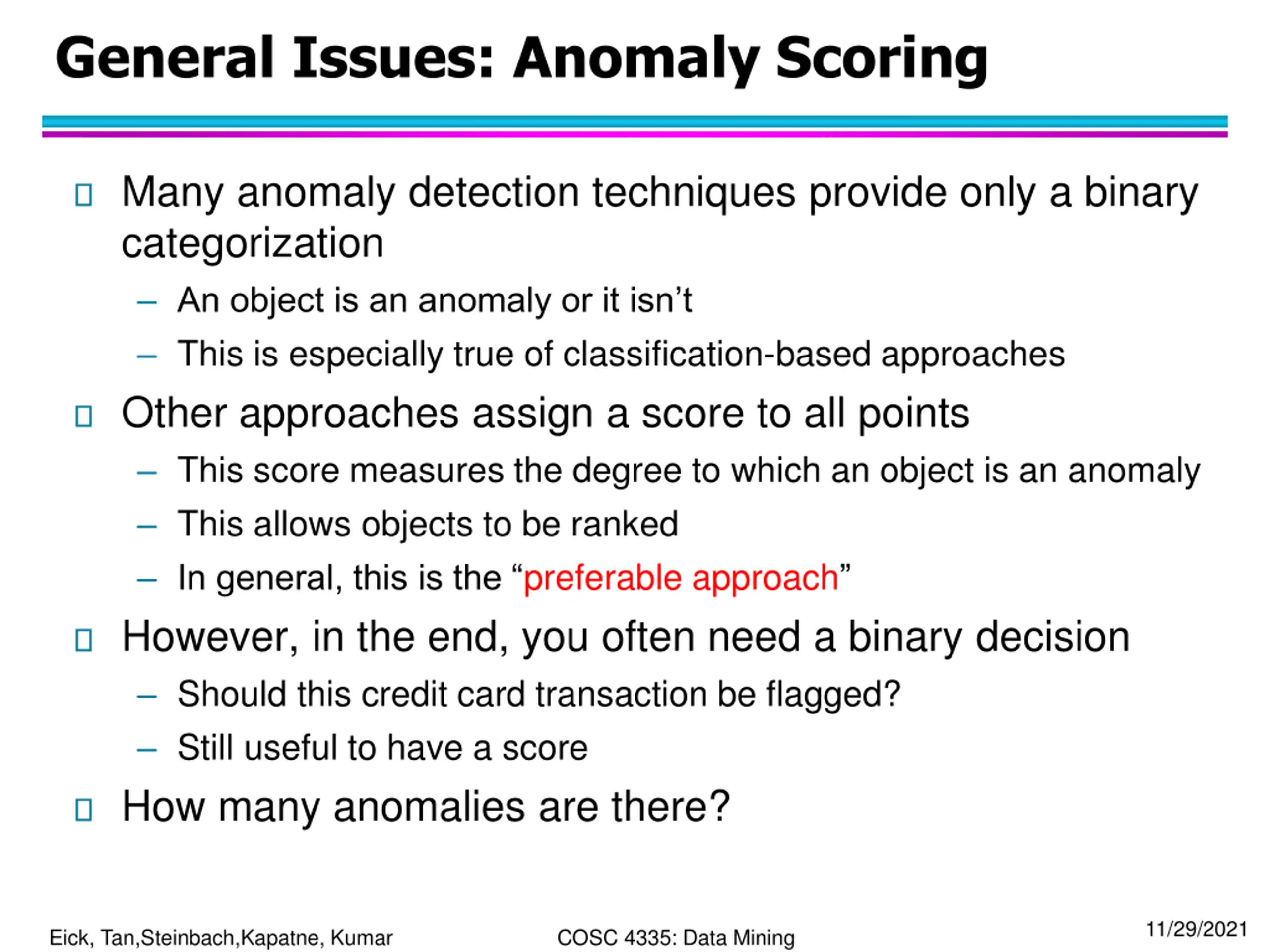

General Issues: Anomaly Scoring Many anomaly detection techniques provide only a binary categorization An object is an anomaly or it isn t This is especially true of classification-based approaches Other approaches assign a score to all points This score measures the degree to which an object is an anomaly This allows objects to be ranked In general, this is the preferable approach However, in the end, you often need a binary decision Should this credit card transaction be flagged? Still useful to have a score How many anomalies are there? 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

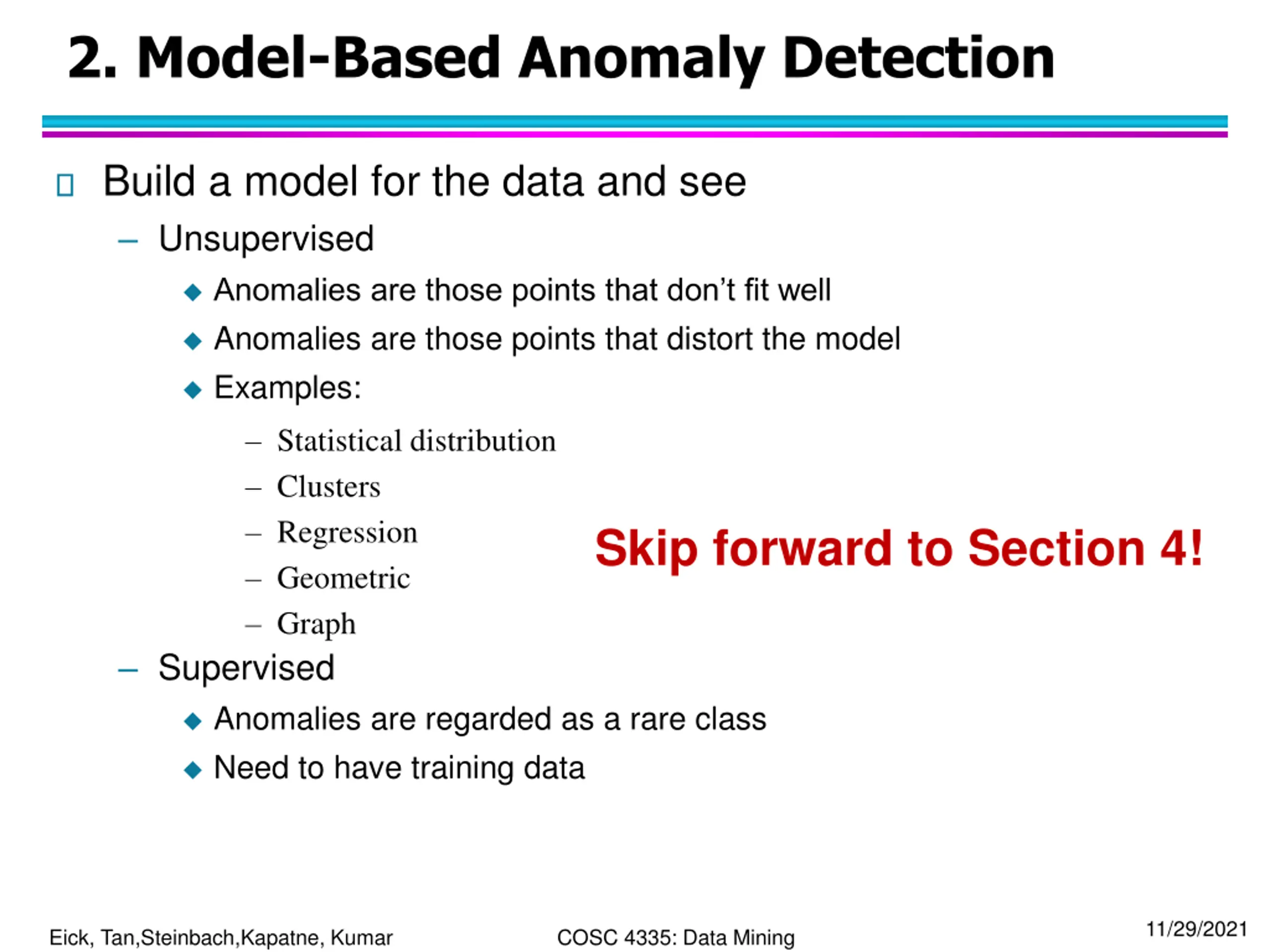

2. Model-Based Anomaly Detection Build a model for the data and see Unsupervised Anomalies are those points that don t fit well Anomalies are those points that distort the model Examples: Statistical distribution Clusters Regression Geometric Graph Supervised Skip forward to Section 4! Anomalies are regarded as a rare class Need to have training data 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

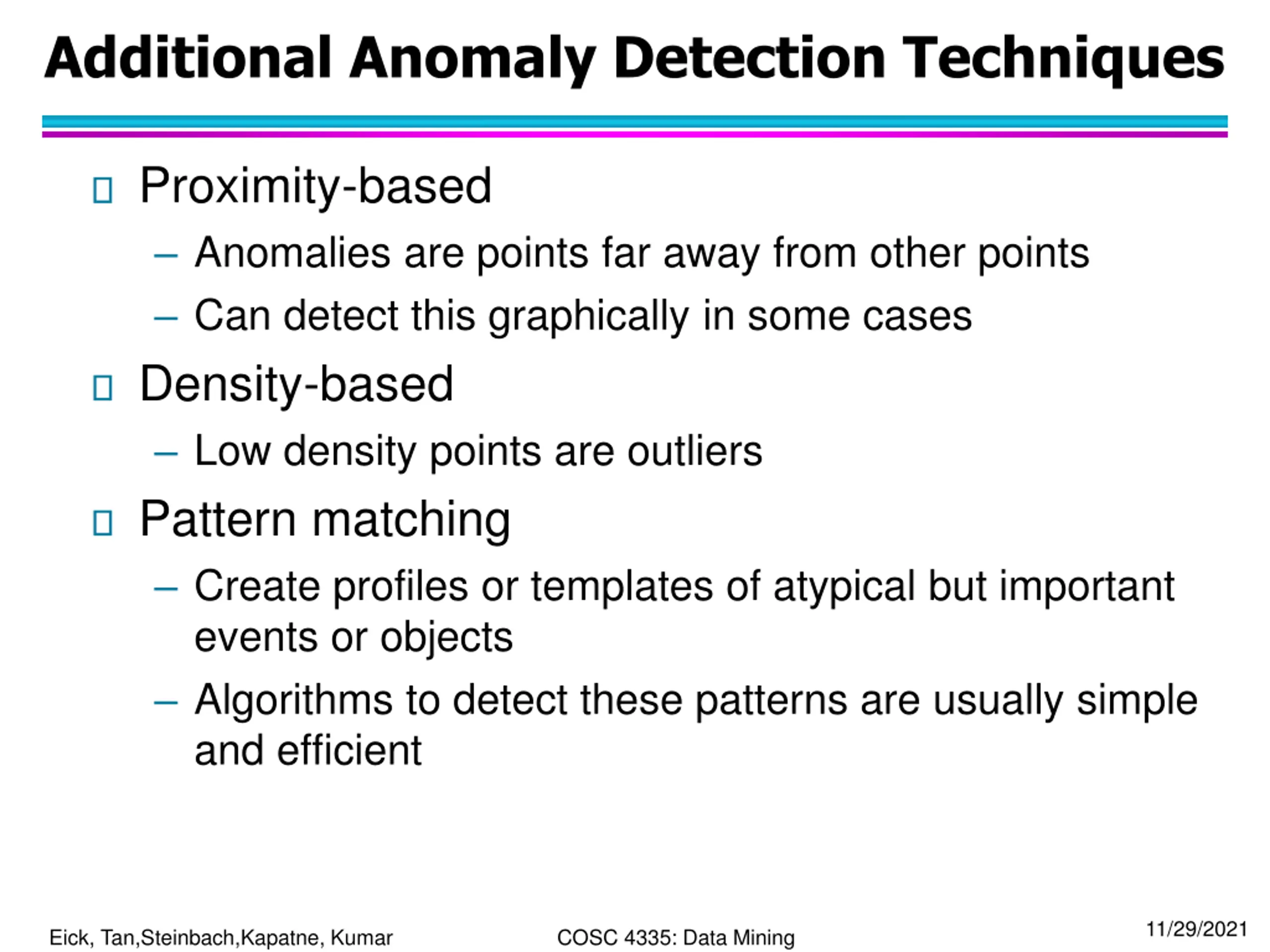

Additional Anomaly Detection Techniques Proximity-based Anomalies are points far away from other points Can detect this graphically in some cases Density-based Low density points are outliers Pattern matching Create profiles or templates of atypical but important events or objects Algorithms to detect these patterns are usually simple and efficient 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

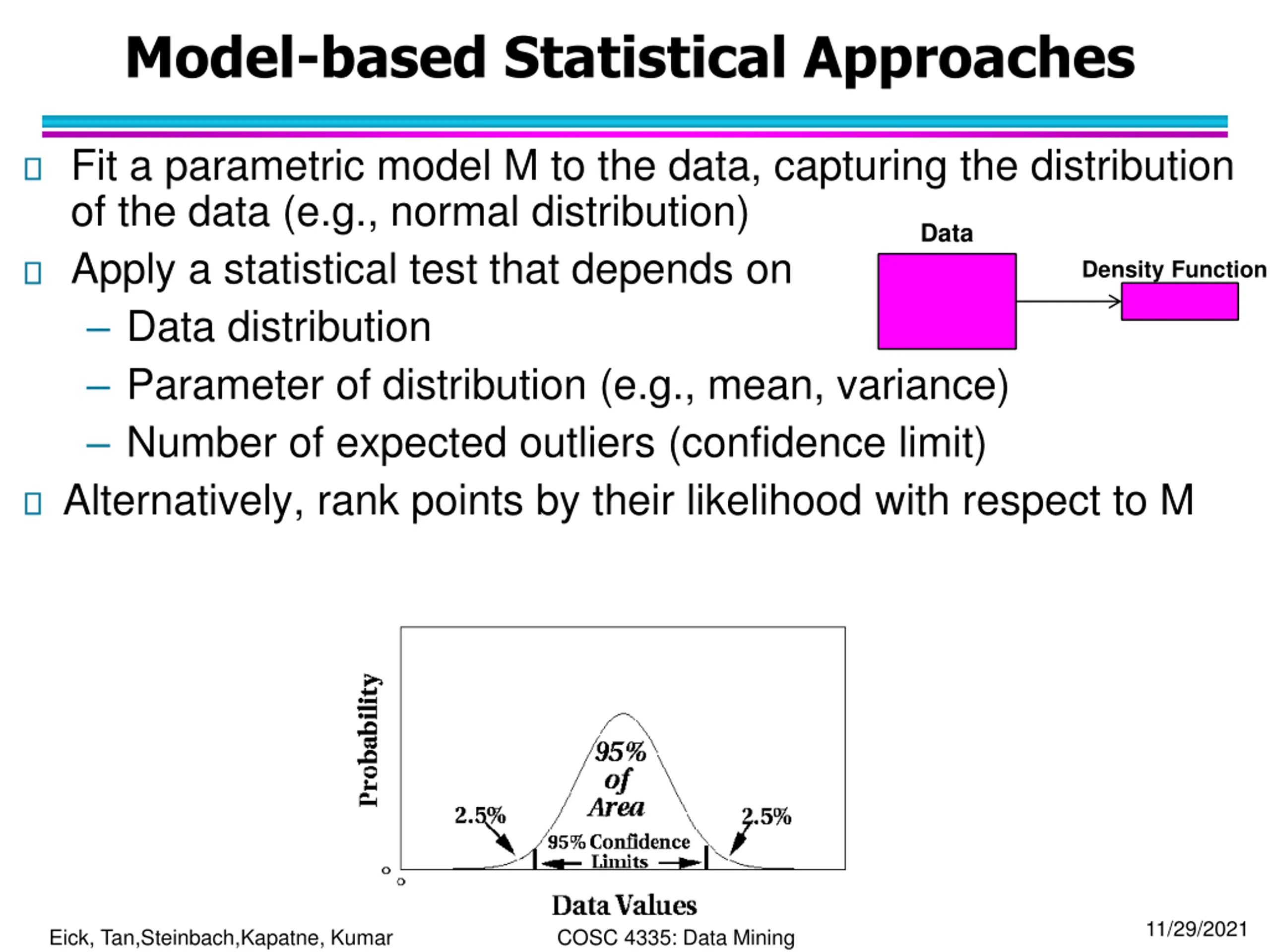

Model-based Statistical Approaches Fit a parametric model M to the data, capturing the distribution of the data (e.g., normal distribution) Apply a statistical test that depends on Data distribution Parameter of distribution (e.g., mean, variance) Number of expected outliers (confidence limit) Alternatively, rank points by their likelihood with respect to M Data Density Function 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

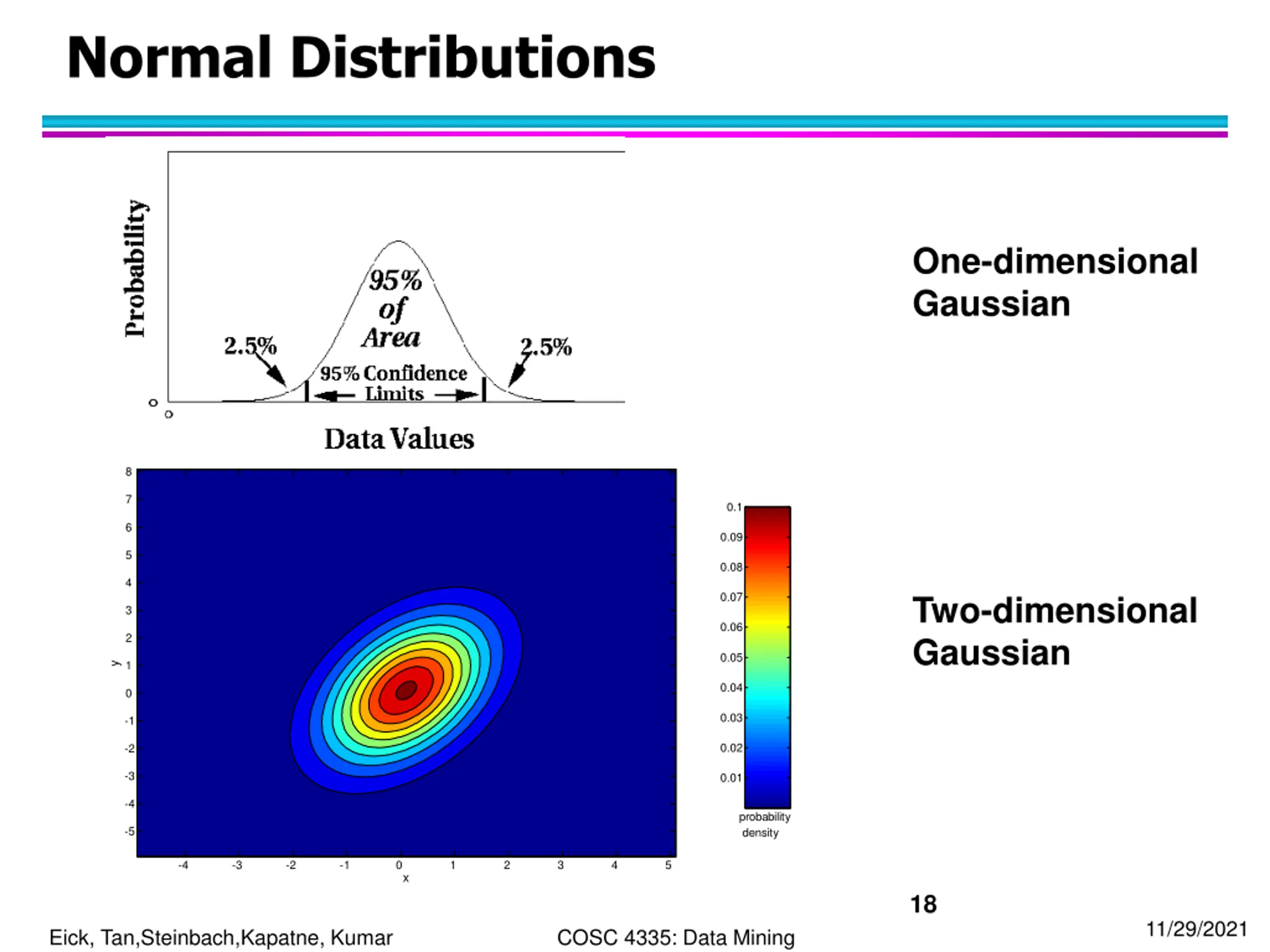

Normal Distributions One-dimensional Gaussian 8 7 0.1 6 0.09 5 0.08 4 Two-dimensional Gaussian 0.07 3 0.06 2 0.05 1 y 0.04 0 0.03 -1 0.02 -2 -3 0.01 -4 probability density -5 -4 -3 -2 -1 0 1 2 3 4 5 x 18 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

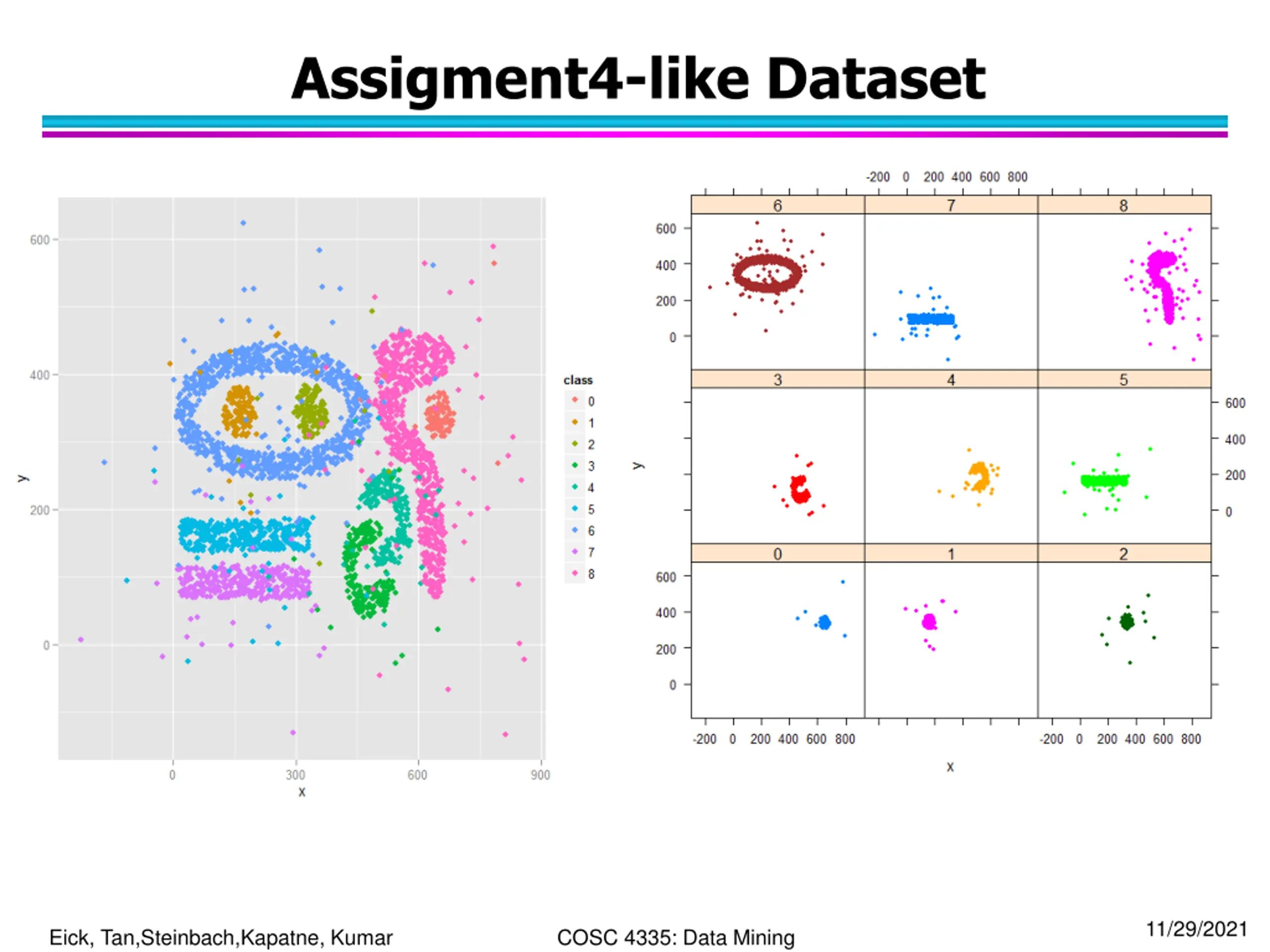

Assigment4-like Dataset 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

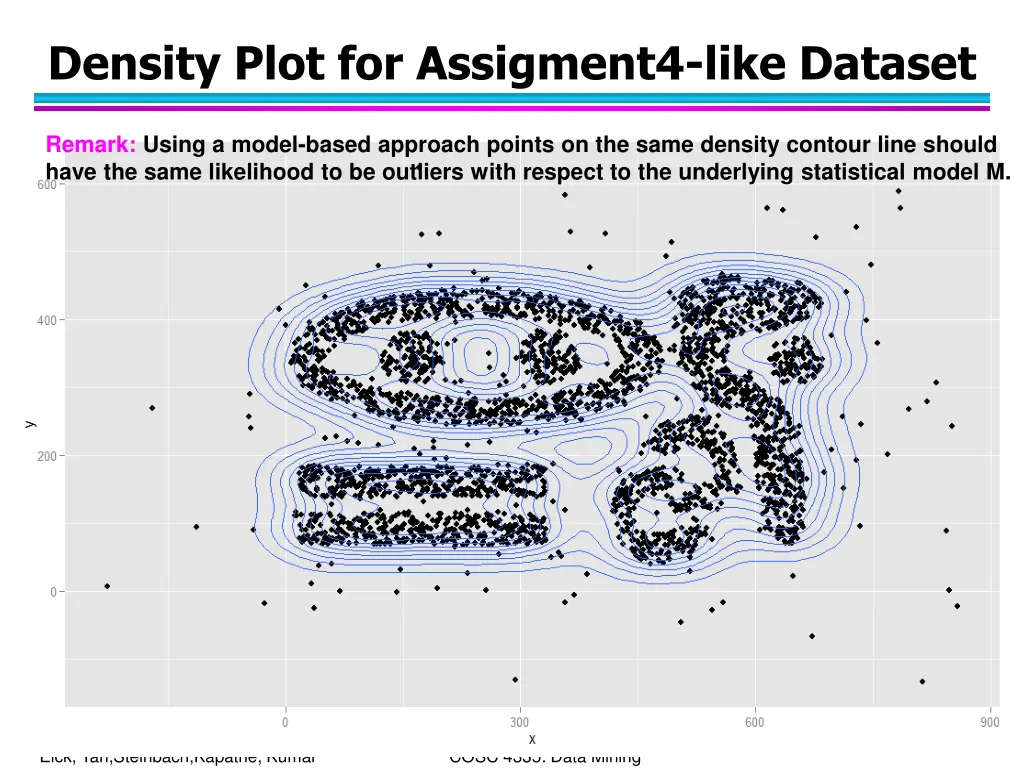

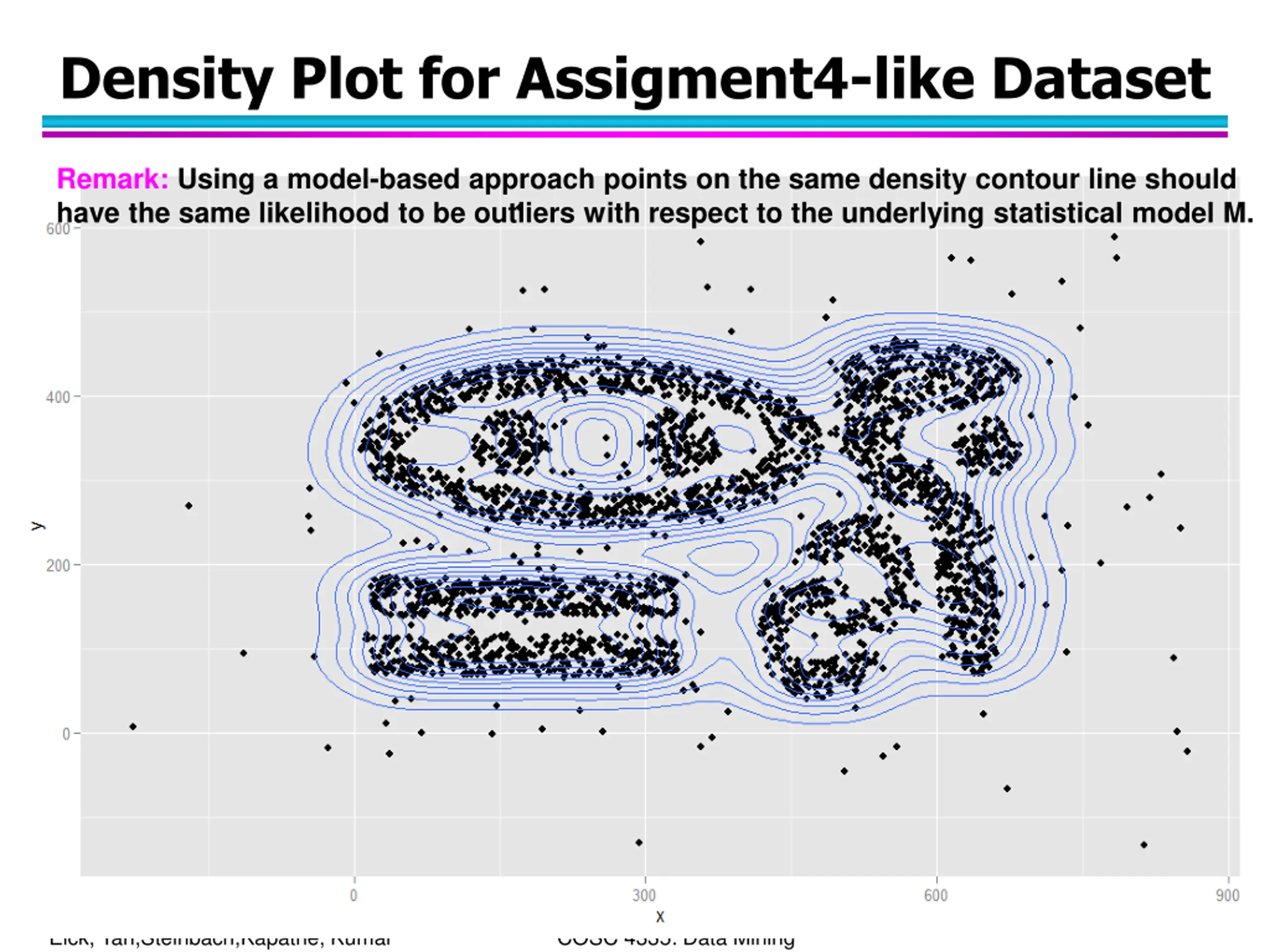

Density Plot for Assigment4-like Dataset Remark: Using a model-based approach points on the same density contour line should have the same likelihood to be outliers with respect to the underlying statistical model M. 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

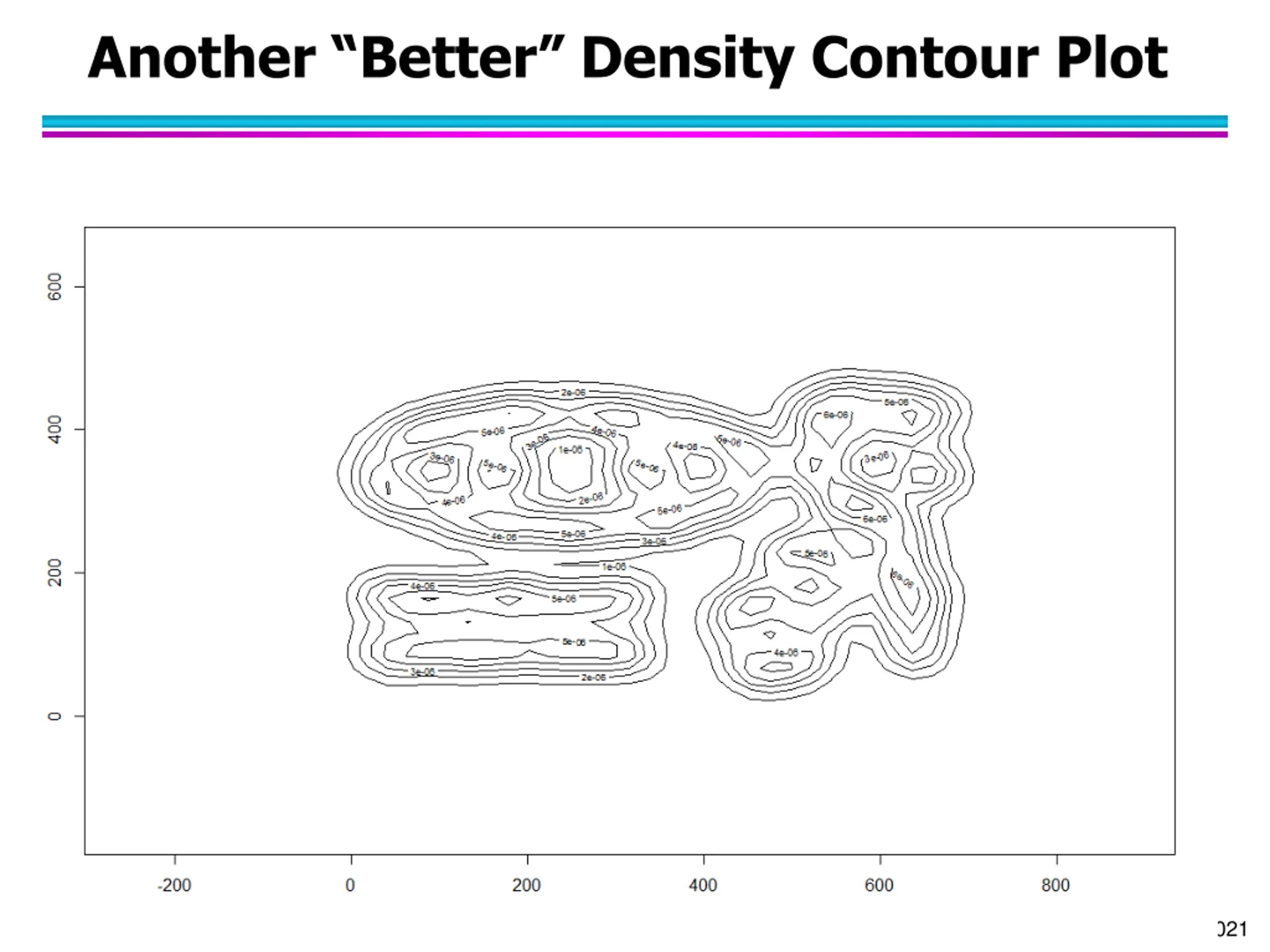

Another Better Density Contour Plot 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

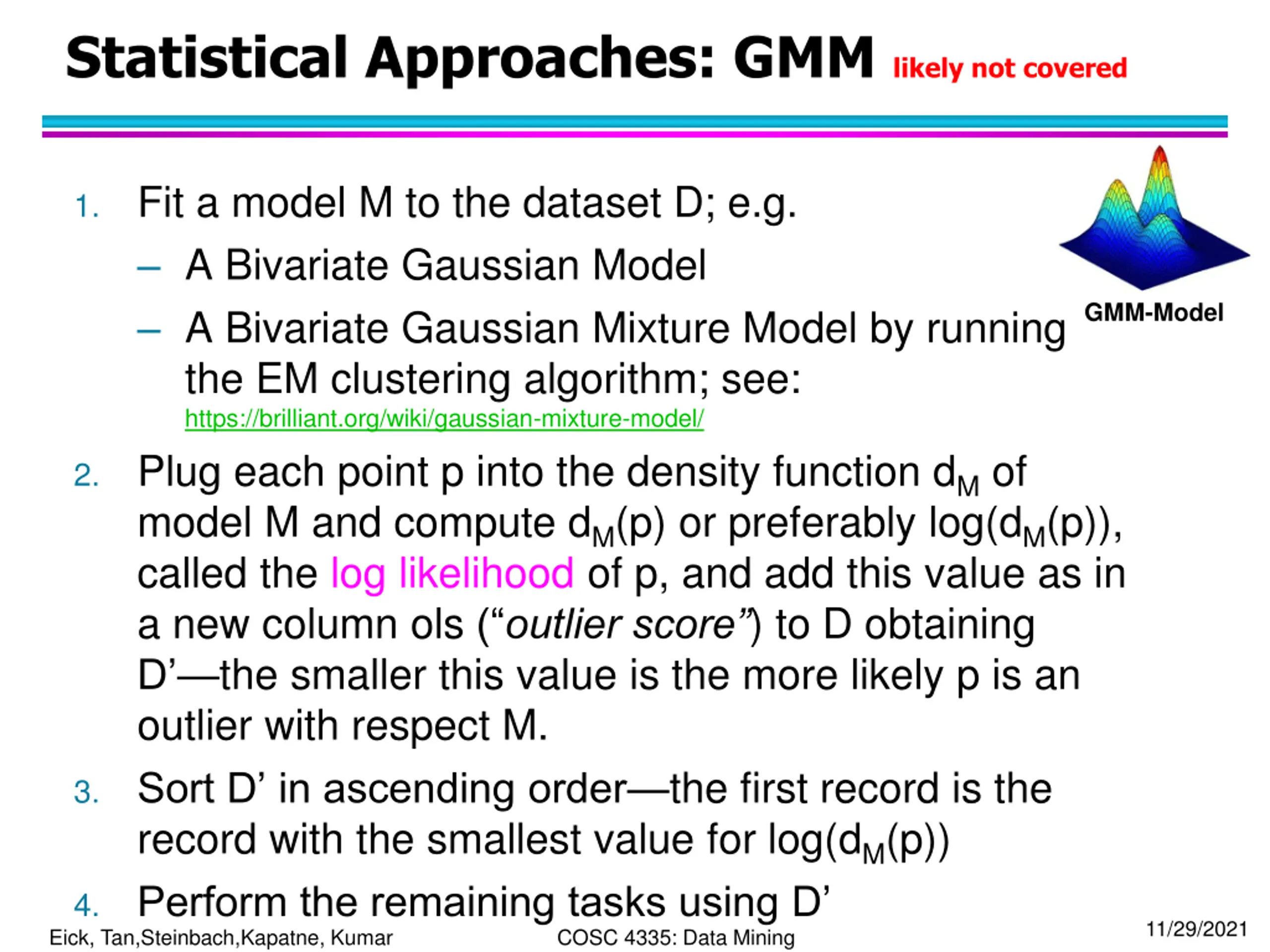

Statistical Approaches: GMM likely not covered 1. Fit a model M to the dataset D; e.g. A Bivariate Gaussian Model A Bivariate Gaussian Mixture Model by running the EM clustering algorithm; see: https://brilliant.org/wiki/gaussian-mixture-model/ 2. Plug each point p into the density function dM of model M and compute dM(p) or preferably log(dM(p)), called the log likelihood of p, and add this value as in a new column ols ( outlier score ) to D obtaining D the smaller this value is the more likely p is an outlier with respect M. 3. Sort D in ascending order the first record is the record with the smallest value for log(dM(p)) 4. Perform the remaining tasks using D GMM-Model 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

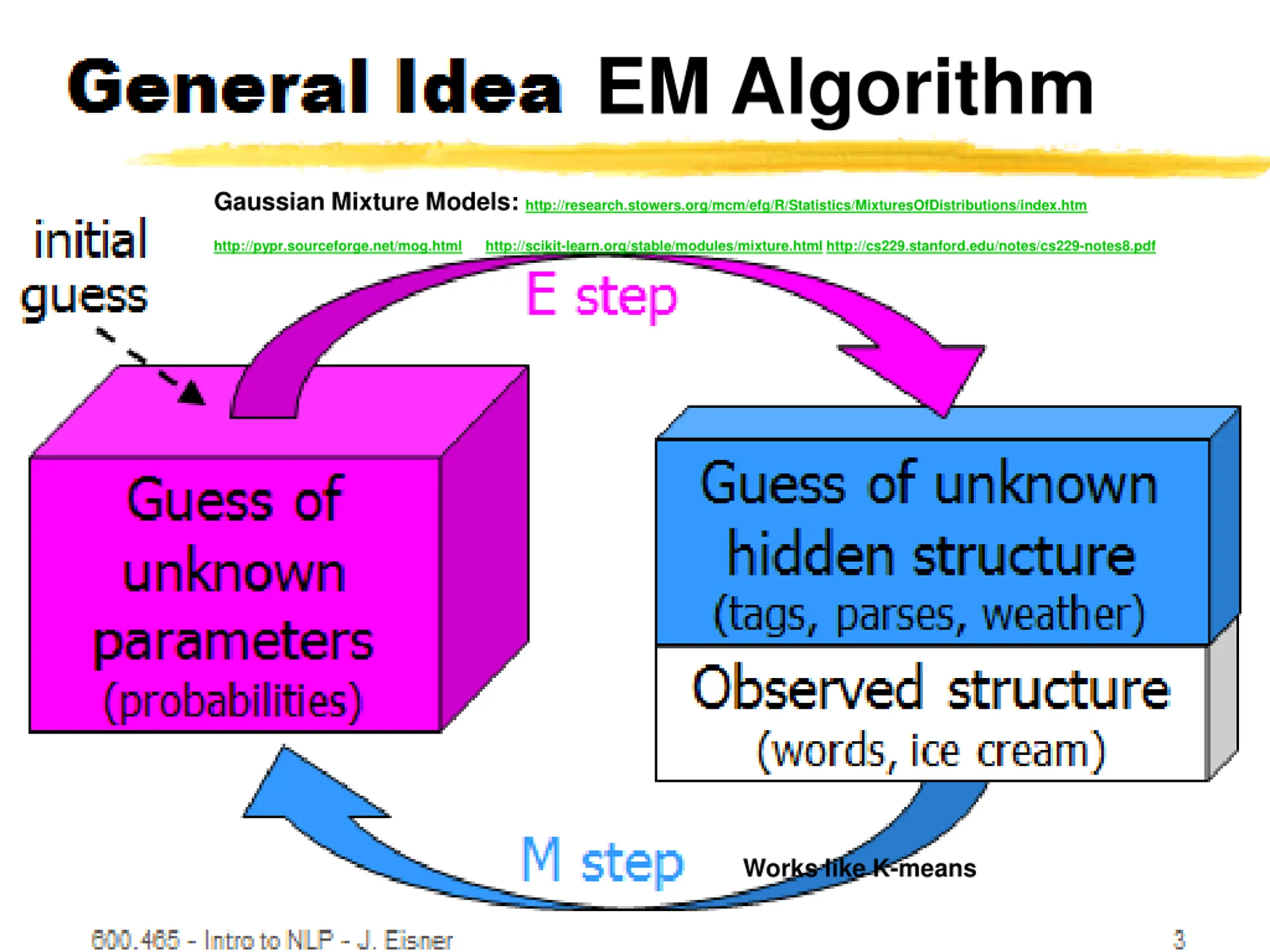

General Idea EM Algorithm EM Algorithm Gaussian Mixture Models: http://research.stowers.org/mcm/efg/R/Statistics/MixturesOfDistributions/index.htm http://pypr.sourceforge.net/mog.html http://scikit-learn.org/stable/modules/mixture.html http://cs229.stanford.edu/notes/cs229-notes8.pdf Works like K-means 23 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

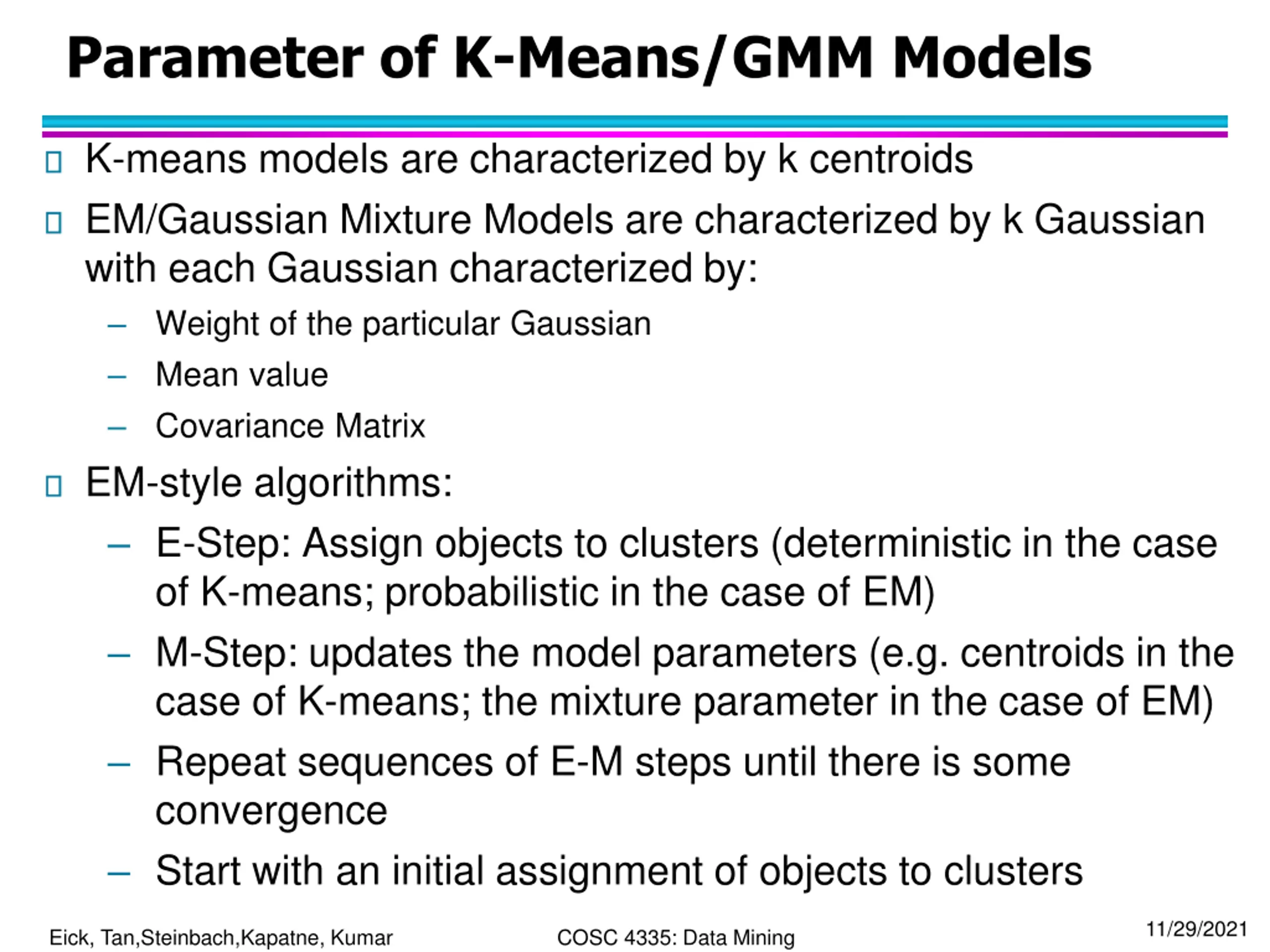

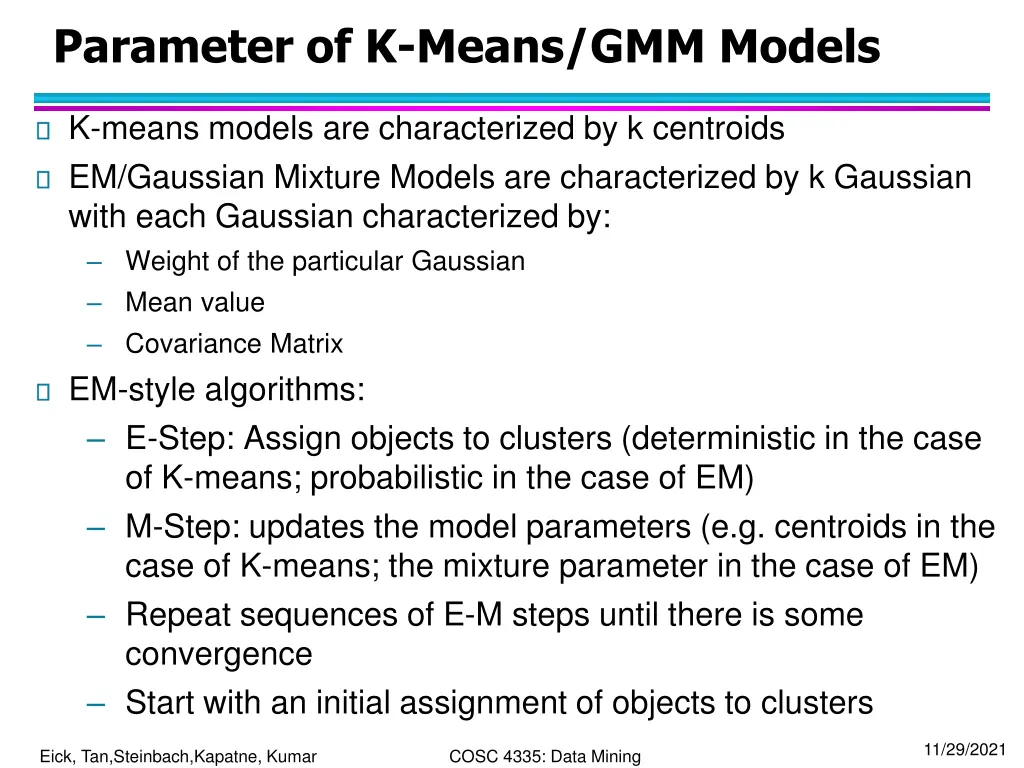

Parameter of K-Means/GMM Models K-means models are characterized by k centroids EM/Gaussian Mixture Models are characterized by k Gaussian with each Gaussian characterized by: Weight of the particular Gaussian Mean value Covariance Matrix EM-style algorithms: E-Step: Assign objects to clusters (deterministic in the case of K-means; probabilistic in the case of EM) M-Step: updates the model parameters (e.g. centroids in the case of K-means; the mixture parameter in the case of EM) Repeat sequences of E-M steps until there is some convergence Start with an initial assignment of objects to clusters 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

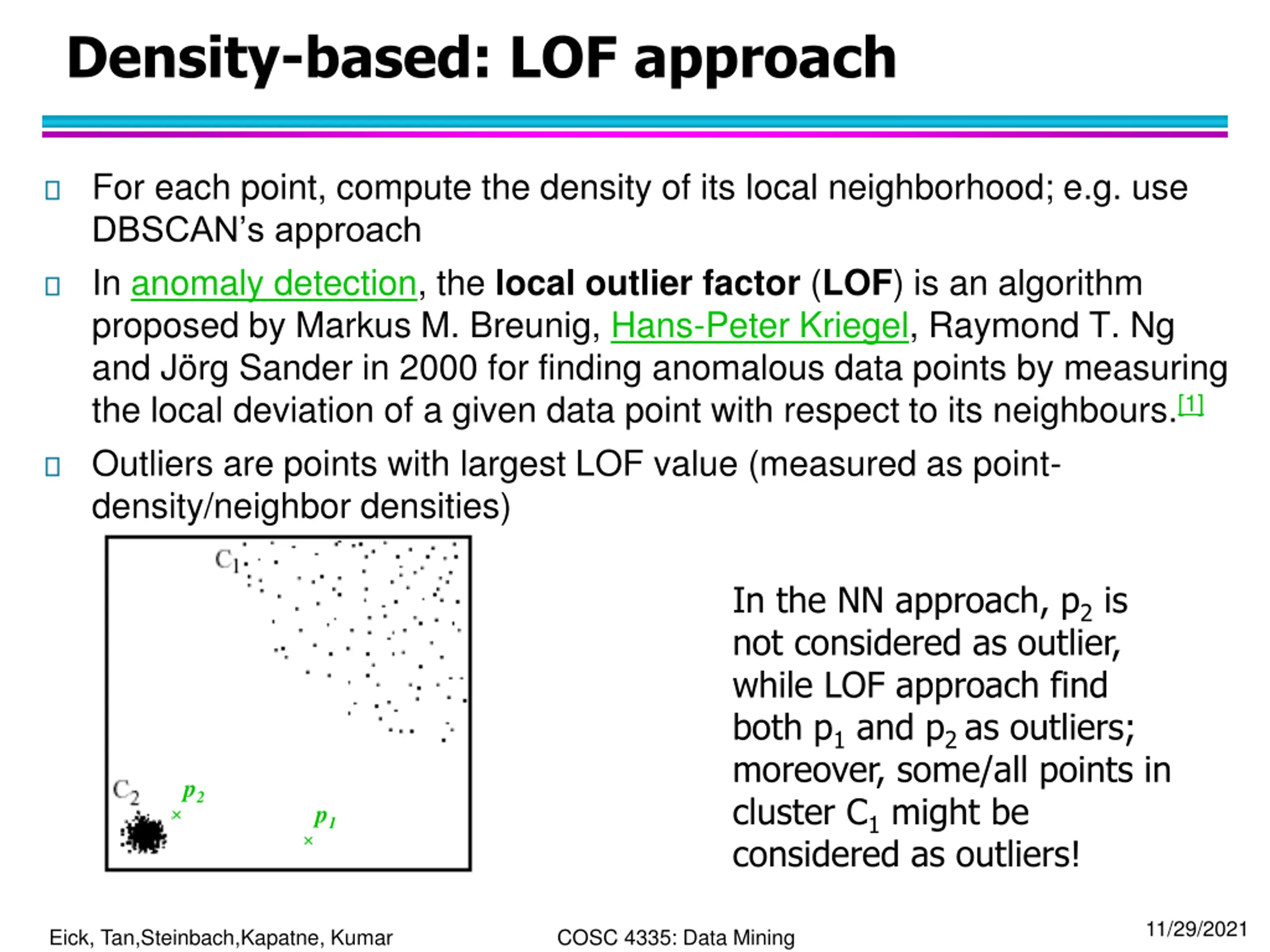

Density-based: LOF approach For each point, compute the density of its local neighborhood; e.g. use DBSCAN s approach In anomaly detection, the local outlier factor (LOF) is an algorithm proposed by Markus M. Breunig, Hans-Peter Kriegel, Raymond T. Ng and J rg Sander in 2000 for finding anomalous data points by measuring the local deviation of a given data point with respect to its neighbours.[1] Outliers are points with largest LOF value (measured as point- density/neighbor densities) In the NN approach, p2 is not considered as outlier, while LOF approach find both p1 and p2 as outliers; moreover, some/all points in cluster C1 might be considered as outliers! p2 p1 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

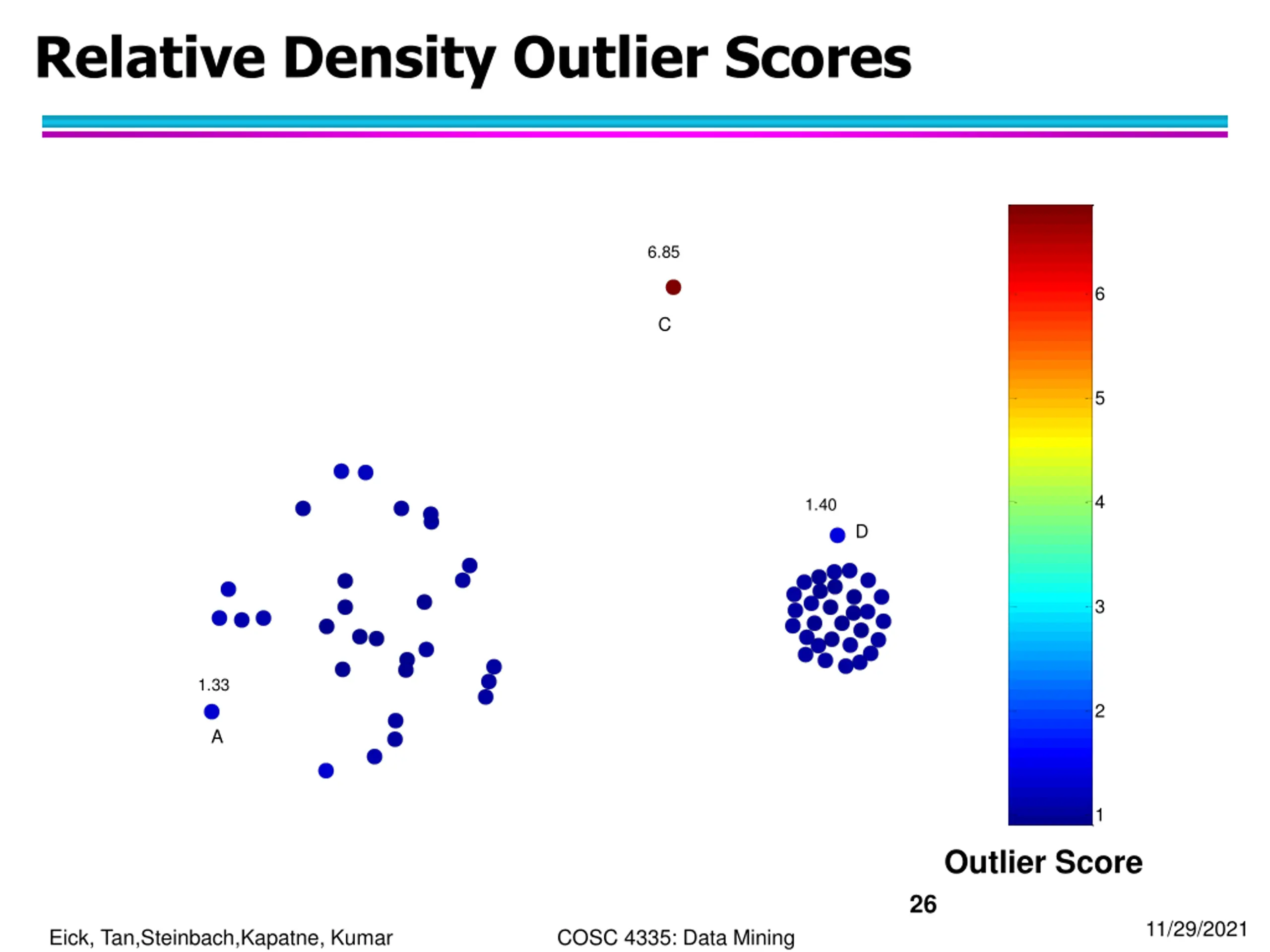

Relative Density Outlier Scores 6.85 6 C 5 4 1.40 D 3 1.33 2 A 1 Outlier Score 26 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

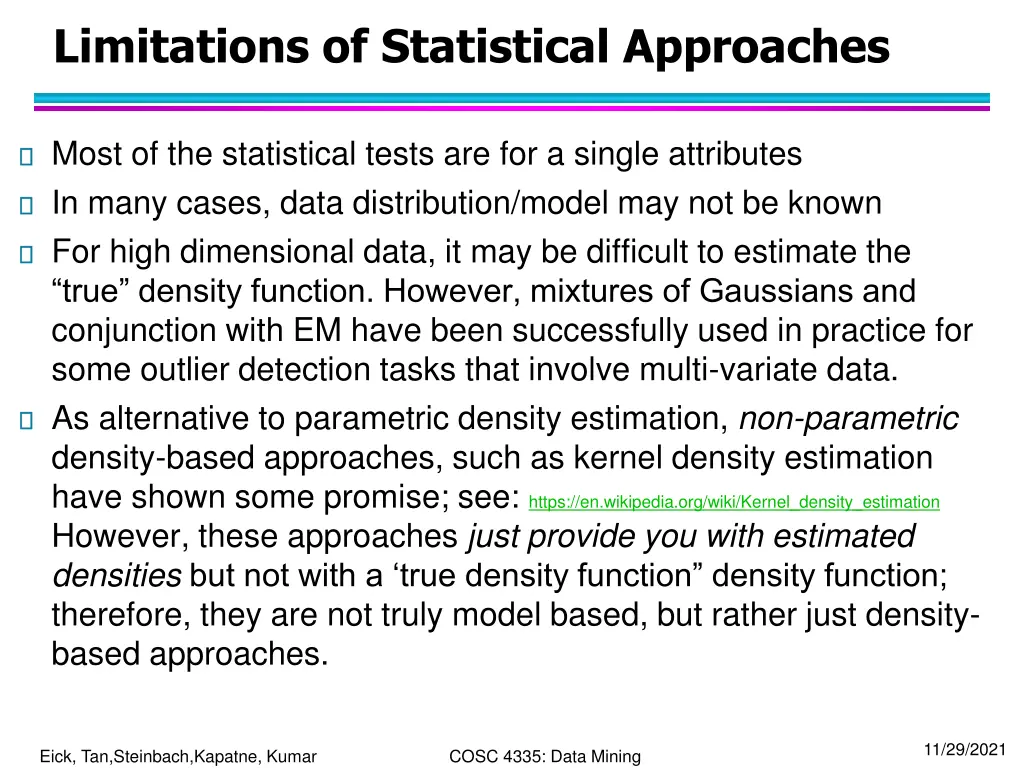

Limitations of Statistical Approaches Most of the statistical tests are for a single attributes In many cases, data distribution/model may not be known For high dimensional data, it may be difficult to estimate the true density function. However, mixtures of Gaussians and conjunction with EM have been successfully used in practice for some outlier detection tasks that involve multi-variate data. As alternative to parametric density estimation, non-parametric density-based approaches, such as kernel density estimation have shown some promise; see: https://en.wikipedia.org/wiki/Kernel_density_estimation However, these approaches just provide you with estimated densities but not with a true density function density function; therefore, they are not truly model based, but rather just density- based approaches. 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

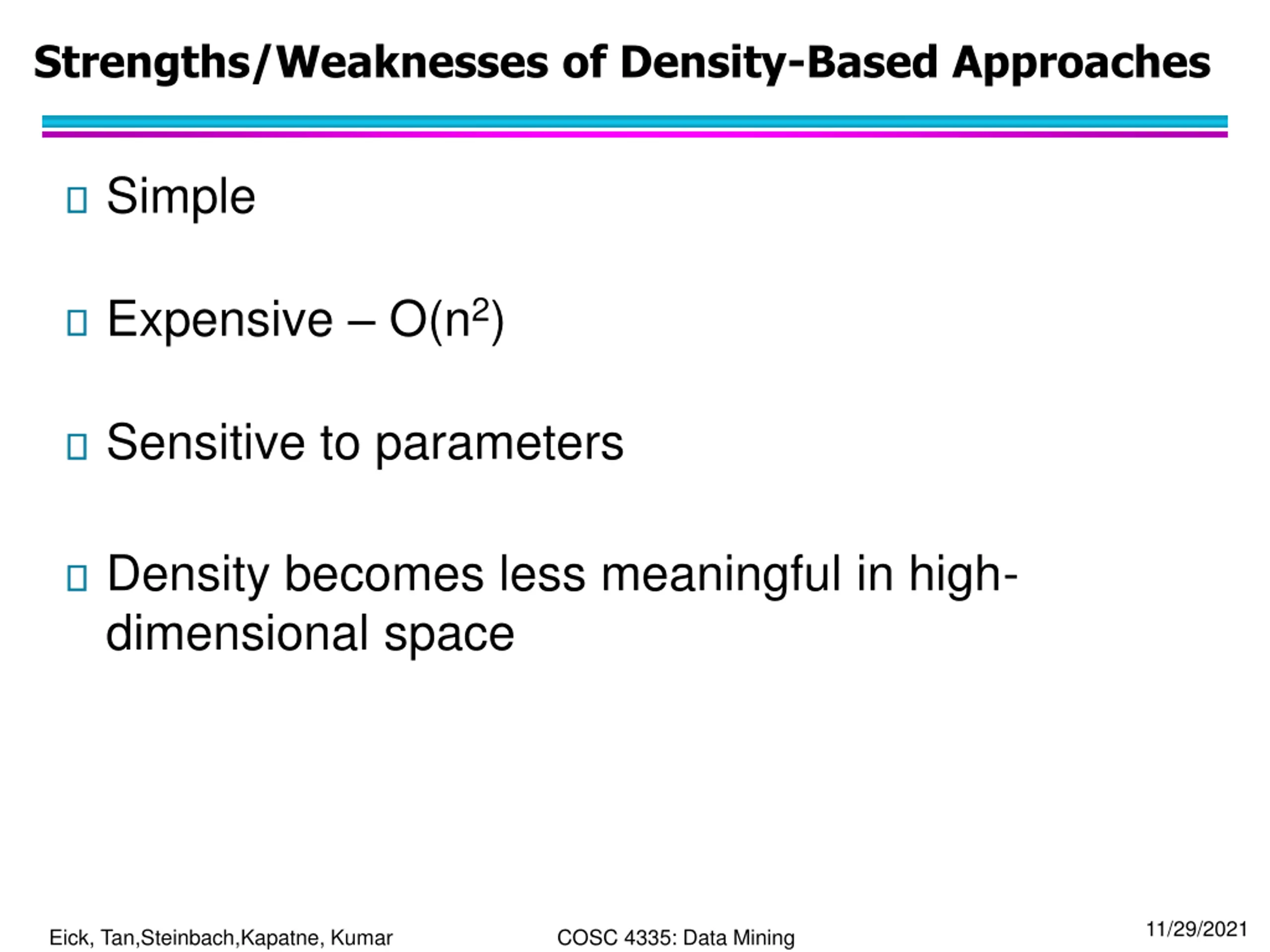

Strengths/Weaknesses of Density-Based Approaches Simple Expensive O(n2) Sensitive to parameters Density becomes less meaningful in high- dimensional space 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

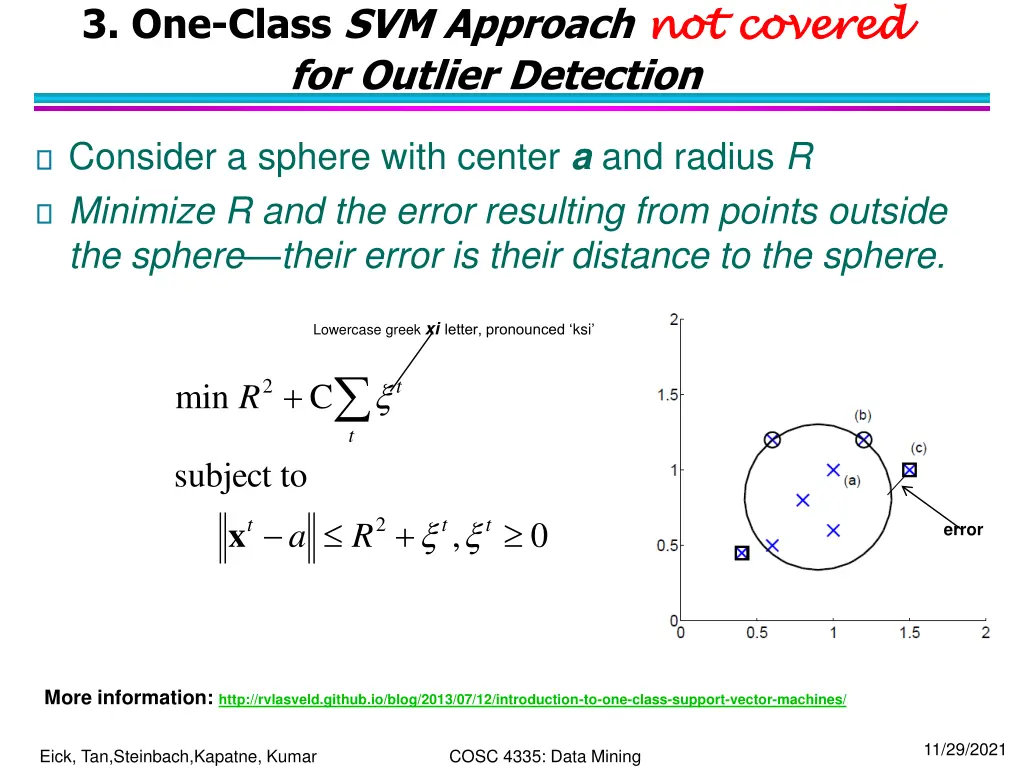

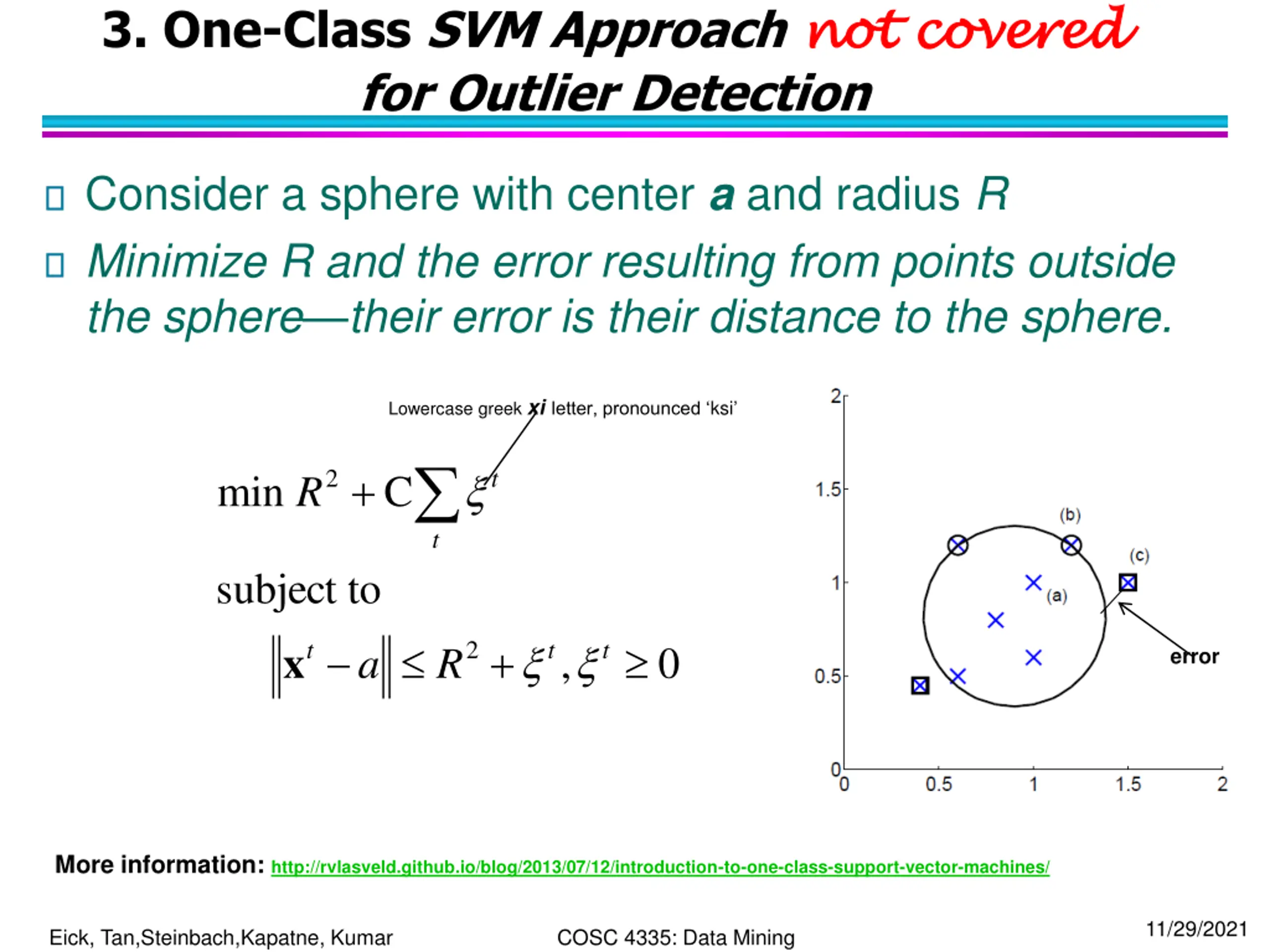

3. One-Class SVM Approach not covered for Outlier Detection not covered Consider a sphere with center a and radius R Minimize R and the error resulting from points outside the sphere their error is their distance to the sphere. Lowercase greek xiletter, pronounced ksi C + 2 t min R t subject to + 2 t t t x , 0 a R error More information: http://rvlasveld.github.io/blog/2013/07/12/introduction-to-one-class-support-vector-machines/ 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

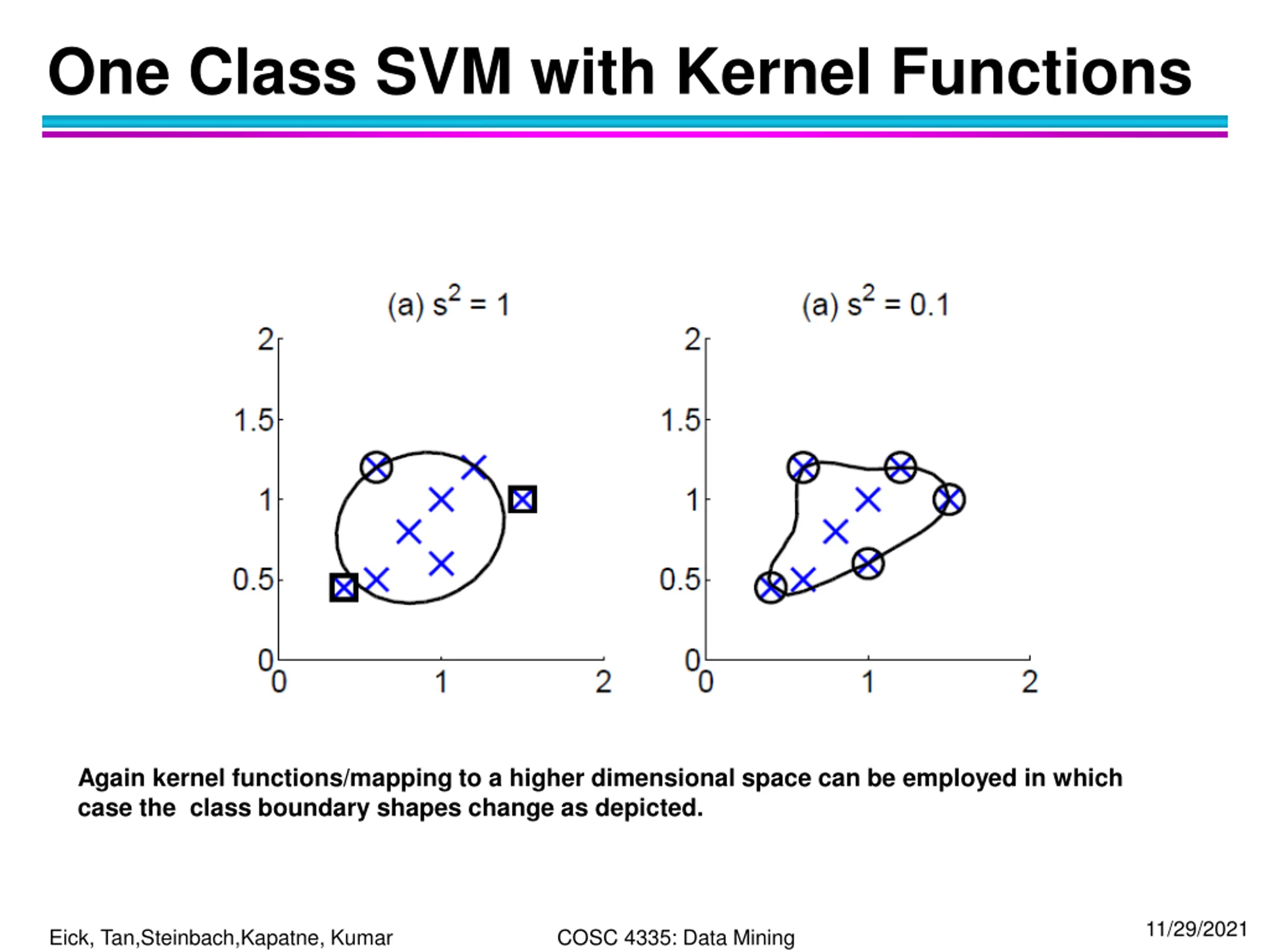

One Class SVM with Kernel Functions Again kernel functions/mapping to a higher dimensional space can be employed in which case the class boundary shapes change as depicted. 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

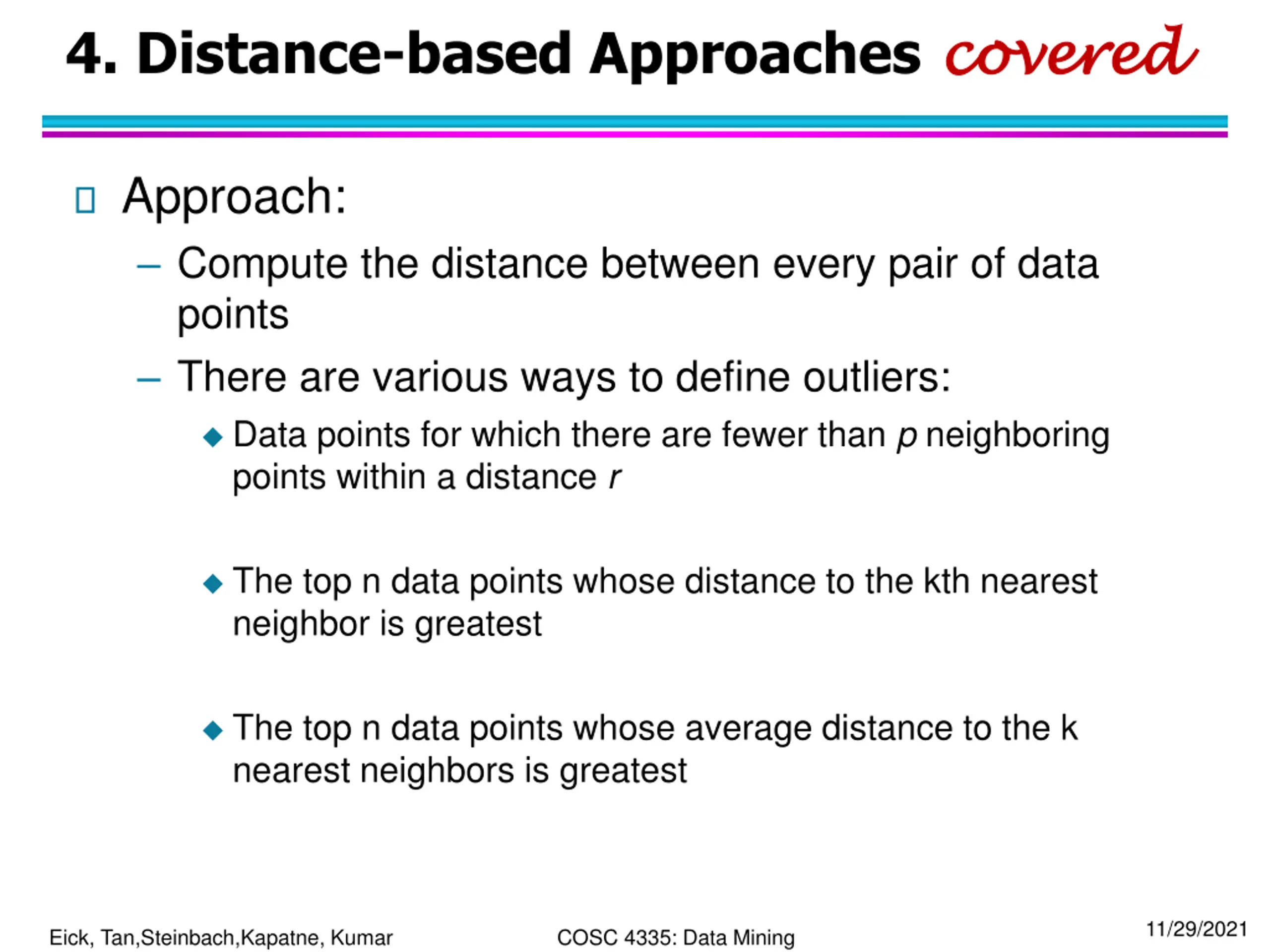

4. Distance-based Approaches covered covered Approach: Compute the distance between every pair of data points There are various ways to define outliers: Data points for which there are fewer than p neighboring points within a distance r The top n data points whose distance to the kth nearest neighbor is greatest The top n data points whose average distance to the k nearest neighbors is greatest 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

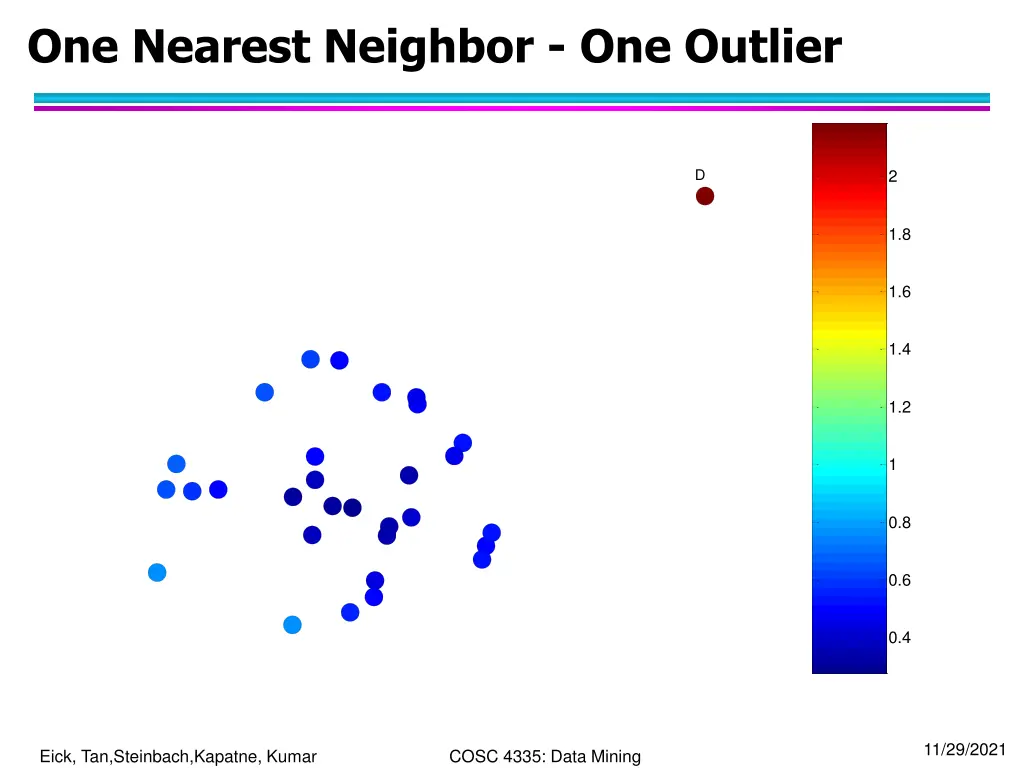

One Nearest Neighbor - One Outlier D 2 1.8 1.6 1.4 1.2 1 0.8 0.6 0.4 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

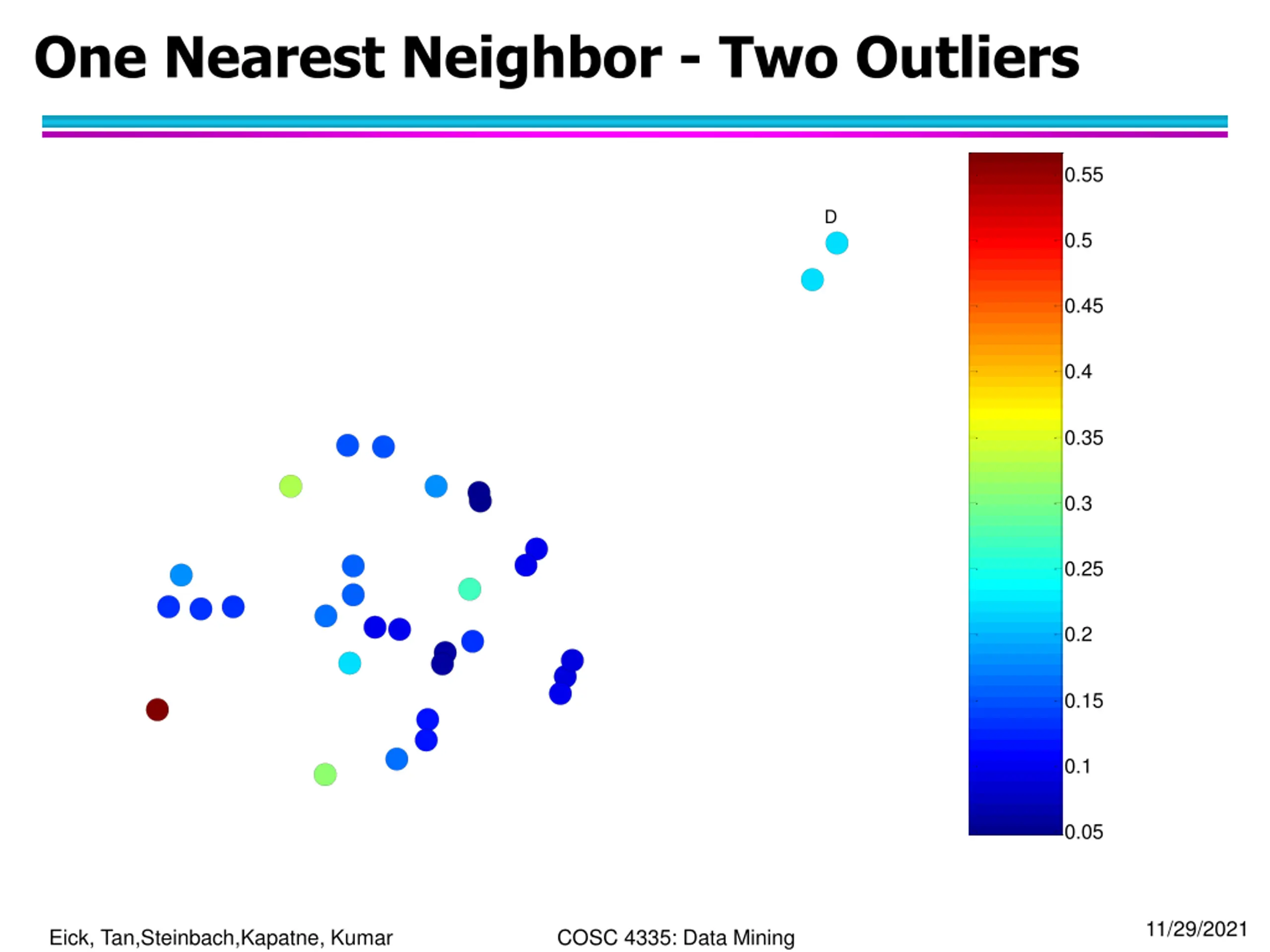

One Nearest Neighbor - Two Outliers 0.55 D 0.5 0.45 0.4 0.35 0.3 0.25 0.2 0.15 0.1 0.05 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

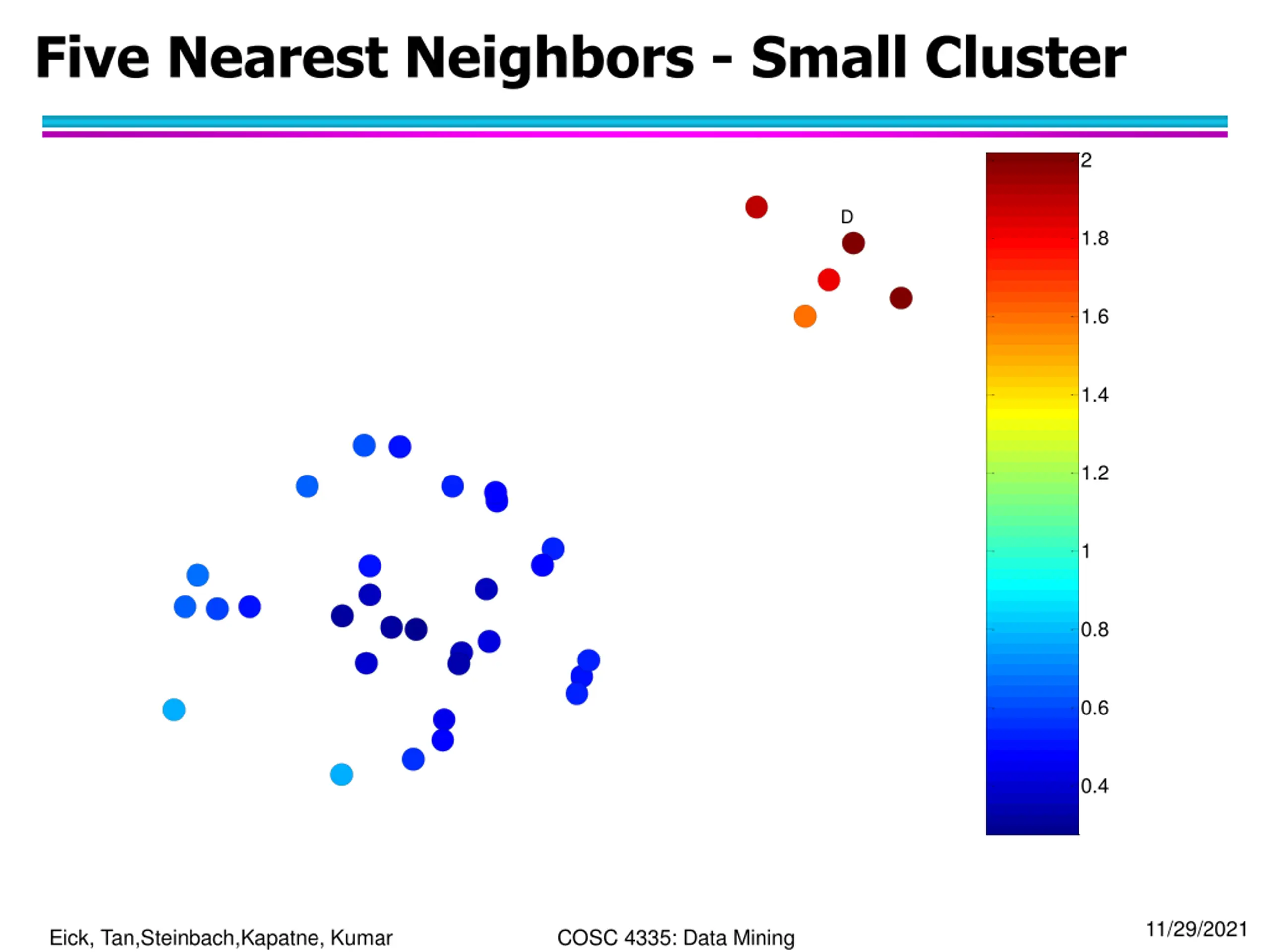

Five Nearest Neighbors - Small Cluster 2 D 1.8 1.6 1.4 1.2 1 0.8 0.6 0.4 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

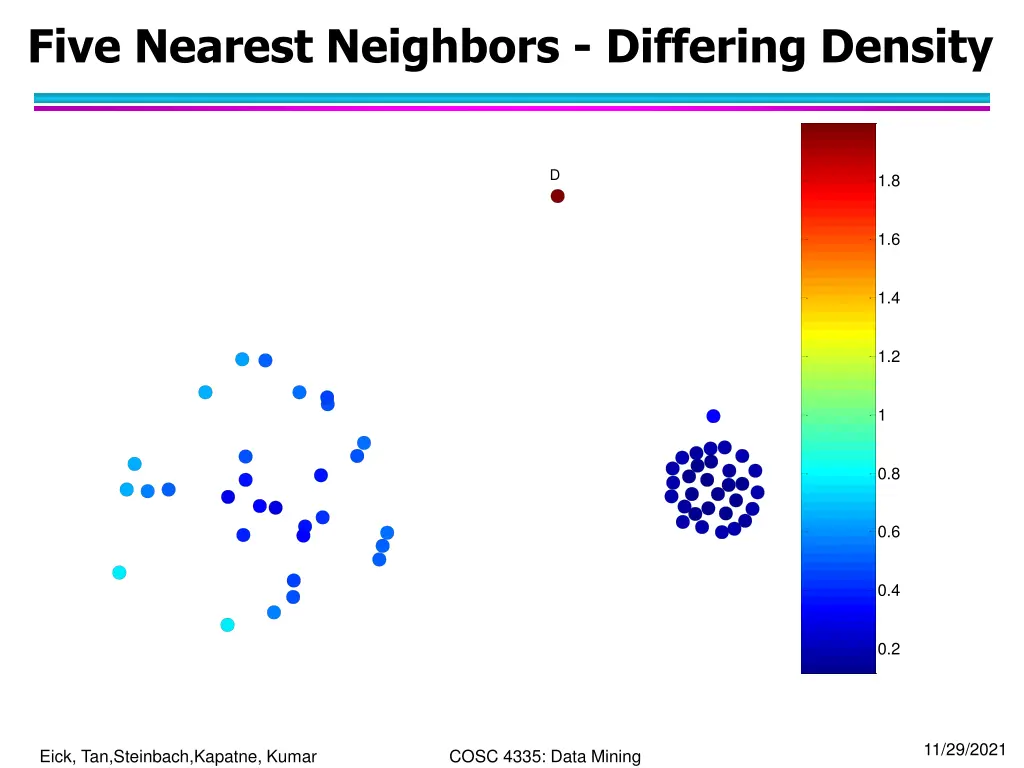

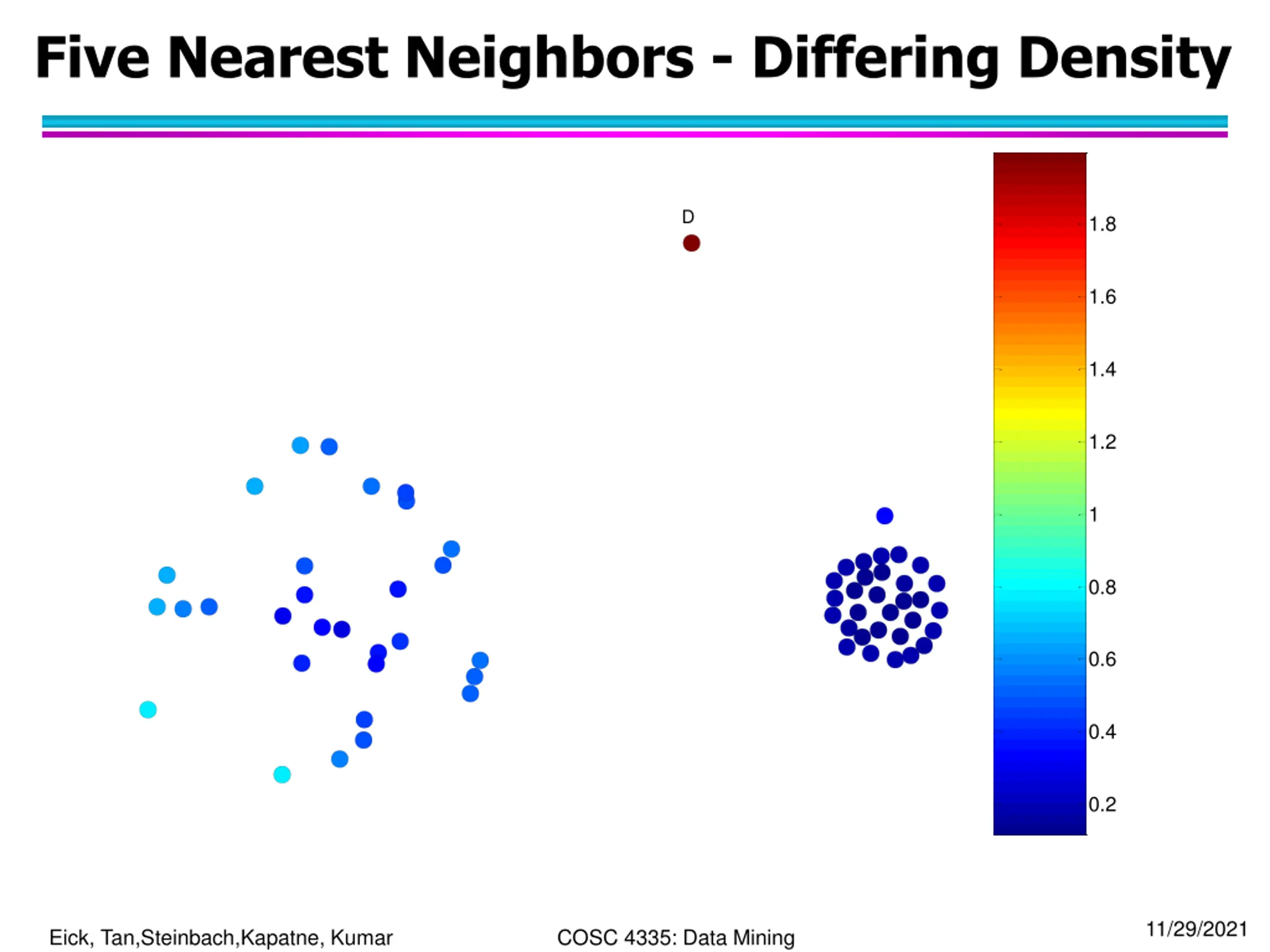

Five Nearest Neighbors - Differing Density D 1.8 1.6 1.4 1.2 1 0.8 0.6 0.4 0.2 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining

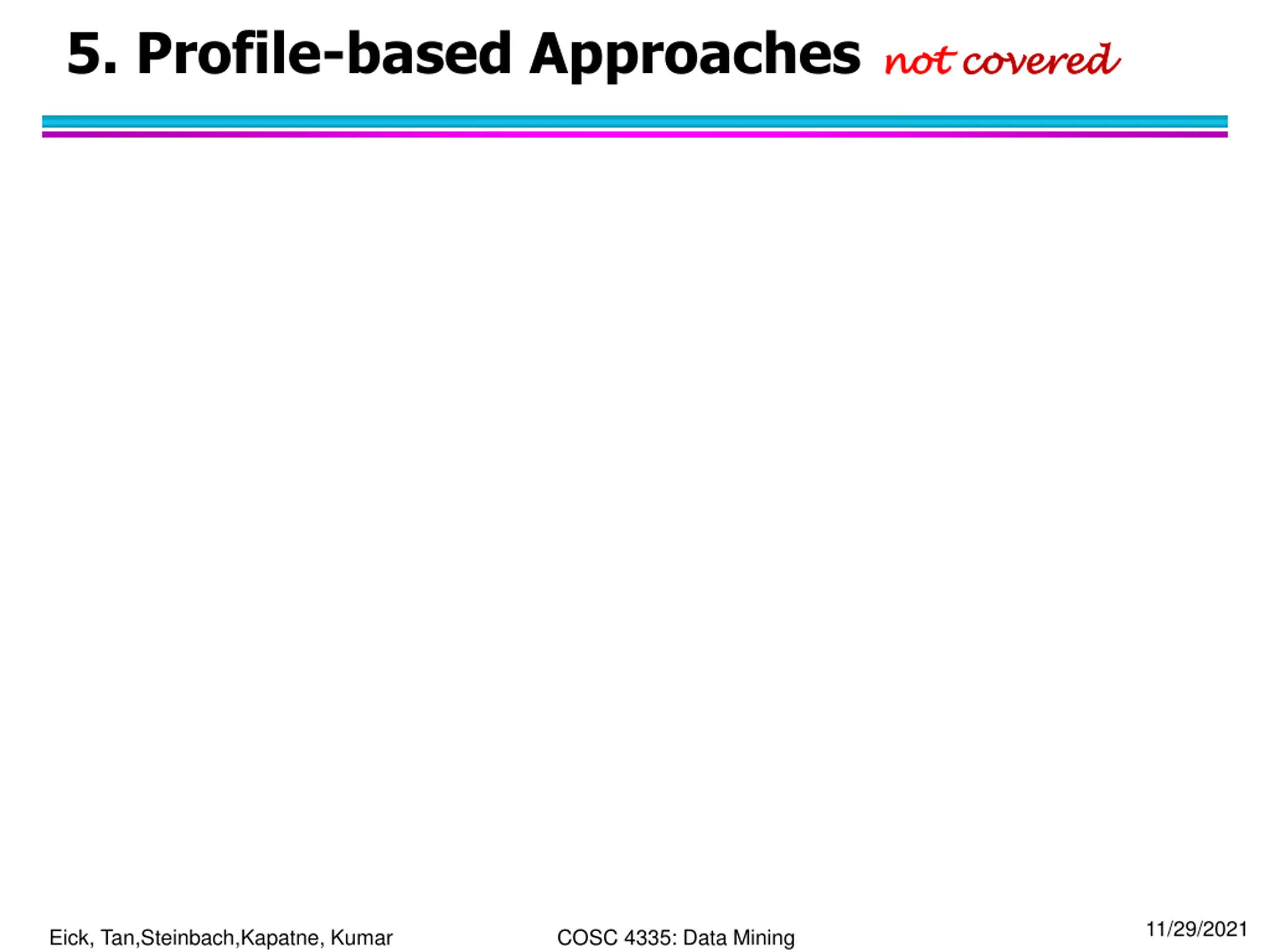

5. Profile-based Approachesnot not covered covered 11/29/2021 Eick, Tan,Steinbach,Kapatne, Kumar COSC 4335: Data Mining
