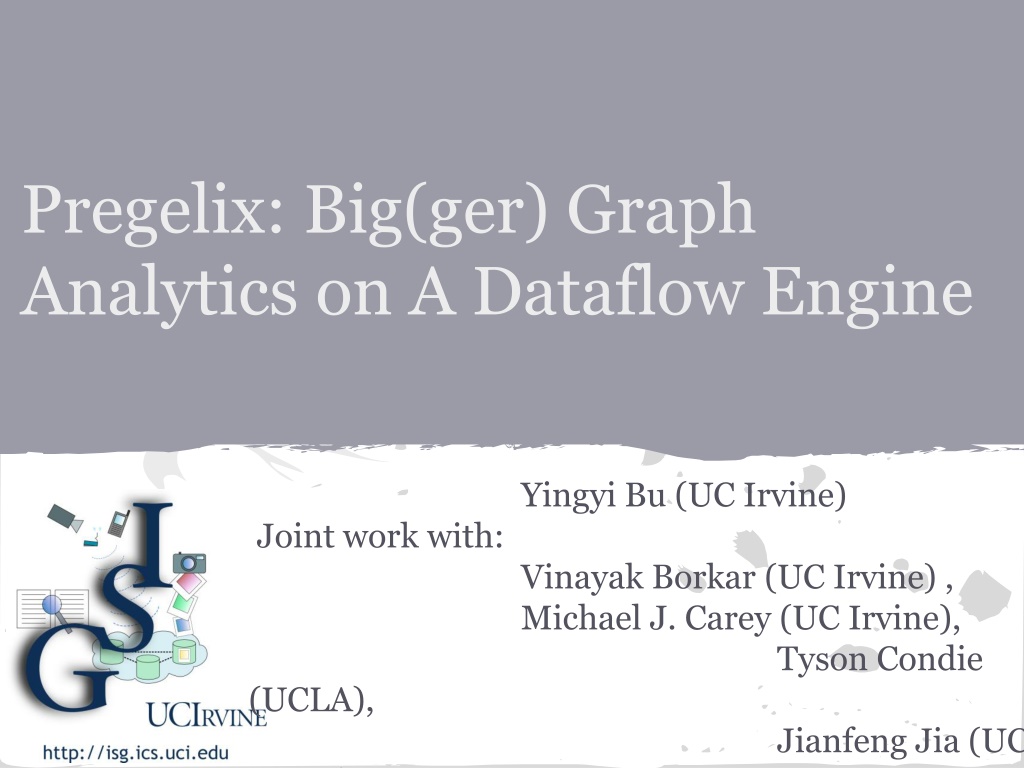

Analyzing Big Graphs with Pregelix Dataflow Engine
Pregelix: Big(ger) Graph
Analytics on A Dataflow Engine
Yingyi Bu (UC Irvine)
Joint work with:
Vinayak Borkar (UC Irvine) ,
Michael J. Carey (UC Irvine),
Tyson Condie
(UCLA),
Jianfeng Jia (UC
Irvine)
Outline
Introduction
Pregel Semantics
The Pregel Logical Plan
The Pregelix System
Experimental Results
Related Work
Conclusions
Introduction
Big Graphs are becoming common
o
web graph
o
social network
o
......
Introduction
●
How Big are Big Graphs?
o
Web: 8.53 Billion pages in 2012
o
Facebook active users: 1.01 Billion
o
de Bruijn graph: 3 Billion nodes
o
......
●
Weapons for mining Big Graphs
o
Pregel (Google)
o
Giraph (Facebook, LinkedIn, Twitter, etc.)
o
Distributed GraphLab (CMU)
o
GraphX (Berkeley)
Programming Model
●
Think like a vertex
o
receive messages
o
update states
o
send messages
Programming Model
p
u
b
l
i
c
a
b
s
t
r
a
c
t
c
l
a
s
s
V
e
r
t
e
x
<
I
e
x
t
e
n
d
s
W
r
i
t
a
b
l
e
C
o
m
p
a
r
a
b
l
e
,
V
extends
Writable
, E
extends
Writable
, M
extends
Writable
>
implements
Writable
{p
u
b
l
i
c
a
b
s
t
r
a
c
t
v
o
i
d
c
o
m
p
u
t
e
(
I
t
e
r
a
t
o
r
<
M
>
i
n
c
o
m
i
n
g
M
e
s
s
a
g
e
s
)
;
.......
}
●
Vertex
●
Helper methods
o
sendMsg(I vertexId, M msg)
o
voteToHalt()
o
getSuperstep()
More APIs
●
Message Combiner
o
Combine messages
o
Reduce network traffic
●
Global Aggregator
o
Aggregate statistics over all live vertices
o
Done for each iteration
●
Graph Mutations
o
Add vertex
o
Delete vertex
o
A conflict resolution function
Pregel Semantics
●
Bulk-synchronous
o
A global barrier between iterations
●
Compute invocation
o
Once per active vertex in each superstep
o
A halted vertex is activated when receiving messages
●
Global halting
o
Each vertex is halted
o
No messages are in flight
●
Graph mutations
o
Partial ordering of operations
o
User-defined
resolve
function
superstep:3
halt: false
Process-centric runtime
Vertex { id: 1halt: false
value: 3.0
edges: (3,1.0),
(4,1.0)
}
Vertex { id: 3halt: false
value: 3.0
edges: (2,1.0),
(3,1.0)
}
<5, 1.0>
<4, 3.0>
worker-1
worker-2
master
message <id, payload>
control signal
Vertex { id: 2halt: false
value: 2.0
edges: (3,1.0),
(4,1.0)
}
Vertex{ id: 4halt: false
value: 1.0
edges: (1,1.0)
}
<3, 1.0>
<2, 3.0>
Issues and Opportunities
●
Out-of-core support
26 similar threads on
Giraph-users mailing list
during the past year!
“I’m trying to run the sample
connected components algorithm on a
large data set on a cluster, but I get a
“java.lang.OutOfMemoryError: Java
heap space” error.”
Issues and Opportunities
●
Physical flexibility
o
PageRank, SSSP, CC, Triangle Counting
o
Web graph, social network, RDF graph
o
8 machine school cluster, 200 machine Facebook
data center
O
n
e
-
s
i
z
e
f
i
t
s
-
a
l
l
?
Issues and Opportunities
●
Software simplicity
Network management
Message delivery
Memory management
Task scheduling
Pregel
GraphLab
Giraph
Hama
......
Vertex/map/msg data
structures
The Pregelix Approach
1.0
vid
edges
vid
payload
vid=vid
2
4
halt
false
false
value
2.0
1.0
(3,1.0),(4,1.0)
(1,1.0)
2
4
3.0
Msg
Vertex
5
1
3.0
1.0
1
false
3.0
(3,1.0),(4,1.0)
3
false
3.0
(2,1.0),(3,1.0)
3
vid
edges
1
halt
false
false
value
3.0
3.0
(3,1.0),(4,1.0)
(2,1.0),(3,1.0)
msg
NULL
1.0
5
1.0
NULL
NULL
NULL
2
false
2.0
(3,1.0),(4,1.0)
3.0
4
false
1.0
(1,1.0)
3.0
Relation
Schema
Vertex
Msg
GS
(vid, halt, value, edges)
(vid, payload)
(halt, aggregate, superstep)
Pregel UDFs
●
compute
o
Executed at each active vertex in each superstep
●
combine
o
Aggregation function for messages
●
aggregate
o
Aggregate function for the global states
●
resolve
o
Used to resolve graph mutations
Logical Plan
…
D2
D4,D5,D6
vid
combine
UDF
Call (
compute
)
M.vid=V.vid
Vertex
i
(V)
Msg
i
(M)
Vertex
i+1
Msg
i+1
(
V.halt =false || M.payload != NULL
)
D3
D7
D1
Logical Plan
D1
Agg(aggregate)
Agg(bool-and)
D4
D5
UDF
Call (
compute
)
GS
i+1
GS
i
(G)
superstep=G.superstep+1
D10
D9
D8
D2,D3,D6
…
D2,D3,D4,D
5
D1
vid
(
resolve
)
UDF
Call (
compute
)
Vertex
i+1
D6
…
The Pregelix System
Network management
Message delivery
Memory management
Task scheduling
Vertex/map/msg data
structures
Connection management
Data exchanging
Buffer
management
Task scheduling
Record/Index
management
A general purpose parallel dataflow engine
Operators
Access methods
Pregel Physical Plans
The Runtime
●
The Hyracks data-parallel execution engine
o
Out-of-core operators
o
Connectors
o
Access methods
o
User-configurable task scheduling
o
Extensibility
●
Runtime Choice?
Hyracks
Hadoop
Parallelism
Msg-2
3
vid
edges
vid
msg
vid=vid
2
4
halt
false
false
value
2.0
1.0
(3,1.0) (4,1.0)
(1,1.0)
2
4
3.0
3.0
vid
edges
2
4
halt
false
false
value
2.0
1.0
(3,1.0),(4,1.0)
(1,1.0)
msg
3.0
3.0
vid
edges
vid
msg
vid=vid
1
3
halt
false
false
value
3.0
3.0
(3,1.0) (4,1.0)
3
1.0
1.0
vid
edges
1
halt
false
false
value
3.0
3.0
(3,1.0),(4,1.0)
(2,1.0),(3,1.0)
msg
NULL
1.0
5
1.0
NULL
NULL
NULL
Worker-1
Worker-2
Msg-1
Vertex-1
Vertex-2
(2,1.0),(3,1.0)
2
5
3.0
1.0
output-Msg-1
3
4
1.0
3.0
output-Msg-2
vid
msg
vid
msg
5
Physical Choices
●
Vertex storage
B-Tree
LSM B-Tree
●
Group-by
o
Pre-clustered group-by
o
Sort-based group-by
o
HashSort group-by
●
Data redistribution
o
m-to-n merging partitioning connector
o
m-to-n partitioning connector
●
Join
o
Index Full outer join
o
Index Left outer join
Data Storage
●
Vertex
o
Partitioned B-tree or LSM B-tree
●
Msg
o
Partitioned local files, sorted
●
GS
o
Stored on HDFS
o
Cached in each worker
Physical Plan: Message
Combination
vid
combine
vid
combine
(Sort-based)
(Sort-based)
(Sort-based)
(Sort-
based)
(Sort-based)
(Sort-based)
Sort-Groupby-M-to-N-Partitioning
HashSort-Groupby-M-to-N-Partitioning
Sort-Groupby-M-to-N-Merge-Partitioning
HashSort-Groupby-M-to-N-Merge-Partitioning
M-to-N Partitioning Connector
M-To-N Partitioning Merging Connector
vid
combine
vid
combine
vid
combine
vid
combine
vid
combine
vid
combine
(Preclustered
)
(Sort-based)
(Preclustered
)
(Sort-
based)
(Preclustered
)
(Sort-based)
vid
combine
vid
combine
vid
combine
vid
combine
vid
combine
vid
combine
(Preclustered
)
(HashSort)
(Preclustered
)
(HashSort)
(Preclustered
)
(HashSort)
vid
combine
vid
combine
vid
combine
vid
combine
vid
combine
vid
combine
(HashSort)
(HashSort)
(HashSort)
(HashSort)
(HashSort)
(HashSort)
vid
combine
vid
combine
vid
combine
vid
combine
D1
Physical Plan: Message Delivery
Index Left Outer
Join
UDF
Call (
compute
)
M.vid=V.vid
Vertex
i
(V)
Msg
i
(M)
(V.
halt = false || M.
paylod
!= NULL
)
UDF
Call (
compute
)
Vertex
i
(V)
Msg
i
(M)
…
Vid
i
(I)
…
Vid
i+1
(
halt = false
)
Function Call (
NullMsg
)
Index Full Outer Join
Merge (
choose()
)
M.vid=I.vid
D11
D12
M.vid=V.vid
D1
D2 -- D6
D2 -- D6
Caching
●
Iteration-aware (sticky) scheduling?
o
1 Loc: location constraints
●
Caching of invariant data?
o
B-tree buffer pool -- customized flushing policy: never
flush dirty pages
o
File system cache -- free
Pregel, Giraph, GraphLab all
have caches for this kind of
iterative jobs. What do you do
for caching?
Experimental Results
●
Setup
o
Machines
a UCI cluster ~ 32 machines
4 cores, 8GB memory, 2 disk drives.
o
Datasets
Yahoo! webmap (1,413,511,393 vertice, adjacency
list, ~70GB) and its samples.
The Billions of Tuples Challenge dataset
(172,655,479 vertices, adjacency list, ~17GB), its
samples, and its scale-ups.
o
Giraph
Latest trunk (revision 770)
4 vertex computation threads, 8GB JVM heap
Execution Time
I
n
-
m
e
m
o
r
y
O
u
t
-
o
f
-
c
o
r
e
I
n
-
m
e
m
o
r
y
O
u
t
-
o
f
-
c
o
r
e
Execution Time
I
n
-
m
e
m
o
r
y
O
u
t
-
o
f
-
c
o
r
e
I
n
-
m
e
m
o
r
y
O
u
t
-
o
f
-
c
o
r
e
Execution Time
I
n
-
m
e
m
o
r
y
O
u
t
-
o
f
-
c
o
r
e
I
n
-
m
e
m
o
r
y
O
u
t
-
o
f
-
c
o
r
e
Parallel Speedup
Parallel Scale-up
Throughput
Plan Flexibility
1
5
x
I
n
-
m
e
m
o
r
y
O
u
t
-
o
f
-
c
o
r
e
Software Simplicity
●
Lines-of-Code
o
Giraph: 32,197
o
Pregelix: 8,514
More systems
More Systems
Related Work
●
Parallel Data Management
o
Gama, GRACE, Teradata
o
Stratosphere (TU Berlin)
o
REX (UPenn)
o
AsterixDB (UCI)
●
Big Graph Processing Systems
o
Pregel (Google)
o
Giraph (Facebook, LinkedIn, Twitter, etc.)
o
Distributed GraphLab (CMU)
o
GraphX (Berkeley)
o
Hama (Sogou, etc.)
--- Too slow!
Conclusions
●
Pregelix offers:
o
Transparent out-of-core support
o
Physical flexibility
o
Software simplicity
●
We target Pregelix to be an open-source
production system, rather than just a
research prototype:
o
http://pregelix.ics.uci.edu
Q & A
Explore how Pregelix on a dataflow engine enables efficient processing of large graphs, providing insights on its system architecture, experimental results, and related work in graph analytics. Understand Pregel semantics, programming model, APIs, and graph mutations for effective analysis of big data graphs.
Download Presentation
Please find below an Image/Link to download the presentation.
The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.
E N D
Presentation Transcript
Pregelix: Big(ger) Graph Analytics on A Dataflow Engine Yingyi Bu (UC Irvine) Joint work with: Vinayak Borkar (UC Irvine) , Michael J. Carey (UC Irvine), Tyson Condie (UCLA), Jianfeng Jia (UC Irvine)
Outline Introduction Pregel Semantics The Pregel Logical Plan The Pregelix System Experimental Results Related Work Conclusions
Introduction Big Graphs are becoming common o web graph o social network o ......
Introduction How Big are Big Graphs? o Web: 8.53 Billion pages in 2012 o Facebook active users: 1.01 Billion o de Bruijn graph: 3 Billion nodes o ...... Weapons for mining Big Graphs o Pregel (Google) o Giraph (Facebook, LinkedIn, Twitter, etc.) o Distributed GraphLab (CMU) o GraphX (Berkeley)
Programming Model Think like a vertex o receive messages o update states o send messages
Programming Model Vertex public abstract class Vertex<I extends WritableComparable, V extends Writable, E extends Writable, M extends Writable> implements Writable{ public abstract void compute(Iterator<M> incomingMessages); ....... } Helper methods o sendMsg(I vertexId, M msg) o voteToHalt() o getSuperstep()
More APIs Message Combiner o Combine messages o Reduce network traffic Global Aggregator o Aggregate statistics over all live vertices o Done for each iteration Graph Mutations o Add vertex o Delete vertex o A conflict resolution function
Pregel Semantics Bulk-synchronous o A global barrier between iterations Compute invocation o Once per active vertex in each superstep o A halted vertex is activated when receiving messages Global halting o Each vertex is halted o No messages are in flight Graph mutations o Partial ordering of operations o User-defined resolve function
Process-centric runtime superstep:3 halt: false master Vertex { id: 1 halt: false value: 3.0 edges: (3,1.0), (4,1.0) } Vertex { id: 3 halt: false value: 3.0 edges: (2,1.0), (3,1.0) } Vertex { id: 2 halt: false value: 2.0 edges: (3,1.0), (4,1.0) } Vertex{ id: 4 halt: false value: 1.0 edges: (1,1.0) } <3, 1.0> <2, 3.0> <4, 3.0> <5, 1.0> worker-1 worker-2 message <id, payload> control signal
Issues and Opportunities Out-of-core support I m trying to run the sample connected components algorithm on a large data set on a cluster, but I get a java.lang.OutOfMemoryError: Java heap space error. 26 similar threads on Giraph-users mailing list during the past year!
Issues and Opportunities Physical flexibility o PageRank, SSSP, CC, Triangle Counting o Web graph, social network, RDF graph o 8 machine school cluster, 200 machine Facebook data center One-size fits-all?
Issues and Opportunities Software simplicity Pregel GraphLab Giraph Hama ...... Vertex/map/msg data structures Task scheduling Memory management Message delivery Network management
The Pregelix Approach Relation Schema Vertex (vid, halt, value, edges) (vid, payload) Msg (halt, aggregate, superstep) GS vid payload 3.0 2 4 5 1 3.0 1.0 1.0 msg value halt edges vid vid=vid Msg 3.0 3.0 (3,1.0),(4,1.0) (2,1.0),(3,1.0) 1 false false NULL 1.0 1.0 3 edges vid 2 4 1 false 3.0 (3,1.0),(4,1.0) 3 false 3.0 (2,1.0),(3,1.0) halt false false value 2.0 1.0 NULL NULL NULL false 2.0 false 1.0 5 2 4 (3,1.0),(4,1.0) (1,1.0) (3,1.0),(4,1.0) (1,1.0) 3.0 3.0 Vertex
Pregel UDFs compute o Executed at each active vertex in each superstep combine o Aggregation function for messages aggregate o Aggregate function for the global states resolve o Used to resolve graph mutations
Logical Plan D7 vidcombine Vertexi+1 Msgi+1 Flow Data D3 D2 D2 Vertex tuples D4,D5,D6 D3 Msg tuples UDF Call (compute) D7 Msg tuples after combination D1 (V.halt =false || M.payload != NULL) M.vid=V.vid Msgi(M) Vertexi(V)
Logical Plan Flow Data GSi+1 D4 The global halting state contribution D10 D8 D9 superstep=G.superstep+1 D5 Values for aggregate Agg(aggregate) Agg(bool-and) D4 D8 The global halt state D5 D9 The global aggregate value D2,D3,D6 UDF Call (compute) GSi(G) D10 The increased superstep D1 Vertexi+1 Flow Data D6 Vertex tuples for deletions and insertions vid(resolve) D6 D2,D3,D4,D 5 UDF Call (compute) D1
The Pregelix System Pregel Physical Plans Vertex/map/msg data structures Operators Access methods Task scheduling Record/Index management Task scheduling Memory management Buffer Data exchanging management Message delivery Connection management Network management A general purpose parallel dataflow engine
The Runtime Runtime Choice? Hyracks Hadoop The Hyracks data-parallel execution engine o Out-of-core operators o Connectors o Access methods o User-configurable task scheduling o Extensibility
Parallelism msg value halt edges vid msg halt value edges vid 2 4 3.0 3.0 (3,1.0),(4,1.0) (2,1.0),(3,1.0) 1 false false NULL 1.0 1.0 (3,1.0),(4,1.0) (1,1.0) 3.0 3.0 2.0 1.0 false false 3 5 NULL NULL NULL vid=vid vid=vid vid msg edges msg edges vid halt false false value 2.0 1.0 Vertex-1 halt false false value 3.0 3.0 Vertex-2 vid 2 4 vid 1 3 (3,1.0) (4,1.0) (1,1.0) (3,1.0) (4,1.0) (2,1.0),(3,1.0) 3.0 3.0 1.0 2 4 3 5 1.0 Msg-2 Msg-1 msg vid vid msg 1.0 3.0 3.0 1.0 3 4 2 5 output-Msg-2 output-Msg-1 Worker-1 Worker-2
Physical Choices Vertex storage B-Tree LSM B-Tree Group-by o Pre-clustered group-by o Sort-based group-by o HashSort group-by Data redistribution o m-to-n merging partitioning connector o m-to-n partitioning connector Join o Index Full outer join o Index Left outer join
Data Storage Vertex o Partitioned B-tree or LSM B-tree Msg o Partitioned local files, sorted GS o Stored on HDFS o Cached in each worker
Physical Plan: Message Combination vidcombine vidcombine vidcombine vidcombine vidcombine vidcombine (Sort-based) (Sort-based) (HashSort) (Sort-based) (HashSort) (HashSort) vidcombine vidcombine vidcombine (Sort-based) vidcombine vidcombine (HashSort) vidcombine (Sort- based) (HashSort) (Sort-based) (HashSort) Sort-Groupby-M-to-N-Partitioning HashSort-Groupby-M-to-N-Partitioning vidcombine vidcombine vidcombine vidcombine vidcombine vidcombine (Preclustered ) (Preclustered ) (Preclustered ) (Preclustered ) (Preclustered ) (Preclustered ) vidcombine vidcombine vidcombine (Sort-based) vidcombine vidcombine (HashSort) vidcombine (Sort- based) (HashSort) (Sort-based) (HashSort) Sort-Groupby-M-to-N-Merge-Partitioning HashSort-Groupby-M-to-N-Merge-Partitioning M-to-N Partitioning Connector M-To-N Partitioning Merging Connector
Physical Plan: Message Delivery D12 Function Call (NullMsg) D2 -- D6 Vidi+1 (halt = false) UDF Call (compute) D1 D11 D2 -- D6 UDF Call (compute) (V.halt = false || M.paylod != NULL) D1 Index Left Outer Join Index Full Outer Join Merge (choose()) M.vid=I.vid M.vid=V.vid M.vid=V.vid Msgi(M) Vertexi(V) Msgi(M) Vidi(I) Vertexi(V)
Caching Pregel, Giraph, GraphLab all have caches for this kind of iterative jobs. What do you do for caching? Iteration-aware (sticky) scheduling? o 1 Loc: location constraints Caching of invariant data? o B-tree buffer pool -- customized flushing policy: never flush dirty pages o File system cache -- free
Experimental Results Setup o Machines a UCI cluster ~ 32 machines 4 cores, 8GB memory, 2 disk drives. o Datasets Yahoo! webmap (1,413,511,393 vertice, adjacency list, ~70GB) and its samples. The Billions of Tuples Challenge dataset (172,655,479 vertices, adjacency list, ~17GB), its samples, and its scale-ups. o Giraph Latest trunk (revision 770) 4 vertex computation threads, 8GB JVM heap
Execution Time In-memory In-memory Out-of-core Out-of-core
Execution Time In-memory In-memory Out-of-core Out-of-core
Execution Time In-memory In-memory Out-of-core Out-of-core
Plan Flexibility In-memory Out-of-core 15x
Software Simplicity Lines-of-Code o Giraph: 32,197 o Pregelix: 8,514
Related Work Parallel Data Management o Gama, GRACE, Teradata o Stratosphere (TU Berlin) o REX (UPenn) o AsterixDB (UCI) Big Graph Processing Systems o Pregel (Google) o Giraph (Facebook, LinkedIn, Twitter, etc.) o Distributed GraphLab (CMU) o GraphX (Berkeley) o Hama (Sogou, etc.) --- Too slow!
Conclusions Pregelix offers: o Transparent out-of-core support o Physical flexibility o Software simplicity We target Pregelix to be an open-source production system, rather than just a research prototype: o http://pregelix.ics.uci.edu
