Analysis of Symmetric Concrete Dam With and Without Sheet Pile

This analysis focuses on a symmetric concrete dam with and without a sheet pile, examining factors such as total pore water pressure, excess pore pressure, seepage velocities, and flow rates. By comparing scenarios with and without a sheet pile, insights into flow rate reductions and discharge variations are explored.

• Concrete dam
• Sheet pile
• Seepage analysis
• Pore pressure
• Flow rate

kaz_e Follow

Uploaded on Oct 10, 2024 | 0 Views

Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

Presentation Transcript

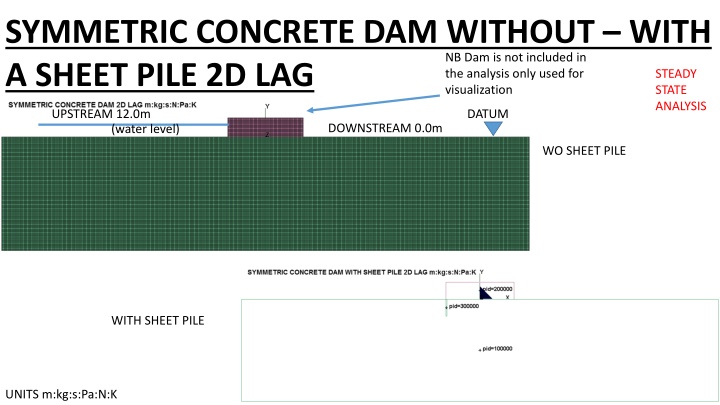

1. SYMMETRIC CONCRETE DAM WITHOUT WITH A SHEET PILE 2D LAG NB Dam is not included in the analysis only used for visualization STEADY STATE ANALYSIS UPSTREAM 12.0m DATUM DOWNSTREAM 0.0m (water level) WO SHEET PILE WITH SHEET PILE UNITS m:kg:s:Pa:N:K

2. UNITS m:kg:s:Pa:N:K GEOMETRY DOWN STREAM 0.0m UP STREAM 12.0m UNITS m:kg:s:Pa:N:K Model width 1m

3. FIXED Z FIXED XYZ BOUNDARY CONDITIONS UPSTREAM DOWNSTREAM

4. Nodes & Elements

6. TOTAL PWP HEAD (m) PORE PRESSURE(Pa) EXCESS PORE PRESSURE (Pa) WITHOUT SHEET PILE WITH SHEET PILE

7. WITHOUT SHEET PILE WITH SHEET PILE SEEPAGE VELOCITIES (m/s)

8. WITHOUT SHEET PILE WITH SHEET PILE RATIO WITH/WITHOUT SHEET PILE 1.853e-03/2.110e-03 = 0.88 (12% decrease in flow rate) DISCHARGE SECTION V= 2.059e-05 m/s A = 90.0 X 1 = 90.0m^2 Q = V X A = 2.059e-05 X 90.0 = 1.853e-03 m^3/s per m width of dam (160.1 m^3/day per m width of dam) DISCHARGE SECTION V= 2.345e-05 m/s A = 90.0 X 1 = 90.0m^2 Q = V X A = 2.345e-05 X 90.0 = 2.11e-03 m^3/s per m width of dam (182.3 m^3/day per m width of dam)
