Analysis of Burns Algorithm for Concurrent Program Correctness

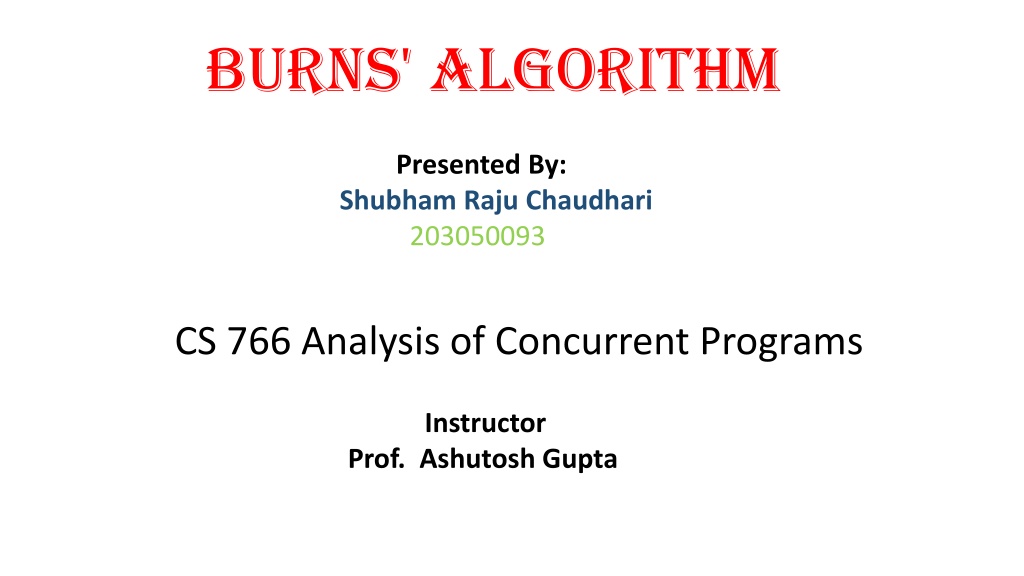

Burns' algorithm

Presented By:

   Shubham Raju Chaudhari


203050093
      CS 766 Analysis of Concurrent Programs

Instructor
Prof.  Ashutosh Gupta
Plan:-
Burns Algorithm
Correctness of algorithm (Mutual Exclusion)
Progress
 Deadlock
Limitation
No Lockout freedom
Bounded waiting
Algorithm:-
Process
L
: flag(i) := 0
for j in {1,..,i-1} do
       if flag(j) = 1 then
go to L
flag(i) := 1
for j in {1,…,i-1} do
      if flag(j) = 1 then
go to L
M
: for j {i+1,…,n} do
        if flag(j) = 1 then
go to M


Crit(i)
Exit(i)

Flag(i)=0
Each process goes through 3 loops, sequentially:
1. Check flags of processes with smaller indices.
2. Check flags of processes with smaller indices.
3. Check flags of processes with larger indices.
 • If it passes all tests
 C.
  • Otherwise, drops back:

L
M
Algorithm:-
Process
L
: flag(i) := 0
for j in {1,..,i-1} do
       if flag(j) = 1 then
go to L
flag(i) := 1
M
: for j {i+1,…,n} do
        if flag(j) = 1 then
go to M


Crit(i)
Exit(i)

Flag(i)=0

Why double Checking for Smaller indices???
P1 and P2 are two process want critical region, take following scenario
 1.Suppose P2 wants to enter first so it will check 1
st
 for
loop.
 2.After 1
st
 for loop executed p2 will now set its flag
value=1. But before setting it got prompted.
3. Now p1 comes in picture , and execute first for loop
successfully and it will direct to
M.
4.Since p2 flag=0 p1 can successfully enters to critical
section.
5.Again p2 woke-up  set its flag =1 and it will also get CS
area.
ME not Guaranteed…
Algorithm:-
Process
L
: flag(i) := 0
for j in {1,..,i-1} do
       if flag(j) = 1 then
go to L
flag(i) := 1
for j in {1,…,i-1} do
      if flag(j) = 1 then
go to L
M
: for j {i+1,…,n} do
        if flag(j) = 1 then
go to M


Crit(i)
Exit(i)

Flag(i)=0

Mutual exclusion:
Assume that two process are in critical section.
If processes i and j are ever in C simultaneously, both must have
set their flags := 1.
Assume that process i sets flag(i) := 1  first.
Keeps flag(i) = 1 until process i leaves C.
After flag(i) := 1, must have flag(j) := 1, then j must see flag(i) = 0,
before j

C.
Impossible!
So Mutual Exclusion is Guaranteed…
Correctness Algorithm :-
Process
L
: flag(i) := 0
for j in {1,..,i-1} do
       if flag(j) = 1 then
go to L
flag(i) := 1
for j in {1,…,i-1} do s
      if flag(j) = 1 then
go to L
M
: for j {i+1,…,n} do
        if flag(j) = 1 then
go to M


Crit(i)
Exit(i)

Flag(i)=0
Process P(a)
{
Lower index
}


W
af
= 0



W
af =
1

R
bf = 0

Critical section
Process P(b) {
Higher index
}

W
bf
= 0

R
af
= 0

W
bf
= 1

R
af
= 0


Critical Section

rf

rf

rf

fr

fr

fr
Progress :-
Process
L
: flag(i) := 0
for j in {1,..,i-1} do
       if flag(j) = 1 then
go to L
flag(i) := 1
for j in {1,…,i-1} do
      if flag(j) = 1 then
go to L
M
: for j {i+1,…,n} do
        if flag(j) = 1 then
go to M


Crit(i)
Exit(i)

Flag(i)=0
Consider fair execution
α
 (each process keeps taking steps)
Assume for contradiction that, after some point  some process is in T,
no one is in C, and no one
 C later.
Call the processes in T the contenders.
Divide the contenders into two sets:

>>P, the contenders that reach label M, and

>>Q, the contenders that never reach M
Claim P contains at least one process:

>> Process with the lowest index among all the contenders is not
blocked from reaching M.
Let i = largest index of a process in P.
Claim process i eventually
C: All others with larger indices eventually
see a smaller-index contender and drop back to L, setting their flags :=
0
So i eventually sees all these = 0 and
C.
Contradiction.
Progress Guaranteed……….
Deadlock:-
Process
L
: flag(i) := 0
for j in {1,..,i-1} do
       if flag(j) = 1 then
go to L
flag(i) := 1
for j in {1,…,i-1} do
      if flag(j) = 1 then
go to L
M
: for j {i+1,…,n} do
        if flag(j) = 1 then
go to M


Crit(i)
Exit(i)

Flag(i)=0
For Deadlock four condition has to be true
 ME , Hold and wait , Non-Premption, Circular wait
Assume                                                          Holds true……
P1
P2
1.
So P1 depends upon P2 only when P1 stuck at
M
and flag(P2)=
1,
flag(P1)=
1.
2. Since Stuck just before the 2
nd
 for loop and next step it is depends
upon P1.
3. Since flag(P1)=
1 ,
P2 will go back to L state and Flag(P2)=
0
4.Now P1 in no more dependent upon P2 so our assumption is wrong
5.Deadlock is not possible…
Lockout freedom:-
Process
L
: flag(i) := 0
for j in {1,..,i-1} do
       if flag(j) = 1 then
go to L
flag(i) := 1
for j in {1,…,i-1} do
      if flag(j) = 1 then
go to L
M
: for j {i+1,…,n} do
        if flag(j) = 1 then
go to M


Crit(i)
Exit(i)

Flag(i)=0
1.Suppose P2 after setting its flap(P2)=
1
got prompted.
2. Now P1 comes and it will execute 1
st
 two for loop successfully but it will
stuck at
M.
3. CS is free but P1 is not able to go into that.
No Lockout freedom….
Bounded waiting:-
Process
L
: flag(i) := 0
for j in {1,..,i-1} do
       if flag(j) = 1 then
go to L
flag(i) := 1
for j in {1,…,i-1} do
      if flag(j) = 1 then
go to L
M
: for j {i+1,…,n} do
        if flag(j) = 1 then
go to M


Crit(i)
Exit(i)

Flag(i)=0
1.
Suppose P1 ,P2 ,P3 are contenders.
2.
P1 set its flag=1
3.
Since P2,P3 gets stuck at L only with flag =0
4.
Suppose P1 came out and set its flag=0 now P2 will enter into CS.
5.
Now suppose P1 comes again and set its flag =1 , P3 again stuck and
go back to L.
6.
P3 starve here.
Bounded Waiting not possible……
References:-
1.
https://ocw.mit.edu/courses/electrical-engineering-and-computer-
science/6-852j-distributed-algorithms-fall-2009/lecture-notes/
2.
http://groups.csail.mit.edu/tds/papers/Jensen/burnspaper.pdf
Thank  You!!!
