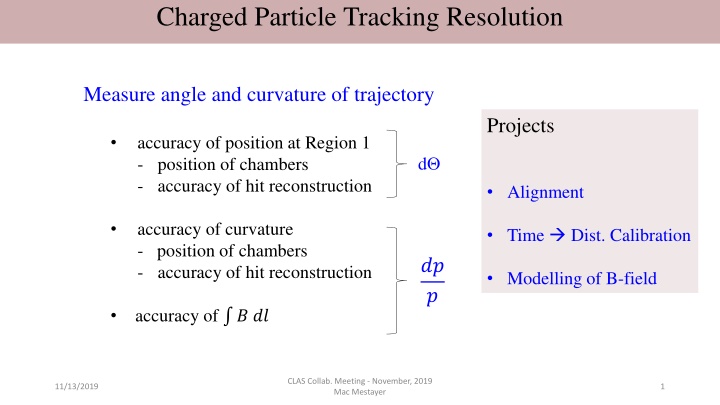

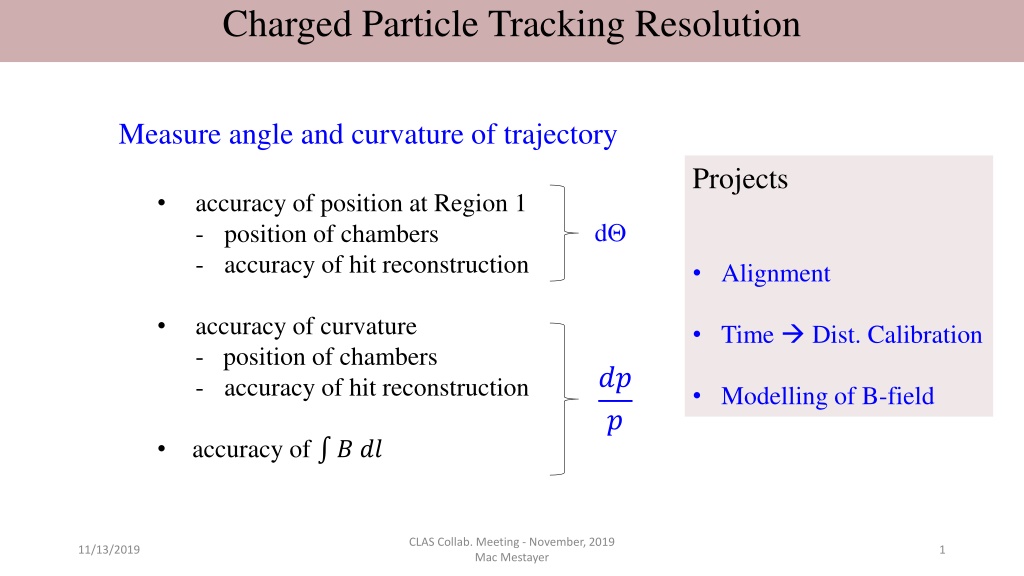

1. Charged Particle Tracking Resolution Measure angle and curvature of trajectory Projects accuracy of position at Region 1 - position of chambers - accuracy of hit reconstruction d Alignment accuracy of curvature - position of chambers - accuracy of hit reconstruction Time Dist. Calibration ?? ? Modelling of B-field accuracy of ? ?? CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 1

2. Charged Particle Tracking: Resolution Goals Momentum Resolution: Ideal B-Field DC resolution ~ 250 m Ideal DC alignment Best at small theta highest B-field dp/p Goal: ~ 0.3% the best we can do Most important part of phase- space for missing-mass resolution CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 2

3. What is our Momentum Resolution Now? Size of W-Shift Width of elastic peak resolution p/p = 1% 100 MeV shift = 0.001 20 MeV shift W (GeV) p/p = 1% 0.1 70 MeV width of elastic peak ( )* p/p ~ 0.7% or ~ 3.5 mrad or some combination *Fits of elastic peak (Fall 2018, inbending) done by Stefan Diehl, Apr. 2019. 0.05 = 1 mrad 10.0 7.5 Pelectron CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 3

4. What is Needed to Achieve 0.3% Accuracy? 3 cm sagitta 10 GeV electron at 70 2 Tesla field X 2m 17 m radius of curvature 3 cm sagitta 1 m 1 m 17 m measure sagitta to 0.3% measure sagitta to 90 m Hit resolution < 200 m 3 measurements of 75 m Alignment < 50 m B-field accuracy <0.2% tight constraints ! CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 4

5. Distance Time Function: Polynomial Form T(x) = a x + b x2 + c x3 + d x4 800 Time (ns) 0 0 2 Distance (cm) CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 5

6. Distance Time Function: Polynomial Form Dmax 00 300 T(x) = a x + b x2 + c x3 + d x4 Tmax Simple calculus: (a,b,c,d) (V0, Vmid, R, Tmax) Minimum velocity = Vmid Physically meaningful* parameters inflection point = R Published data for V0, Vmid 2 Reality checks on fits * Electron Drift Velocity NIM A340 (1994) 485 Distance (cm) Saturated velocity = V0 CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 6

7. DC Hit Resolution Reg. 1 Run 5419* low lum., fall 2018 run R1 flat distribution R2 not flat fit with B-field parameters R3 not flat re-fit with different values of Tmax Residual (cm) Reg. 2 Not flat; let s take a closer look Reg. 3 DOCA (cm) * Cooked with Taya Chetry s default parameters CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 7

8. Residual (cm) = 320 m Not flat DOCA (cm) room for improvement from slice fit 400 m 300 m 200 m mean from slice fit Intrinsic Resolution ~ 200 m CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 8

9. Forward Track Resolution: Status Project Method Sub-Projects Cross-correlating parameters Concentrating on high-momentum electrons where we need best resolution Best practices and convergence criteria New residual-fit correction term Fit ???? = ? ???????? Use ? to fill table of distance Indexed by time Calibrate time improvehit resolution (now about 300 m for R1, R3, 400 m R2) distance Expect significant improvement in R2, R3 resolutions better fits, use of residual fits as fn. of time Re-calibration criteria based on atm. pressure strong correlations seen better resolution more consistent CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 9/9

10. run 5297, Fall Alignment Vertices * Vertices same for all sectors Unaligned Aligned *Timothy Hayward s slides from Spring 19 Collaboration Meeting CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 10

11. run 5297, Fall Alignment Residuals Chambers aligned to < 50 m on average aligned to < 100 m in all angular bins BEFORE AFTER Mean RMS: 47 m Mean RMS: 41 m Mean RMS: 48 m Mean RMS: 39 m Mean RMS: 44 m Mean RMS: 44 m CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 11

12. Fall Alignment Numbers Rotations less than 1 mrad Sector 2 Sector 3 Sector 1 0.3 0.3 0.3 Rotation (deg) Rotation (deg) 0.2 Rotation (deg) 0.2 0.2 Shift (cm) Shift (cm) Shift (cm) 0.1 0.1 0.1 0.0 0.0 0.0 - 0.1 - 0.1 - 0.1 - 0.2 - 0.2 - 0.2 r1 xr1 yr1 zr2 xr2 yr2 zr3 xr3 yr3 zr1 cyr2 cyr3 cy Shift Sector 6 r1 xr1 yr1 zr2 xr2 yr2 zr3 xr3 yr3 zr1 cyr2 cyr3 cy Shift Sector 5 r1 xr1 yr1 zr2 xr2 yr2 zr3 xr3 yr3 zr1 cyr2 cyr3 cy Shift Sector 4 Shifts of a few mm 0.3 0.3 0.3 Rotation (deg) Rotation (deg) Rotation (deg) 0.2 0.2 0.2 Shift (cm) Shift (cm) Shift (cm) 0.1 0.1 0.1 0.0 0.0 0.0 - 0.1 - 0.1 - 0.1 - 0.2 - 0.2 - 0.2 r1 xr1 yr1 zr2 xr2 yr2 zr3 xr3 yr3 zr1 cyr2 cyr3 cy Shift r1 xr1 yr1 zr2 xr2 yr2 zr3 xr3 yr3 zr1 cyr2 cyr3 cy Shift r1 xr1 yr1 zr2 xr2 yr2 zr3 xr3 yr3 zr1 cyr2 cyr3 cy Shift CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 12

13. New, improved Kalman Fitter approx. equal residuals for R1, R2, R3 (R3 previously was pulling fits) But, this means that the alignment solution will change Probably, R3 misalignment will increase and R1, R2 decrease All alignment procedures are in place New, improved alignment soon Layer (1 36) Fit Residual Run 5038 - cooked with new code CLAS Collab. Meeting - November, 2019 Mac Mestayer 11/13/2019 13
