1. ADS-B Equipage Analysis

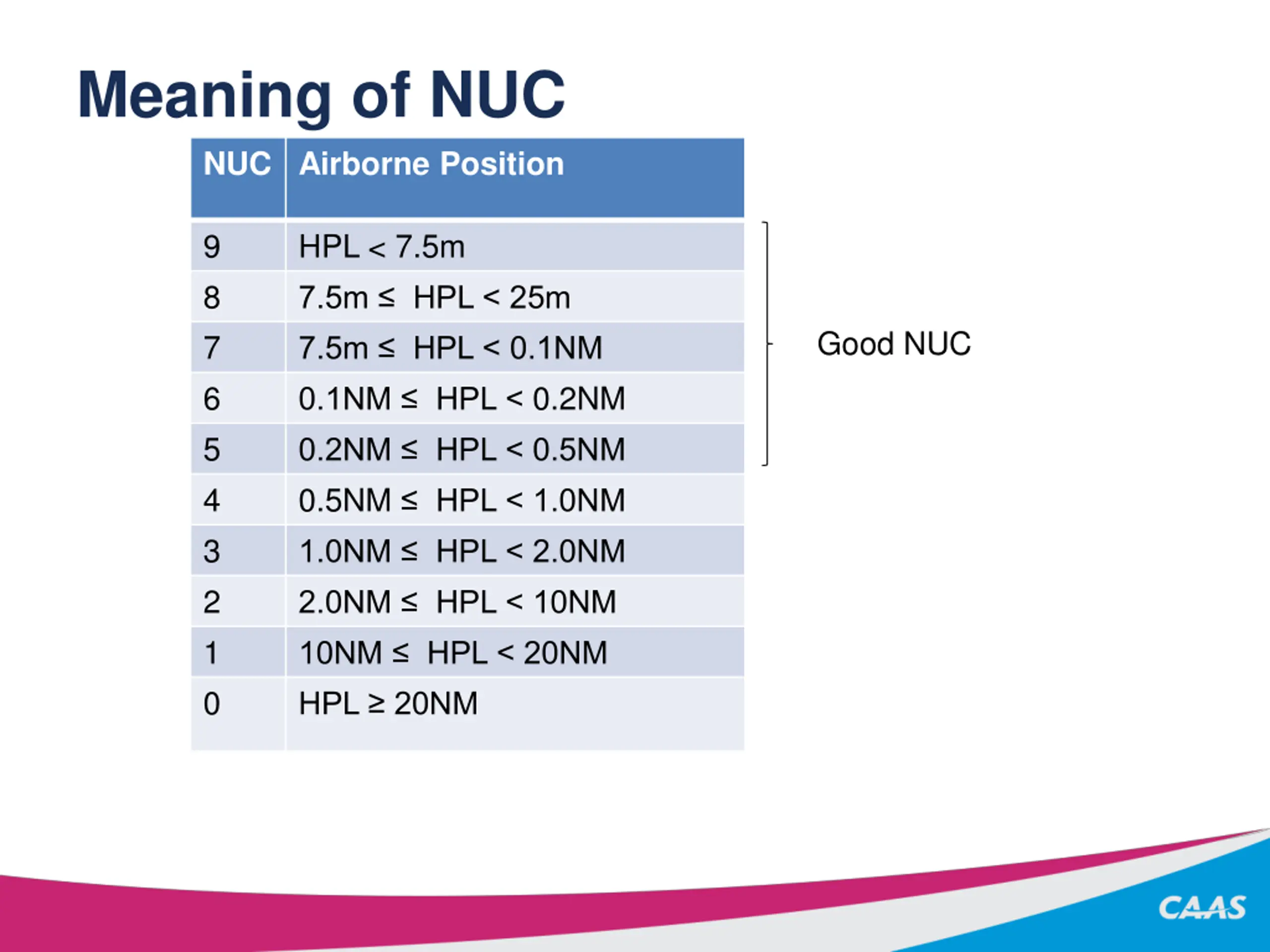

2. Meaning of NUC NUC Airborne Position 9 8 7 6 5 4 3 2 1 0 HPL < 7.5m 7.5m HPL < 25m 7.5m HPL < 0.1NM 0.1NM HPL < 0.2NM 0.2NM HPL < 0.5NM 0.5NM HPL < 1.0NM 1.0NM HPL < 2.0NM 2.0NM HPL < 10NM 10NM HPL < 20NM HPL 20NM Good NUC

3. Coverage of ADS-B Station Singapore

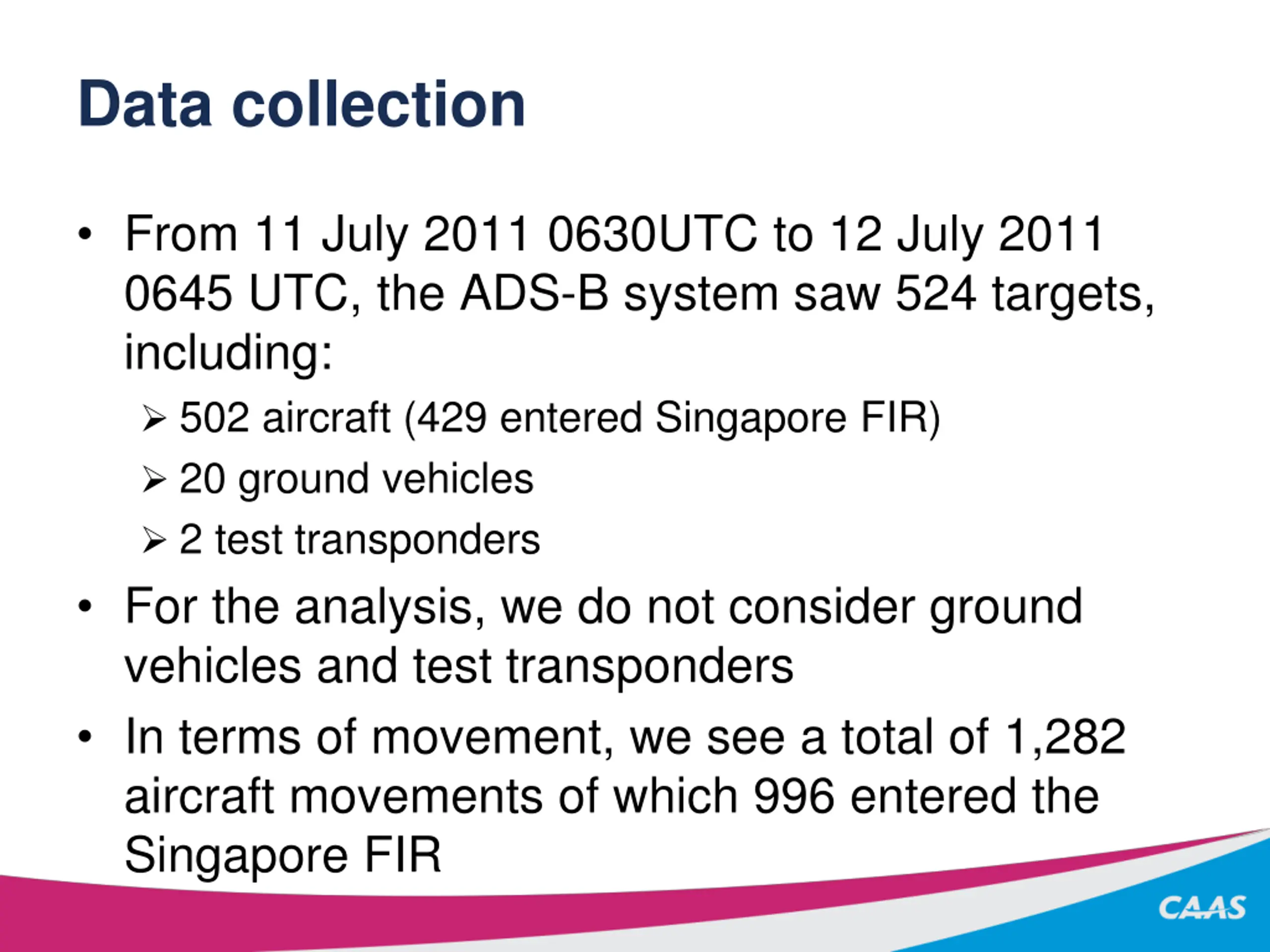

4. Data collection From 11 July 2011 0630UTC to 12 July 2011 0645 UTC, the ADS-B system saw 524 targets, including: 502 aircraft (429 entered Singapore FIR) 20 ground vehicles 2 test transponders For the analysis, we do not consider ground vehicles and test transponders In terms of movement, we see a total of 1,282 aircraft movements of which 996 entered the Singapore FIR

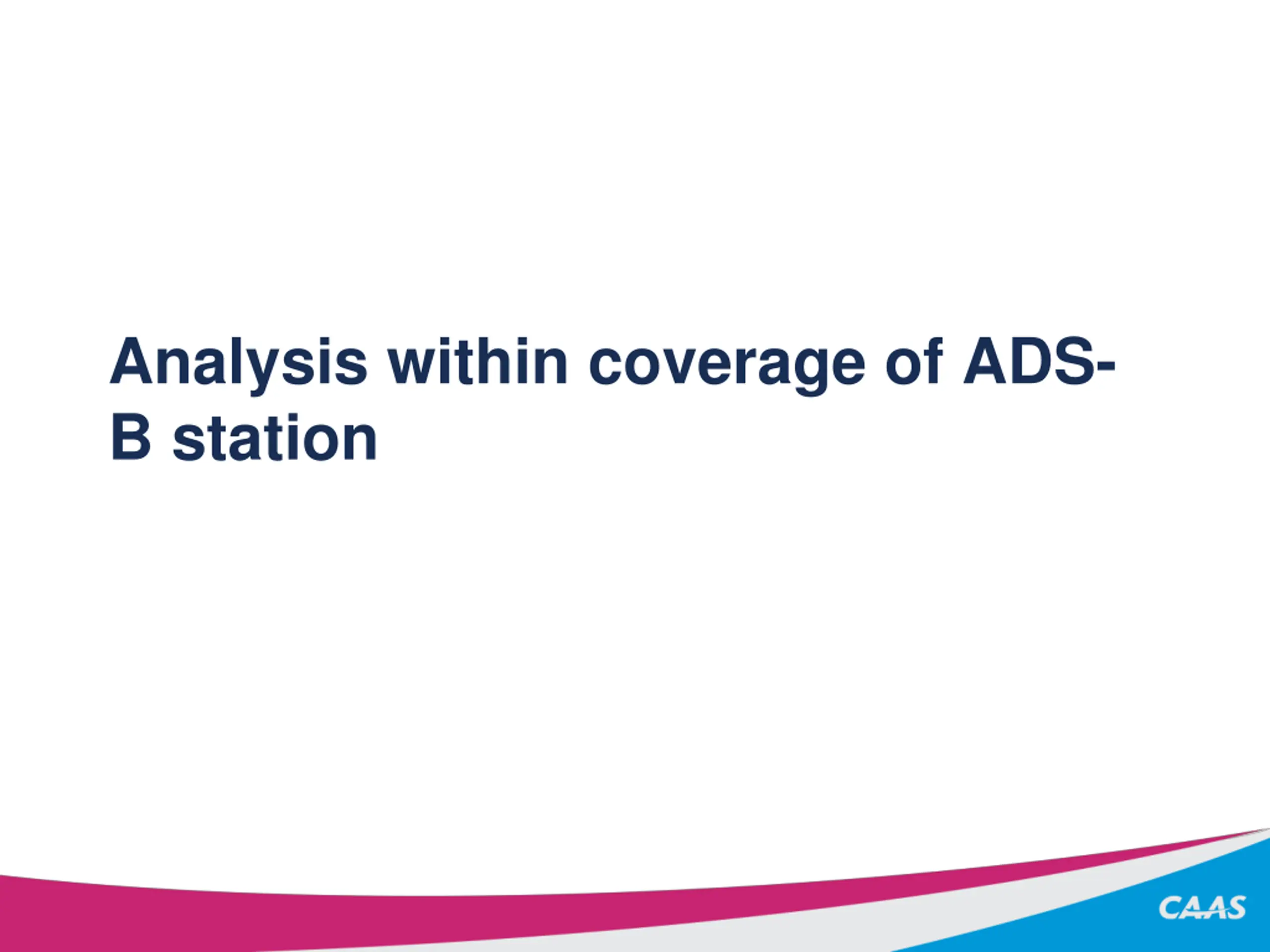

5. Analysis within coverage of ADS- B station

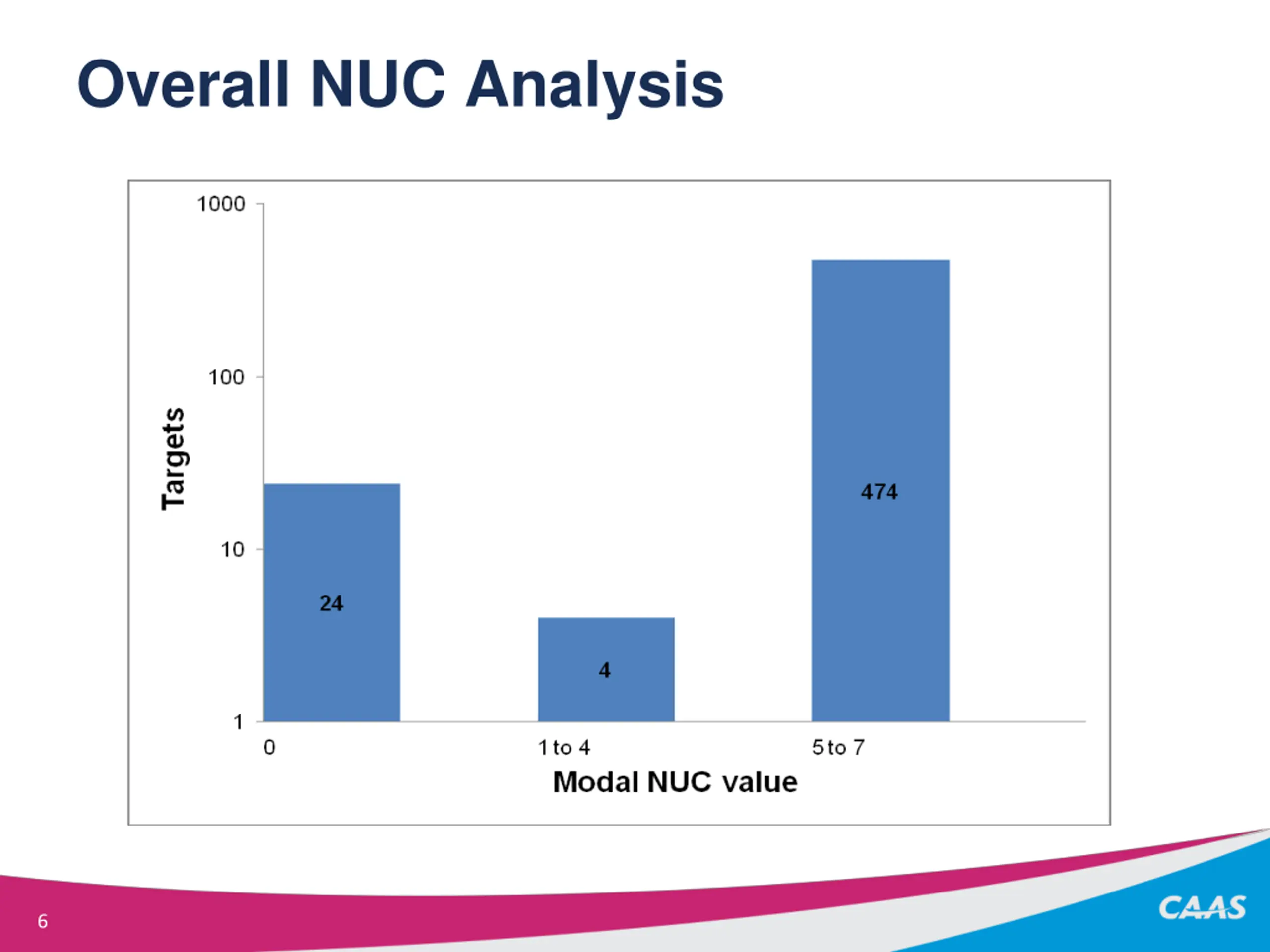

6. Overall NUC Analysis 6

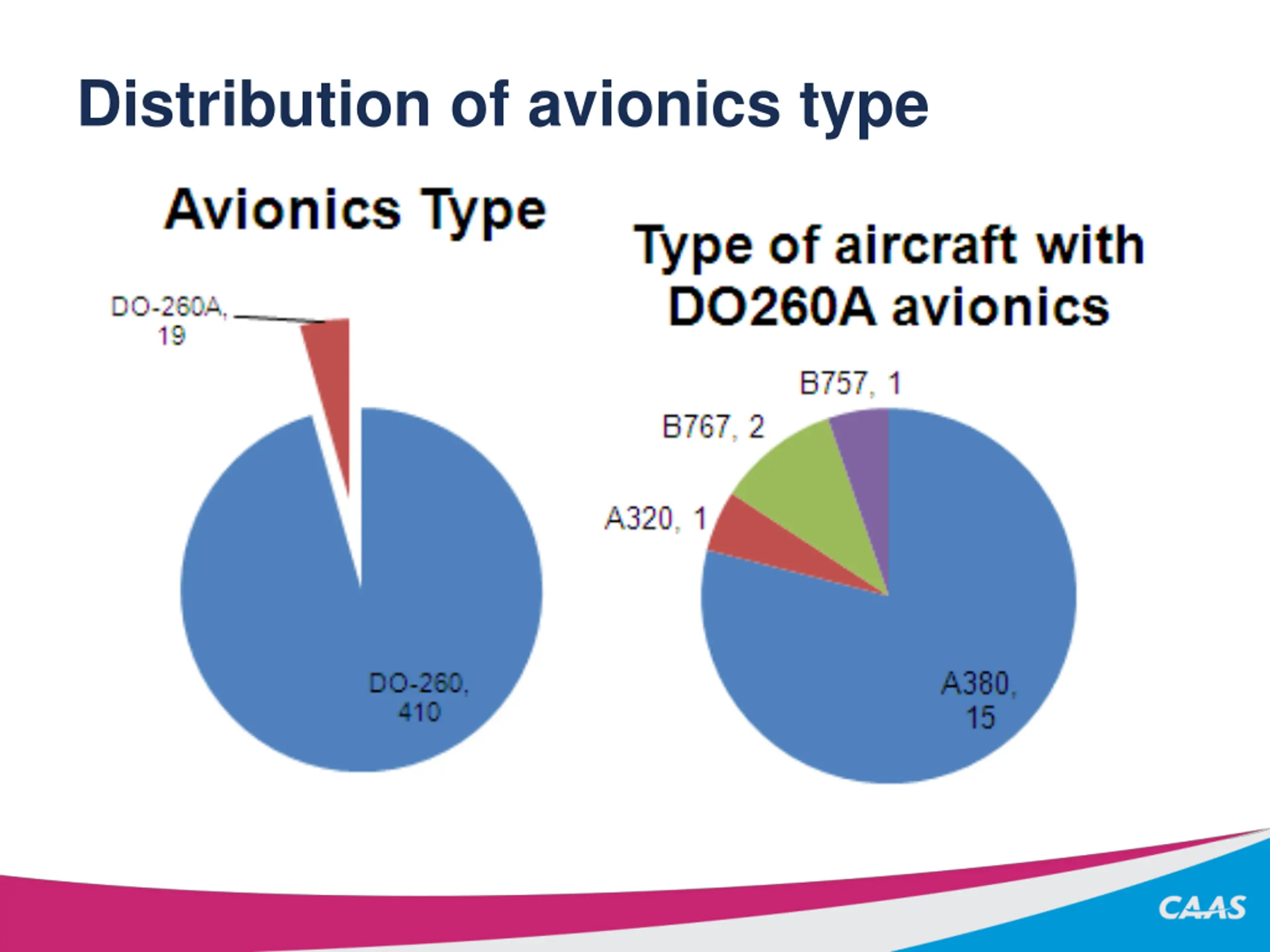

7. Distribution of avionics type

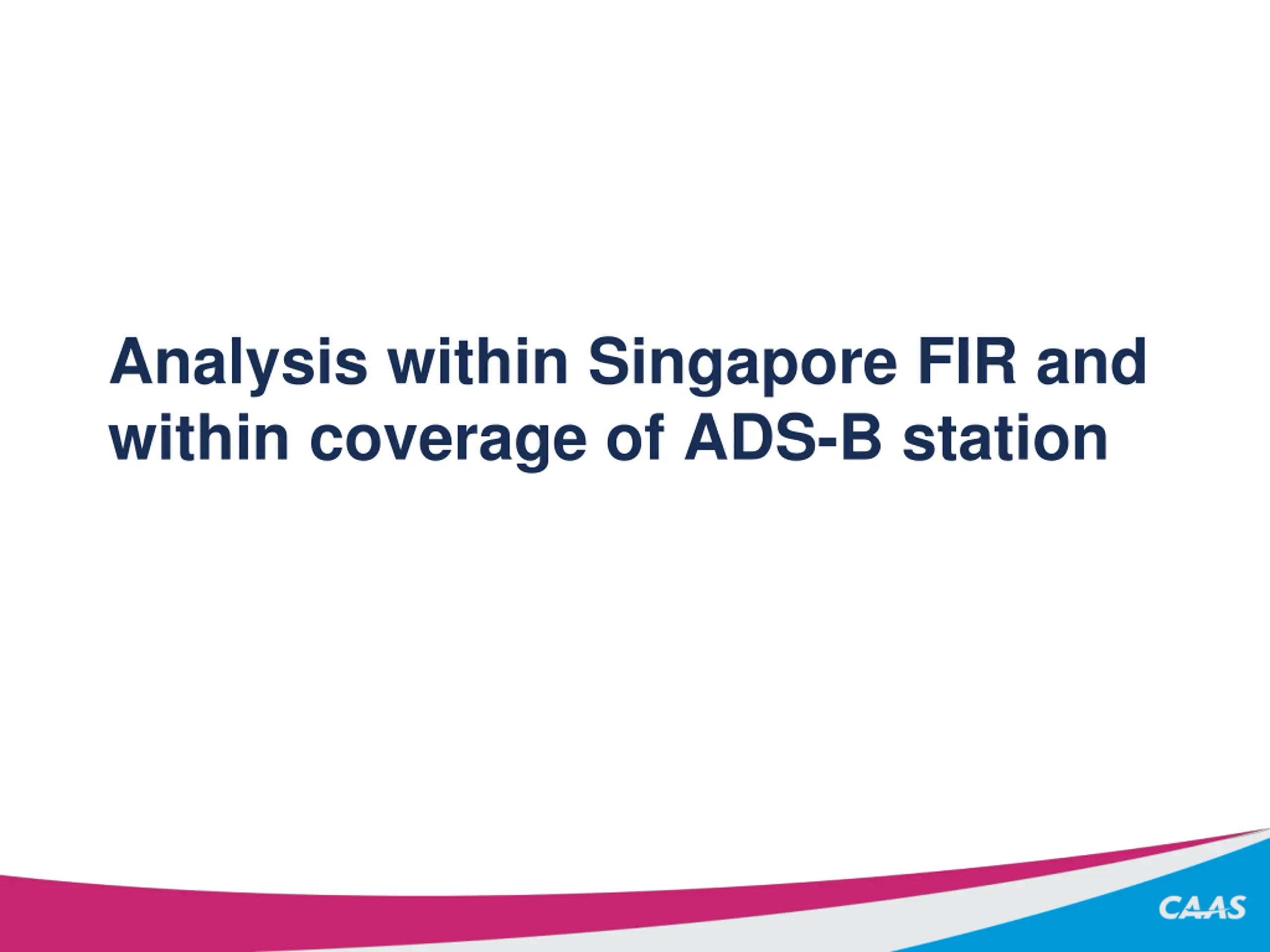

8. Analysis within Singapore FIR and within coverage of ADS-B station

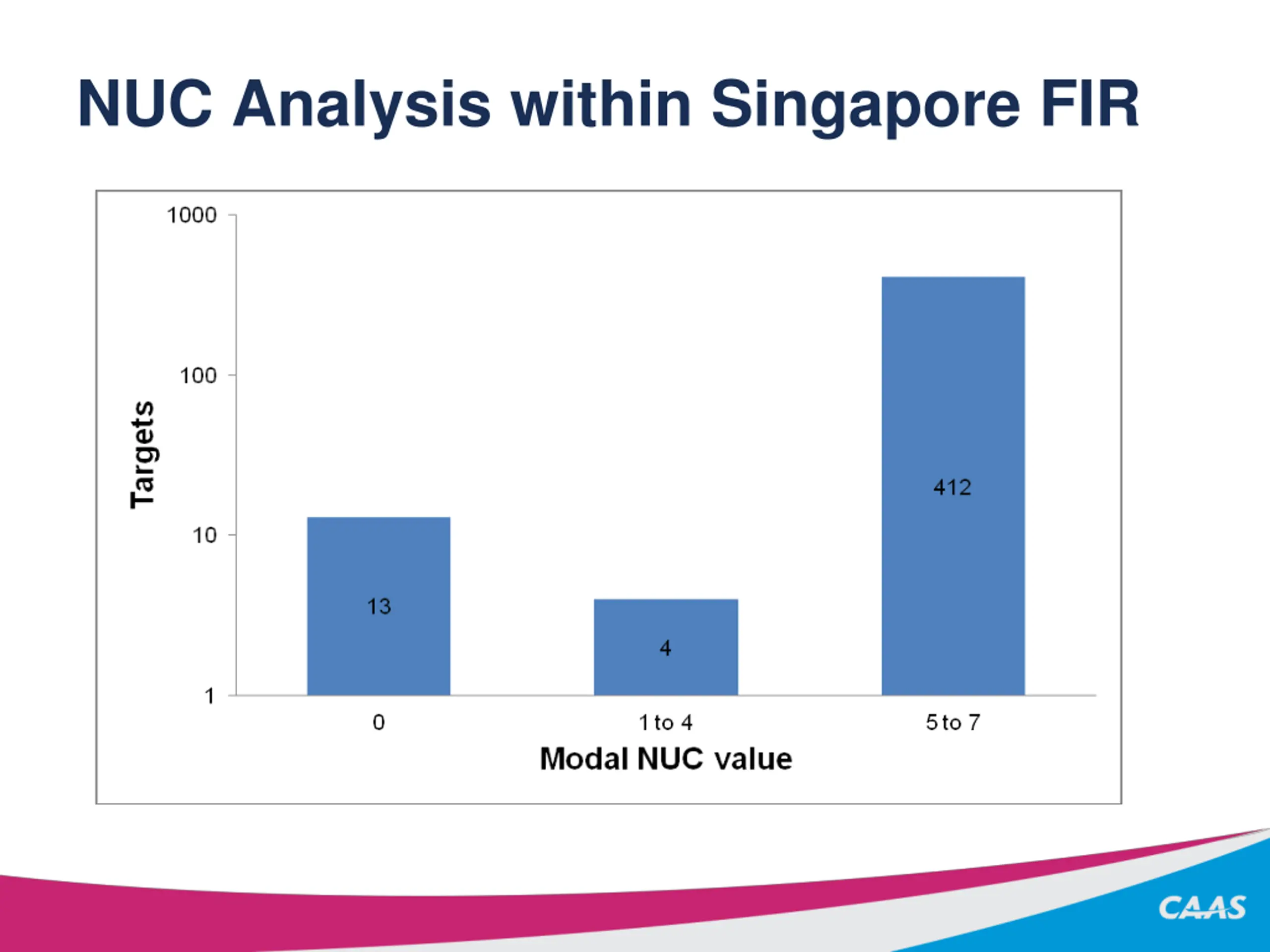

9. NUC Analysis within Singapore FIR

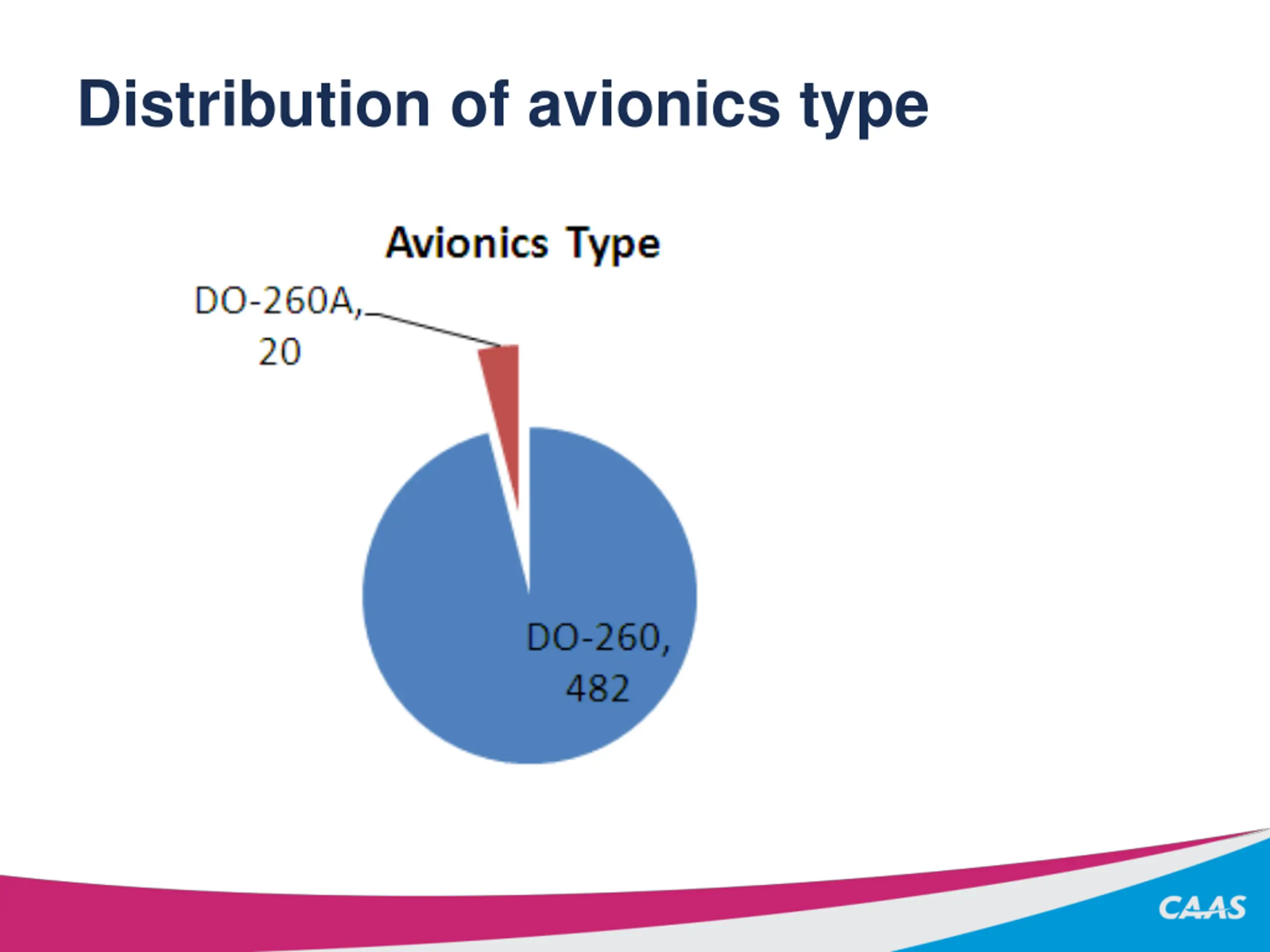

10. Distribution of avionics type

11. Analysis within Singapore FIR and within coverage of ADS-B station in terms of movement

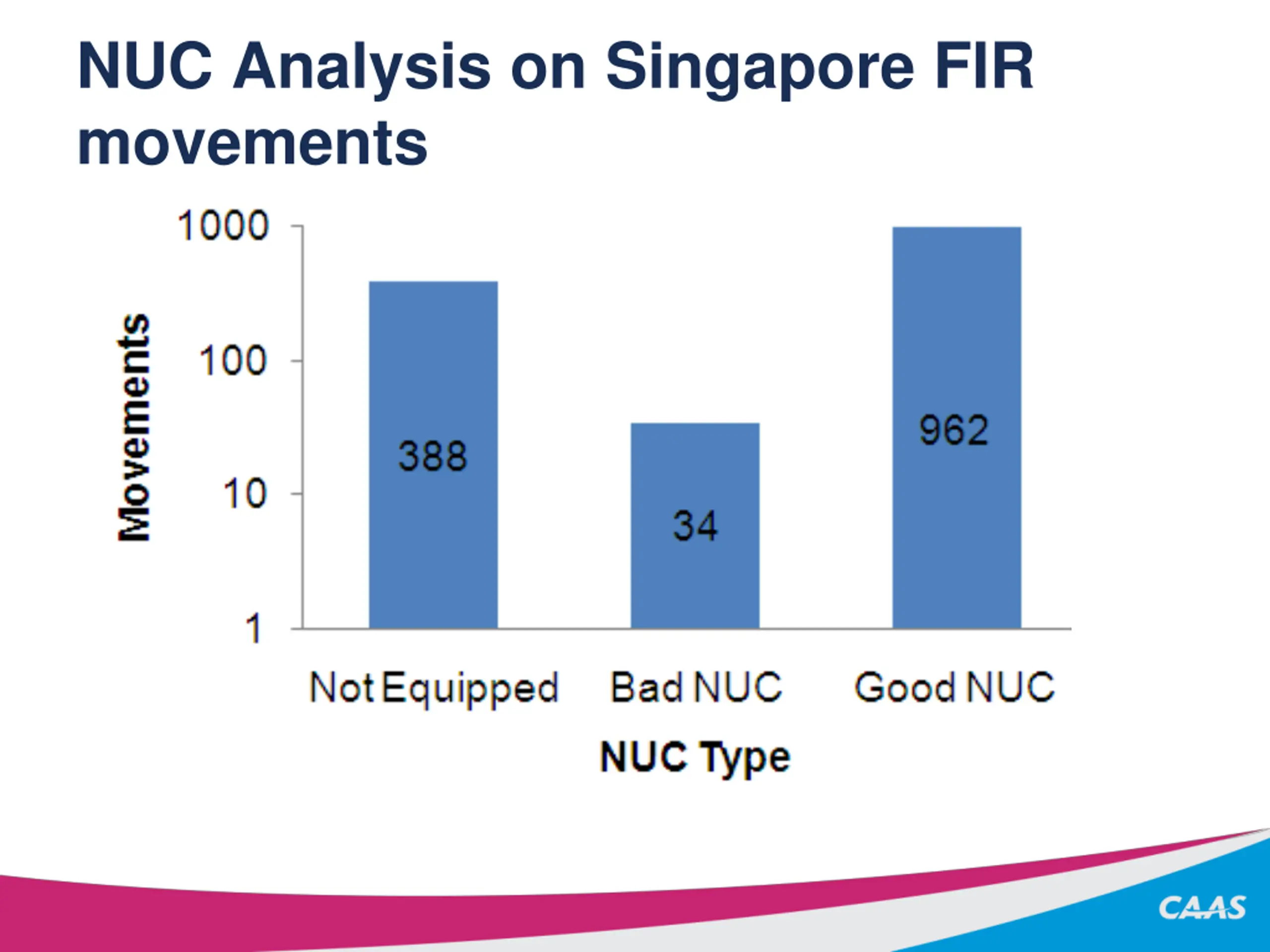

12. NUC Analysis on Singapore FIR movements

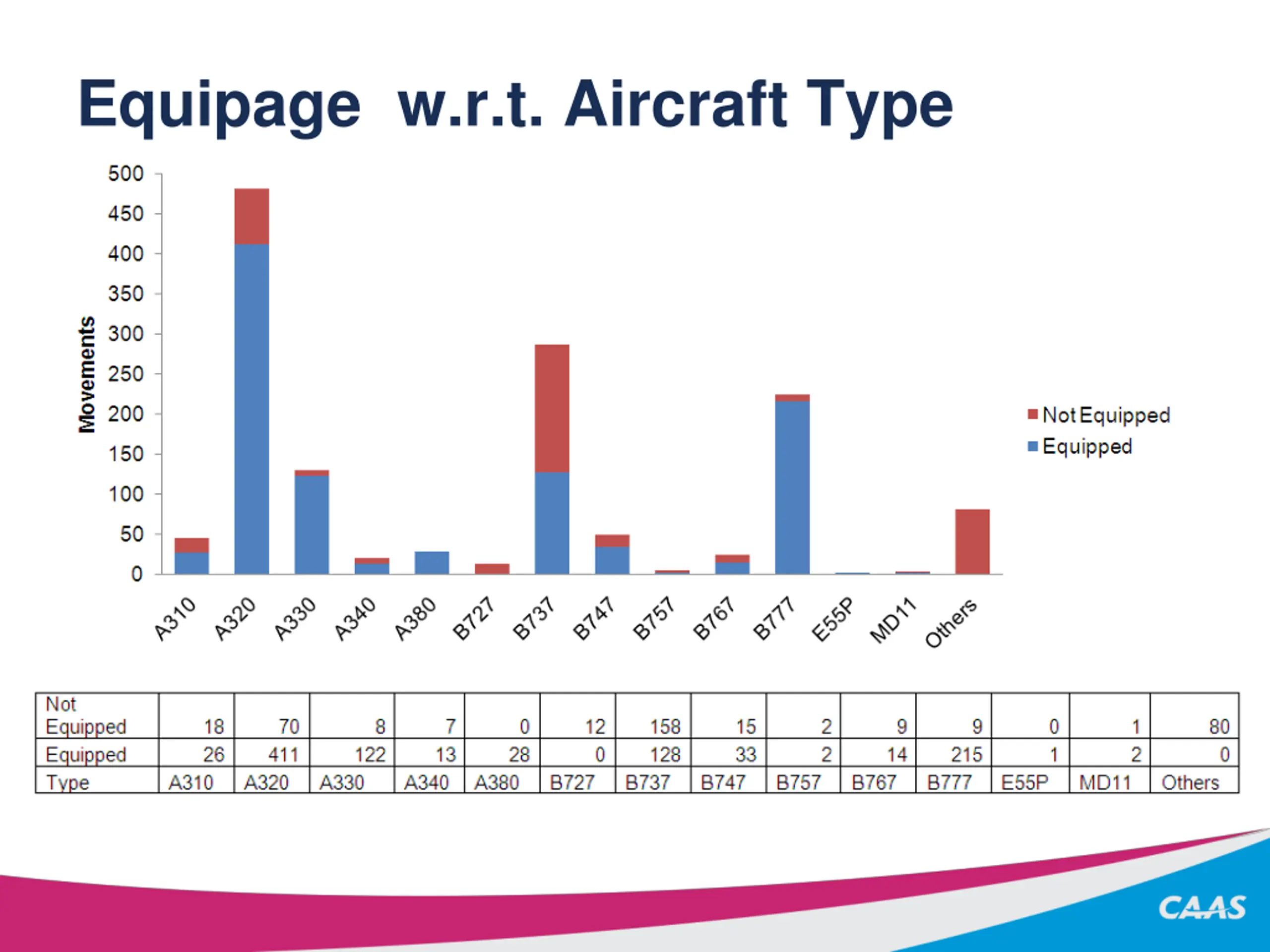

13. Equipage w.r.t. Aircraft Type

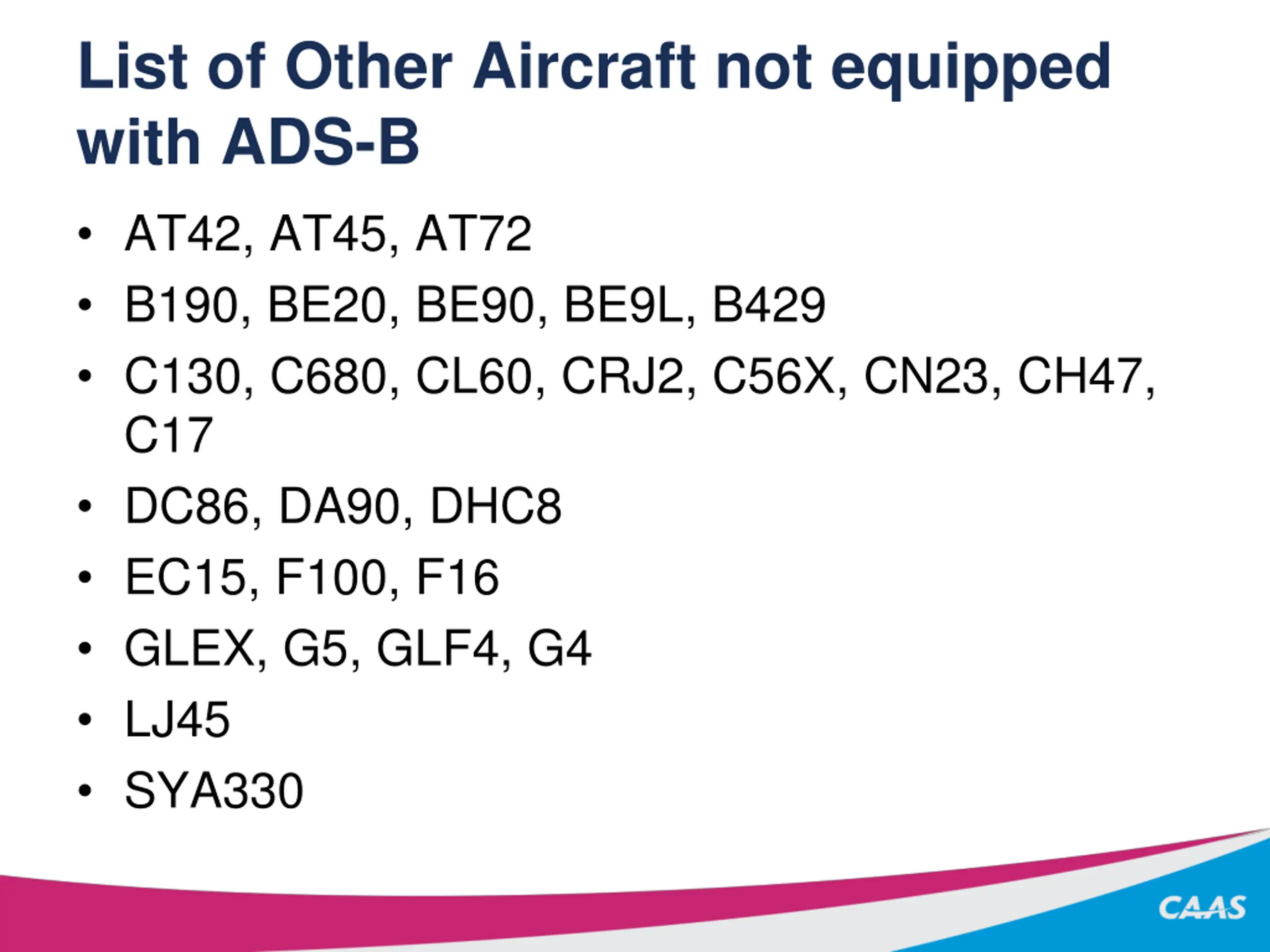

14. List of Other Aircraft not equipped with ADS-B AT42, AT45, AT72 B190, BE20, BE90, BE9L, B429 C130, C680, CL60, CRJ2, C56X, CN23, CH47, C17 DC86, DA90, DHC8 EC15, F100, F16 GLEX, G5, GLF4, G4 LJ45 SYA330
