Ablation Techniques in Medical Practice

undefined

Jong Bum Choi, M.D.
Ajou University Medical Center
Department of Anesthesiology and Pain Medicine Pain Clinic
Method of disc decompression
Based on experiences with previous products such as
Chymopapain, Nucleotome
Provides a safe and controlled therapy
Disc decompression treatment by ablating nucleus pulposus
with Low Temperature
01) Definition
The volumetric or length reduction of
tissue using thermal energy in a surgical
procedure
02) Goal
Tissue

shrinkage
Hemostasis
01) Definition
Medical procedure in which part of the
electrical conduction system of the heart,
tumor or other dysfunctional tissue is
ablated using the heat generated from
high frequency alternating current
02) Goal
Removing tissue in a defined area.
PPDD vs Coagulation
PPDD vs Coagulation
Tumor
    Treat tumors in the lung, liver, kidney, and bone,
     as well as other body organs
Cardiac arrhythmia
    Atrial fibrillation (AF), supraventricular tachycardia (SVT),
    atrial tachycardia, Multifocal Atrial Tachycardia (MAT)
    and some types of ventricular arrhythmia
 Wound debridement

D) Arthroscopy, Spine, ENT
application field of Ablation
application field of Ablation
Working at lower temperatures

(40~70
°
C).
      Vs. Electrocautery generates 400~600
°
C tissue temperatures
Precise targeting

   Allow the surgeon to ablate the tissue in a specific area with minimal effect
   to the surrounding tissue. Plasma is only 100-200 μm thick around the
  active electrode.
Preserves tissue quality
     Since the tissue is dissolved of volatilized at the molecular level, and not
     burned or otherwise mechanically abraded.
Advantages of RF ablation
Intocare PPDD
Intocare PPDD
What is Plasma?
1
st
 electrode
2
nd
 electrode
Insulator
Electric Field
65℃~80℃
Below
65℃
01.  Ablation
02.  Coagulation
01) Electrode for generating plasma
What is plasma
What is plasma
What is Plasma?

1
2
3
4
02) How does the Plasma made?
Electric Field
1
st
 electrode
2
nd
 electrode
Insulator
vapor

layer
What is plasma?
What is plasma?
What is Plasma?
A)
The plasma field is an ionized gas consisting of free
electrons, ions and excited radicals.
B) In contact with biological tissue,
    these   plasma particles are
    sufficiently (re)active to disintegrate
    organic molecular within the tissue
    into elementary molecules
C) In this manner, the target tissue is
   effectively dissolved or volatilized in
   a gentle fashion (at low temperature)
   inducing no damage to surrounding
   healthy tissue.
03) Plasma field
Figure 1. The yellow glow emitted by a
INTO LB device functioning in a saline
environment shows the plasma field.
Intocare PPDD
Intocare PPDD
Proven Treatment
No damage
No necrosis
to Surrounding Tissue
Molecular dissociation by Plasma Energy
No damage on the surrounding tissue
Decompression of herniated disc with discectomy
Molecular dissociation
Histological confirmation
Confirmed Safety of Plasma
Intocare PPDD
Intocare PPDD

Ablation through Into Series
Into LB is used for discectomy and modulation on the lumbar disc
Leading to the disc decompression and removal of nociceptor
Intocare PPDD
Intocare PPDD

-> Easy Access to the target lesion with no risk of disc reherniation
OD of the needle : 1.83mm
OD of direction controllable catheter : 1.2mm
Intocare PPDD
Intocare PPDD
Radicular Pain (Lateral herniation)
    - Arm pain
    - MRI evidence of contained disc protrusion
    - Not surgical indicated (motor weakness, etc.)
    - Failed Nerve Block.
Axial Neck Pain (Central focal herniation)
    - Failed conservative therapy for 3 months
    - Discography positive for concordant pain
    - Disc height > about 75%
Red flag
     - Spinal fracture, tumor, infection
     - Central cord lesion
Benign Lesion
     - 50% loss of disc height
     - Extruded or Sequestered disc
     - Moderate to Severe spinal stenosis
     - Complete annular disruption
     - Degenerative instability
     - Herniation greater than 1/3 the diameter of the spinal canal
Same as Cervical Spine basically
More Ablation is needed due to large disc.
Curved catheter is required. It is Technically Complicated.
Clinical outcome in Cervical spine is immediate, comparing with
lumbar spine.
 Anterior approach
 Contralateral (or Ipsilateral) approach
 Between Trachea and Major vessel
[  Pre MRI ]
[  Post MRI ]
[  Pre Epidurogram ]
[  Post Epidurogram ]
[  Pre Epidurogram ]
[  Post Epidurogram ]
[  Pre Epidurogram ]
[  Post Epidurogram ]
[  PPDD ]
[  Pre Epidurogram ]
[  Post Epidurogram ]
[  PPDD ]
[L5]
[L5]
[L5]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
[  Pre MRI ]
Posterior approach
Contralateral or Ipsilateral approach
Straight type (Into-S): one way ablation
Curved type, Steering type (Into-LB/CB): multi directional
ablation
[ Into-S ]
For cervical spine
[ Into-LB ] [ Into-CB ]
For  cervical / lumbar spine
Safe
Effective
Simple
Easy
   Thank you for
attention
Slide Note
Embed
Share

Ablation procedures like PPDD and Coagulation are effective methods for treating various conditions such as cardiac arrhythmias, tumors, and wound debridement. RF ablation offers advantages such as precise targeting, lower tissue temperatures, and tissue preservation at the molecular level. Understanding plasma and its role in generating heat for ablation is crucial in these medical interventions.

  • Ablation Techniques
  • Medical Procedures
  • RF Ablation
  • Plasma Generation
  • Tissue Preservation

Uploaded on Sep 29, 2024 | 0 Views


Download Presentation

Please find below an Image/Link to download the presentation.

The content on the website is provided AS IS for your information and personal use only. It may not be sold, licensed, or shared on other websites without obtaining consent from the author. Download presentation by click this link. If you encounter any issues during the download, it is possible that the publisher has removed the file from their server.

E N D

Presentation Transcript

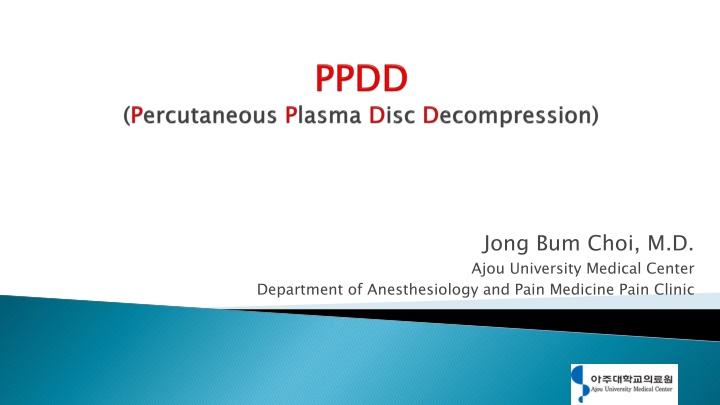

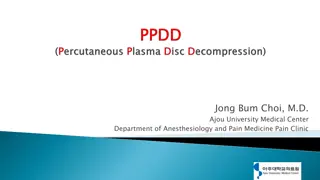

  1. Jong Bum Choi, M.D. Ajou University Medical Center Department of Anesthesiology and Pain Medicine Pain Clinic

  2. Method of disc decompression Based on experiences with previous products such as Chymopapain, Nucleotome Provides a safe and controlled therapy Disc decompression treatment by ablating nucleus pulposus with Low Temperature

  3. PPDD PPDD vs vs Coagulation Coagulation PPDD(=Ablation) PPDD(=Ablation) 01) Definition Medical procedure in which part of the electrical conduction system of the heart, tumor or other dysfunctional tissue is ablated using the heat generated from high frequency alternating current 01) Definition Coagulation 01) Definition The volumetric or length reduction of tissue using thermal energy in a surgical procedure Coagulation 01) Definition 02) Goal Tissue shrinkage Hemostasis 02) Goal 02) Goal Removing tissue in a defined area. 02) Goal

  4. application field of Ablation application field of Ablation Tumor Treat tumors in the lung, liver, kidney, and bone, as well as other body organs Tumor Cardiac arrhythmia Atrial fibrillation (AF), supraventricular tachycardia (SVT), atrial tachycardia, Multifocal Atrial Tachycardia (MAT) and some types of ventricular arrhythmia Cardiac arrhythmia Wound debridement Wound debridement D) Arthroscopy, Spine, ENT D) Arthroscopy, Spine, ENT

  5. Advantages of RF ablation Intocare Advantages of RF ablation Intocare PPDD PPDD Working at lower temperatures Vs. Electrocautery generates 400~600 C tissue temperatures Working at lower temperatures (40~70 (40~70 C). C). Precise targeting Allow the surgeon to ablate the tissue in a specific area with minimal effect to the surrounding tissue. Plasma is only 100-200 m thick around the active electrode. Precise targeting Preserves tissue quality Since the tissue is dissolved of volatilized at the molecular level, and not burned or otherwise mechanically abraded. Preserves tissue quality

  6. What is plasma What is plasma What is Plasma? 01) Electrode for generating plasma 01) Electrode for generating plasma 01. Ablation 65 ~80 Below 65 Electric Field 02. Coagulation 2ndelectrode 1stelectrode Insulator

  7. What is plasma? What is plasma? What is Plasma? 02) How does the Plasma made? 02) How does the Plasma made? 1 1 Electric Field 2 2 vapor layer 2ndelectrode 1stelectrode Insulator 4 4 3 3

  8. Intocare Intocare PPDD What is Plasma? PPDD 03) Plasma field 03) Plasma field A) The plasma field is an ionized gas consisting of free electrons, ions and excited radicals. B) In contact with biological tissue, these plasma particles are sufficiently (re)active to disintegrate organic molecular within the tissue into elementary molecules C) In this manner, the target tissue is effectively dissolved or volatilized in a gentle fashion (at low temperature) inducing no damage to surrounding healthy tissue. Figure 1. The yellow glow emitted by a INTO LB device functioning in a saline environment shows the plasma field.

  9. Intocare Intocare PPDD Proven Treatment PPDD Confirmed Safety of Plasma Confirmed Safety of Plasma Molecular dissociation Molecular dissociation Histological confirmation Histological confirmation No damage Molecular dissociation by Plasma Energy No necrosis No damage on the surrounding tissue to Surrounding Tissue Decompression of herniated disc with discectomy

  10. Ablation through Into Series Intocare Intocare PPDD PPDD Into LB is used for discectomy and modulation on the lumbar disc Leading to the disc decompression and removal of Into LB is used for discectomy and modulation on the lumbar disc Leading to the disc decompression and removal of nociceptor nociceptor

  11. Intocare Intocare PPDD PPDD - -> Easy Access to the target lesion with no risk of disc > Easy Access to the target lesion with no risk of disc reherniation reherniation OD of the needle : 1.83mm OD of direction controllable catheter : 1.2mm OD of the needle : 1.83mm OD of direction controllable catheter : 1.2mm

  12. Radicular Pain (Lateral herniation) - Arm pain - MRI evidence of contained disc protrusion - Not surgical indicated (motor weakness, etc.) - Failed Nerve Block. Axial Neck Pain (Central focal herniation) - Failed conservative therapy for 3 months - Discography positive for concordant pain - Disc height > about 75%

  13. Red flag - Spinal fracture, tumor, infection - Central cord lesion Benign Lesion - 50% loss of disc height - Extruded or Sequestered disc - Moderate to Severe spinal stenosis - Complete annular disruption - Degenerative instability - Herniation greater than 1/3 the diameter of the spinal canal

  14. Same as Cervical Spine basically More Ablation is needed due to large disc. Curved catheter is required. It is Technically Complicated. Clinical outcome in Cervical spine is immediate, comparing with lumbar spine.

  15. Anterior approach Contralateral (or Ipsilateral) approach Between Trachea and Major vessel

  16. [ Pre MRI ] [ Pre MRI ] [ Post MRI ] [ Post MRI ]

  17. [ Pre [ Pre Epidurogram Epidurogram ] ] [ Post [ Post Epidurogram Epidurogram ] ]

  18. [ Pre [ Pre Epidurogram Epidurogram ] ] [ Post [ Post Epidurogram Epidurogram ] ]

  19. [ Pre [ Pre Epidurogram Epidurogram ] ] [ Post [ Post Epidurogram Epidurogram ] ] [ PPDD ] [ PPDD ]

  20. [ Pre [ Pre Epidurogram Epidurogram ] ] [ Post [ Post Epidurogram Epidurogram ] ] [L5] [ PPDD ] [ PPDD ] [L5] [L5]

  21. [ Pre MRI ] [ Pre MRI ] [ Pre MRI ] [ Pre MRI ]

  22. [ Pre MRI ] [ Pre MRI ] [ Pre MRI ] [ Pre MRI ]

  23. [ Pre MRI ] [ Pre MRI ] [ Pre MRI ] [ Pre MRI ]

  24. [ Pre MRI ] [ Pre MRI ] [ Pre MRI ] [ Pre MRI ]

  25. [ Pre MRI ] [ Pre MRI ] [ Pre MRI ] [ Pre MRI ]

  26. [ Pre MRI ] [ Pre MRI ] [ Pre MRI ] [ Pre MRI ]

  27. Posterior approach Contralateral or Ipsilateral approach

  28. Straight type (Into-S): one way ablation Curved type, Steering type (Into-LB/CB): multi directional ablation [ Into- -LB ] [ Into For cervical / lumbar spine [ Into LB ] [ Into- -CB ] CB ] [ Into- -S ] For cervical spine [ Into S ] For cervical / lumbar spine For cervical spine

  29. Safe Effective Simple Easy

  30. Thank you for attention
