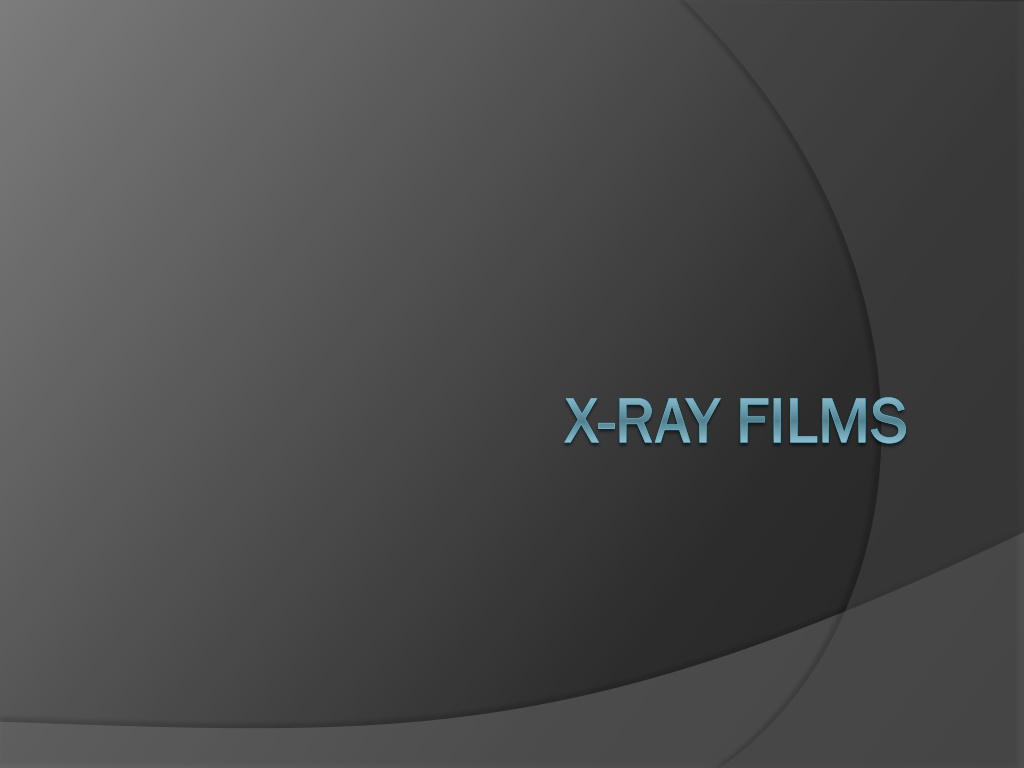

1. X X- -RAY FILMS RAY FILMS

2. X-ray Film

3. Composition Base Adhesive layer Emulsion Supercoat

4. Supercoat : Emulsion is enclosed by a protective covering of gelatin Protects from scratching, pressure and contamination during use and processing

5. Base Foundation of radiographic film Provides rigid structure, in which emulsion is coated Flexible and unbreakable Cellulose triacetate Polyester polyethylene terephthalate 0.22 mm, blue tinted base

6. Emulsion Mixture of gelatin and silver halide crystals Silver bromide 95%, silver iodide 5% to enhance the sensitivity Sensitive to X-rays and visible light Trace amounts of sulfur compounds

7. Composition of film packet Outer protective jacket Lead foil Black wrapper Film

8. Outer protective coat Light proof & moisture proof Dual colored Cover is sealed to prevent contamination from moisture, exposure to light and ingress of saliva Raised dot

9. Lead foil Has parallel indentations or markings in one corner of the foil. Backward exposure -- !!!

10. Black wrapper Protects the film from extraneous visible light protects the emulsion of the dental film during handling and storage

11. Classification Intraoral IOPA Bitewing Occlusal Extraoral

12. IOPA Size 0 22 X 35 mm Size 1 24 X 40 mm Size 2 31 X 41 mm

13. Bitewing Size 2 IOPA is commonly used Size 1 for children Size 3 53 X 26 mm for adults.

14. Occlusal 57 X 76 mm

15. Extraoral Films Screen films OPG Lateral cephalograph Skull views TMJ views Sinus 6 X 12 , 8 X 10 , 6 X 8

16. Based on emulsion coating Single sided Double sided

17. Based on speed A, B,C, D, E,F Globular grains Tabular grains

18. BASED ON sensitivity to light Blue sensitive films Green sensitive films Blue Globular grain Decreased surface area, increase in volume Decrease absorption Reduced sharpness More chances of motion blur Requires blue light emitting screen High exposure is required Green tabular Large surface area increased Greater sharpness Less chance Green light emitting screen Less exposure

19. Based on packing Single film packet Double film packet

20. Based on exposure Direct exposure Indirect exposure
