  1. WAVE ANALYSIS OF A L-BEAM STRUCTURE WITH A BLOCKING MASS Johnny Tiu, Richard Bachoo Johnny Tiu U.W.I. Richard Bachoo U.W.I. IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

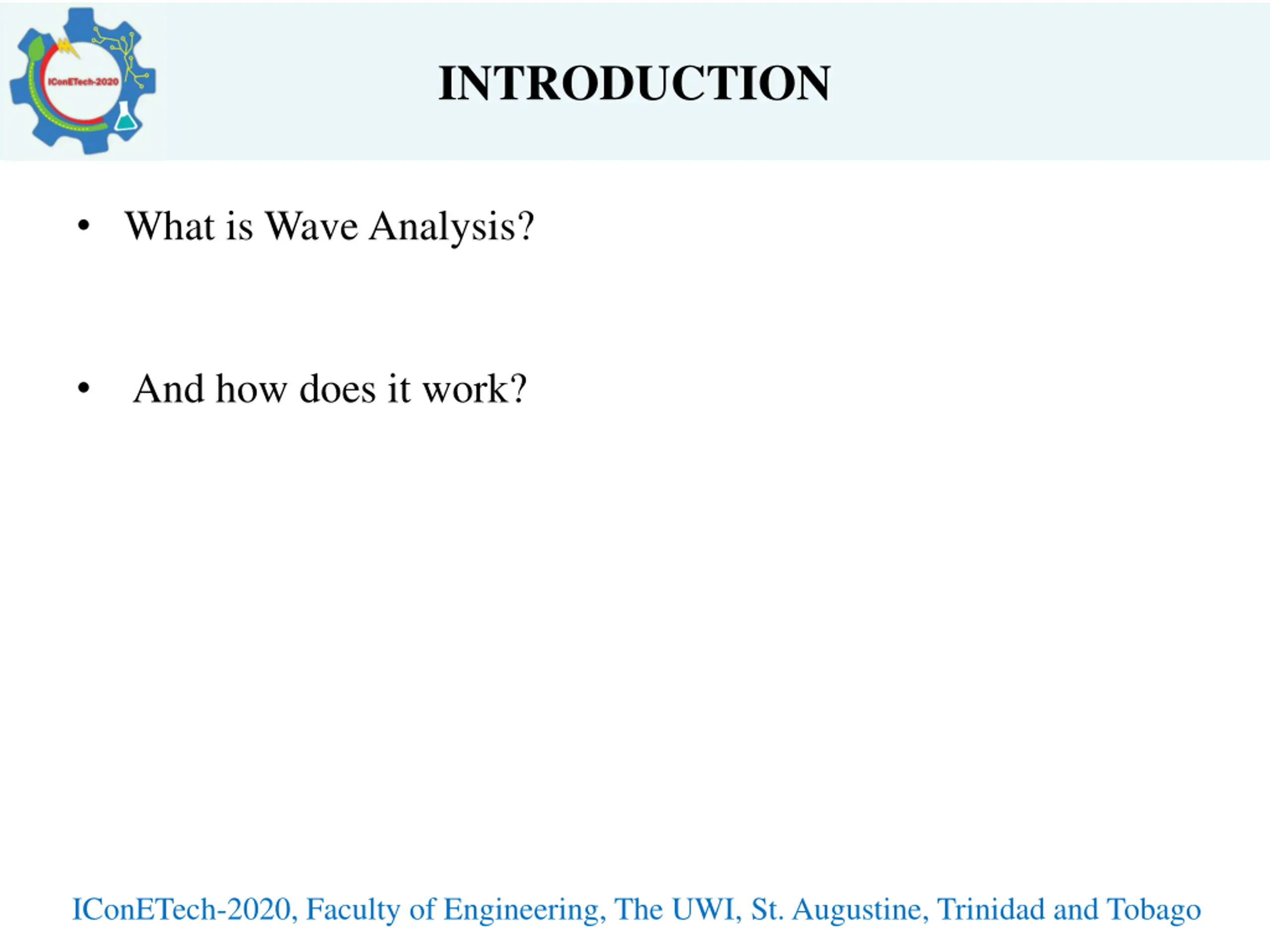

  2. INTRODUCTION What is Wave Analysis? And how does it work? IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

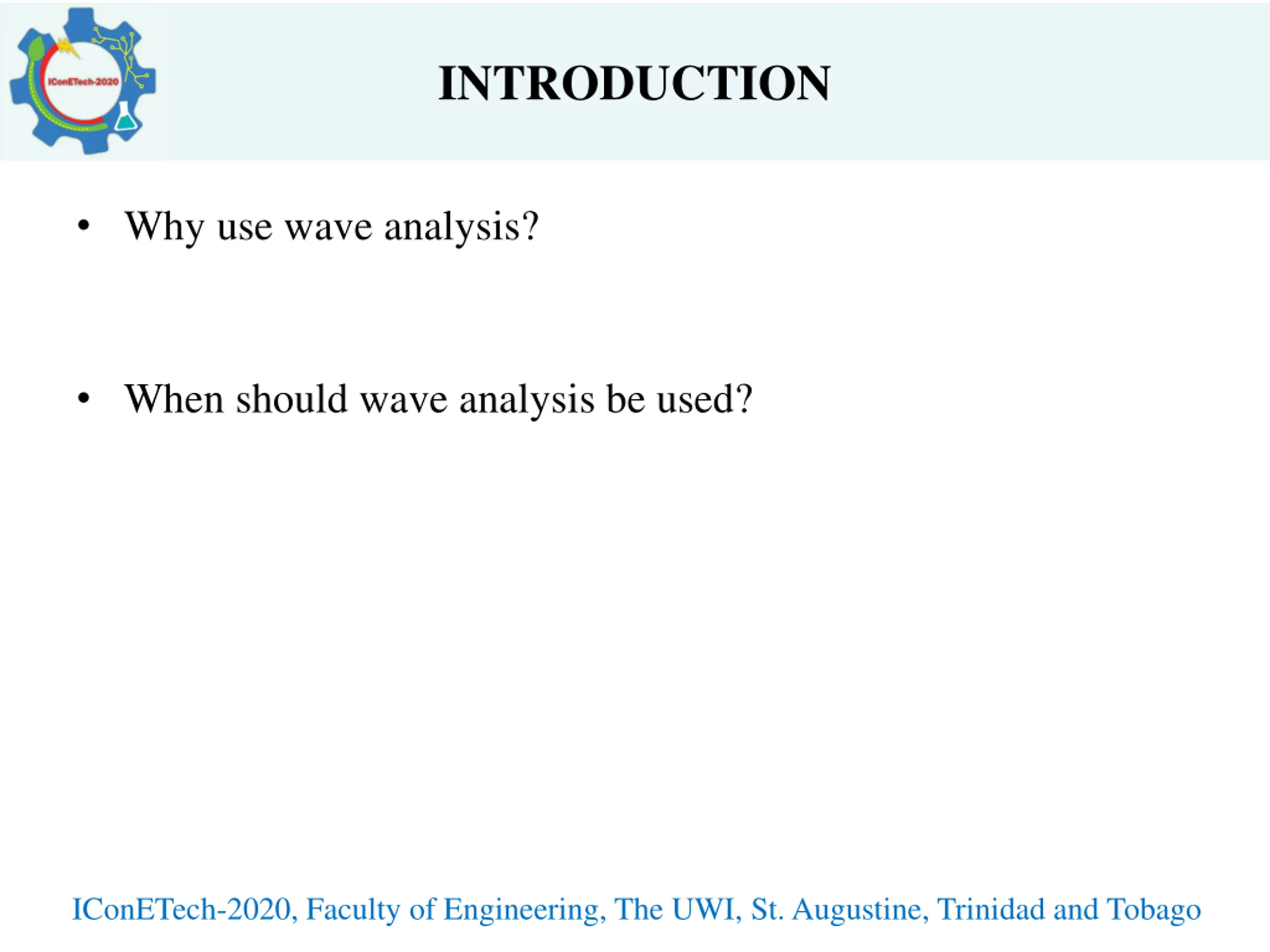

  3. INTRODUCTION Why use wave analysis? When should wave analysis be used? IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

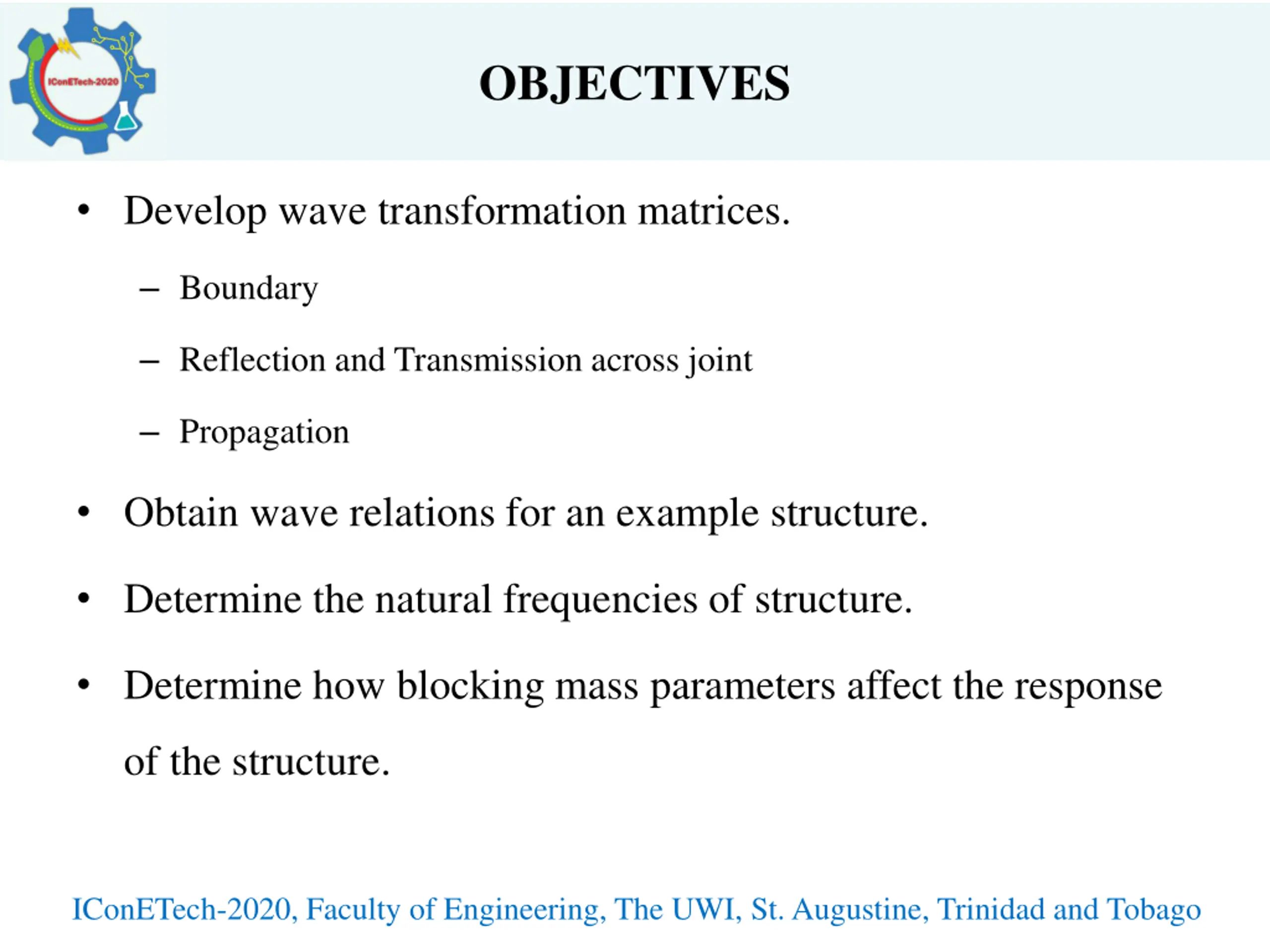

  4. OBJECTIVES Develop wave transformation matrices. Boundary Reflection and Transmission across joint Propagation Obtain wave relations for an example structure. Determine the natural frequencies of structure. Determine how blocking mass parameters affect the response of the structure. IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

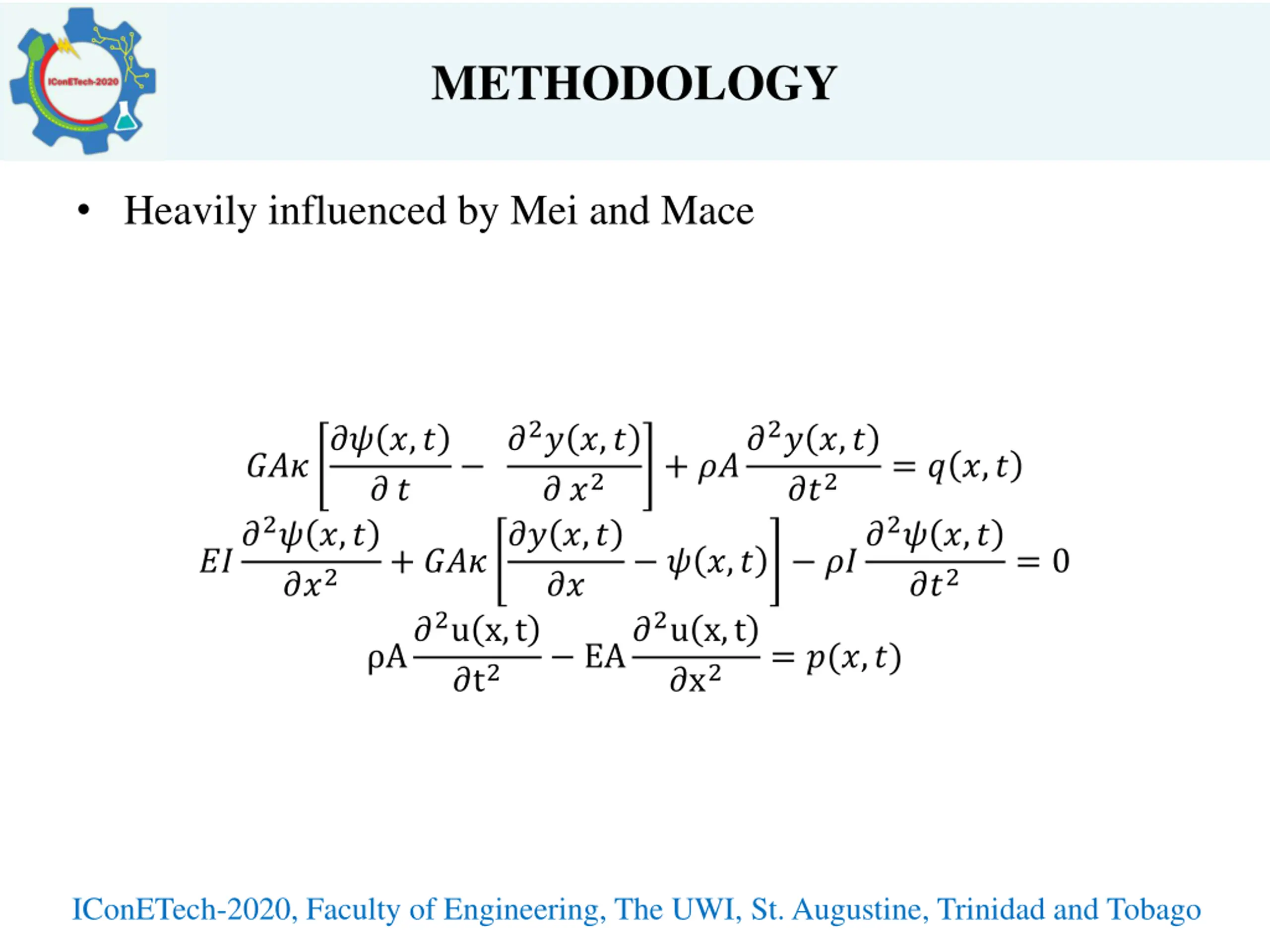

  5. METHODOLOGY Heavily influenced by Mei and Mace ?2? ?,? ? ?2 ?? ?,? ?? EA?2u x,t + ???2? ?,? ?? ?,? ? ? ??? = ? ?,? ??2 ???2? ?,? ???2? ?,? + ??? ? ?,? = 0 ??2 ??2 A?2u x,t = ?(?,?) ?t2 ?x2 IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

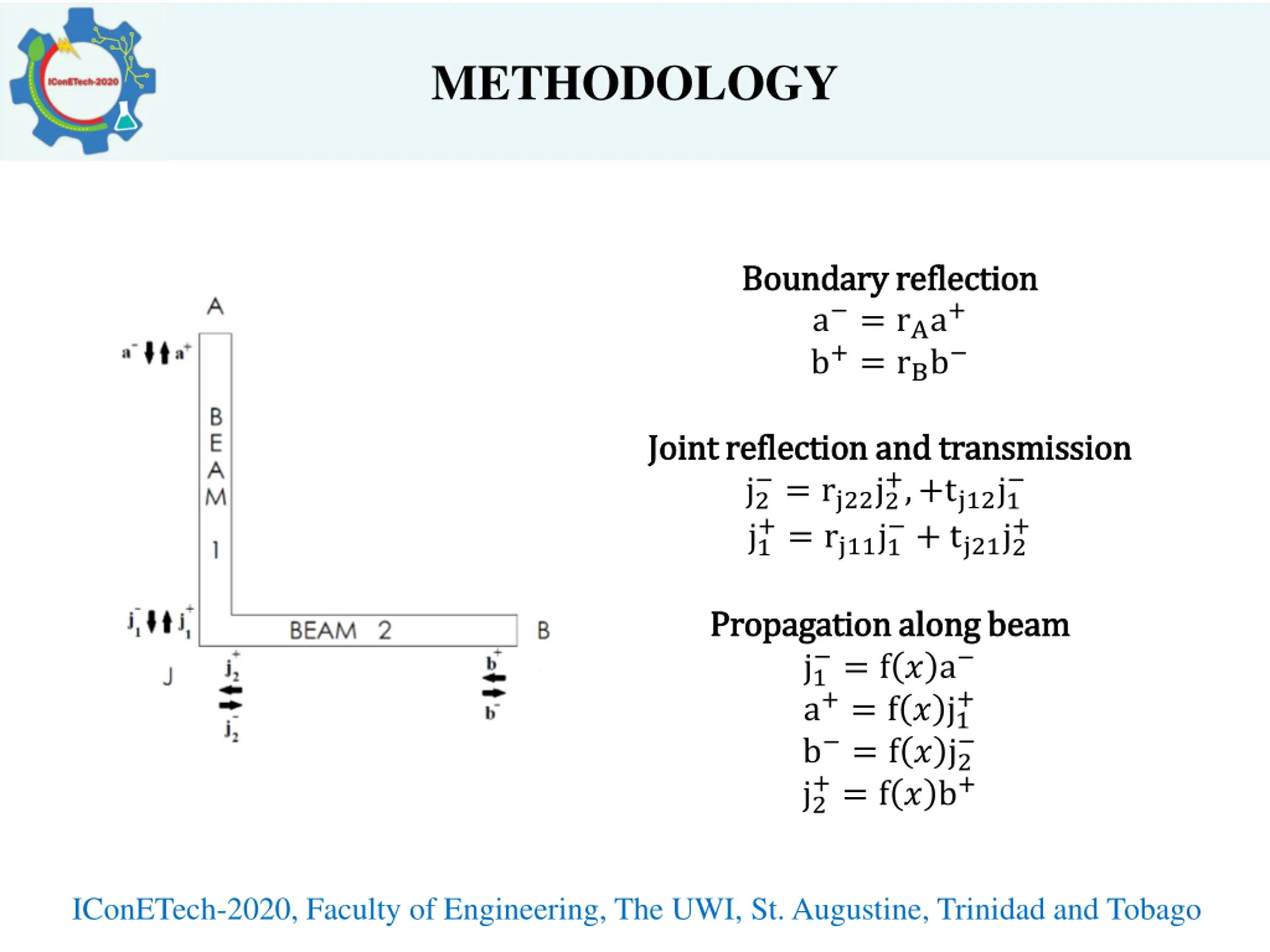

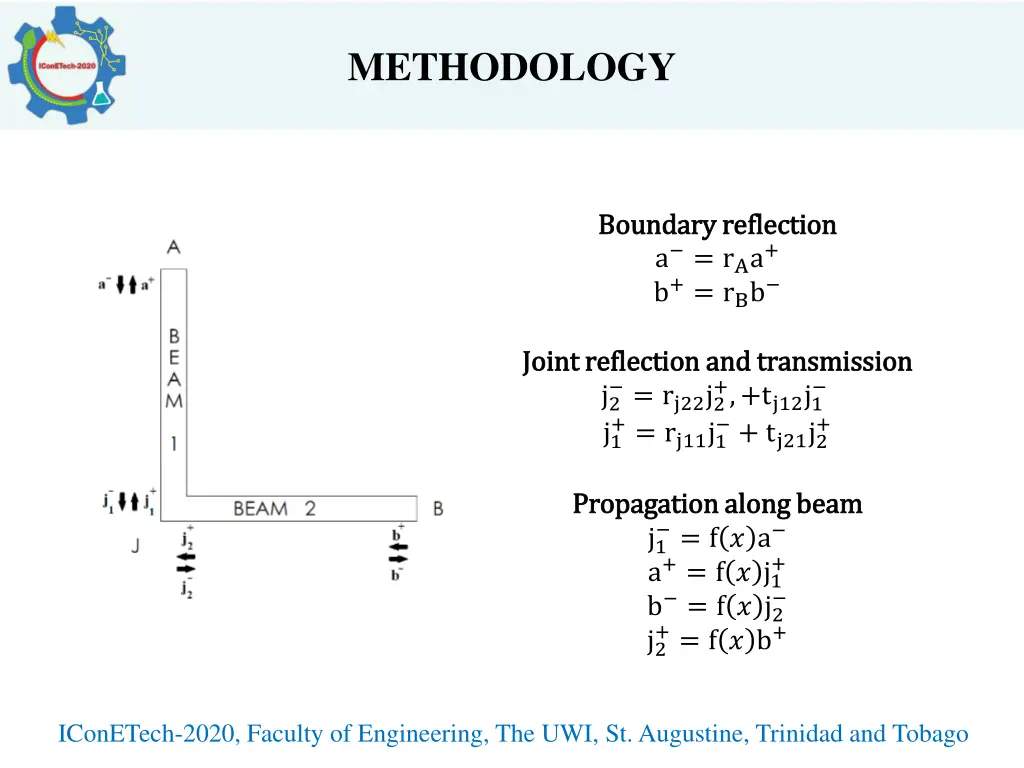

  6. METHODOLOGY Boundary reflection Boundary reflection a = rAa+ b+= rBb Joint reflection and transmission Joint reflection and transmission j2 j1 = rj22j2 += rj11j1 +,+tj12j1 + tj21j2 + Propagation along beam Propagation along beam j1 a+= f ? j1 b = f ? j2 j2 = f ? a + += f ? b+ IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

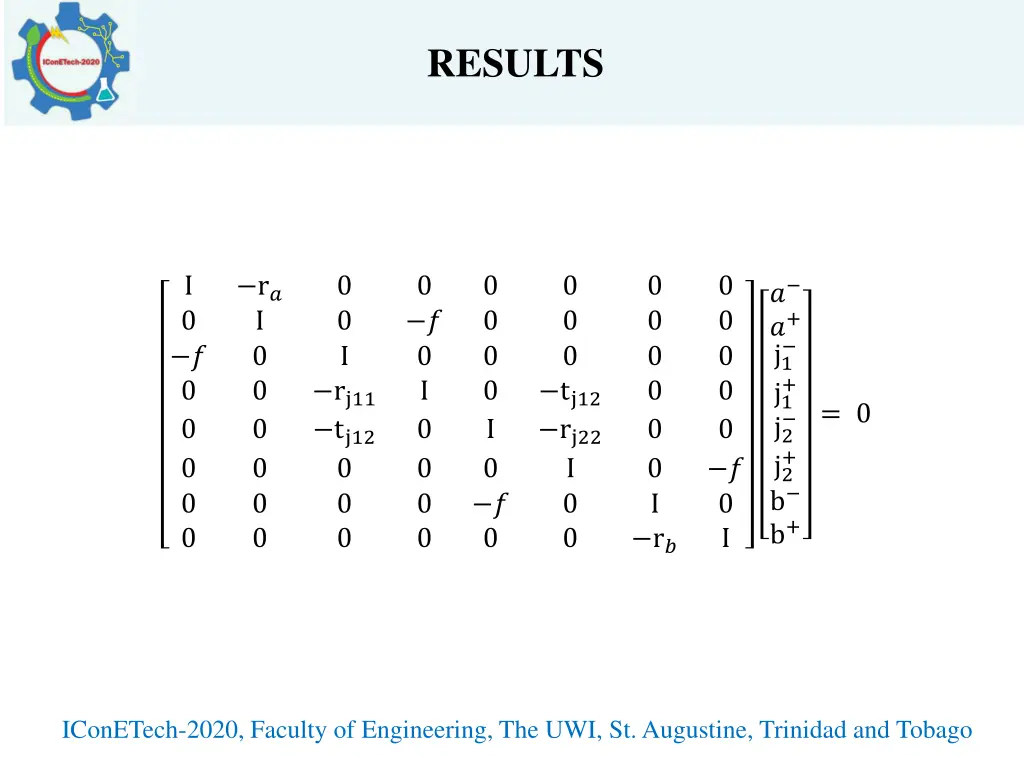

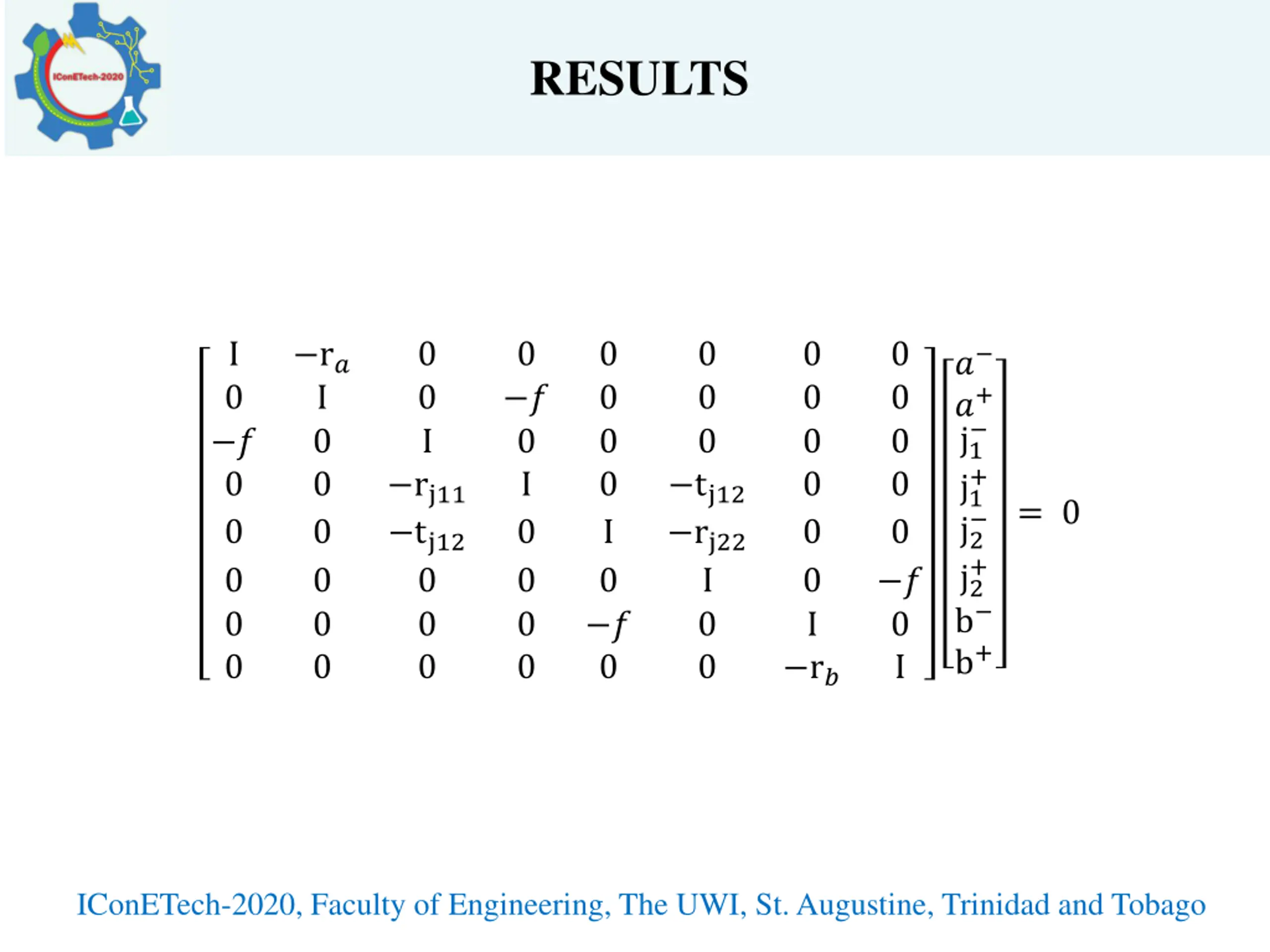

  7. RESULTS I 0 r? I 0 0 0 0 0 0 0 0 I 0 0 0 0 0 I 0 0 0 0 0 0 0 0 0 0 I 0 0 0 0 0 ? ?+ j1 j1 j2 j2 b b+ ? 0 I 0 0 0 0 ? 0 0 0 0 0 + rj11 tj12 0 0 0 tj12 rj22 I 0 0 = 0 + ? 0 I ? 0 r? IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

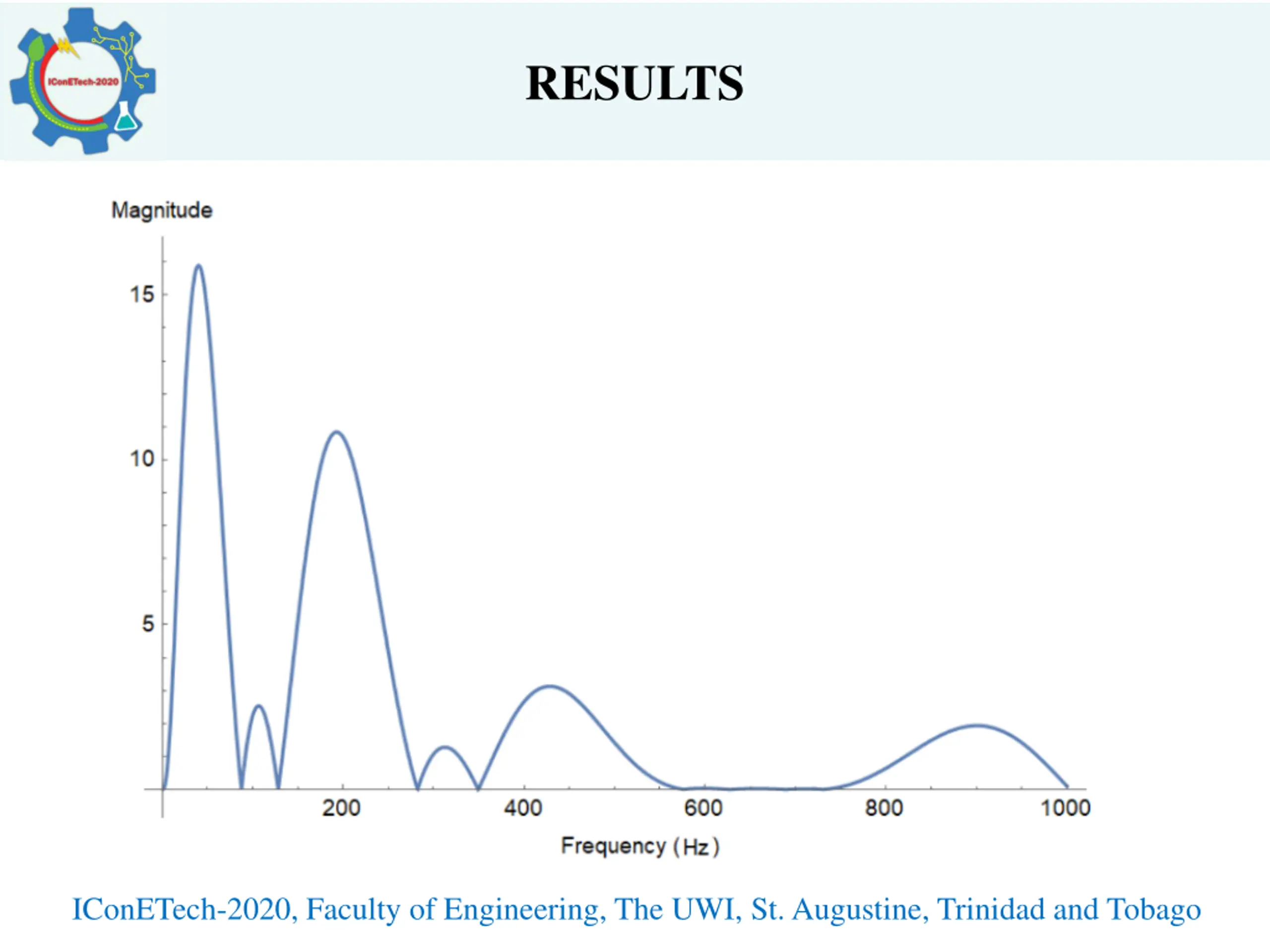

  8. RESULTS IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

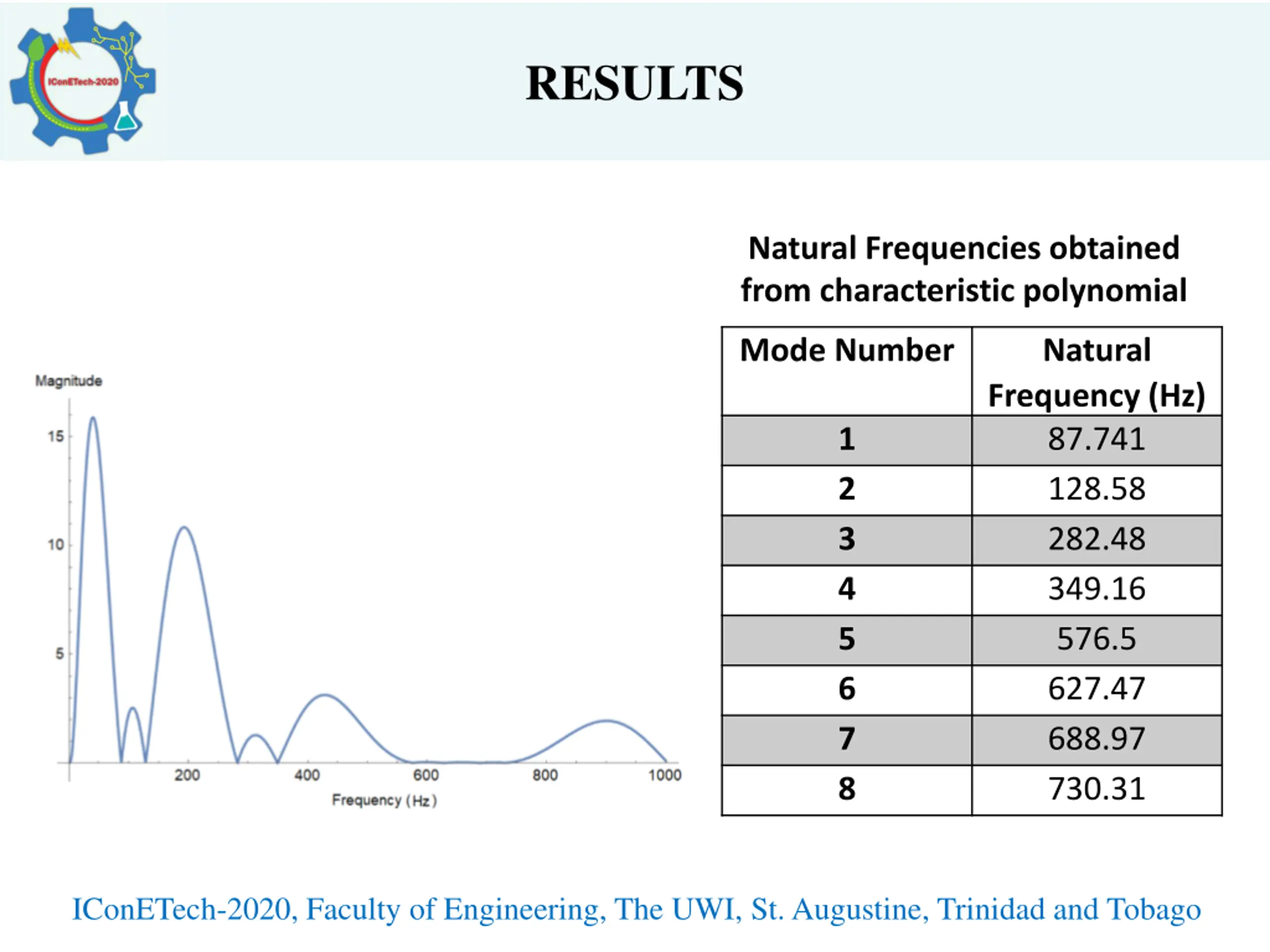

  9. RESULTS Natural Frequencies obtained from characteristic polynomial Mode Number Natural Frequency (Hz) 87.741 128.58 282.48 349.16 576.5 627.47 688.97 730.31 1 2 3 4 5 6 7 8 IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

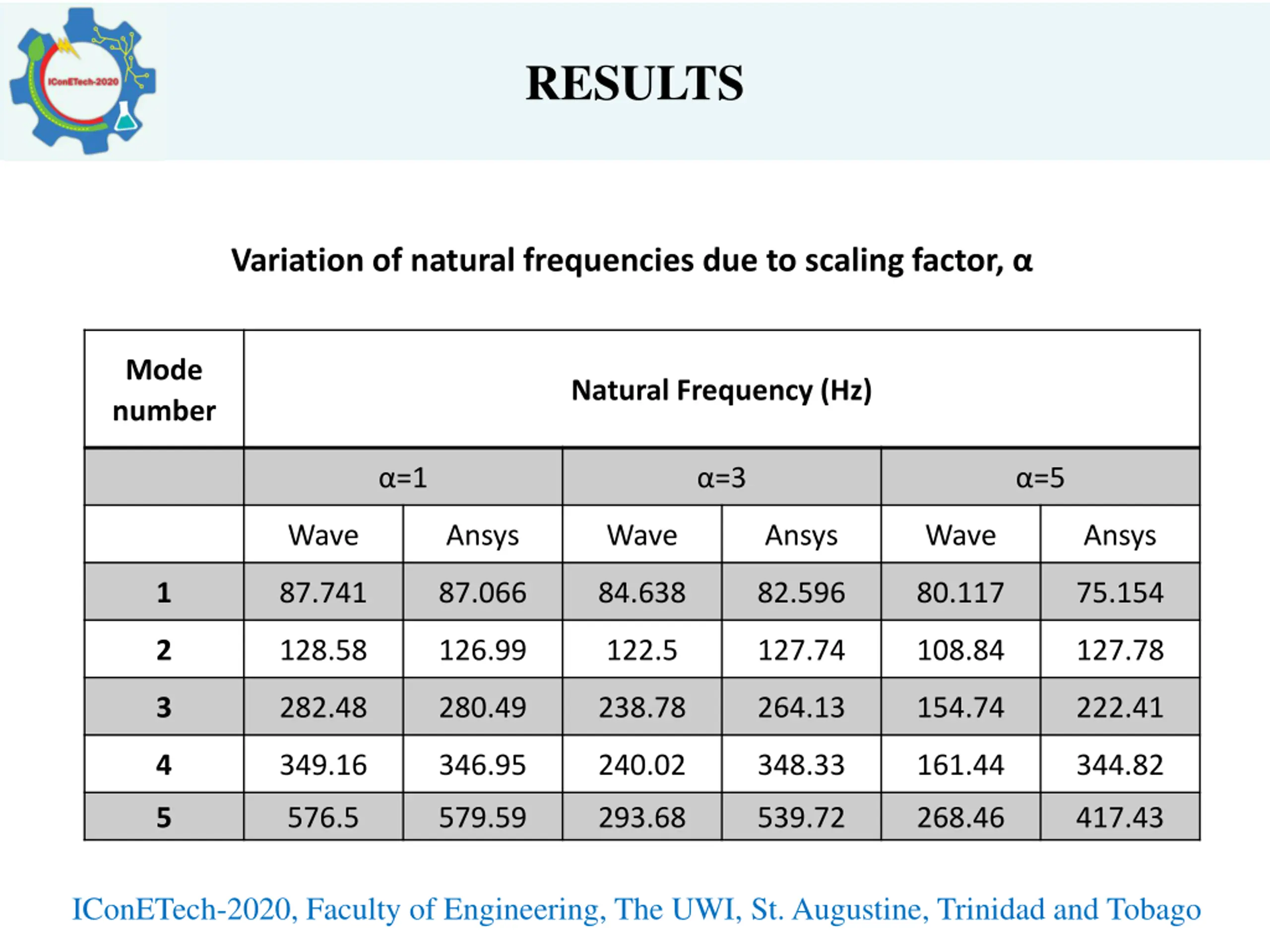

  10. RESULTS Variation of natural frequencies due to scaling factor, Mode number Natural Frequency (Hz) =1 =3 =5 Wave Ansys Wave Ansys Wave Ansys 1 87.741 87.066 84.638 82.596 80.117 75.154 2 128.58 126.99 122.5 127.74 108.84 127.78 3 282.48 280.49 238.78 264.13 154.74 222.41 4 349.16 346.95 240.02 348.33 161.44 344.82 5 576.5 579.59 293.68 539.72 268.46 417.43 IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

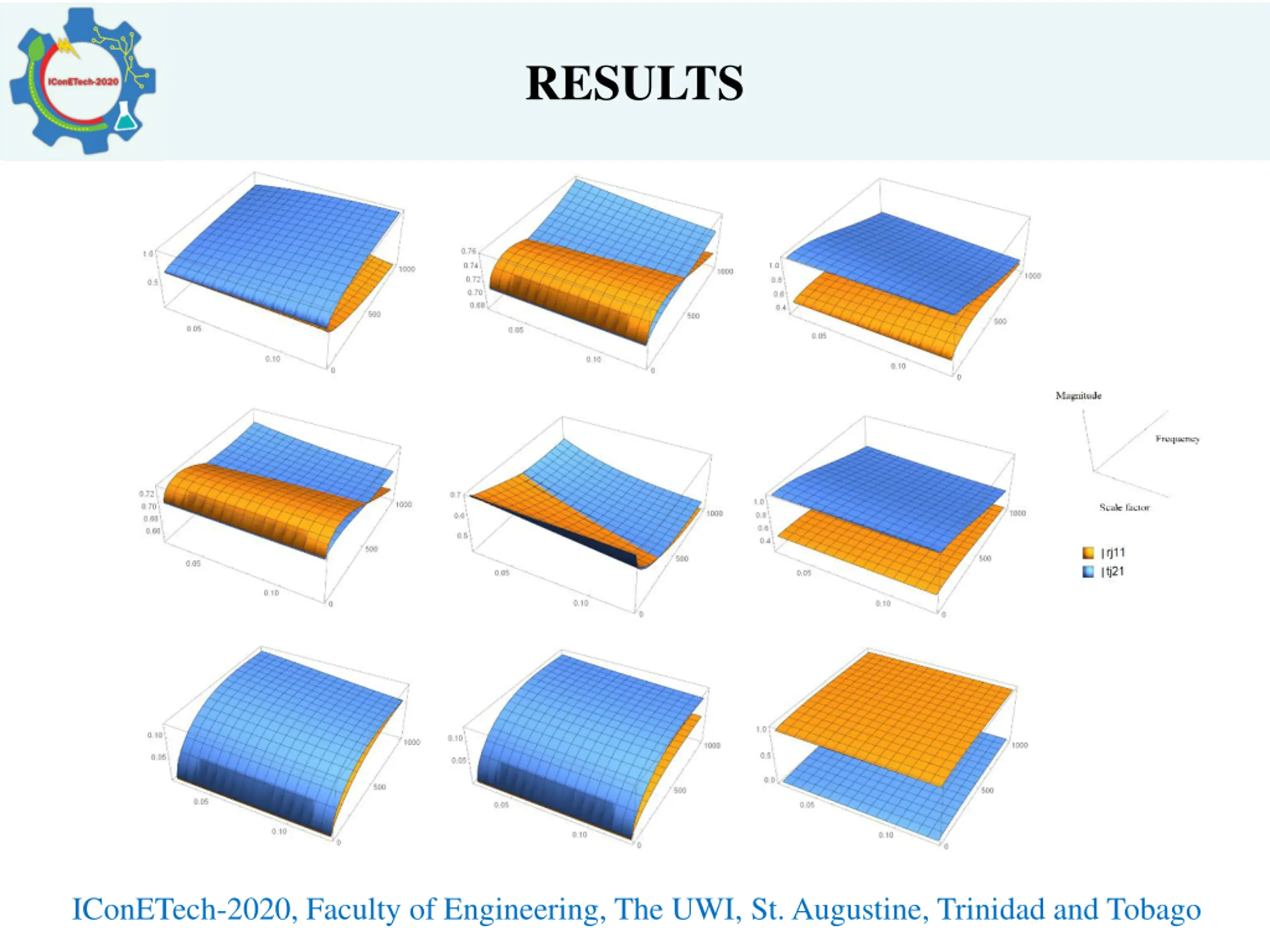

  11. RESULTS IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

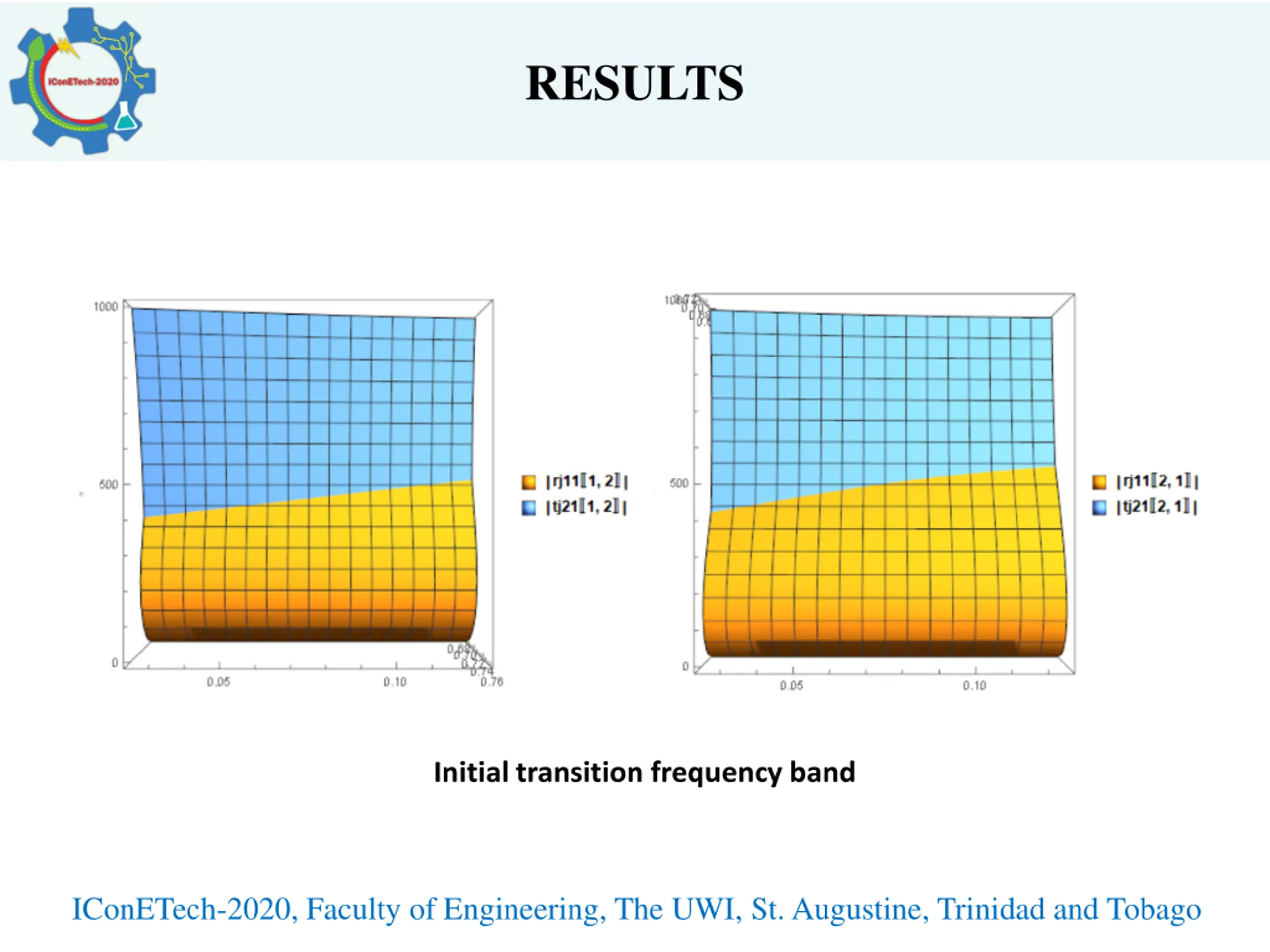

  12. RESULTS Initial transition frequency band IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

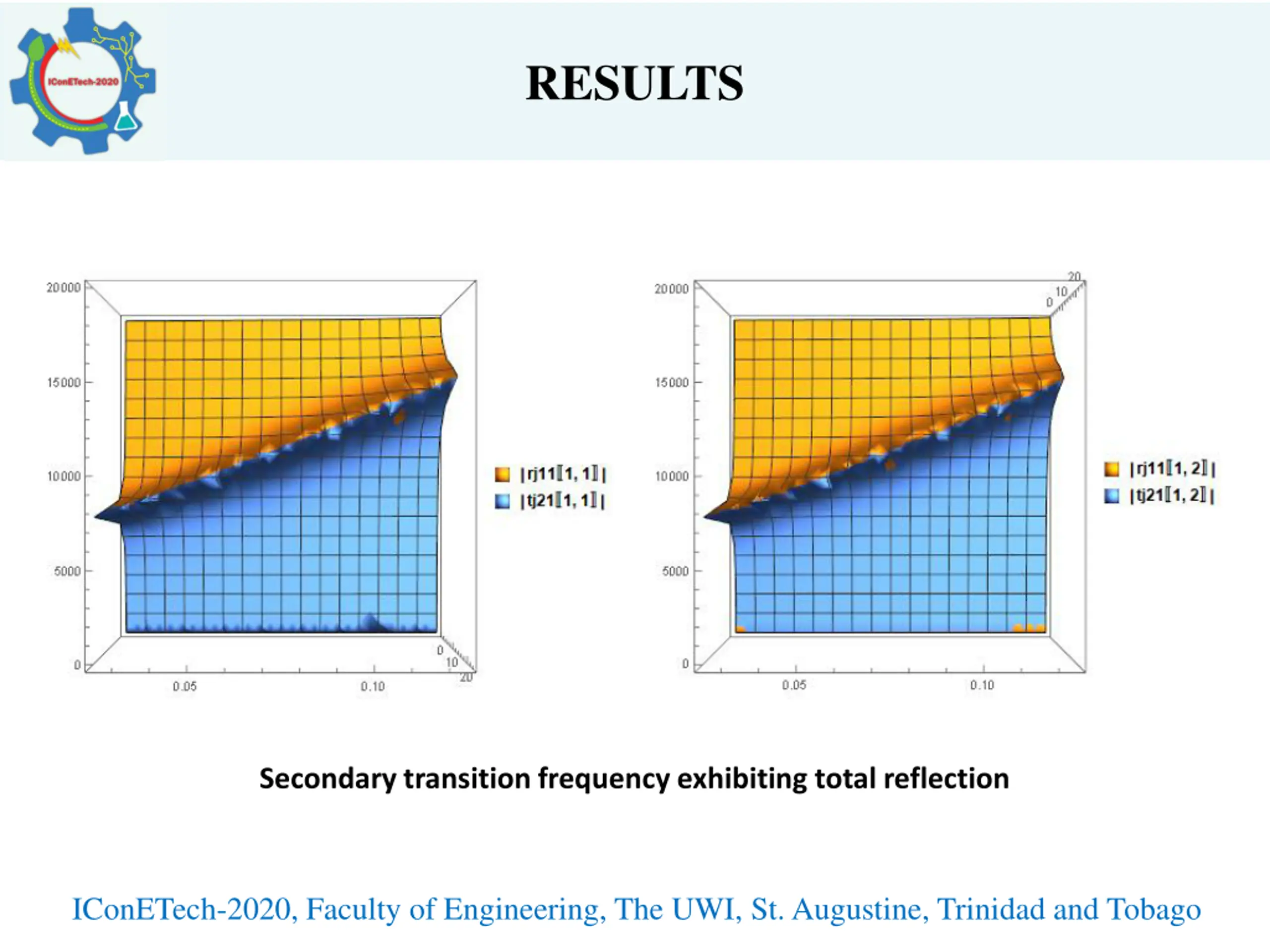

  13. RESULTS Secondary transition frequency exhibiting total reflection IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

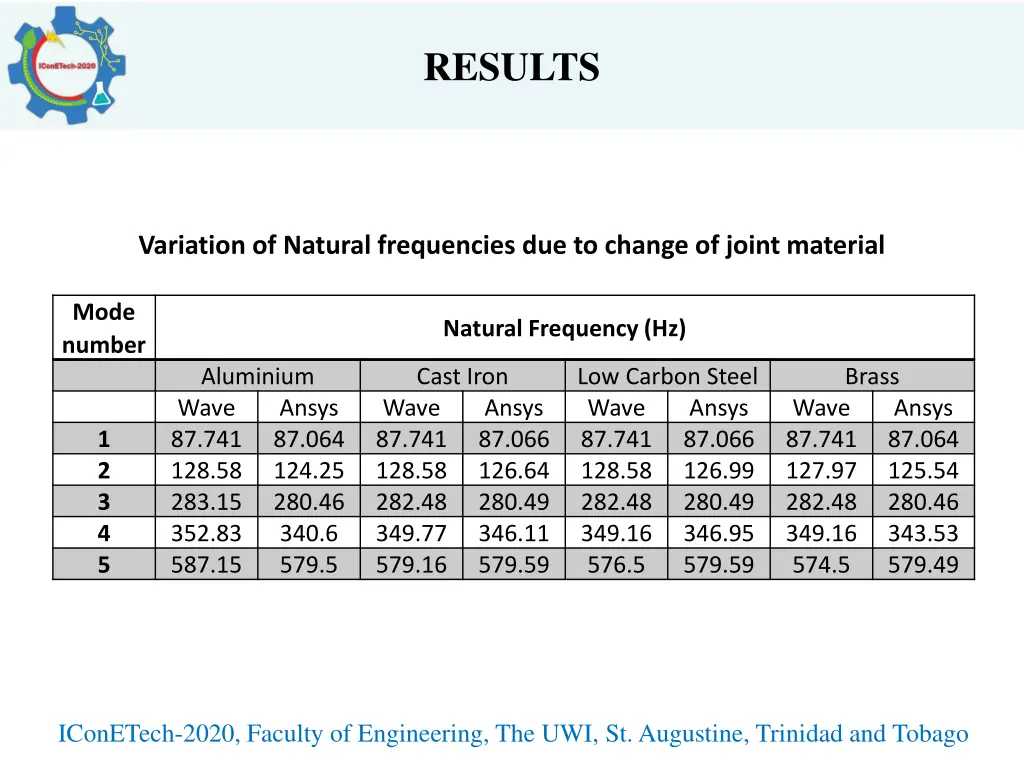

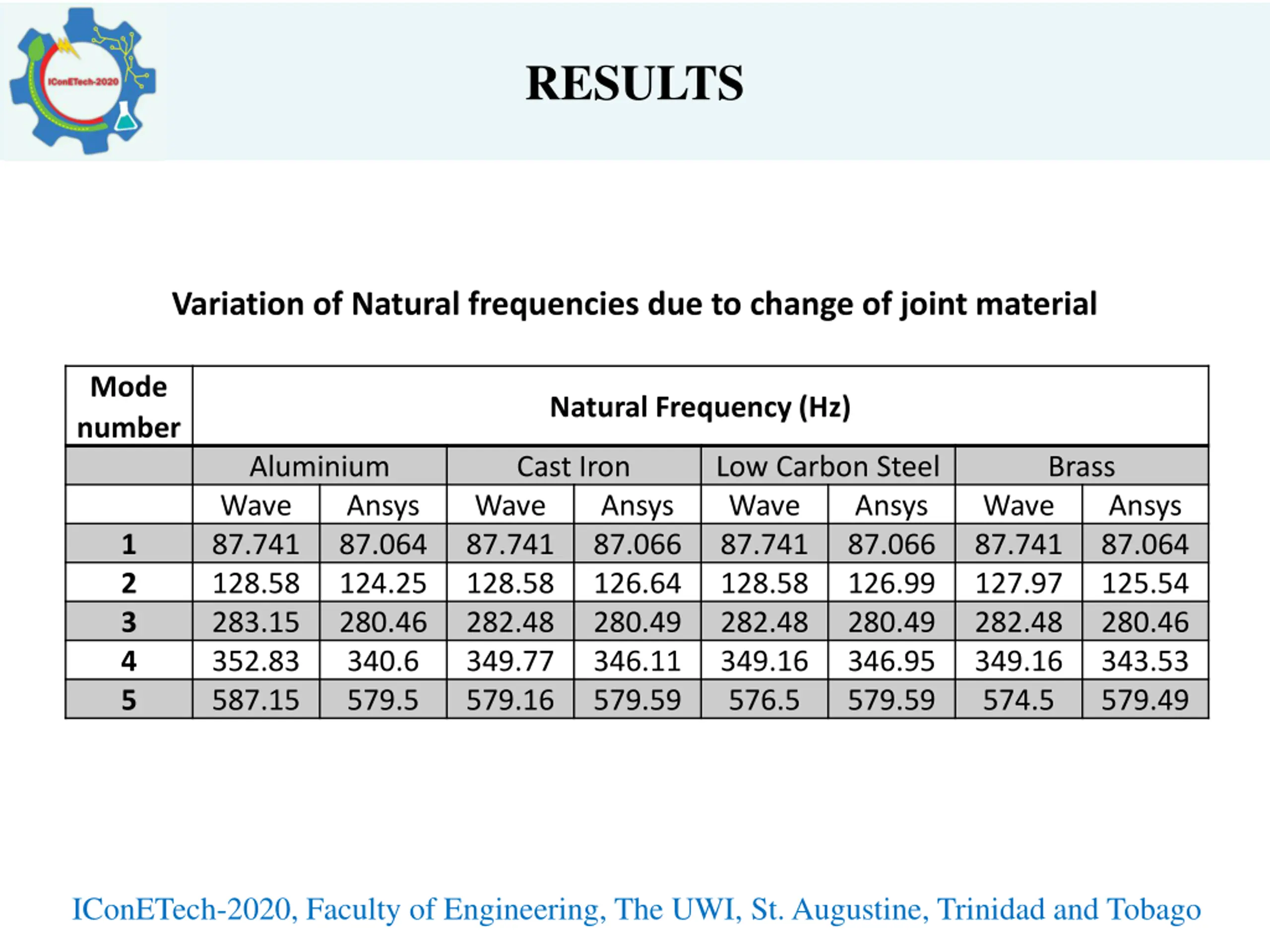

  14. RESULTS Variation of Natural frequencies due to change of joint material Mode number Natural Frequency (Hz) Aluminium Wave 87.741 128.58 283.15 352.83 587.15 Cast Iron Wave 87.741 128.58 282.48 349.77 579.16 Low Carbon Steel Wave 87.741 128.58 282.48 349.16 576.5 Brass Ansys 87.064 124.25 280.46 340.6 579.5 Ansys 87.066 126.64 280.49 346.11 579.59 Ansys 87.066 126.99 280.49 346.95 579.59 Wave 87.741 127.97 282.48 349.16 574.5 Ansys 87.064 125.54 280.46 343.53 579.49 1 2 3 4 5 IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

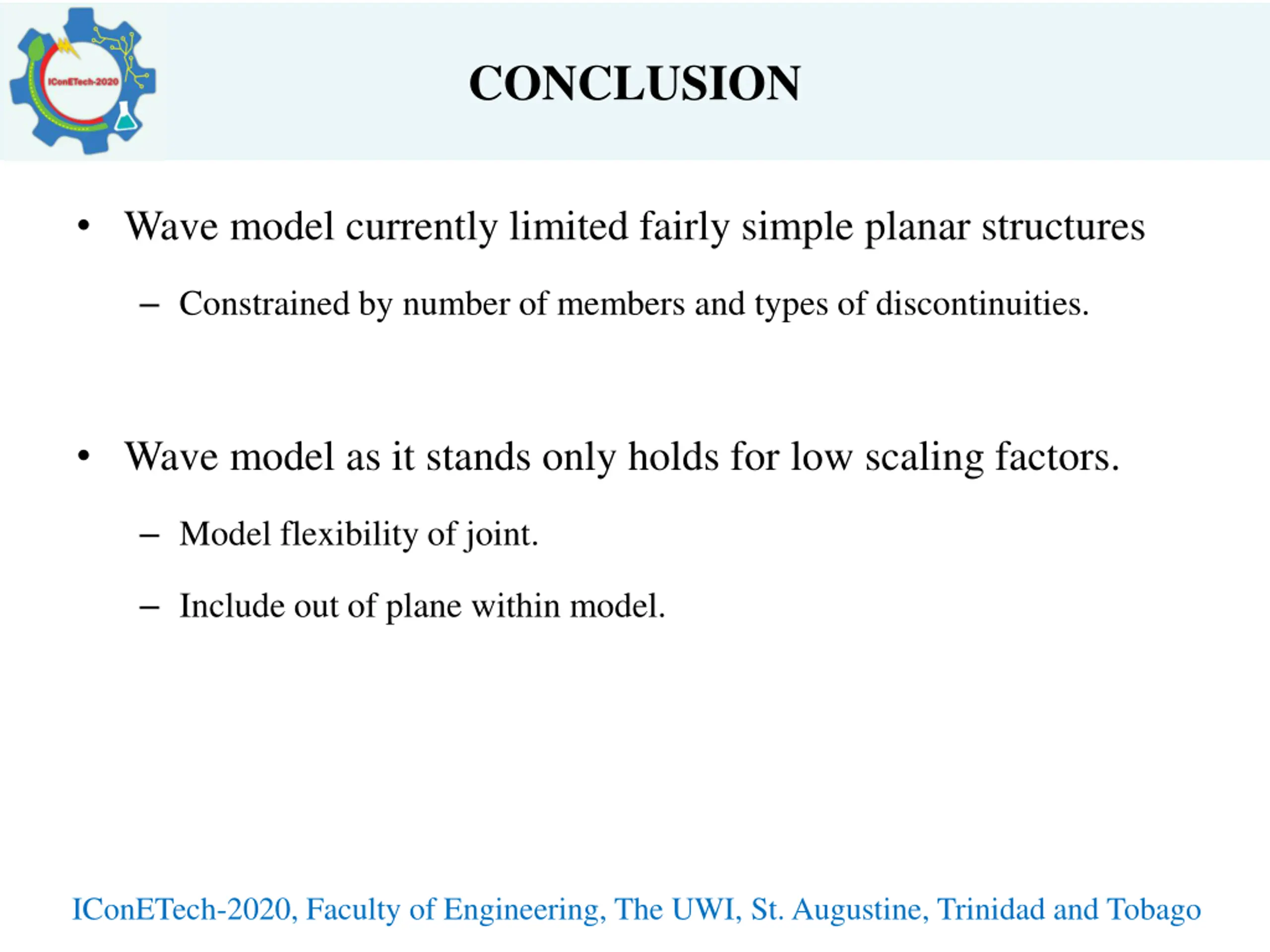

  15. CONCLUSION Wave model currently limited fairly simple planar structures Constrained by number of members and types of discontinuities. Wave model as it stands only holds for low scaling factors. Model flexibility of joint. Include out of plane within model. IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago

  16. THANK YOU! IConETech-2020, Faculty of Engineering, The UWI, St. Augustine, Trinidad and Tobago
