Individual Sewage Disposal System (ISDS) Construction Examples Slideshow for Conventional ISDS NOTE: The construction photos in this slideshow are not intended to provide detailed instructions on how to construct an ISDS but only to depict the types of systems allowed in Ventura County and to show some general construction techniques.

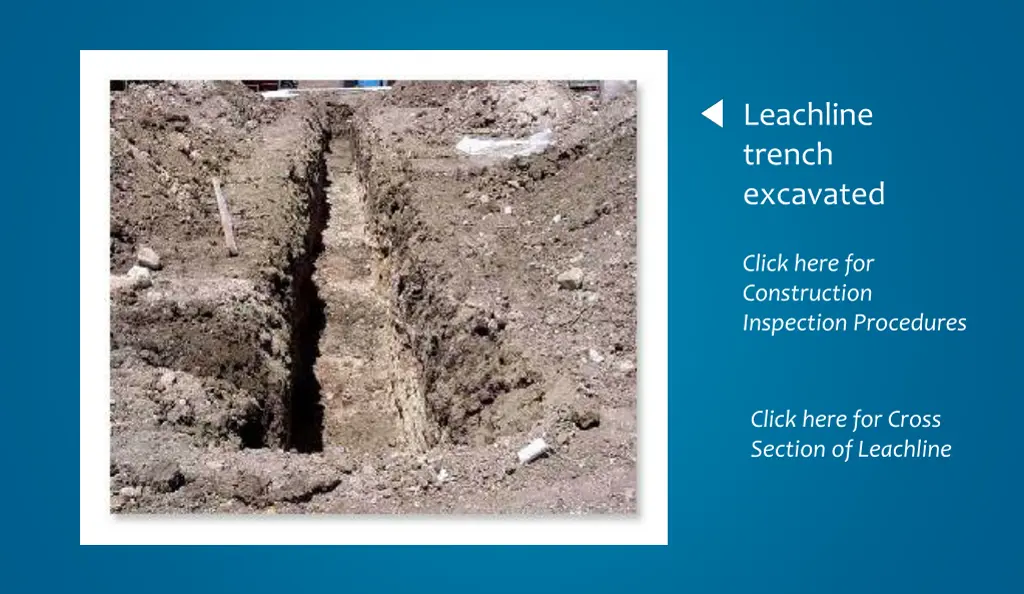

Leachline trench excavated Click here for Construction Inspection Procedures Leachline trench excavated Click here for Construction Inspection Procedures Click here for Cross Section of Leachline Click here for Cross Section of Leachline

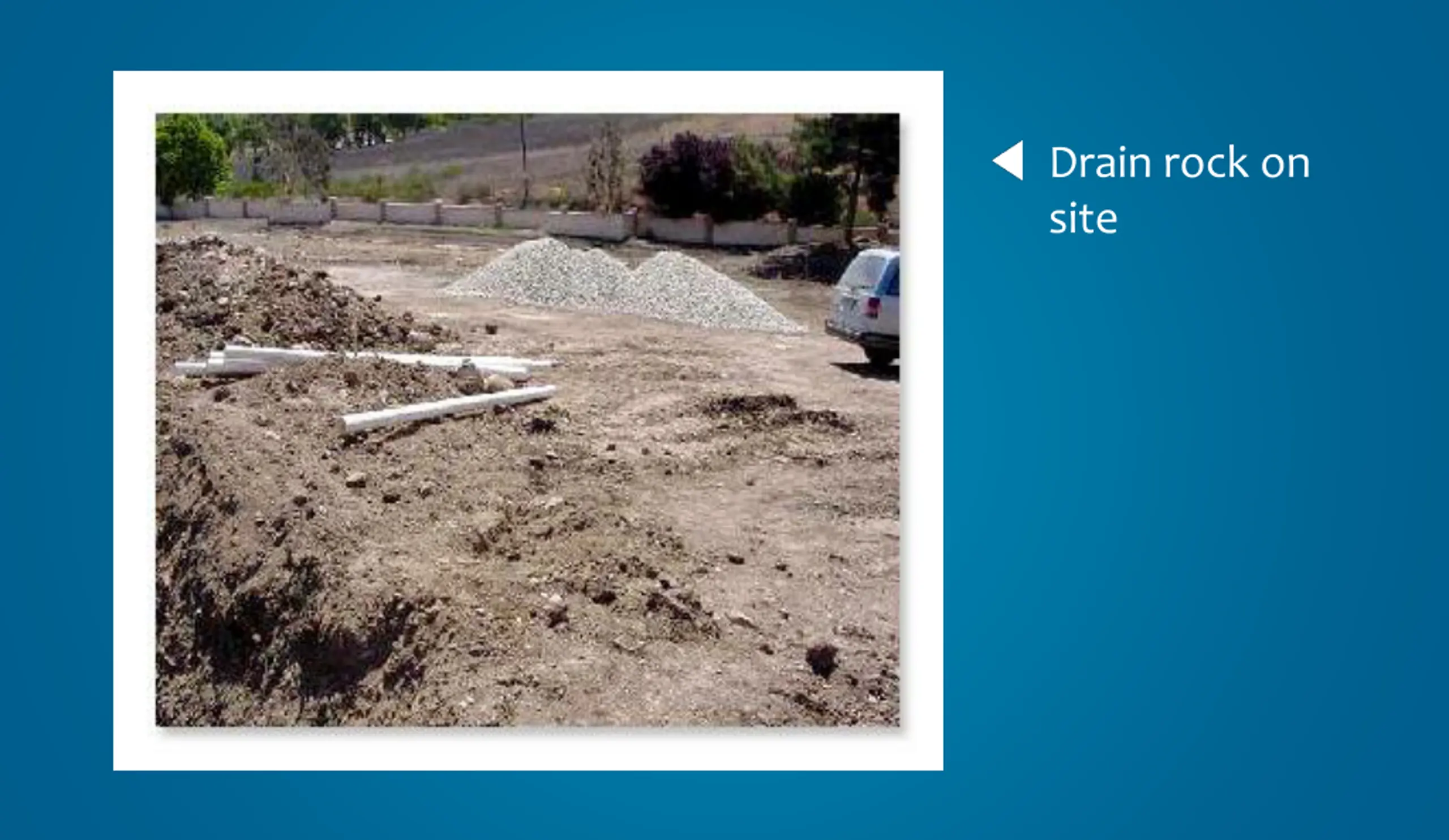

Drain rock on site

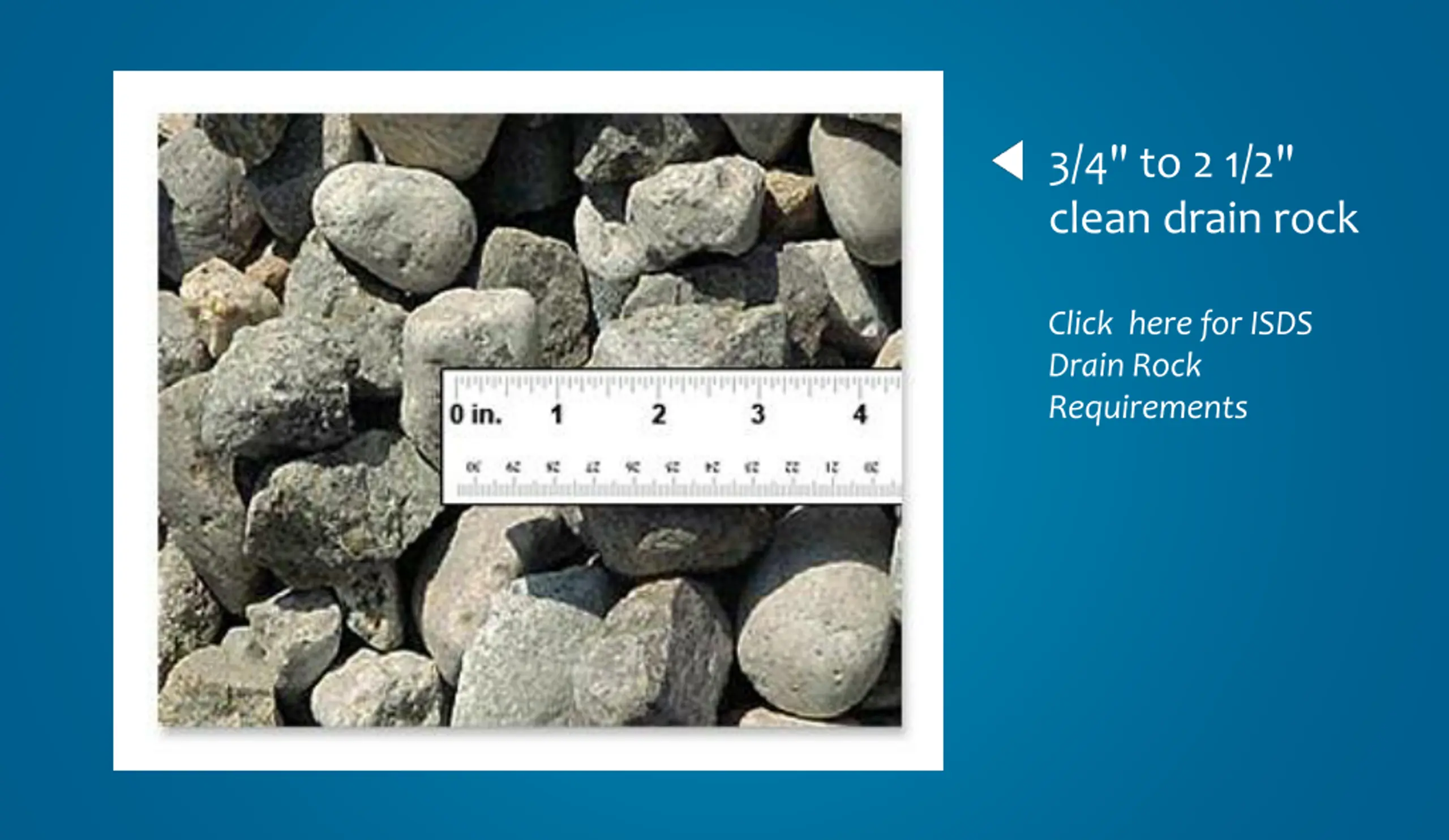

3/4" to 2 1/2" clean drain rock Click here for ISDS Drain Rock Requirements 3/4" to 2 1/2" clean drain rock Click here for ISDS Drain Rock Requirements

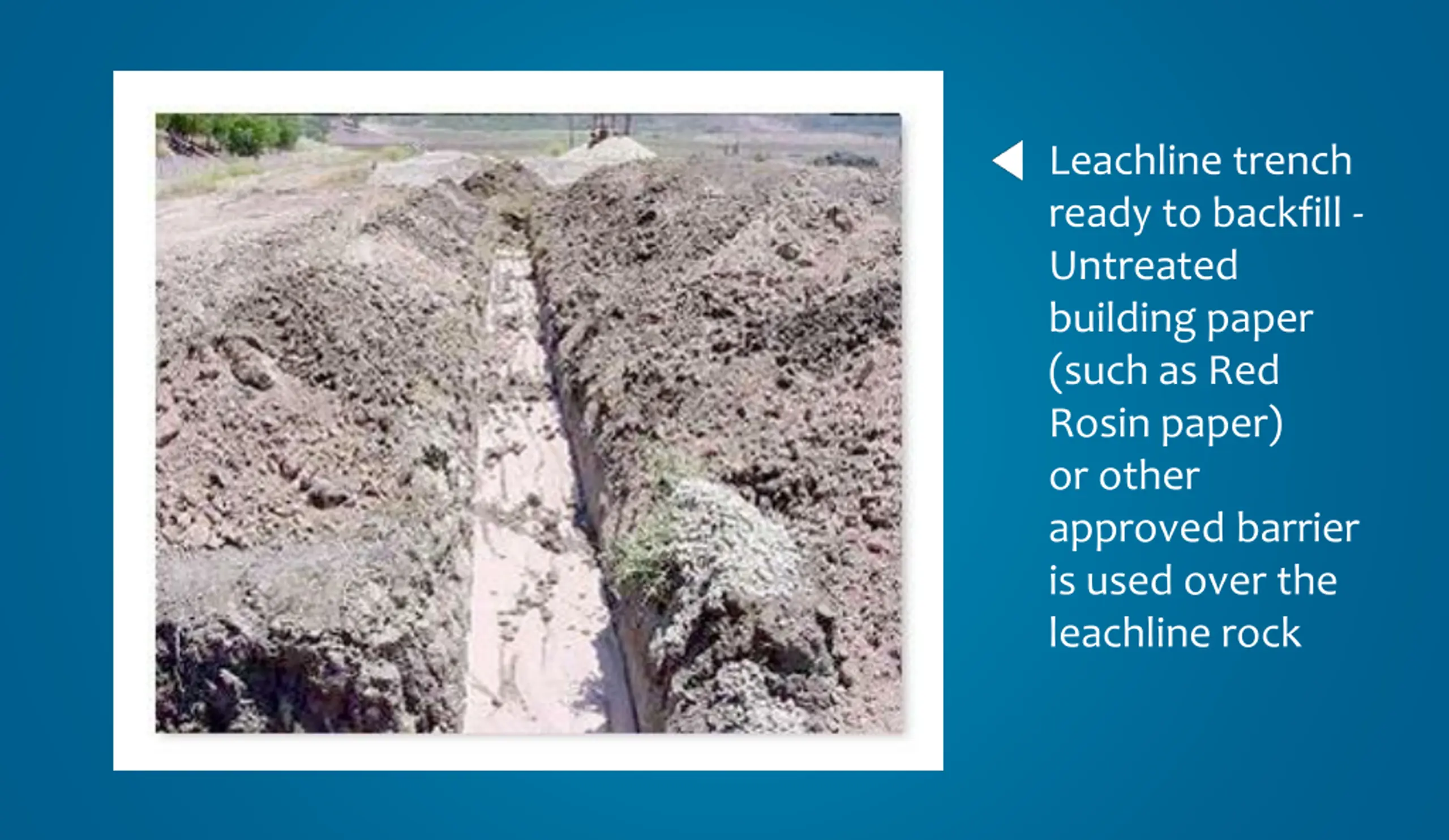

Leachline trench ready to backfill - Untreated building paper (such as Red Rosin paper) or other approved barrier is used over the leachline rock Leachline trench ready to backfill - Untreated building paper (such as Red Rosin paper) or other approved barrier is used over the leachline rock

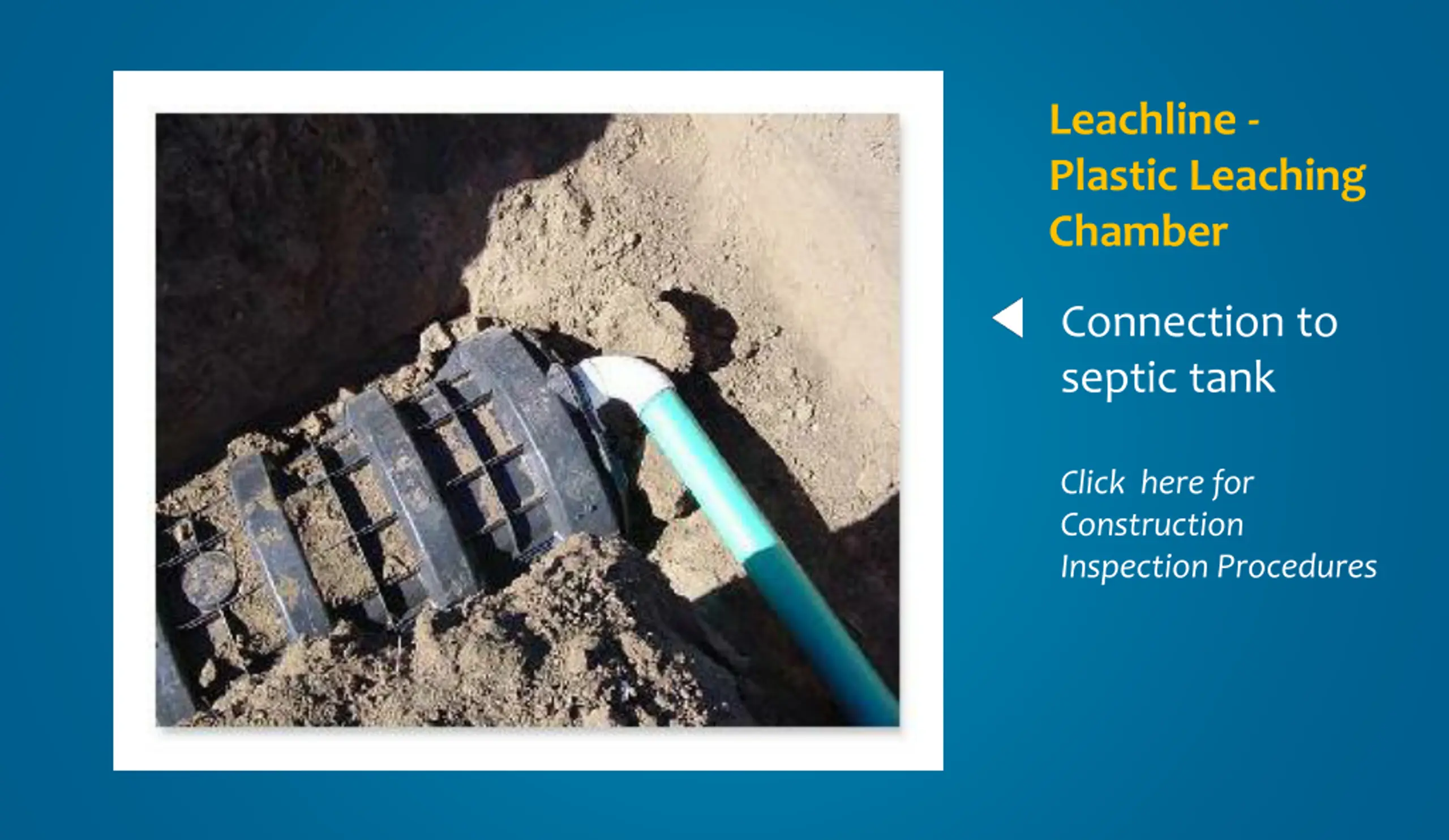

Connection to septic tank Leachline - Plastic Leaching Chamber Leachline - Plastic Leaching Chamber Connection to septic tank Click here for Construction Inspection Procedures Connection to septic tank Click here for Construction Inspection Procedures

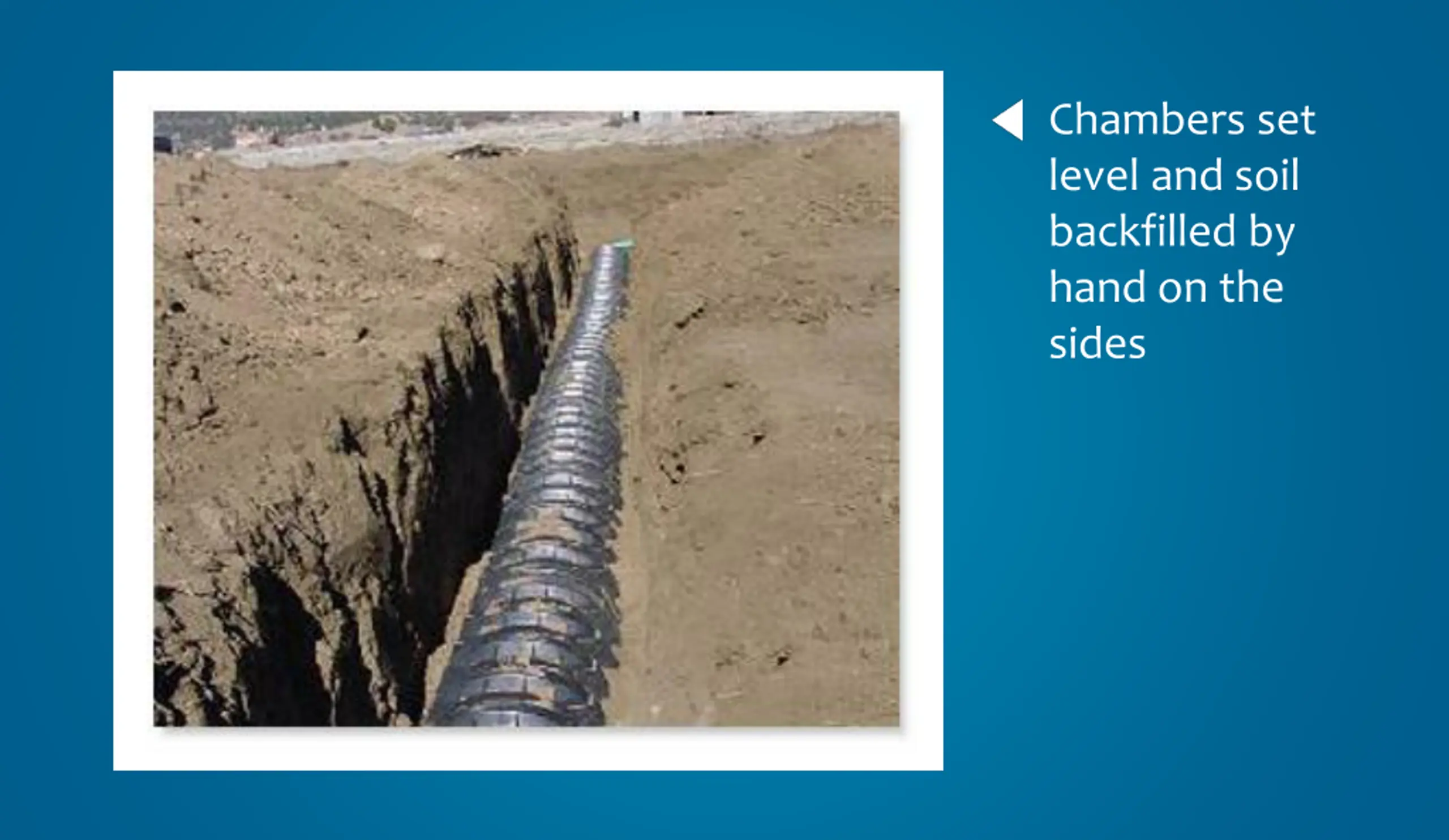

Chambers set level and soil backfilled by hand on the sides Chambers set level and soil backfilled by hand on the sides

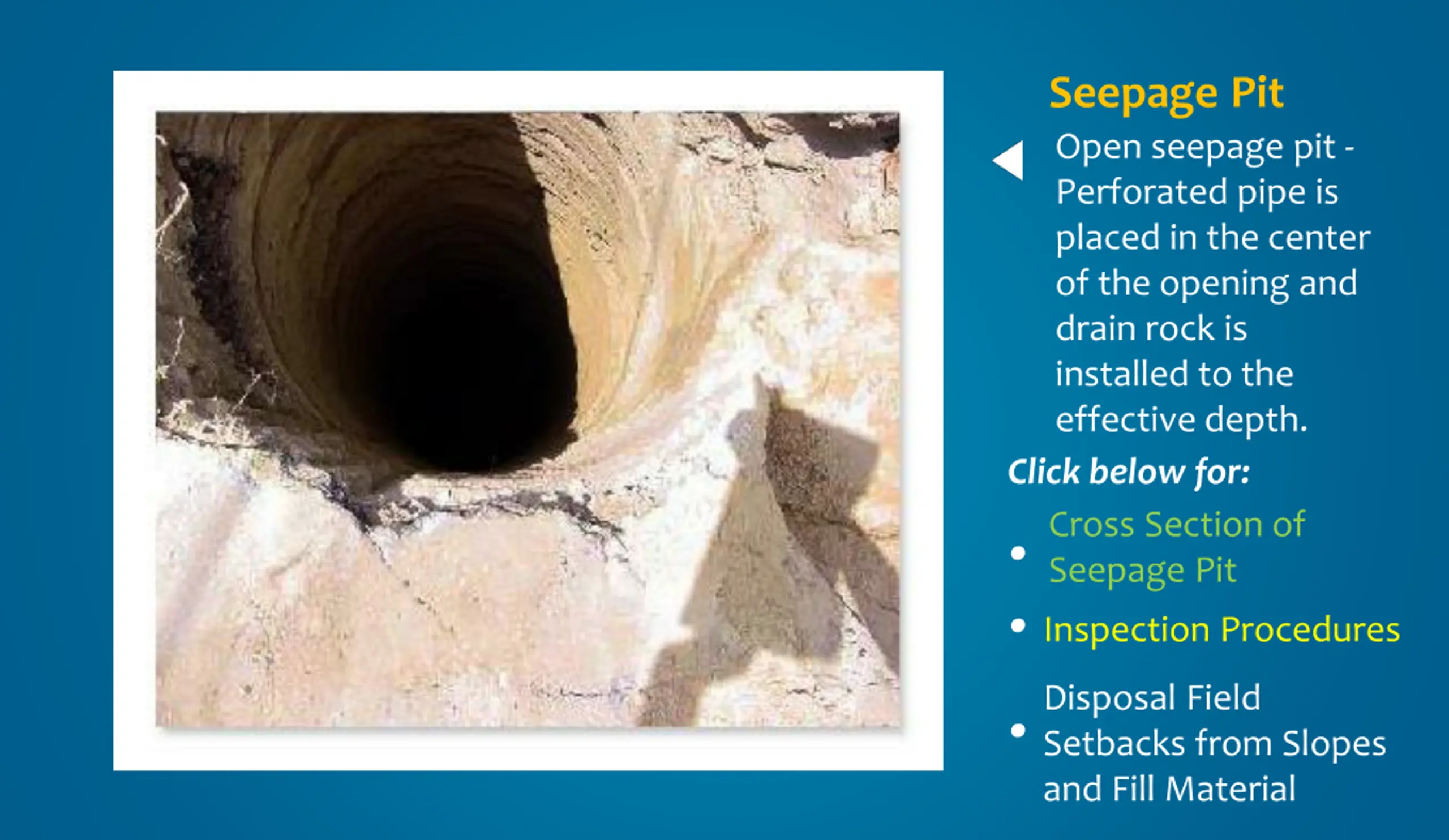

Seepage Pit Seepage Pit Open seepage pit - Perforated pipe is placed in the center of the opening and drain rock is installed to the effective depth. Open seepage pit - Perforated pipe is placed in the center of the opening and drain rock is installed to the effective depth. Click below for: . . . Cross Section of Seepage Pit Cross Section of Seepage Pit Inspection Procedures Inspection Procedures Disposal Field Setbacks from Slopes and Fill Material Disposal Field Setbacks from Slopes and Fill Material
3/4" to 2 1/2" clean drain rock Click here for ISDS Drain Rock Requirements 3/4" to 2 1/2" clean drain rock Click here for ISDS Drain Rock Requirements

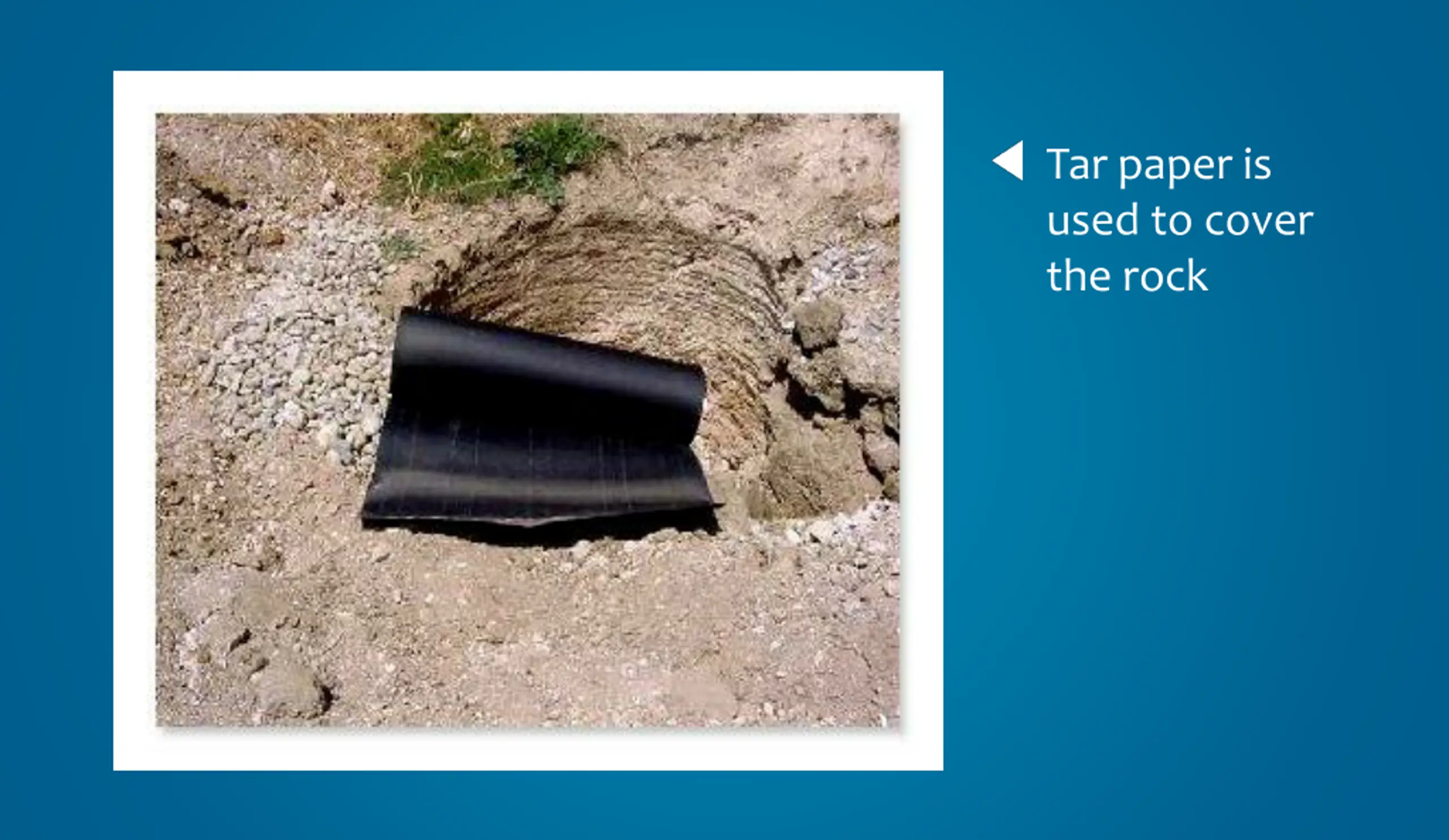

Tar paper is used to cover the rock

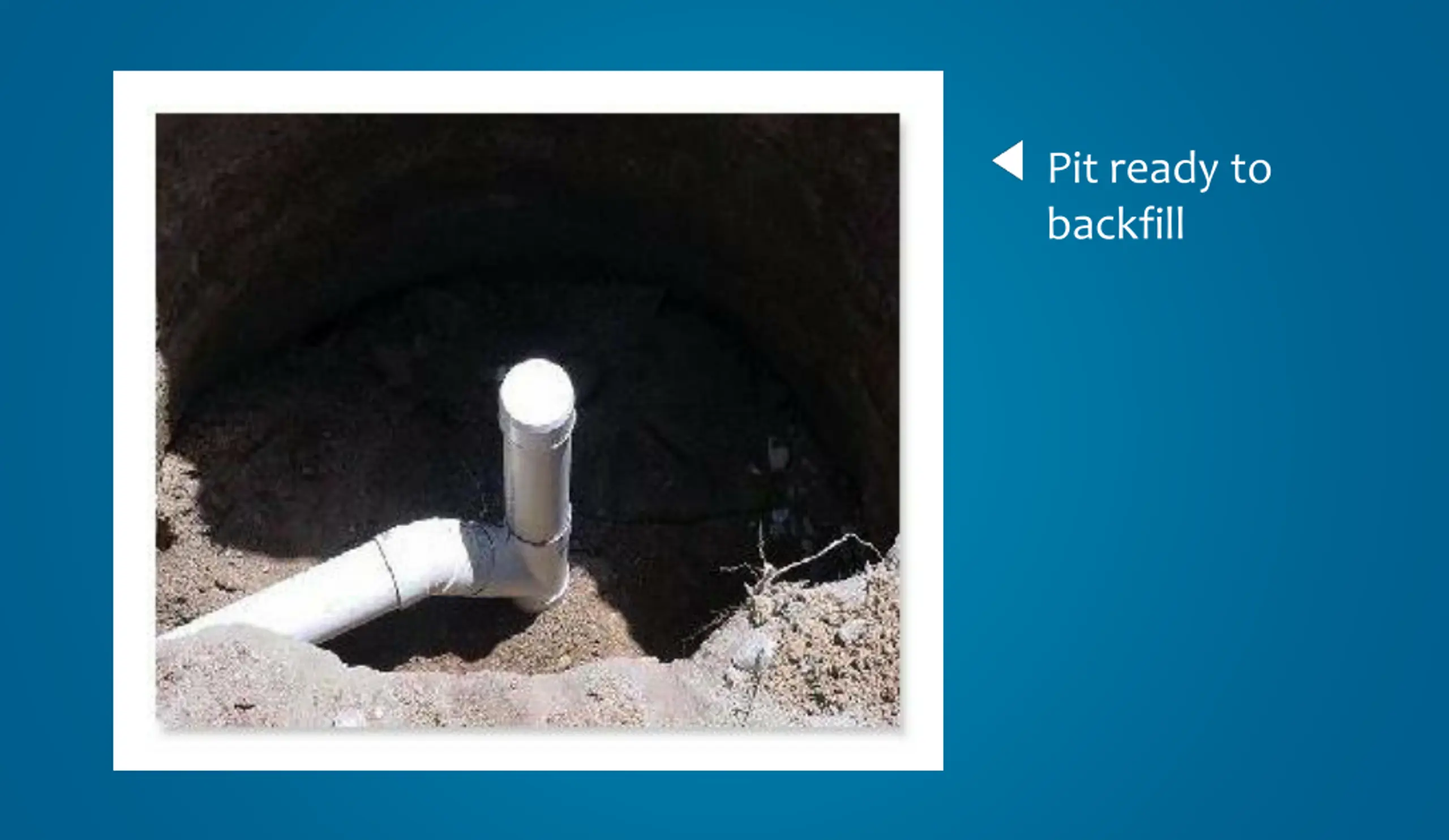

Pit ready to backfill
